Pride Mobility Go-Go Travel Lift User manual

Go-Go Travel Lift

An authorised Pride Provider or qualified technician must perform the initial setup of this
product and must perform all of the procedures in this manual.
The symbols below are used throughout this owner's manual and on the Go-Go Travel Lift to identify warn-
ings and important information. It is very important for you to read them and understand them completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow
designated procedures can cause either personal injury, component damage, or
malfunction. On the product, this icon is represented as a black symbol on a yellow triangle
with a black border.
MANDATORY! These actions should be performed as specified. Failure to perform
mandatory actions can cause personal injury and/or equipment damage. On the product,
this icon is represented as a white symbol on a blue dot with a white border.
PROHIBITED! These actions are prohibited. These actions should not be performed at
any time or in any circumstances. Performing a prohibited action can cause personal
injury and/or equipment damage. On the product, this icon is represented as a black
symbol with a red circle and red slash.
SAFETY GUIDELINES
NOTE: This owner’s manual is compiled from the latest specifications and product information avail-
able at the time of publication. We reserve the right to make changes as they become necessary. Any
changes to our products may cause slight variations between the illustrations and explanations in this
manual and the product you have purchased. The latest/current version of this manual is available on
our website.
Please fill out the following information for quick reference:
Pride Provider:______________________________________________________________________
Address:___________________________________________________________________________
Phone Number:__________________________
Purchase Date:__________________________ Serial Number:_____________________________
Copyright © 2007
Pride Mobility Products Corp.
INFMANU2803/Rev C/July 2007
088 609 661

3Go-Go Travel Lift www.pridemobility.com
CONTENTS
I. INTRODUCTION........................................................................................................................ 4
II. SAFETY......................................................................................................................................... 5
III. INSTALLATION .......................................................................................................................... 8
IV. OPERATION............................................................................................................................... 14
V. TROUBLESHOOTING............................................................................................................ 16
VI. WARRANTY................................................................................................................................17

4Go-Go Travel Lift
www.pridemobility.com
I. INTRODUCTION
SAFETY
WELCOMEtoPrideMobilityProductsCorporation(Pride).Theproductyouhavepurchasedcombinesstate-of
the-art components with safety,comfort, and stylingin mind.We areconfidentthat thesedesign features will
provideyouwiththeconveniencesyouexpect during your daily activities. Understandinghowtosafelyoperate
andcarefor this productshouldbringyouyearsof trouble freeoperationsandservice.
Readandfollowallinstructions,warnings,andnotesinthismanualand all otheraccompanyingliteraturebefore
attempting to operatethis product for the firsttime. In addition, your safetydepends upon you,as well asyour
provider,caretaker, or healthcare professional in using good judgement.
Ifthereisanyinformationinthis manual which you do notunderstand,or if you require additionalassistancefor
setuporoperation,pleasecontactyourauthorizedPrideProvider.Failuretofollowtheinstructions,warnings,
andnotesinthismanualandthoselocatedonyourPrideproductcanresultinpersonalinjuryorproduct
damageandwillvoidPride’sproductwarranty.
PURCHASER’S AGREEMENT
Byacceptingdeliveryofthisproduct,youpromisethatyouwillnotchange,alter,ormodifythisproductorremove
orrender inoperableorunsafeanyguards,shields, orothersafetyfeaturesofthis product;fail,refuse,orneglectto
installanyretrofitkits from timeto time providedby Pride toenhance or preservethe safe useof this product.
SHIPPING AND DELIVERY
Beforeusing yourTravel Lift,make sureyour delivery iscomplete assome components maybe individually
packaged.Ifyoudonotreceive a complete delivery,pleasecontactyourauthorized Pride Provider immediately.
Where damage has occurred during transport, either to the packaging or content, please contact the delivery
companyresponsible.
INFORMATION EXCHANGE
Wewanttohearyourquestions,comments, and suggestions about thismanual.We would alsoliketo hear about
the safety and reliability of your new scooter, and about the service you received from your authorized Pride
Provider.Pleasenotifyusof any change of address,so we can keep youapprisedof important information about
safety,newproducts,andnewoptionsthatcanincreaseyourabilityto use and enjoy your scooter.Pleasefeelfree
tocontact usatthe addressbelow:
USA:
PrideMobilityProductsCorporation
Attn:CustomerCareDepartment
182SusquehannaAve.
Exeter, PA18643-2694
[e-mail]
1-800-424-8250
NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact
us and we will be glad to send you a new one immediately.
Canada:
PrideMobilityProducts Company
380VansickleRoad Unit 350
St.Catharines, Ontario L2R6P7
1-888-570-1113

5Go-Go Travel Lift www.pridemobility.com
II. SAFETY
PRODUCT SAFETY SYMBOLS
The symbols below are used on the scooter to identify warnings, mandatory actions, and prohibited ac-
tions. It is very important for you to read and understand them completely.
Read and follow the information in the owner’s manual.
Pinch/Crush points created during assembly and/or operation.
Maximum lifting capacity.
Do not lift pets.
Do not lift people.
Do not lift scooter while seated in it.
Do not extend the lifting strap past the warning label.

6Go-Go Travel Lift
www.pridemobility.com
II. SAFETY
Avoid exposure to rain, snow, ice, salt, or standing water whenever possible. Maintain
and store in a clean and dry condition.
Disposal and recycling-Contact your authorized Pride Provider for information on proper
disposal of your Pride product and its packaging.
Disposal and recycling-Contact your authorized Pride Provider for information on proper
disposal of your Pride product and its packaging.
Only authorized personnel may service this equipment.

7Go-Go Travel Lift www.pridemobility.com
II. SAFETY
LIFTING CAPABILITIES
Themaximum weightthe Go-GoTravelLift wasdesigned to liftis 130 lbs. (60kg). Underno circumstances
shouldtheGo-GoTravelLiftbemadeto lift more than130 lbs. Subjectingthe Go-GoTravelLiftto the strainof
hoistingmorethanitisdesignedtoliftmaycauseittofail,damagingyourscooter,injuringthepersonoperatingthe
lift,orboth.
WARNING! Adding accessories, oversize batteries, or a different seat will increase the
weight of your scooter. Verify with your authorized Pride Provider that the total weight of
your scooter, after the additions, does not exceed 130 lbs (60 kg ).
INSTALLATION
YourGo-GoTravelLiftsystemwasdesignedto be mounted primarilyinavehicle.MountingyourGo-GoTravel
Liftonaplatform,wheretheheightofthelift maycausetheliftingstraptoextendbeyondasafepoint,candamage
theGo-GoTravelLiftand injurethe operatorof the lift.Thedistance between thetopof theboom armand the
scootershouldnot exceed 70in.(177.8cm) when theboom armis fullyextended.
Readand fully understandthedirectionsfordrillingthemountingholesforthe Go-GoTravelLiftbase.
WARNING! Before drilling the mounting holes in your vehicle, make absolutely certain,
through a visual inspection, there are no obstructions in the path of the drill bit, such as
the fuel tank, exhaust pipes, or electrical wires.
LIFTING NON-GO-GOTRAVEL LIFT ITEMS
TheGo-GoTravel Liftis an extremelyversatile device, whichusers may employto lift itemsother thanPride
products.Pridehasnocontrol over such use, nor can Pride anticipate every possible use towhichaGo-GoTravel
Liftmay beput. Lifting non-Prideproducts with theGo-GoTravel Liftis done atthe operator’sown risk,and
Prideaccepts no liabilityfordamageorinjuryresultingfromsuchuse.
PRELIFT INSPECTION
InspecttheliftingstrapoftheGo-GoTravelLiftbeforeeveryusefortwisting,fraying,andsignsofwear.Ifsignsof
wearbecomeevident, have thestrap replacedby yourauthorized PrideProvider.
WARNING! A frayed or worn lifting strap can snap, resulting in damage to the scooter
being lifted and injury to the lift operator.
To find the weightofthescooteryouare lifting, refer to its owner’smanual.
OPERATOR POSITIONING
KeephandsclearoftheliftingstrapwhiletheGo-GoTravelLiftislifting/loweringascooter.Theoperatorofthelift
shouldstandasafedistancefromtheunitbeinglifted/loweredtoensurethathis/herfeetareneverpositionedunder
araised scooter.
TRANSPORT VEHICLE POSITIONING
Besureyourvehicleis parked on flat, levelground before attempting tolift a scooter.
WARNING! Attempting to lift a scooter when a vehicle is not on level ground will cause the
scooter to swing toward or away from the vehicle, making it difficult to get the scooter
into the vehicle.

8Go-Go Travel Lift
www.pridemobility.com
III. INSTALLATION
Figure 2. L-Base (Hatchback Installation)
Figure 3. L-Base (Trunk Installation)
WHEELWELL

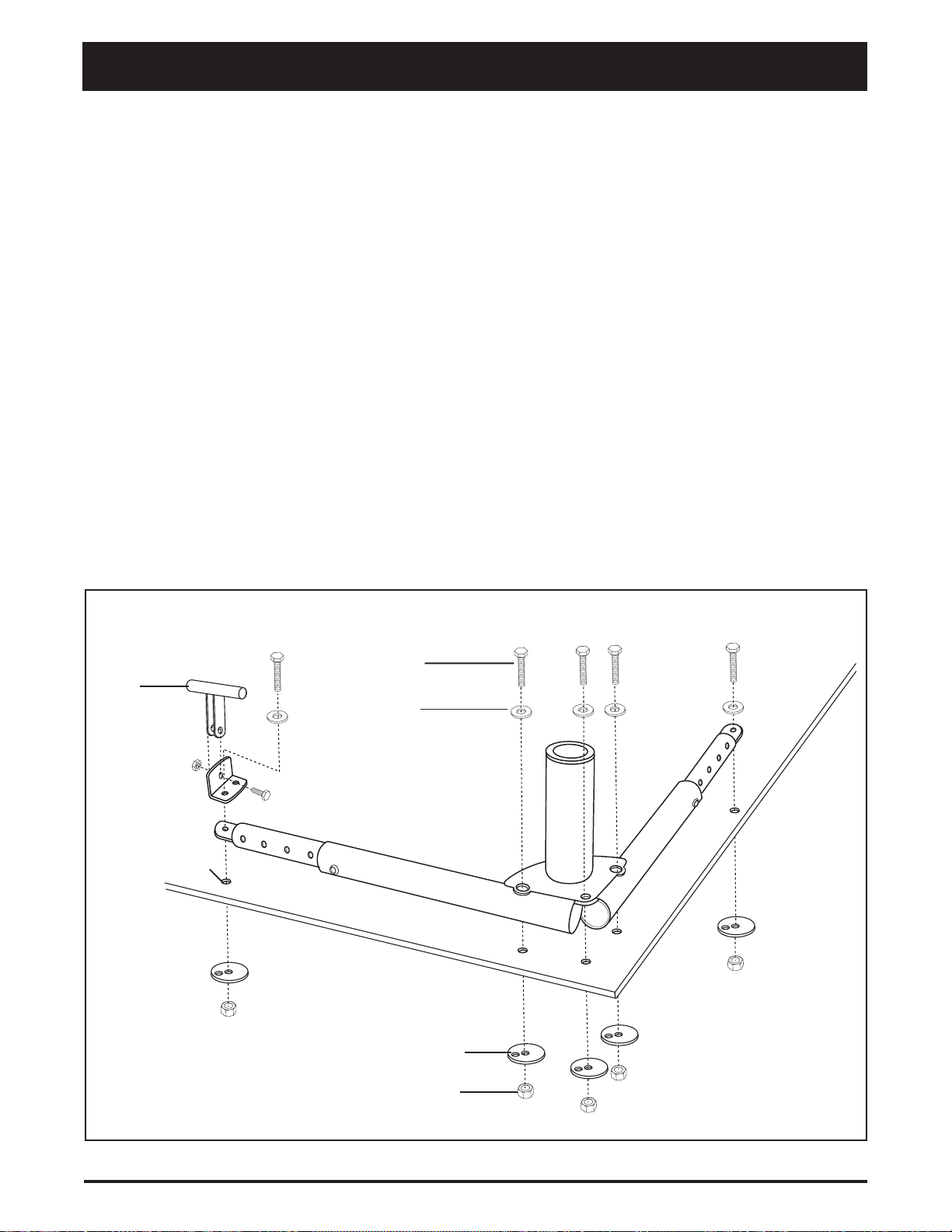

Figure 1. L-Base Extensions
BASE EXTENSIONS
NUT
L-BASE
BOLT
38 MM (1.5”)
!
!
TheGo-GoTravel Lift canbeinstalledineither side
ofyourvehicle.Theillustrationsdemonstrateinstalla-
tiononthe right side.
PROHIBITED! Avoid exposure to
rain, snow, ice, salt, or standing
water whenever possible. Maintain
and store in a clean and dry
condition.
NOTE: Most roads have a crown to help with
water runoff. However, if the crown is severe
enough, it may cause difficulty getting your
scooter into the vehicle. In this case it may be
better to install the lift on the left side.
DETERMINE L-BASE LOCATION
1. Assemble the L-Base. See figure 1. For opti-
mal use, insert the base extensions into the L-
baseat theirfarthestextension pointand install
the hardware (nuts and bolts). The base exten-
sionscan be adjustedtoaccommodate obstruc-
tions.
NOTE:Always insert the bolt from the inside of
the L-base. This allows the base extensions to
be properly tightened without rattling.
2. Beforepermanentlyinstallingthelift,placetheL-
baseinsideyourvehicleintheareainwhichyou
intend toinstall it. Seefigure2for L-base posi-
tioningin vehicles withhatchbacks, orfigure 3
fortrunkinstallation.
Positioning the L-base close to the rear allows the
boom-arm to stay as short as possible; this enables
theboomarmtoswingfreelywithoutmakingcontact
withthevehicle.
VEHICLES WITH TRUNKS
Position the L-base as shown in figure3.Youmay
needto situate theL-baseso the wheelwelldoesn’t
interferewiththeL-base extensions. Ensure thereis
adequateroom fora scooterto comfortably fitinto
thetrunk.

9Go-Go Travel Lift www.pridemobility.com
Figure 6. Motor Housing Installation
L-BASE
UPPER POST
SPLIT RING COLLAR

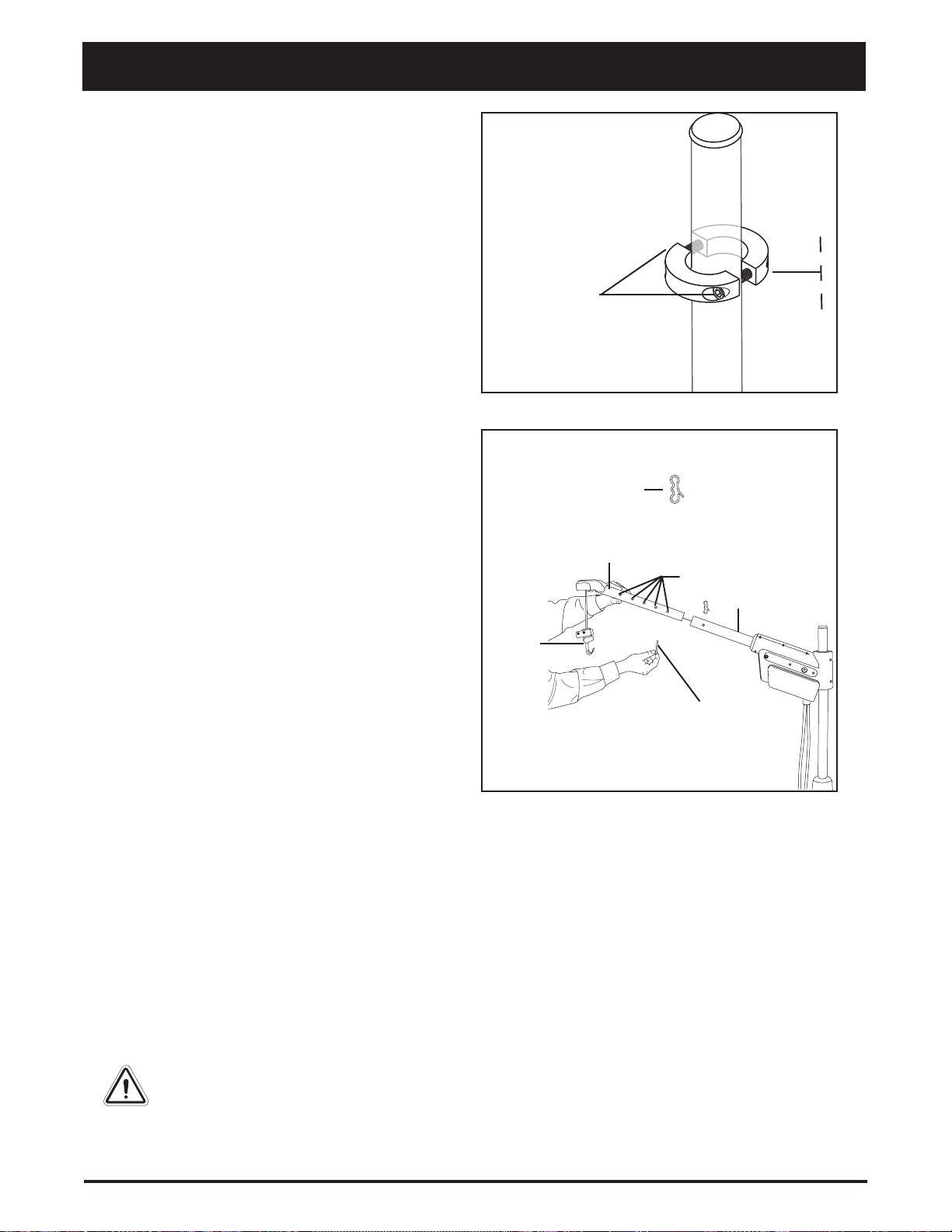

Figure 4. Upper Post Installation
!
!
MINIMUM OF 5” (12.5 CM)
Figure 5. Split Ring Collar Assembly
2.INSERT SCREWS ANDTIGHTEN
1. BRING RING HALVES TOGETHER
III. INSTALLATION
ASSEMBLING THE LIFT
1. InserttheupperpostintotheL-base.Seefigure4.
2. Assemblethesplit ring collar.Seefigure5.
3. Slide the split ring collar over the upper post
and tighten both screws (a good starting point
is approximately 12in.(30cm).down from the
top of the upper post). See figure 4. To en-
sure safe operation, the split ring collar must
be secured no closer than 5in.(12.5 cm) from
the top of the upper post.
WARNING! Failing to tighten both
screws of the split ring collar
could cause damage to your lift,
scooter, and vehicle.
NOTE: The split ring collar may need to be ad-
justeddown sothe boomarm hassufficient head
room to swing into a vehicle, or adjusted up so
the scooter being lifted has ample room to clear
obstructions.
4 . Lowerthemotorhousingovertheupperpostuntilit
restsonthesplitringcollar.Seefigure6.
WARNING! Pinch/Crush hazard!
Keep hands clear of the upper post
when lowering the motor housing.
WARNING! The lift will be top
heavy until mounted securely. Get
assistance to help stabilize the lift
while swinging the boom arm.
VEHICLES WITH HATCHBACKS - MINI
VANS, STATION WAGONS, ETC.
Oncethelift isassembled andseated onthe L-base,
close the hatch slowly to make sure the lift doesn’t
makecontactwithit. If the lift is too close to therear,
adjustitspositionslightlyuntilthehatchcanclosewith-
outmaking contactwith the lift.Positioning theL-
baseclosetotherearallowstheboom-armtostayas
shortas possible.Thisenables theliftto swinginto
thevehiclewithout contacting the farside ofthe ve-
hicle.
Youmayneedtoadjusttheheight ofthemotorhous-
ing(seefigures6 and7) or thelengthof the boom-
arm(seefigure8)so the boom arm can swing freely
withouthittingatanypointinsidethevehicle.

10 Go-Go Travel Lift
www.pridemobility.com
ADJUSTMENTPIN
TOPTUBE
LIFTING
HOOK
ADJUSTMENTHOLES
BOTTOM TUBE
!
!
Figure 7. Split Ring Collar
Figure 8. Boom Arm Adjustment
SCREWS
BOW TIE COTTER PIN
SECURE NO CLOSER THAN 5”
(12.5 CM) FROMTHETOP OF
THEPOST.
III. INSTALLATION
SPLIT RING COLLAR ADJUSTMENT
Thesplitringcollaristheheightadjustmentforthemotor
housing.See figure 7. The placement of the split ring
collardeterminestheheightofthemotor housing.
"Lower the collar when more room is needed over-
headtoswingtheboomarminside a vehicle.
"Raise the collar when more height is needed to en-
ablea scooterto belifted into atrunk.
To adjustthesplitringcollar:
1. Loosen thetwo screws on thecollar. Seefigure7.
2. Raiseorlowerthecollartotheheightyoumayneed.
3. Tightenthescrews
BOOM ARM ADJUSTMENT
Before adjusting the boom arm, lower the lifting hook
about12 in.(30cm).Thiswill provideenough slack in
the strap to enable the adjustable portion of the boom
arm (top tube) to be pulled out of the bottom tube to its
farthestadjustment hole. See figure8.
To adjusttheboomarm:
1. Removethe bowtiecotter pinfromthe adjustment
pinandremovethe adjustment pin.
2. Slidethetop tube inor out tothe desired adjustment
hole.
3. Aligntheadjustmentholesofthetopandbottomtube
andreinsertthe adjustment pin.
NOTE: Do not force the pin into the adjustment
hole. Be sure that the strap is not pinched when
inserting the pin.
4. Reinstallthebowtiecotterpin.
L-BASE INSTALLATION
Afterdeterminingthe ideal spotfor yourlift tobe permanentlymounted, removethe entirelift fromthe vehicle
exceptfor theL-base.
1. Inspecttheundercarriage ofthe vehiclewhere thelift L-baseis locatedfor obstructionsthatmayhinder the
installationofthefive(5)mountingboltsthatwillsecuretheL-basetothevehicle.Obstructionsmayconsistof
electricalwiring,gas tank, bumpermounts,orexhaust pipes.Youmay need toadjust thebase extensionsto
clearobstructions.Ifpossible, install theL-base with thebase extensionsfully extended. Seefigure9.
WARNING! The bumper mounts on some vehicles are gas pressured. DO NOT drill into
them. They may explode casing severe injury.

11Go-Go Travel Lift www.pridemobility.com
III. INSTALLATION
Figure 9. Securing The L-Base
T-BAR
MOUNTING BOLTS
50 MM (2”) OR
75 MM (3”)
MOUNTING WASHER
NUT
WASHER
MOUNTING HOLE
2. IfallisclearundertheL-base,markthepositionofthefive(5)mountingholesanddrillthemusinga3/8-in.drill
bit.Drill all mounting holesfrominsidethevehicle.Seefigure9.
3. ReinstalltheL-baseandalignthemountingholesoftheL-basewiththeholesyoujustdrilled.
4. PositiontheT-bar onthe end ofthe base supportthat runsparallelwith therearof thevehicle,and installa
mounting bolt andwasher through it andthe L-base. Seefigure9.
NOTE: The T-bar need only be installed in van or SUV installations. When the lift is installed inside
a trunk, it is necessary to remove the motor housing and upper post for the trunk to close.
5. Installthefour(4)remainingmountingboltsandwashersontotheL-base.
NOTE: Choosing the correct length bolt allows enough bolt-thread to pass through the undercarriage,
ensuring enough room for the mounting washer and nut to be installed securely.
6. Fromunderthe vehicle, installthe mounting washersand nuts toall five (5) mountingbolts and tighten.See
figure9.
NOTE: The two holes in the mounting washers are for working around obstructions. Choose the hole
that best works in the area you are installing the mounting bolts.

12 Go-Go Travel Lift
www.pridemobility.com
III. INSTALLATION
Figure 10. L-Base Cap
L-BASE CAP
PHILLIPS HEAD SCREW
10 MM
Figure 11. Fully Assembled Lift
L-BASE
UPPER POST
L-BASE CAP
MOTOR HOUSING
T-BAR
ELECTRICAL WIRING INSTALLATION
1. Routethelift’s longredpositive(+)powerwire (startingatthelift)throughthe interiorofthevehicleuntilyou
reach the automobile battery. See figure 12. Conceal the wire behind or under the interior panels (there
shouldbeexisting holes). Be certainthatthewireisprotectedwitharubbergrommetwhen passing it through
the metal panels and into the engine compartment. Inside the engine compartment, secure the wire to the
firewallandthe inner fender withthe suppliedplastic wire ties.Use carenot to causeabrasions to thepower
wire.Itisimportant to securethe power wireat various pointsalong itsrun.
WARNING! The red positive (+) wire must be connected directly to the positive (+) battery
terminal.
2. Connecttheshort portion (with fuse)of thered positive (+)power wire tothe positive(+) battery terminal.
3. Inserttheendofthelongportionoftheredpowerwireintotheyellowconnectoroftheshortportionandcrimp
itsecurely.Oncecrimped, pull on the wiregently to ensure a goodconnection. Wrapping the connectorwith
electricaltape willhelppreventmoisturefromcorrodingthe connection.
7. Place the L-base cap over the L-base and secure it with the supplied screws. See figure10.
8. Reinstalltheupperpost.
9. Reinstallthemotorhousingandmakeadjustmentsasnecessary.
Theliftisnow fully assembled. Seefigure11.

13Go-Go Travel Lift www.pridemobility.com
III. INSTALLATION
ROUTE RED (+) POWER WIRE
TO BATTERY
BLACK (GROUND) WIRE
ATTACH TO CLEAN, BARE METAL
IN CLOSE PROXIMITYTO LIFT
BLACK - RED
POWER
HARNESSES
AUTOMOBILE
BATTERY
MOTOR HOUSING

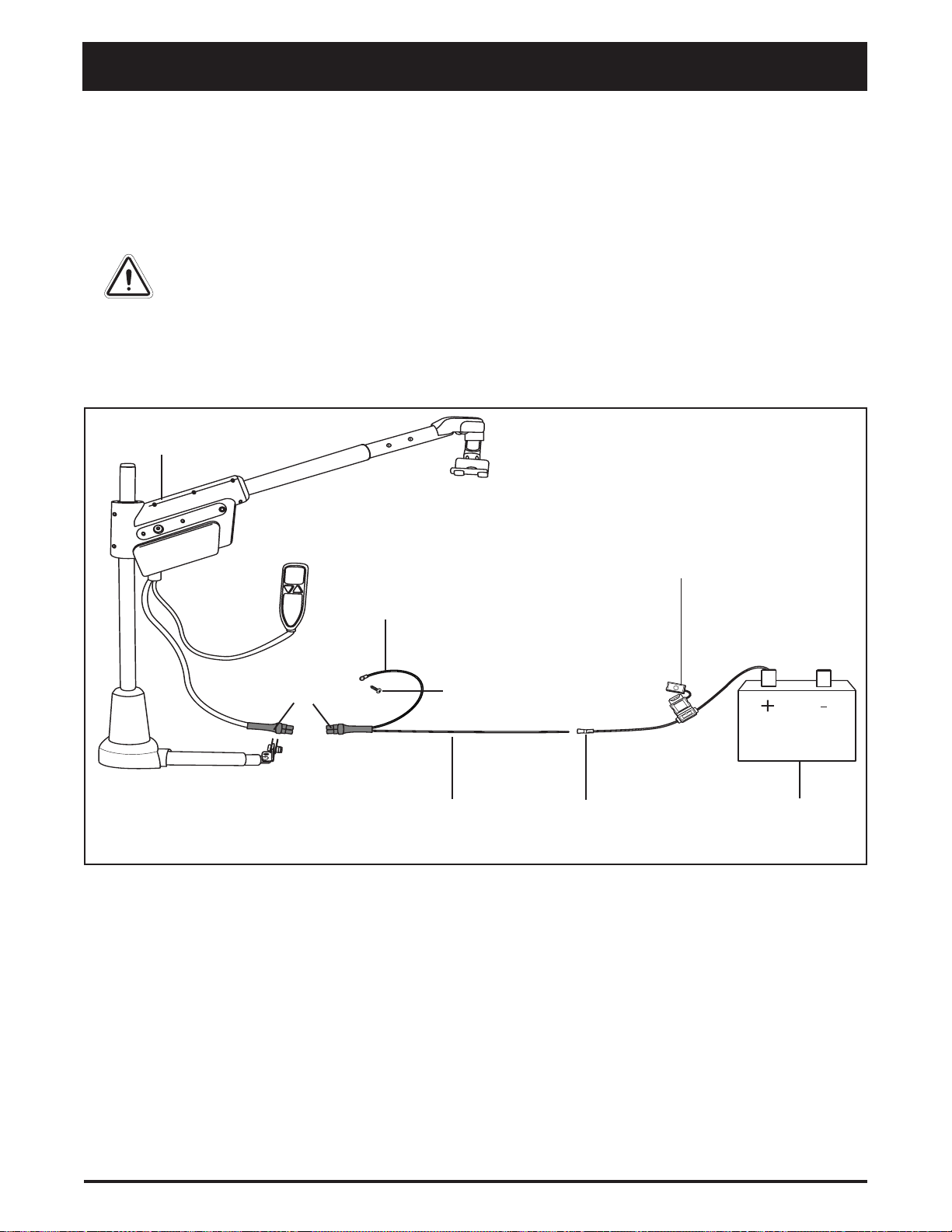

Figure 12. ElectricalWiring Connections
SHEET METAL SCREW
12 MM (1/2”)
CONNECTOR
(USE PLIERS OR CRIMPING
TOOLTO CRIMP)
FUSE
25-AMP
4. Connecttheshortblack(ground)wire toaclean,baremetalareaofthe vehicleusingthe12mm(1/2in.) sheet
metalscrewprovided.Mount to anarea close tothe base ofthe lift. Thisallows adequate slackin the wireto
maketheharnessconnections.
"Drilla1/16-in.pilotholewheretheground wire will be attached tothevehicle.
"Insertthescrewthrough the ringat the endof the black(ground) wire andinstall the screwinto the
pilothole.
WARNING! DO NOT attach the black (ground) wire to the lift.
5. Connect the harness of wires leading to the battery and ground to the harness that extends from the motor
housing(black toblack andred to red).

14 Go-Go Travel Lift
www.pridemobility.com
IV. OPERATION
Figure 13. Hand Control
PRESSTO OPERATE LIFT IN
A DOWNWARD DIRECTION PRESS TO OPERATE LIFT INAN UPWARDDIRECTION
DOWN UP
Figure 15. Lifting StrapWarning Label
DOCKING DEVICET-BAR
LIFTINGHOOK
Figure 14. Lifting Hook Placement
LIFTINGTHE SCOOTER
WARNING! Before operating the
Go-Go Travel Lift for the first time,
be absolutely sure you have the
proper docking device for your
scooter.
1. Positionyourscooter(withthekeyremoved and
thetiller lowered)on the groundbehind thein-
stalledlift. Be surethat thereisample space be-
tweenthescooter and thevehicle bumper toen-
surethatthescooterwillnothitthebumperwhile
being raised. If the scooter is too far from the
vehicle’s bumper, the scooter will be dragged
whenattemptingtoliftit.
2. Positionthe boom armover thescooter.
3. Operate the lift (use the hand control—seefig-
ure13) inthedownwarddirection until thelift-
inghook reaches theT-bar.Theliftstrap should
drop straight down to the T-bar. Seefigure 14.
WARNING! Inspect the lifting strap
before each use for twisting,
fraying, and signs of wear.
"Keeptensionon the liftingstrapwithyour
freehandwhenloweringtheliftinghook.
"Lowertheliftinghookonly to the T-bar of
thedockingdevice.
WARNING! Do not extend the
lifting strap past the warning label
located on it. See figure 15.
4. PlacetheliftinghookontothedockingdeviceT-
bar. See figure 14.
5. Operatetheliftinthe upward direction.
WARNING! Pinch/Crush Hazard!
Always keep hands clear of the
lifting strap while the SilverBoom
is lifting/lowering a mobility
device. The operator of the lift
should stand a safe distance away
from the mobility device being
lifted/lowered to ensure that feet
are never positioned under a raised
mobility device.

15Go-Go Travel Lift www.pridemobility.com
IV. OPERATION
Donotdragthescooterintopositionusingthelift. If
dragging occurs, your scooter is too far away from
thevehicle.
To preventdragging:
"Releasetheliftingstraptensionthenremove
thehookfromthedocking device.
"Correctthe position ofthescooter.
"Attempttheliftagain.
MANDATORY!Themaximum weight
the Go-Go Travel Lift was designed
to lift is 130 lbs. (60 kg).Subjecting
the Go-Go Travel Lift to the strain
of lifting more than it is designed
to may cause it to fail, damaging
your scooter, injuring the person
operating the lift, or both.
6. Ifthe scooterbegins to tilt,lower itcompletely
andadjustthedockingdevicebymovingthepick-
up bar in the direction of the tilt (when using a
C-arm).
7. Tighten the pick-up bar once the proper balance
pointhas beenfound(whenusingaC-arm).
8. Oncethescooterisraised high enough to fit into
thevehicle, stop thelift.Seefigure16.
9. Swingthe boom armtowardthe vehicle. When
thescooterissecurelyinthevehicle,lowerthelift
strap until all of the scooter’s wheels are on a
solidsurface. Figure 17. SecuringThe Boom Arm
Figure 16. LiftingThe Scooter
10. If installed in a van, disconnect the hook from the docking device and attach it to the T-bar on the base
extension.(Thispreventstheboomarmfromswingingfreelywhiletheautomobileisinmotion.)Operatethelift
intheupward directionuntil thestrap issnug. Seefigure17.
WARNING! When transporting the lift, secure the boom arm to prevent it from rotating in any
direction. A swinging boom arm can be a hazard. If you can’t secure the boom arm to
prevent it from swinging freely, remove the motor housing and lay it flat inside the vehicle.
WARNING! Do not overtighten the strap. Doing so may put unwanted strain on the motor,
causing the circuit breaker to trip.
NOTE: If installed in a trunk, disconnect the black-red power harness (see figure 12) and remove the
motor housing and upper post and place it in an area where it will be secure. The height of the boom
arm will not allow the trunk to close.
11. DisconnectthepowertotheGo-GoTravelLifttopreventanyaccidentalmovementwhentransportingyourscooter.
WARNING! Your Go-Go Travel Lift was designed to be mounted primarily in a vehicle.
Mounting your Go-Go Travel Lift on a platform, where the height of the lift may cause the
lifting strap to extend beyond a safe point, can damage the Go-Go Travel Lift and injure
the operator of the lift.

16 Go-Go Travel Lift
www.pridemobility.com
V. TROUBLESHOOTING
LIFT WILL NOT OPERATE
"Check the circuit breaker reset button. Reset if
necessary. See figure18.
"Ensureallharnessconnectionsaresecure.
"Ensure the power wire leading to the positive
batteryterminalistightandnotcorroded.
"Check the fuse located on the red power wire
near the battery. If blown, replace with a new
25-amp fuse. See figure 19.
WARNING! Do not use a higher
rated fuse than 25-amp. Doing so
may damage the lift’s electrical
system.
LIFT STOPS OPERATING
IfyourGo-GoTravelLiftisheavilystrainedbecause
ofexcessiveloads,the main circuit breaker(seefig-
ure18)maytriptoprotectthemotorandelectronics
fromdamage.Whenthebreakertrips,theentireelec-
tricalsystem shuts down.
WARNING! Never attempt to lift
more than 130 lbs. (60 kg) with the
Go-Go Travel Lift.
CIRCUIT BREAKER RESET
BUTTON
Figure 18. Circuit Breaker Reset Button
Figure 19. Fuse Replacement
WORKINGFUSE BLOWN FUSE
Toresetthe maincircuitbreaker:
1. Allowaminute or so for theelectronicsto “cool.”
2. Pushin thereset buttonto reset thebreaker.
Ifthebreakertripsfrequently, contact yourauthorized Pride Provider.
LIFTING STRAP TRAVELS IN OPPOSITE DIRECTION OF BUTTON BEING PUSHED
ON HAND CONTROL
Before each use, check that the lifting strap is traveling in the proper direction. If the belt travels in the wrong
directionwhenyoupress either the upor down button,you must restore properlifting strap travel.
Torestoreproperliftingstraptravel:
1. Pullslightlyonthestrapandoperatetheliftuntilthestrapisextendedcompletelypastthe“stop”warninglabel.
2. Allowthestrapto rewind itself. Do notallow any twists in thebelt.
Observethetravelofthebelt:itshouldcorrespondwiththebuttonbeingpushedonthehandcontrol.Ifyouarestill
experiencingproblems,contactyour authorized Pride Provider.

17Go-Go Travel Lift www.pridemobility.com
ONE YEAR LIMITED WARRANTY
Foroneyear from thedate ofpurchase, Pride MobilityProducts Corporationwill repairor replaceat ouroption
to the original purchaser, free of charge, any of the following parts found upon examination by an authorized
representativeofPrideMobilityProductsCorporationtobedefectiveinmaterialand/orworkmanship:
"Mainframe
"Electronicswitchassemblies
"Motor/gearboxassembly
Warrantyservicecan be performed byan authorizedPride Provider orby PrideMobility Products Corporation.
DonotreturnfaultypartstoPride Mobility Products Corporationwithoutprior consent. All transportation costs
andshippingdamageincurredwhilesubmittingpartsforrepairorreplacementaretheresponsibilityoftheoriginal
purchaser.
WARRANTY EXCLUSIONS
Damagecausedby:
"Abuse,misuse, accident, ornegligence.
"Improperoperation,installation, maintenance, or storage.
"Commercialuseorotherthanintendeduse.
"Repairsand/ormodificationsmadetoanypartwithoutspecificconsentfromPride
MobilityProductsCorporation.
"CircumstancesbeyondthecontrolofPride.
Labor, service calls, shipping, and other charges incurred for repair of the product unless specifically au-
thorized by Pride.
Thereisno other expresswarranty.
Impliedwarranties,including those of merchantability andfitnessforaparticularpurpose,arelimitedtooneyear
fromthe date ofpurchaseandtotheextentpermittedbylaw. Anyandallimpliedwarrantiesareexcluded. This is
theexclusiveremedy. Liabilitiesforconsequentialdamagesunderallwarrantiesareexcluded. Somestatesdonot
allowlimitations onhowlonganimpliedwarrantylastsor donotallowtheexclusionoflimitationof incidentalor
consequentialdamages,sotheabovelimitationorexclusionmaynotapplytoyou. Thiswarrantygivesyouspecific
rightsandyoumayalsohave other rights, which varyfrom state to state.
PleasefilloutandreturnthewarrantycardtoPride. ThiswillaidPrideinprovidingthebestpossibletechnicaland
customerservice.
VI. WARRANTY

18 Go-Go Travel Lift
www.pridemobility.com
NOTES

*INFMANU2803*
