Please read and understand all instructions before use. Retain this manual for future reference.
31 PC CORDLESS
MINI ROTARY TOOL

V1.0
2
Please do not press the locking knob while the machine is
running to avoid damage to the machine or safety accident
warning: read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in
electric shock, fire and/or serious injury.
Safety instructions
save all warnings and instructions for future reference.
1) Work area safety
2) Electrical safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools create sparks, which may ignite the dust
or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
a) Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets
Will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or
grounded.
c) Do not expose power tools to rain or wet conditions.Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or
entangled
Cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
31 PC CORDLESS MINI ROTARY TOOL
31 PC CORDLESS MINI ROTARY TOOL
9054750
9054750

9054750
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol
or medication. A moment of inattention while operating power tools may result in serious
personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, nonskid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting
to power source and/or battery pack, picking up or carrying the tool. Carrying power
tools with your finger on the switch or energising power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a
key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in
moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of these devices can reduce
dust-related hazards.
4) Battery tool use and care
Under abusive conditions, liquid may be ejected from the battery; avoid contact, if contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.
31 PC CORDLESS MINI ROTARY TOOL V1.0
3

905475031 PC CORDLESS MINI ROTARY TOOLV1.0
4
Voltage rating: 3.6V
Battery type: 3.6V Li-ion / 600mAh
Charging voltage: 5V DC (USB)
Charging time: 2hr
No Load Speed: 5000 / 10000 / 15000 min-1
Collet size: ø0.091 in. / ø0.126 in.
DESCRIPTION
Technical data
1. Turn the device off and ensure that the rotating part is stopped!
2. Push and hold the locking knob then turn the chuck until the button is fully pushed in!
3. When the rotating part is clicked in, loose the locking collar and pull the parts/bit out
from the tool.
4. Insert the new accessories into the chuck then fix the screw on while pushing the
locking knob
5. Finally, release the locking knob
Changing the parts
1. Accessory

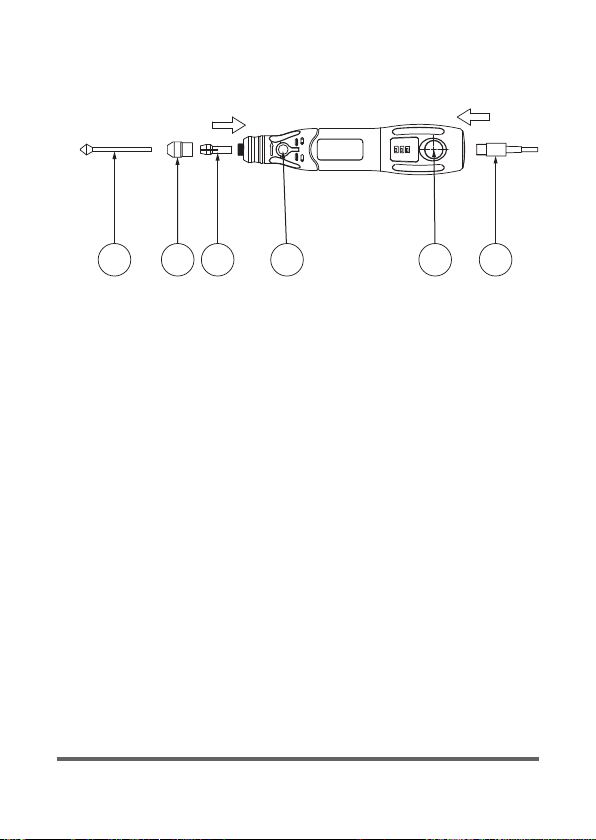

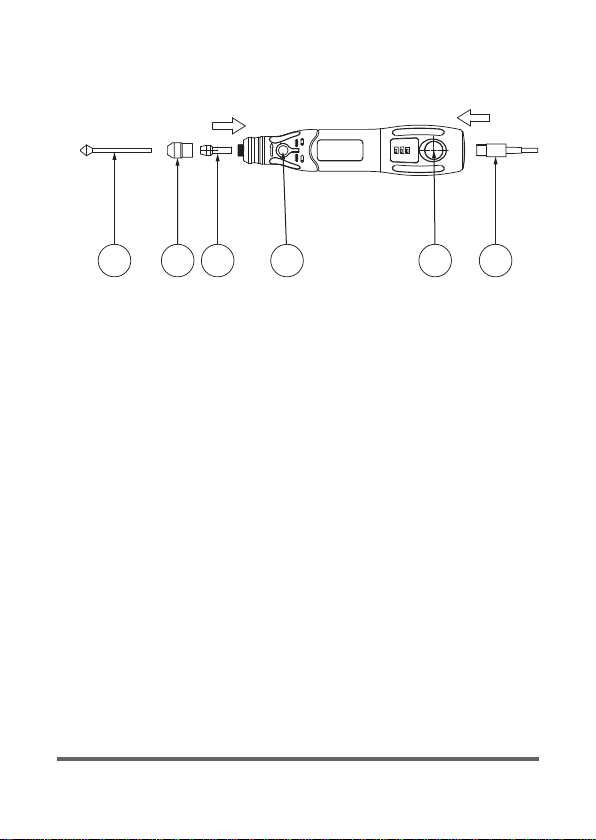

1 2 3 4 5 6
2. Locking Collar
3. Collet
4. Locking Knob
5. On/Off Switch
6. MicroUSB

9054750 31 PC CORDLESS MINI ROTARY TOOL V1.0
5
Warning!
1. Before using the tool, ensure that it is ready and safe to use!
2. Do not use in wet condition and enviroment!
3. Never use the tool near to flammable gas or liquids.
4. Do not force to operate the device when it slows down or stops turn it off and finish
the work process.
5. Wear glasses while using the tool.
6. Do not touch the drill/grinding tip during operation(even if it is in low speed),
because it can cause injury!
Accessories
Polishing wheel: Use to polish work-pieces made of metal and plastic.
Diamond bits: For fine detail work, engraving, carving, touch-up and finishing
Use on wood, jade, ceramic, glass, hardened steel, semi precious stones and other hand
materials. Bits are covered with diamond particles.
Grinding wheel: Use for surface treatment of metal parts, cast-metal parts, welding
seams and for the removal of rust. Different shapes are available.
Sanding band: Use to grind or smooth workpieces made of wood or glass fiber material.
Use with the provided sanding shank (Grinding drum)
Sanding shank (Grinding drum): Designed for retaining sanding band
CHARGING THE TOOL
Connect the power supply (DC5V 500mA to 2000mA), Insert Micro USB into the machine.
Red light=Charging Green light=Charging completed
Charger will automatically stop charging the battery when charging is completed.
It is ok to leave tool on charger continually
NOTE! A battery pack that has been unused for a while or never been charged must be
charged before reuse or first use.
CAUTION! Do not charge a battery for a second time in close succession.
There is a danger of overcharging the battery pack.
Switching on and off / Setting the speed range
Switching on / Setting the speed range:
Set the On / Off switch
Press the speed control between 1 and 3
Press switch 2 seconds, the tool will turn off
OFF OFF123
