Princess 222102 User manual
Meat grinder
01.222102.09.001
Made in China
EN
3
SAFETY INSTRUCTIONS
• By ignoring the safety instructions the manufacturer can not
be hold responsible for the damage.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
• Never move the appliance by pulling the cord and make sure
the cord can not become entangled.
• The appliance must be placed on a stable, level surface.
• The user must not leave the device unattended while it is
connected to the supply.
• This appliance is only to be used for household purposes
and only for the purpose it is made for.
• The appliance can be used by persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made
by children unless they are older than 8 and supervised.
• To protect yourself against an electric shock, do not
immerse the cord, plug or appliance in the water or any
other liquid.
• Switch off the appliance and disconnect from supply before
changing accessories or approaching parts that move in use.
• Always disconnect the device from the supply if it is left
unattended and before assembling, disassembling or
cleaning.
• This appliance shall not be used by children. Keep the
appliance and its cord out of reach of children.
• Switch off the appliance and disconnect from supply before
changing accessories or approaching parts that move in use.
• In order to avoid a hazardous situation, this appliance must
never be connected to a time switch.
• This appliance is intended to be used in household and
similar applications such as:
- staff kitchen areas in shops, offices and other working
environments;
- farm houses;
- by clients in hotels, motels and other residential type
environments;
- bed and breakfast type environments;
• If the manufacturer wants to limit the use of the appliance
to less than the above, this has to be clearly stated in the
instructions.
4
Instruction manual
PARTS DESCRIPTION
1. Stop & Reset
2. On1
3. On2
4. Reverse
5. Body
6. Storage box
7. Fasten button
8. Tube inlet
9. Food pusher
10.Hopper plate
11.Head Tube
12.Snake
13.Cutting blade
14.Cutting plate (fine)
15.Cutting plate
(medium)
16.Cutting plate
(coarse)
17.Fixing ring
18.Sausage
19.Kubbe
BEFORE THE FIRST USE
• Take the appliance and accessories out the box. Remove the stickers,
protective foil or plastic from the device.
• Before using your appliance for the first time, wipe off all removable parts
with a damp cloth. Never use abrasive products.
• Place the device on a flat stable surface and ensure a minimum of 10 cm.
free space around the device. This device is not suitable for installation in a
cabinet or for outside use.
• Caution! Run the appliance no longer than 10 minutes continuous, after that
always let the appliance cool down for 10 minutes.
• This appliance is equipped with a thermostat system. This system
will automatically cut off the power supply to the appliance in case of
overheating, Let the appliance cool down for 60 minutes.
USE
Assembling

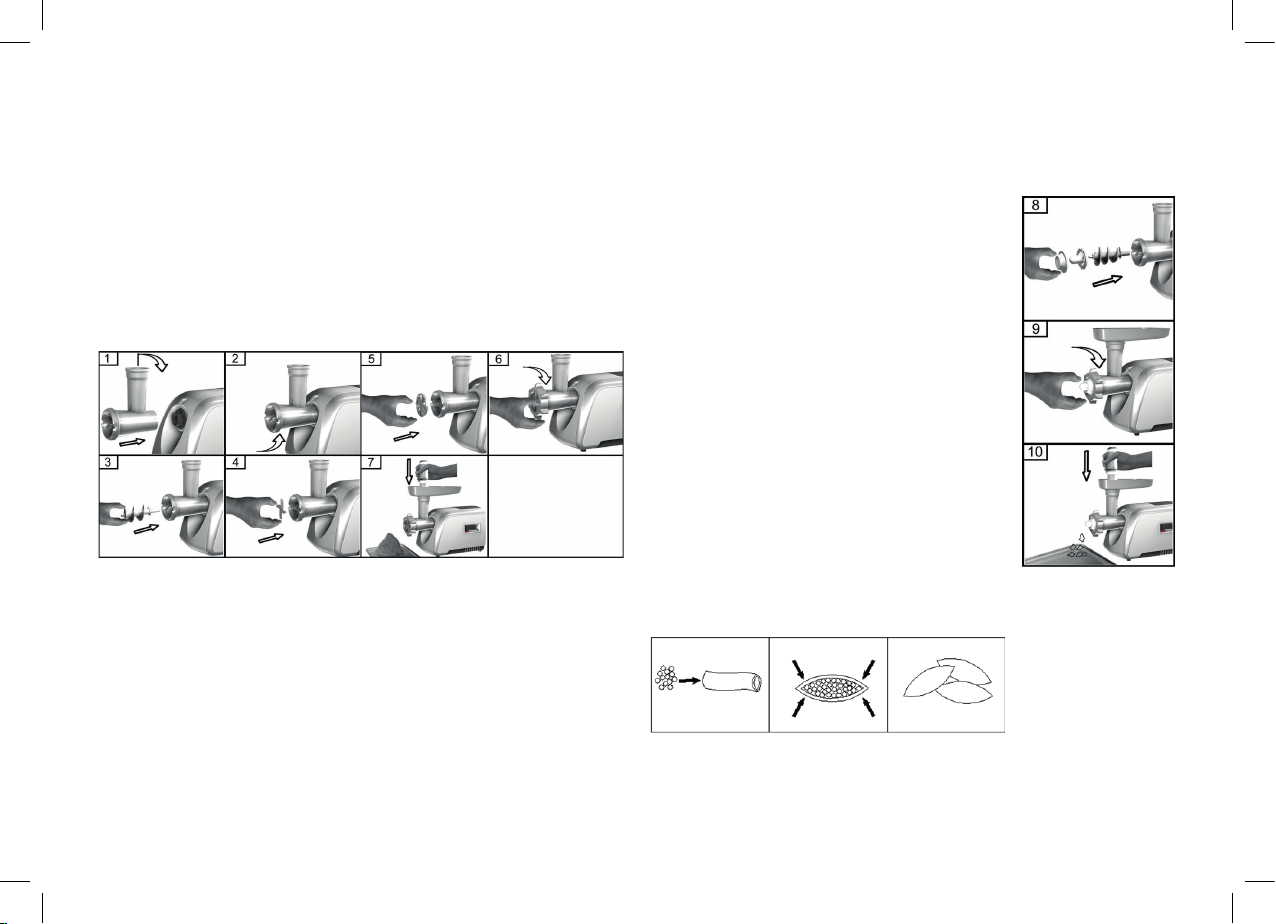

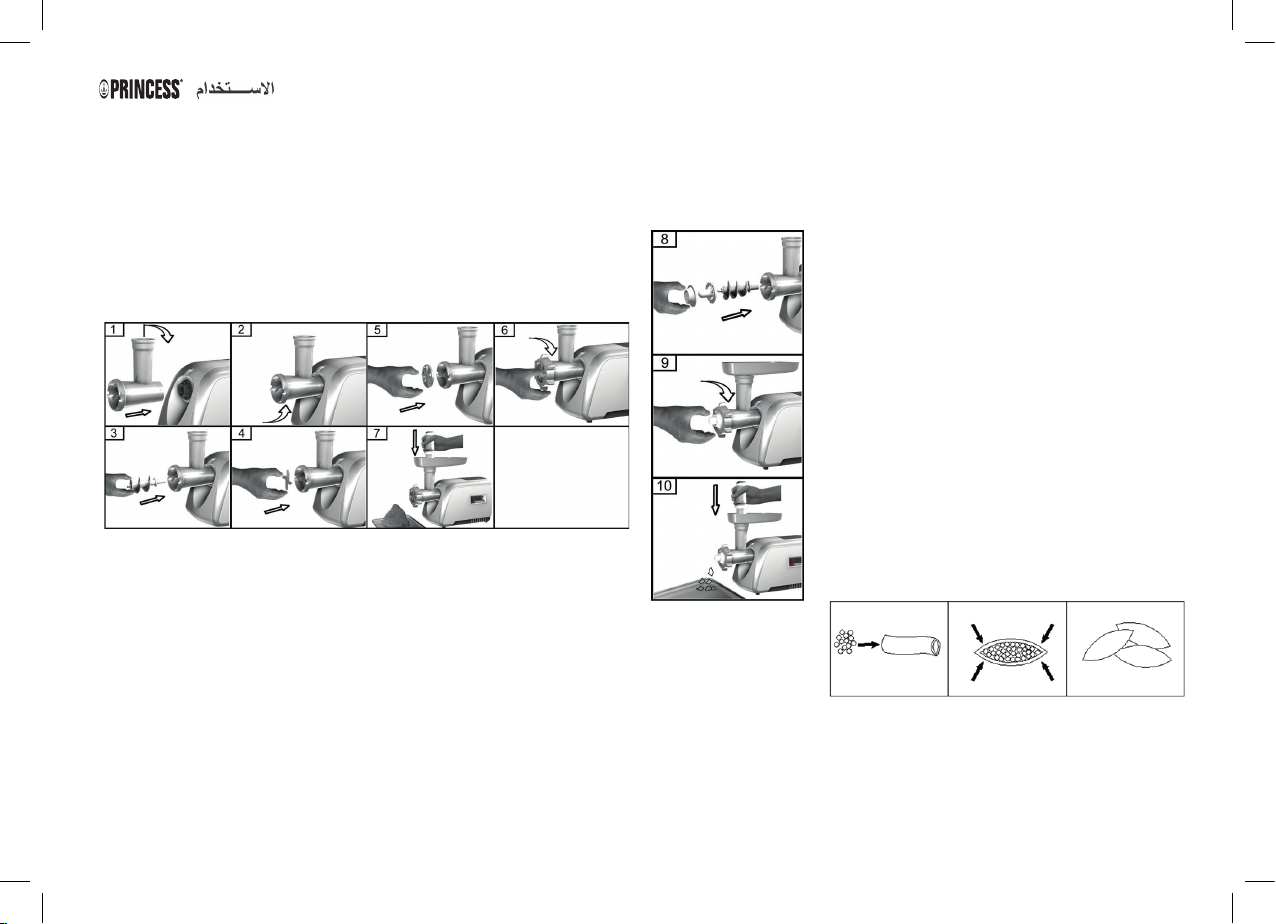

• Press the fasten button, hold the head and insert it into the inlet(when
inserting please pay attention the head must be slanted as per arrow
indicated on the top, see fig.1),then move the head anticlockwise so that the
head being fastened tightly .(fig.2)
• Place the snake into the head, long end first, and turn to feed the screw
slightly until it is set into the motor housing (fig.3).
• Place the cutting blade onto the snake shaft with the blade facing the front
as illustrated (fig.4).If it is not fitted properly, meat will not be grinded.
• Place the desired cutting plate next to the cutting blade, fitting protrusions in
the slot (fig.5).
• Support or press the center of the cutting plate with one finger then screw
the fixing ring tight with another hand (fig.6). Do not over tighten.
• Place the hopper plate on the head and fix it into position.
• Locate the unit on a firm place.
1
2
3
4
5
6
9
10
11 8
121314151617
7
19
18
EN
5
• The air passage at the bottom and the side of the motor housing should be
kept free and not blocked.
Mincing meat
• Cut all foods into pieces (Sinew less, boneless and fatless meat is
recommended, approximate size :20 mm x 20 mm x 60 mm) so that they fit
easily into the hopper opening.
• Plug the unit on and switch knob to " ON " position.
• Feed foods into the hopper plate. Use for it only the food pusher (fig.7).
• After use switch the unit off and unplug it from the power supply.
Reverse function
• The snake will be rotating in the opposite direction, and the head will get empty.
• If it doesn't work, switch off the unit and clean it.
• Plug in the unit and switch knob to the " reverse " position.
Making kubbe
Recipe
STUFFING
Mutton 100g
Olive oil 1 1/tablespoons
Onion (cut finely) 1 1/tablespoons
Spices to your taste
Salt to your taste
Flour 1 1/tablespoons
• Mince mutton once or twice.
• Fry onion until brown and add minces mutton, all spice, salt and flour.
OUTLET COUVER
Lean meat 450g
Flour 150-200g
Spices to your taste
Nutmeg (cut finely) 1
Powdered red pepper to your taste
Pepper to your taste
• Mince meat three times and mix all ingredients
together in a bowl. More meat and less flour for
outlet cover create better consistency and taste.
• Grind the mixture three times.
• Disassemble by reversing the steps from 5-3 to
remove the cutting plate and cutting blade.
• Place kubbe attachments onto the feed screw shaft
together, fitting protrusions in the slots (fig.8).
• Screw cap into place until tight. Do not over tighten
(fig.9).
• Make the cylindrical outlet cover (fig.10).
• Form kubbe ad illustrated below and deep fry.
Making sausage
• Assemble the sausage attachment as shown in figure 11.
• Slide the soaked casing on the sausage horn. Tie the end of the casing and
after filling a part; turn the sausage for some time in order to produce an
empty section of casing and to tie the sausage.
6
Instruction manual
• Switch on the electric mincer and use the pusher only to gently push the
seasoned meat into the filling tube. If the casing gets stuck on the sausage
horn, wet it with tepid water.
Making noodle
• Operation time shall NOT exceed 4 minutes.
• Use cutting plate 14 or 15 or 16.
• Fill the tray with flour continually.
141516
CLEANING AND MAINTENACE
Disassembling
• Make sure that the motor has stopped completely.
• Disconnect the plug from the power outlet.
• Disassemble by reversing the steps from 1-6 pictures.
• To remove the cutting plate easily, place a screwdriver between the cutting
plate and the head as illustrated and lift it up (fig.12).
• Press the fasten knob, move the head as per direction illustrated on fig
13,then you can take out the head.
Cleaning
• Remove meat, etc. Wash each part in warm soapy water.
• A bleaching solution containing chlorine will discolor aluminum surfaces.
• Do not immerse the motor housing in water, but only wipe it with a damp
cloth.
• Thinners and petrol will crack or change the color of the unit.
• Wipe all the cutting parts by vegetable oil -wet cloth.
WARRANTY
1. This product is warrantied for 2 Years, for detailed terms, please refer to the
Warranty Card.
2. Following parts are not covered by warranty:
– Knobs.
– Any broken body parts.
Approximate life of this appliance under normal conditions is 3 Years.
For service and repairs, please call the following numbers:
United Electronics Co.
Saudi Arabia (Toll-free) 800 124 0900
GUIDELINES FOR PROTECTION OF THE
ENVIRONMENT
This appliance should not be put into the domestic garbage at the end
of its durability, but must be offered at a central point for the recycling
of electric and electronic domestic appliances. This symbol on the appliance,
instruction manual and packaging puts your attention to this important issue.
The materials used in this appliance can be recycled. By recycling of used
domestic appliances you contribute an important push to the protection of
our environment. Ask your local authorities for information regarding the point
of recollection.
EN
7
1 Right article 20 Screw
2 Left article 21 Button box(or LCD)
3 Decorative ring 22 Red button
4 Body 23 White button
5 Lid 24 Switch
6 Fasten button 25 Screw
7 Gear box assembly 26 Fixing Ring
8 Shock pad 27 Circular plate
9 Frame 28 Blade
10 Screw 29 Snake
11 Storage 30 Poin(steel)
12 Back panel 31 Poin(plastic)
13 Screw 32 Ring
14 Screw 33 T-Tube
15 Screw cap 34 Hopper plastic
16 Rubber feet 35 Pusher box
17 Power wire 36 Plastic Tube
18 Terminal block 37 PC plastic blade cover
19 Bottom panel 38 PC plastic blade
