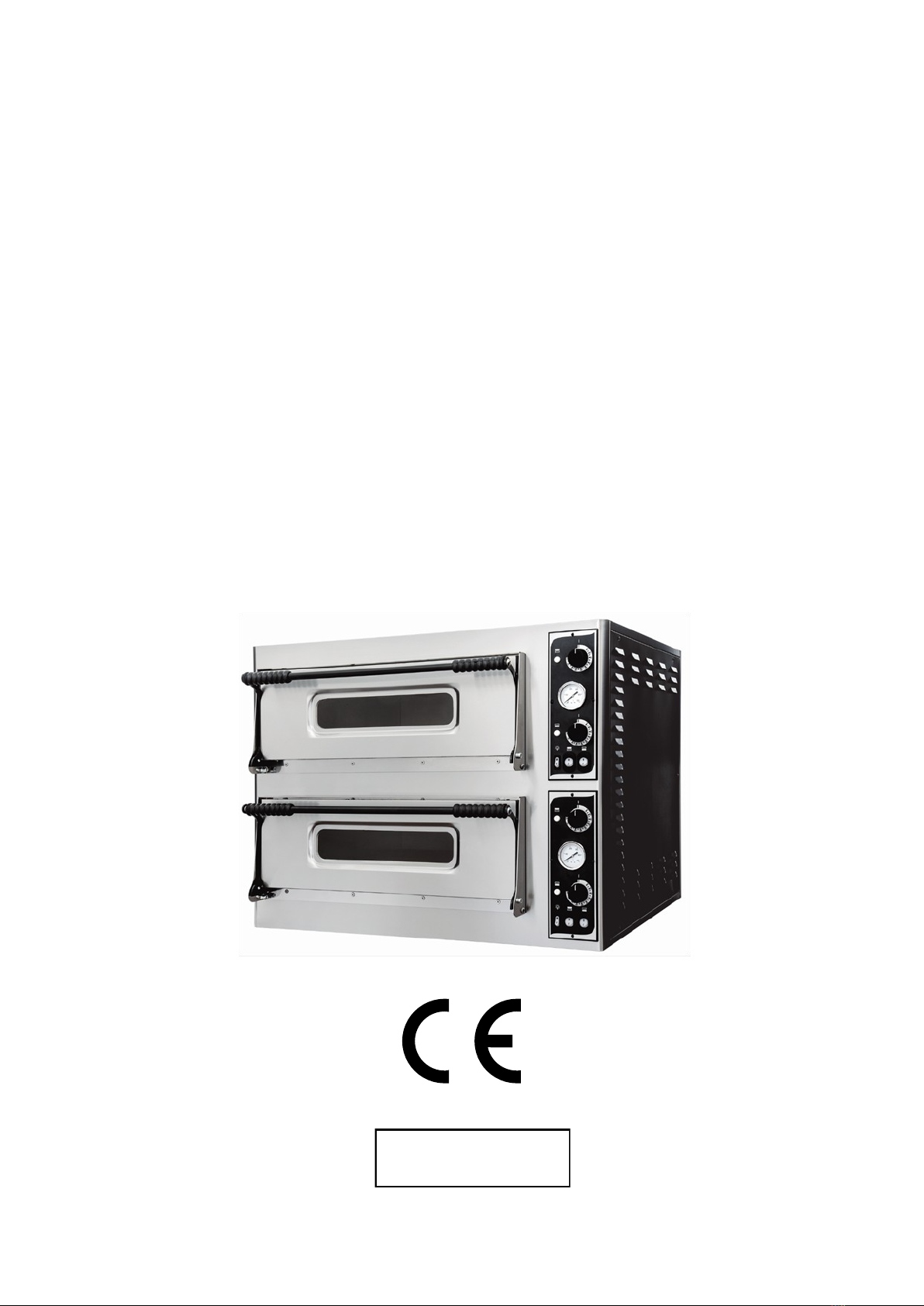

Prismafood BASIC 4 Specification sheet

ENGLISH
INSTRUCTIONS FOR USE AND MAINTENANCE
ELECTRIC OVENS FOR PIZZA
BASIC

WARNING!
BEFORE SWITCHING ON THE OVEN: REMOVE THE POLYSTY-
RENE.
ATTENZIONE!
TOGLIERE IL POLISTIROLO PRIMA DI ACCENDERE.
ВНИМАНИЕ!
ПЕРЕД ВКЛЮЧЕНИЕМ ПЕЧИ: ИЗВЛЕЧЬ ПОЛИСТИРОЛ.
ATTENTION!
AVANT D’ALLUMER LE FOUR ENLEVER LE POLYSTYRENE.
ATENCION !
ANTES DE ENCENDER EL HORNO RETIRAR EL
POLIESTIRENO.
ACHTUNG!
BITTE DAS POLYSTYROL VOR DEM EINSCHALTEN DES
OFENS ENTFERNEN.
ATENDIMENTO!
ANTES DE ACENDER O FORNO TIRAR O POLIESTERENO.
UWAGA!
PRZED URUCHOMIENIEM PIECA NALEŻY W PIERWSZEJ
KOLEJNOŚCI WYJĄĆ Z PIECA PŁYTY SZAMOTOWE, USUNĄĆ
ZABEZPIECZENIE STYROPIANOWE, A NASTĘPNIE
PONOWNIE UMIEŚCIĆ PŁYTY SZAMOTOWE W PIECU.


4
INDEX
1- “CE” DECLARATION OF CONFORMITY AND MARKING
1.1-“CE” marking ................................................................................. p. 5
2–GENERAL INFORMATION
2.1-The importance of the manual ............................................................... p. 5
2.2-Status of “turned off oven” ................................................................... p. 5
2.3-Warranty......................................................................................... p. 5
3–TECHNICAL DESCRIPTIONS
3.1–Technical data ovens BASIC ........................................................... p. 6
3.2–Technical data ovens BASIC XL ........................................................ p. 7
3.3–Destination of use .......................................................................... p. 8
3.4–Limits of use.................................................................................. p. 8
4–INSTALLATION
4.1–Instructions for the User ................................................................ p. 8
4.2–Electric connection ......................................................................... p. 9
4.3–Terminal box ............................................................................... p. 10
4.4–Equipotential ............................................................................... p. 10
5- USEAND FUNCTIONING
5.1—Control panel .............................................................................. p. 11
5.2–First commisioning ....................................................................... p. 12
5.3–Turning on oven........................................................................... p. 12
5.4–Turning off oven .......................................................................... p. 13
6–MAINTENANCE
6.1–Cleaning ..................................................................................... p. 13
7–DEMOLITION
7.1–General warnings ......................................................................... p. 13
8–SPARE PARTS
8.1–Spare parts BASIC .................................................................. p. 14-16

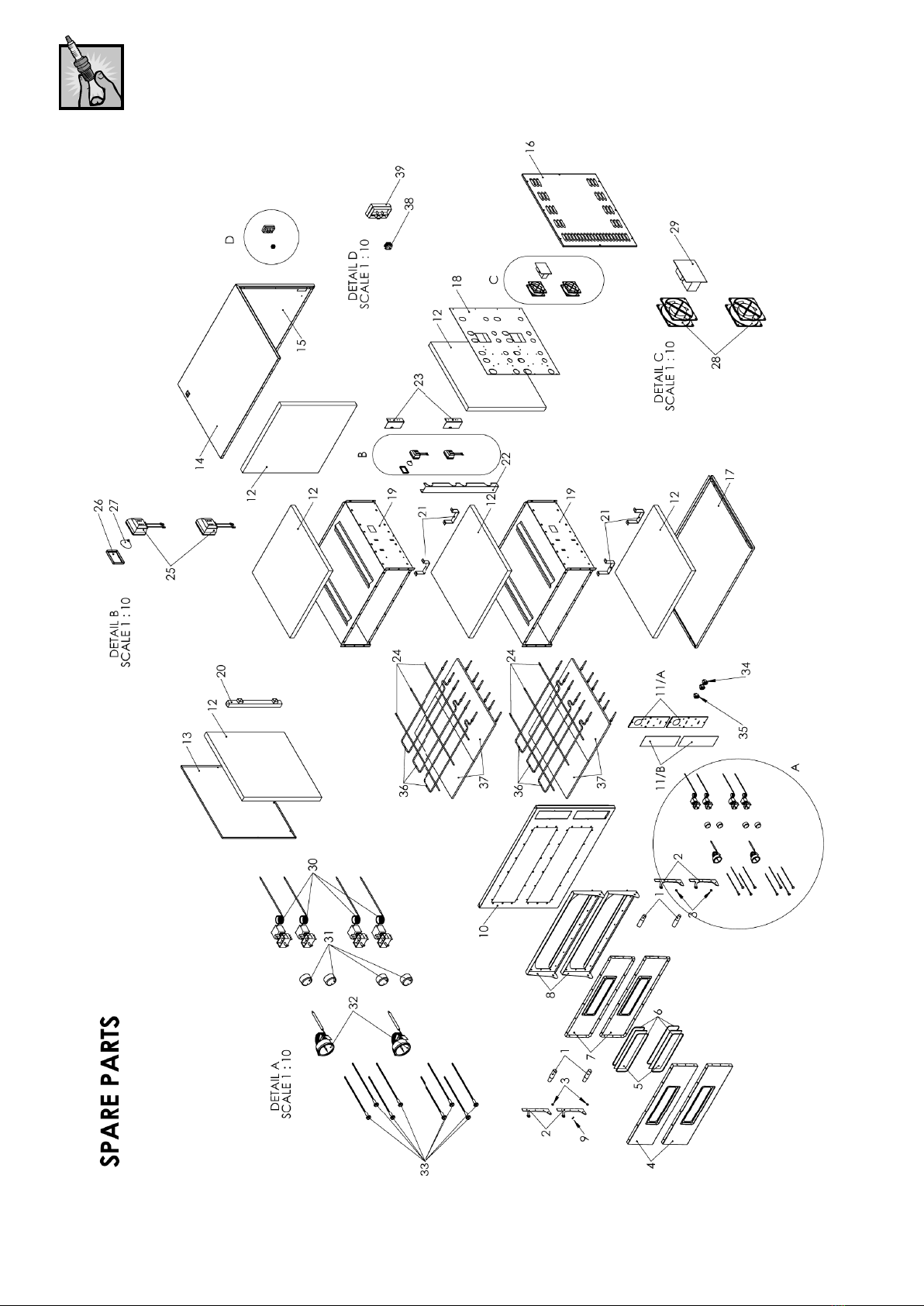

8.2–Exploded view ............................................................................. p. 17
9–ELECTRIC EQUIPMENT
9.1–List of components ....................................................................... p. 18
9.2–Wiring diagrams ................................................................... from p. 19

5
1.1- “CE” MARKING
The “CE” marking consists of a gray lable applied on the back of the oven.
The plate bears in readable and indelible way the following data:
- Name of the manufacturer; - Serial number ;
- CE marking; - Electric voltage and frequency (Volt/Hz);
- Model (MOD); - Year of construction ;
-Electric power (kW/A); - Weight of the oven;
- “Made in Italy”
2—GENERAL INFORMATION
2.1- THE IMPORTANCE OF THE MANUAL
Before using the concerned oven, it is compulsory to read and understand this manual in all its
parts.
This manual is an integral part of the oven and must be preserved until its final dismantling.
The manufacturer declines all liability for eventual dmages to persons, animals, and things caused
by the inobservance of the regulations described in this manual.
This manual must always be available for the “authorized oeperators” and has to be placed and pre-
served colse to the oven.
The “authorized operators” must perform on the oven exclusively interventions for which they are
specifically competent.
1—DECLARATION OF CONFORMITY AND MARKING
2.2–STATUS OF “TURNED OFF OVEN”
Before performing any type of maintenance and/or adjustment intervention, it is compulsory to dis-
connect the power supply source, disconnecting the power supply plug from the mains outlet verify-
ing that the oven is effectively turned off and cooled.
2.3–WARRANTY
The manufacturer warrants that the concerned ovens are tested at manufacturer’s premises.
The warranty of the oven is of 12 (twelve) months.
THE TAMPERING AND/OR REPLACEMENT OF PARTS WITH NON ORIGINAL
SPARE PARTS CAUSE THE DECAY OF THE WARRANTY AND RELEASE THE MANU-
FACTURER FROM ANY LIABILITY.

6
3.1 TECHNICAL DATA OVENS BASIC
3—TECHNICAL DESCRIPTIONS
BASIC 4 BASIC 44 BASIC 44 MED BASIC 6 BASIC 66 Temperatura d’esercizio | Working temperature °C 50 | 500 50 | 500 50 | 500 50 | 500 50 | 500 Arbeitstemperatur | Temperature de travail Temperatura de ejercicio | Temperatura de funcionamento Рабочая температура Alimentazione | Power supply | Spannun volt 230 | 400 230 | 400 230 | 400 230 | 400 230 | 400 Alimentation | Alimentación | Alimentação | Питание Camere | Chamber | Kammer | Chambre n° 1 2 2 1 2 Cámaras | Câmaras | Рабочая камера Potenza | Power | Heizleistung | Puissance kW 4,7 9,4 9,4 7,2 14,4 Potencia | Potência | Мощность Potenza resistenza cielo | Power of top heating element W 2350x1 2350x2 2350x2 1200x3 1200x6 Oben widerstandsleistungspitze Puissance resistance plafond | Potencia resistencia techo Potência da resistência superior | Мощность верхних ТЭНов Potenza resistenza platea | Power of bottom heating element W 2350x1 2350x2 2350x2 1200x3 1200x6 Unten widerstandsleistungspitze Puissance resistance sol | Potencia resistencia solera Potência da resistência inferior | Мощность нижних ТЭНов Dimensioni esterne | External dim. | Außenabmessungen cm L 97,5 L 97,5 L 90,0 L 97,5 L 97,5 Dim. extérieures | Medidas externas P 92,4 P 92,4 P 87,1 P 121,4 P 121,4 Dimensões externas | Внешние габ. Размеры H 41,3 H 74,5 H 74,5 H 41,3 H 74,5 Dimensioni interne | Inside dim. | Innenabmessungen cm L 66,0 L 66,0 L 66,0 L 66,0 L 66,0 Dim. intérieures | Medidas internas P 66,0 P 66,0 P 66,0 P 99,0 P 99,0 Dimensões internas | Внутренние размеры H 14,0 H 14,0 H 14,0 H 14,0 H 14,0

7
3.2TECHNICAL DATA OVENS BASIC XL
3—TECHNICAL DESCRIPTIONS
BASIC
XL 3L BASIC
XL 33L BASIC
XL 4 BASIC
XL 44 BASIC
XL 6 BASIC
XL 66 BASIC
XL 6L BASIC
XL 66L BASIC
XL 9 BASIC
XL 99
Temperatura d’esercizio | Working temperature °C 50 | 500 50 | 500 50 | 500 50 | 500 50 | 500 50 | 500 50 | 500 50 | 500 50 | 500 50 | 500 Arbeitstemperatur | Temperature de travail Temperatura de ejercicio | Temperatura de fun- cionamento Рабочая температура Alimentazione | Power supply | Spannun volt 230 | 400 230 | 400 230 | 400 230 | 400 230 | 400 230 | 400 230 | 400 230 | 400 230 | 400 230 | 400 Alimentation | Alimentación | Alimentação | Питание Camere | Chamber | Kammer | Chambre n° 1 2 1 2 1 2 1 2 1 2 Cámaras | Câmaras | Рабочая камера Potenza | Power | Heizleistung | Puissance kW 4,4 8,8 6 12 9 18 9 18 13,2 26,4 Potencia | Potência | Мощность Potenza resistenza cielo | Power of top heating element W 2200x1 2200x2 3000x1 3000x2 1500x3 1500x6 1500x3 1500x6 2200x3 2200x6 Oben widerstandsleistungspitze Puissance resistance plafond | Potencia resisten- cia techo Potência da resistência superior | Мощность верхних ТЭНов Potenza resistenza platea | Power of bottom hea- ting element W 2200x1 2200x2 3000x1 3000x2 1500x3 1500x6 1500x3 1500x6 2200x3 2200x6 Unten widerstandsleistungspitze Puissance resistance sol | Potencia resistencia solera Potência da resistência inferior | Мощность нижних ТЭНов Dimensioni esterne | External dim. | Außena- bmessungen cm L 130,5 L 130,5 L 100,0 L 100,0 L 100,0 L 100,0 L 130,5 L 130,5 L 130,5 L 130,5 Dim. extérieures | Medidas externas P 60,0 P 60,0 P 95,4 P 95,4 P 131,4 P 131,4 P 95,4 P 95,4 P 131,4 P 131,4 Dimensões externas | Внешние габ. Размеры H 41,3 H 74,5 H 41,3 H 74,5 H 41,3 H 74,5 H 41,3 H 74,5 H 41,3 H 74,5 Dimensioni interne | Inside dim. | Innenabmes- sungen cm L 108,0 L 108,0 L 72,0 L 72,0 L 72,0 L 72,0 L 108,0 L 108,0 L 108,0 L 108,0 Dim. intérieures | Medidas internas P 43,5 P 43,5 P 72,0 P 72,0 P 108,0 P 108,0 P 72,0 P 72,0 P 108,0 P 108,0 Dimensões internas | Внутренние размеры H 14,0 H 14,0 H 14,0 H 14,0 H 14,0 H 14,0 H 14,0 H 14,0 H 14,0 H 14,0

8
FORESEEN USE: PIZZA BAKING, GRATINATING OF GASTRONOMY PRODUCTS AND
HEATING OF FOODSTUFF IN BAKING PANS.
3.4–LIMITS OF USE
This oven has been designed and manufactured exclusively for the destination of use described in
Par. 3.3, therefore, any other type of use is strictly forbidden in order to assure, at any time, the
safety of the authorized operators, as well as the efficiency of the oven itself.
THE OVEN CAN BE USED EXCLUSIVELY BY AN AUTHORIZED OPERATOR (USER).
3.3–DESTINATION OF USE
The foreseen use for which this oven has been designed and produced is the following
3—TECHNICAL DESCRIPTIONS
4—INSTALLATION
THE OVEN MUST NOT BE INSTELLED IN PROXIMITY OF THE INFLAMMABLE MA-
TERIALS (WOODS, PLASTIC, COMBUSTIBLE, GAS, ETC.). AVOID THE CONTACT
OF INFLAMMABLE OBJECTS WITH THE HOT SURFACES OF THE OVEN. ALWAYS
ASSURE THE SAFETY FIREPROOF CONDITIONS. MAINTAIN A FREE SPACE A-
ROUND THE OVEN OF AT LEAST 30 CM.
Verify that the electrical set-up corresponds with the numbers of the techincal characteristics
(Par. 3.1), and on the small plate at the back of the oven. The characteristics of the electric socket
must be compatible with the plug installed on the cable.
The place where the oven is installed must have the following enviromental characteristics:
 To be dry;
 Water sources at safe distance;
 Adequate ventilation and lighting corresponding to hygene and security rules following the
existing laws.
4.1–INSTRUCTIONS FOR THE USER
THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHIL-
DREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK
OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION
OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSI-
BLE FOR THEIR SAFETY.
CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH
THE APPLIANCE

9
ONCE THE ELECTRIC CONNECTION HAS BEEN PERFORMED, THE AUTHORIZED
TECHNICIAN (ELECTRICIAN) MUST ISSUE A DECLARATION CERTIFYING THE
MEASUREMENT OF THE CONTINUITY OF THE EQUIPOTENTIAL PROTECTION
CIRCUIT.
4.2–ELECTRIC CONNECTION
THE ELECTRIC CONNECTION OF THE OVEN TO THE MAINS MUST BE COMPULSO-
RILY AND EXCLUSIVELY PERFORMED BY AN AUTHORIZED TECHNICIAN
(ELECTRICIAN) SATISFYING THE TECHNICAL AND PROFESSIONAL REQUIRE-
MENTS STATED BY THE REGULATIONS IN FORCE IN THE COUNTRY OF USE OF
THE OVEN, WHO MUST ISSUE A DECLARATION OF CONFORMITY FOR THE IN-
TERVENTION PERFORMED.
FOR DIRECT CONNECTION TO THE NETWORK, YOU MUST HAVE A DEVICE THAT
HAS A CONTACT GAP TO ENSURE THE COMPLETE DISCONNECTION, IN THE
CONDITIONS OF OVERVOLTAGE CATEGORY III, IN ACCORDANCE WITH THE
RULES FOR INSTALLATION.
To connect the machine to the electric network it is necessary to proceed as follows:
1) connect to the wires to the terminals L1—L2—L3—N —of power cord type H07RNF 3G X “x”
mm²unsheathed with ferule;
2) put together the other end of the cable and a plug, which is normalised and polarised (the dis-
tinction between phase and neutral must be unequivocal.
3) to connect the oven to 230 V single phase is sufficient to make a bridge between L1-L2-L3 with
the special plates present in the terminal box
4—INSTALLATION
THE APPLIANCE IS TO BE SUPPLIED THROUGH A RESIBASIC CURRENT DEVICE
(RCD) HAVING A RATED RESIBASIC OPERATING CURRENT NOT EXCEEDING 30
MA
L1 Clamp N.1
L2 Clamp N.2
L3 Clamp N. 3
N Clamp N. 4 or N. 5
Clamp N. 6

10
4—INSTALLATION
4.3–TERMINAL BOX
The equipment must be connected with an equi-potential system . the connection terminal is located
near the terminal box. The bonding wire must have a minimal section of 10 mm ².
4.4–EQUIPOTENTIAL
The terminal box is placed externally on the back of the oven.
SINGLE
PHASE
yellow/green
yellow/green
blue
blue
brown
brown
THREE PHA-
SE
blue
yellow/green
yellow/green
blue
grey
black brown
brown
Oven type N. of cables Section (mm²)
Single phase, one chamber 3 4
Single phase, two chambers and versions 9 single phase 3 6
Three phase one chamber and two chambers 5 4
Three phase from versions 9 and up 5 6
PIC. A
PIC. B

11
5.1–CONTROL PANEL
The control panel is installed on the front side of the oven as shown below:
LEGEND PIC.1
REF. DENOMINATION FUNCTION
1 Warning light If lighted, it signals the operation of the resistor in use.
2 Thermostat
• Pos.0:it disables the operation of the resistor;
• Pos. 0-500°C :it enables the operation of the resistor
and sets the wished temperature.
3 Thermometer Indicates the temperature in the baking chamber.
4 Switch heating element • Pos. I: It enables the operation of the resistor;
• Pos. 0: It disables the operation of the resistor.
5 Chamber lamp switch • Pos. I: It switches on the light in the oven chamber;
• Pos. 0: It switches off the light in the oven chamber.
5–USE AND FUNCTIONING
PIC.1 Control panel BASIC ovens
1
1
2
2
3
45

12
5–USE AND FUNCTIONING
The first commissioning must be performed proceeding as follows:
1) Clean the front part of the oven with a clean and soft cloth in order to remove any eventual
residues;
2) Connect the plug of the power supply cable to the power supply outlet;
3) Bring the switch heating elements (PIC.1 - Ref.4) on pos.”I”;
4) Enable the operation of the resistors setting the thermostats (PIC.1 - Ref.2) on the tempera-
ture of 150°C indicated on the handle. The related warning lights signaling the operation of
the resistors in use (PIC.1 - Ref.1) will switch on;
5) Let the oven operate for about 1 h;
6) Disable the operation of the resistors setting the thermostats (PIC.1 - Ref.2) to position “0”
and their warning light will turn off;
7) Open the door of the oven for about 15 min in order to let eventual vapors and smells be dis-
charged;
8) Close the door and repeat the process described in Section 4) bringing the thermostat (PIC.1
- Ref.2) at the temperature of 400°C indicated on the control panel;
9) Let the oven work for about 1 h;
10) Disable the operation of the resistors bringing the thermostats (PIC.1 - Ref.2) to pos. “0”;
their warning light will turn off;
11) Turn off the oven as described in par.5.4.
5.3–TURNING ON OVEN
1) Connect the plug of the power supply cable to the power supply outlet;
2) Bring the switch heating elements (PIC.1 - Ref.4) in pos.”I”;
3) Enable the operation of the resistors bringing the thermostats (PIC.1 - Ref.2) to the wished
temperature. The related warning lights (PIC.1 - Ref.1) signaling the operation of the resis-
tors in use will switch on;
4) Once the oven has reached the wished temperature (see point 9 of this paragraph), visible on
the thermometer (PIC.1 - Ref.3) it is possible to insert the pizza in the oven for the backing;
5) Open the oven door manually using the suitable handles;
6) To light the inside part of the backing chamber, press the oven lamp switch (PIC.1 - Ref.5);
7) Insert in the oven the pizza and/or the pizzas to be backed using suitable devices for this aim.
It is important to avoid to leave the door open for too long, since the outgoing heat lowers the
temperature of the oven.
8) Close the door again and check the backing through the inspection glass ;
9) The baking temperature of the pizza varies if it is positioned directly on the refractory stone or
on a baking pan. In the first case, it is suggested to set the backing temperature at 280°C for
the bottom and 320°C for the crown; on the contrary, in the second case, set 320°C for the
bottom and 280°C for the crown;
10) When the baking haa ended, open the door and extract the pizza ond/or the pizzas and colse
the door again.
DESPITE THE THERMAL POTENTIALITIES OFFERED BY THE OVEN, FOR SAFETY
PURPOSE THE MAXIMUM ALLOWED TEMPERATURE IS 500°C AND CAN BE SELECTED
BY MEANS OF THE TIMERS.
THE COMMISSIONING OF THE OVEN CAN BE PERFORMED ONLY WHEN THE INSTAL-
LATION HAS BEEN COMPLETED AND THE AUTHORIZED TECHNICIANS HAVE ISSUED
THE DECLARATION OF CONFORMITY FOR THE ELECTRIC CONNECTION.
5.2–FIRST COMMISSIONING
Before the ignition of the oven remove the protective film without using tools that can damage the
surfaces.

13
5.4–TURNING OFF THE OVEN
Once the use of the oven has ended, proceed as follows:
Turning off the oven bringing in pos.”0” the switches which activates the resistance (PIC.1 -
Ref.4) and the knobs that regulate the thermostats (PIC.1 - Ref.2);
For any intervention of supplementary maintenance, repairing and/or replacement refer exclusively
to the authorized dealer where the oven has been purchased and/or to an authorized technician sat-
isfying the technical and professional requirements stated by the regulations in force.
BEFORE PERFORMING ANY TYPE OF MAINTENANCE INTERVENTION, IT IS COM-
PULSORY TO DISCONNECT THE PLUG OF THE OVEN FROM THE POWER SUPPLY
OUTLET.
IT IS RECOMMENDED TO THE OPERATOR IN CHARGE TO USE PROPER GLOVES AND
SUITABLE CLOTHING TO AVOID BURNINGS.
5- USE AND FUNCTIONING
6–MAINTENANCE
IT IS FORBIDDEN TO USE THROWS OR DRIPS OF WATER, ABRASIVE OR CORROSI-
VE SUBSTANCES, AND ANYTHING ELSE THAT CAN DAMAGE THE COMPONENTS,
COMPROMISE THE SAFETY, AND BE DANGEROUS FROM AN HYGIENIC POINT OF
VIEW.
7.1–GENERAL WORNINGS
When dismantling the oven, compulsorily observe the provisions of the regulations in force. Differ-
entiate the parts making up the oven according to different types of construction materials (plastic,
copper, iron, etc.).
7–DEMOLITION
6.1–CLEANING
The clearing must be done every time the oven has been used following all the rules to prevent
malfunctioning of the oven and for hygienic purpose.
Cleaning of the refractory surface: this operation has to be performed with hot oven.
Once the temperature of about 350°C has been reached, turn off the oven, open the door and
clean the surface using a brush in vegetable fiber equipped with a long handle in order to
avoid the contact with the oven hot parts.
External clearing of the oven: (surfaces in stainless steel, inspection glass and control panel):
this operation has to be performed with cold oven.

14
8—SPARE PARTS
8.1 - SPARE PARTS OVENS BASIC
DESCRIPTION BASIC
4
BASIC
44
BASIC
44
MEDIUM
BASIC
6
BASIC
66
1/A Door Handle 7M010000 7M010000 7M010000 7M010000 7M010000
1/B Small lateral door handles 5M200016 5M200016 5M200016 5M200016 5M200016
2/A Door supporting plate (right) 4P100007 4P100007 4P100007 4P100007 4P100007
2/B Door supporting plate (left)
3 Washer 3R030001 3R030001 3R030001 3R030001 3R030001
4 Door 4P050015 4P050015 4P050015 4P050015 4P050015
5 Door Glass 5V010015 5V010015 5V010015 5V010015 5V010015
6 Door glass gasket 5G100001 5G100001 5G100001 5G100001 5G100001
7 Counterdoor 4C020026 4C020026 4C020026 4C020026 4C020026
8 Door Frame 4T020000 4T020000 4T020000 4T020000 4T020000
9 Plate fixing screws 5V500019 5V500019 5V500019 5V500019 5V500019
10 Frontage 4F020020 4F020025 4F020026 4F020020 4F020025
11/A Control panel frame 4M020001 4M020001 4M020001 4M020001 4M020001
11/B Control panel label 5E200400 5E200400 5E200400 5E200400 5E200400
12 Insulating material 5L010001 5L010001 5L010001 5L010001 5L010001
13 Left covering panel 4P040005 4P040015 4P040016 4P040025 4P040035
14 Top covering panel 4C030000 4C030000 4C030006 4C030004 4C030004
15 Back covering panel 4S030200 4S030205 4S030206 4S030200 4S030205
16 Right covering panel 4P040001 4P040010 4P040011 4P040020 4P040030
17 Bottom covering pannel 4B030000 4B030000 4B030001 4B030006 4B030006
18 Jacket 4I020001 4I020010 4I020011 4I020005 4I020015
19 Cooking chamber 7C010101 7C010101 7C010101 7C010105 7C010105
20 Chimney - - - 4C030001 4C030005
24
Heating elements supporting fra-
me 4T060000 4T060000 4T060085 4T060010 4T060010
25 Lamp holder 5P110003 5P110003 5P110003 5P110003 5P110003
26 Lamp glass 5V010003 5V010003 5V010003 5V010003 5V010003
27 Lamp 5L020005 5L020005 5L020005 5L020005 5L020005
29 Circuit brakers board - - - - -
30 Thermostat 5T010001 5T010001 5T010001 5T010010 5T010010
31 Thermostat knob 5M200003 5M200003 5M200003 5M200003 5M200003
34 Thermometer 5T010200 5T010200 5T010200 5T010200 5T010200
35 Heating element's warning light 5L020017 5L020017 5L020017 5L020017 5L020017
36 Heating element's switch 5I100016 5I100016 5I100016 5I100016 5I100016
37 Chamber light switch 5I100017 5I100017 5I100017 5I100017 5I100017
38 Heating element 5R050220 5R050220 5R050220 5R050200 5R050200
39 Refractory stone 5P050010 5P050010 5P050010 5P050020 5P050020
41 Terminal box 5M100010 5M100010 5M100010 5M100010 5M100010

15
8—SPARE PARTS
8.2 - SPARE PARTS OVENS BASIC XL
DESCRIPTION BASIC
XL 3L
BASIC
XL 33L
BASIC
XL 4
BASIC
XL 44
BASIC
XL 6
BASIC
XL 66
1/A Door Handle 7M010007 7M010007 7M010005 7M010005 7M010005 7M010005
1/B Small lateral door handles 5M200016 5M200016 5M200016 5M200016 5M200016 5M200016
2/A Door supporting plate (right) 4P100007 4P100007 4P100007 4P100007 4P100007 4P100007
2/B Door supporting plate (left)
3 Washer 3R030001 3R030001 3R030001 3R030001 3R030001 3R030001
4 Door 4P050018 4P050018 4P050017 4P050017 4P050017 4P050017
5 Door Glass 5V010015 5V010015 5V010015 5V010015 5V010015 5V010015
6 Door glass gasket 5G100001 5G100001 5G100001 5G100001 5G100001 5G100001
7 Counterdoor 4C020028 4C020028 4C020027 4C020027 4C020027 4C020027
8 Door Frame 4T020005 4T020005 4T020026 4T020026 4T020026 4T020026
9 Plate fixing screws 5V500019 5V500019 5V500019 5V500019 5V500019 5V500019
10 Frontage 4F020023 4F020028 4F020022 4F020027 4F020022 4F020027
11/A Control panel frame 4M020002 4M020002 4M020001 4M020001 4M020001 4M020001
11/B Control panel label 5E200401 5E200401 5E200400 5E200400 5E200400 5E200400
12 Insulating material 5L010001 5L010001 5L010001 5L010001 5L010001 5L010001
13 Left covering panel 4P040041 4P040043 4P040007 4P040017 4P040027 4P040037
14 Top covering panel 4C030015 4C030015 4C030007 4C030007 4C030009 4C030009
15 Back covering panel 4S030229 4S030230 4S030202 4S030207 4S030202 4S030207
16 Right covering panel 4P040040 4P040042 4P040003 4P040012 4P040022 4P040032
17 Bottom covering pannel 4B030013 4B030013 4B030002 4B030002 4B030009 4B030009
18 Jacket 4I020002 4I020004 4I020003 4I020012 4I020007 4I020017
19 Cooking chamber 7C010108 7C010108 7C010103 7C010103 7C010107 7C010107
20 Chimney 4C030001 4C030005 4C030001 4C030005 4C030001 4C030005
24
Heating elements supporting
frame 4T060080 4T060080 4T060065 4T060065 4T060070 4T060070
25 Lamp holder 5P110003 5P110003 5P110003 5P110003 5P110003 5P110003
26 Lamp glass 5V010003 5V010003 5V010003 5V010003 5V010003 5V010003
27 Lamp 5L020005 5L020005 5L020005 5L020005 5L020005 5L020005
29 Circuit brakers board - - - - 5S010050 5S010050
30 Thermostat 5T010001 5T010001 5T010001 5T010001 5T010001 5T010001
31 Thermostat knob 5M200003 5M200003 5M200003 5M200003 5M200003 5M200003
34 Thermometer 5T010200 5T010200 5T010200 5T010200 5T010200 5T010200
35
Heating element's warning
light 5L020017 5L020017 5L020017 5L020017 5L020017 5L020017
36 Heating element's switch 5I100016 5I100016 5I100016 5I100016 5I100016 5I100016
37 Chamber light switch 5I100017 5I100017 5I100017 5I100017 5I100017 5I100017
38 Heating element 5R050420 5R050420 5R050400 5R050400 5R050410 5R050410
39 Refractory stone 5P050050 5P050050 5P050040 5P050040 5P050050 5P050050
41 Terminal box 5M100010 5M100010 5M100010 5M100010 5M100010 5M100010

16
8—SPARE PARTS
DESCRIPTION BASIC
XL 6L
BASIC
XL 66L
BASIC
XL 9
BASIC
XL 99
1/A Door Handle 7M010007 7M010007 7M010007 7M010007
1/B Small lateral door handles 5M200016 5M200016 5M200016 5M200016
2/A Door supporting plate (right) 4P100007 4P100007 4P100007 4P100007
2/B Door supporting plate (left)
3 Washer 3R030001 3R030001 3R030001 3R030001
4 Door 4P050018 4P050018 4P050018 4P050018
5 Door Glass 5V010015 5V010015 5V010015 5V010015
6 Door glass gasket 5G100001 5G100001 5G100001 5G100001
7 Counterdoor 4C020028 4C020028 4C020028 4C020028
8 Door Frame 4T020005 4T020005 4T020005 4T020005
9 Plate fixing screws 5V500019 5V500019 5V500019 5V500019
10 Frontage 4F020023 4F020028 4F020023 4F020028
11/A Control panel frame 4M020002 4M020002 4M020002 4M020002
11/B Control panel label 5E200401 5E200401 5E200401 5E200401
12 Insulating material 5L010001 5L010001 5L010001 5L010001
13 Left covering panel 4P040007 4P040017 4P040027 4P040037
14 Top covering panel 4C030008 4C030008 4C030013 4C030013
15 Back covering panel 4S030208 4S030209 4S030208 4S030209
16 Right covering panel 4P040001 4P040010 4P040022 4P040032
17 Bottom covering pannel 4B030010 4B030010 4B030011 4B030011
18 Jacket 4I020008 4I020018 4I020007 4I020017
19 Cooking chamber 7C010110 7C010110 7C010112 7C010112
20 Chimney 4C030001 4C030005 4C030001 4C030005
24 Heating elements supporting frame 4T060000 4T060000 4T060070 4T060070
25 Lamp holder 5P110003 5P110003 5P110003 5P110003
26 Lamp glass 5V010003 5V010003 5V010003 5V010003
27 Lamp 5L020005 5L020005 5L020005 5L020005
29 Circuit brakers board 5S010050 5S010050 5S010050 5S010050
30 Thermostat 5T010001 5T010001 5T010001 5T010001
31 Thermostat knob 5M200003 5M200003 5M200003 5M200003
34 Thermometer 5T010200 5T010200 5T010200 5T010200
35 Heating element's warning light 5L020017 5L020017 5L020017 5L020017
36 Heating element's switch 5I100016 5I100016 5I100016 5I100016
37 Chamber light switch 5I100017 5I100017 5I100017 5I100017
38 Heating element 5R050415 5R050415 5R050420 5R050420
39 Refractory stone 5P050040 5P050040 5P050050 5P050050
41 Terminal box 5M100010 5M100010 5M100010 5M100010

17
8—SPARE PARTS
8.3–EXPLODED VIEW:
MOD. BASIC

18
9.1 LIST OF COMPONENTS
9-ELECTRIC EQUIPMENT
MARK DESCRIPTION
TSingle (1) pole thermostat
TT Three (3) poles thermostat
QS0 Heating elements on/off switch
HL Heating elements spy light
QF0/1 Chamber light on/off switch
KContactor
TI Timer

19
9–ELECTRIC EQUIPMENT
MOD. BASIC 4-44
MOD. BASIC XL 4-44
400 V (for one chamber)

20
9–ELECTRIC EQUIPMENT
MOD. BASIC 6-66
MOD. BASIC XL 6-66
MOD. BASIC XL 6L-66L
MOD. BASIC XL 9-99
230 V (for one chamber)
