Pro-Form 350 Treadmill User manual

Model No. PFTL31906.1
Serial No.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete cus-
tomer satisfaction. If you have
questions, or if parts are missing,
PLEASE DO NOT CONTACT THE
STORE; please contact
Customer Care.
IMPORTANT: You must note the
product model number and
serial number (see the drawing
above) before contacting us:
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.proformservice.com
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
V
Serial Number
Decal
Write the serial number in the
space above for future reference.

TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.
2
PROFORM is a registered trademark of ICON IP, Inc.
WARNING DECAL PLACEMENT
The decals shown here have been applied in the
locations shown. If a decal is missing or illegi-
ble, call the telephone number on the front
cover of this manual and request a free re-
placement decal. Apply the decal in the loca-
tion shown. Note: The decals may not be
shown at actual size.

3
1. Before beginning any exercise program, con-
sult your physician. This is especially impor-
tant for persons over the age of 35 or persons
with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air open-
ings. To protect the floor or carpet from dam-
age, place a mat under the treadmill.
5. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under the age of 12 and pets
away from the treadmill at all times.
8. The treadmill should be used only by persons
weighing 300 lbs. (136 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women.
Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
11. When connecting the power cord (see page
9), plug the power cord into a surge suppres-
sor (not included) and plug the surge sup-
pressor into a grounded circuit capable of
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 9. To purchase a surge suppressor, see
your local PROFORM dealer or call the tele-
phone number on the front cover of this man-
ual and order part number 146148, or see your
local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the con-
trol system of the treadmill. If the control sys-
tem is damaged, the walking belt may change
speed, accelerate, or stop unexpectedly,
which may result in a fall and serious injury.
14. Keep the power cord and the surge suppres-
sor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROU-
BLESHOOTING on page 16 if the treadmill is
not working properly.)
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 10).
17. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
19. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
WARNING: Toreduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your treadmill before using your treadmill. ICON as-
sumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
IMPORTANT PRECAUTIONS

4
20. Never leave the treadmill unattended while it
isrunning. Always remove the key, unplug
the power cord, and switch the reset/off cir-
cuit breaker to the off position when the
treadmill is not in use. (See the drawing on
page 5 for the location of the circuit breaker.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 14.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
23. Never insert any object into any opening on
the treadmill.
24. Inspect and properly tighten all parts of the
treadmill regularly.
25. DANGER: Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte-
nance and adjustment procedures described in
this manual. Never remove the motor hood un-
less instructed to do so by an authorized ser-
vice representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commer-
cial, rental, or institutional setting.
SAVE THESE INSTRUCTIONS

5
Thank you for selecting the new PROFORM®350 tread-
mill. The 350 treadmill offers a selection of features de-
signed to make your workouts at home more effective
and enjoyable. And when you’re not exercising, the 350
treadmill can be folded up, requiring less than half the
floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill.If you have questions after read-
ing this manual, please see the front cover of this man-
ual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
To avoid a registration fee for any service needed
under warranty, you must register the treadmill at
www.proformservice.com/registration.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
Handrail
Upright
Storage Latch
Key/Clip
Reset/Off
Circuit Breaker
Walking Belt
Cushioned Walking Platform
Foot Rail
Power Cord
Rear Roller
Adjustment Bolts
Console
Fan
Accessory Tray

ASSEMBLY
Tohire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the
top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-
mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver , rubber
mallet , and adjustable wrench .
For help identifying the assembly hardware, see the drawings below. If a part is not in the parts bag, check
to see if it has been pre-assembled. To avoid damaging plastic parts, do not use power tools for assembly.
1/2” Screw (119)–1
3/4” Tek Screw (58)–8
1
Wheel Nut (32)–2
Wheel Bolt (64)–2
1" Tek Screw (39)–4
Extension Leg
Nut (46)–4
Extension Leg Bolt (93)–8
3/4" Screw (2)–6
1/4" Star Washer
(73)–2
Handrail Bolt (37)–4
Silver Ground
Screw (75)–1
Console
Bolt (90)–2
Handrail Star
Washer (32)–4

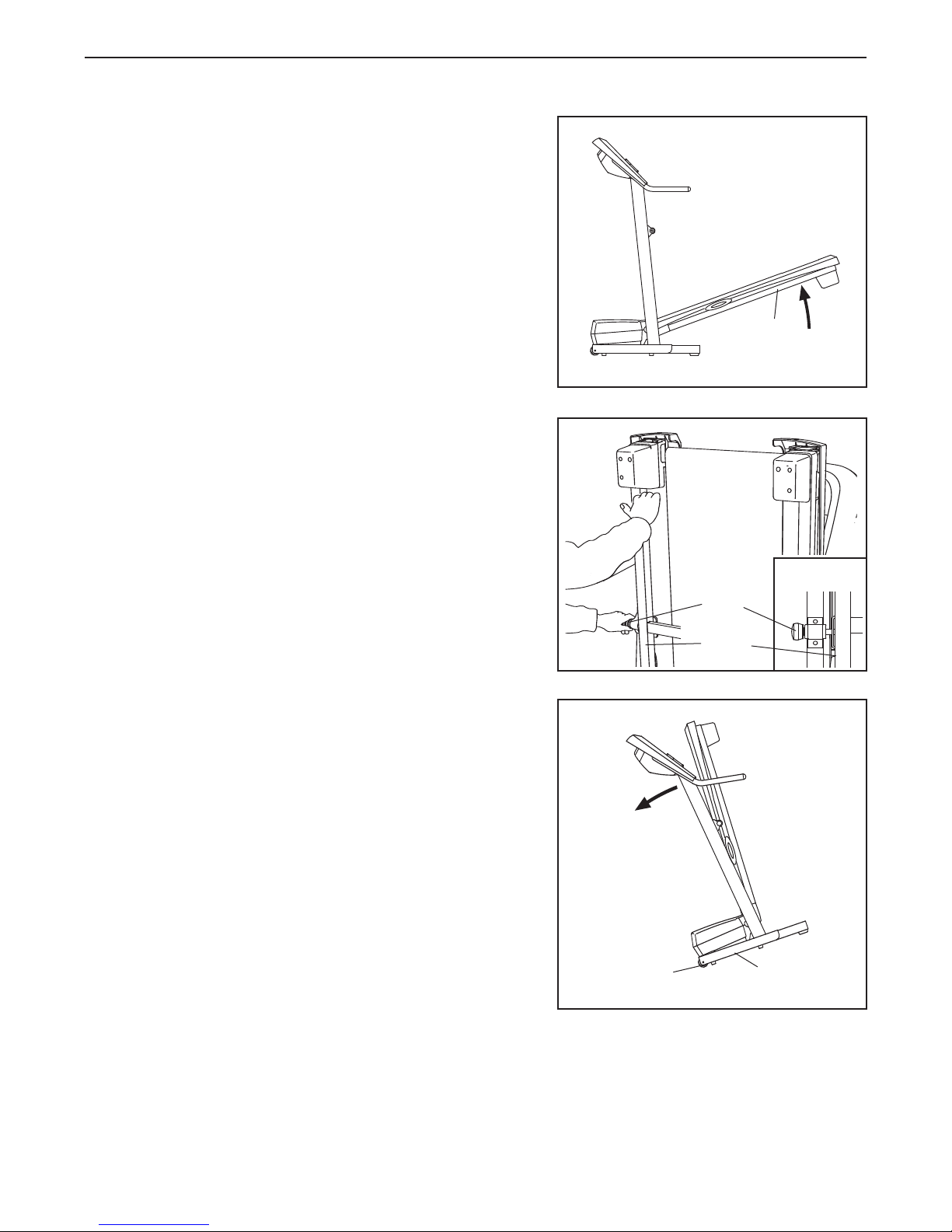

1. Make sure that the power cord is unplugged. With
the help of a second person, carefully tip the treadmill
onto its left side as shown. Partially fold the Frame (86)
so the treadmill is more stable. Do not fully fold the
treadmill until it is completely assembled.
Orient an Extension Leg (63) so the Base Pad (61) is in
the position shown, and insert the Extension Leg into the
base of the Uprights (69). If necessary, use a rubber
mallet to fully insert the Extension Leg. Next, hold two
Extension Leg Nuts (46) in the bottom of the Extension
Leg, and insert two Extension Leg Bolts (93) into the top
of the Extension Leg. Firmly tighten the Extension Leg
Bolts into the Extension Leg Nuts.
Attach two Round Base Pads (57) to the base of the
Uprights (69) with two 1" Tek Screws (39).
63
86
61
57
69
39
39
93
46
1
6

7
2. Attach a Wheel (66) to the base of the Uprights (69) with
a Wheel Bolt (64) and a Wheel Nut (32) as shown. Do
not overtighten the Wheel Bolt; the Wheel should turn
freely.
With the help of a second person, carefully tip the tread-
mill onto its other side. See assembly step 1 and attach
the other Extension Leg (63) and Round Base Pads
(57). Next, attach the other Wheel (66) as described
above.
With the help of a second person, carefully tip the tread-
mill so the base of the Uprights (69) is flat on the floor.
66
32
69
64
2
42
71
4. Have another person hold the Console Base (47) near
the right Handrail (71). If there is a green ground wire
coming from the Console Base, attach the end of the
ground wire to the indicated small hole in the right
Handrail with the Silver Ground Screw (75).
Connect the Wire Harness (42) to the wire harness on
the Console Base (47). See the inset drawing. The con-
nectors should slide together easily and snap into
place. If they do not, turn one connector and try again. IF
THE CONNECTORS ARE NOT CONNECTED PROP-
ERLY, THE CONSOLE MAY BE DAMAGED WHEN THE
POWER IS TURNED ON.
75
47
Ground
Wire
4
3. If there is a board (not shown) between the Uprights
(69), remove the two bolts attaching the board. Discard
the board and the bolts.
Remove the tie from the Wire Harness (42). Hold one of
the Handrails (71) near the right Upright (69), and insert
the Wire Harness into the opening in the bottom of the
Handrail and out of the indicated hole in the top.
Set the Handrail (71) on the right Upright (69), and
tighten two Extension Leg Bolts (93) with two Handrail
Star Washers (32) into the Handrail and the right
Upright. Make sure that the Wire Harness (42) is not
pinched.
Attach the other Handrail (71) to the left Upright (69) as
described above. Note: There is no wire harness on the
left side.
69
69
42
93
32
71
32
93
71
3
42

8
90
5. Set the console assembly on the Handrails (71); insert
the excess wiring down into the right Handrail. Attach the
console assembly with four 3/4" Screws (2), two Console
Bolts (90), and two 1/4" Star Washers (73) as shown.
Make sure that no wires are pinched. Start all four
Screws and both Console Bolts before tightening
any of them.
290
73
73
2
71 71
5Console Assembly
7. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included hex keys in a secure place; the large hex key is used to adjust the walking belt
(see page 17). To protect the floor or carpet, place a mat under the treadmill.
6. Attach the Latch Housing (29) to the left Upright (69) with
two 3/4" Screws (2). Make sure that the large hole in
the Latch Housing is on the side shown. Do not over-
tighten the Screws.
Remove the knob from the pin. Make sure that the collar
and the spring are on the pin as shown. Insert the pin into
the Latch Housing (29), and tighten the knob back onto
the pin.
2
29
69
6
Knob
Pin
Collar
Spring
Large Hole

9
OPERATION AND ADJUSTMENT
THE PRE-LUBRICATED WALKING BELT
Your treadmill features a walking belt coated with high-
performance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local PROFORM dealer or call the telephone
number on the front cover of this manual and order
part number 146148, or see your local electronics
store.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a moni-
toring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill. If
the control system is damaged, the walking belt
may change speed, accelerate or stop unexpect-
edly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Grounding Pin

10
CONSOLE DIAGRAM
Key Clip
FEATURES OF THE CONSOLE
The treadmill console offers a selection of features
designed to make your workouts more effective.
During each workout, you can change the speed and
incline of the treadmill with the touch of a button. As
you exercise, the console will display continuous exer-
cise feedback; you can even measure your heart rate
using the built-in pulse sensor.
CustomCalories™ Personal Calorie Center
As you walk or run on the treadmill, the console will dis-
play the approximate number of calories you have
burned. If desired, you can set a goal to burn either 300
or 400 calories in a 30-minute workout, and the console
will count the calories you burn until you reach your
goal.
To use the manual mode of the console, follow the
steps beginning on page 11. To use a calorie goal
program,see page 12.
IMPORTANT: If there is a sheet of clear plastic on
the console, remove the plastic. To prevent dam-
age to the walking platform, wear clean athletic
shoes while using the treadmill. The first time the
treadmill is used, observe the alignment of the
walking belt, and center the walking belt if neces-
sary (see page 17).
HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before turning on the power. If you do not
do this, the console displays or other electrical
components may become damaged.
Plug in the power cord (see
page 9). Next, locate the
reset/off circuit breaker on
the treadmill frame near the
power cord. Switch the cir-
cuit breaker to the reset po-
sition.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is dis-
played in a store. If the displays light as soon as
you plug in the power cord and switch the circuit
breaker to the reset position, the demo mode is
turned on. To turn off the demo mode, hold down
the Stop button for a few seconds. If the displays
remain lit, see THE INFORMATION MODE on page
13 to turn off the demo mode.
Next, stand on the foot rails of the treadmill. Find the
clip attached to the key (see the drawing above) and
slide the clip onto the waistband of your clothes. Then,
insert the key into the console. After a moment, the
displays will light. IMPORTANT: In an emergency sit-
uation, the key can be pulled from the console,
causing the walking belt to slow to a stop. Test the
clip by carefully taking a few steps backward; if the
key is not pulled from the console, adjust the posi-
tion of the clip.
Reset
Position
Pulse
Sensor

HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
10.
2. Enter your weight if desired.
For the most accurate
calorie count, enter
your weight into the
console by pressing
the Weight increase
and decrease buttons
repeatedly. Note: Once you have entered your
weight, your weight will be saved in memory.
3. Start the walking belt.
To start the walking belt, press the Start button, the
Speed increase button, or one of the ten numbered
buttons.
If the Start button or the
Speed increase button
is pressed, the walking
belt will begin to move
at 1 mph. As you exer-
cise, change the speed
of the walking belt as desired by pressing the
Speed increase and decrease buttons.Each time a
button is pressed, the speed setting will change by
0.1 mph; if a button is held down, the speed setting
will change in increments of 0.5 mph. Note: After
the buttons are pressed, it may take a moment for
the walking belt to reach the selected speed setting.
If one of the ten numbered buttons is pressed, the
walking belt will gradually increase in speed until it
reaches the selected speed setting.
To stop the walking belt, press the Stop button.
The time will begin to flash in the left display. To
restart the walking belt, press the Start button, the
Speed increase button, or one of the ten numbered
buttons.
4. Change the incline of the treadmill as desired.
Tochange the incline of the treadmill, press the
Incline increase or decrease button until the de-
sired incline level is reached.
5. Follow your progress with the displays.
The left display—The
left display will show the
elapsed time and the
distance that you have
walked or run during
your workout. The dis-
play will change from one mode to the other every
few seconds.
Note: The console can display distance and speed
in either miles or kilometers, as shown by the let-
ters MPH or Km/H in the right display. To change
the unit of measurement, see THE INFORMATION
MODE on page 13. For simplicity, all instruc-
tions in this section refer to miles.
The center display—
The center display will
show the approximate
number of calories you
have burned during
your workout.
The right display—The right display will show the
speed of the walking belt. The display will also
show your heart rate when you use the pulse sen-
sor.
To reset the displays, press the Stop button, re-
move the key, and then reinsert the key.
11

12
6. Measure your heart rate if desired.
Tomeasure your heart rate, stand on the foot
rails and place your left thumb on the pulse sensor
(see the drawing at the top of page 10). Donot
press too hard, or the circulation in your thumb
will be restricted and your pulse may not be de-
tected. When your pulse is detected, a heart-
shaped indicator in the right display will flash each
time your heart beats, one or two dashes will ap-
pear, and then your heart rate will be shown. For
the most accurate heart rate reading, hold your
thumb on the pulse sensor for at least 15 sec-
onds.
If the displayed heart rate appears to be too high or
too low, or if your heart rate is not displayed, lift your
thumb for a few seconds, and then reposition your
thumb on the pulse sensor. Remember to stand still
while measuring your heart rate.
7. Turn on the fan if desired.
To turn on the fan at low speed, press the Fan but-
ton. To turn on the fan at high speed, press the but-
ton a second time. To turn off the fan, press the
button a third time. Note: If the fan is on when the
walking belt is stopped, the fan will turn off auto-
matically after a few minutes.
8. When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting
or you may damage the treadmill when you fold it
to the storage position. Next, remove the key from
the console and put it in a secure place.
When you are finished using the treadmill,switch
the reset/off circuit breaker to the “off” position and
unplug the power cord. IMPORTANT: If you do not
do this, the treadmill’s electrical components
may wear prematurely.
HOW TO USE A CALORIE GOAL PROGRAM
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
10.
2. Enter your weight if desired.
See step 2 on page 11.
3. Select a calorie goal program.
To select a calorie goal
program, press the 300
Calories button or the
400 Calories button.
Each program lasts for
30 minutes.
When a calorie goal program is selected, the maxi-
mum speed setting of the program will flash in the
right display.
4. Press the Start button to start the program.
Amoment after the button is pressed, the walking
belt will gradually increase in speed until it reaches
the first speed setting of the program.
To change the speed of the walking belt or the in-
cline of the treadmill at any time during the pro-
gram, press the Speed or Incline buttons. Note: If
you change the speed of the walking belt, you may
not reach your calorie goal.
5. Follow your progress with the displays.
See step 5 on page 11.
6. Measure your heart rate if desired.
See step 6 at the left.
7. Turn on the fan if desired.
See step 7 at the left.
8. When you are finished exercising, remove the
key from the console.
See step 8 at the left.

13
THE INFORMATION MODE
The console features an information mode that keeps
track of treadmill usage information and allows you to
select a unit of measurement for the console.
To select the information mode, insert the key into the
console while holding down the Stop button, and then
release the Stop button. When the information mode is
selected, the following information will be shown:
The left display will show the
total number of hours that
the treadmill has been used
and the total number of
miles (or kilometers) that the
walking belt has moved.
An “E” (for English) or an “M”
(for metric) will appear in the
right display. Press the
Speed increase button to
change the unit of measure-
ment, if desired.
Note: The console features a
display demo mode, de-
signed to be used if the
treadmill is displayed in a
store. While the demo mode
is turned on, the console will
function normally when you plug in the power cord,
switch the circuit breaker to the reset position, and in-
sert the key into the console. However, when you re-
move the key, the displays will remain lit, although the
buttons will not function. If the demo mode is turned on,
a“d” will appear in the display while the information
mode is selected. To turn on or turn off the demo mode,
press the Speed decrease button.
To exit the information mode, remove the key from the
console.

14
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
lowest position. If you do not do this, you may damage the
treadmill when you fold it. Remove the key and unplug the
power cord. CAUTION: You must be able to safely lift 45 lbs.
(20 kg) to raise, lower, or move the treadmill.
1. Hold the metal frame firmly in the location shown by the
arrow at the right. CAUTION: To decrease the possibility
of injury, do not lift the frame by the plastic foot rails.
Make sure to bend your legs and keep your back straight.
As you raise the frame, make sure to lift with your legs
rather than with your back. Raise the frame about halfway
to the vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left hand, pull the latch knob to
the left and hold it. Raise the frame until the hole in the frame
is aligned with the latch pin. Slowly release the latch knob;
make sure that the latch pin is fully inserted into the hole
in the frame.
To protect the floor or carpet from damage, place a mat
under the treadmill. Keep the treadmill out of direct sun-
light. Do not leave the treadmill in the storage position in
temperatures above 85° F(30° C).
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage
position as described above. Make sure that the latch pin is
fully inserted into the hole in the frame.
1. Hold the upper ends of the handrails, and place one foot
against one of the wheels.
2. Tilt the treadmill backward until it rolls freely on the wheels.
Carefully move the treadmill to the desired location. To re-
duce the risk of injury, use extreme caution while mov-
ing the treadmill. Do not move the treadmill over an un-
even surface.
3. Place one foot against one of the wheels, and carefully lower
the treadmill until it is resting in the storage position.
Base
Wheels
Engaged
Frame
Latch
Knob
Frame

15
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the treadmill with your right hand as shown. Pull the
latch knob to the left and hold it. Pivot the frame downward
until it is past the latch pin and then slowly release the latch
knob.
2. Hold the metal frame firmly with both hands,and lower it
to the floor. CAUTION: To decrease the possibility of in-
jury, do not lower the frame by gripping only the plastic
foot rails. Do not drop the frame to the floor. Make sure to
bend your legs and keep your back straight.
Engaged
Frame
Latch
Knob
Frame

16
TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If you need further assistance, please see the front cover of this manual.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 9). Use only a single-outlet surge suppressor
that meets all of the specifications described on page 9. Important: The treadmill is not compatible
with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is inserted into the console.
c. Check the reset/off circuit breaker located on the
treadmill frame near the power cord. If the switch
protrudes as shown, the circuit breaker has tripped.
To reset the circuit breaker, wait for five minutes
and then press the switch back in.
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see the drawing
above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key into the console.
d. If the treadmill still will not run, see the front cover of this manual.
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD. Remove the Hood Screws (26) from
the Hood (1), and carefully pivot the Hood off.
Locate the Reed Switch (10) and the Magnet (18) on
the left side of the Pulley (17). Turn the Pulley until
the Magnet is aligned with the Reed Switch. Make
sure that the gap between the Magnet and the
Reed Switch is about 1/8 in. (3 mm). If necessary,
loosen the 3/4" Tek Screw (58), move the Reed
Switch slightly, and then retighten the Screw.
Reattach the Hood (not shown), and run the treadmill
for a few minutes to check for a correct speed read-
ing.
Tripped Reset
c
26
1
a
18
10
58
Top
View
1/8 in. 17

17
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be-
come damaged. Remove the key and UNPLUG THE
POWER CORD.Using the hex key, turn both rear
roller bolts counterclockwise, 1/4 of a turn. When the
walking belt is properly tightened, you should be able
to lift each edge of the walking belt 2 to 3 in. (5 to 8
cm) off the walking platform. Be careful to keep the
walking belt centered. Then, plug in the power cord,
insert the key, and run the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
c. If the walking belt still slows when walked on, see the front cover of this manual.
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, first remove the key
and UNPLUG THE POWER CORD.If the walking
belt has shifted to the left, use the hex key to turn
the left rear roller bolt clockwise 1/2 of a turn; if the
walking belt has shifted to the right, turn the left
bolt counterclockwise 1/2 of a turn. Be careful not to
overtighten the walking belt. Then, plug in the power
cord, insert the key, and run the treadmill for a few
minutes. Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD.Using
the hex key, turn both rear roller bolts clockwise, 1/4
of a turn. When the walking belt is correctly tightened,
you should be able to lift each edge of the walking
belt 2 to 3 in. (5 to 8 cm) off the walking platform. Be
careful to keep the walking belt centered. Then, plug
in the power cord, insert the key, and carefully walk
on the treadmill for a few minutes. Repeat until the
walking belt is properly tightened.
PROBLEM: The console displays remain lit when you remove the key from the console
SOLUTION: a. The console features a display demo mode, designed to be used if the treadmill is displayed in a
store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off
the demo mode, hold down the Stop button for a few seconds. If the displays are still lit, see THE
INFORMATION MODE on page 13 to turn off the demo mode.
Rear Roller Bolts
2–3 in.
b
a
b

18
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
touse stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic exer-
cise, which is activity that requires large amounts of
oxygen for prolonged periods of time. For aerobic ex-
ercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest be-
tween workouts. After a few months of regular exer-
cise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
EXERCISE GUIDELINES
WARNING: Before beginning any
exercise program, consult your physician.
This is especially important for persons over
the age of 35 or persons with pre-existing
health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is in-
tended only as an exercise aid in determining
heart rate trends in general.

19
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
1.Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, back of knees and
back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat 3
times for each leg. To cause further stretching of the achilles ten-
dons, bend your back leg as well. Stretches: Calves, achilles ten-
dons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one
foot with your other hand. Bring your heel as close to your buttocks
as possible. Hold for 15 counts, then relax. Repeat 3 times for each
leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull
your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
1
2
3
4
5

PART LIST—Model No. PFTL31906.1 R0807A
Key
No. Qty. Description
Key
No. Qty. Description
Key
No. Qty. Description
1 1 Hood
2 24 3/4" Screw
3 1 Motor Belt
4 2 Motor Tension Bolt
5 2 Fan Screw
6 2 Motor Star Washer
7 1 Flywheel
8 1 Drive Motor
9 2 Foot Rail Cover
10 1 Reed Switch
11 1 Latch Warning Decal
12 2 Frame Spacer
13 9 Nut
14 2 Frame Pivot Bolt
15 2 Walking Platform
Screw, Rear
16 4 Handrail Endcap
17 1 Front Roller/Pulley
18 1 Magnet
19 1 Motor Pivot Bolt
20 2 Motor Bracket Bolt
21 1 Console Fan
22 3 Hood Clip
23 1 Console Frame
24 1 Motor Mount Bracket
25 2 Rear Roller Bracket
26 5 Hood Screw
27 1 Latch Assembly
28 2 Motor Tension Nut
29 1 Latch Housing
30 1 Latch Catch
31 1 Left Rear Foot
32 4 Handrail Star Washer
33 10 Foot Rail Screw
34 2 Walking Platform
Screw, Front
35 1 Walking Platform
36 2 Platform Washer
37 1 Rear Foot, Right
38 3 Washer
39 4 1" Tek Screw
40 1 Ground Wire
41 1 5/32" Hex Key
42 1 Wire Harness
43 1 Console
44 2 Rear Roller Plate
45 1 Rear Roller
46 4 Extension Leg Nut
47 1 Console Base
48 10 1/2" Screw
49 2 Wire Clamp
50 1 Key/Clip
51 1 Incline Motor
52 1 Incline Motor Bolt,
lower
53 6 Rear Foot Screw
54 3 Incline Pivot Bolt
55 2 Rear Roller
Star Washer
56 1 Motor Controller Wire
57 4 Round Base Pad
58 11 3/4" Tek Screw
59 1 Controller
60 1 Lift Frame
61 2 Base Pad
62 2 Caution Decal
63 2 Extension Leg
64 2 Wheel Bolt
65 2 Base Endcap
66 2 Wheel
67 2 Nut
68 6 8" Cable Tie
69 1 Upright
70 1 Grommet
71 2 Handrail
72 1 Walking Belt
73 2 1/4" Star Washer
74 1 Left Foot Rail
75 4 Silver Ground Screw
76 4 U-nut
77 1 Filter Wire
78 1 Right Foot Rail
79 1 Power Cord Assembly
80 1 Outlet Plate Screw
81 1 Belly Pan
82 2 Belt Guide
83 4 Belt Guide Screw
84 4 Isolator Fastener
85 2 Isolator Cushion
86 1 Frame
87 2 Releasable Tie
88 1 Front Roller
Star Washer
89 2 Cable Tie Clamp
90 2Console Bolt
91 1 Sensor Clip
92 3 Roller Adjustable Bolt
93 8 Extension Leg Bolt
94 1 Hex Key
* – 4" Black Wire, M/F
* – 8" Green Wire, F/R
* – 4" Blue Wire, 2F
* – 4" Red Wire, M/F
* – User’s Manual
*These parts are not illustrated.
Specifications are subject to
change without notice.
