pro master Wireless Remote Shutter User manual

Please read these operating instructions carefully before using the ProMaster Wireless Remote Shutter
Release.
The ProMaster Wireless Remote is designed for most of DSLR and SLR cameras that have a remote socket on
the camera body. It allows you to easily create compelling close-ups from a safe and secure "line-of-sight"
distance of up to 30 meters (99’ feet). The receiver simply attaches to a compatible camera's accessory shoe and
connects to the camera's remote socket with the supplied receiver cable. The receiver is powered by one CR-2
lithium battery and the transmitter is powered by one 23A battery.
Package Contains
Package Contains:
Receiver x1
Transmitter x1
CR-2 battery x1
23Abattery x1
English Instruction x1
IMPORTANT NOTICE: This remote requires the use of a ProMaster Camera Release Cable. This cable is designed
especially for your camera and is a required additional purchase in order for this remote to function.

Features
Receiver
•Battery type: CR-2 3V lithium battery × 1
•Operating temperature: 5 °C to 40 °C (40 °F to 105 °F)
•Net weight : Approx. 19g
•Dimensions: 47.5 × 38 × 21.9mm
Transmitter
•Battery type: 23A 12V battery x 1
•Operating temperature: 5 °C to 40 °C (40 °F to 105 °F)
•Net weight : Approx. 18g
•Dimensions: 81.9 × 27.3 × 14.5mm

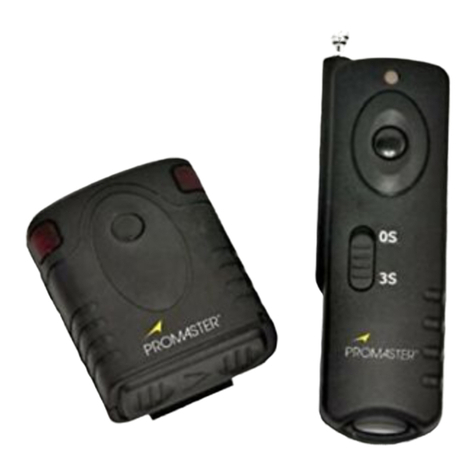

Function Identification
Transmitter
1 Status LED
2 Shutter button
3 Mode switch
4 Antenna (can be extended)
5 Channel selection switch
6 Battery cover

Receiver
1 Left status LED
2 Right status LED
3 Shutter button
4 Battery cover
5 Channel selection switch
6 1/4"-20 tripod mount socket
7 Cold shoe mount
8Lock nut
1 ON/OFF switch
2 Camera connection cable socket

Replacing the batteries
1. Slide the battery covers in the direction of the arrow to remove.
2. Insert a fresh battery. Ensure that the batteries are inserted in the correct direction. Installing batteries in the
wrong direction could cause the batteries to leak corrosive liquids, generate heat or explode.
3. Replace the battery covers in the opposite direction of the indicator arrow.

Attaching to the camera
1. Turn the power of the camera OFF before attaching the receiver to camera.
2. Please make sure the transmitter and receiver are both set to the same channel. There are 16 channels
available.
1 2 3 4
ON DIP
1 2 3 4
ON DIP
3. Slide the receiver gently into your cameras hot shoe as shown. Rotate the lock nut clockwise to tighten the
receiver on your camera.
4. Plug the end of the camera release cable (separate purchase required) into the receiver as shown. Plug the
other end into the camera remote socket (note that the appearance of this end is differentdepending upon
your camera model).
Note: Ensure you do not connect the cable the wrong way. Attempting to connect the cable in the wrong direction
may cause damage to your camera, the cable, the remote or all of the above.

5. Turn the power to the receiver and the camera ON.
Operating modes
Transmitter Mode
Switch
Function
Camera Drive Mode
Single exposure
Single exposure
Unlimited continuous
exposures
Continuous exposures
Bulb Manual Mode
Shutter Speed: BULB
5s Delay shot
Single exposure
3 continuous shots
Single exposure

Single Exposure
1. Set the mode switch to the single exposure position. Set the camera to single exposure mode.
2. Press the shutter button on the transmitter half way to focus.
3. Press the shutter button completely to trigger your camera.
Unlimited Continuous Exposures
1. Set the mode switch to the single exposure position and set the camera to continuous exposure mode.
2. Press the shutter button on the transmitter half way to focus.

3. Press the shutter button completely and hold until the transmitter LED light goes OFF. The receiver will now
lock the camera shutter for continuous shooting.
4. To release the shutter lock, press the shutter button on the transmitter again, the receiver will unlock the
shutter.
Bulb function
1. Set the mode switch to the single exposure position and set the camera to the BULB mode.
2. Press the shutter button on the transmitter half way to focus.

3. Press the shutter button completely and hold until the transmitter LED light goes OFF. The receiver will now
lock the camera shutter for BULB.
4. To release the shutter lock, press the shutter button on the transmitter again, the receiver will unlock the shutter.
5S Delay
1. Set the mode switch to the delayed exposure position. Set the camera to single exposure mode.
2. Press the shutter button on the transmitter half way to focus.
3. Press the shutter button completely. The camera will take a picture after a 5 second delay.

3 Continuous Exposures
1. Set the mode switch to the 3 continuous exposure position. Set the camera to single exposure mode.
2. Press the shutter button on the transmitter half way to focus.
3. Press the shutter button completely and the camera will take 3 exposures at an interval of 1s.
Additional functions
Multiple Cameras
The transmitter is designed to trigger multiple receivers at the same time. This is perfect for those who own
several cameras and want to enhance their creativity.
Use as a wired remote
The receiver may also be used as a wired shutter release button. Press the shutter button on the receiver half
way to focus. Press the shutter button completely to take an exposure.
IMPORTANT NOTE: Some camera and lens combinations take longer to achieve focus lock. Your camera may not
trigger until focus lock has been achieved. If the remote fails to trigger your camera, it is likely that it is due to the fact
that your camera has not achieved focus lock when the trigger signal is received. Switching the remote to the 5S delay
mode will give your camera more time to focus and help the remote to trigger your camera reliably.
ONE YEAR UNCONDITIONAL GUARANTEE
If for any reason, your ProMaster product fails within ONE YEAR of the date of purchase, return the product to
your ProMaster dealer and it will be exchanged for you at no charge. ProMaster products are guaranteed for ONE
FULL YEAR against defects in workmanship and materials. If at any time after one year, your ProMaster product
fails under normal use, we invite you to return it to ProMaster for evaluation and repair.
Made in China
www.promaster.com
Fairfield, CT 06825
