PROAIM CINEMA Series User manual

Instruction Manual
Infinity Foldable Light Dolly
with Track System (DL-INFY)

2
Subject Page
Foreword 3
Introducon 4-6
Safety Hints 6
Assembling 7-10
Warranty 11
At Proaim, our goal is to ensure 100% Customer Sasfacon in all that we do.
We back our sales with a 1 year warranty from the date of purchase and work hard
to resolve any problems in the unlikely event one should arise.
With our commitment to connuous improvement and your Feedback, building on
our reputaon of providing aordable, quality products is
PRIORITY #1.
Table of Contents

3
Dear Client,
On behalf of all the people that work so hard to provide you with the most
up-to-date, exible and cost-ecient producon gear, we would like to welcome
you into the Proaim family.
By purchasing your Innity Foldable Light Dolly with Track System, you have just
joined a host of designers, engineers, machinists, assembly, customer service and
oce sta that take great pride in all that they do. Our mantra of connuous
improvement has been the guiding principle of how we conduct our business since
day one.
Once you have the opportunity to experience your new Innity Foldable Light Dolly
with Track System, we hope you will agree that we cra quality products at a
compeve price. Products designed to meet and exceed the standards of today’s
real producon world.
Standards set by our valued clients and standards we strive to maintain.
With Best Wishes,
Proaim Team
Welcome To Proaim!

4
Proaim Innity Dolly Track ulizes a completely new Foldable method and is
acompact and light dolly system conceived for quick and easy use. Proaim Innity
allows you to capture the acon on locaons wherever you are - with perfect
smoothness and least eort. Proaim Dolly is constructed of special high-quality
Wood – this light and robust material carries a very good payload of up to
300kg/660lb. The CNC Aluminum made Clip 10.6 Quick Track is Straight, Foldable
and consists of self-centring round bars. The Tool-less Dolly Track System has short
set-up me of just 2 minutes. Proaim Innity also includes a Sliding Push Pull Bar
for ease of movement. The Dolly Track folds into a small lightweight package and
reduces the transport dimensions. It’s the Most Compact Light Dolly
System designed to provide ulmate mobility and versality.
Introducon
What’s In The Box
Please inspect the contents of your shipped package to ensure you have received
everything that is listed below.
NOTE: If you have purchased (DL-INFY-00) kit, you will receive the following:
Dolly
Push Bar with Foam Handle
6pc Track Pads

5
2pc End Stoppers
Track Storage Bag
10.6 Track
NOTE: If you have purchased (DL-INFY-01) kit, you will also receive the following:
Telescopic Lever
Bazooka
100mm Bowl
Riser
Flight Case
Ground Star
Vercal Arm
(30cm/12”)
Round Dolly Seat

6
Safety Hints
ATTENTION: PLEASE READ THIS BEFORE USING TO PREVENT SERIOUS DAMAGE TO
THE EQUIPMENT!
NEVER LEAVE THE FIXTURES LOOSE
Carefully ghten all the parts & fasteners to prevent damage to the equipment &
any harm to crew.
INSPECT THE SURROUNDINGS PRIOR TO OPERATION
The operang area of dolly on track and its accessories must be kept clear. Keep a
distance of approximately 0.5m to surrounding objects.
BE CAUTIOUS WHILE USING
Do not use the dolly on sloping ground/surface or in vehicles. Lack of aenon can
result in hing of equipment.
EQUAL DISTRIBUTION OF WEIGHT IS NECESSARY
When loading the Quad Dolly, it is important to achieve an equal distribuon of
weight. Avoid one sided or o-set payloads at either side or end of the main dolly
plaorm and also on extra side plaorms.
FOLLOWING THESE GUIDELINES WILL PROVIDE BETTER IMAGES AND TROUBLE FREE
OPERATION.
SHOULD YOU NEED ADDITIONAL INFORMATION, TECHNICAL ASSISTANCE IS
AVAILABLE ‘ONLINE’ BY CONTACTING YOUR SALES REPRESENTATIVE.
Flight Case

7
Assembling of Track
 Place all the Track Pads onto at
surface, 3 on each side, and join them
together with the help of aached
Velcro strips.
 Then unfold all the secons of both
lengths of Track, as shown in image.
NOTE: The secons of Track are connected
together with strong integrated Elasc Cord
that eortlessly tows each of them. This
also makes impossible to lose out any
secon.

8
 Posion Steering Push Bar onto one of the Standard Arms. Connect properly by ghtening
knob. Now place the dolly on the track.
 Insert the rod into rod adapter and ghten knob to lock properly.
Assembling of Dolly
 Unfold the dolly and loosen the knob.

9

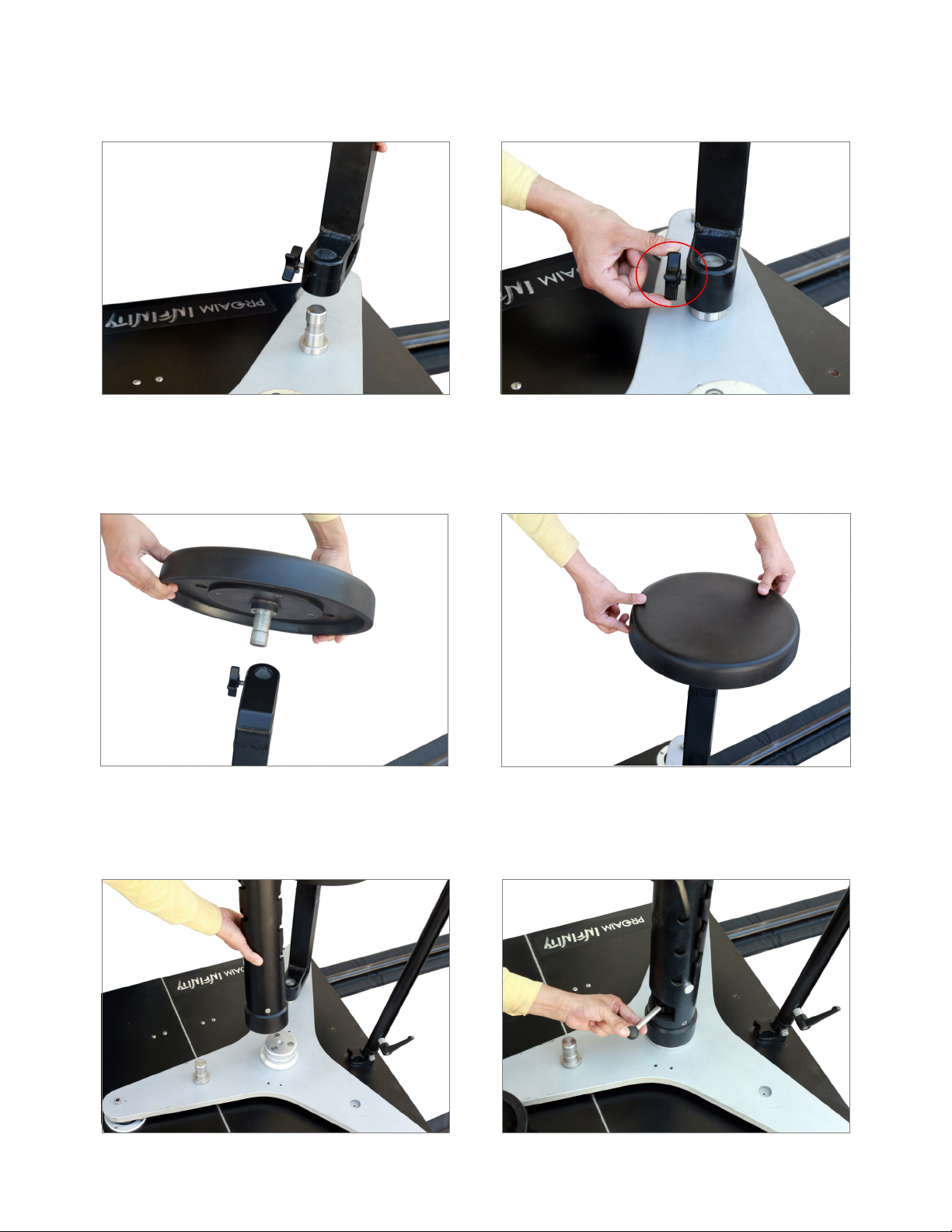

 Mount Telescopic Bazooka on Euro Adapter for instant height adjustment of your setup.
Tighten it with integrated Quick Lock Lever.
 Aach the Vercal Arm onto the Pin of Ground Star and ghten the knob to secure it .
 Aach the Round Dolly Seat rod with the Vercal Arm and lock it securely with the
respecve locking knob.

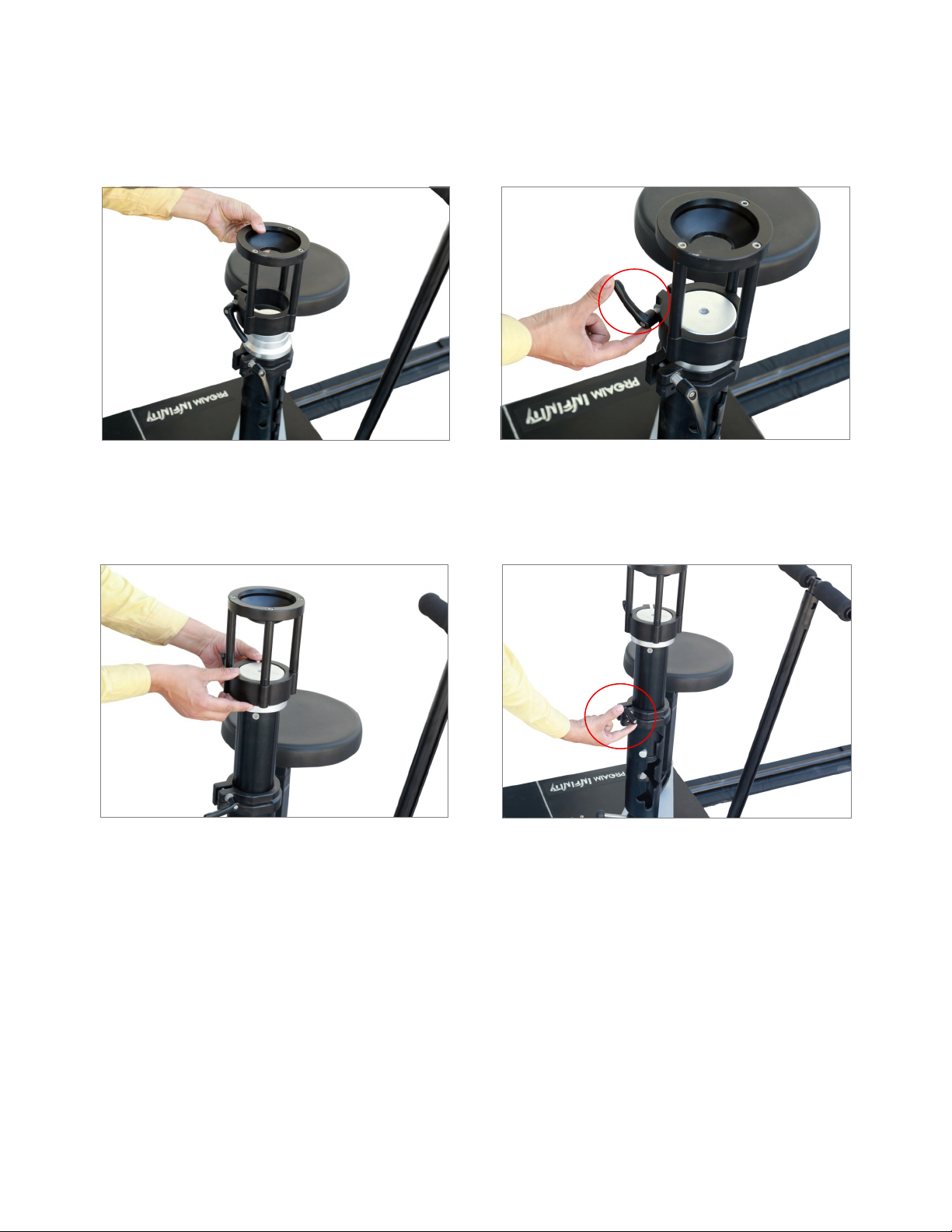

 Mount 100mm Bowl Camera Riser on the Telescopic Bazooka . Tighten the knob to secure
properly.
NOTE: We can adjust the height of Telescopic Bazooka according to the requirement with the
help of knob

WARRANTY
We oer a one year warranty for our products from the date of purchase.
We will repair or replace your product, free of charge, in the event of a defect in materials or
crasmanship obtained during normal use or handling based on the user manual. Please note
that we will not cover any shipping costs for returning the product to us. If any VAT or import
dues are applied to the return, we will also charge these costs to the customer.
The warranty does not include, by the way of example, damage caused by products that we do
not supply or from mishandling in transit, accident, misuse, neglect, lack of care of the product ,
or service by anyone other than our company.
We are not liable for incidental or consequenal damages resulng from the use of the unit or
occurring due to any breach of this warranty.
Replacement parts of the product will be provided at nominal cost (covering the cost price of the
replacement parts only) to the customers aer the Warranty Period has expired. We will cover
the complete cost of sending replacement parts within the warranty period. Aer that, Nominal
cost of the product & Actual shipping cost will be charged.
Do not send the unit to us without rst geng a response and geng the approval to send back
the item.
In case of any kind of dissasfacon, we urge you to Contact us immediately and we shall do our
Best to help you out. For any other assistance you can reach us via email.
For any other assistance you can reach us via email.
YOUR PROAIM INFINITY FOLDABLE LIGHT DOLLY WITH TRACK SYSTEM
ALL DRESSED UP AND READY TO GO!
(SHOWN WITH OPTIONAL ACCESSORIES)
