PROAIRA WF-16AR User manual

Read & Save These Instructions
Wall Mount Oscillating Fan
Features:
3 Speed Settings
Adjustable Vertical Tilt
R te
C r
C td wn Timer
Three Variable Speed
P
All Metal Safety Grilles
120V A.C. / 60Hz.
Item: WF16RW
Model: WF-16AR

2
2
Intended Use:
This product is intended for indoor residential and office use only,
not for industrial or other commercial applications. Use only with
electrical wiring that is in good working order and that meets
applicable codes and ordinances. If you have any questions
whether your wiring is adequate, consult a qualified electrician.
While using your fan, you should follow the IMPORTANT
INSTRUCTIONS listed below. As part of those instructions, we
have used the word "WARNING" to indicate the level of hazard:
WARNING indicates a hazard which, if not avoided, could result
in injury or death.
IMPORTANT INSTRUCTIONS
As with all electrical appliances, basic safety precautions should
always be followed to reduce the risk of electric shock, fire, or
injury to persons.
Read all the instructions before using this fan.
recommended by the manufacturer may cause electrical shock,
fire or injury to persons.
rd or after the
fan malfunctions or has been dropped in any manner.
extreme caution is necessary when any fan is used by or
near children, disabled persons or pets and whenever the fan is
left operating unattended.
which might allow fan to tip or fall.
roper operation, fan should be placed on a smooth,
non-combustible, level surface.
rom place
to place, when assembling or disassembling parts, and before
cleaning.
recommended or sold by the
manufacturer, may cause hazards.
w. Rain may cause electrical hazard
(for non-window models).
rds or any safety device
removed.
Avoid the use of extension cords due to risk of fire. If an
extension cord must be used, the cord must be minimum
14 AWG and rated not less then 1875 watts.
r rd with
throw rugs, runners or the like. Arrange cord away from traffic
area where it will not be tripped over.
re hazard.
Avoid contact with moving parts.
children) with reduced physical, sensory or mental capabilities
or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
ren should be supervised to ensure they do not play with
the appliance.
READ & SAVE THESE
INSTRUCTIONS
 WARNING: Shock Hazard
Use your fan only in dry environments. This fan is not intended
for use in a bathroom, laundry area, or similar locations, or near
sinks, washing machines, swimming pools or other sources of
water. Never locate fan where it may fall into a bathtub or other
water r ronments such as
flooded basements.
WARNING: Hot Surfaces
use, to avoid burns, do not let bare skin touch hot surfaces.
WARNING: Fire Hazard
r
combustible materials or flammable gases or sources of heat.
reas where gasoline, paint or flammable
materials are used or stored. To prevent a possible fire, do not
block air intakes or exhaust in any manner
foreign objects to enter any ventilation or exhaust opening as this
may cause an electric shock, fire, or damage the fan.
WARNING: Electrical Shock Hazard
rd or plug. Use with adequate
electrical system that is up to code.
 CAUTION: to Prevent Electric Shock, this product
has a polarized two prong plug (one blade is wider than the
other) that must be fully inserted in to a matching properly
grounded outlet. This plug is designed to fit a polarized outlet
only one way. If the plug does not fit fully into the outlet,
reverse the plug. If the plug still does not fit, contact a qualified
re.
WARNING: to Reduce the Risk of Fire or Electric
Shock, do not use this product with any solid-state speed
control device.
DO NOT operate any fan with a damaged cord or plug or after
fan malfunctions, has been dropped or damaged in any manner.
roken blade, safety cage or any visual
re servicing.
DO NOT run power cor rd
with throw rugs, runners or the like. Arrange cord away from
traffic area where it will not be tripped over. Avoid the use of
extension cords due to risk of fire. If an extension cord must
be used, the cord must be minimum 14 AWG and rated not
rd unless the
plug can be completely inserted into its receptacle. Unplug
obstructed.
Item: WF16RW
Model: WF-16AR

3
3
Usage:
Fan Operation: Always operate the fan in the upright position
following all instructions and recommendations listed in this manual.
Fan Connection: Plug fan directly into 120 volt A.C., 60 Hz wall
outlet. Be sure plug fits tightly in outlet. A loose connection may cause
overheating and damage to the plug or fan.
Note: To prevent overloading a circuit, do not plug the fan into a
circuit that is servicing other electrical needs.
Turning Fan On: With fan mounted
to a stable wall surface, plug fan into
properly functioning outlet. To start the
fan, press SPEED/ON button. Press
SPEED/ON repeatedly to desired fan
speed (LOW, MID, HIGH). Press OFF
button to discontinue use. Unplug fan
when not in use.
Oscillation: To start fan oscillation,
press OSC. button on control panel or
remote control while fan is at any speed or mode. To discontinue
oscillation, press the OSC. button on control panel or remote control
again.
Remote Control: Place 2ea. AAA size batteries (not included) in the
remote control. Use the buttons on the remote as you would with the
control panel. Point the remote control towards the control panel for
the sensor to receive a signal.
Timer Feature: Accessed using the remote control, the timer function
is designed to work during oscillation or any fan mode or speed. Press
the TIMER button, each time it is pressed, time duration indicator lights
illuminate. (0.5, 1, 2 or 4 hours). Simply add up the time value of the
lights to see timer setting up to 7.5 hours maximum time. To turn the
timer function off, press the TIME button continuously until all the timer
indicator lights are off.
Fan Modes: Accessed using the Remote Control, this fan has three
operating modes that will work with oscillation control ON or OFF.
Normal - Fan speed is consistent with the speed chosen and
operates like a standard fan.
Pulse - Fan will vary the speed from the highest fan speed chosen to
very slow speed.
Sleep - Fan will vary the fan speed like pulse mode but it is timed to
slow down after a period of time. The speed will change as follows:
Fan High Speed - When fan speed is set to HIGH, the fan will run
varying from HIGH speed to very slow speed for 30 minutes, then run
from MEDIUM to very slow speed for 30 minutes, then run from LOW
speed to very slow speed for the duration of use.
Fan Medium Speed - When fan speed is set to Medium, the
fan will run varying from MEDIUM speed to very slow speed for
30 minutes, then run from LOW speed to very slow speed for the
duration of use.
Fan Low Speed - When fan speed is set to LOW, the fan will vary
from LOW speed to very low speed for the duration of use.
Adjusting Fan Tilt: To adjust the tilt angle simply tilt the fan to desired
position. Ratcheting effect should hold the fan at the desired angle.
Assembly Instructions
(images may vary slightly from actual product)
Step 2 Step 3
Step 4 Step 5
Step 6
Step 8
Step 7
Step 9
Assemble Rear Grille onto
Motor Housing. Rear Grille
should fit into pins on fan
motor housing as shown.
Remove any protective
covering over shaft before Fan
Blade Installation. Place Fan
Blade onto Motor Shaft. Notice
the pin on Motor Shaft should
fit into slots of Fan Blade.
Attach Front Grille to Rear
Grille with Hook Clip centered
on the top above Wire Handle
Secure Wall Bracket to the
wall in the desired location.
Use proper anchors for
the wall material selected,
following the manufacturers
instructions. Mounting bracket
to wall studs is recommended.
Thread Locknut onto Motor
Housing to lock Rear Grille
in place.
Thread Blade Cap onto
threaded end of Motor Shaft.
Note: Threads are
reversed. Tighten =
Counter-clockwise.
Press remaining Grille Clips onto
Rear Grille to securely attach
Front Grille. Do not operate
fan without Grille in place.
Hang fan on wall bracket.
Place Bracket Screw through
fan and thread screw on to
bracket.
Wire
Handle
Pin
Pin
Pin
Lock
Nut
Slot
Blade Cap
Hook Clip Grille Clip
Mount
Securely
to Wall Bracket
Screw
T
i
g
h
t
e
n
Control Panel
Step 1
Remove the Blade Cap by
twisting it CLOCKWISE while
holding the metal shaft tightly.
Note: Threadsare reversed.
Unscrew = Clockwise.
L
o
o
s
e
n

4
4
Care and Maintenance
Cleaning: CAUTION-Before cleaning the fan be sure to
disconnect power cord from the outlet. Clean the grille surface
with a clean damp cloth. Do not use harsh chemical or abrasive
cleaners. DO NOT IMMERSE THE FAN OR ANY WIRES IN
WATER. Replace front grille before fan use. Allow fan to dry
completely before use. Periodic grille cleaning with a vacuum will
prevent dust build up. The motor is sealed and does not require
any interior maintenance, cleaning or lubrication.
Maintenance: The Internal motor bearings are permanently
lubricated at the factory and do not require any additional
lubrication.
Repair: DO NOT OPERATE THE FAN WITHOUT THE GRILLE IN
PLACE. DO NOT USE THE FAN IF IT HAS MALFUNCTIONED OR
BECOME DAMAGED IN ANY WAY.
Storage: Keep original carton for storage of the fan. Coil and tie
the power cord to avoid damage during storage.
This product employs overload protection (fuse). A blown fuse
indicates an overload or short-circuit situation. If the fuse blows,
unplug the product from the outlet. Replace the fuse as per the
user servicing instructions (follow product marking for proper
fuse rating) and check the product. If the replacement fuse
blows, a short-circuit may be present and the product should
be discarded or returned to an authorized service facility for
examination and/or repair.

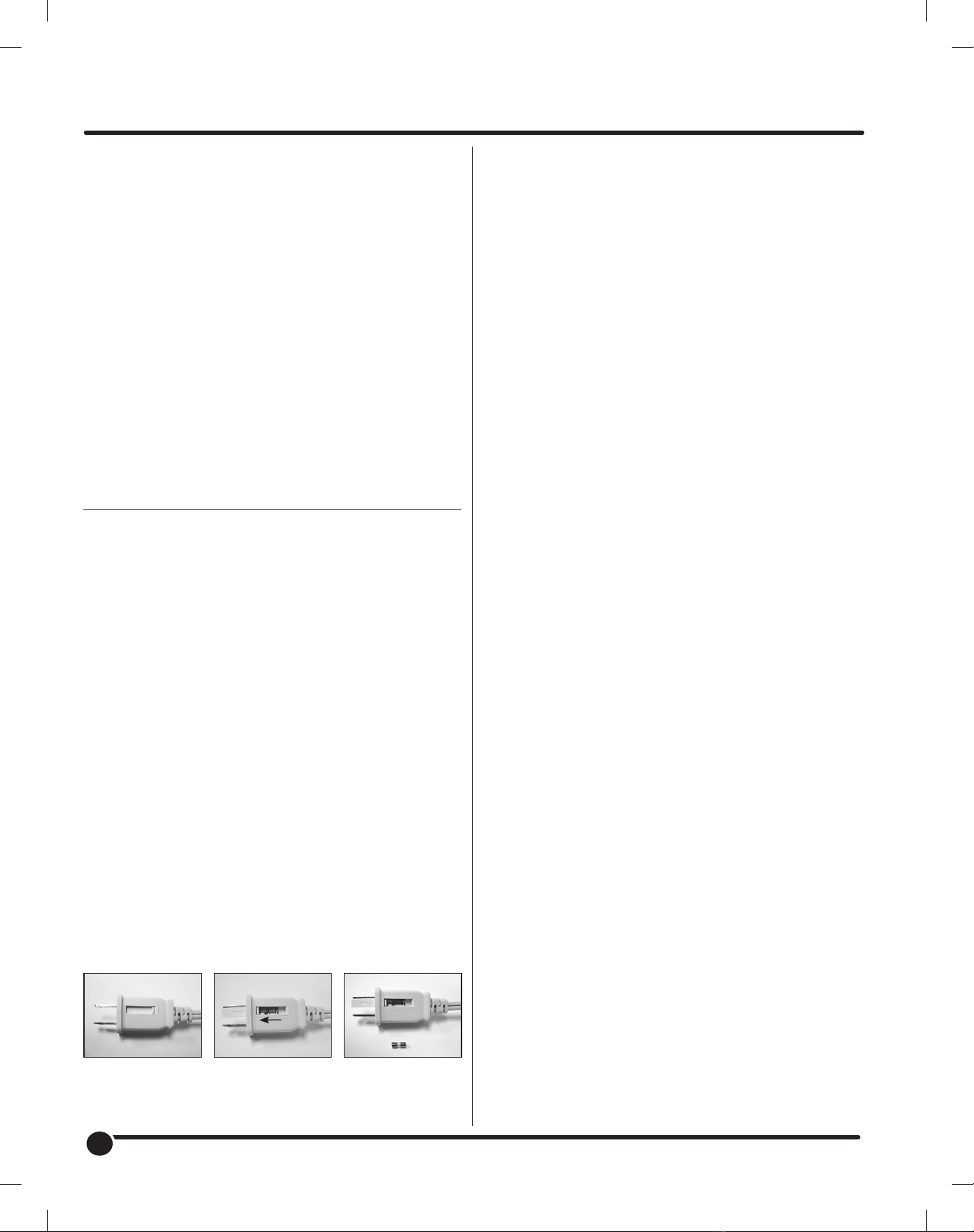

Fuse Replacement:
1. Grasp plug and remove from the receptacle or other outlet
device. Do not unplug by pulling on cord.
2. Open fuse cover by sliding open fuse access cover on top of
attachment plug towards blades. See Fig. 2.
3. Remove fuse carefully. Use a small tool to pry the end of the
fuse from holder cavity. Be careful not to break glass window.
4. Replace fuse. WARNING: Risk of fire. Replace fuse only with
identical 2.5 or 5.0 Amp, 125 Volt fuse (3.6mm x 10mm). Be
sure fuse is properly seated within its cavity.
5. Close fuse cover by sliding it back to its original closed
position.
Fig 1 Fig 2 Fig 3
Slide Cover to Open
