Kogan KA52DCCFLRS User manual

1300MM DC MOTOR
CEILING FAN
WITH LIGHT & REMOTE
KA52DCCFLRS, KA52DCCFLRW & KA52DCCFLRB

2

3
IMPORTANT: For your safety, this product must be installed by a licensed electrical
contractor.
• Make sure that the mains voltage matches the voltage stated on the rating label of the
appliance.
• Check the power cord regularly for visible damage. If the cord is damaged, cease use
immediately and contact help.Kogan.com for support, in order to avoid danger.
WARNING: Do not use the appliance if its cord, plug, or housing is damaged, or if it
malfunctions or has been dropped or damaged in any way.
• Do not use the appliance in confined spaces with explosive or toxic vapours.
• The appliance is not intended to be used by children under the age of 8. It can be used
by children over the age of 8, if they are given continuous supervision.
• This appliance is not intended to be used by persons with reduced physical, sensory, or
mental capabilities, or lack of experience or knowledge, unless they have been given
supervision or instruction concerning the use of the appliance in a safe way by a person
responsible for their safety, and understand the hazards involved.
• Supervise young children to make sure that they do not play with the appliance. Close
supervision is necessary when the appliance is being used by or near children.
• Keep the appliance and its cord out of reach of children under the age of 8.
• Do not try to repair the appliance yourself. Contact help.Kogan.com for support.
• Cleaning and maintenance must be carried out according to this user guide to make
sure the appliance functions properly. Always turn off and unplug the appliance before
cleaning.
• Cleaning and maintenance tasks must not be carried out by children.
• Make sure the fan is not placed near drapes, curtains, or any object that may be drawn
into the fan.
• Never attach the fan to a power point, but to the ceiling itself.
• The minimum distance between the fan blades and the floor must be 2.1m. The
minimum carrying capacity of the outlet box from which the fan is hung must be 45kg.
• Make sure you install an all-poles disconnection switch with a minimum distance of
3mm between poles in the supply wiring to the ceiling fan.
• Make sure the installation site will not allow the rotating fan blades to contact any
objects and that there is a minimum distance of 150mm (6”) from the blade tip to the
wall or ceiling. Please note that the bigger this distance is, the more airflow the fan will
produce.
SAFETY AND WARNINGS

4
• Switch off the power before connecting the fan.
• The electrical wiring must be in accordance with local regulations. The fan must be
properly grounded to avoid the risk of electric shocks.
• Never mount the fan in a moist or wet room. Be careful when working near the rotating
blades.
• This appliance must be installed in accordance with national electrical installation
regulations.
WARNING: In order to ensure your children’s safety, please keep all packaging (plastic
bags, boxes, polystyrene etc.) out of their reach.
IMPORTANT: Shut off the main electric switch during installation or maintenance. It is
enough to switch off).
• Do not use outdoors. The product must be installed in a dry place, where it is not
exposed to water or moisture.
• Do not connect the fan motor to a dimmer switch. This could result in malfunction or
motor damage.
• It is not recommended that ceiling fans and gas appliances operate in the same room
at the same time.
• The fan must be completely turned off and stopped before reversing the fan direction.
This will prevent the fan motor and controller from getting damaged. (if installed).
• Do not insert any object into the fan blades during operation. This will damage the
blades and upset the balance of the fan causing the unit to wobble.
• After the fan is completely installed make sure all base and fan blade fixings are
secured and tightened to prevent any problems.
• Some of the connections may loosen due to the fan’s natural movement. Check the
support connections brackets and blade attachments twice a year to make sure they
remain secured. If any are loose, tighten.
• Do not touch the appliance with wet hands or feet
• Never expose the appliance to atmospheric conditions (rain, sun…).
• Do not use the device next to potentially explosive or inflammable liquids or gases.
• This product is intended for household use ONLY and not for commercial/industrial or
outdoor use.
• Keep batteries out of the reach of children and animals, they could cause damage if
swallowed. If they were swallowed, contact your doctor immediately.
• If any visible signs of damage, holes or deterioration are observed, avoid direct contact
between batteries and skin or eyes. If batteries leak and come in contact with your eyes,
immediately wash them with clean water and contact your doctor.

5
Components (included)

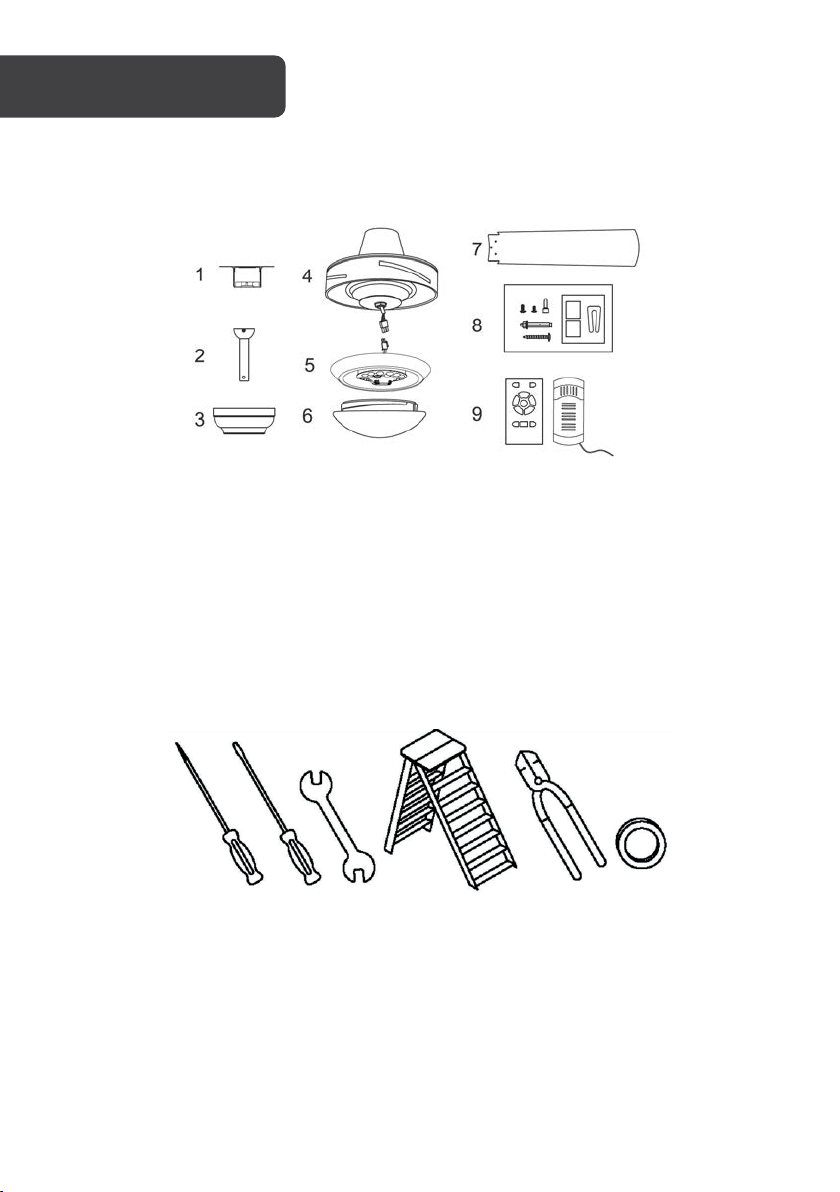

1. Mounting bracket
2. Extended down rod and
hanging ball
3. Canopy
4. Fan motor housing
5. LED light
6. Glass shade
7. Blades
8. Screw kit, mounting bracket
hardware (wire, nuts, rubber
washers) and attachment hardware.
9. Remote control
Additional tools and material required (not included)
10. Screwdriver
11. Flat-blade screwdriver
12. Adjustable pliers or wrench
13. Step ladder
14. Wire cutter
15. Electrical tap
OVERVIEW
10
11
12
13
14
15

6
Unpack your ceiling fan carefully, remove all parts and components, and lay on a cloth or
soft surface to avoid damage. Do not lay the motor housing on its side, the housing may get
damaged. Before commencing installation, check that all parts are included.
Warning: All electrical tasks should only be undertaken after disconnection of electricity by
removing fuses or turning off the circuit breaker to avoid the risk of electric shock.
Installation of The Mounting Bracket
The hanger bracket must be screwed on to a firm, flat surface. The structure to which it is
installed must be able to withstand ten times the static weight of the fan.
Wooden surface:

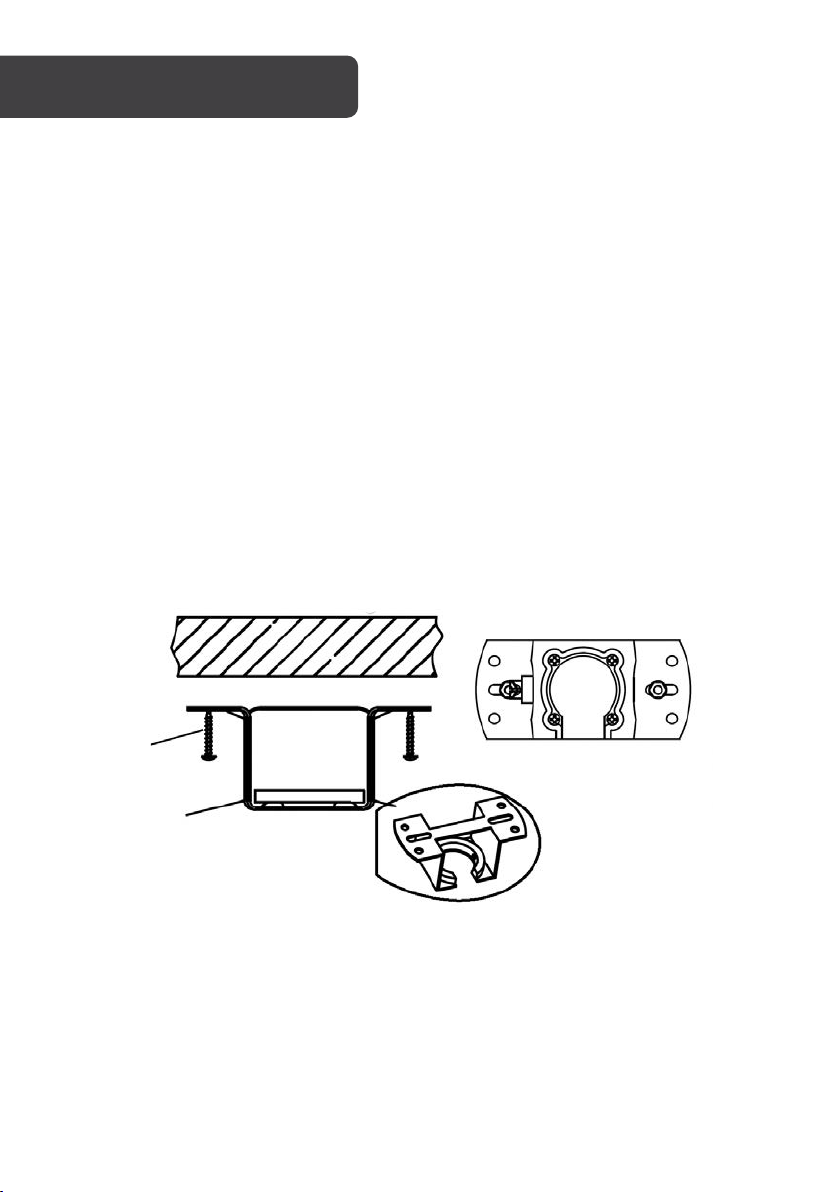

1. If installing the ceiling fan into a wooden ceiling or joist, attach the mounting
bracket using the 4 supplied self-tapping screws. Note: Self-tapping screws are
only suitable for wooden ceilings.
2. Ensure the mounting bracket is properly secured to prevent the fan from falling.
3. Loosen the two canopy screws from the mounting bracket.
INSTALLATION
Self-tapping
screws
Mounting
bracket
Mounting
bracket

7

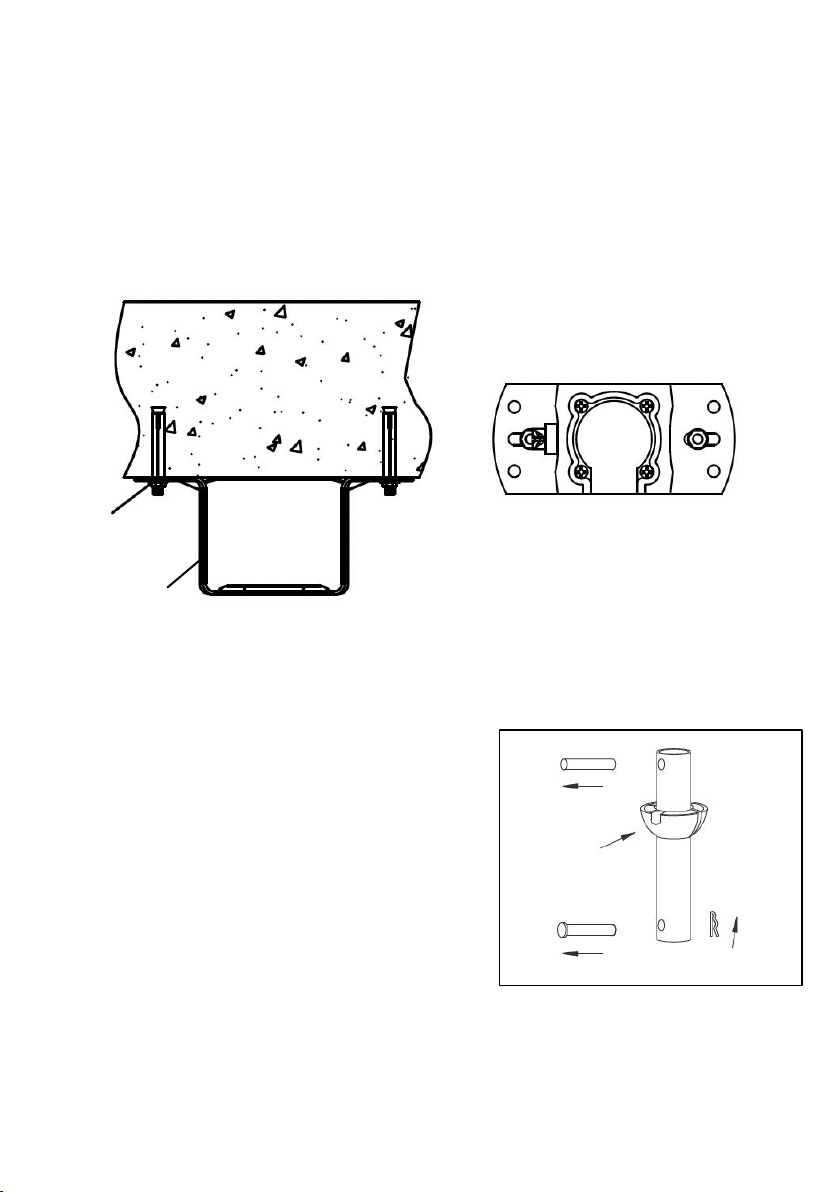

Concrete surface:
1. If installing the ceiling fan into a concrete ceiling, drill out the four holes in the
mounting bracket using an 8mm drill bit.
2. Attach the mounting bracket using the 4 M6 expansion bolts.
3. Once the mounting bracket is installed, drill a 10mm hole next to the bracket.
Note: Be cautious when drilling the 10mm hole to avoid hitting an electrical wiring.
4. Install the expansion screw hook in the 10mm hole.
Installation of The Down Rod and Hanger Ball
1. Unscrew the screw on the down rod’s
hanger ball, then loosen the hanger ball.
2. Remove the stop pin from inside the down
rod and remove the hanger ball.
3. Remove the clevis pin and hairpin clip from
the down rod.
Note: For installation in higher ceilings, you may
require the extended down rod. Transfer the hanger
ball on it and make sure to move the earth wire from
one to the other. Pass the electrical supply leads from
the top of the motor all the way through the down
rod until they come out the other end.
Expansion
bolts
Mounting
bracket
Mounting
bracket
Stop pin
Hanger
ball
Clevis pin
Hairpin
clip

8
4. Insert the down rod into the motor housing’s hole and
align the holes on both sides with the holes on the
down rod.
5. Carefully insert the clevis pin through the holes so that
it passes through the down rod. Secure the clevis pin in
place using the hairpin clip.
6. Tighten all the fastener to ensure there is minimal rod
and fan movement during operation.
IMPORTANT:Ensure all screws are fastened properly.
Loose screws will cause; the motor to oscillate
excessively, damage to the fan or fatal injuries.
7. Once the above steps are all finished, install the
hanger ball onto the down rod.
8. Insert the stop pin in the down rod and lift the hanger
ball.
9. Tighten all the screws firmly so that all the
components are properly secured.
Hanging The Fan to The Mounting Bracket
1. Lift the fan up to the mounting bracket, insert the hanger ball in the mounting
bracket through the opening and carefully let it rest.
2. Rotate the. hanger ball and make sure that the tab located in the mounting
bracket is aligned with the hanging balls slot.
3. When aligned, the fan will automatically sit on its correct position. This will prevent
rotation of the rod and fan when the unit is operating.
Note: When installing the fan, ensure the fan ceiling cover doesn’t press the
antenna (or other wire). Doing so may cause damage to the wire or short-circuiting.

9
Remote Receiver and Wiring Instruction
1. Place the receiver through the hanging bracket and connect the wires following
the colour codes.
2. Connect the push connectors from the fan
to the remote receiver.
Note: Refer to the “Wiring Diagram”
section for more detailed information.
Note: Ensure the ground wire is connected
correctly, otherwise it will cause the fan or
light to malfunction.
Wiring the Fan

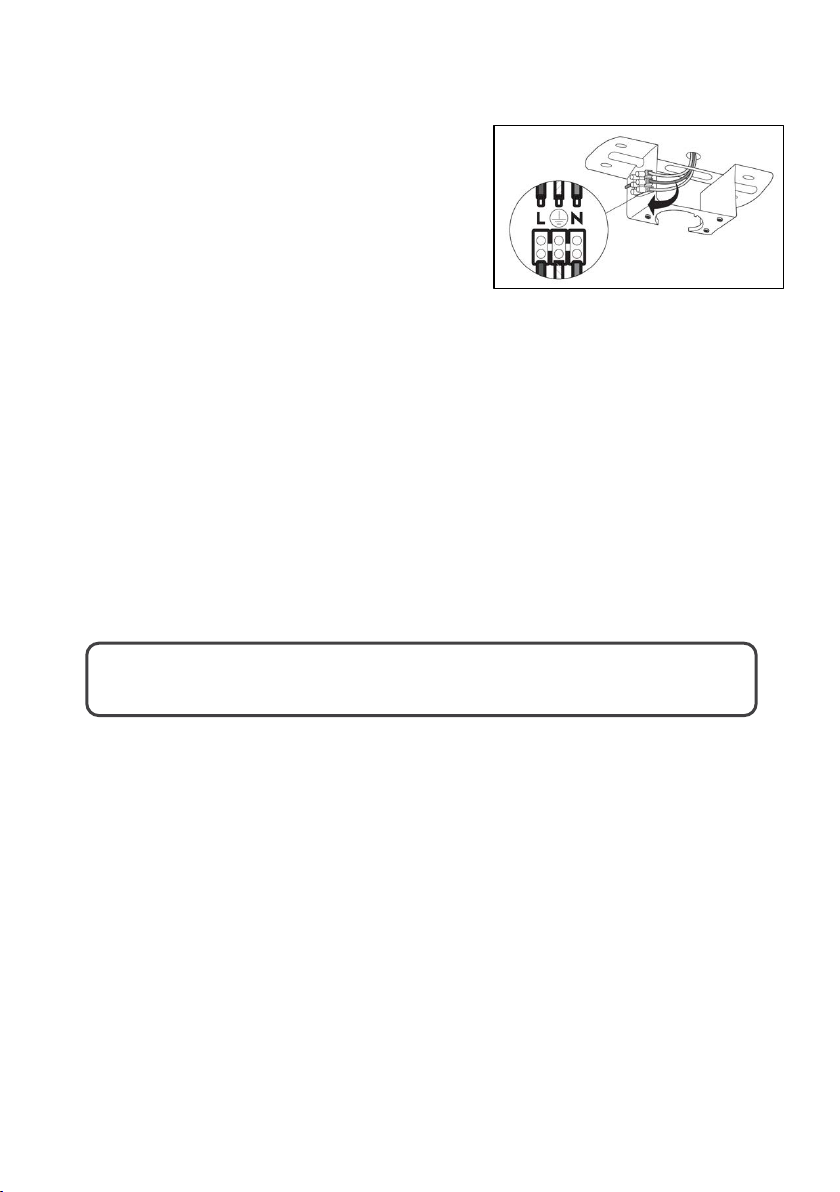

1. Connect the 220-240V mains power (dwelling) to the terminal block on the
mounting bracket.
2. Attach the receiver to the mounting bracket with the flat side facing upwards.
3. Connect the 3P connector from the hanger bracket into the AC POWER INPUT
socket on the receiver.
4. Connect the 2P light connector from the fan motor assembly into the 2P LIGHT
socket on the receiver.
5. Insert the 3P motor connector from the fan motor assembly into the 3P MOTOR
socket on the receiver.
WARNING: To a vo i d p o t e nt i a l e l e c t r i c s h o c k , e n s u re t h e e l e c t r i c i t y i s
turned off at the main fuse box before wiring.

10
Wiring Diagram
MOTOR
RECEIVER
TO LIGHT
TO MOTOR
2P 3P
1P
GROUND WIRE
Yellow/green
GROUND WIRE
Yellow/green
FAN WIRES
Light
Motor
AC POWER INPUT
AC IN L Black (brown)
AC IN N White (blue)
GROUND WIRE Yellow/green
AC L
AC N
GROUND WIRE

11
Pairing the Remote to the Receiver
Turn “ON” the power supply and then within 30 seconds, on the remote press and hold the
“Fan ON/OFF” button for 5 seconds. The fan will emit a long “beep” sound, indicating
pairing is successful.
Note: The fan will exit learning mode after the power supply has been on for longer than 30
seconds.
• If pairing fails, double check that all wiring is correct, the batteries are installed with the
correct polarity (+/-) and that the batteries are not flat.
• Check if there are any similar remote-controlled products nearby. Remote controlled
products using the same frequency will interfere with each other.
• Low battery will affect the sensitivity and signal reception accordingly of the remote
control. The indicator flash when the batteries are getting get low and need to be
replaced.
• If leaving unused for an extended period, remove the batteries from the remote control.
Remote control notes
• Adopt RF wireless digit emission technique, biunique controlled, coincident code rate is
less than one millionth,
• If the remote control or receiver are damaged, contact help.Kogan.com support for
maintenance.
• The remote control can be used from any angle of the receiver.
• With the memory function, the controller can save the status (light and direction) while
the supply power is OFF and will resume after turning the power supply back ON.
Blade Assembly

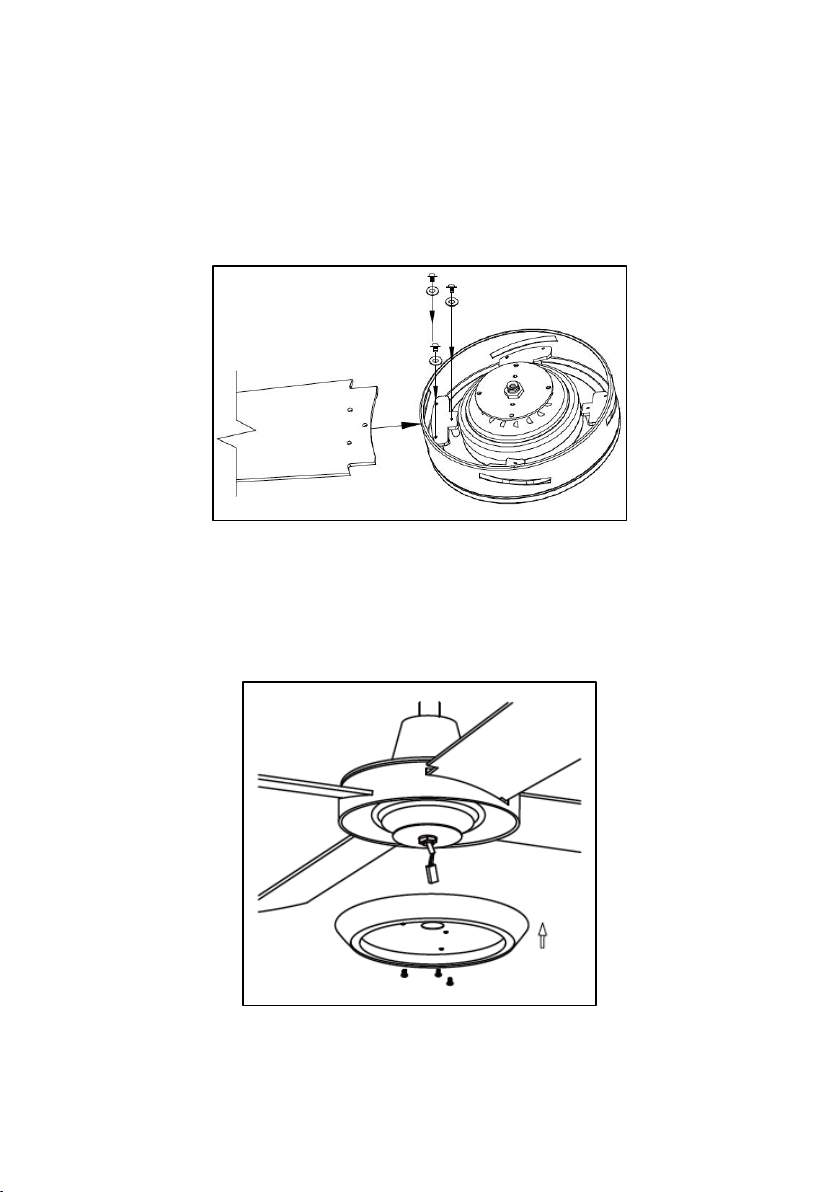

1. Remove the 3 screws and the lamp holder from the fixing panel.

12
2. Insert the blades through the motor housing’s side slots and align them with the 3
holes.
3. Secure the blades using 3 blade screws and ensure that the blade screws are
tightened properly. Do not over tighten the screws as this can damage the blades.
Repeat this process for the remaining blades.
Note: if installing more than one fan, be careful not to mix up the blades and
screws as each model is designed with specific materials and parts.
Installing the LED Light and Glass Shade
1. Align the lamp holder’s screw holes with those on the motor and attach both parts
by means of the screws provided.

13
2. Connect the LED light wires to the fan motor wires.
3. Carefully install the glass shade into the main body and turn it clockwise to lock it.
WARNING: Do not over tighten when installing the glass shade.

14
Balancing Kit
The Balancing Kit should only be used if there is an unacceptable amount of fan wobble
after completing the previous installation steps.
1. Turn the fan on and set the speed control setting to a speed at which the wobble
is the greatest.
2. Turn off the fan and allow it to come to a complete stop. Select one blade and
place the balance clip on it, halfway between the blade holder and the blade tip
on the trailing edge of the blade.
3. Turn the fan on. Note whether the wobble has increased or decreased. Turn the
fan off, move the clip to another blade, and retest. Repeat this procedure on all
blades noting the blade on which the greatest improvement is achieved.
4. Move the clip back to the blade that showed the greatest improvement. Move the
clip inward and outward on this blade and operate the fan to find the optimum
position where the clip gives the greatest improvement.
5. Remove the clip and install a balancing weight to the top of the blade along the
centerline near the point where the clip was positioned.
6. If the fan wobble problem has not been corrected, you may wish to try to improve
the balancing further by using the balancing clip and additional weights.
This image is for illustrative purposes only. Actual fan blades may differ in appearance.
Leading edge
Trailing edge
Fan blade

15

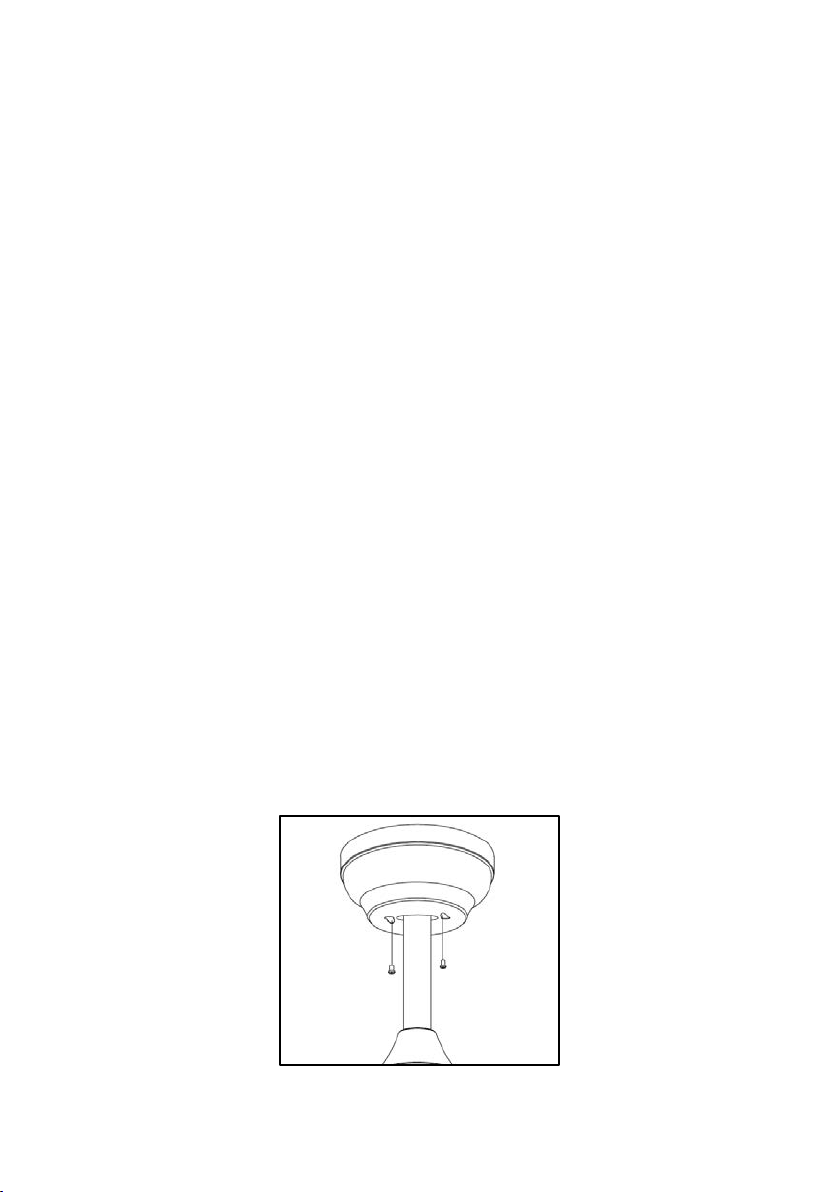

The direction switch on the fan body controls air flow:
• Winter function: Press the switch UP for the blades to move warm air near the ceiling
around.
• Summer function: Press the switch DOWN for blades to create a breeze and improve
air circulation.
Warning: Before using the direction switch, turn the fan off and make sure the fan has
stopped rotating in order to prevent possible injuries and motor damage.
Change direction by pushing the switch up or down when the fan is off.

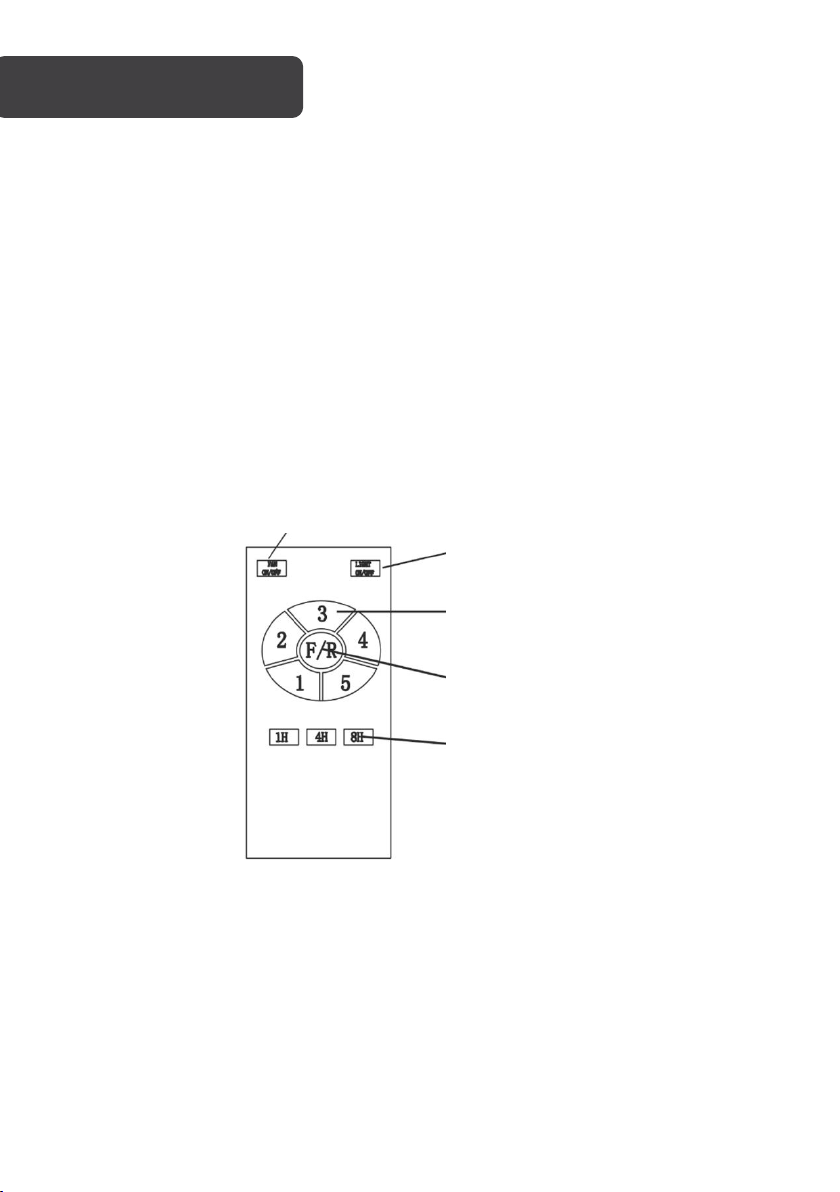

Remote Control
Use the remote control to turn the fan ON/OFF and to change speed.
Changing the Light Mode
The light has three inbuilt colour modes. You can cycle through the options by turning the
light on and off with the button on the remote.
The colour options are: cool white, yellow, and natural.
OPERATION
Fan ON/OFF
Light ON/OFF
Fan Speed
1 -
Highest speed
5 - Lowest speed
Reverse function
Controls the fan direction
Timer
1H - Fan will auto turn off after 1 hour
4H - Fan will auto turn off after 4 hours
8H - Fan will auto turn off after 8 hours

16
Remote Control
1. To replace the remote control batteries, press the battery cover and slide it
towards the arrow direction.
2. This remote control requires a 23A 12V battery.
3. Reassemble the battery compartment cover.
o Always ensure the battery compartment cover is closed properly.
o Do not leave the remote control in an area exposed to direct sun light.
o Do not try recharging the discharged batteries by heating them or with a
battery charger.
o Rechargeable batteries are always specified as so.
o Do not throw batteries to fire, it could cause explosion.
Fan
Always turn the fan off and disconnect it from the power supply and allow it to stop before
cleaning it.
• Clean the outside surface with a soft damp cloth.
• Do not immerse then fan in water.
• Never use scouring pads, abrasive or chemical cleaners.
• Clean your fan periodically. Use only a cloth or brush.
• Metal finishes are finished with a lacquer to prevent tarnishing.
• Do not allow the inner parts of the fan to get wet (especially the circuit board). Doing
so may cause an electric shock and damage the fan.
• While the product is not in use, make sure it is unplugged from the power supply. To
store it, place it in its original box, in a safe and dry location until it is used again.
• In case of fault or damage, do not try to repair the fan by yourself to avoid risk of fire or
electric shock. Cease use immediately and contact help.Kogan.com for support.
CLEANING & CARE

17
Problem
Troubleshooting Steps
The fan does not
start up
• Check all the fuses or circuit breakers.
• Turn off the electrical power and check all wire connections.
The fan emits noises
• Always allow a few days “break in” time for any new fan at
medium or high speed. Try to diagnose the exact location of
the noise by listening carefully from several sides (blades,
motor, light kit, etc.).
• Ensure all screws in the fan assembly and light kit are tight
and properly threaded. If not, back out and retighten.
Tighten these screws at least once a year because they
may loosen slowly over time and cause a clicking noise.
• Make sure the light kit is securely fastened to the fan, and
all glass screws are finger tightened only. Do not tighten
with pliers or a screwdriver.
• Make sure the mounting bracket is installed snugly to the
junction box.
• Make sure wire nuts in the switch housing or the canopy are
not rattling against each other or against the housing’s wall.
Wrap with electrical tape if necessary.
• Make sure the canopy is not touching the ceiling.
• Ensure that the screws fastening the blade holders to the
motor are tight and the lock washers provided for that
purpose have been used.
The fan does not
produce much air
• The fan may be running in reverse, so air is directed upward.
• The room may contain items that obstruct the airflow.
• The fan may be too small for the size of the room.
Fan wobbling
Note: a small amount of wobble is considered acceptable and
should not be considered a defect.
• Make sure the mounting bracket is fixed tightly to the ceiling
with no movement at all. Tighten screws if necessary.
• Make sure all screws holding the blades to the blade
support and blade support to motor are tight.
• Make sure the light kit and the glass screws are tight.
TROUBLESHOOTING

18
Voltage
Fan (Max.)
Lamp (Max.)
200~240V
45W
140W
120V
45W
50W
SPECIFICATIONS

19
NOTES

20
Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
