Probasics HBFEBED User manual

Full-Electric Bed
User Manual & Entrapment Guide
For use with Item #’s
HBFEBED
HBFEBE
HBFESS
This manual should be read in its entirety by bed users,
care givers and maintenance personnel prior to assembly or use.

2
User Manual ....................................3 — 16
Warnings ...........................................3 – 5
Special Notes ...........................................5
Bed components ........................................6
Assembly Instructions................................. 7– 13
Hand Pendant Operation.................................14
Head/Footboard Optional Height Adjustment ................15
Maintenance and Safety Checks ...........................15
Electronics ............................................15
Bed Frame and Sleeping Surface...........................15
Cleaning ..............................................15
Lubrication and Mechanical ...............................15
Bed Schematic .........................................16
Specications ..........................................17
Warranty..............................................17
TABLE OF CONTENTS

3
PLEASE READ ALL WARNINGS/CAUTIONS BEFORE USE
• DO NOT use in oxygen-enriched environments or near ammable
or explosive gases.
• Possible re hazard when used with oxygen administering
equipment other then nasal or masked type.
• When using nasal or masked type administering equipment,
oxygen or air tubing MUST be routed and secured properly to
ensure that tubing does NOT become entangled and eventually
severed during normal operation of Manual/ Electric bed.
• Liquids can cause electrical hazards. In the event of a spill in or
around the bed, immediately unplug the bed and allow the area
to dry thoroughly before plugging in the bed. If a spill occurs,
UNPLUG the bed immediately. Clean up spill and allow bed or
area to dry thoroughly before using the electric controls again.
• This bed is designed for adults only. DO NOT use with or for
children. Children must be closely supervised at all times when near
the bed.
• Users who are unable to understand or follow these instructions
and warnings or who have limited physical capabilities should be
supervised or assisted while using the bed.
• NEVER PERMIT ANY ONE UNDER THE BED AT ANYTIME.
• When operating or moving the bed, ALWAYS ensure that the
individual utilizing the bed is positioned properly within the
connes of the bed.
• ALWAYS keep clear of moving parts when adjusting the bed.
Patient should be centered on the bed with extremities within the
mattress area. DO NOT allow extremities to extend beyond the
sides or between bed rails.
WARNINGS.
• DO NOT use this bed for patient transport. DO NOT move the bed
while occupied, otherwise injury or damage may result.
• The maximum safe working load of this bed (patient, mattress,
bedding, and accessories) is 450lbs/204kg. The maximum user weight is
350lbs/158kg. ALWAYS observe the weight limits.
• DO NOT stand or climb on bed.
• Bed is intended for a single occupant. NEVER allow more than one
person to sit or lay on bed at the same time.
• To prevent patient injury due to falls, ALWAYS leave bed at lowest height
when the patient is unattended.
• Inappropriate handling of the power cord can create an electrical hazard.
Regularly inspect cord and plug for damage such as kinking
or fraying; DO NOT use if cord or plug is damaged, contact
your dealer for repair or replacement.
DO NOT unplug by pulling on the cord, this may damage
the plug connection. NEVER pull, jerk, twist, or severely
bend the cord, especially near the plug connection.
DO NOT use this product with power strips or extension cords.
DO NOT overload wall outlets. ALWAYS connect this product to an
appropriate voltage outlet; DO NOT use with a DC to AC converter.
• ALWAYS take care when routing power cords for accessories or other
equipment through the space under the bed. Cords should be secured
such that they cannot become pinched or damaged by moving parts of
the bed. Damaged cords should NOT be used.
• It is the responsibility of the patient’s physician and caregiver to assess
the patient and determine which devices and accessories are needed
to support and protect the patient, while limiting risk to the patient.
Use of fall protection, pressure management, and transfer assistance
mechanisms should be considered as appropriate.
DANGER! Entrapment may cause patient injury or death.
warnings continued on next page

4
• DO NOT use this bed with incompatible mattresses or bed rails. Refer
to page 17 of this manual or contact your Compass Health dealer for
assistance with purchasing compatible models.
• After bed assembly or maintenance, test to ensure all sections are
securely in place and all electrical components operate as intended
BEFORE use.
• ALWAYS lock casters to prevent the bed from moving while occupied.
Even with casters locked, some oor surfaces may allow the bed to move
slightly; use of the bed on such oor surfaces must be evaluated by the
care provider.
• DO NOT attempt to operate the bed controls if the bed is not fully
assembled, as this may cause damage to the bed components.
• After the bed has been fully assembled, ALWAYS test to make sure that
all sections of the bed are properly and securely in place before using.
• ALWAYS use caster locks except when moving the bed.
• Body weight should be evenly distributed over the surface of the bed.
DO NOT lay, sit or lean in such a way that your entire body weight Is
placed only on raised head or foot sections of
the bed. This includes when assisting the user in repositioning or
transferring in or out of bed.
• DO NOT permit more than one person on/in the bed at any time.
• DO NOT use outdoors.
• If the unit is not working properly, discontinue use and call a qualied
technician to examine the unit and repair it.
• Keep all moving parts, including the main bed frame, mattress deck
(head and foot springs/sections) and all drive shafts free of obstruction
(i.e. blankets/sheets, heating blankets/pads, tubing, wiring, etc. and other
types of products using electric cords which may get tangled around the
bed, side rails or legs) during operation of the bed.
WARNINGS.
• Keep the product a minimum of 12” away from any direct heat source.
Make sure head and foot springs/sections are connected securely to the
bed ends before use.
• DO NOT use the bed to transport a person in or on the bed. Otherwise,
injury or damage may result.
• When transferring into or out of the bed, ALWAYS use lock the locking
caster(s). Inspect for correct locking action on caster locks before using
bed. Even with casters correctly locked, some oor surfaces, such as tile
or wood, may allow the bed to move under some conditions. Use on
oor surfaces such as these MUST be evaluated by the care provider.
• The initial set up of this bed must be performed by a qualied technician.
• The total weight limit of the ProBasics full-electric bed (including
accessories, mattress, occupant and any other person/object positioned
on the bed) is 450 pounds (204 kg.); 350 pounds (158 kg) patient weight.
• A safety feature of this bed model includes protection against
overheating caused by excessive or extended periods of operation.
Depending on the duration, this will include multiple/repeated
adjustments or the use of multiple functions at the same time. To ensure
trouble-free operation, ALWAYS allow a slight pause between multiple
adjustments and AVOID pressing multiple function buttons at a time.
If thermal protection is activated, the bed will not respond to pendant
commands. To resolve this, release the pendant button and let the bed
sit for several minutes. This will reset the protection function time to and
restore bed function. Depending on the degree of the overheating, this
may take up to 30 minutes.
• ALWAYS remove manual crank(s) before performing electronic functions
or using the bed. If not removed, the crank(s) will turn when the motor is
on and this could cause personal injury or damage to the bed. ALWAYS
unplug the bed from the electrical outlet before cleaning.
• DO NOT open assemblies such as the motors, pendant, junction boxes
or gear boxes. There are no user serviceable parts. Only qualied

5
WARNINGS.
technicians are permitted to repair these parts. If unqualied individuals
perform any work on these beds, the warranty is void.
• After use, some permanent deformation of the bed under load may
occur. This is normal and expected unless it affects the function of the
bed. Slight sagging or bending at the center of the bed after use does
not indicate a safety risk/defect.
• DO NOT place pendant under or between objects. This may cause
the unintentional activation of the bed features and may cause injury
or damage.
• If a button on the pendant does not release or sticks, the bed spring
will not stop moving. Inspect the covering of the bed’s control panel
and the patient control panel to assure that the covering is not cracked
or damaged.
• ALWAYS keep all electrical cords away from heated or hot surfaces.
• NEVER operate if the unit has a damaged cord or plug. If the bed is
not working properly, discontinue use and call a qualied technician for
examination and repair.
• Refer all servicing to qualied personnel ONLY. Grounding reliability
depends upon a properly grounded wall outlet. ALWAYS unplug the bed
from the outlet before servicing or performing any maintenance on the
electric bed.
• DO NOT unplug the power cord from the junction box. Damage to cord
will result.
• Use caution when disconnecting the pendant, DO NOT press pendant
buttons.
• When bed is not to be used for an extended period, unplug electric bed
from the wall outlet.
SAVE THESE INSTRUCTIONS
SPECIAL NOTES
NOTICE:
• The information contained in this document is subject to change
without notice.
WARNINGS/CAUTION notices used in this manual apply to hazards
or unsafe practices which could result in personal injury and/or
property damage.
• Check all parts for shipping damage and test before using.
In case of damage, do NOT use.
• Contact the dealer for further instruction.
• Your Electric bed has been engineered to provide you with
reliable operation.
• The bed has been thoroughly tested and inspected prior to shipment.
INDICATIONS & CONTRAINDICATIONS FOR USE
• This bed is intended for use in Homecare settings, for use with adults
(persons weighing at least 88 lbs/40kg, at least 57 in/146cm tall, with
a BMI of at least 17).
• This bed is NOT intended for use in a hospital or long-term care
facilities. This bed is NOT intended for use with children.
• This bed is NOT intended for patient transport – the bed should
NOT be moved while occupied.
• This bed is intended for use in Application Environment 4, as dened
in IEC 60601-52-2-2015

6
I
F
J
HK
L
G
B
C
D
AE

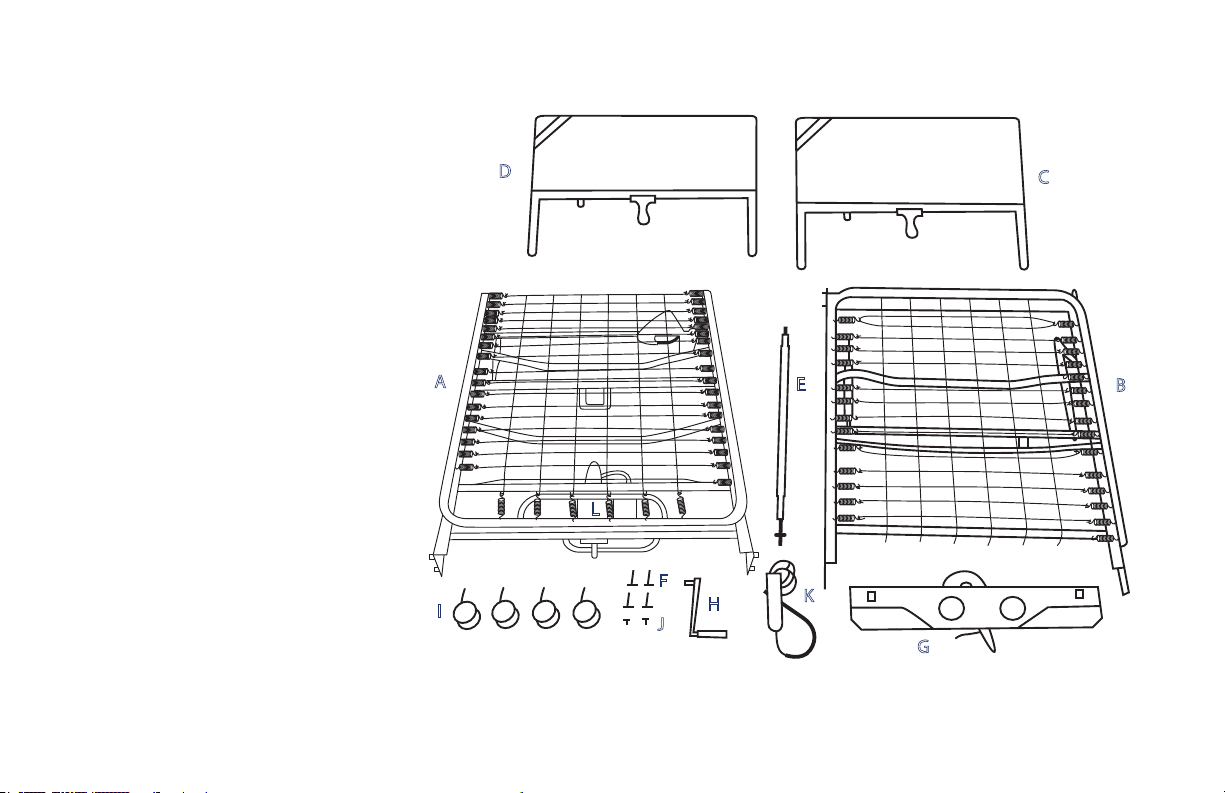

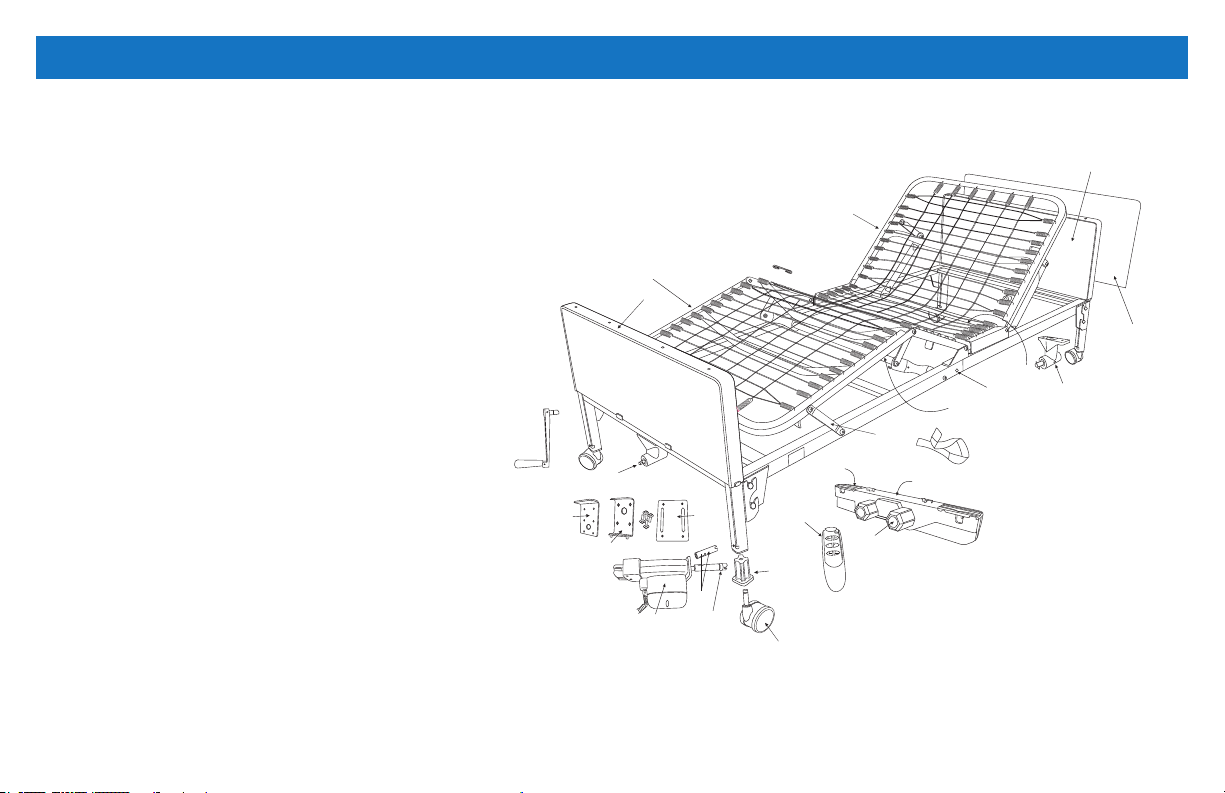

Conrm that all parts are present.
A. Foot Spring
B. Head Spring
C. Head Board
D. Foot Board
E. Hi/Low Shaft
F. Locking Pins (4)
G. Motor
H. Hand Crank* (attached to foot board
for shipping)
I. Casters (4) - 2 locking, 2 non-locking
J. Spring Clips (2)
K. Hand Pendant
L. Full Electric Motor
*Hand crank only raises/lowers the bed height
during a power outage.

7

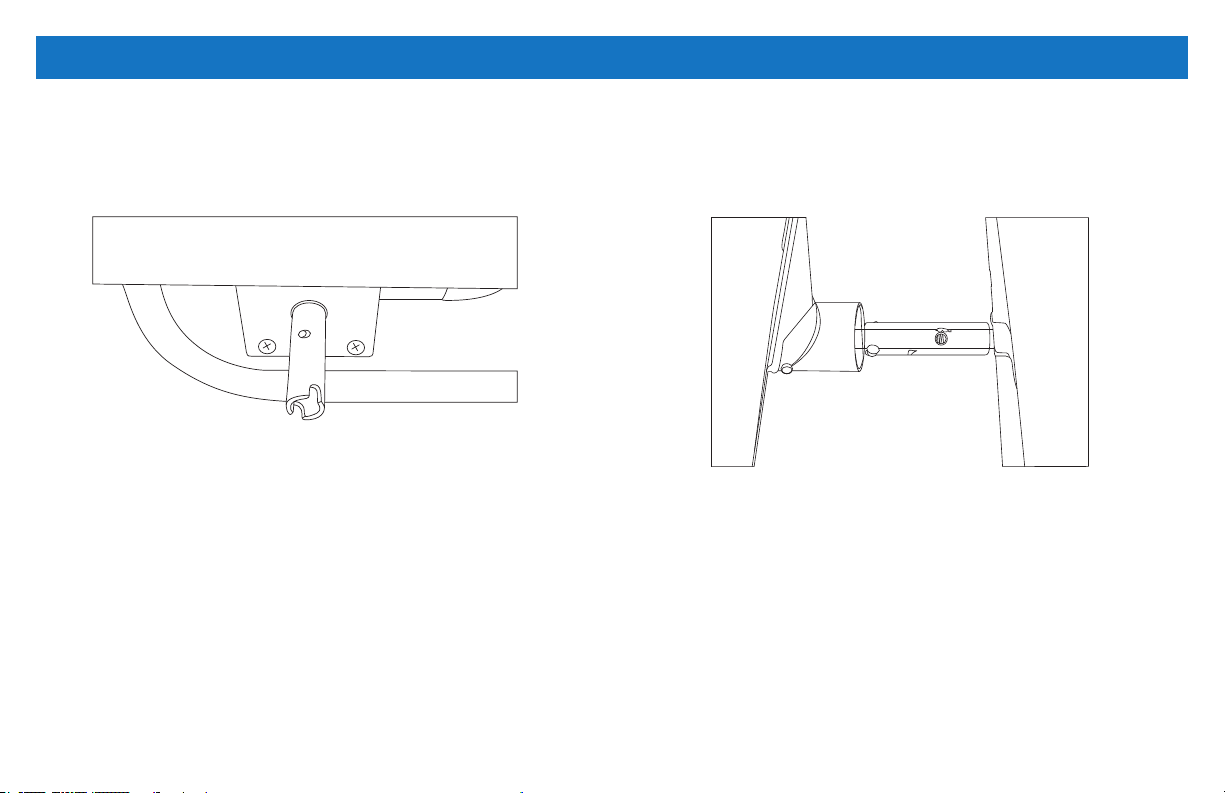

NOTE: Spring fabric not shown for clarity
• Lay the head and foot section on their sides approximately
90º to each other (See Figure 1).
• Slide the sections together until the hook on the head section
catches the rivet on the foot section.
• Straighten sections and position as shown in gure 2.
• Position head wing as shown.
• With the two sections level, install a frame lock pin into each
side of the frame as shown in gure 3.
• Be sure to properly install frame lock pins before use
WARNINGS: Lock pins must be installed to ensure safe operation/use
• Attach fabric halves together using spring clips, which are
attached to the foot fabric.
FRAME ASSEMBLY INSTRUCTIONS

8
• Install Hi/Low drive shaft to the Hi/Low motor
located on the foot section.
• Insert the spring-loaded side of the
drive shaft into the lower receptacle as shown.
ASSEMBLY INSTRUCTIONS CONT.
Spring-loaded
coupler
Figure 4

9
• With bed on side extend the drive shaft until it
reaches the full length of bed. The drive shaft
adjustment holes are marked for either semi or
full beds. Choose the full bed hole.
ASSEMBLY INSTRUCTIONS CONT.
Figure 5

10
• Install the casters by inserting the caster stem into the leg
receptacle. ALWAYS install 1 locking and 1 non-locking caster
on each bed end. ALWAYS install locking casters diagonally
from each other.
• Attach the head board and foot boards.
• ALWAYS ensure that the 2 hooks on each side of the head and
foot boards are fully engaged and seated securely with the 2
locking rivets on each side of the bed frame.
• Install the head end of the drive shaft as shown.
ASSEMBLY INSTRUCTIONS CONT.
Figure 6
Figure 7

11
ASSEMBLY INSTRUCTIONS CONT.
• Release the spring-loaded coupler on the hi/low motor and insert
the drive shaft into the gear box located on the footboard.
• Ensure the slot on the spring-loaded coupler fully engages on the
roll pin on the foot board gearbox.
Figure 8 Figure 9

12
MOTOR INSTALLATION
• For easier set-up, prior to installing the motor, plug both the
hand pendant and Hi/Low motor cables into motor as shown.
WARNING:
NEVER use mattresses that DO NOT match the width (36”)
and length (80”) of the bed frame. Using mattresses that are
of smaller or larger dimensions may result in entrapment and
personal injury or death.
• Connect two 9V batteries (not included) to the battery clip
located on the motor. The battery clip is located in a recess
under the motor cover. With a charged battery installed, the
motor can be operated in the event of a power outage.
Figure 10 Figure 11

13

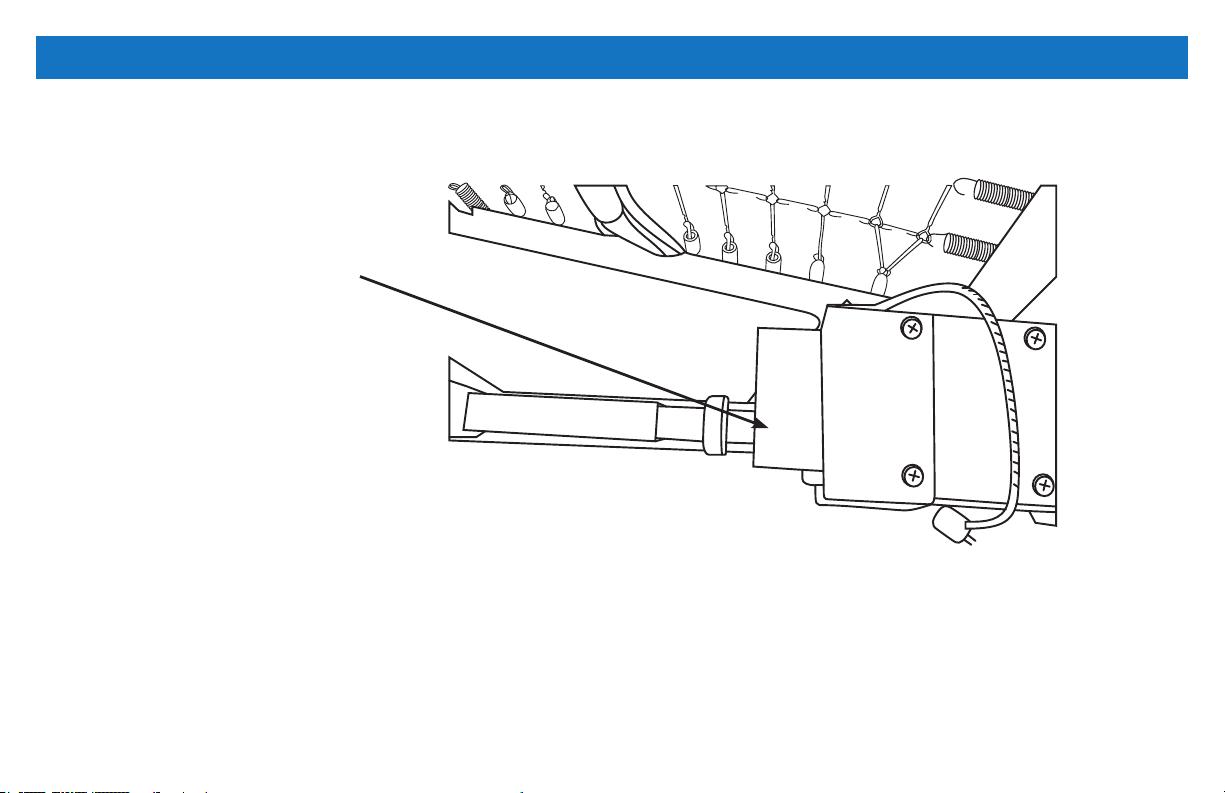

• To install motor, remove both locking caps on top of the motor. • Align the motor with the actuator rod and raise the head spring
to the highest position. The motor will be pull towards the bed
and lock on the actuator rod. Repeat for foot section.
• After the motor is fully installed, slide both locking covers back
onto the motor.
• Once fully assembled and checked, plug the unit in to test
operation and ensure the bed is working properly.
• Before placing a mattress on the assembled bed frame, ip up the
mattress guard at the foot of the bed frame to reduce mattress
movement when in use.
Actuator Rod
Figure 12
Figure 13

14
BED OPERATION
Lowers head sectionRaises head section
Lowers foot sectionRaises foot section
Lowers the bed heightRaises the bed height
Battery Operation
The full electric bed can be lowered in an emergency when equipped
with two 9V batteries (not included). Battery-powered operation
can only be used once and only be used to lower the head and foot
sections of the bed. Replace the 9V batteries annually or after battery
operation has been used to lower the bed.
Hand Crank
The full-electric bed is equipped with a removeable manual hand-
crank that may be used when either electric or battery power is un-
available. Hand crank only raises or lowers the bed deck in the event
of a power outage. It will not raise or lower the head or foot springs.
WARNING
ALWAYS remove the manual hand-crank BEFORE performing electric
operation. DO NOT operate the electric functions with the manual
hand-crank installed on the bed or product damage and personal
injury may occur.
Bed Transfers
When transferring in or out of the bed, ALWAYS ensure the locking
casters are in the locked position. The bed height may be adjusted
either up or down, as required, to make transfer safer and easier for
the bed user.
Figure 14

15
HEAD/FOOT BOARD
OPTIONAL HEIGHT ADJUSTMENT To be performed once per year or between placements by a qualied
technician.
Electronics
Check all controls to make sure all functions work properly.
• Power cord
• Pendant cord
• Check to make sure all wires are routed and attached properly
so they do not interfere with any moving parts.
• Check to make sure all plugs are fully inserted or attached.
• Replace 9V battery annually or after each use.
Bed Frame and Sleeping Surface
Visually check all welds
• Head section
• Knee section
• Main Frame
• Check joints between sleeping surface sections for
loose fasteners.
Cleaning
The metal parts of the bed are covered with a baked epoxy
coating. Clean all coated parts with mild detergent and warm water.
Periodically raise head and feet sections of the bed and remove
dust from frame. Also, periodically remove the mattress and clean
mattress deck. Perform cleaning as needed or between placements.
Lubrication and Mechanical
• Lightly grease all actuator screw threads with white lithium grease.
• Lubricate all caster roller and swivel bearings with light machine oil.
• Check all bolts and tighten as needed.
MAINTENANCE AND SAFETY CHECKS
87.5”
36”
21.5”
15.5”

16
PROBASICS FULL ELECTRIC BED
20.
1.
5b.
7a.
7b.
8.
8a.
10.
9.
8b.
7c. 12.
16a
17.
4.
3.
6.
2.
1.
15.
5a.
13.
11.
14. 19.
18.
16.
1. Headboard
Footboard
2. Head spring
3. Foot spring
4. Headboard panel frame
5. Footboard panel frame
a. Headboard gear assembly
b. Footboard dear assembly
6. Sleep surface hook
7. Motor brackets (a, b, c)
8. Hi/Low motor gearbox
a. Motor shaft
b. Hi/Low Shaft Connector
9. Caster set (2 locking/2 non-locking)
10. Caster receptacle
11. Frame linkage
12. Hand control
13. Head actuator bar
14. Foot actuator bar
15. Footboard panel
Headboard panel
16. Motor
a. Motor mount
17. Motor Cap
18. Motor Strap
19. Bed locking pin
20. Hand crank

17
SPECIFICATIONS
Electrical Motors are ETL Approved
Weight Capacity Distributed Total - up to 450 lbs. / Patient up to
350lbs.
Construction Frame: 11ga (.120) hot rolled steel.
Sleeping surface: Zinc plated steel wire and coils
Finish Durable Powder Coating
Overall Bed Dimensions 87.5” long X 36” wide
Mattress Deck Height
(with no mattress)
Minimum – 15.5”
Maximum – 21.5”
Bed Frame Weight
(assembled)
169 lbs.
Maximum angles of the
mattress platform
Head: 75°
Foot: 30°
Mattress Requirements Size – 80” long X 36” wide X 6” deep
Homecare bed-compatible, e.g. PBHBMATFB
Side Rails Requirements Homecare bed compatible, half or full (e.g., PB6034
and PB7035) manufactured for direct bed frame
attachment
Battery Lowers head and foot one time, will not lift the
head or foot sections (9V not included)
LIMITED WARRANTY
• Your ProBasics brand product is warranted as follows:
Frame – 5 years
Motor – 2 years
All other parts - 1 year
• This device was built to exacting standards and carefully inspected
prior to shipment. This Limited Warranty is an expression of our
condence in the materials and workmanship of our products and
our assurance to the end user of years of dependable service.
• This warranty does not cover device failure due to misuse or
negligence, or normal wear and tear. The warranty does not
extend to non-durable components, such as rubber accessories,
casters, and grips, which are subject to normal wear and need
periodic replacement.
• If you have questions about your ProBasics device or this warranty,
please contact an authorized ProBasics dealer or Compass
Health Brands.

6753 Engle Road
Middleburg Heights, Ohio 44130
Tel.: [phone]
www.compasshealthbrands.com
42-HBFEBED_HBFEBE_HBFESS_05 ©2023
Made in China
Manufactured for
