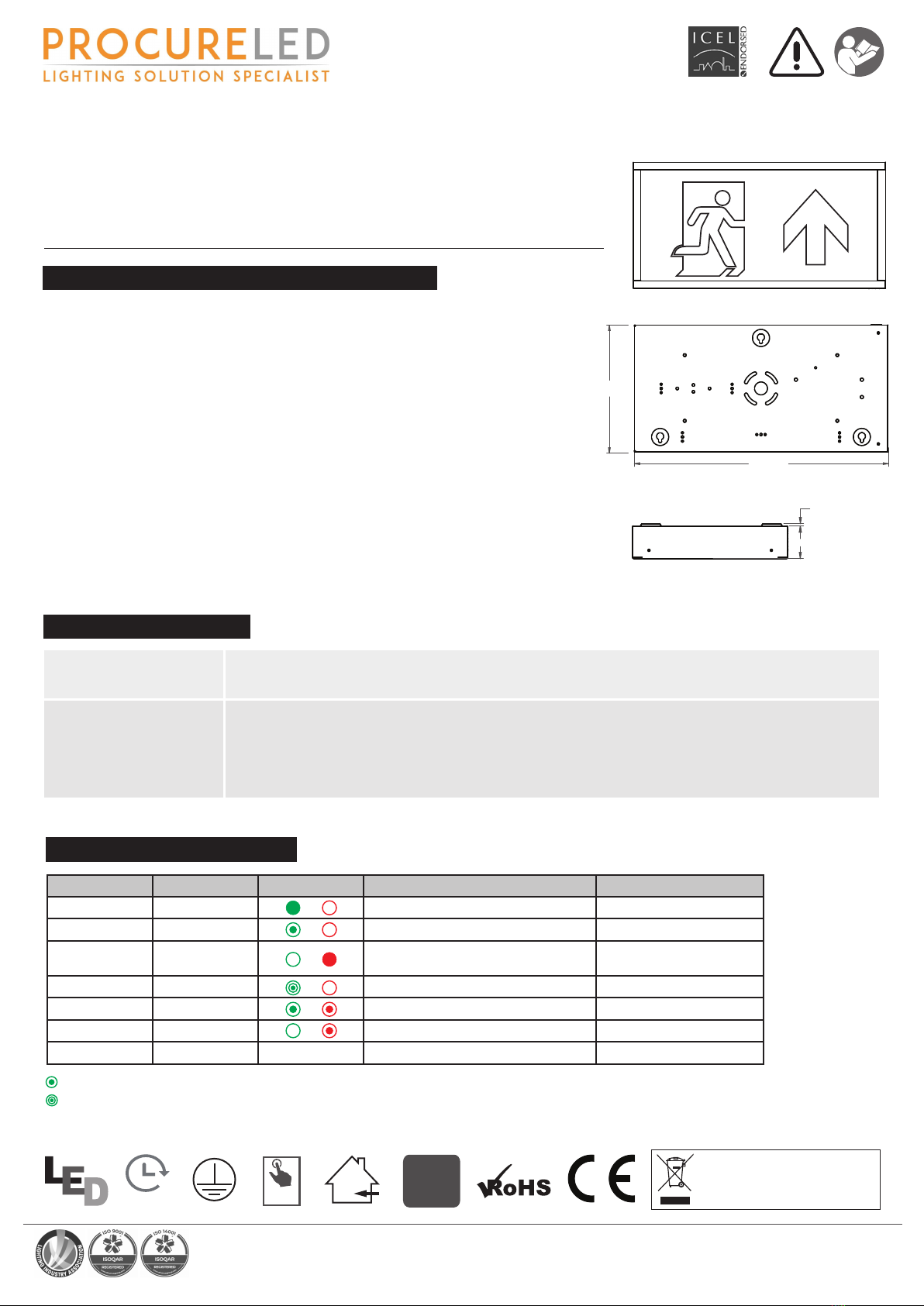

ProcureLED EBOX3EM3 User guide

3 hour
Self
Test
Standard
Self-test
Ensure this product is disposed
responsibly according to WEEE
directive 2002/96/EC
Test
Button
41
3
196
393
Functional test is carried out automatically once a week and runs for 30s. Full duration test is carried
out automatically every 52 weeks. First full duration test is carried out automatically within the first
4 weeks after the luminaire being connected to mains.
This luminaire can be used with the optional Remote Control (REM10) which adds extra features to
Fox Lux emergency luminaires. Please refer to the REM10 user guide
.
LED Status Indications
Normal flash = 1Hz (once/second)
Fast flash = 2Hz (twice/second)
Solid ON
Normal Flash
OFF
Fast Flash
Normal Flash
OFF
OFF
OFF
Solid ON
OFF
Normal Flash
Normal Flash
OK
Charging
Battery disconnected /
Duration test failure
Functional/Duration test in progress
Battery temperature
Light source fault
Connect battery /
Replace battery
Contact Fox Lux
Replace luminaire
GREEN LED RED LED Green Red STATUS ACTION REQUIRED
LED EMERGENCY EXIT BOX
Thank you for purchasing our LED Emergency Exit Box.
Our products have been designed according to the relevant standards and if installed and
maintained correctly they will provide a long service life.
BS EN 60598-1 / BS EN 60598-2-22 / BS EN 50172 / BS EN 1838 / BS EN 62034 / ISO 7010 / ISO 3864
Installation, Maintenance and Servicing Notes
•Ensure that the mains supply is switched off before installing, maintaining or
servicing the luminaire.
•Luminaires should only be installed by qualified personnel.
•The LED light source and control gear are non-replaceable. Once end-of-life is
reached, the luminaire should be replaced.
•In case of mains supply failure, the battery will automatically energise the
emergency light for a minimum 3hr period. After 3hrs 5m the luminaire will
enter standby mode to protect the battery from over-discharge. The battery
must be recharged within 6 months of full discharge.
•Self-test emergency luminaires are programmed to carry out functional and
full duration tests according to BS EN 50172:2004.
•First battery charge will take up to 16hrs.
•Battery re-charge takes up to 8hrs. Note that full cycle (discharge and
recharge) takes up to 12hrs.
•Contact ProcureLED if a battery replacement is required.
•Warranty terms apply. See website for details.
Testing and commissioning must be carried out manually according to BS EN 50172:2004.
Testing Options
t | [phone] | e | [e-mail] |w| www.procureled.com

Exit Box Range
Installation Guide
Description Operating
temp. ta
Net
weight
Remote
control
Testing
0°C - 40°C 1.15kg
0.14kg
*supplied screws and rawl plugs are suitable for masonry only. Please
purchase alternative fixings if required.
EBOX3EM3
EBOXD
EBOXR
EBOXL
Emergency Exit Box 3hr Maintained (standard)
Emergency Exit Box 3hr Maintained (self-test)
DOWN ARROW legend panel
RIGHT ARROW legend panel
LEFT ARROW legend panel
Manual
Self-test
1: Isolate mains supply2: Remove side panel and legend 3: Body installation
4: Electrical connection
8: Refit legend and side panel 9: Restore mains supply
Ensure that the mains supply is switched off
before installing, maintaining or servicing
the emergency luminaire.
<12mm
Blue
Brown
Green
N
L
GND
(Permanent)
SL
L
N
GND
SL
L
N
GND
Maintained Non-maintained
0.75-1.5mm2 6mm
5: Restraint of cables 6: Integrated downlight
If downlight not
required, remove the
jumper to disconnect
Outlet 1
Outlet 2 Outlet 3 Outlet 4
Secure mains cable by using cable clip and
screws or the grommet supplied in the box.
Part.No.:
Input voltage: 220-240V AC 50Hz
X 1 180
Installation date: __ / __ / ____
7: Complete labels
Drill where indicated and use wall plugs+screws*
Remove knock-out on the side or top if connected
to 20mm conduit
LED Exit Box
EBOX3EM3ST REM10*
*Remote Control REM10 allows the competent user to carry out functional tests and/or full duration tests at any time and to check system status. Please refer to REM10 user guide.
Reference
-Enter installation date on battery label
-Enter the appropriate code on the luminaire label
lssue V1: 5/6/2020
t | [phone] | e | [e-mail] |w| www.procureled.com
Registered Office: Waterloo House, Waterloo Road, Ketley Business Park, Telford, TF1 5JD
Company Registration No. 04376065 VAT Registration No. GB792668376
EBOXUUP ARROW legend panel
