Profi-pumpe SOLAR-DROP P25 User manual

AUTOMATIC SOLAR IRRIGATION SYSTEM
AUTOM. SOLAR-BEWÄSSERUNGSSYSTEM
Version 23.07
Technical changes, misprints and mistakes reserved! Pictures may di󰀨er from the delivered products.
Newest information about our products can be found online.
Technische Änderungen, Druckfehler und Irrtümer vorbehalten! Bilder können von den gelieferten Produkten abweichen.
Aktuelle Informationen zu unseren Produkten nden Sie auf:
www.pro-pumpe.de
GB
OPERATING INSTRUCTIONS
DE
BEDIENUNGSANLEITUNG
de
ORIGINAL
Den Lieferumfang entnehmen Sie bitte Punkt 3.1 / Please refer to point 3.1 for the scope of delivery
SOLAR-DROP
P25 (SP01128)
P50 (SP01129)

2 English
CONTENTS
1. INTRODUCTION .......................................................................................................................... 2
2. IN GENERAL ................................................................................................................................. 2
3. ASSEMBLY INSTRUCTION ..................................................................................................... 2-4
4. OPERATION ................................................................................................................................. 4
5. CLEANING AND MAINTENANCE ................................................................................................ 5
6. RECOGNISING AND REPAIRING OF MISTAKES ..................................................................... 5
7. SECURITY TIPS ........................................................................................................................ 5-6
8. GUARANTEE REGULATIONS ................................................................................................. 6-7
9. NOTES ON PRODUCT LIABILITY .............................................................................................. 7
10. NOTES ON DISPOSAL ................................................................................................................ 7
11. EU DECLARATION OF CONFORMITY ...................................................................................... 7
12. TECHNICAL DATA ...................................................................................................................... 16
13. SPARE PARTS ............................................................................................................................ 17
3. ASSEMBLY INSTRUCTION
●Unpack all components carefully;
●If you want to attach the solar panel to the
water tank, make sure that the solar panel is
facing the midday sun;
●Connect the lter and water level switch,
hang the lter and level switch, away from the
ground (oating), in the water tank and make
sure it is completely inside the tank;
1. INTRODUCTION
We would like to congratulate you on the purchase of our automatic solar irrigation system. We
appreciate your trust. That‘s why funtional security and operational safety stands by us on rst place.
To prevent damage to persons or property, you should read this user manual carefully.
Please observe all safety precautions and instructions for proper use of the product. Failure
to follow the instructions and safety precautions can result in injury or property damage.
Please keep this manual with the instructions and safety instructions carefully in order to at
any time you can restore them. Please always download the latest version of the user manual
of www.pro-pumpe under „downloads“. This shall always prevail.
SAFETY INSTRUCTION AND WARNINGS
Please read the user manual
before using the device Warning sign
2. IN GENERAL
The automatic solar irrigation system are high-quality pump system for outdoor use.
2.1 It‘s recommended NOT to conduct yourself technical modications. First, it is not certain whether
these changes are technically correct and, secondly, because no guarantee can be granted.
2.2 Transport damages are immediately to be reported to the package distributor and to us in written
form. Failure to give timely notice to the shipping company, and are therefore rejected your claims
from the transport company, so we can not accept these claims as well. In your legal obligation to
cooperate to minimize damage, we point out expressly herewith.

English 3
SOLAR-DROP P25
SOLAR-DROP P50

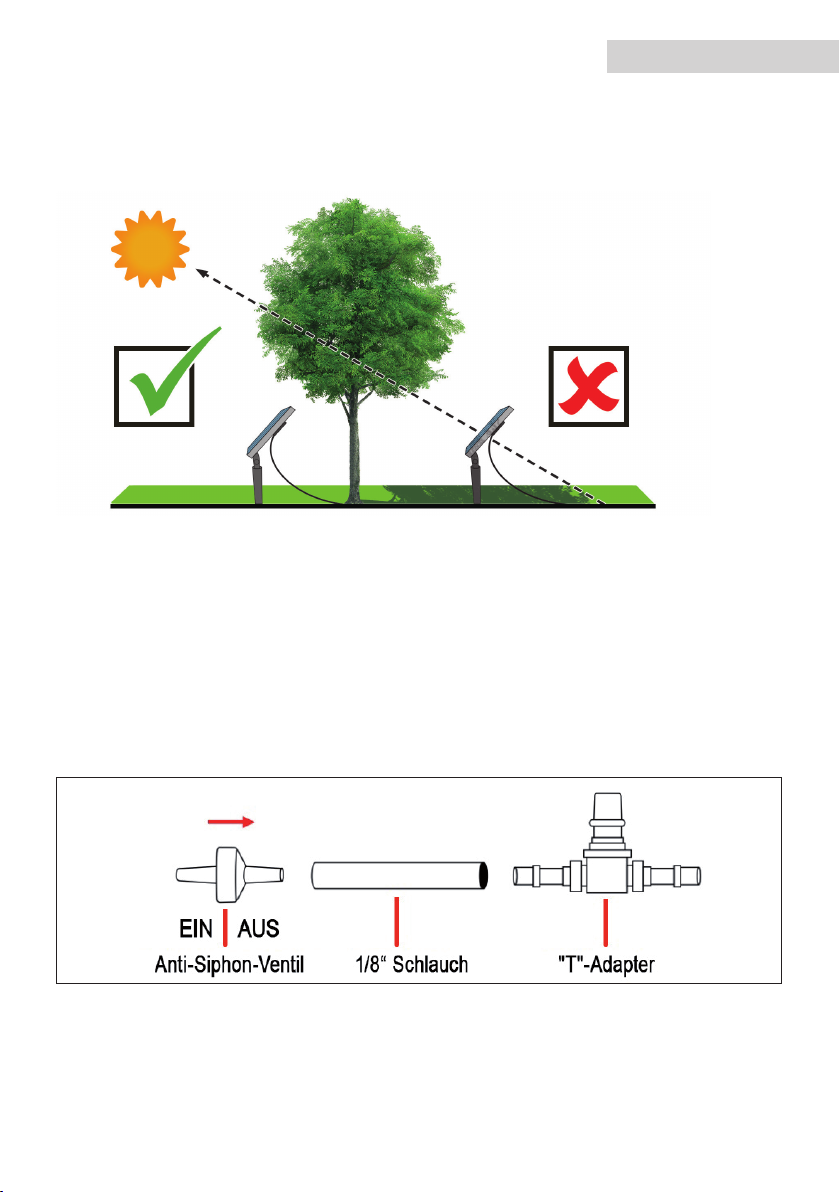

●You can cut the length of the black 1/8“ hose yourself and then connect the hose and the T-adapter as needed;
●Connect the T-adapter, the black 1/8“ hose and the backow prevention valve (anti-siphon valve), and pay
attention to the direction of the anti-siphon valve as shown below.
●Clean the joints with a cloth before connecting and work on a clean surface to avoid contamination. Dirt on the
connections can cause leaks.
●The Anti-siphon valve placement must be higher than drippers.
●Insert the necessary brackets into the oor;
●Connect the parts as shown in the diagram on page 9, cutting the necessary pieces to the
appropriate length from the hose supplied;
●Close the irrigation system with the plugs at the end of the hose.
●The system can support up to 25/50 supply points depending on the model;
●The irrigation system is now ready for use.

4 English
Description
SOLAR-DROP P25
(SP01128)
SOLAR-DROP P50
(SP01129)
Irrigation Unit 1 pc 1 pc
Filter&Water Level Switch 2 in 1 1 pc 1 pc
1/8" Black Hose 10 m 15 m
Anti-siphon Valve 1 pc 2 pcs
“T” Adaptor 27 pcs 54 pcs
Holder 25 pcs 50 pcs
2L Dripper 25 pcs 50 pcs
Stopper 1 pc 2 pcs
4. OPERATION
After installation, allow the irrigation system to charge in direct sunlight for at least 4-8 hours to fully
charge the battery.
Note: When you set the working cycle for the rst time, the machine will not work until the next cycle.
Modus Aktion Ergebnis
Test Turn to
“TEST”
Irrigation will turn on
automatically until
the battery is at.
Turn o󰀨 the
Irrigation Turn to “OFF” Shut o󰀨 the irrigation
1 minute
operation Turn to “1min”
Irrigation will work 1
minute once a
day in nightfall
5 minutes
operation Turn to “5min”
Irrigation will work 5
minutes once a
day in nightfall
2 minutes
operation Turn to “2min”
Irrigation will work 2
minutes once
every two days in
nightfall
8 minutes
operation
Turn to
“8min”
Irrigation will work 8
minutes once
every two days in
nightfall
3 minutes
operation
Turn to
“3min”
Irrigation will work 3
minutes once
every three days in
nightfall
12 minutes
operation
Turn to
“12min”
Irrigation will work 12
minutes once
every three days in
nightfall
How to control your irrigation
system:
G337-单泵-25头
G337-双泵-50头
Charge 2 In 1
Fliter G337-DC口标签
8
m
i
n
3
m
i
n
1
2
m
i
n
T
E
S
T
O
F
F
1
m
i
n
5
m
i
n
2
m
i
n
2
4
H
4
8
H
7
2
H
8
m
i
n
3
m
i
n
1
2
m
i
n
T
E
S
T
O
F
F
1
m
i
n
5
m
i
n
2
m
i
n
2
4
H
4
8
H
7
2
H
8
m
i
n
3
m
i
n
1
2
m
i
n
T
E
S
T
O
F
F
1
m
i
n
5
m
i
n
2
m
i
n
2
4
H
4
8
H
7
2
H
3.1 SCOPE OF DELIVERY

English 5
Low battery: If the batteries are empty, you must charge them with the solar panel for at least 4-8
hours in direct sunlight.
Low Water level: If there is not enough water in the reservoir, the irrigation will switch o󰀨, in this case
ll up the water level in the reservoir to ensure irrigation.
Cycle Function: To ensure that watering is as water-saving and gentle on plants as possible, the
irrigation system has been optimised for night-time water delivery.
After setting the pump runtime once, the pump works automatically in the predened cycle.
5. CLEANING AND MAINTENANCE
The irrigation unit should be cleaned at regular intervals with a soft cloth. It is recommended to clean
the solar panel regularly to ensure optimal conversion of solar energy into direct current.
Please note:
The battery pack has to be exchanged at the latest every 12-18 months! The Solar modu-
le should only be cleaned with soft tissue and proprietary glass cleaning solution.
6. RECOGNISING AND REPAIRING OF MISTAKES
Problem Possible cause Solution
Pump does
not start
No electricity
1. Check electr. connections
2. Check batteries
3. Align solar panel so that it receives direct
sunlight
Pumpe defekt /
Solar- Panel defekt
Replace pump or solar panel.
For fault location: Check the solar panel to see
if the specied voltage is being supplied. Check
whether the specied voltage is provided. Operate
the pump with an external battery.
Low battery Fully recharge the battery (4-8 hours)
Pump runs
but no
water is
encouraged
Pump impeller or lter housing
dirty
Dismantle and clean the pump and the housing
(using water and a soft brush).
Pump has sucked in air
(Attention! Avoid dry running) Switch o󰀨 the pump briey and switch it on again. (Restart)
Hoses or hose connections have a leak Check hoses or hose connections
Pump has a leak Check if there is water in the pump housing
Intake openings dirty Clean intake openings
7. SECURITY TIPS
zObey absolutely valid regulations on the electrical security
zNever run pump dry. Test wells for enough owing water (dry run danger)
zPumping inammable, as well as all other aggressive liquids is prohibited
zObserve water temperature of max. 35°C
zThe mains plug must be disconnected before carrying out any work on the irrigation system
zDuring longer unused times, clean the pump, wash it out with clear water, dry and store it at room temperature
zAll solar panels are very sensitive, protect it before all against extremal mechanical inuences (shock, vibration, etc.)
The manufacturer explains:
zTo take over no responsibility in the case of accidents or damages on the basis of carelessness or disregard
to the instruction in this book.
zTo reject every responsibility for the damages which original from the improper use
