profiline TV7040 User manual

Video surveillance camera
Installation Guide
TV7040 TV7041
TV7042 TV7043
1

1. Preface
Dear Customer,
Thank you for purchasing this PROFILINE digital surveillance camera. You made the right
decision in choosing this state-of-the-art technology. This product complies with the current
standards of domestic and European regulations. The CE has been proven and all related
certifications are available from the manufacturer upon request. To maintain this status and to
guarantee safe operation, it is your obligation to observe these operating instructions!
The waterproof PROFILINE series of digital cameras is equipped with a 1/3” SONY Super HAD
interline transfer CCD image sensor, 3.6 mm lens, and digital processor. The all state circuitry
provides extremely long life and a high level of reliability. These cameras use first class
microelements that are resistant to external electromagnetic fields. They offer cutting-edge
technology for advanced video surveillance.
2. Scope of delivery
•Waterproof PROFILINE camera (model as described)
•Sun protection roof
•Wall and ceiling mount
•Installation instructions
3. Features
All cameras of the waterproof PROFILINE series have the following functions:
a) Waterproof (IP68)
b) Auto electronic shutter (AES)
c) Backlight compensation with window histogram (BLC)
d) Auto gain control (AGC)
e) Automatic horizontal & vertical aperture correction (APC)
Additional for colour cameras:
f) Auto white balance (AWB)
g) Digital signal processing (DSP)
h) Automatic day/night switching
i) Special infrared filter with IR sensitivity to 940 nm
2

4. Precautions
To avoid electric shock and prevent the loss of water proofing/warranty, do not remove cover
(or back).
Never point the camera towards the sun. Never aim the CCD at the sun. This can
result in irrevocable destruction of image sensors and create white dots on the monitor.
Operate the camera only within the specified temperature range.Operating the
camera outside the prescribed range can lead to reduced product life and early malfunction.
Greatly exceeding the specified operating range can also result in immediate failure of the
camera. All specifications can be found in the technical data.
Handle the camera with care. Do not abuse the camera. Avoid striking, shaking, etc.
Mount the camera in a shake-free area. The camera could be damaged by improper handling,
storage or transport.
5. Installation instructions
The waterproof PROFILINE colour cameras are equipped with a special IR filter and are
particularly well suited for surveillance during day and night. The cameras are therefore
suitable for operation in conjunction with IR spotlights to 940 nm. In addition, the PROFILINE
colour cameras are equipped with automatic switching for black/white operation when
illumination falls below 2 Lux.
Perfect (colour) video pictures depend a great deal on the illumination. Please take this into
account when installing artificial light sources. Light sources with a colour temperature different
from daylight may effect colour drifts for colour cameras.
The cause of bad picture quality goes hand in hand with the cabling. Ensure professional
installation and avoid passive video distributors. Always select the shortest distance between the
camera and the next video unit.
Be sure to use the supplied sun protection roof when mounting outdoors. It protects the camera
against high temperatures due to sunlight and protects against snow in the winter.
3

6. Description of the camera
1
2
3
4
5
(1) Video output connector (VIDEO OUT)
BNC output. This connector is for connecting the camera video signal to other equipment
(signal level: 1Vp-p).
(2) Power input
12V DC voltage. Approved for DC voltage are class 2 power supply units only. Ensure the
polarity is correct.
7. Installation

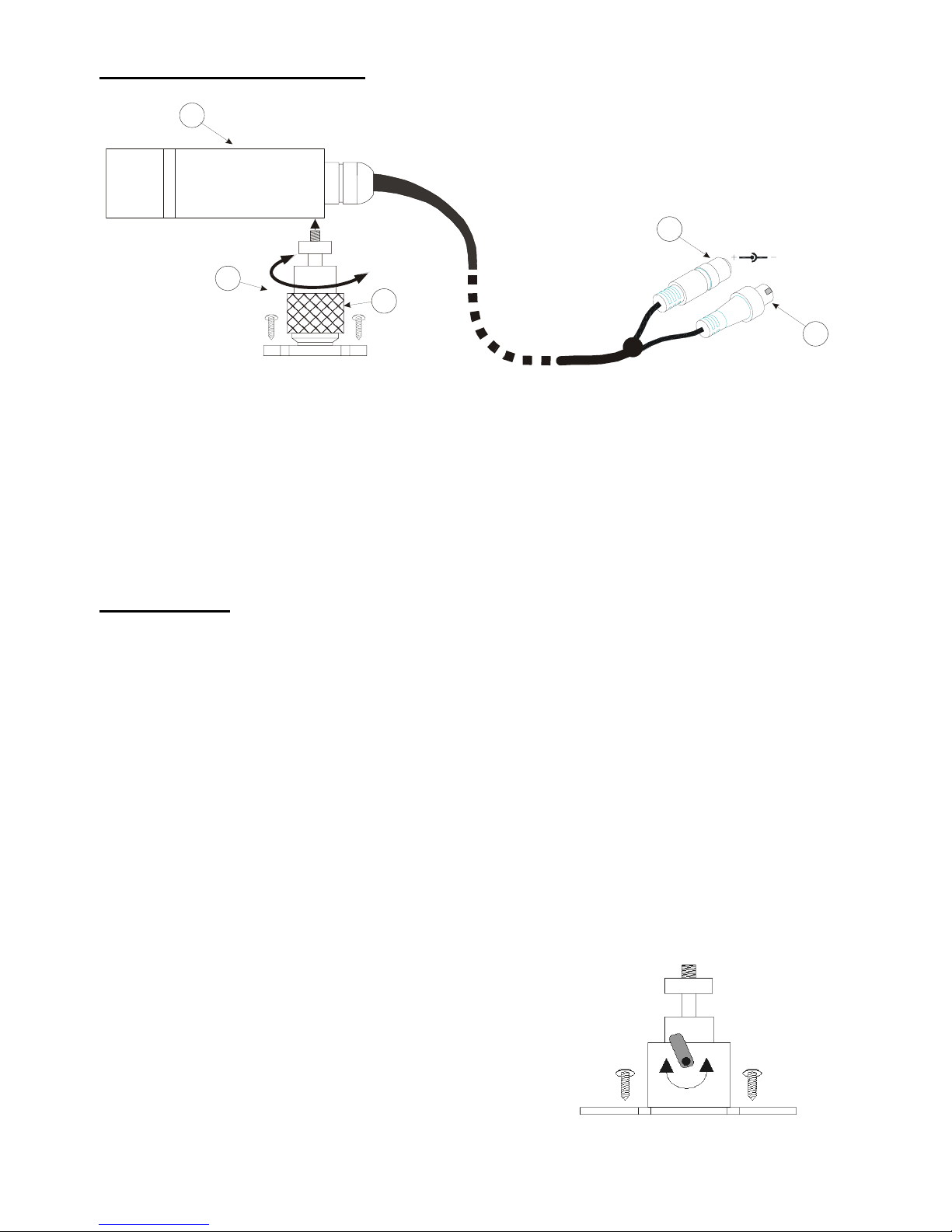

Proceed as follows when installing the camera.
1. Select a suitable place to mount the camera.
2. Connect the video cable (recommended cable type: RG58) to the BNC video out (1) of
the camera and to the following connected video unit. The maximum cable length should
not exceed 200 m.
3. Connect a 12V DC power supply to the power input of the camera (2).
4. Hold the camera at the location where you want to mount it. Check the orientation and
angle of the camera.
5. Fasten the supplied wall or ceiling mount (4) to the desired installation location and screw
the mount into the camera housing (3).
6. Change the orientation of the camera holder if necessary by slightly loosening the
grooved fixing cylinder (5) and changing the position as required.
Then tighten the fixing cylinder so that the camera remains in the desired position.
Mounting for colour cameras:
The colour cameras are supplied with a somewhat larger
wall and ceiling mount. To orient the camera mount,
loosen the fixing screw on the side.
4

8. Mounting the sun protection roof

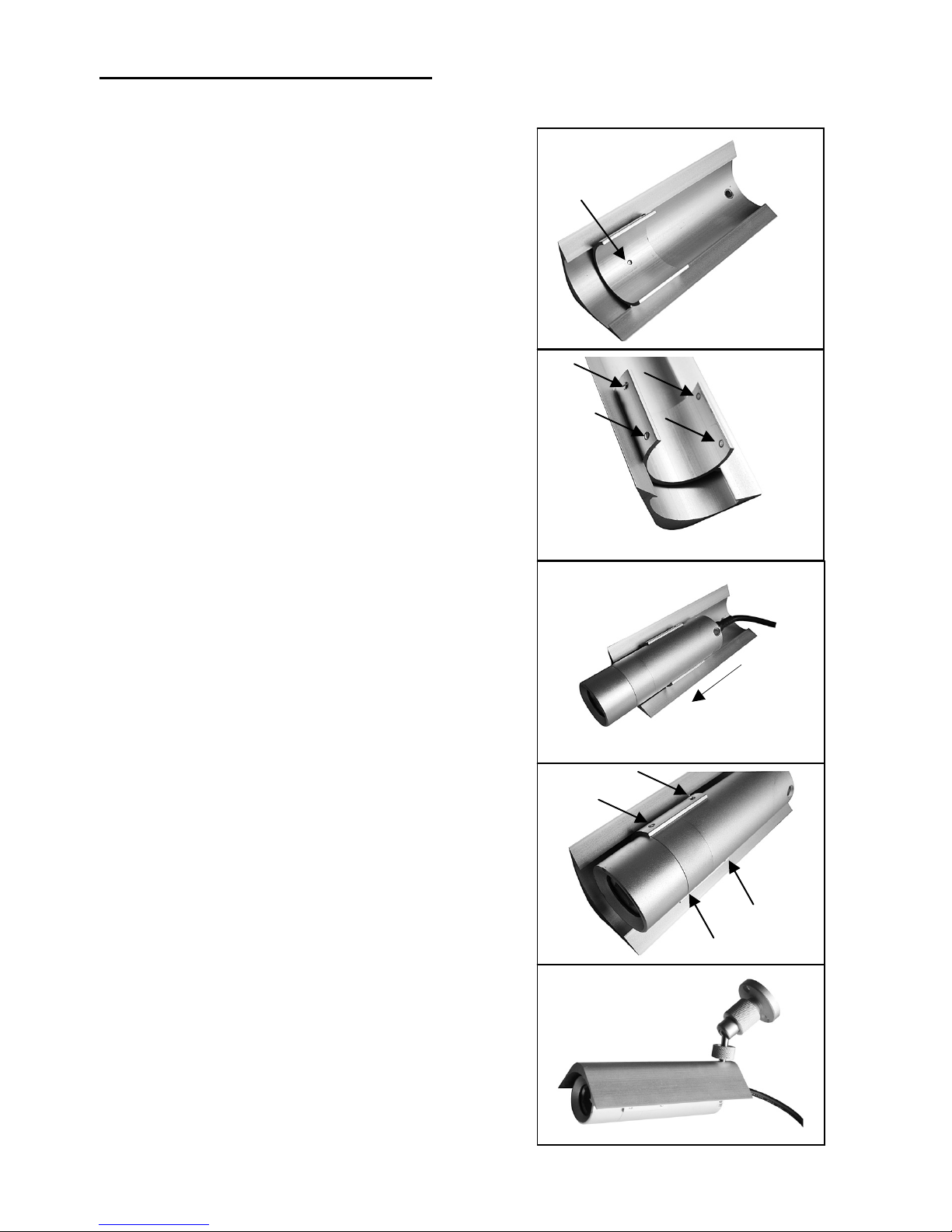

Proceed as follows when installing the camera.
1. Tighten the middle fixing screw to attach the
wrap-around element to the required position
on the sun protection roof.
2. Turn back the 4 retainer screws for attaching
the wrap-around element far enough so that
they do not project into the inside of the wrap-
around element.
3. Slide the wrap-around element and attached
sun protection roof onto the camera by using
a little pressure.
4. Now tighten the 4 retainer screws to fasten the
sun protection roof.
5. The upper threaded mount in the sun
protection roof is for fastening the supplied
holder (4).
5

9. Technical data
Model number TV7040 TV7041 TV7042 TV7043
Image sensor 1/3” SONY Super HAD CCD
TV lines / pixels 420 / 291,000 600 / 438,000 420 / 291,000 480 / 438,000
Minimum illumination
(IRE 30)
0.01 Lux
(F2.0)
0.01 Lux
(F2.0)
0.05 Lux
(F2.0)
0.05 Lux
(F2.0)
Signal-to-noise ratio > 52 dB
AES 1/50s – 1 / 110,000s
Lens 1/3” / 3.6 mm / F2.0 / miniature lens
Horizontal angle 78°
Automatic white
balance
not available 2,400K – 11,000K
Automatic switching no switching ->
continuous black/white
below 2 Lux
from colour to black/white
Synchronisation Internal
Infrared sensitivity 780 – 1100 nm 780 – 940 nm
Video out 1Vp-p / 75 Ohm / BNC connector
Power source 12V DC
Power consumption 2.1W 3.0W
Video norm CCIR PAL
Dimensions / Weight Ø28 x 105 mm / max. 180 g Ø32 x 110 mm / max. 200 g
Ambient operating
temperature
-20°C – +55°C
Ambient operating
humidity
100% waterproof
Protection type IP68
