Proflex Eb1 User manual

EB1 Exercise Bike

User Manual

[Revision 1.0 February 2018]

READ THIS MANUAL CAREFULLY BEFORE USE –FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY

DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE • Products covered by

this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.

EB1 Exercise Bike

Safety

Basic precautions, including the following important safety instructions should always be followed when using

the product. Read all instructions before use.

Before beginning any exercise program, consult your physician. This is especially important for

people over 35 years of age or who have pre-existing health problems. Read all instructions before

using any fitness equipment. Do not operate this exercise equipment without properly fitted guards,

as the moving parts can present a risk of serious injury if exposed.

WARNING! To reduce the risk of injury, read the following:

•Maximum weight capacity = 100 kg.

•Use this product for its intended use only as described in this user manual. Do not use attachments not

recommended by the manufacturer.

•Do not attempt any maintenance or adjustments other than those described in this user manual. Should

any problems arise, discontinue use and consult an authorized service centre or personnel.

•Do not use the unit outdoors.

•Do not get on or get off the machine if the pedals are moving –wait for the wheel is completely stopped

before getting on/off.

•Keep children and pets away from the equipment while in use.

•Elderly or disabled users should only use the unit in the presence of an adult who can provide assistance

if required.

•Do not operate where aerosol (spray) products are in use or where adequate oxygen is not available.

•Keep dry –do not operate in wet or moist conditions.

•Keep the unit on a solid, level surface with a minimum safety area clearance of 2 meters around it. Be

sure the area around the unit remains clear of any obstructions during use.

•The product is for domestic household use only.

•Only one person should use the unit at a time.

•Wear comfortable and suitable clothing when using the equipment. Do not use the product barefoot or in

socks. Always wear appropriate, enclosed athletic footwear. Never wear loose or baggy clothing as it can

become caught on moving parts and create a hazard.

•Do not leave children unsupervised near or on the equipment.

•Children should not be allowed to play or operate the equipment at any time.

•This equipment is not intended for use by persons (including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for their safety.

•Keep hands clear of all moving parts.

•Before using the product, check that all visible fasteners are sufficiently tightened and secure.

EB1 Exercise Bike
E&OE ©2018 Proflex 3
Table of Contents
Safety..................................................................................................................................................................2
Setting Up the Exercise Bike...............................................................................................................................4
Assembly.........................................................................................................................................................5
Operating the Exercise Bike................................................................................................................................6
Console and Functions....................................................................................................................................6
Adjusting Effort...............................................................................................................................................6
Care and Troubleshooting ..................................................................................................................................7
Cleaning ..........................................................................................................................................................7
Storage............................................................................................................................................................7
Troubleshooting .............................................................................................................................................7
Warm-Up and Cool-Down Routine.....................................................................................................................8



EB1 Exercise Bike

Setting Up the Exercise Bike

The EB1 exercise bike comes partially assembled. The unit comes with the following parts. Ensure that all

parts are included before assembly.

No.

Qty.

Description

No.

Qty.

Description

Frame

Saddle

Rear foot

Right-side pedal

Front foot

M8 button head socket screw

M8 coach screw

Handlebar post

M8 curved washer

Console mounting cap

M8 cap nut

Console

Left-side pedal

M8 socket head screw

Saddle post locking screw (M12)

Handlebar

Saddle post

M8 spring washer

M8 lock nut

M8 small flat washer

M8 large flat washer

Tools

Effort Adjuster

PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX

EB1 Exercise Bike

Assembly

1. Take all parts out of the carton and place them on

a firm, flat surface. Remove all packing materials.

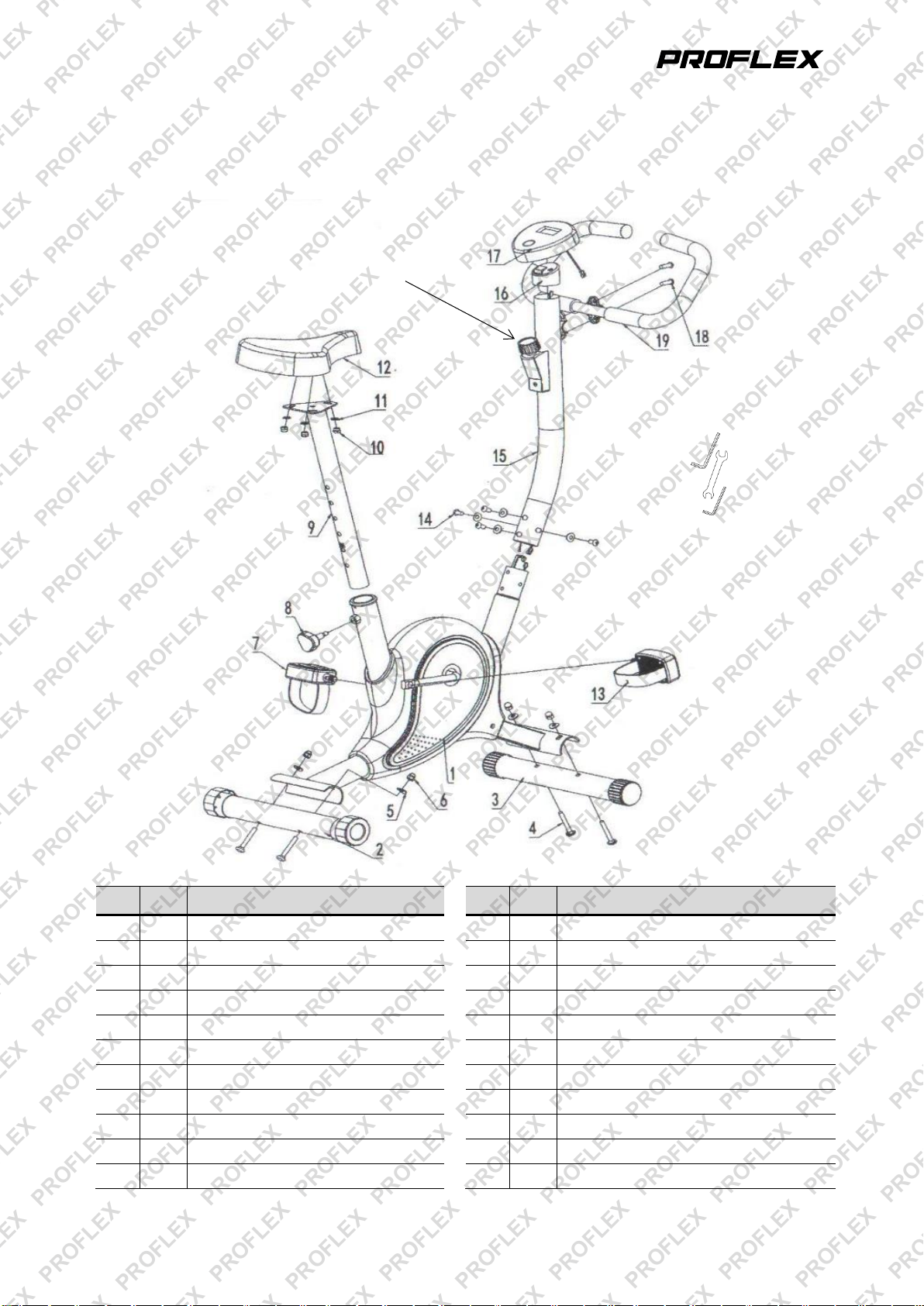

2. See Fig. 1. Attach the front foot (3) and rear foot

(2) to the frame (1) using 4 coach screws (4),

curved washers (5) and cap nuts (6). Ensure the

square holes in the feet are facing the ground.

Ensure the washers follow the shape of the tube

when installed. Tighten (rotate right) the nuts

using the supplied spanner.

3. See Fig. 2. Remove the nuts and washers (10 and

11) from under the saddle (12). Place the saddle

on top of the saddle post (9) and secure with the

nuts and washers (10 and 11). Tighten (rotate

right) the nuts with the supplied spanner.

4. Insert the saddle post (9) into the frame (1), with the height

adjustment holes facing rearward. Secure it at the desired

height with the saddle post locking screw (8) –the pin on

the end of the screw must enter a hole in the post to be

able to secure properly. Firmly tighten (rotate right) the

screw by hand.

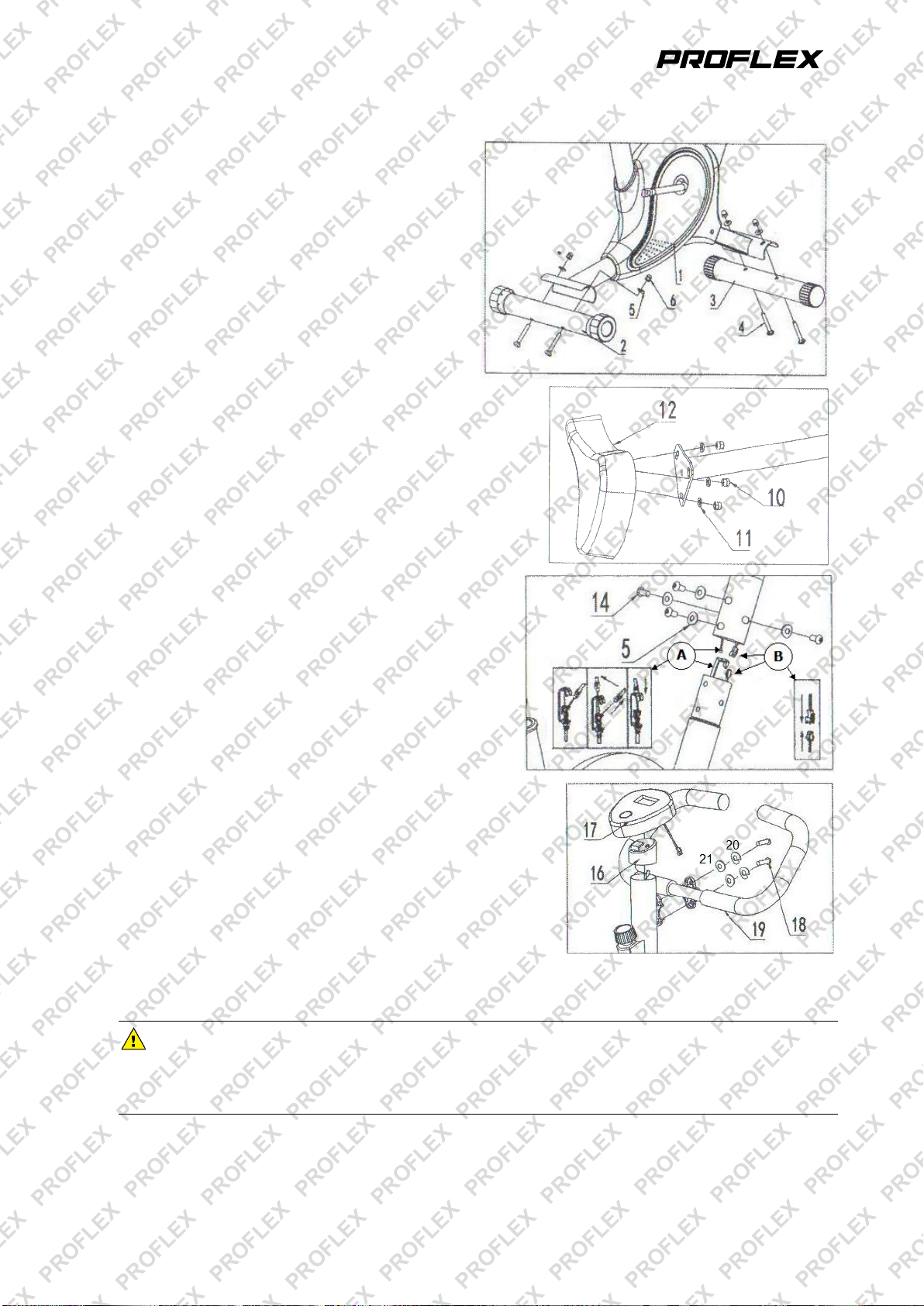

5. See Fig. 3. Bring the handlebar post (15) near to its location

on the bike frame (1). Hook the tension cable in the

handlebar post to the bracket on the end of the tension

cable in the frame (A). Note that you may need to loosen

the cable by rotating the effort adjuster left in order to

connect the cables. Then, connect the wiring in the

handlebar post to the wiring in the frame (B).

6. Insert the handlebar post into the frame, being careful

not to pinch the electrical cables. Secure the handlebar

post using 4 screws (14) and curved washers (5).

Ensure the washers follow the shape of the tube when

installed. Tighten (rotate right) the screws using the

supplied Allen key.

7. See Fig. 4. Plug the console (17) electrical cable to the

handlebar post electrical cable. If the cable in the handlebar

post is not visible, pull the console mounting cap (16) off the

post and gently pull the cable out. Ensure that the cable

passes through the hole on top of the console mounting cap

and push the cap back onto the top of the post. Excess cable

can be stored in the handlebar post. Slide the console onto the

mounting cap. Install the supplied battery into the console.

8. Attach the handlebar (19) to the top of the handlebar post

using 2 screws (18), spring washers (20) and washers (21). Tighten (rotate right) the screws using the

supplied Allen key. Gradually tighten both screws in stages and ensure that the handlebar clamp

remains parallel to its mounting.

IMPORTANT –Failure to correctly follow the following step may void your warranty. The left

pedal, marked “L” on the end of the pedal bolt, must be fitted to the left-side crank arm and rotated left

(anti-clockwise) to install. The right pedal, marked “R” on the end of the pedal bolt, must be fitted to the

right-side crank arm and rotated right (clockwise) to install.

9. Attach the left-side pedal (7) and right-side pedal (13) to the respective crank arms. Tighten the pedal

bolts using the supplied spanner

Once assembled, the machine ready for use.

Fig. 1

Fig. 2

Fig. 3

Fig. 4

PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX

EB1 Exercise Bike

Operating the Exercise Bike

Console and Functions

The exercise bike features a computerized display that provides you with workout information, such as

duration, speed, distance travelled etc. Whenever the console is activated, a new “session” starts, with all

values at “zero”. If the bike is not being used and the console is not touched (button pressed), it will

automatically switch off after approximately 4 minutes. To activate the console, press the function button or

start riding.

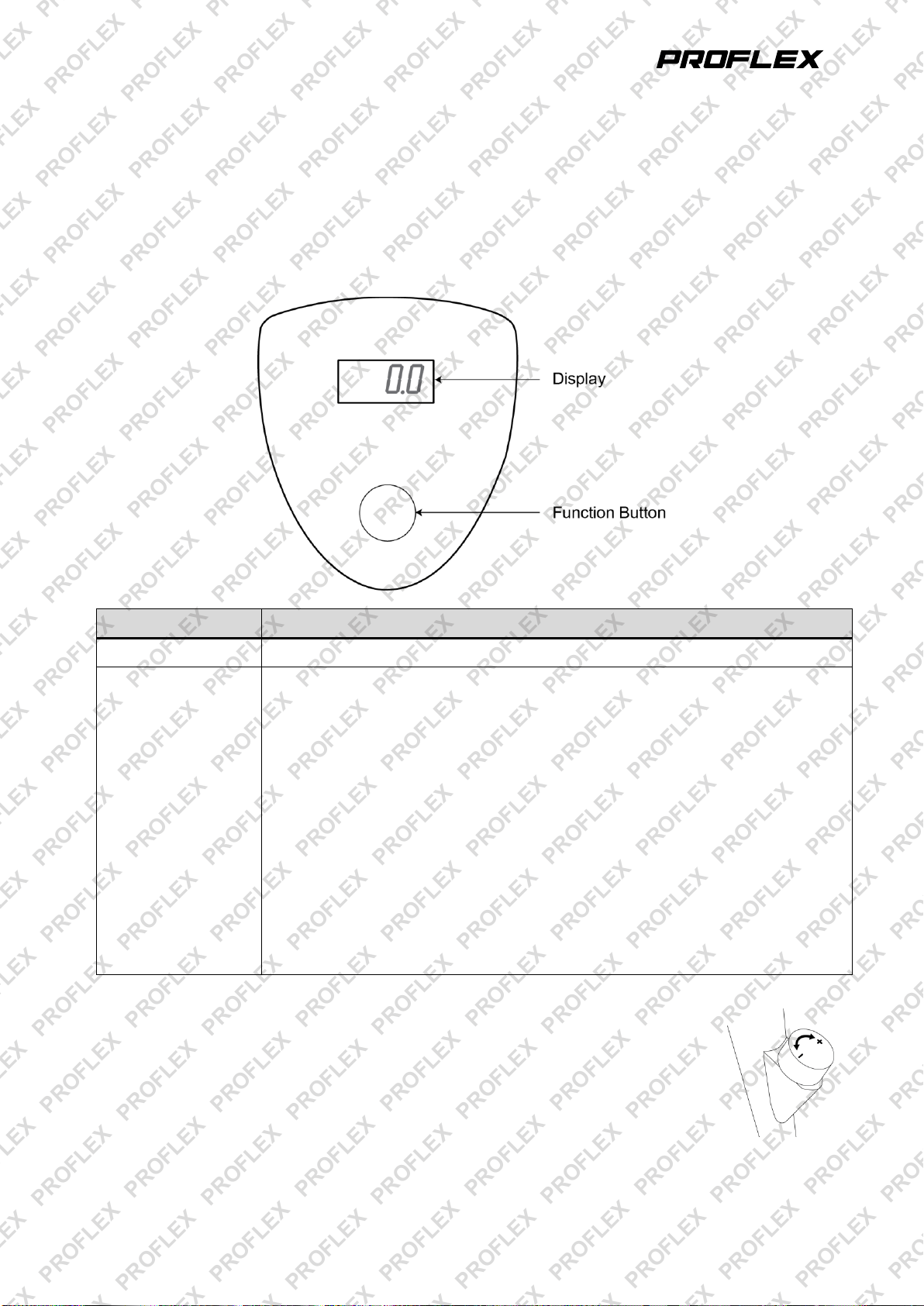

Console Button

Description

Display

Shows current information, such as speed, time etc.

Function

Press to switch between display modes. Press once to enter “scan” mode, starting

at the next function. Press twice to stop “scan” mode and lock the display to the

selected function. For each mode, an indicator displays the type of information

being displayed; for example, “DST” shows near the bottom of the display:

Scan –Automatically switch between display modes approximately every 5

seconds. When in this mode, “SCAN” displays along the bottom of the display.

Time –Current elapsed time of the session in minutes (limits 0 to 99.59).

Speed –Current speed in km/h (limits 0 to 99.9).

Distance –Current distance travelled during the session (limits 0 to 99.99). The

distance value increments every 10 meters travelled.

Calories –The number of calories used during the current session (limits 0 to

999.9). To approximately convert calories to kilojoules, multiply the number of

calories by 4.

At any time you can reset all values to “zero” for the current sessions by pressing

and holding for at least 3 seconds.

Adjusting Effort

The exercise bike allows you to adjust the effort required to turn the wheel by “braking” the

wheel. The greater the effort, the larger the number of energy (calories) required to “ride”.

To adjust the effort, turn the adjuster on the main frame tube as required to either increase

(rotate right) or decrease (rotate left) effort.

PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX

EB1 Exercise Bike

Care and Troubleshooting

Cleaning

The exercise bike can be cleaned with a soft cloth and mild detergent. Do not use abrasives or solvents. Be

careful not to get excessive moisture on the display panel as this may damage it and create an electrical

hazard.

After each use, wipe the unit of any sweat, dirt or liquids.

Keep the exercise bike, especially the display console, out of direct sunlight to prevent damage to the

screen.

Storage

Store the exercise bike in a clean and dry indoor environment. Never leave or use the unit outdoors.

Troubleshooting

Problem

Potential Reason

Correction

Riding difficult.

Effort brake over-adjusted.

Reduce effort –rotate adjuster left.

No console display.

No connection.

Check batteries are okay and

electrical cables are in good

condition and properly connected.

When to Call for Help

This exercise bike is designed with user safety as a priority. If after you check the equipment and possible

adjustments that it is still not operational, call an authorized service center or technician for servicing.

PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX

EB1 Exercise Bike

Warm-Up and Cool-Down Routine

The warm-up routine is an important part of any workout. The purpose of warming up is to prepare your body

for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should

begin every session to prepare your body for more strenuous exercise by heating up and stretching your

muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.

Always perform a cool-down routine after your workout, repeat these exercises to reduce soreness in tired

muscles. The purpose of cooling down is to return the body to its resting state at the end of each exercise

session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart.

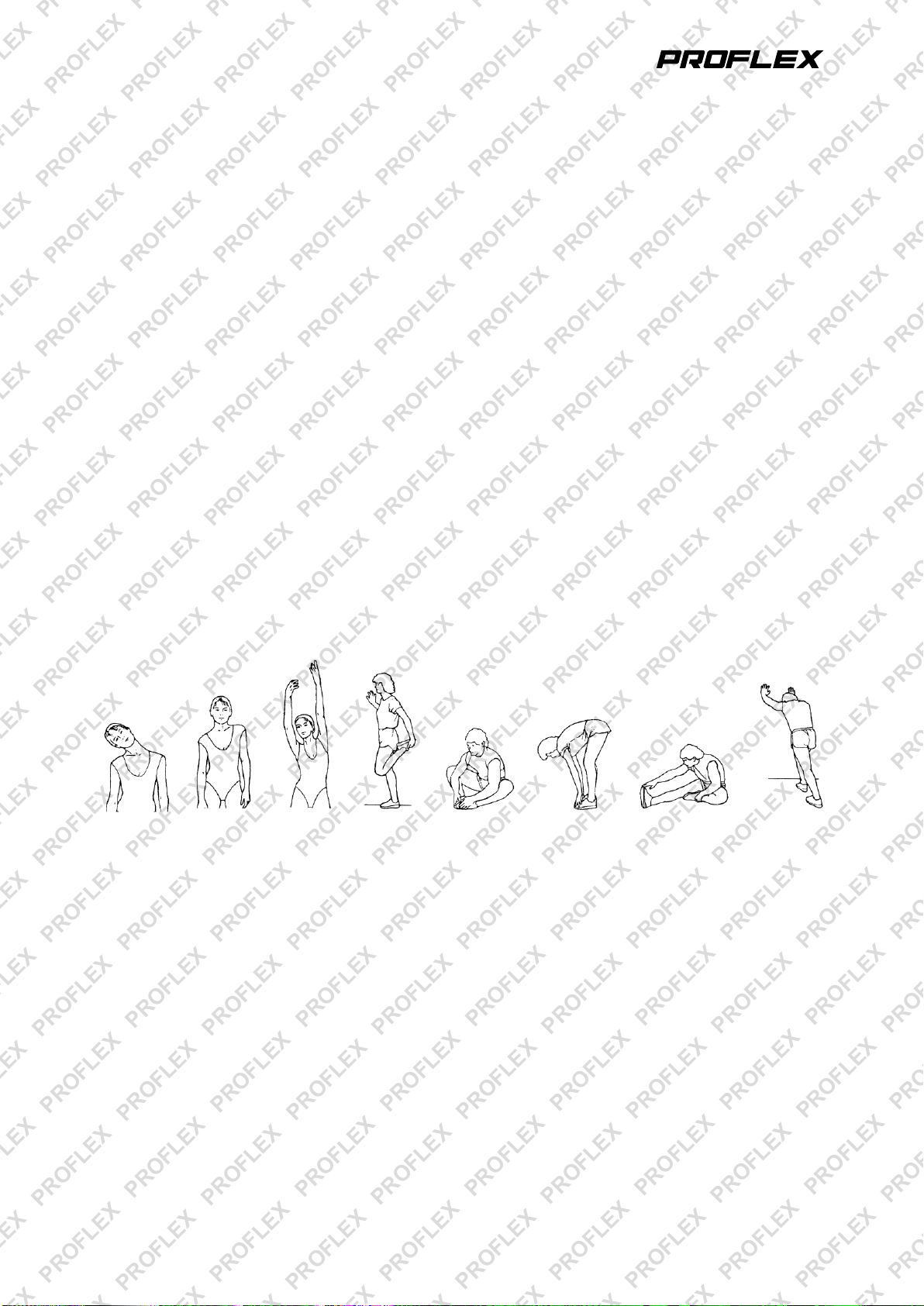

A. Head Roll - Rotate your head to the right for one second, you should feel a stretching sensation up the

left side of your neck. Then rotate your head back for one second, stretching your chin to the ceiling and

letting your mouth open. Rotate your head to the left for one second, then drop your head to your chest

for one second.

B. Shoulder Lift - Lift your right shoulder toward your ear for one second. Then lift your left shoulder up for

one second as you lower your right shoulder.

C. Side Stretch - Open your arms to the side and lift them until they are over your head. Reach your right

arm as far toward the ceiling as you can for one second. Repeat this action with your left arm.

D. Quadricep Stretch - With one hand against a wall for balance, reach behind you and pull your right foot

up. Bring your heel as close to your buttocks as possible. Hold for 15 seconds and repeat with left foot.

E. Inner Thigh Stretch - Sit with the soles of your feet together and your knees pointing outward. Pull your

feet as close to your groin as possible, then gently push your knees toward the floor. Hold for 15 seconds.

F. Toe Touch - Slowly bend forward from your waist, letting your back and shoulders relax as you stretch

toward your toes. Reach as far as you can and hold for 15 seconds.

G. Hamstring Stretch - Extend your right leg. Rest the sole of your left foot against your right inner thigh.

Stretch toward your toe as far as possible. Hold for 15 seconds. Relax and then repeat with left leg.

H. Calf/Achilles Stretch - Lean against a wall with your right leg in front of the left and your arms forward.

Keep your left leg straight and the right foot on the floor; then bend the right leg and lean forward by

moving your hips toward the wall. Hold, then repeat on the other side for 15 seconds.

PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX PROFLEX

EB1 Exercise Bike

Some experts believe the incorrect or prolonged use of almost any product could

cause serious injury or death. For information that may reduce your risk of serious

injury or death, consult the points below and additionally, the information available at

www.datastreamserver.com/safety

•Consult all documentation, packaging and product

labelling before use. Note that some products feature

online documentation which should be printed and

kept with the product.

•Check product for loose / broken / damaged / missing

parts, wear or leaks (if applicable) before each use.

Never use a product with loose / broken / damaged /

missing parts, wear or leaks (if applicable).

•Products must be inspected and serviced (if

applicable) by a qualified specialist every 6 months

assuming average residential use by a person of

average weight and strength, above average technical

aptitude, on a property matching average metropolitan

specification. Intended use outside these guidelines

could indicate the product is not suitable for intended

use or may require more regular inspection or

servicing.

•Ensure all possible users of the product have

completed an industry recognized training course

before being given access to the product.

•The product has been supplied by a general merchandise retailer that

may not be familiar with your specific application or your description

of the application. Be sure to attain third-party approval for your

application from a qualified specialist before use regardless of prior

assurances by the retailer or its representatives.

•This product is not intended for use where fail-safe operation is

required. As with any product (take an automobile, aircraft, computer

or ball point pen for example), there is always a small chance of

technical issues that needs to be repaired or may require

replacement of the product or a part. If the possibility of such failure

and the associated time it takes to rectify could in any situation

inconvenience the user, business or employee then the product is not

suitable for your requirements. This product is not for use where

incorrect operation or a failure of any kind, including but not limited to

a condition requiring product return, replacement, service by a

technician or replacement of parts could cause a financial loss, loss

of employee time or an inconvenience requiring compensation.

•If this item has been purchased in error after considering the points

above, simply contact the retailer directly for details of their returns

policy, if required.

diagrams or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.

Table of contents

Other Proflex Exercise Bike manuals

Proflex

Proflex EB2 User manual

Proflex

Proflex SPN850 User manual

Proflex

Proflex XB2 User manual

Proflex

Proflex SPN750 II User manual

Proflex

Proflex AFX User manual

Popular Exercise Bike manuals by other brands

ASUNA

ASUNA 7150 Minotaur owner's manual

Diamondback

Diamondback 500IC brochure

Johnson Fitness

Johnson Fitness Exercise Bike owner's manual

Reebok

Reebok R9.5e user manual

ASUNA

ASUNA 7130 owner's manual

DKN technology

DKN technology AM-5i user guide

Stamina

Stamina AVARI Recumbent Bike owner's manual

Tunturi

Tunturi C60 R Crosstrainer user manual

YOSUDA

YOSUDA Pro manual

Exerpeutic

Exerpeutic 7102 owner's manual

Livestrong

Livestrong LS5.0R Guide

Bodyworx

Bodyworx ABX350M owner's manual

Xterra

Xterra SB150 owner's manual

Energetics

Energetics CT-850 Assembly instruction

BH FITNESS

BH FITNESS H8305 Instructions for assembly and use

NordicTrack

NordicTrack VX550 user manual

Klarfit

Klarfit 10012060 manual

NordicTrack

NordicTrack Gxr 4.2 Bike Manual Del Usuario

Proflex EB1 User manual

Popular Exercise Bike manuals by other brands
