ProFusion HA24-75M User manual

INSTRUCTION MANUAL
Technical Support: 1-866-206-0888
Service email: [e-mail]
PET OWNERS WARNING:The health of some small pets
including birds are extremely sensitive to the fumes produced during
the first-time use of many appliances. These fumes are not harmful to
humans but we recommended that you do not use your heater around
birds and small pets during its initial use until the manufacturing
corrosion coatings burn off.
1

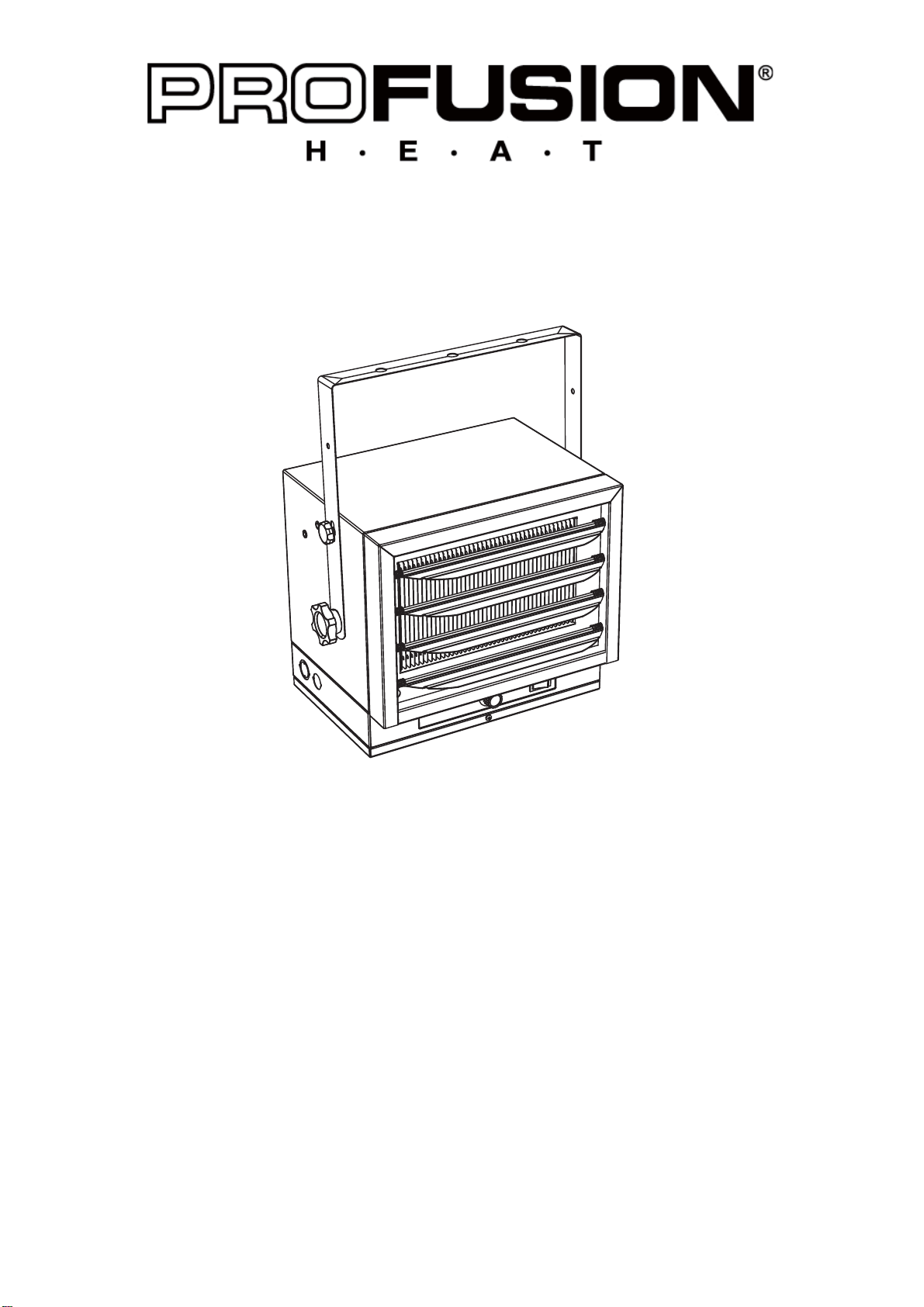

Heavy Electric Utility Heater
Model：HA24-75M
Figure 1

IMPORTANT INSTRUCTIONS
When using electrical appliances, basic precautions should always be followed to reduce
the risk of fire, electric shock, and injury to persons, including the following:
1. Read all instructions before installing or using this heater
2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces
Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, etc. and
curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the
sides and rear.
3. Extreme caution is necessary when any heater is used by or near children or invalids
and whenever the heater is left operating and unattended.
4. Always turn off the power of heater when not in use.
5. Do not operate any heater after it malfunctions. Disconnect power at service panel and
have heater inspected by a reputable electrician before reusing.
6. Do not use outdoors
7. This heater is not intended for use in bathrooms, laundry areas and similar indoor
locations. Never locate heater where it may fall into a bathtub or other water container.
8. To disconnect heater, turn controls to off. and turn off power to heater circuit at main
disconnect panel.
9. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this
may cause an electric shock or fire, or damage the heater.
10.Connect to properly grounded outlets only.
11. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not
use on soft surfaces, like a bed, where openings may become blocked.
12. Aheater has hot and arcing or sparking parts inside. Do not use it in areas where
gasoline, paint, or flammable liquids are used or stored.
13. Use this heater only as described in this manual. Any other use not recommended by
the manufacturer may cause fire, electric shock, or injury to persons.
14. This heater may include a visual alarm to warn that parts of the heater are getting
excessively hot. If the alarm illuminates, immediately turn the heater off and inspect for any
objects on or adjacent to the heater that may have blocked the airflow or otherwise cause
high temperatures. DO NOT OPERATE THE HEATER WITH THE ALARM
ILLUMINATING.
SAVE THESE INSTRUCTIONS
2

DESCRIPTION
Electric utility heaters are designed to meet a variety of heating requirements by switching
a few wires located in the base of the unit. Heat output is 25 589 BTU per hour. Features
horizontal and vertical flow horizontal air flow. Built-in thermostat with overheating safety
thermal cutout
SPECIFICATIONS
Rating AMPS BTU/hour
7500W II 240V 31.3
25589
5000W I 20.9 17065
GENERAL SAFETY INFORMATION
:
:
: This heater requires hard wire installation (no plug). The
installation of this product must be carried out by a Certified Electrician
and in accordance with all local and national electrical codes.
NOTE: Compatible with a 240V Line Voltage Double Pole Wall
Thermostat. Must be installed by a Certified Electrician.
Read and understand all installation and operation
instructions and observe all safety instructions.
1. Use only copper wires rated for at least 60ºC.
2. Heater air flow must be directed parallel to or away from adjacent wall.
3. Observe wall, floor and ceiling clearance requirements
4. All wiring must be done according to national and local electrical codes in the united
states and the heater must be grounded as a precaution against possible electrical
shock. Heater circuit must be protected with proper fuses.
3

5. The mounting structure and the anchoring hardware must be capable of reliably
supporting the weight of the heater and if used the mounting bracket.
6. All electrical power must be disconnected and the main service box must be locked
before inspecting cleaning or servicing the hater. This is a precaution to prevent
serious electric shock.
7. This heater is not suitable for use in hazardous locations as defined by the national
fire protection association (NFPA) in the united states. This heater has hot and
arcing sparking parts inside. Do not use it in areas where gasoline paint or
flammable liquids are used or stored.
8. This heater is not suitable for use in corrosive atmospheres such as marine
greenhouses or chemical storage areas.
9. This heater must be mounted at least 8 feet off the floor.
Improper installation or failure to follow the procedures outlined in this
instruction manual can result in serious electrical shock.
LOCATING HEATER
Install heater out of traffic areas maintaining clearances stated in figure 2. The direction of
air flow should not be restricted is by columns or machinery and the air flow should wipe
exposed walls rather than blowing directly on them. When more than one heater is used in
an area the heaters should be arranged so that the air discharge of each heater supports
the air flow of the others to provide best circulation of warm air as indicated in figure 3.
4

Figure 2
Figure
2

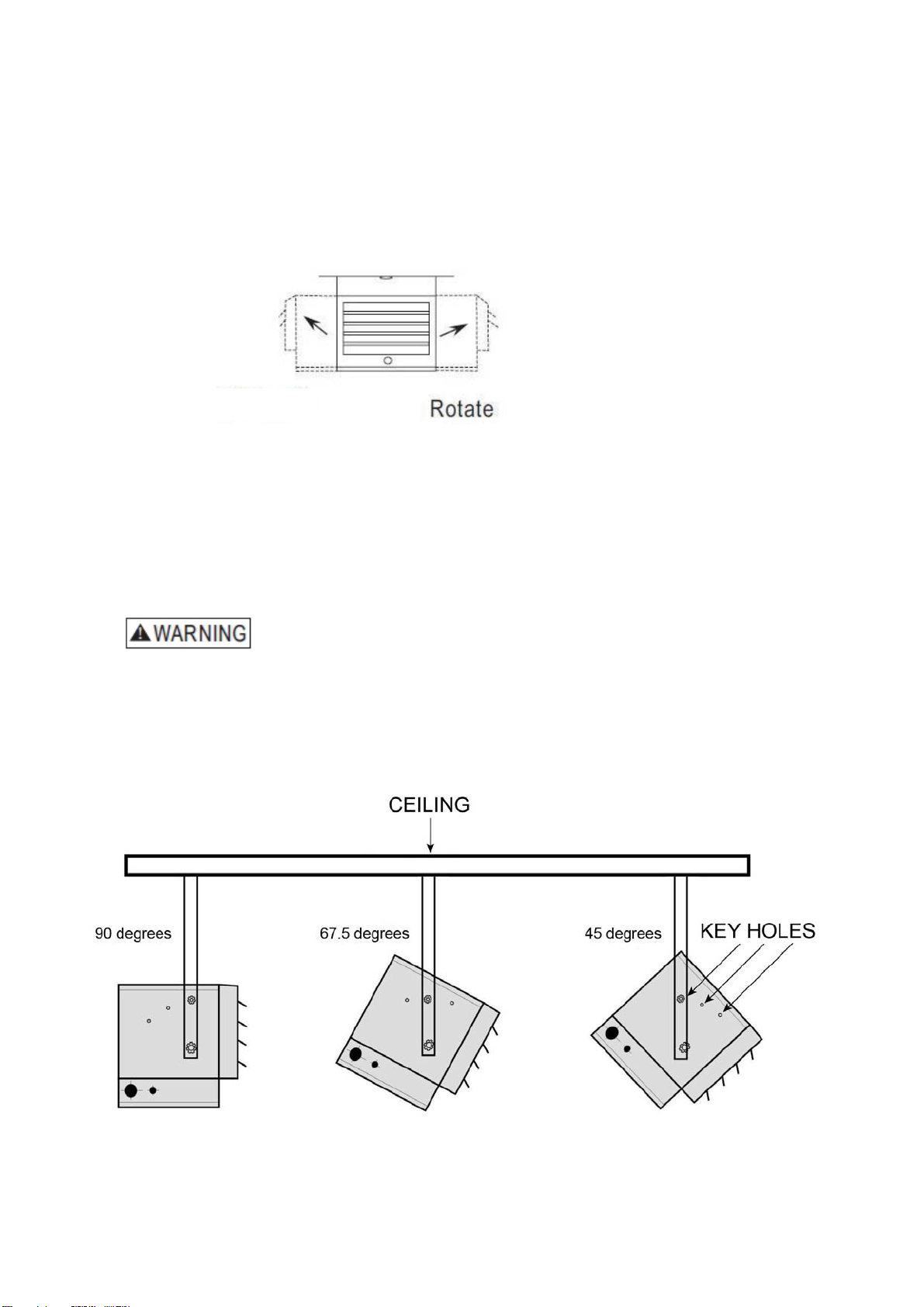

MOUNTING THE BRACKET
Ceiling mounting

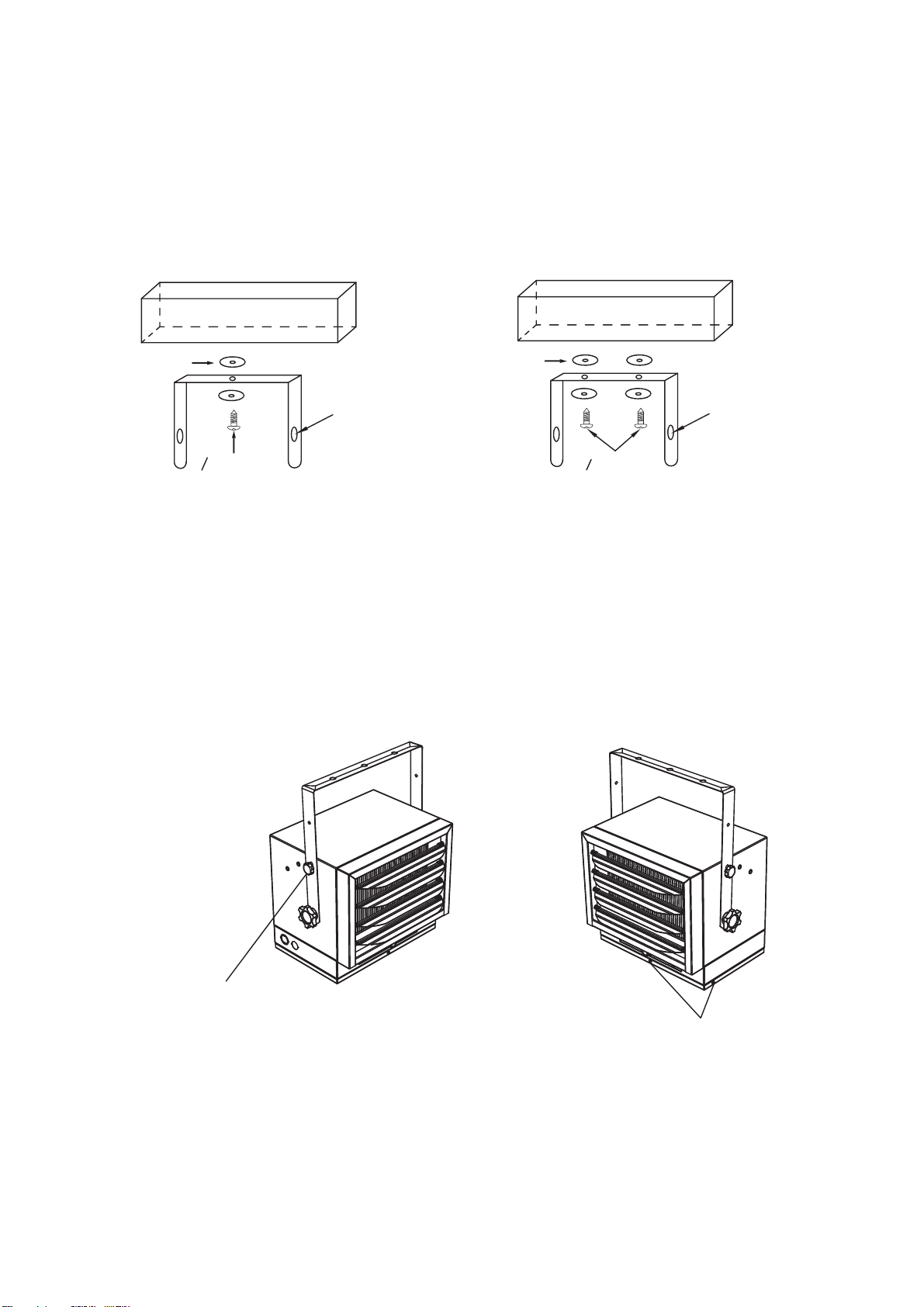

Refer to Figures 4a and 4b.
1. Locate a wood stud in the wood ceiling joist. If you cannot locate a wood stud, you have
to install a wood piece on the ceiling as this heater must be securely fastened.
2. Remove the mounting bracket from the heating unit by loosening bracket screws with a
wrench and slipping the handle off over the screw heads.
5
FRONT VIEW
Note: Min.clearance to ceiling
when note using mounting brackets
is 1 in.
58
MINIMUM
DISTANCE
TO WALL
MINIMUM
DISTANCE
TO WALL
13in.
7 in.
38
MINIMUM
DISTANCE
TO FLOOR
8 ft.
SIDE VIEW
MAXIMIUM MOUNTING HEIGHT FRO:
Vertical air de;ivery unit = 11 ft.
Horizontal air delivery unit =8 ft.
MINIMUM
DISTANCE
FROM
DISCHARGE
TO ANY
OBJECT
14in.
12 in.
12
10 in.
35
4 in.
12
4 in.
12
24 in.
1 in.
34
in. .,
12
in.
34
