Preva Plus Upgrade Instructions
FORM #00-02-0594
ECN: P1713
Rev. C

FORM #00-02-0594
ECN: P1713
REV. C
Purpose
These instructions facilitate the upgrade of a Preva DC Intraoral X-ray (manufactured
after July 1, 2008) to a Preva Plus with integrated Vision DX Sensor.
Items required for this upgrade may include one or more of the following
Part Numbers:
600-401 – Upgrade Kit with #1 Sensor
600-402 – Upgrade Kit with #2 Sensor
600-403 – Upgrade Kit with #1 and #2 Sensor
600-404 – Upgrade Kit without Sensor
Options
600-100, USB Ethernet Extender
30-A2153, USB A/B Switch
Tools Required
Philips Screwdriver, #1
Philips Screwdriver, #2
3mm Hex Wrench
Diagonal Cutter
Copyright © 2008 Progeny, Inc.

Procedure
1. Remove the end caps from the tube head end of the articulating arm by pulling
them apart.
Figure 1
2. Locate the cable tie that holds the end of the USB cable to the arm. Refer to
Figure 2.
Figure 2
3. Carefully cut the cable tie with a diagonal cutter. Take extreme care not to cut
the USB cable jacket.
4. Plug the USB cable into J1 of the Sensor Interface PCB, Arm Mount Kit. Refer to
Figure 3.
FORM #00-02-0594
ECN: P1713
REV. C

Figure 3
5. Replace the male end cap with Sensor Interface PCB,Arm Mount Kit. Press it
and the female end cap together over the end of the Articulating Arm.
6. Secure the Sensor Interface PCB, Arm Mount Kit to the Articulating Arm using
the M3 x 16mm socket head cap screw. Use a 3mm hex wrench to tighten.
Refer to Figure 4.
Figure 4
7. Attach the sensor holder to the articulating arm as shown in Figure 5.
FORM #00-02-0594
ECN: P1713
REV. C

Figure 5
8. Plug the sensor connector into the Sensor Interface at the bottom of the Arm
mount. Figure 6.
Figure 6
9. Place the sensor into the sensor holder. Refer to Figure 7.
Figure 7
FORM #00-02-0594
ECN: P1713
REV. C

FORM #00-02-0594
ECN: P1713
REV. C
11. t to the Logic pcb. Use
the two M3x5mm screws provided. Refer to Figure 8.
12. the horizontal arm. If it is secured
13. from the horizontal arm into J1 of the Unpowered USB Hub.
14. e 5m USB cable provided to J2 of the Unpowered USB Hub. Refer to
15. in the control cover using one of the provided access
areas. See fig. 8a.
10. Remove the cover from the Preva Plus Control Unit.
Attach the Unpowered USB Hub to the bracket adjacen
Figure 8
Locate the free end of the USB cable from
with a cable tie, carefully cut the cable tie.
Plug the USB cable
Refer to Figure 8.
Connect th
Figure 8.
Cut and clear a notch
Figure 8a.

16. Dress the 5m USB cable through the notch in the bottom of the Control Unit
cover and replace the cover.
FORM #00-02-0594
ECN: P1713
REV. C
17. Plug the other end of the 5m USB cable into a USB port on the PC that will
control the VisionDX system.
Option
1.
upply to the hub and then connect the PC to the 4-Port USB Hub
using the 1m USB Cable. Plug the free end of the 5m USB Cable into the 4-Port
2. B cables. A USB – ethernet
ada
cable in
h
b. Attach
pcb. Us
escribed in the above step.
. Plug the USB cable from the horizontal arm into the USB-Ethernet
s
OPTION 1: USB Powered Hub. It is recommended to use a powered hub at the
computer to prevent overloading and any electrical power issues at the
computer. Plug the 4-Port USB Hub Power Supply into a wall outlet. Connect
the power s
USB Hub.
OPTION 2: USB-Ethernet Extender, part number 600-100. This extender
provides for a longer cable run than permitted by US
pter is used on both the computer end and the sensor end with an ethernet
between that can run up to 25 ft. in length.
a. In the cases where the PC cannot reach the Preva Plus Control Unit wit
the 5m USB cable, a USB-Ethernet Extender may be used.
the USB-Ethernet Extender to the bracket adjacent to the Logic
e the two M3x5mm screws provided. Refer to Figure 9.
Note: If installed remove and replace the Unpowered USB Hub
with the USB-Ethernet Extender as d
cExtender, Device at J1. Refer to Figure 9.
Figure 9

d. Plug the 0.5m USB Cable into a USB port on the PC that will control the
VisionDx system.
FORM #00-02-0594
ECN: P1713
REV. C
. Plug the free end of the 0.5m USB Cable into the USB Ethernet Extender,
g. Dress the CAT-V cable through the notch in the bottom of the Control Unit
3.
re the Preva Plus and VisionDX Integrated System is used in a
pass-though cabinet and a PCs is desired for each room, a Dual-Host Switch
ma
a. ub from the bracket inside the Control Unit.
. Plug the two USB cables for each of the two PCs into J1 and J3 on the
Dual-Host Switch Assembly. Refer to Figure 10.
eHost with Enclosure. Refer to Figure 10.
Figure 10
f. Use the 50 foot CAT-V Cable to link to the USB-Ethernet Extender
Device.
cover and replace the cover.
OPTION 3: Dual-Host Switch, part number 30-08135.
In the case whe
y be used.
Remove the USB H
b. Replace the Control Insert in the Control Unit Cover with the Dual-Host
Switch Assembly.
c. Plug the USB cable from the Preva Plus Horizontal Arm into J2 on the
Dual-Host Switch Assembly.
d

Figure 11
e. Dress the two USB cables through the notch in the bottom of the Control
Unit cover and replace the cover. Refer to Figure 10.
Figure 12
Plug one USB cable into a USB Port on each of the PCs in use.
FORM #00-02-0594
ECN: P1713
REV. C

Option 4: Mobile Installation
Figure 13.

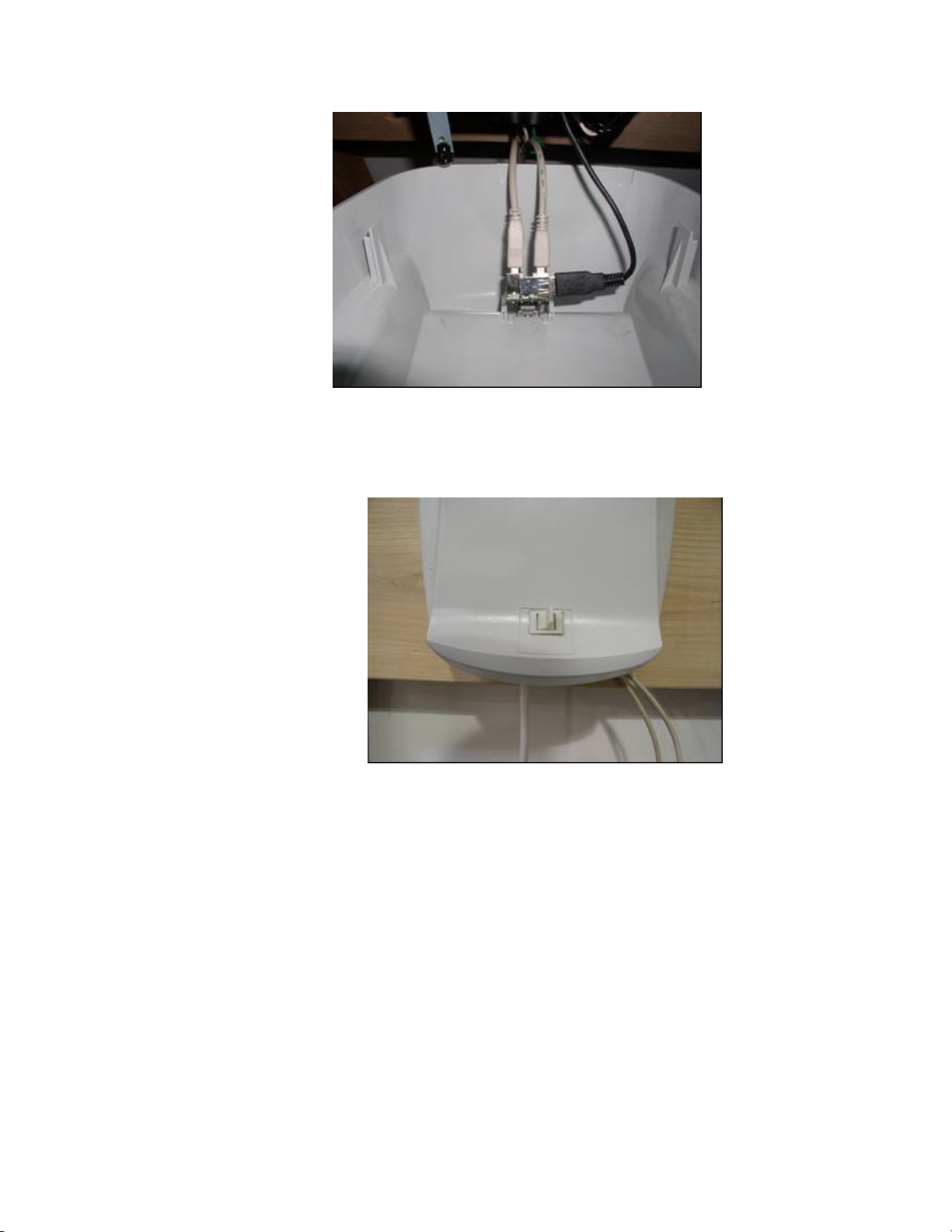

a. With the operator panel and the cradle removed, route the USB cable and the
control panel computer cable through the hole in the cradle bas as shown in figure
13.
b. Route the control panel computer cable through the cradle and the USB cable in
the slot at the bottom of the cradle as shown in figure 14.
FORM #00-02-0594
ECN: P1713
REV. C

Figure 14.
c. Attach the control panel computer cable to the control panel as shown in figure
14.
d. Place the control panel on to the cradle as shown in figure 15.
Figure 15.
FORM #00-02-0594
ECN: P1713
REV. C

e. Attach the USB cable to the USB hub included in the system as shown in figure
16. Use the hub included with the system but do not connect the power cord to
power as it is not necessary. This hub acts as an unpowered USB hub in this
installation.
Figure 16.
f. Attach the USB cable that came with the system into the hub and the other end
into a USB port on the computer which contains the imaging software necessary
to operate the sensor and acquire radiographs.
g. Installation is now complete and the computer may be used to invoke the imaging
software.
