IMPORTANT!
Please read these instructions prior to installation
INSTALLATION INSTRUCTIONS
EVO PLUS 70 COMFORT BACK TO WALL TOILET SUITE
EVB70N
T 04 568 9898 E [email protected]
www.plumbline.co.nz
Distributed by:

Tools Required For Installation
Please carefully check the toilet and cistern prior to installation to ensure it has not been damaged during handling
or transport, and check that all parts have been supplied.
Installation should be carried out by a qualied, licensed tradesperson.
In the unlikely event of product failure, please refer to the Warranty Information on the back page.
In new buildings it is recommended to ll the traps with water to ensure toxic gases do not corrode the surface of
the taps and toilet seats ttings.
Fix all the outlet and inlet valves before installation.
Periodic cleaning and maintenance should be used to avoid formation of damaging lime scale deposits.
Astringent cleaning agents may damage some materials, such as seat hinges and plastic components.
Care & Conditions Of Use
Clean your toilet with a damp cloth and a non-abrasive liquid cleaner. Stubborn stains and scratched can be
removed with a light application of Brasso or a similar cutting compound. Avoid abrasive cleaners, solvents, heat
and sharp objects. The use of cleaners incorporating ingredients which have been identied as harmful effects on
ceramic glazing will void the warranty.
General Installation Instructions
Pencil Caulking Gun/SiliconeAdjustable WrenchLevel
INSTALLATION INSTRUCTIONS
EVO PLUS 70 COMFORT BACK TO WALL TOILET SUITE | EVB70N
Specication Drawing

1. Prepare the water inlet, waste pipe and xing
rackets as per the dimensions illustrated at right and
the Specication Drawing.
S Trap Installation
180mm
P Trap Installation
170mm
215mm
180mm
180mm 170mm
Important
Refer to Specication Drawing for water inlet positions
180mm
2. Install the ushing mechanism in the cistern. If you
are using the rear water inlet option then connect the
exible hose to the connection on the wall.
Place the WC on the oor brackets and push it
back against the wall, taking care of the waste pipe
connection which must be perfectly aligned to each
other. To make the connection easier apply some
lubricant (e.g. liquid soap) to both sides.
S Trap Installation P Trap Installation
225mm
Connect the water inlet
3. Check that the toilet is level and if necessary put
some packers underneath the toilet pan to level it up.
Align the toilet and secure it to the oor using the
screws supplied. It is recommennded to tighten the
screws alternatively to secure an equal t against the
wall.
INSTALLATION INSTRUCTIONS
EVO PLUS 70 COMFORT BACK TO WALL TOILET SUITE | EVB70N

Warranty Information
Five (5) Year warranty from date of purchase. Due to manufacturer’s conditions, toilet cistern mechanisms, fittings,
working parts and toilet seats carry a One (1) Year warranty from date of purchase.
Plumbline will undertake to replace free of charge any faulty product due to defects in materials or manufacturer
workmanship within the warranty period (Proof of purchase must be retained). Plumbline will also supply parts and
labour costs for the replacement or repair of any faulty product within One (1) Year of installation date.
Plumbline (or their approved retailer) reserve the right to assess, repair, replace or service any warranty claims as
they see fit.
The above warranties are upheld providing the products have been used for normal domestic only and exclude
any defect or injury caused by or resulting from misuse, abuse or neglect, accidental damage, improper installation
or other alterations or modifications which affect the reliability or performance of the item not attributed to faulty
manufacture. The above warranties do not apply to the replacement of products where damage is caused by
normal wear and tear, where the hot water temperature exceeds 55˚C or where the warranty claim has not been
notified to Plumbline (or their approved retailer) within ninety (90) days of the problem first appearing.
The above warranties do not include consequential loss or damage due to the product.

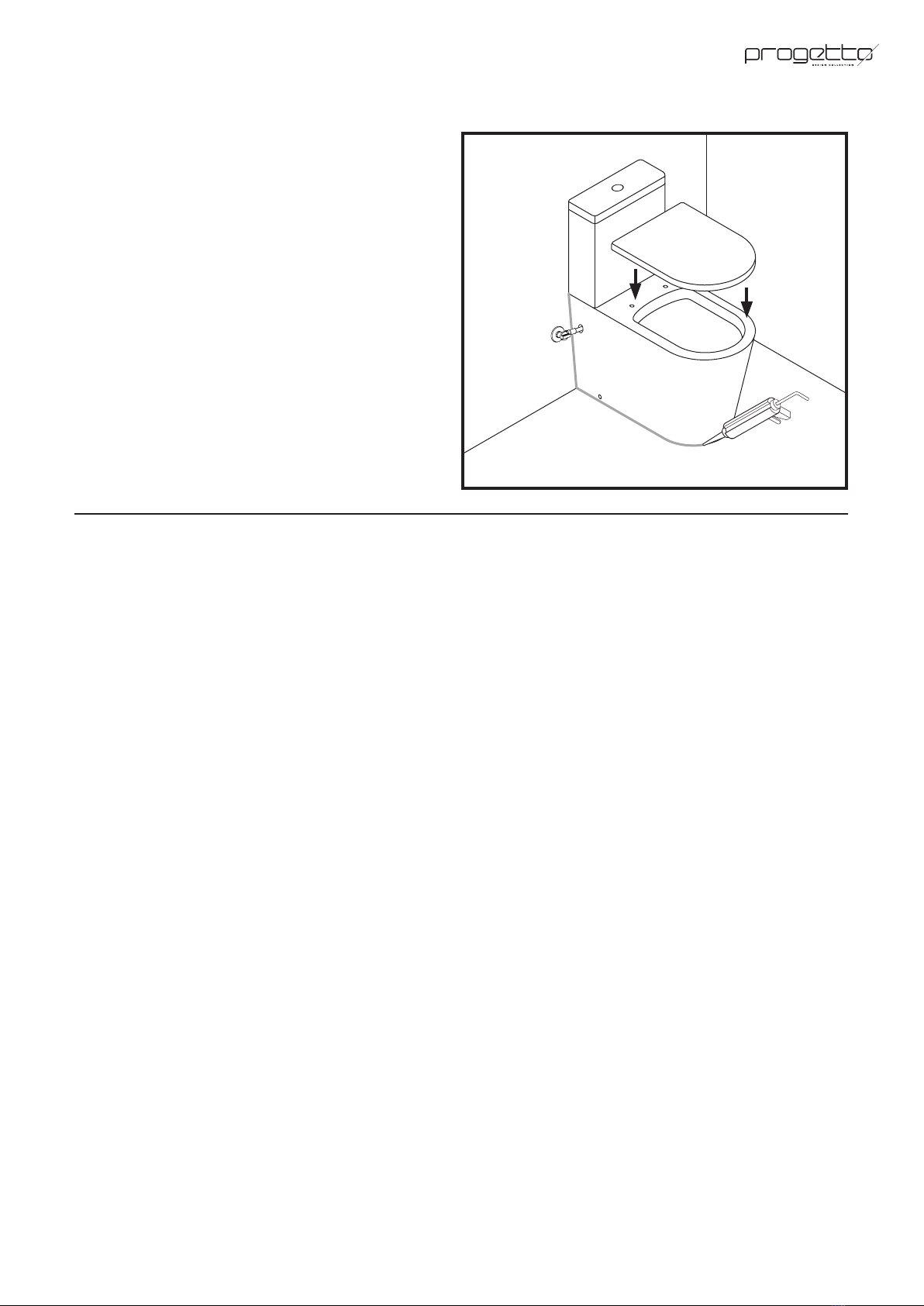

4. If you are using the bottom water inlet option then
connect the exible hose to your stop tap.
Make a nal check for any water leaks, then apply
a bead of silicone between the pan and adjacent
surfaces.
Install the toilet seat as per the supllied toilet seat
instructions.
