Progetto EV105 Manual

IMPORTANT!
Please read these instructions prior to installation
INSTALLATION INSTRUCTIONS
& USER MANUAL
EVO BIDET SHOWER TOILET SEAT | EV105
T 04 568 9898 E [email protected]
www.plumbline.co.nz
Distributed by:

Please carefully check the bidet shower seat prior to installation to ensure it has not been damaged
during handling or transport, and check that all parts have been supplied.
We suggest you keep this manual after reading/installation for later reference.
Due to the continuous improvement of our products, details are subject to change without notice.
The illustrations in this manual are only schematic diagrams, please refer to the actual product for
further detail.
Please also read this manual carefully before using for the rst time so that you are familiar with the
functions, safety notes and user precuations.
General Installation Instructions
Two (2) Year warranty from date of purchase.
Plumbline will undertake to replace free of charge any faulty product due to defects in materials or
workmanship within the warranty period from date of purchase. Proof & date of purchase must be
retained and provided with any warranty claim and Plumbline (or their approved retailer) reserve the
right to assess, repair, replace or service any product as they see fit and replacements may be an
equivalent to the original product.Plumbline (or their approved retailer) reserve the right to assess,
repair, replace or service any warranty claims as they see fit.
Above warranties apply to products installed in residential dwellings and light commercial
installations such as apartments, rest homes & hotels. Products used in commercial applications,
and labour & parts warranty time periods may differ from above replacement product warranties.
Please refer to our website for full terms & conditions www.plumbline.co.nz/warranty-information.
The above warranties do not include consequential loss or damage due to the product.
Warranty Information
INSTALLATION INSTRUCTIONS
EVO BIDET SHOWER TOILET SEAT | EV105
2

Safety Notes 4
User Precautions 4
Product Description 9
Components Description 10
Before use
Installation Steps 11
Method of Use 13
Installation and use
Cleaning & Maintenance 15
Faults & Troubleshooting 17

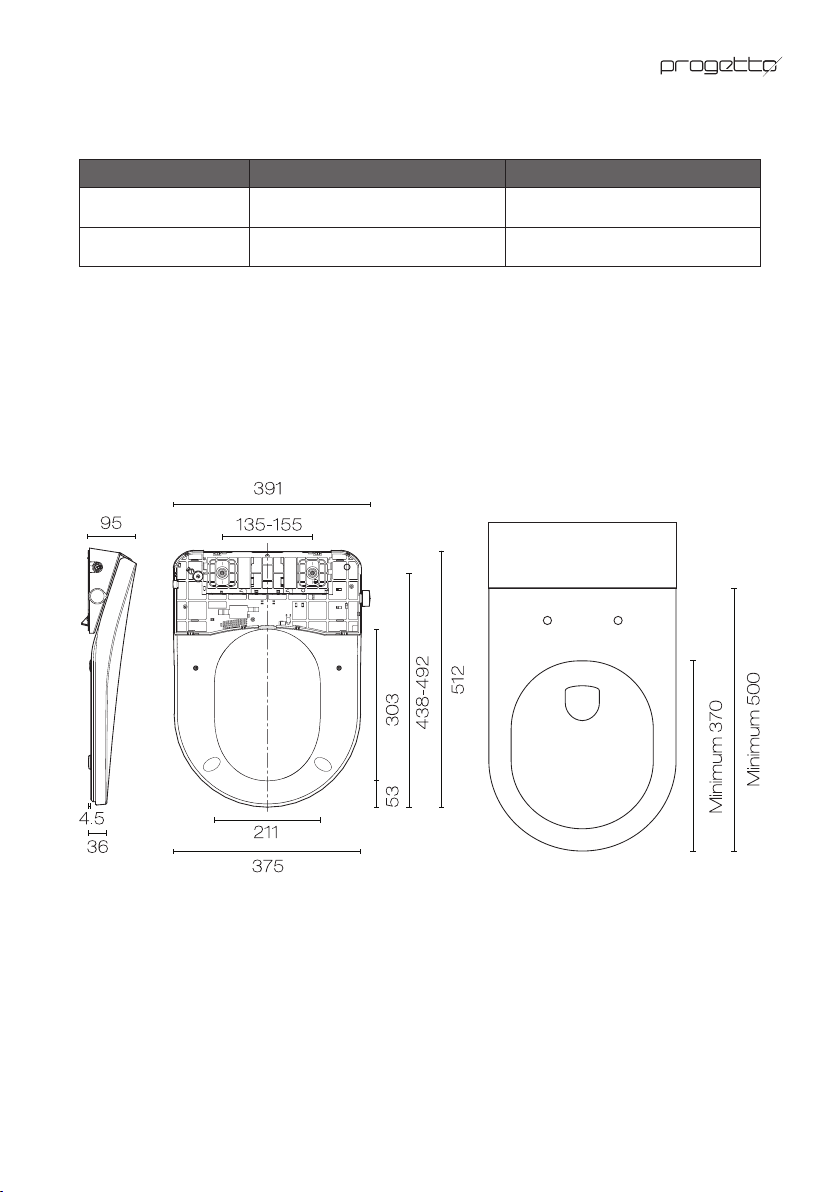

Product Dimensions 18
Product Technical Specication 19
Other

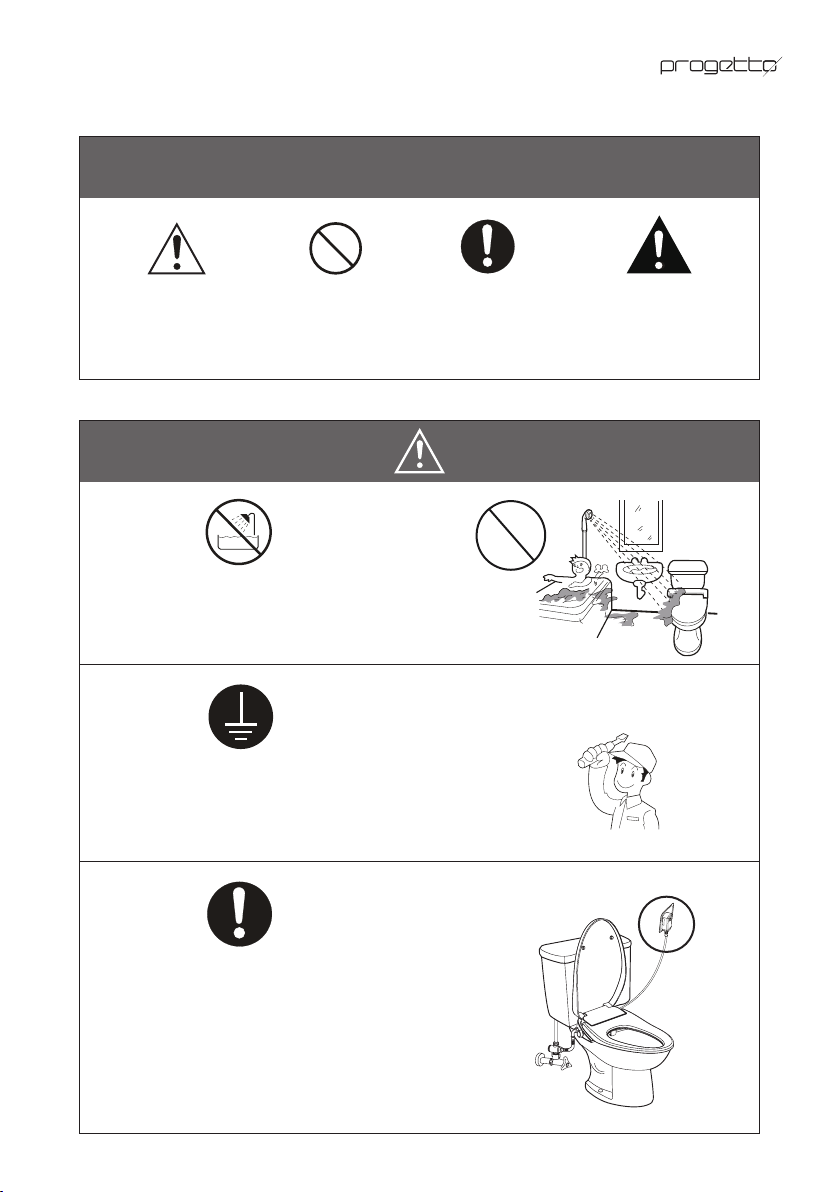

Safety Notes
3

Read the safety instructions carefully before use so as to use the bidet seat correctly.
Note the following warnings relevant to safety
Failure to observe the above-mentioned warning signs may result in injury or life-
threatening risk.
Safety Notes
4
Warning Mandatory NoteProhibited
Avoid splashing water on the bidet seat
Splashing may result in re or electric shock.
Check that the power supply is grounded
Power supply must be grounded, or otherwise product failure
or electrical surge may occur.
Grounding
Please observe the following when replacing the
power cord:
If the power cord is damaged please replace it immediately.
Only an authorised technician or electrician can replace the
power cord.
Compulsory

Safety Notes
5
Only use a suitable power outlet
socket. Excessive loads on
multi-outlet powerboards is
strictly prohibited.
May result in overheating or re.
industrial
water
Wells
Ensure that no water, cleaning
chemical or urine comes in
contact with the power plug.
May result in re or electric shock.
Do not pull on the power plug/
power cord.
May result in re or electric shock.
Do not use if socket is loose.
May result in re or electric shock.
Do not touch the power plug with
wet hands.
May result in electric shock.
Do not connect to a substandard
water pipe
May result in skin infections or product
damage.
Only use the new hose sets supplied with the bidet seat.
Do not use any old hose or any other hose than what is supplied.
Water supply pressure: 0.1-0.75Mpa

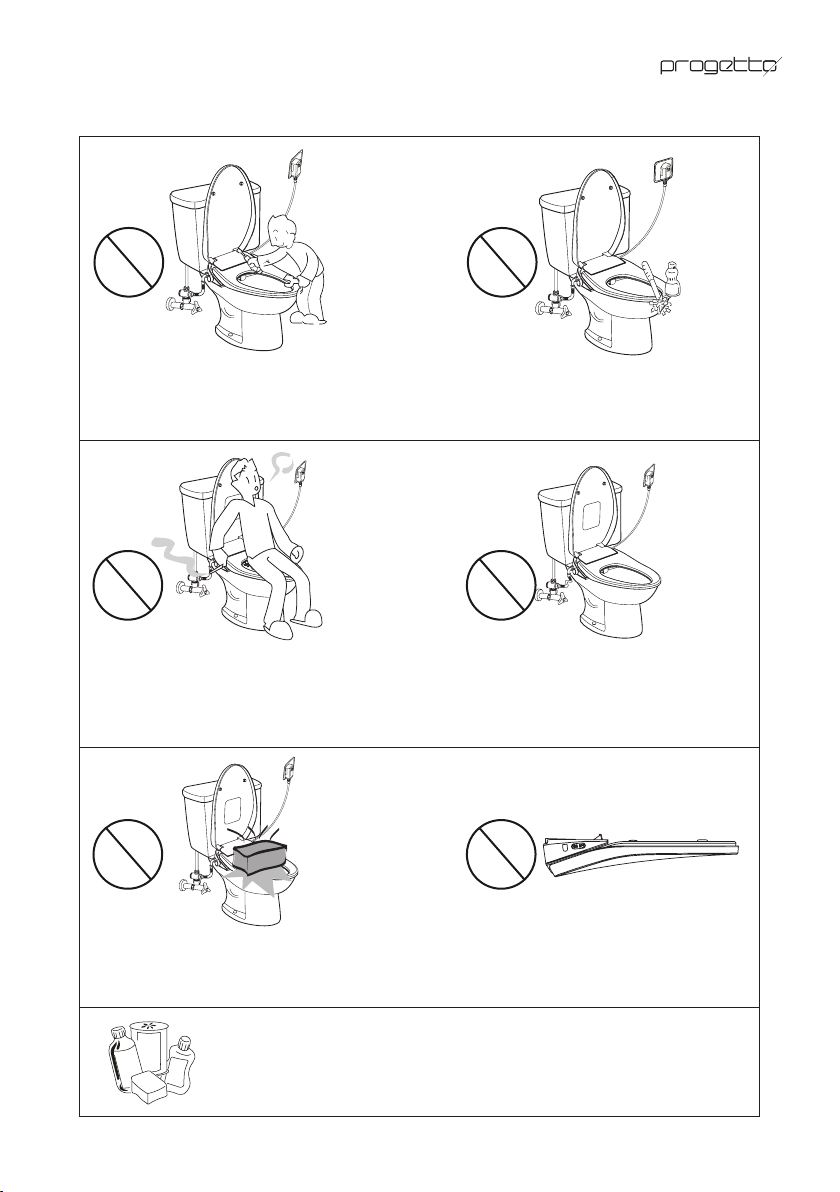

Safety Notes
6
Do not disassemble, repair and
modify without authorization.
May result in re or electric shock.
Always unplug the power supply
when cleaning the bidet seat.
May result in electric shock.
Do not use cigarettes or other
combustible items near the bidet
seat.
May result in re.
Do not bend or twist the water
supply hose.
May result in water leakage.
Do not place heavy objects on the
toilet seat or the toilet seat cover.
May result in product damage.
Do not invert product
May result in product damage.
Please clean with a non-abrasive cleaning agent.
Do not use the following items: benzene, paint thinner,
detergent powder, nylon brush, etc.
May result in product damage.

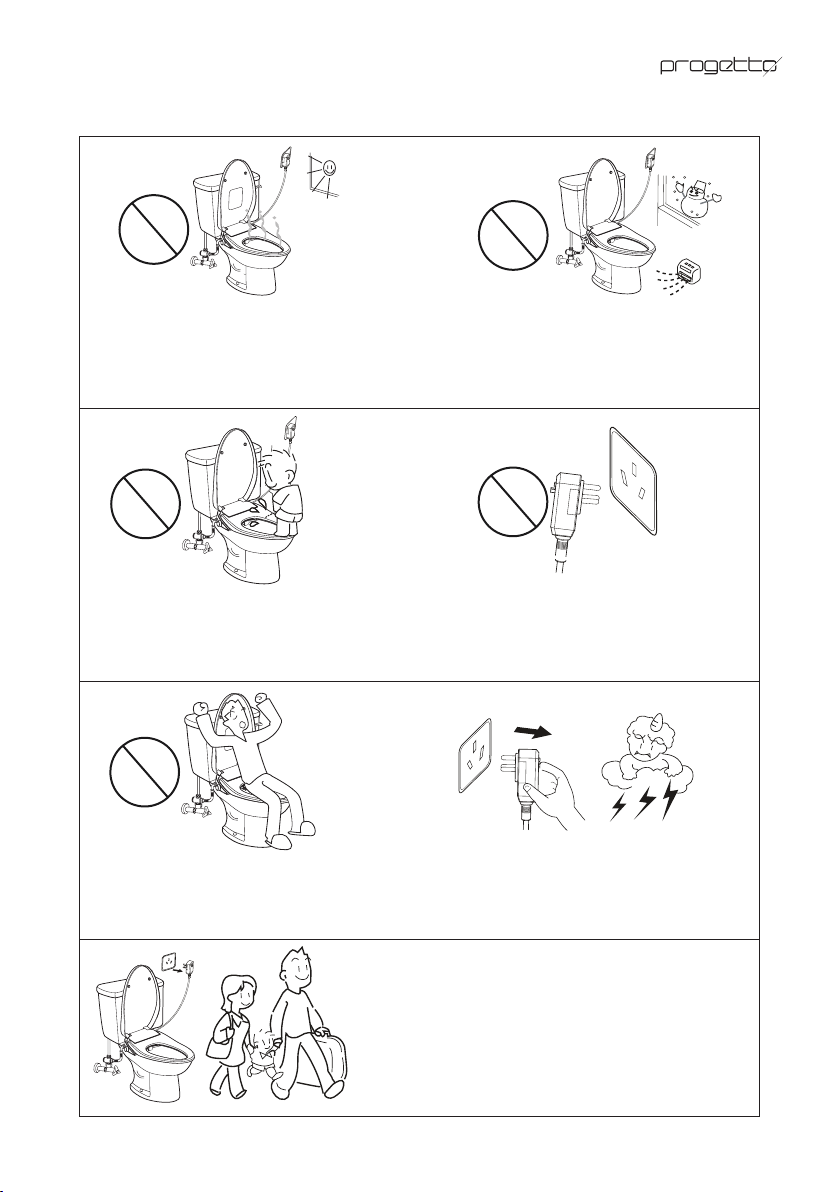

User Precautions
7
Do not place this product in direct
sunlight.
May cause product discoloration and
failure of seat heating function.
Ensure room temperature is
above 4°C.
If temperature is below 4°C water supply
can freeze.
Do not shower urine on the bidet
body and nozzle.
May result in blockage.
Do not use a substandard power
supply.
May cause bidet seat failure.
Do not lean against the toilet seat
lid when in use.
May cause damage to the lid.
Pull out the power plug when
lightning strikes.
May result in product failure or damage.
When not in use for a long time, drain the
stored water and pull out the power plug.
May result in water pollution and skin infections.

Product Description
8

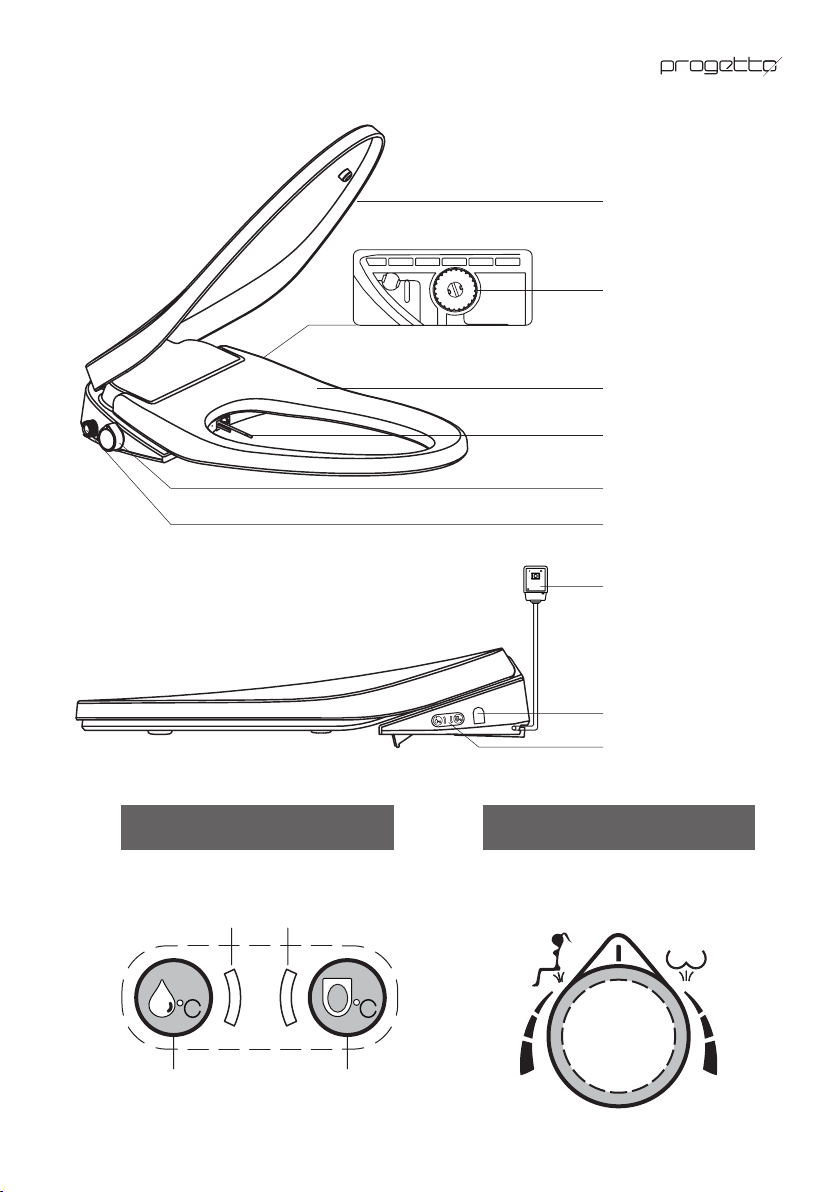

Toilet seat lid
Drain plug
Toilet seat
Nozzle
Control knob
Water supply
hose connection
Power plug
Disassembly button
Function settings key
Function Settings Key Control Knob
Water temperature
adjustment indicator
Seat temperature
adjustment indicator
Seat temperature
adjustment key
Water temperature
adjustment key Bidet Rear Wash
STOP

Component Description
9
1. Bidet Shower Toilet Seat 2. Installation template
3. Mounting ttings
Screw (2)
Adjustment plate (2)
Fixing bracket (1)
Nut (2)
Expansion bolt (2)
4. T-junction with lter 5. Water inlet hose 3. Installation instructions
Filter screen
Installation
Instructions

Installation
10
1. Water supply pressure: 0.1-0.75MPa, please follow the instructions.
2. Ensure the angle valve is installed close to the bidet seat water inlet location.
3. Before any hoses are connected to the angle valve rstly ush it out to clear impurities and
sludge that may have been embedded in the pipe prior to/during installation.
4. Only use the new hose sets supplied with the bidet seat. Do not use any old hose or any other
hose than what is supplied.
Phillips screwdriver Adjustable wrench Bucket and rag

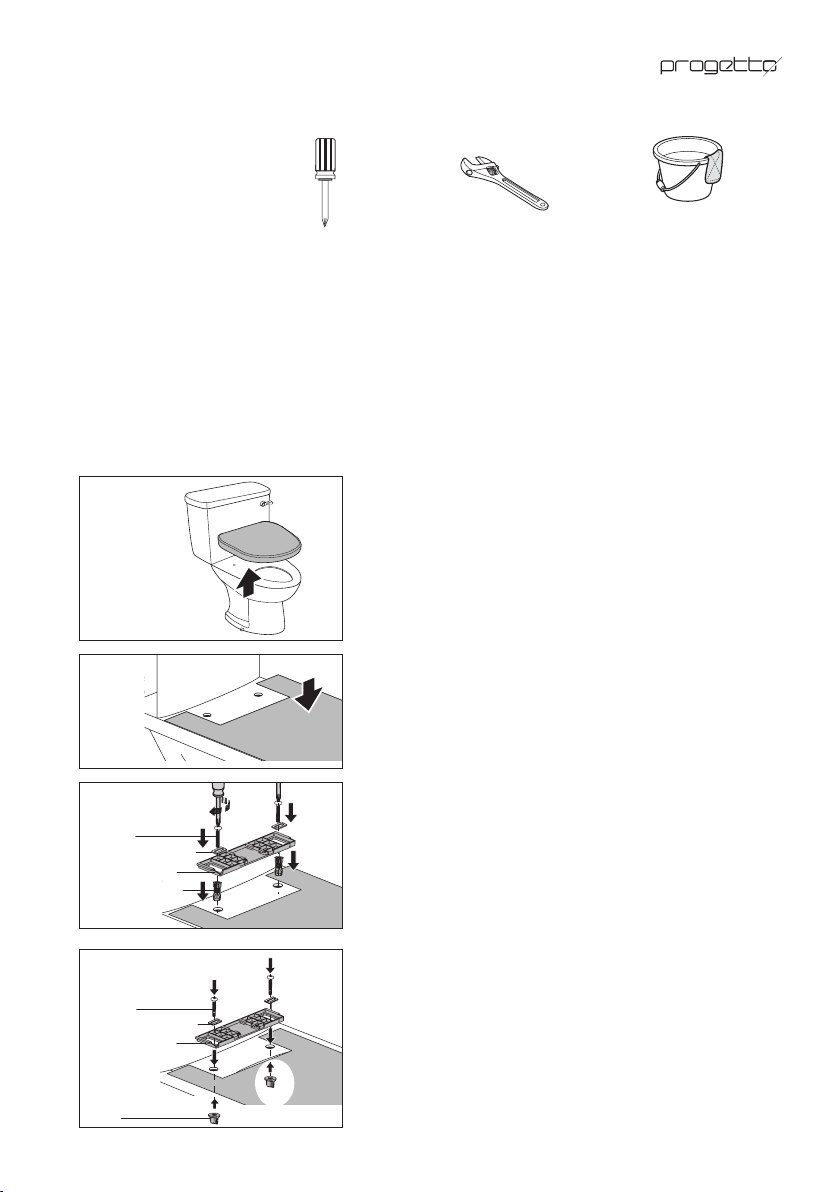

1. Remove the existing toilet seat.
2. Place the installation template on top of the toilet as
shown. Align it with the rim of toilet.
3A. For toilets with closed sides
Install mounting ttings as follows:
1. Insert the expansion bolts into the holes on the
toilet, and place the xing bracket in the notched
out part of installation template.
2. Place the stainless steel adjustment plates in the
mounting groove, align the expansion bolts and
tighten the screws.
1. Place the xing bracket in the notched out part of
installation template.
2. Place the stainless steel adjustment plates in the
mounting groove, align the holes on the toilet and
place in the screws. Screw on the plastic nuts
from the underside of the toilet.
3B. For toilets with open sides
Install mounting ttings as follows:
Note: choose installation method 3A or 3B depending on toilet design
Screw
Adjustment plate
Fixing bracket
Expansion bolt
Screw
Adjustment plate
Fixing bracket
Nut
Installation Tools
Pre-Installation Precautions
Installation Procedure

Installation
11
1A.
Do not install/un-install the bidet seat by holding just the toilet seat lid.
Doing so can cause mechanical failure.
4. The installation template is designed for
one-time use. Please discard it after the
installation is completed.
5. Slightly push the bidet seat into the xing
plate in the specied direction until a
“click” sound is heard, indicating that the
bidet seat has been installed in place.

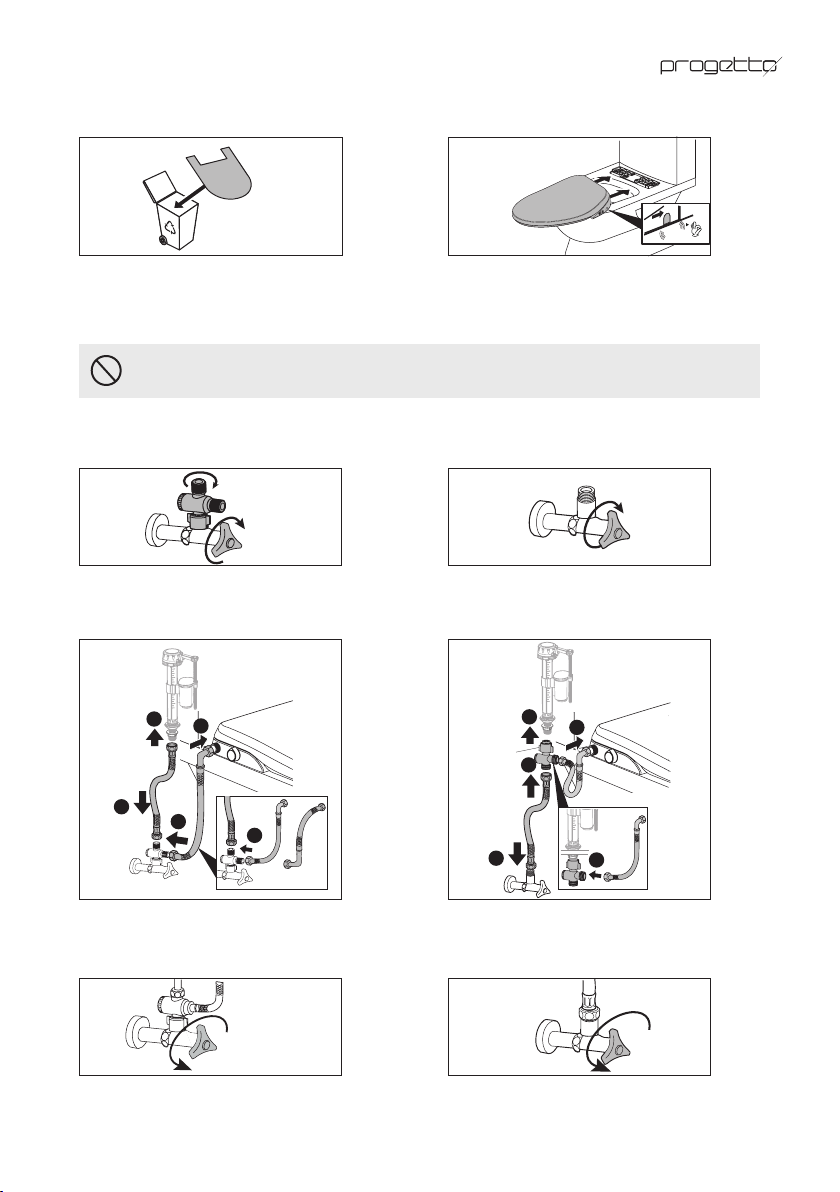

1B. Turn off the water supply.Close the angle valve and x the
T-junction to the angle valve. Ensure that
the rubber sealing ring is loaded.
2A. As shown above, connect the water supply
hoses to the bidet seat and inlet valve.
Ensure that all the sealing rings are loaded.
2B. As shown above, connect the water supply
hoses to the bidet seat and inlet valve.
Ensure that all the sealing rings are loaded.
3A. Turn on the water supply and check for
any water leaks.
3B. Turn on the water supply and check for
any water leaks.
CLICK
2
3
1
4
3or
5
14
2
3
Connecting the Water Inlet Hoses
Note: there are two methods of water connection

Installation
12
1. Insert the power plug as the picuture shown on the left.
2. Press the “Reset” button on the RCA surge protector to turn the
power on; the indicator light will be on.
3. Press the “Test” button on the RCA surge protector to turn the
power off; the indicator light will be off.
Note: please make sure the plug is dry before connecting to the
power supply.
Connecting the Power

Function Instructions
13
1. Make sure the plug is dry before power supply is connected.
2. After the power supply is connected, the bidet seat will perform a self-check. When the
self-check is completed, it will send a conrmation “beep”, then the bidet seat can be used
normally.
3. Default water temperature is at low setting: about 35°C
4. Default seat temperature is at low setting: about 33°C
5. The knob light and the night light are always on.
Control Knob
Bidet Rear Wash
STOP
Breathing light will
ash when the bidet
seat is operating
Breathing light
Self-Cleaning Function
• After being seated, and after usage, the nozzle of
the bidet seat will automatically start self-cleaning.
(pre and post wash cleansing system)
Rear Wash Function
• Rotate the knob in the direction shown on the left.
• After self-cleaning, the rear wash nozzle is
extended and sprays water for cleaning.
• The ow varies with the rotation of knob.
• When completed reutrn the knob to central
position to stop the spray
Bidet Function
• Rotate the knob in the direction shown on the left.
• After self-cleaning, the bidet nozzle is extended
and sprays water for cleaning.
• The ow varies with the rotation of knob.
• When completed reutrn the knob to central
position to stop the spray
Low
ow
High
ow
Low
ow
High
ow
Standby Mode
Control Knob Functions

Function Instructions
14

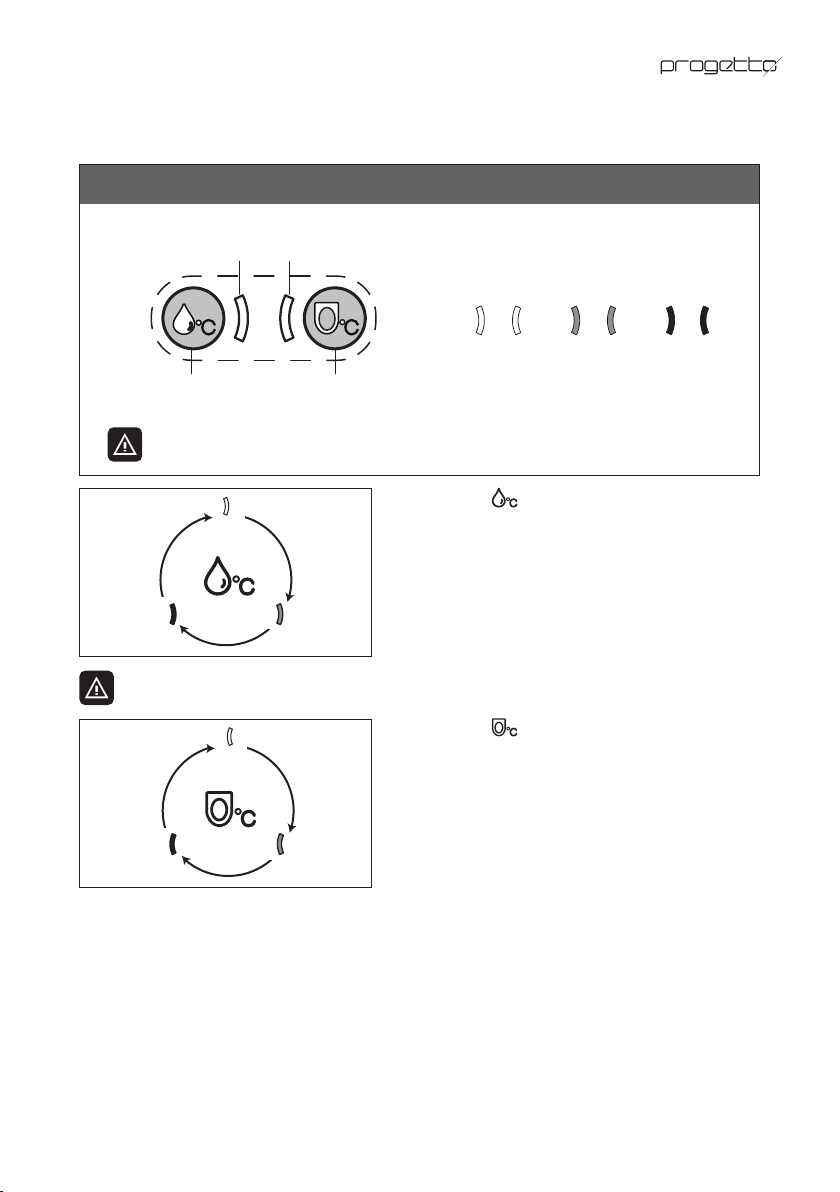

Function Settings Key
• Press the “ “ button to switch between water
temperature settings in the sequence indicated in
the left gure.
• When switching to OFF, you will hear one long
conrmation “beep”. When switching to low/high
you will hear one short conrmation “beep”.
• Low water temperature setting: about 35°C
• High water temperature setting: about 38°C
Light OFF
Prompt
Lowlighted Highlighted
Water temperature
adjustment indicator
Seat temperature
adjustment indicator
Seat temperature
adjustment key
Water temperature
adjustment key
The knob lamp can be turned off by pressing the water temperature adjusting
button and the seat temperature adjusting button at the same time.
OFF
LowHigh
OFF
LowHigh
The water heating function is ON only when seated. If not seated it is cold water.
• Press the “ “ button to switch between seat
temperature settings in the sequence indicated in
the left gure.
• When switching to OFF, you will hear one long
conrmation “beep”. When switching to low/high
you will hear one short conrmation “beep”.
• Low seat temperature setting: about 33°C
• High seat temperature setting: about 37°C
1. Low temperature scalding protection function: 5min after the body is seated, the bidet seat will
be under low temperature scalding protection mode with temperature of about 29°C.
2. Alarm function: when not seated and the knob is not timely closed, the bidet seat will give an alarm.
3. Water temperature protection function
• When the water temperature exceeds 43°C during use, the nozzle spray will be turned off,
and the bidet seat will automatically switch to self-cleaning mode.
• After the water temperature returns to normal, washing can be continued.
Note: After the rinse is over, turn the knob to the central stop position to prevent splashing.
The water temperature and seat temperature cannot be adjusted when the power supply for the
bidet seat is cut off, but washing with normal temperature can be used normally.
Functions Settings
Protection Functions
Normal use during power failure

A
Cleaning & Maintenance
15
- Pull the nozzle in and out gently more than 5 times;
- Gently support the nozzle. Use a soft cloth, sponge or small brush dipped in non-abrasive
detergent and wipe the nozzle and nozzle head. Wipe away any excess cleaning detergent.
- Clean the lter screen when the water ow/pressure of the bidet seat drops.
- Make sure that the angle valve is closed and the power turned off before you clean the lter screen
- During cleaning process, the bidet seat must be disconnected from the water inlet hose;
- Reinstall the lter screen in reverse order after cleaning.
Filter screen
Braided hose
1
2
A
Tips:
- Wipe the bidet seat surface with a sponge or soft cloth dampened with room temperature water
or a non-abrasive detergent.
- Lift the the seat and lid when cleaning/performing maintenance.
- Do not close the seat/lid before all cleaning detergent in the toilet is completely washed away.
This may cause the surface to corrode by the evaporation of the cleaning detergent.
Note: Please cut off power supply before cleaning.
Bidet Seat/Toilet Cleaning
Cleaning the Filter Fcreen
Manual Cleaning of Spray Nozzle

Cleaning & Maintenance
16
Check the surge protector regularly, at least once a month
Inspection method:
- Press the surge protector “Reset” button:
- indicator light is on, and the power supply is on.
- Press the surge protector “Test” key button:
- indicator light is off, and the power supply is disconnected.
- When the above operation is completed and the indication information doesn’t show, stop
using the bidet seat and contact an authorised technician or electrician to replace the surge
protector.
- Always ensure that the surge protector indicator light is on when the bidet seat is in use.
Close the angle valve and do not use the bidet seat when the ambient temperature is below 4°C.
Schematic diagram of RCD / surge protector
A078238
S
Reset
10A 220V ~
Indicator Test
Leakage initiating curren
Test before use
If the bidet seat is going to be unused for a long period of time, drain the water and turn off the
power supply:
- Pull out the power plug or press the “Test” key on the surge protector.
- Close the angle valve.
- Disconnect the water inlet hose from the angle valve and empty out the water in the hose.
- Close the upper lid, press and hold the disassembly buttons, and remove the
bidet seat from the toilet.
- Store the bidet seat in a cool, dry place.
If left unused for a long period of time
Product Maintenance in Winter
RCD / Surge Protector

Faults & Troubleshooting
17
If you think the bidet seat has a fault, try some of the following process methods. If the product is still not working properly,
contact an authorised technician or electrician.
Check power supply
1. If power supply is under normal state
2. If surge protector trips
Check water supply
1. If water supply is under normal state
2. If water inlet valve is closed
If the following occurs, cut off the power supply immediately.
The buzzer continues to beep The surge protector trips frequently
Note: When water leakage occurs, close the water inlet valve and cut off the power supply.
Phenomenon Possible cause Solution
Base gap leakage Pressure maintaining valve is damaged Cut off the power supply, close the water inlet
valve and contact an authorised technician
Flushing module leakage
Control Knob is not reset to OFF position Reset Control Knob to OFF
Control valve is failed Cut off the power supply, close the water inlet
valve and contact an authorised technician
Phenomenon Possible cause Solution
Seat temperature is not
sufcient Seat temperature is set at low gear Adjust seat temperature to higher gear
Seat temperature is too high Seat temperature is set at high gear Adjust seat temperature to lower gear
Temperature is too low when
making contact with the seat Seat heating function not enabled Enable seat heating function in advance
No seat heating function Seat heating coil in poor contact Cut off power supply and contact an
authorised technician
Phenomenon Possible cause Solution
Spray tube extends too slowly Cool water should be released from front end
before ushing
It is normal, and provides normal ushing about
5 seconds later
Insufcient water amount Control Knob is not completely turned on Increase Control Knob regulating angle
Insufcient water temperature Water temperature is set at low gear Adjust water temperature to higher gear
Water temperature too low
Water temperature is set at lowest gear Adjust water temperature to higher gear
Automatic protection for over-high temperature Restart water temperature adjustment
Water ows out when seated Self-cleaning function is enabled It is normal, and water ow automatically stops
about 5 seconds later
Water is not heated Breathing
light not ashing The owmeter is abnormal Cut off power supply and contact an authorised technician
Phenomenon Possible cause
Night light is not ON
Power cord of night light shows poor contact
Control Knob is not completely turned on
Kn ob light is not ON Power cord of knob light shows poor contact
Common fault diagnosis
Water leakage analysis
Seat heating failure analysis
Flushing failure analysis
Night light analysis

Faults & Troubleshooting / Product Dimensions
18
Phenomenon Possible cause Solution
Buzzer continuously beeps Control Knob switch is not reset to OFF state
when away from seat Reset Control Knob to OFF state
Surge protector sometimes
trips. Electricity leakage beyond normal value Cut off power supply, stop using product, contact an authorised technician
Alarm Function
Product Dimensions

Product Technical Specication
19
Item Description
Model EV105
Water Inlet Side
Power Cord Inlet Side
Net Weight 3.5kg
Rated Voltage 220-240V~, 50/60Hz
Rated Power Consumption 960W (Under the conditions: entering water
temperature15°C, ow rate 600ml/min)
Maximum Power Cousumption 1500W/220V
Length of Power Cord 1.5m
Water Supply Pressure 0.1 ~ 0.75MPa
Water Supply Temperature 4 ~ 35°C
Ambient Temperature 4 ~ 40°C
Protection Class IPX4
Water Volume ≤0.7L/min(at a water pressure of 0.18 MPa), Stepless
regulation
Water Temperature 3 Settings (Room temp/35/38°C)
Water Heater Power Consumption 1500W/220V
Seat Temperature 3 Settings (Room temp/33/37°C)
Seat Heater Power Consumption 50W/220V
Nozzle & Seat Antibacterial Material
Soft Close Seat/Lid Yes
