SERVICE MANUAL
MODELS
PD2580, PD1000, PD1000-S, PD1000-1 & PD1000-1S
507 Industrial Rd.
Marshall, Mi 49068
616.781.4241
fax [phone]
www.progressivedynamicsmedical.com

IMPORTANT NOTICE
Caution: The repair, calibration and servicing of the LIFE-AIR 1000® requires the
skill of a qualified Medical Equipment Service person familiar with good practice
for Medical Device Repair.
Service to be done only by Authorized Service Personnel. Improper repair can
result in patient injury.
IMPORTANT NOTES - READ BEFORE SERVICING EQUIPMENT
This equipment contains static sensitive components. Proper static handling procedures and
equipment must be used when servicing this equipment.
Perform a safety inspection after making repairs to the LIFE-AIR 1000®and before returning
the unit to service. A safety inspection procedure is included in this manual.
700880R102

3
Safety Inspection Procedure
1. Fully assemble unit.
2. Perform a leakage and hi-pot test according to UL-544, CSA std C22.2 NO. 125-M1984,
or IEC 601-1 requirements for non patient contact medical equipment as determined by
your biomedical department. Refer to the above standard for the maximum allowable
leakage.
3. Perform a Self-test of the unit as follows:
a. Connect the air hose to the outlet located on the top of the unit.
b. Plug unit into a proper power source as noted on the units rating label.
c. Turn unit on.
d. Press the Self-test button located on the bottom of the unit inside the test port.
The "TEST" lamp will start flashing.
e. Connect the hose to the self-test port.
f. The temperature display will slowly climb into the overtemp area.
g. After the display reaches the red area the "CAUTION" lamp will start to flash
and the alarm will start to sound.
h. After a few seconds the display will start to drop back to the normal operating
range. When this happens the flashing lamps and the alarm should shut off.
There are 2 types of Time-out circuitry used in the LIFE-AIR 1000®, each requires different
testing procedures. The procedure to be used can be determined by looking into the air outlet
on the top of the unit. If there is 1 thermal sensor in the Plenum use procedure #1, if there are
2 sensors use procedure #2.
4. Time-out test Procedure #1:
a. Set the Main Power Switch to the "OFF" Position.
b. Plug the LIFE-AIR 1000®into a properly grounded electrical outlet.
c. Remove the hose from the top of the unit.
d. Set the Heater Control Switch to the "110" setting.
e. Turn the unit on.
f. After about 4 minutes the circuit breaker should trip.
g. Turn the unit off and reset it by depressing the circuit breaker located on the
bottom front of the unit.

4
Safety Inspection Procedure
5. Time-out test procedure #2:
a. Connect the hose to the Warm Air Port and to the Hose Storage Port.
b. Set the Heater Control Switch to the "100" setting.
c. Turn the unit on and allow to stabilize at the "100" setting.
d. Disconnect the hose from the Hose Storage Port and press the Test Switch. The
test light will flash.
e. Block the free end of the hose by placing it on a hard flat surface.
f. As the unit heats into the red zone, the Caution light will flash and the buzzer
will sound.
g. As the unit continues to heat, the Test light will stop flashing.
h. The unit should trip the circuit breaker between 1 minute to 1 minute 30
seconds from the time the Test Lamp quits flashing.
i. Reset circuit breaker

5
INSTRUCTIONS FOR REMOVAL OF ASSEMBLIES
CAUTION: THE PLENUM AND FRONT PANEL ASSEMBLY CONTAIN
STATIC SENSITIVE DEVICES.
PROPER HANDLING PRECAUTIONS MUST BE USED.

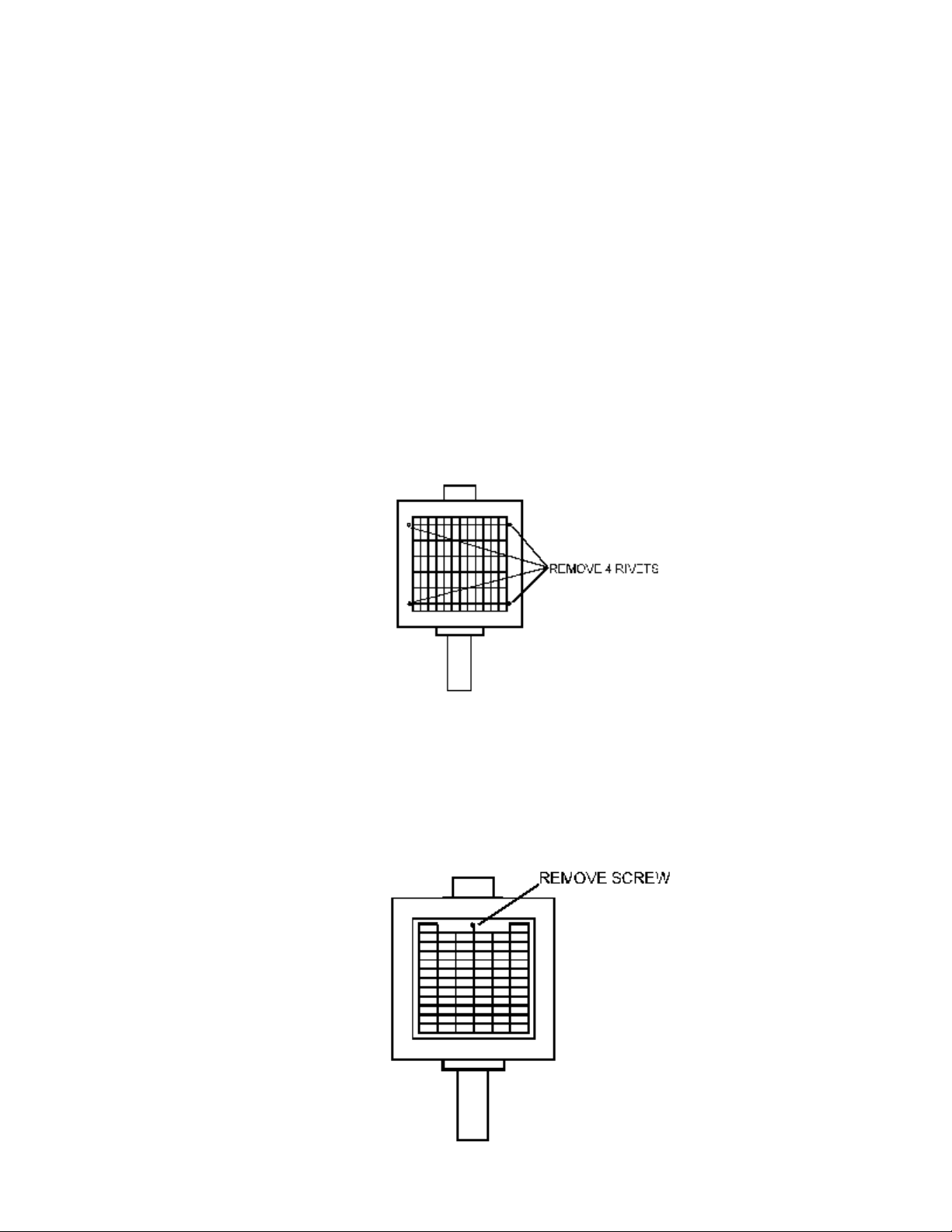

PD2580, PD1000/PD1000-S
1. Unplug unit from 120 VAC line.
2. Remove the Rear Filter Cover.
3. Remove the filter element
4. Using a 1/8 inch drill bit, drill out the 4 rivets holding the wire filter basket in place.
5. Remove the wire basket.
PD1000-1/PD1000-1S
1. Unplug unit from any power source.
2. Remove the Rear Filter Cover.
3. Remove the filter element
4. Using a #2 Phillips screwdriver remove the screw and lock washer from the center top of
the filter guard
5. Remove the wire basket.

6

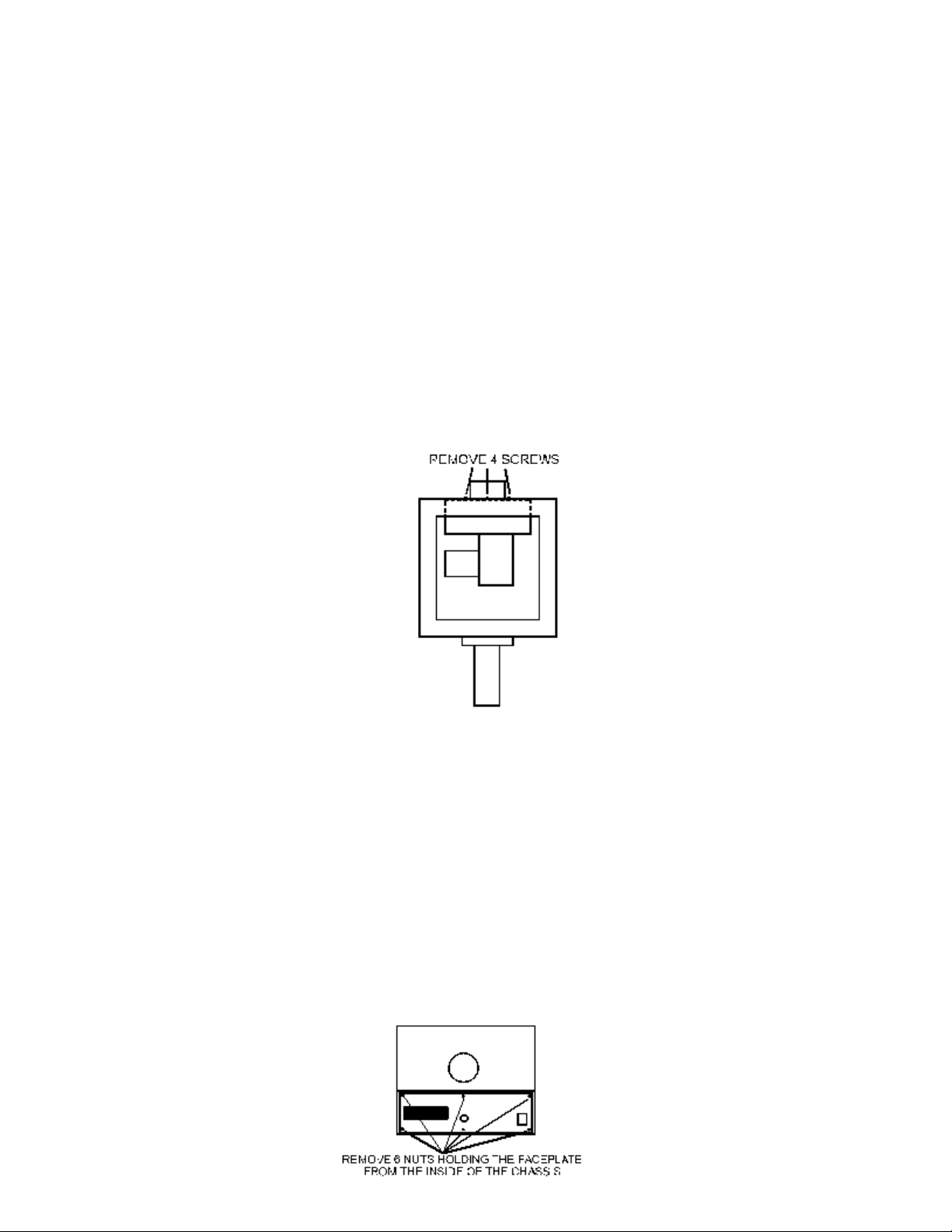

BLOWER AND PLENUM ASSEMBLY
1. Support the Blower and Plenum Assembly while removing the 4 screws from top
hose interface.
2. Unplug the 3 pin harness from the temperature sensor to the Front Panel Control.
Some units may have two 3 pin harnesses to be removed. If this is the case, the
sensors must be marked so that they can be reconnected to the same location when
reassembled. Keep the heat shrink with the plugs. This must be reinstalled to
keep harnesses from vibrating free.
3. Unplug the 4 pin harness connecting the Front Panel Control and the Blower and
Plenum A ssembly.
4. Remove the Green wire from the Blower housing.
5. Remove the assembly from the back of the unit.
6. To remove the Blower from the Plenum assembly remove the 3 or 4 nuts holding
the blower to the Plenum.
FRONT PANEL CONTROL AND FACE PLATE
1. Remove the Blower and Plenum assembly as shown above.
2. Remove the 6 #4 nuts from the studs holding the front panel to the chassis using a
1/4 inch nut driver.
3. Disconnect the brown wire from the Time-out control board. Some units may have
connecters in-line with the brown wire. If this is the case disconnect the wire at
the connecters.
4. Disconnect the White and Black wire harness using the in-line connectors.
5. Disconnect the 2 pin Self-test switch harness from the control board.
6. With a SHARP razor knife carefully cut the silicone sealant between the front
panel and the chassis.
7. Lift the Front Panel from the chassis.

7
Special Instructions for Installation of the following Assemblies:
Temperature Controller & Faceplate:
When replacing this assembly it is required that a bead of clear Silicone Sealant
be placed around the perimeter of the faceplate to provide a seal. This Assembly is
STATIC SENSITIVE. Proper precautions must be used when removing or
installing this Assembly.
Test Switch Assembly:
When replacing this assembly it is necessary to seal the switch with a piece of
heat-shrink and hot melt glue to provide a seal as done from the factory.
Circuit Breaker:
When replacing this part it must be sealed at the mounting surface and at the
adjustment holes on the top of breaker. Hot melt glue or silicone sealant may be
used for this.
AC Power Cord:
When replacing the power cord the Heyco strain relief must be sealed at the
mounting surface as received from the factory.
If the unit is a PD1000-1 or PD1000-1S the power cord is attached with a strain
relief and plugged into an IEC connector on the bottom of the unit.

8

9

10

11

12

13

14

15

16

17

18

19

CONTENTS
Safety Inspection Procedures
Self Test .......................................................... 1
Time-out Test #1 .................................................. 1
Time-out Test #2 .................................................. 2
Assembly Removal
Filter and Wire Cage ............................................ 3
Blower and Plenum Assy. .................................... 4
Front Panel Assy. ................................................. 4
Special Instructions .............................................. 5
Wire Diagrams

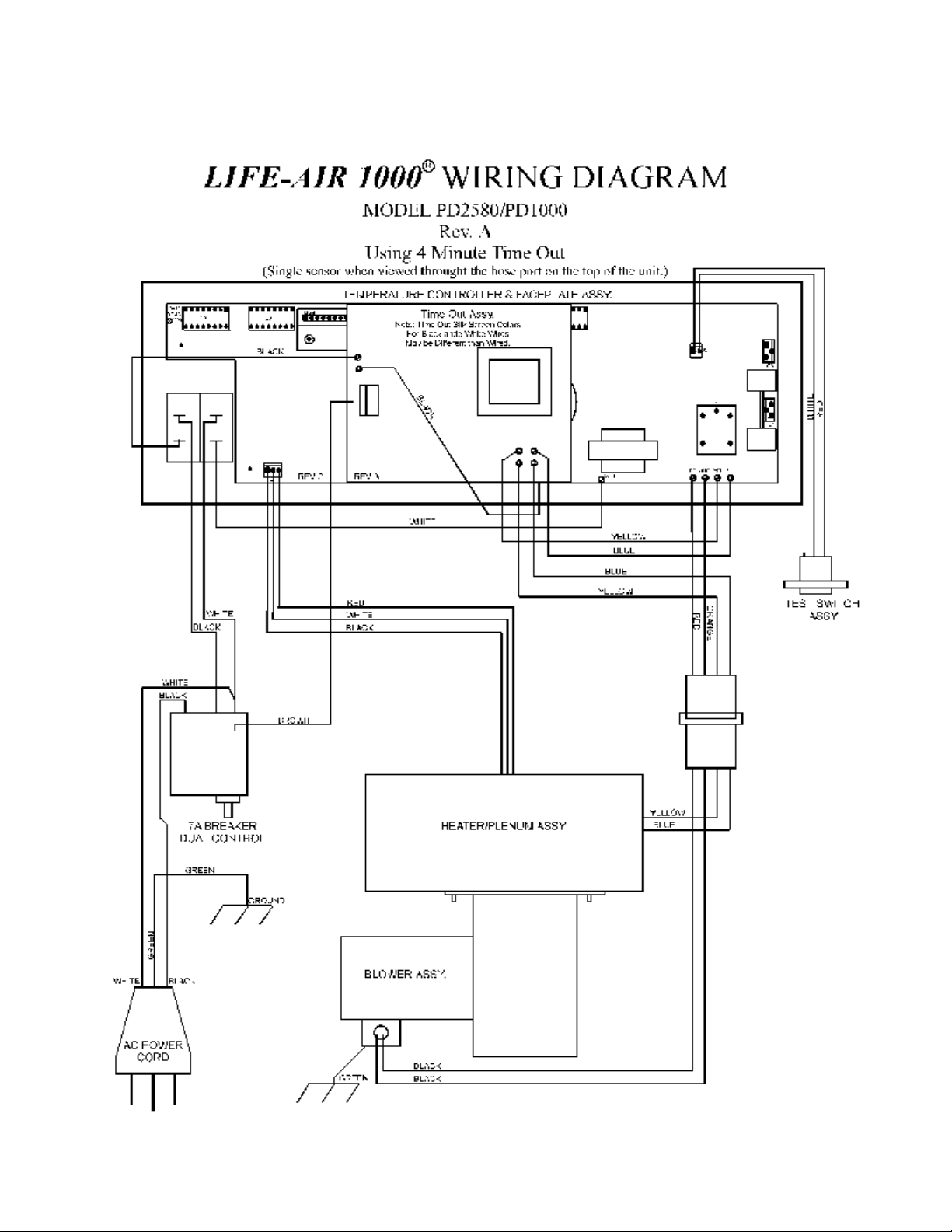

PD2580 / PD1000 ................................................ 6

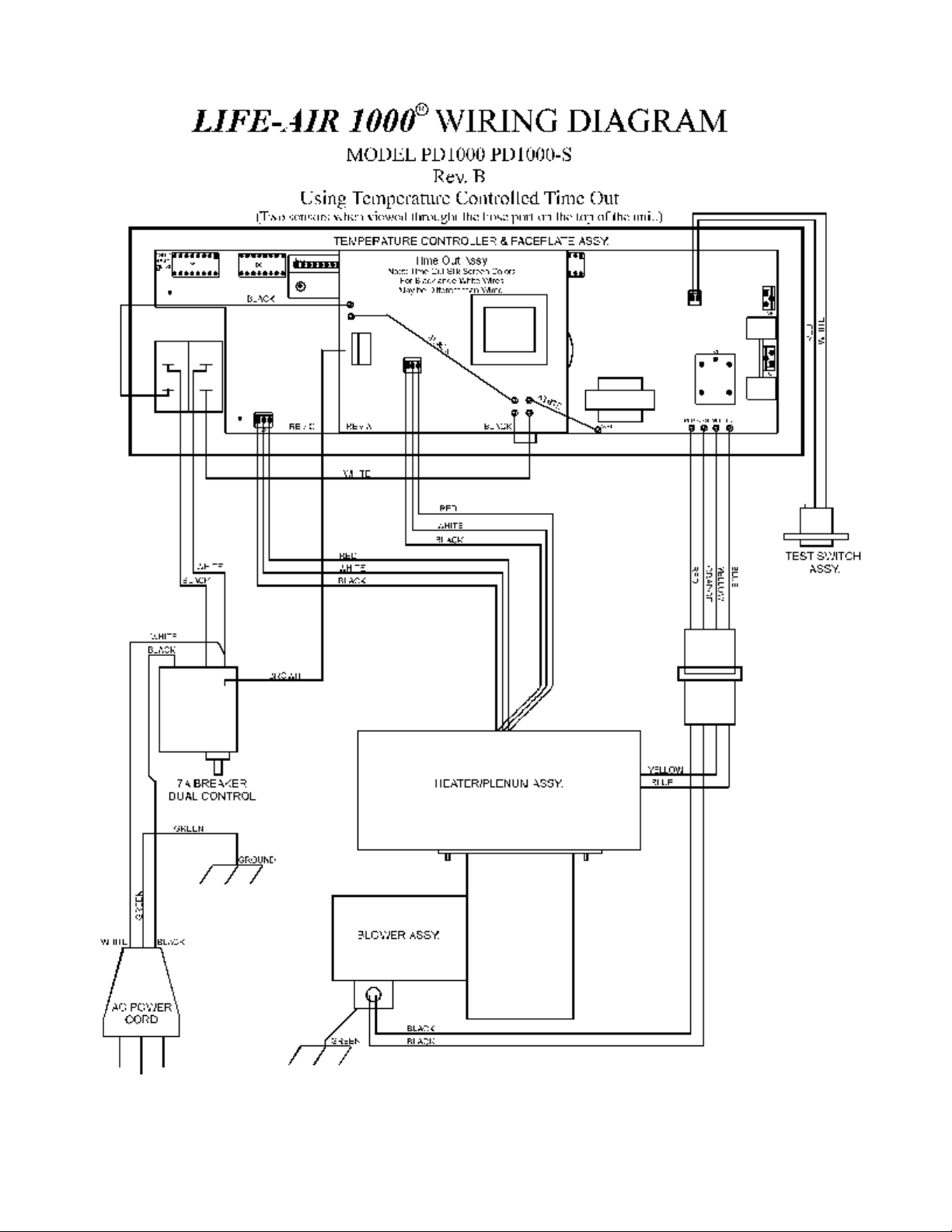

PD1000 / PD1000-S Rev. B ................................ 7
PD1000 / PD1000-S Rev. C & D......................... 8
PD1000-1 / PD1000-1S ....................................... 9
PD1000-1 / PD1000-1S Rev. B ........................... 10
Block Diagrams

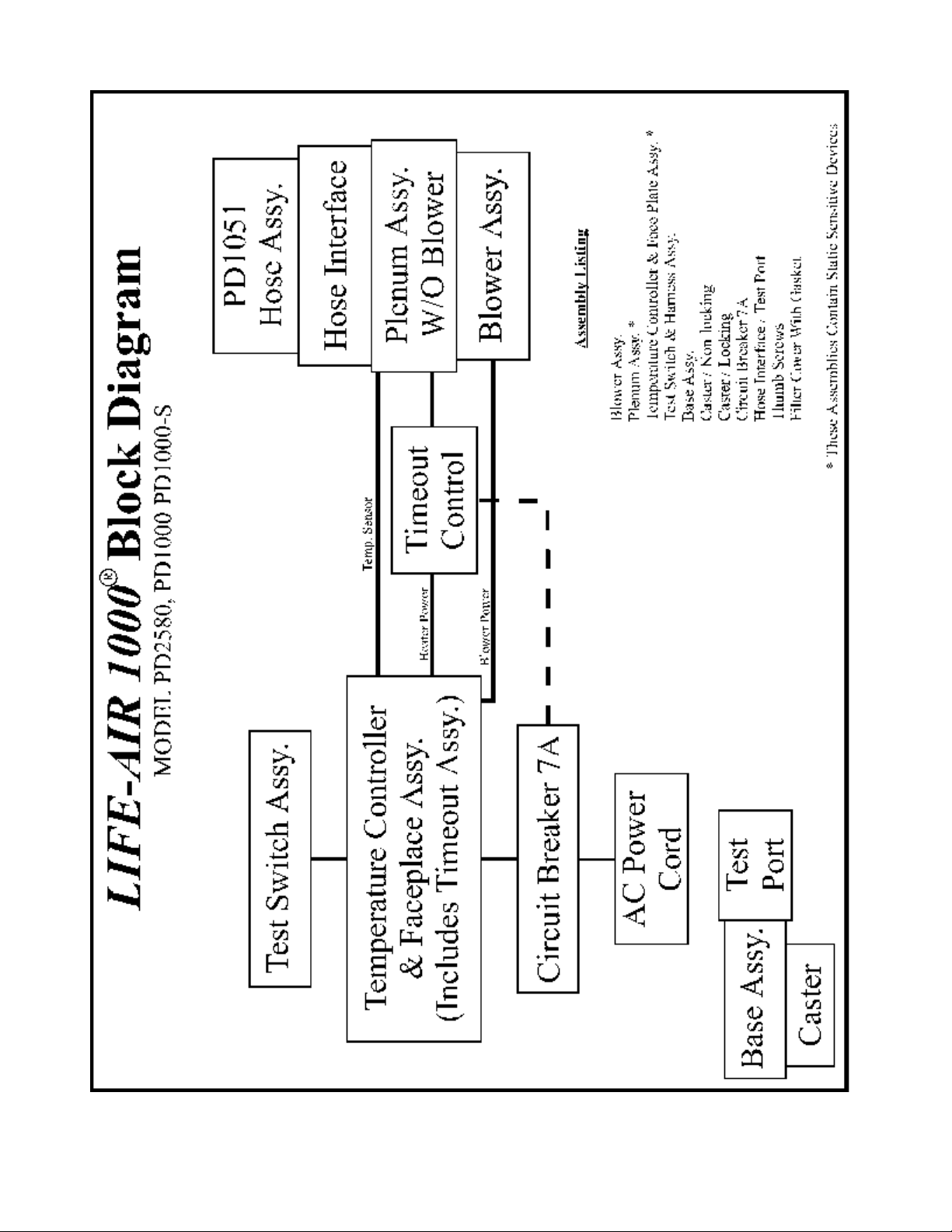

PD2580 / PD1000 / PD1000-S ............................. 11
PD1000 / PD1000-S Rev. B-D ............................. 12
PD1000-1 / PD1000-1S ........................................ 13
Trouble Shooting Flow Chart
Flow Chart ............................................................. 14
