Proline TTR 60WP User manual

PROLINE
TTR 60WP
Refrigerator
Operating instructions

Please read this instruction manual carefully before operation
Keep these instructions in a safe place for future reference
CONTENTS
Part Identification 2
Safety Information 3
Installation 3
Electrical Connection 4
Operating your refrigerator 5
Setting the Thermostat Control 5
Defrosting 5
Cleaning your refrigerator 6
Reversing the door 6
Before calling for service 7
Do’s and Don’ts 8
Prolonged off periods 8
Technical data 9
Environmental notes 10
Help line numbers 10

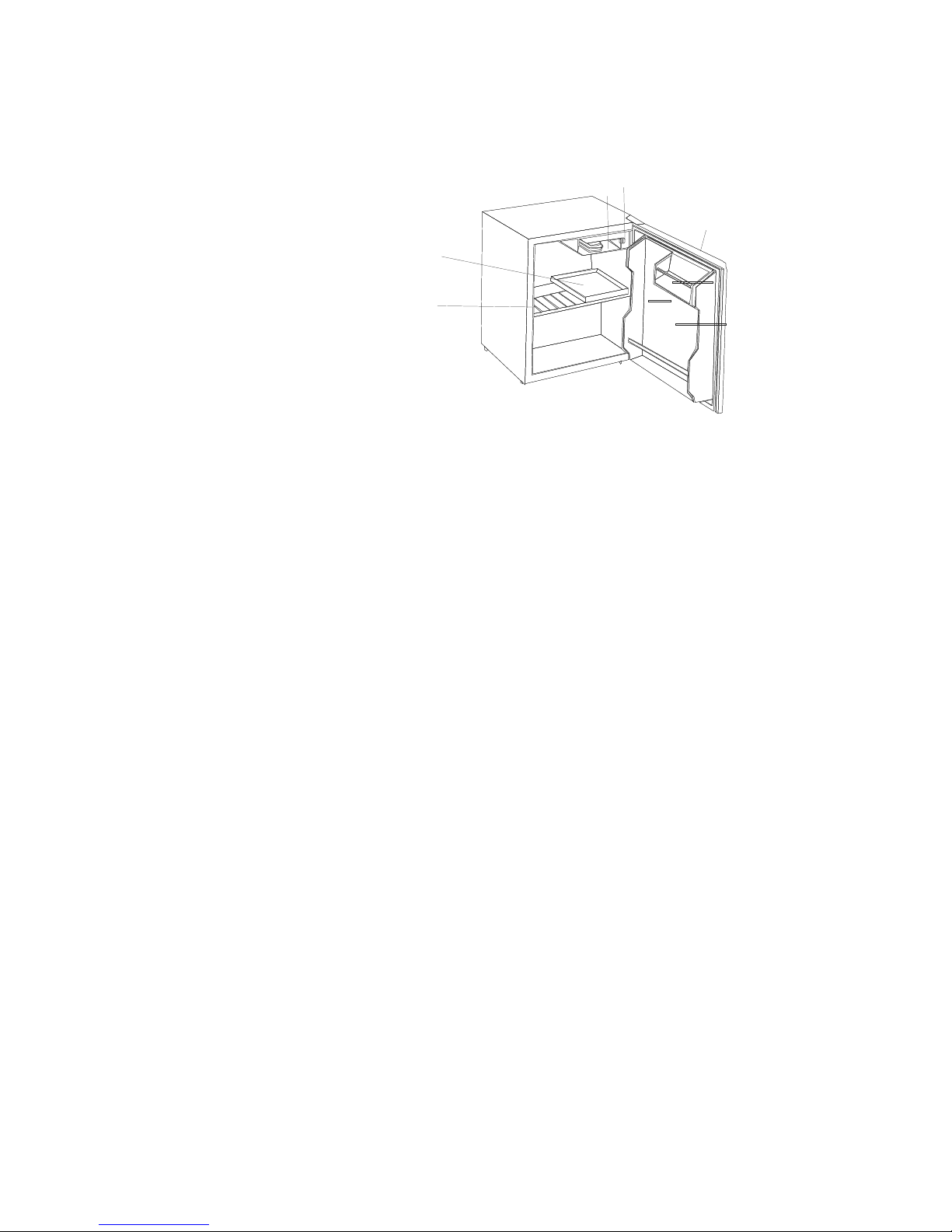

Par ts ldentificatio
n
Check the following contents are included with the product and inspect the casing for any damage.If t here is any damage,contact
th e retai ler fr om who m y o u pu rch ased the pr od uct.
1. Condensor
2. Thermostat control
3. Door
4. Sh elf x 1
5 . D r ip t ra y
Also included:
Instructionbooklet
4
I c e c u be tr ay
FIGUR E 1
1 2
3
5
After unpacking,wipe the casing with a dry cloth and clean the inside with a d amp cloth readyfor use.

Dear Customer:
Thank you for buying a Proline Refrigerator. To ensure that you get the best results
from your new refrigerator, please take time to read through the simple instructions in
this manual.
Please ensure that the packing material is disposed of in accordance with the current
environmental requirements.
Safety information
This information is provided in the interest of your safety. Please read the following
carefully before carrying out the installation or use of the refrigerator.
If you are discarding an old freezer or refrigerator/chiller with a lock/catch fitted.
Ensure that it is left in a safe condition with the lock/catch broken to prevent the
entrapment of children.
Old refrigerator equipment may contain CFC’s that will damage the ozone layer.
When disposing of any refrigerator equipment please contact your local waste
disposal department for advise on safe disposal.
This refrigerator must be only used for its intended purpose.
If the power cable requires replacement, this must only be undertaken by a suitably
qualified person, as special purpose tools are required.
Installation
Position the refrigerator and allow to stand for two or three hours before it is turned
on for the first time to allow the system to settle. Do not position next to any heat
source e.g. cooker, boiler or in direct sunlight etc.
A clearance of 10cm must be left between the sides of the appliance and any adjacent
cabinets or walls to allow for adequate air circulation. This refrigerator is not designed
for a recessed installation (“building in”)
Install on a good firm level surface.
The refrigerator is heavy, carry the refrigerator by the casing not the door.
For purpose of safety all electrical repairs or maintenance must be carried out by a
qualified electrician or service agent.
Warning the plug must be accessible after the refrigerator is in position
This appliance is for refrigerating food and making ice cubes.
If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid a hazard.

ELECTRICAL CONNECTION
For your safety please read the following information
Warning: This appliance must be earthed.
The appliance must be connected to a 220-240 volts 50 cycle AC supply by
means of a three pin socket, suitably earthed and should be protected by a 13
amp fuse in the plug or a15 amp fuse in the consumer unit.
The appliance is supplied with a rewireable 13 amp 3 pin plug fitted with a 13
amp fuse. Should the fuse require replacement, it must be replaced with a
fuse rated at 13 amp and approved to BS1362.
If the mains plug is unsuitable for the socket outlet in your home or is removed
for any other reason, then the cut off plug should be disposed of safely to
prevent the hazard of electric shock.
There is a danger of electric shock if the cut off plug is inserted into any 13
amp socket outlet.
How to wire a 13 amp plug.
Important
The wires in the mains lead on this appliance are coloured in accordance with
the following code:
Green and Yellow - Earth
Blue – Neutral
Brown – Live
As the colours may not correspond with the markings identifying
the terminals in your plug proceed as follows.
The green and yellow wire must be connected to the terminal in the plug
which is marked with the letter E or with the earth symbol or coloured
green and yellow.
The blue wire must be connected to the terminal marked N or coloured black.
The brown wire must be connected to the terminal marked L or coloured red

Operating your refrigerator
Before plugging in your refrigerator for the first time remove all packing, clean the
refrigerator with warm water and bicarbonate of soda. Wipe dry with a soft cloth.
Plug the refrigerator into the mains power supply ensuring that the voltage is the same
as the rating label and then turn the thermostat control knob that is situated at the left
hand side of the unit to the midway position. The compressor should then start.
Do not operate your refrigerator in a room where the temperature is likely to fall
below 10 degrees C 50 degrees F at night and /or especially in winter, as it is designed
to operate in ambient temperatures between +10 to +32 degrees C at lower
temperatures the refrigerator may not operate, resulting in a reduction in the storage
life of the food.
Setting the temperature control
To control the internal temperature, adjust the thermostat control knob according to
the ambient temperature or purpose of use.
The temperature control knob has 7 setting from the coldest “6” to the warmest “1.
( Off 1,2,3,4,5,6,).
Adjust the temperature control to the setting that best suites your needs normal
position 3.
Turning the control to the “off” position stops the cooling cycle, but does not turn off
the power to the refrigerator.
If the unit is unplugged, power lost, or turned off, you must wait 10 minutes before
restarting the refrigerator. If you attempt to restart before this time delay, the
refrigerator may not start.
Making ice cubes
Fill the ice cube tray ¾ full of clean water and place the tray in the low temperature
compartment and close the door.
To remove the ice cubes from the tray run the tray under water for a shot time and
twist the tray slightly to loosen the ice cubes.
Defrosting
The surface of the evaporator ices up when the refrigerator is in use. When the frost
layer reaches 3-4 mm thick the refrigerator must be defrosted and cleaned.
Otherwise it may result in lower efficiency and high energy consumption.
1. tack out all food and ice tray and keep the door open.
2. Turn the thermostat to the off position (off ) unplug the refrigerator from the
mains supply.
3. Position the water collection tray under the evaporator on the shelve below.
4. After all the ice as melted dry the unit carefully and empty the water collection
tray.
5. Reinsert the mains plug and set the thermostat to its original setting.
6. Leave to stand until the correct temperature as been reached then introduce your
food.

Don’t- Use sharp edged objects such as knives or forks to remove any ice.
Don’t- Use hairdryers, or electrical appliances for defrosting only use item
recommended by the manufacturer.
Cleaning your refrigerator
Turn the Thermostat control to “OFF” position then remove the mains plug from the
wall socket, open the door and remove all the contents to a cool place remove the
shelf.
Wipe the inside surface with a warm water and bicarbonate of soda solution. The
solution should be about 2 tablespoon of bicarbonate of soda to 2 pints of water.
Wash the shelf and tray with a mild detergent solution.
Wring excess water out of the sponge or cloth when cleaning area of the controls.
Wash the outside cabinet with warm and mild liquid detergent. Rinse well and wipe
dry with a clean soft cloth.
Reversing the door
If you require the door to open from the other direction
Follow the procedures described below .
1. Turn off and unplug the appliance from the mains supply.
2. Remove the screw from the top hinge cover and lift the cover from the hinge.
3. Remove the three screws from the top hinge and remove the hinge
4. Remove the door and remove the blanking cap from the door and place into the
other side of the door.
5. Unscrew the hinge shaft from the bottom hinge and transfer to the other hole.
6. Remove the two screws from the bottom hinge and remove the hinge.
7. Transfer the two screws into the holes left by the removed hinge.
8. Refit the hinge to the other side and secure firmly.
9. Prise out the two blanking caps and fit to the other side.
10. Refit the door onto the hinge shaft and close the door.
11. Insert the top hinge into the door and replace the three screws into the
corresponding holes.
12. Fit the top hinge cover and check that the door seals and closes correctly
13. Reconnect the appliance to the mains supply.

Before calling for service
Please check the following points:
1. The refrigerator is not working
Check the plug is inserted correctly into the wall socket
Check there is power to the wall socket by plugging in another appliance, if the other
appliance works, check the fuse in the appliance plug.
2. The refrigerator is noisy when running
Check the appliance is level and is not in contact with another appliance or kitchen
furniture.
3. The refrigerator does not cool sufficiently.
If the door has been opened too often, or it has been left open for a while it will take
time for the appliance to reach its set temperature.
Check the air flow around the refrigerator has not been reduced due to insufficient
clearance.
NOTE: The following characteristics should not be looked upon as a problem.
A gentle tricking sound caused by coolant flowing through the pipe.
Compressor operating at high temperature.

Do’s and don’ts
Do- Clean and defrost your refrigerator regularly
Do- Chill white wines, beer, larger and mineral water before serving.
Do- If you are discarding an old freezer or refrigerator with a lock/catch fitted.
Ensure that it is left in a safe condition with the lock/catch broken to prevent the
entrapment of children.
Do- Old refrigerator equipment may contain CFC’s which will damage the ozone
layer, When disposing of any refrigerator equipment please contact your local waste
disposal department for advise on safe disposal.
Do- This appliance must be only used for its intended purpose storing food.
Don’t-If the power cable requires replacement, this must only be undertaken by a
suitably qualified person as special purpose tools are required.
Don’t- Cover the shelve with any protective materials which may obstruct air
circulation.
Don’t- Store poisonous or any dangerous substances in your refrigerator. It has been
designed for the storage of edible foodstuffs only.
Don’t- Leave the door open for long periods, as this will make the refrigerator more
costly to run and cause excessive ice formation.
Don’t- Use sharp edged objects such as knives or forks to remove the ice.
Don’t- Never use hairdryers, or electrical appliances for defrosting only use item
recommended by the manufacturer.
Don’t –allow children to play with the refrigerator or tamper with the controls.
Prolonged off periods
If the refrigerator is not in use for a long period of time, proceed as follows:
Disconnect the refrigerator from the main supply by removing the plug from the
socket.
Clean and dry the inside as instructed under the heading of cleaning the appliance.
Leave the door open to prevent any unpleasant smells from building up while the
appliance is not in use.
If there is a power failure for a short time keep the door closed check the content of
the refrigerator ever so often.

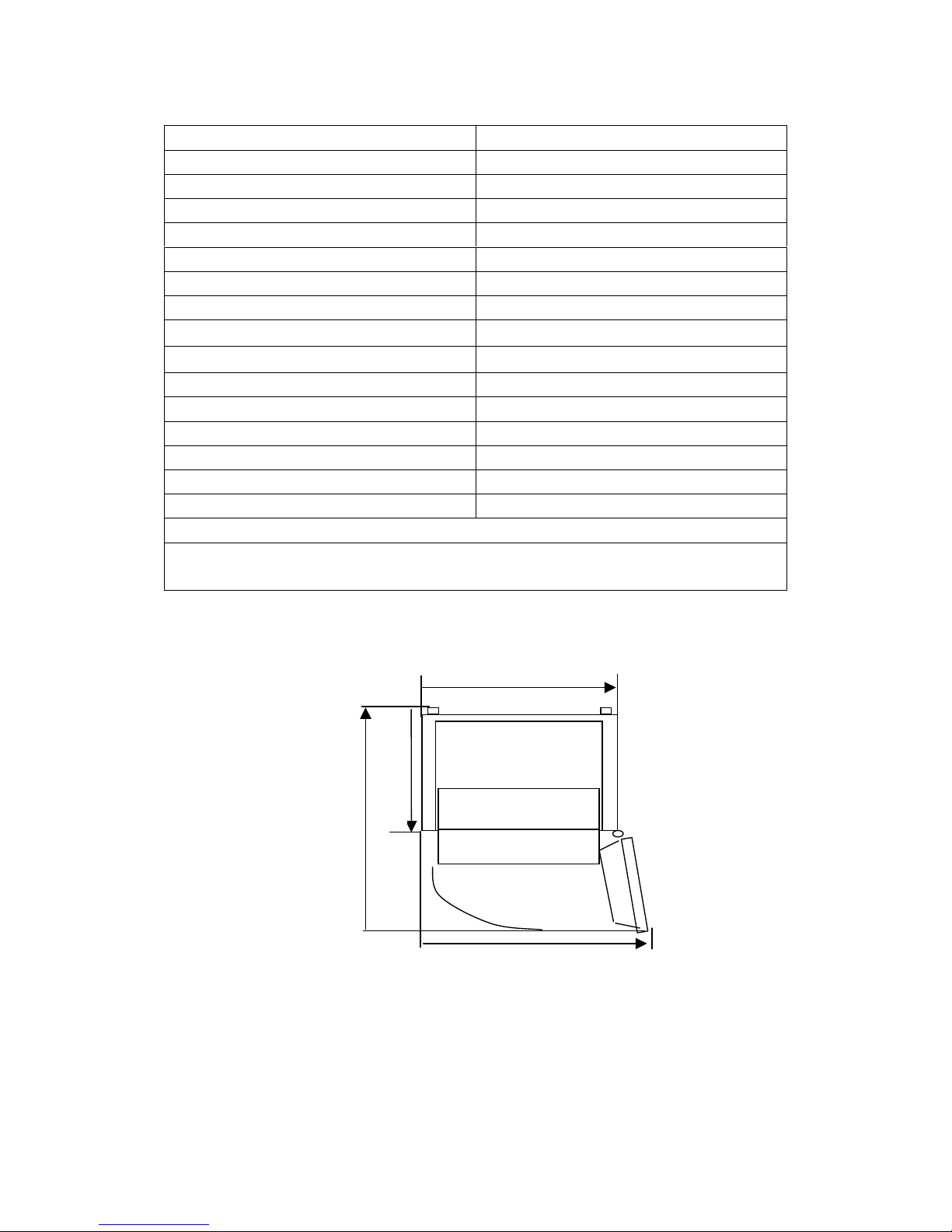

472mm
492mm
Technical data
Brand Proline
Appliance type Fridge
Star rating B
Total gross volume (l.) 50L
Total usable volume (l.) 46L
Freezer usable volume (l.) 4L
Refrigerator useful volume 46L
Freezing capacity (kg/24h)
Climate Class +Ambient Range N (+16C to +32C)
Energy class (1) B
Power consumption (kWh/year) (2) 182
Supply voltage (Vac/Hz) 220-240~ , 50Hz
Noise [dB(A)re 1 pW] <39
Refrigerating agent R134A
Outside dimensions (W x D x H) 450*472*492mm
Refrigerating Blowing Gas 33 g Pentant
(1) Energy class: A…..G (A= economical…G= less economical)
(2) The real power consumption depends on using conditions and
appliance location.
450mm

Service
If you have any questions regarding the installation or operation of your new
appliance please contact our help line on 0113 2793520 during normal office
hours.(Please note: you can not book a service call through this number).
If you require a Service Engineer to call The number is 0870 5425425
Environmental Notes:
Do not dispose of your packaging materials with normal household waste.
These materials are recyclable and should be sorted (e.g. cardboard, plastic,
polystyrene) and disposed of in accordance with local regulations.
Waste electrical and electronic
Products must not be disposed
Of with household waste.Please
Refer to the retailer from whom
You purchased this item for
Disposal instructions.
We undertake the policy of one of continuous development and for this reason we
reserve the right to change specifications without prior notice.
TTR 60WP/082005
