1 Introduction
This manual is intended for truss owners, providers and skilled riggers and any person who has been
trained in working safely with trusses.
This manual is Part 2 of the User Manual. The User Manual consists of the following parts:
 Part 1: General instructions
 Part 2: Product-specific instructions
This manual must be read in conjunction with Part 1: General instructions of the User Manual.
If there are discrepancies between Part 1 and Part 2, the information given in Part 2 is the information
that applies to the product and overrides the information given in Part 1.
This manual assumes that you have been trained or work under the control of a competent or qualified
person who has been trained in safety and assembly.
1.1 About this product
PROLYTE trusses are structural elements designed to be repeatedly assembled and disassembled to carry
loads in temporary or permanent installations. Depending on the application, PROLYTE trusses can be
referred to as lifting accessories or construction products. For information on the related standards, see
Chapter 1.5.
The S36PRT series can be used for indoor and outdoor structures.
1.2 Related information
For more information on the product, see www.prolyte.com/products/aluminium-truss.
1.3 About this manual
Before working with the product, read this manual carefully and pay attention to the information
provided. Use this manual to familiarize yourself with the product, its proper use and safety regulations.
1.3.1 Safety conventions
Indicates a hazardous situation, which, if not avoided, will result in death or serious injury. This signal
word is limited to the most extreme situations.
Indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
Indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury.
Indicates information considered important but not hazard-related.

© 2023 Prolyte BV. DN00171 Issue 1 Page 6 of 10
1.4 Terminology
See PROLYTE Trusses User Manual, Part 1: General instructions.
Trusses and truss modules are hereinafter referred to by the term “truss”.
1.5 Standards
See PROLYTE Trusses User Manual, Part 1: General instructions.
2 Safety
Before working with the product, see the section Safety in PROLYTE Trusses User Manual, Part 1: General
instructions. Read the Safety information carefully and pay attention to the information provided.
In addition to the Safety information provided in Part 1, make sure you read the Safety information
provided in this product-specific user manual.
Read these safety texts carefully before working with the product.
Make sure manuals are available at all times for all users and employees.
3 Limitations of use
Make sure you read the information provided in section Limitations of use in PROLYTE Trusses User
Manual, Part 1: General instructions.
PROLYTE trusses described in this manual are not specifically designed for lifting people. Adequate load
reduction and safety precautions, according to local legislation, must be considered when people are
lifted.
3.1 Allowable loading
For load capacity information, see Chapter 7.
3.2 Structural data
All our trusses are calculated according to the Eurocode 9 (DIN-EN 1999) standard. Eurocodes are
standards based on Load and Resistance Factor Design (LRFD).
The structural data provided before January 2016 was based on the German DIN 4113 standard. As this
standard had a different safety principle, the structural values cannot be compared.
TÜV certificates issued after February 2015 are all based on Eurocode 9.

Page 7 of 10 DN00171 Issue 1 © 2023 Prolyte BV.
Code Type Material
Geometry
Dimensions
centre to centre Main
chord
[mm]
diagonals
[mm]
Cross-section complete truss
Average
dead
weight
Height Width A Iy Iz IT g
[mm] [mm] [cm2] [cm4] [cm4] [cm4] [kg/m]
S36PRT Rectangular 6082 T6 299 560 50x4 25x3 23.12 4445.05 15460.96 - 26.2
Table 1: Geometry
Code
Design values of resistances
Main
chord Complete truss
N,rd My,rd Mz,rd Vz,rd Vy,rd
[kN] [kNm] [kNm] [kN] [kN]
S36PRT 68.44 40.93 76.65 35.69 -
Table 2: Design values of resistances
4 Transport, handling and storage
See PROLYTE Trusses User Manual, Part 1: General instructions.
5 Identification
See PROLYTE Trusses User Manual, Part 1: General instructions.

© 2023 Prolyte BV. DN00171 Issue 1 Page 8 of 10

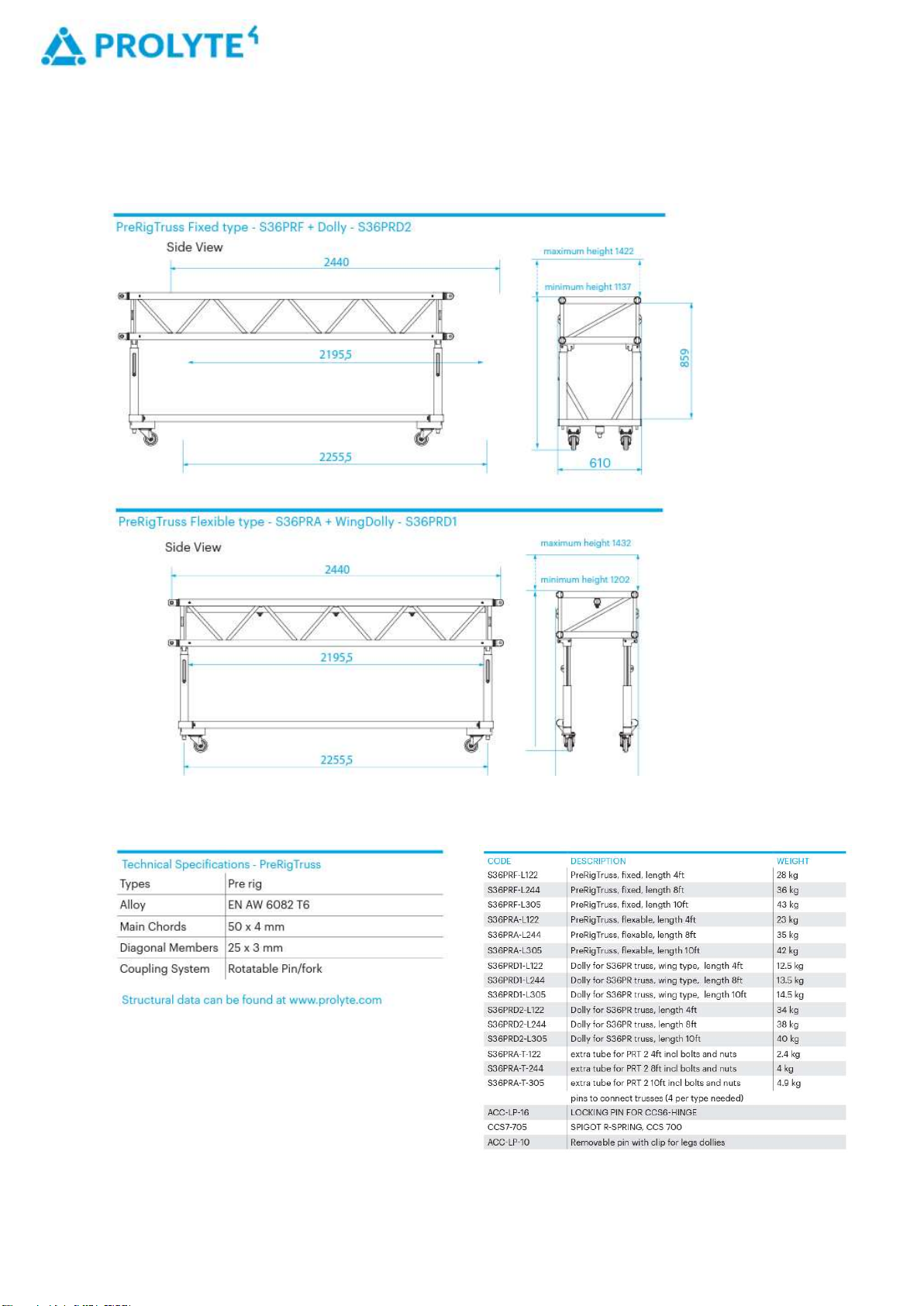

6 Technical specifications

Page 9 of 10 DN00171 Issue 1 © 2023 Prolyte BV.
7 Load capacity
In addition to the information and instructions provided in PROLYTE Trusses User Manual, Part 1: General
instructions, the truss loads shall never exceed the values stated in the load tables below.
As per Eurocode 9, all values provided are calculated based on a safety factor of 1.1 on the material and
1.5 on the load.
8 Approved accessories
For a complete overview of approved accessories, see our brochures or www.prolyte.com.
By using excessive force when tightening accessories such as lamp hooks or cell clamps, you may cause
damage to the truss chords.

© 2023 Prolyte BV. DN00171 Issue 1 Page 10 of 10
Pay special attention when using lamp hooks or cell clamps. Their inside radius may not meet the
tube they need to be attached to. This can lead to severe damage.
You should never allow accessories to damage other products.
9 Coatings and surface treatments
See PROLYTE Trusses User Manual, Part 1: General instructions.
10 Slinging methods
See PROLYTE Trusses User Manual, Part 1: General instructions.
11 Assembly and disassembly
See PROLYTE Trusses User Manual, Part 1: General instructions.
12 Maintenance
See PROLYTE Trusses User Manual, Part 1: General instructions.
13 Inspection
See PROLYTE Trusses User Manual, Part 1: General instructions.
14 Discard criteria
See PROLYTE Trusses User Manual, Part 1: General instructions.
15 Warranty
See PROLYTE Trusses User Manual, Part 1: General instructions.
16 Certificates
The TÜV certificates for this product are available at:
https://www.prolyte.com/support/certificates/certificates-download
