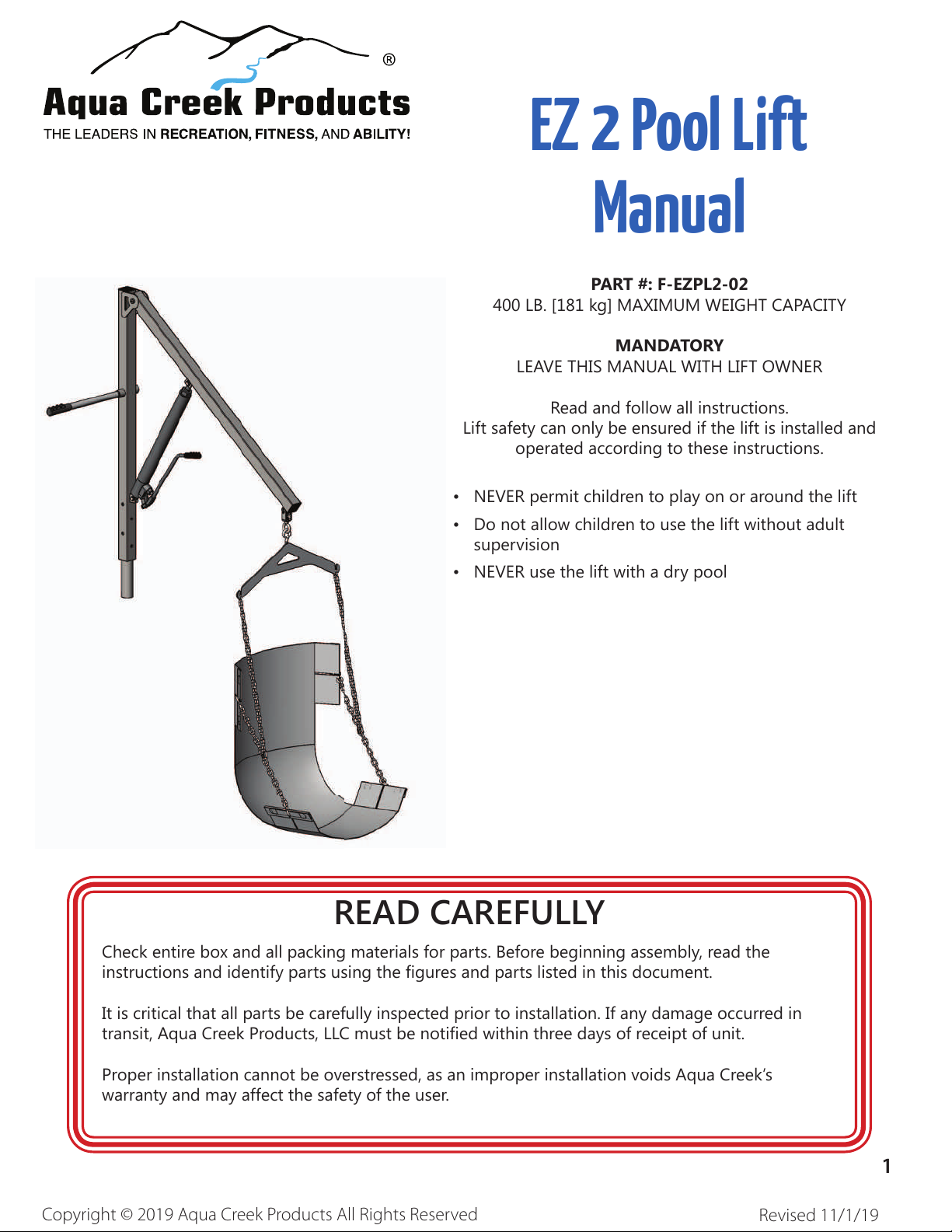

Aqua Creek Products EZ Series User manual

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 11/1/19
PART #: F-EZPL2-02
400 LB. [181 kg] MAXIMUM WEIGHT CAPACITY
MANDATORY
LEAVE THIS MANUAL WITH LIFT OWNER
Read and follow all instructions.
Lift safety can only be ensured if the lift is installed and
operated according to these instructions.
• NEVER permit children to play on or around the lift
• Do not allow children to use the lift without adult
supervision
• NEVER use the lift with a dry pool
Check entire box and all packing materials for parts. Before beginning assembly, read the
instructions and identify parts using the fi gures and parts listed in this document.
It is critical that all parts be carefully inspected prior to installation. If any damage occurred in
transit, Aqua Creek Products, LLC must be notifi ed within three days of receipt of unit.
Proper installation cannot be overstressed, as an improper installation voids Aqua Creek’s
warranty and may affect the safety of the user.
READ CAREFULLY
EZ 2 Pool Lift
Manual
1

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 11/1/19

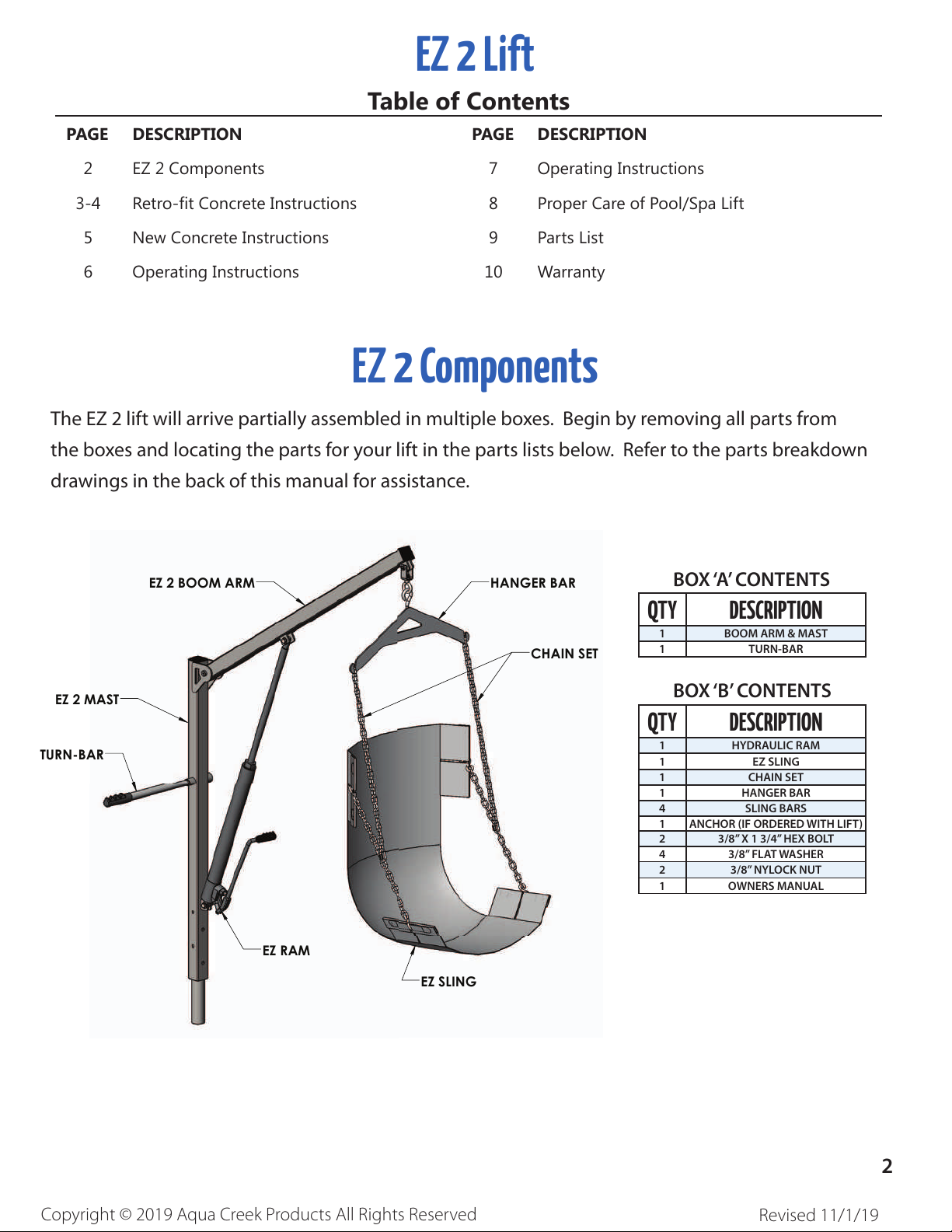

EZ 2 Components
EZ 2 Lift
Table of Contents
PAGE DESCRIPTION PAGE DESCRIPTION
2 EZ 2 Components 7 Operating Instructions
3-4 Retro-fi t Concrete Instructions 8 Proper Care of Pool/Spa Lift
5 New Concrete Instructions 9 Parts List
6 Operating Instructions 10 Warranty
QTY DESCRIPTION
1 HYDRAULIC RAM
1 EZ SLING
1 CHAIN SET
1 HANGER BAR
4 SLING BARS
1 ANCHOR (IF ORDERED WITH LIFT)
2 3/8” X 1 3/4” HEX BOLT
4 3/8” FLAT WASHER
2 3/8” NYLOCK NUT
1 OWNERS MANUAL
QTY DESCRIPTION
1 BOOM ARM & MAST
1 TURN-BAR
BOX ‘A’ CONTENTS
BOX ‘B’ CONTENTS
The EZ 2 lift will arrive partially assembled in multiple boxes. Begin by removing all parts from
the boxes and locating the parts for your lift in the parts lists below. Refer to the parts breakdown
drawings in the back of this manual for assistance.
TURN-BAR
EZ 2 MAST
EZ 2 BOOM ARM HANGER BAR
CHAIN SET
EZ SLING
EZ RAM
2

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 11/1/19

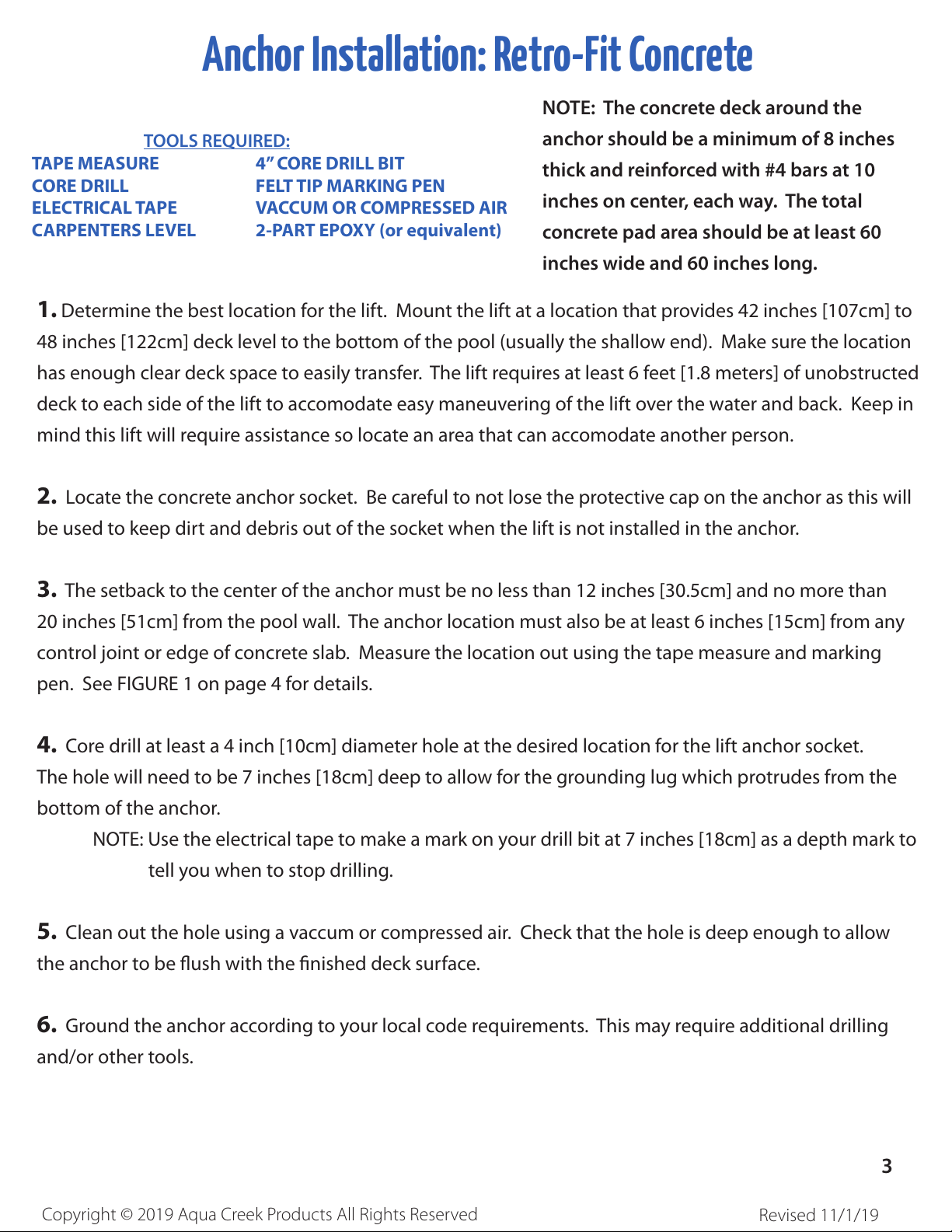

Anchor Installation: Retro-Fit Concrete
NOTE: The concrete deck around the
anchor should be a minimum of 8 inches
thick and reinforced with #4 bars at 10
inches on center, each way. The total
concrete pad area should be at least 60
inches wide and 60 inches long.
TOOLS REQUIRED:
TAPE MEASURE 4” CORE DRILL BIT
CORE DRILL FELT TIP MARKING PEN
ELECTRICAL TAPE VACCUM OR COMPRESSED AIR
CARPENTERS LEVEL 2-PART EPOXY (or equivalent)
1. Determine the best location for the lift. Mount the lift at a location that provides 42 inches [107cm] to
48 inches [122cm] deck level to the bottom of the pool (usually the shallow end). Make sure the location
has enough clear deck space to easily transfer. The lift requires at least 6 feet [1.8 meters] of unobstructed
deck to each side of the lift to accomodate easy maneuvering of the lift over the water and back. Keep in
mind this lift will require assistance so locate an area that can accomodate another person.
2. Locate the concrete anchor socket. Be careful to not lose the protective cap on the anchor as this will
be used to keep dirt and debris out of the socket when the lift is not installed in the anchor.
3. The setback to the center of the anchor must be no less than 12 inches [30.5cm] and no more than
20 inches [51cm] from the pool wall. The anchor location must also be at least 6 inches [15cm] from any
control joint or edge of concrete slab. Measure the location out using the tape measure and marking
pen. See FIGURE 1 on page 4 for details.
4. Core drill at least a 4 inch [10cm] diameter hole at the desired location for the lift anchor socket.
The hole will need to be 7 inches [18cm] deep to allow for the grounding lug which protrudes from the
bottom of the anchor.
NOTE: Use the electrical tape to make a mark on your drill bit at 7 inches [18cm] as a depth mark to
tell you when to stop drilling.
5. Clean out the hole using a vaccum or compressed air. Check that the hole is deep enough to allow
the anchor to be ush with the nished deck surface.
6. Ground the anchor according to your local code requirements. This may require additional drilling
and/or other tools.
3

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 11/1/19
Anchor Installation: Retro-Fit Concrete
7. Carefully insert the anchor into the hole. Pour a small amount of 2 part epoxy, or equivalent, around
the anchor. Check that the anchor will sit level or ush with the nished deck surface.
NOTE: Fill the hole about 1/3 full of 2 part epoxy, or equivalent, prior to inserting the anchor. As
you insert the anchor, rotate it back and forth so that you can evenly distribute the cement
or epoxy around the anchor.
8. Once anchor is level and ush with deck, pour cement or epoxy into the remaining space around
the anchor making sure there are no void spaces. Let cement or epoxy cure for 24 hours (or minimum
manufacturer’s recommendations) before installing and using lift.
[20.3cm]
8" MIN.
[51 cm] 20" MAX
[30.5 cm] 12" MIN
[15 cm]
6" MIN
42"
TO
48"
C
L
ANCHOR SOCKET
TOP OF SLAB
GROUNDING LUG
CEMENT/EPOXY
FIGURE 1
4

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 11/1/19

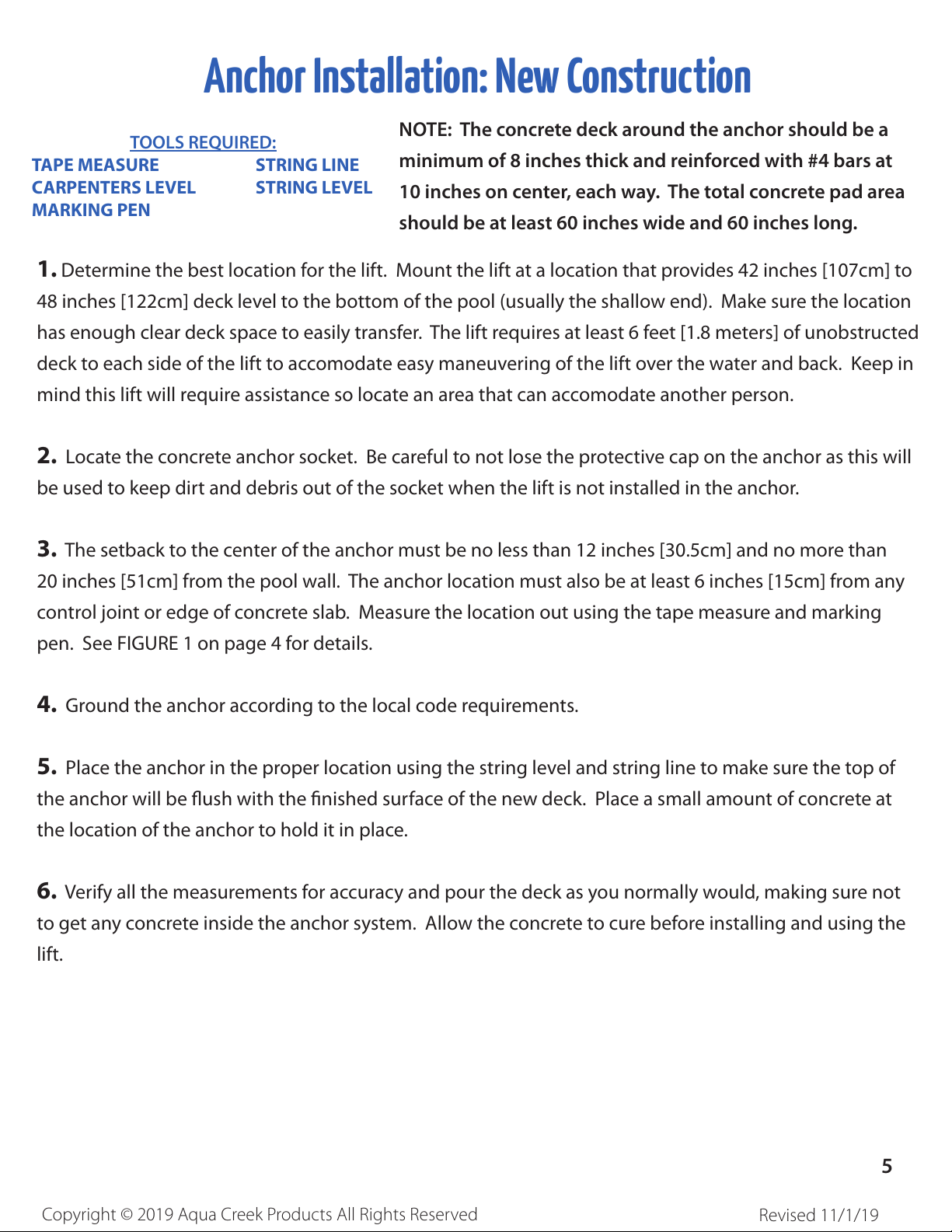

Anchor Installation: New Construction
NOTE: The concrete deck around the anchor should be a
minimum of 8 inches thick and reinforced with #4 bars at
10 inches on center, each way. The total concrete pad area
should be at least 60 inches wide and 60 inches long.
TOOLS REQUIRED:
TAPE MEASURE STRING LINE
CARPENTERS LEVEL STRING LEVEL
MARKING PEN
1. Determine the best location for the lift. Mount the lift at a location that provides 42 inches [107cm] to
48 inches [122cm] deck level to the bottom of the pool (usually the shallow end). Make sure the location
has enough clear deck space to easily transfer. The lift requires at least 6 feet [1.8 meters] of unobstructed
deck to each side of the lift to accomodate easy maneuvering of the lift over the water and back. Keep in
mind this lift will require assistance so locate an area that can accomodate another person.
2. Locate the concrete anchor socket. Be careful to not lose the protective cap on the anchor as this will
be used to keep dirt and debris out of the socket when the lift is not installed in the anchor.
3. The setback to the center of the anchor must be no less than 12 inches [30.5cm] and no more than
20 inches [51cm] from the pool wall. The anchor location must also be at least 6 inches [15cm] from any
control joint or edge of concrete slab. Measure the location out using the tape measure and marking
pen. See FIGURE 1 on page 4 for details.
4. Ground the anchor according to the local code requirements.
5. Place the anchor in the proper location using the string level and string line to make sure the top of
the anchor will be ush with the nished surface of the new deck. Place a small amount of concrete at
the location of the anchor to hold it in place.
6. Verify all the measurements for accuracy and pour the deck as you normally would, making sure not
to get any concrete inside the anchor system. Allow the concrete to cure before installing and using the
lift.
5

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 11/1/19
Assembly Instructions
TOOLS REQUIRED:
9/16”WRENCH 3/4”WRENCH
The EZ Pool Lift arrives with the boom arm attached to the mast. To
complete the assembly, layout all parts on a large, clean area.
1. Locate the hydraulic ram and attach the upper end of the hydraulic
ram to the boom with one (1) 3/8”x 1-3/4” hex head bolt, two (2) 3/8”
at washers and one (1) 3/8”nylock nut. See Step 1.
2. Connect the lower end of the hydraulic ram to the mast with one
(1) 3/8” x 1-3/4”hex head bolt, two (2) 3/8” at washers and one (1)
3/8” nylock nut. See Step 2.
WARNING!! MAKE SURE THAT THE 3/8” ROD END IS ALWAYS FULLY
SEATED WITH THE MAXIMUM ALLOWABLE THREAD BEING USED.
3. Install lift into previously installed anchor socket in the pool deck.
Make sure that the mast is seated at the bottom of the anchor. Check
to ensure easy rotation of the lift in nylon lined anchor sleeve.
4. Locate the chain assembly and insert the quick links
into the holes in the sling support bars (A).
Attach the hanger to the boom eye on the lift (B).
Adjust the chain links so that the sling is at the appropriate height to
allow the user easy access (C). This may require several adjustments.
Also, be mindful of any obstacles such as coping or a gutter that will
need to be cleared. See Step 4.
Assembly is complete. Prior to lifting any persons, it is recommended
that the lift be operated 3-5 times without a load for the lifts “break
in” period as well as to check for proper functioning (and that the
instructions for operating the lift be read and incorporated into a
training program for the persons who will be operating the lift).
For any person operating the lift, please continue to operating
instructions. Read carefully for comprehension.
MAST ACTUATOR
3/8" X 1 3/4"
HEX BOLT
3/8" FLAT
WASHER (2)
3/8" NYLOCK NUT
BOOM ARM
STEP 1
MAST
3/8" X 1 3/4"
HEX BOLT
3/8" FLAT
WASHER (2)
3/8" NYLOCK
NUT
ACTUATOR
STEP 2
STEP 4
B
C
A
6

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 11/1/19
Operating Instructions
NOTE: For safety, check for worn parts and loose bolt connections prior to each use. All operators
should be familiar with all lift components and their intended uses. Operators should also be
comfortable with all lifting procedures before attempting to lift a person with the lift.
The EZ 2 Pool Lift requires the use of an operator to assist the lift occupant with the transfer into the pool.
There are two methods of loading the lift occupant into the harness. The method of loading will depend
on the physical ability of the lift occupant. If the user is physically able, he/she can simply place themself
into the harness without need for assistance. If the user has very limited use of his/her upper body, it will
be necessary to follow the procedure below.
1. With the lift in the raised position and the boom arm located over the deck, roll the user under the lift
and engage the brakes on the wheelchair.
2. With the user facing the assistant, gently slide the mesh seat sling under the seated user while still in
the wheelchair.
3. Attach the chain to the mesh sling and the overhead hanger bar. Avoid excess slack in the chain.
4. Ensure all chain connections are secure and the mesh seat sling is even on each side of user.
5. Raise the user by pumping the hydraulic ram handle until the desired height is achieved.
6. Rotate the lift so that the user is above the pool. Never push on the actuator! Use the turn bar or
place one hand on the boom arm and one hand on the mast.
7. Lower the user into the water by pressing the handle towards the ram until it depresses the release
pin. The hydraulic ram automatically controls the rate of descent for safety and control. Lower until
the user is submerged suciently in the water to allow an easy transfer to the pool.
8. This procedure is repeated to remove a user from the water.
9. When the lift is not in use, remove the sling, hanger bar and mast from the anchor socket and replace
the protective cap.
Thank you for purchasing the Aqua Creek EZ 2 Pool Lift. Enjoy the pool
and this product for many years with proper use and maintenance.
See page 10 of this manual for proper care instructions.
7

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 11/1/19
Proper Care of Pool & Spa Lifts
PROCEDURE DAILY WEEKLY MONTHLY
Wash down lift with fresh water and dry with clean, soft,
non-abrasive cloth. 
Run the lift through a complete test cycle to verify it is
functioning properly. 
Visually inspect lift for damage, corrosion, and loose or
missing hardware. 
Thoroughly clean lift frame and apply a liberal coat of car
wax to maintain the lift’s nish. 
Check all Warning and Cautionary labels to make sure they
are not faded or worn. Replace as needed. 
PROPER CARE NOTES
• Use only fresh water to wash your lift. Do not wash with pool water.• Use only clean, soft, non-abrasive cloths to wipe down your lift.• Do not store lift in pump room or near chemicals.• Do not allow children to play on or around this lift.• The lift may need to be bonded according to local code requirements.To remove stubborn stains from nish, spray aected area with mild dish soap, rub
briskly with a 3M Scotch Brite™ pad. Use white epoxy paint to touch up the nish. Apply
wax to protect when dry.
STAIN REMOVAL TIPS:
8

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 11/1/19
ITEM # QTY PART # DESCRIPTION
1 1 EZWM-0804EZMA-01 MAST WELDMENT, EZ 2
2 1 EZWM-0804EZBA-01 BOOM WELDMENT, EZ 2
3 1 F-03EZCYC HYDRAULIC RAM, FOR EZ POOL LIFT
4 1 A-0808EZTB EZ TURN BAR ASSEMBLY
5 1 F-03EZSWIV SWIVEL ASSEMBLY
6 1 F-038EZHB HANGER BAR
7 1 F-032EZSB REGULAR SLING ASSEMBLY
8 1 F-031EZCH EZ CHAIN SET
9 1 RUBBER HAND GRIPS GRIP, RUBBER HAND GRIP
10 1 BS 3/8 X 7/8 18-8 3/8 X 7/8 SHOULDER BOLT, 5/16-18 THREAD
11 1 BS 3/8 X 1 1/4 18-8 3/8 X 1 1/4 SHOULDER BOLT, 5/16-18 THREAD
12 1 BH 3/8 X 1 3/4 3/8-16 X 1 3/4 HEX BOLT
13 1 BS 1/2 X 2 1/2 18-8 1/2 X 2 1/2 SHOULDER BOLT, 3/8-16 THREAD
14 2 WF 5/16 5/16 FLAT WASHER
15 2 NN 5/16 5/16-18 NYLOCK NUT
16 3 WF 3/8 3/8 FLAT WASHER
17 2 NN 3/8 3/8-16 NYLOCK NUT
18 2 BRB SS-1620-3 1/2 X 5/8 X 3/16 BRONZE SLEEVE BUSHING
19 2 SQR-2-10-14 2X2 SQUARE BLACK CAP
20 1 WF 1/4 WASHER, FLAT, 1/4, 316 SS
21 1 WL 1/4 LOCK WASHER, 1/4, 316 SS
22 1 BB 1/4 X 1/2 BOLT, 316 SS, 1/4-20 X 1/2 BHSCS
EZ 2 Parts List
10
94
314 15 7
1
13
18
19
18 17
16
12
16
2
16 17 214
8
11 15
5
6
20
21 22
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 EZWM-0804EZMA-02 EZ LIFT MAST WELDMENT 1
2 EZWM-0804EZBA-01 EZ LIFT BOOM WELDMENT 1
3 9010000229 RAM, EZ, NEW STYLE RAM 1
4
A-0808EZTB-02 EZ TURN BAR ASSEMBLY 1
5 F-03EZSWIV SWIVEL ASSEMBLY, EZ SERIES 1
6
F-038EZHB EZ HANGER 1
7 F-032EZSB EZ REGULAR SLING ASSEMBLY 1
8
F-031EZCH CHAIN SET, EZ 2
9 RUBBER HAND GRIPS GRIP, RUBBER HAND GRIP 1
10
BS 3-8 X 7-8 18-8
BOLT, 18-8 SS, 3/8 X 7/8
SHOULDER, 5/16-18 THREAD
1
11
BS 3-8 X 1 1-4 18-8
BOLT, 18-8 SS, 3/8 X 1 1/4
SHOULDER, 5/16-18 THREAD
1
12
BH 3-8 X 1 3-4 BOLT, 316 SS, 3/8-16 X 1 3/4 HCS 1
13
BS 1-2 X 2 1-2 18-8
BOLT, 18-8 SS, 1/2 X 2 1/2
SHOULDER, 3/8-16 THREAD
1
14
WF 5-16 WASHER, FLAT, 5/16, 316 SS 2
15 NN 5-16 NUT, 316 SS, NYLOCK, 5/16"-18 2
16
WF 3-8 WASHER, FLAT, 3/8, 316 SS 3
17 NN 3-8 NUT, 316 SS, NYLOCK, 3/8"-16 2
18
BRB SS-1620-3
BUSHING, BRONZE SLEEVE, SS-
1620-3, 1/2 X 5/8 X 3/16
2
19 SQR-2-10-14
2X2 SQUARE BLACK CAP 2
20
WF 1-4 WASHER, FLAT, 1/4, 316 SS 1
21 WL 1-4 LOCK WASHER, 1/4", 316 SS 1
22
BB 1-4 X 1-2 BOLT, 316 SS, 1/4-20 X 1/2 BHSCS 1
9

Copyright © 2017 Aqua Creek Products All Rights Reserved Revised 9/15/17

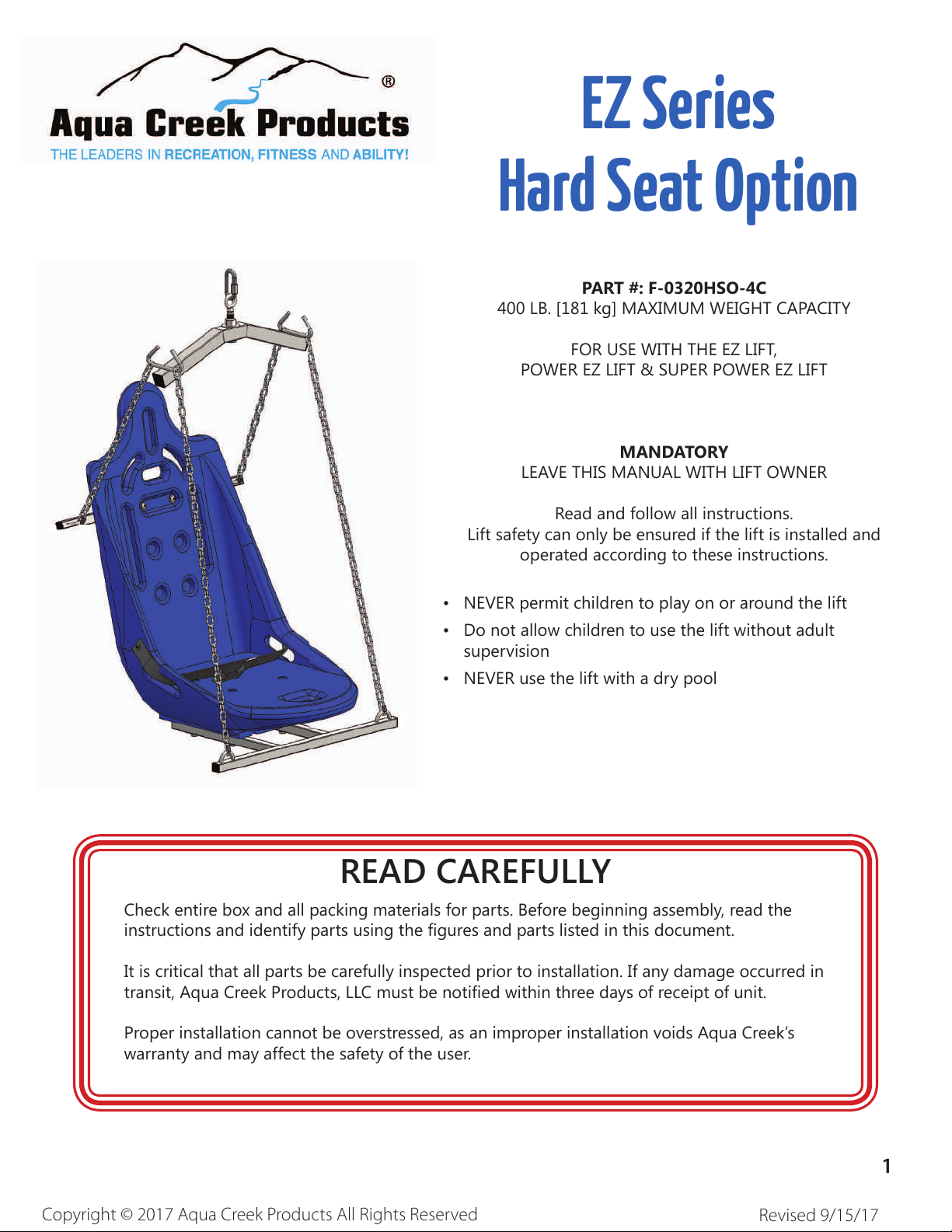

PART #: F-0320HSO-4C
400 LB. [181 kg] MAXIMUM WEIGHT CAPACITY
FOR USE WITH THE EZ LIFT,
POWER EZ LIFT & SUPER POWER EZ LIFT
MANDATORY
LEAVE THIS MANUAL WITH LIFT OWNER
Read and follow all instructions.
Lift safety can only be ensured if the lift is installed and
operated according to these instructions.
• NEVER permit children to play on or around the lift
• Do not allow children to use the lift without adult
supervision
• NEVER use the lift with a dry pool
EZ Series
Hard Seat Option
Check entire box and all packing materials for parts. Before beginning assembly, read the
instructions and identify parts using the fi gures and parts listed in this document.
It is critical that all parts be carefully inspected prior to installation. If any damage occurred in
transit, Aqua Creek Products, LLC must be notifi ed within three days of receipt of unit.
Proper installation cannot be overstressed, as an improper installation voids Aqua Creek’s
warranty and may affect the safety of the user.
READ CAREFULLY
1

Copyright © 2017 Aqua Creek Products All Rights Reserved Revised 9/15/17
Hard Seat Installation
To install the hard seat option onto an EZ Series lift the sling seat must first be removed. To do this,
simply unhook the hanger bar from the lift and store the hanger bar, chains and sling seat together.
Note: Actual product may vary slightly from images below.
REMOVE HANGER BAR,
CHAINS AND SLING
Once the sling seat has been removed, add the quick link to the u-bolt that is attached to the lifts boom
arm. Then, attach the 4-point hanger bar to the quick link followed by connecting the chains and hard
seat to the 4-point hanger bar. All pools and spas are different so the chains may have to be adjusted
slightly to fit specific applications and/or personal needs.
QUICK LINK
4-POINT HANGER BAR
HARD SEAT & CHAINS
U-BOLT
BOOM ARM
2
