Promag STARCREM 30 Evolution User guide

PROMAG
le macchine per il gelato
03-2004
USE AND MAINTENANCE
INSTRUCTION MANUAL:
"CUOCICREMA" MACHINE
STARCREM 30 Evolution
STARCREM 60 Evolution
STARCREM 60 EvolutionSTARCREM 30 Evolution
USERINSTRUCTIONS
STARCREM 30/60 IngleseUTILIZZATORE (USER)

PROMAG
STARCREM 30 Evolution - STARCREM 60 Evolution
GB
USER INSTRUCTIONS
2
The technical data for each machine model is
shown in the enclosed tables and on the data
plate located on the rear side of the machine.
This data is used as a reference when
performing inspections or checks.
Safe machine operation is assured by correctly following the
instructions given in this manual. Therefore, we suggest you keep the
manual in a safe place where it can be readily consulted as required.
Manufacturer

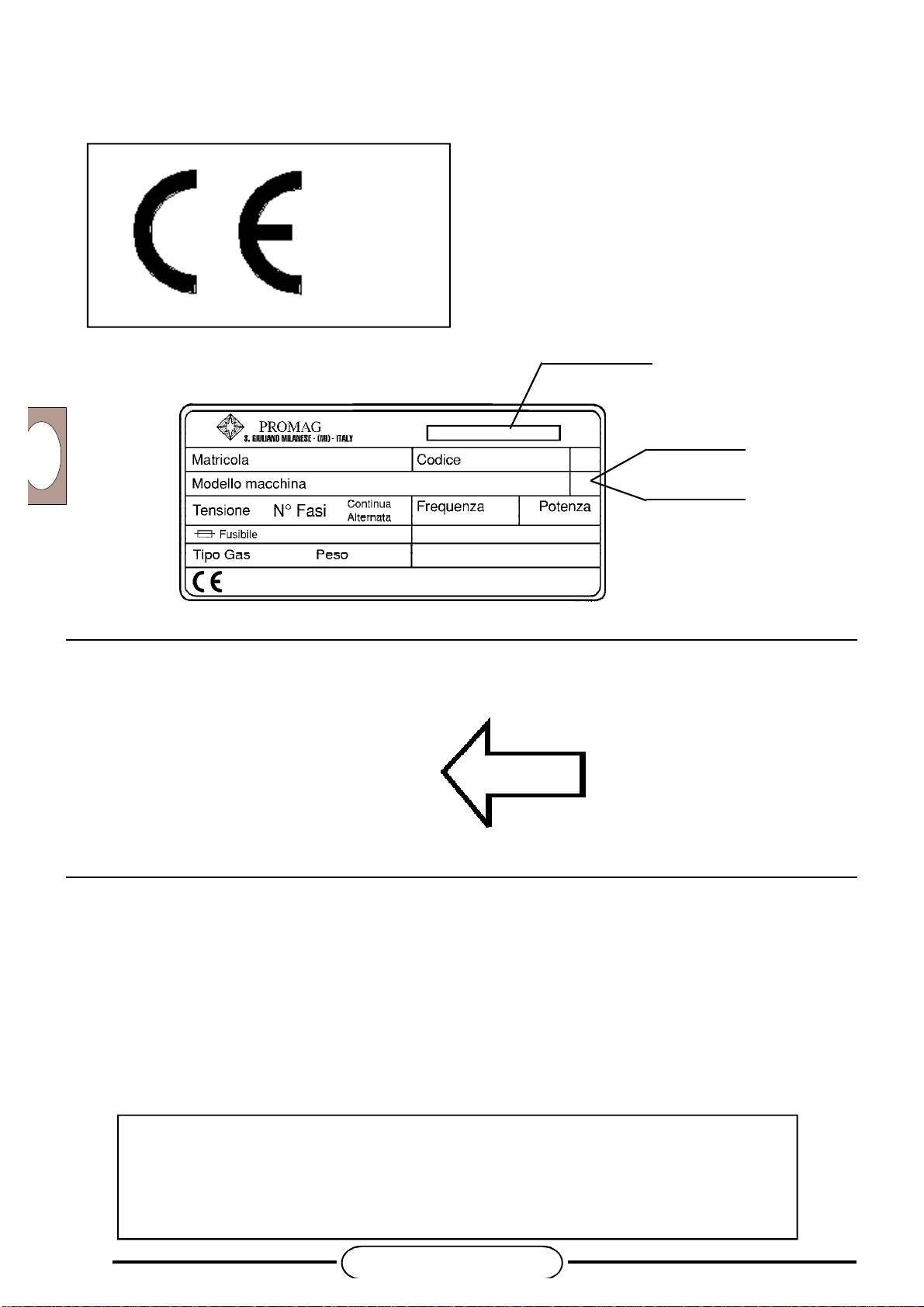

This plate is an exact
copy of that located on
the rear side of the
machine, for this reason
the manual forms an
integral part of the
machine and must be
kept together with it.
PROMAG
Via Emilia, 45
40011 Anzola dell'Emilia
Bologna Italy
Tel.[phone]
Telefax051-6505253
Bar code
A = air condensation
W = water condensation

PROMAG STARCREM 30 Evolution - STARCREM 60 Evolution
GB
3
USER INSTRUCTIONS
A
pag.
pag.
77/89
pag.
INSTRUCTIONS FOR USER
B
INSTRUCTIONS FOR TECHNICIAN-INSTALLER
61/76
7/60
SPARE PARTS

PROMAG
STARCREM 30 Evolution - STARCREM 60 Evolution
GB
USER INSTRUCTIONS
4
INTRODUCTION
This manual gives all assembly, operating and
maintenance instructions required for assuring
excellentoperatingresultsandalongmachineservice
life.
Beforestarting touse themachine,
readthese instructionsand followthem
verycarefully.
Pleasedonothesitateto contactus for
anyassistance youmayrequire.
Failure to abide by the norms included in this
manual will invalidate the guarantee.
If the machine is sold or otherwise put into another
person's possession,ensure that the manual
accompanies the machine therefore allowing the new
owner to correctly follow the operating procedures
and abide by the relative precautions.
The present "CUOCICREMA" machine,
is a multi-functional machine, destined exclusively for
pastryproducts(creamcooking)andicecreammaking
(preparation and/or pasteurization of ice cream
mixture).
Do not utilize the "CUOCICREMA" for any other use
other than that described above.
A similar use shall be considered improper.
This machine is designed to be used by adults. Keep
children away from the machine;
they should not be allowed to play with it.
Any attempt to modify this machine will not only
invalidate the guarantee but is also extremely
dangerous.
Inordertoassureefficient,correct machine operation
carefullyfollowthemanufacturer'sinstructionsandonly
allow professionally qualified personnel to perform
any necessary maintenance.
Never try to repair the machine yourselves,
as any attempt to make repairs by incompetent
persons will not only be dangerous but may also
cause serious injuries.
In the case of a malfunction, contact the distributor
from whom the machine was bought.
They can give you the address of the Authorized
Service Centre closest to you.
Only use original spare parts for any necessary
replacements.
If you decide to no longer use the machine,
we advise you to cut the electrical cord so that it
cannot be used (after disconnecting the plug from
the power socket).
In addition:
- Under no circumstances should the refrigerant
gas or compressor oil be allowed to escape and
thus contaminate the environment.
- See that the machine is disassembled and that
the parts are disposed of in accordance with the
national regulations in force.
This machine contains H.C.F.C. gas which could be
harmful to the environment in the case of incorrect
maintenance operations or disassembly.
Therefore, any such operations must be done in
accordance with the national regulations in force,
and must only be performed by authorized
maintenance personnel.
PROMAG reserves the right to make any and all
modifications reemed necessary in order to keep
the machine updated - technically or otherwise -
as well as to allow it to meet the requirements of
certain individual countries.
For any additional information or technical help you
may require, please contact your authorized service
centre.

PROMAG STARCREM 30 Evolution - STARCREM 60 Evolution
GB
5
USER INSTRUCTIONS
The operating instructions form an integral part of the machine. - The machine user must not perform any of the operations
described in parts B and C; these must only be carried out by a qualified technician. - The user is therefore informed that if he
attempts to do so he will compromise the safety and health standards with which the machine is designed and built.
I) La ditta PROMAG, con la firma del suo delegato alla sicurezza del prodotto, dichiara sotto la propria esclusiva responsabilità
che la macchina:
2) The company PROMAG hereby declares under its own sole responsibility, through the signature of its product safety manager, that
the machine:
3) La société PROMAG, parla signature de son délégué à fa sécurité du produit, déclare sous sa propre et exclusive responsabilité
quela machine:
4) Die Firma PROMAG erklärt unter ihrer ausschließlichen Verantwortung mit der Unterschrift ihres Beauftragten für die Produkt-
Sicherheit, daß die Maschine:
5) Het bedrijf PROMAG verklaart hierbij uitsluitend op eigen verantwoordelijkheid, door middel van de handtekening van zijn
manager produktveiligheid, dat de machine:
6) La empresa PROMAG, mediante la firma de su encargado para la seguridad del producto, declara bajo su propia y exclusiva
responsabilidad que la máquina:
7) A firma PROMAG, com a assinatura do seu delegado para a segurança do produto, declara sob a própria e exclusiva
responsabilidade que a máquina:
8) Firmaet PROMAG erklærer hermed, gennem den produktsikkerhedsansvarliges underskrft og under eget ansvar, at maskinen:
9) Yhtiö PROMAG vakuuttaa täten tuoteturvallisuudesta vastaavansa allekirjoittamana ja omalla vastuullaan, että kone:
10) Härmed intygar företaget PROMAG, genom underskrift av sin produktsäkerhetsansvarige och på eget ansvar, att maskinen:
11) Firmaet PROMAG erklærer herved, ved den produktsikkerhetsansvarliges underskrift og under sitt eneansvar, at maskinen:
STARCREM 30/60 Matr..................
1) preparatore e pastorizzatore di prodotti per pasticceria e gelateria, è conforme ai requisiti essenziali previsti dalle Direttive CEE
89/392, 91/368, 89/336, 73/23 e 93/68.
2) preparing and pasteurizing machine for pastry and ice cream products, complies with the essential requirements indicated in
EEC directive 89/392, 91/368, 89/336, 73/23 and 93/68.
3) machine pour la prèparation et la pasteurisation de produits pour pâtisserie et glacerie, est conforme aux conditions requises
essentielles prévues par les directives CEE 89/392, 91/368, 89/336, 73/23 et 93/68.
4) Maschine für die Vorbereitung und Pasteurisierung von Konditorei- und Speiseeisprodukten, den grundlegenden, von den
EWG-Richtlinien 89/392, 91/368, 89/336, 73/23 und 93/68 gestellten Anforderungen genügt.
5) machine voor het bereiden en pasteuriseeren van producten voor gebak en consumptieijs, voldoet aan de essentiële
voorwaarden vervat in de EEG-Richtlijnen 89/392, 91/368, 89/336, 73/23 en 93/68.
6) preparador y pasteurizador de productos para pastelería y helados, es conforme a los requisitos esenciales prevístos por las
Directivas CEE 89/392, 91/368, 89/336, 73/23y 93/68.
7) Preparador e pastorizador de produtos para confeitaria e sorveteria, é feita conforme os resuisitos principais previstos pelas
Normas CEE 89/392, 91/368, 89/336, 73/23 e 93/68.
8) maskine til tilberedning og pasteurisering af konditorkager og is-produkter overensstemmer med de væsentligste krav anført i
EU direktiv 89/392, 91/368, 89/336, 73/23 og 93/68.
9) konditoria-ja jäätelötuotteiden valmistus-ja pastörointikone noudattaa EU direktiiveissä 89/392, 91/368, 89/336, 73/23 ja 93/68
ilmaistuja olennaisia vaatimuksia.
10) för tillagning samt pastörisering av bakverk och glassprodukter uppfyller de väsentliga kraven i EU-direktiv 89/392, 91/368, 89/
336, 73/23 och 93/68.
11) maskin for tilberedning og pasteurisering av deig-og iskremprodukter er i samsvar med de vesentligste krav angitt i EU-
direktiv 89/392, 91/368, 89/336, 73/23 og 93/68.
This manual is made
up of three parts: PartB:
instructions and information for
the Technician - the Shipper
the Installer - the Maintenance Man the Repair Man
PartC:
electrical diagrams
and spare parts
PartA:
instructions and information for
theUserand
the Technician-Installer
Copy of the conformity declaration found with the machine

PROMAG
STARCREM 30 Evolution - STARCREM 60 Evolution
GB
USER INSTRUCTIONS
6
INFORMATIONFORTHE USERANDTECHNICIAN-INSTALLER
HELPFULADVICE
When manufacturing your products only use
the very best ingredients, in order to fully
satisfy even your most demanding customers.
Obtain all basic ingredients from well-established
firms that have a proven reliability.
When making your products follow the
instructions very carefully and do not try
to change the recipe in any way.
Always keep the machine spotlessly clean.
For all necessary repair work always contact one of PROMAG's assigned maintenance
firms.
If any of the operating, cleaning or maintenance instructions given in this manual are not
carefully followed, and an accident occurs, PROMAG cannot be held responsible.
General Information
Thank you for having chosen this machine.
Please read the instructions in this manual
carefully; they will assure long machine
service life.
We can guarantee that only the very best
materials have been used for this machine,
that it has been very carefully tested,
and that we are always ready to serve and
assist you in the best possible way.
IMPORTANTPRECAUTIONS
When the machine is being installed,
make sure that a disconnecting switch is
installed on the power supply line by a qualified
technician.
Always ensure that the plug is disconnected
from the mains before putting your hands inside
the machine or before performing cleaning or
maintenance operations.
(Contact a qualified technician whenever
maintenance is required).
Never clean the machine using a water jet
under pressure.
Always ensure that the plug is disconnected
from the mains before removing the housing,
side panels or any other protection in order to
carry out any operation within the inner part
of the machine.
(Such operations must only be performed by a
qualified technician)
Thanking you once again, we wish you all the best.

PROMAG STARCREM 30 Evolution - STARCREM 60 Evolution
GB
7
USER INSTRUCTIONS
Environmental conditions
Machine description
Number of users and type of work
Productive cycle
Operating modes
Precautions
Safety devices
Machine use
Description of external components
Correct use of product dispensing cock
Scraping blades
Description of internal components
Dangerous points on the machine
Protection measures for dangerous machine areas
Risks information
Recommendations on prevention measures to be adopted
Installation/Use of machine
Machine preparation
Operation
Execution of automatic programs
Cycles
User programs construction
Programs reading
Deleting a user program
User programming
Invertermanualfunction
Black out
Alarms
Operations to be performed after use
Dismantling
Technicalcharacteristics
Dimensions
Programming table inverter
8
9
10
10
10
11
12/14
15
16/22
23/24
25
26
27/28
29
29/30
30/31
32
32
33/34
35
36/37
38/39
40
40
41
42
43
44
45
46
47
48
50
A 1
A 2
A 3
A 4
A 5
A 6
A 7
A 8
A 9
A10
A11
A12
A13/A14
A15
A16
A17
A18/A19
A20
A21
A 22
A23/A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A
page
page
page
page
page
page
page
page
page
page
page
page
page
page
page
page
page
page
page
page
page
page
page
page
page
page
page
page
page
page
page
page
page
INSTRUCTIONSFORTHEUSERANDTHETECHNICIAN-INSTALLER

PROMAG
STARCREM 30 Evolution - STARCREM 60 Evolution
GB
USER INSTRUCTIONS
8
A 1.1
MACHINE OPERATING NOISE LEVELS
A1-ENVIRONMENTALCONDITIONS
The machine must not be kept in a room where the
temperature can drop below 0° C.
The machine is not designed for installation in
atmospheres where there is a risk of explosion.

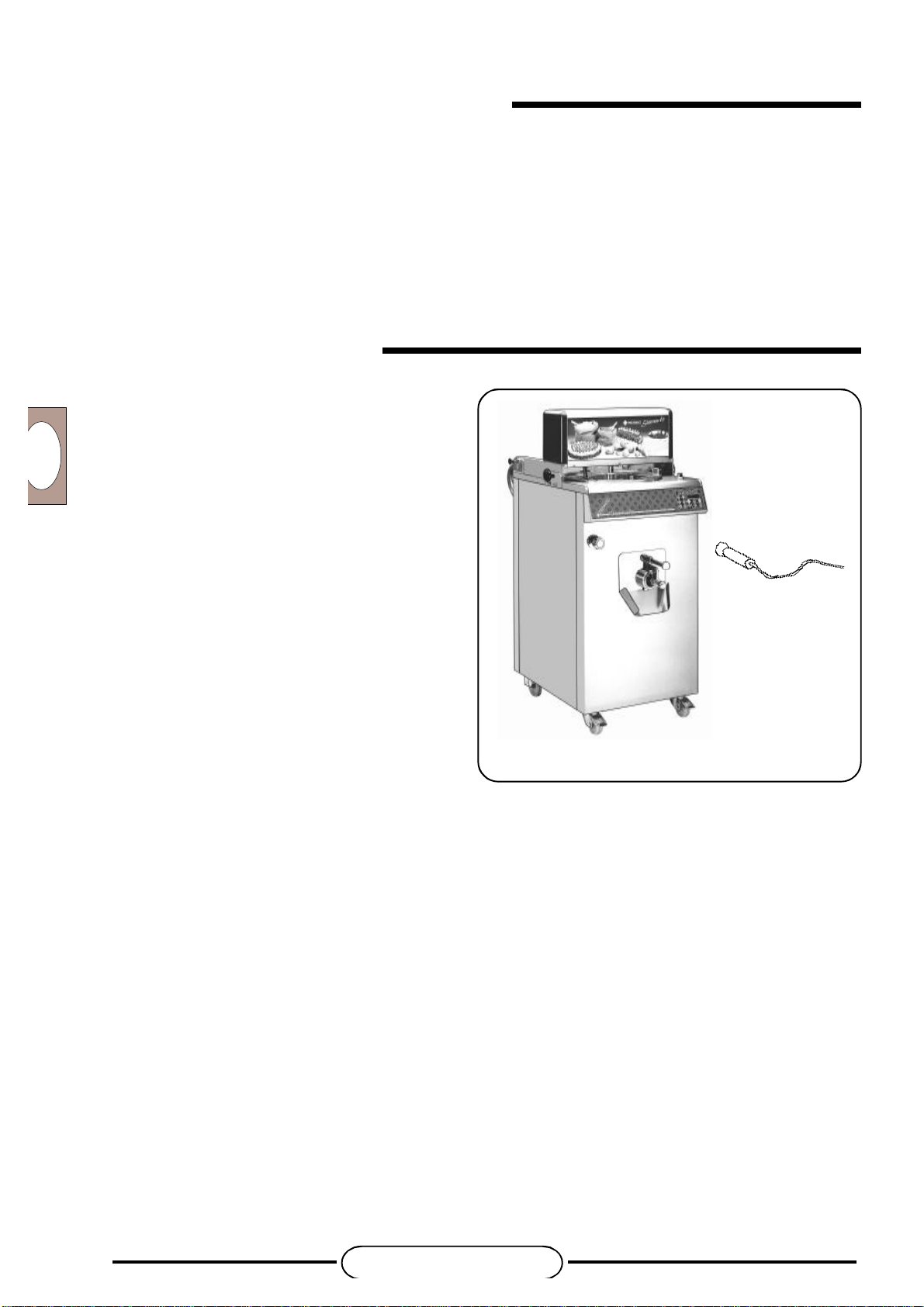

The acoustical pressure level produced by the
machine is shown on the enclosed technical
diagram.
Measurements were made throughout the operating
cycle using a class 1 instrument held
at the point where the user stands in relation to the
machine (as indicated in the sketch).
Level of continuous acoustical pressure measured
with a ponderation "A" filter.
STARCREM30-STARCREM 60
dB (A) 61 ÷ 65

PROMAG STARCREM 30 Evolution - STARCREM 60 Evolution
GB
9
USER INSTRUCTIONS
A2-MACHINEDESCRIPTION
Significanceoftrade-marknames
STARCREM 30 = 30 litres
STARCREM 60 = 60 litres
Function:
MULTIFUNCTIONALMACHINETOBEUSEDEXCLUSIVELYFORPASTRY
PRODUCTS (CREAM COOKING) AND ICE CREAM MAKING
(PREPARATION AND/OR PASTEURIZATION OF ICE CREAM MIXES,
MAINTENANCEAND/ORMATURINGOFICECREAMMIXES).
For technical data of machines, see enclosures.
Machinecomponents
Themachineiscompletewithamainframewithastainless
steel structure, the base of which is provided with four
wheels, one at each corner.
The frame is parallelpipedal, containing the cylinder,
electric box and cooling system.
Thecylinderismounted vertically, disposingofacooling
systemonexternalsurface(containingrefrigeratinggas),
a heating system (containing water) and a deep basin
(containingwater),inwhichresistancesarelocated, and
wherebyheatingiscarriedoutwith"bain-marie"method,
a particular characteristic of Promag.
The low speed and high speed mixer shafts are
immersed in the cylinder. They are connected to
respectivemotors,thelatterbeingassembledontomotor
bearings.
The main cooling system elements comprise: a
compressor, a condenser, a thermostatic valve and a
compressor pressure switch.
The cylinder diposes of an outlet which is located on the
front side of the machine. This opening may be closed
withacock, providedwithapistonwithtwoO-ring seals.
Above closes outlet at the level of container edge. This
solution guarantees a perfect hygiene, as the mix
contained in the cylinder has no chance of stagnating in
the stub pipe.
The outlet diameter may also be reduced for the
discharge of extremely liquid mixes.
Twohalf-lidsarelocatedattheupperpartofthecylinder,
served by two magnetic safety microswitches.
On opening any one of the two lids, all machine
operations will be interrupted and "OPEN" will appear
on the display.
As already mentioned, the motors are mounted on
motor bearings.
Above are served by a magnetic safety microswitch.
On lifting the motor bearings, all operations of the
machine are interrupted and "OPEN" will appear on
the display.
The manual cock commanding the small washing
shower unit is located on the upper left front side of
the machine.
The small shower unit is situated on the bottom of the
cylinder in the right-hand corner.
Acontrolpanel,facinginwards,islocatedontheupper
front side of the machine, where an electronic card
may be found.

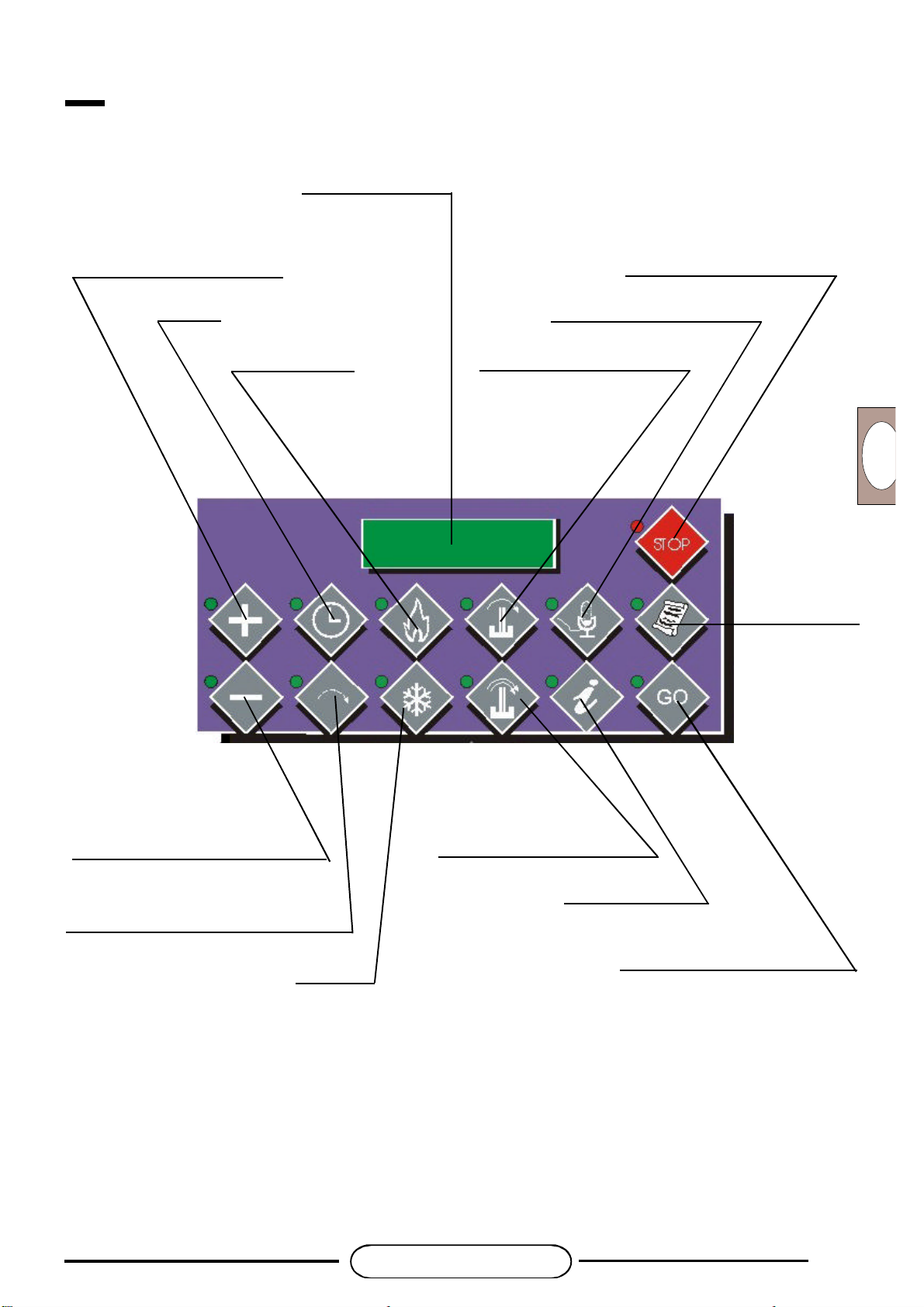

Control buttons are accessible on control panel.
The electric box, as described above, is also included
inside the frame and is positioned on the rear side of
same.
Water connections for cooling system are present on
the rear side of the machine, in addition to those for
drinking water for small shower unit.
Electric feed cables are also present.

PROMAG
STARCREM 30 Evolution - STARCREM 60 Evolution
GB
USER INSTRUCTIONS
10
A3 -NUMBEROFUSERS ANDTYPEOFWORK
The machine is designed to be used by one
operator only, in charge of loading product to be
processed, setting productive cycle and
subsequent recovery of product through cock.
A 4 -PRODUCTIVECYCLE
The user opens the front half-lid (34) and pours the
product into the cylinder, closing same.
He starts up productive cycle, after having set
appropriate parameters with buttons (36).
He unloads product by using special cock (37).
A5 -OPERATINGMODES
The machine is designed for a single type of
continuous operation, on pressing heating or
maintenance buttons.
Machine stops automatically.
Machine is also designed for manual operation on
pressing buttons for low speed stirring, intermittent
low speed stirring, high speed stirring.

PROMAG STARCREM 30 Evolution - STARCREM 60 Evolution
GB
11
USER INSTRUCTIONS
A6-PRECAUTIONS
(Fortheuser only)
It is forbidden and very dangerous for user to carry out any intervention which should
bedoneby aTECHNICIAN/INSTALLER.
Removal of protective coverings and access to internal parts of machine, in addition to all internal
maintenance operations, repairs, installation, transport and unpacking must be
carried out by qualified personnel.
Dangerpoints
Themachinehas certaindangerpointsandareaswhere
accidents may occur if the following precautions are not
observed.
-Itisforbiddenandverydangeroustoapproachmachine
cylinder when same is turned on or in motion.
- It is forbidden and very dangerous to carry out
anyrepairson system, whether mechanical or electrical,
when the machine is functioning.
Refer to enclosures for electric and water systems.
- It is forbidden to use the machine without operatorís
supervision.
- It is forbidden and very dangerous to come too near
and/ortouch with any part ofthebody and/or any type of
object the shaft bars: low speed and high speed mixers
project from cylinder covers
until reaching motor bearings.
For the same reason do not approach relative motors
from rear side of motor casing.
- It is forbidden and very dangerous to introduce parts of
the body or any type of object into the product outlet.
- It is dangerous to touch machine ON/OFF wall switch
withwethands.
- It is strictly forbidden to open electric box.
- It is forbidden and very dangerous to approach
the machine with magnetic materials, as they
would interfere with magnetic safety microswitches
located under the two cylinder half-lids and under the
right shoulders of the motor bearings

PROMAG
STARCREM 30 Evolution - STARCREM 60 Evolution
GB
USER INSTRUCTIONS
12
21

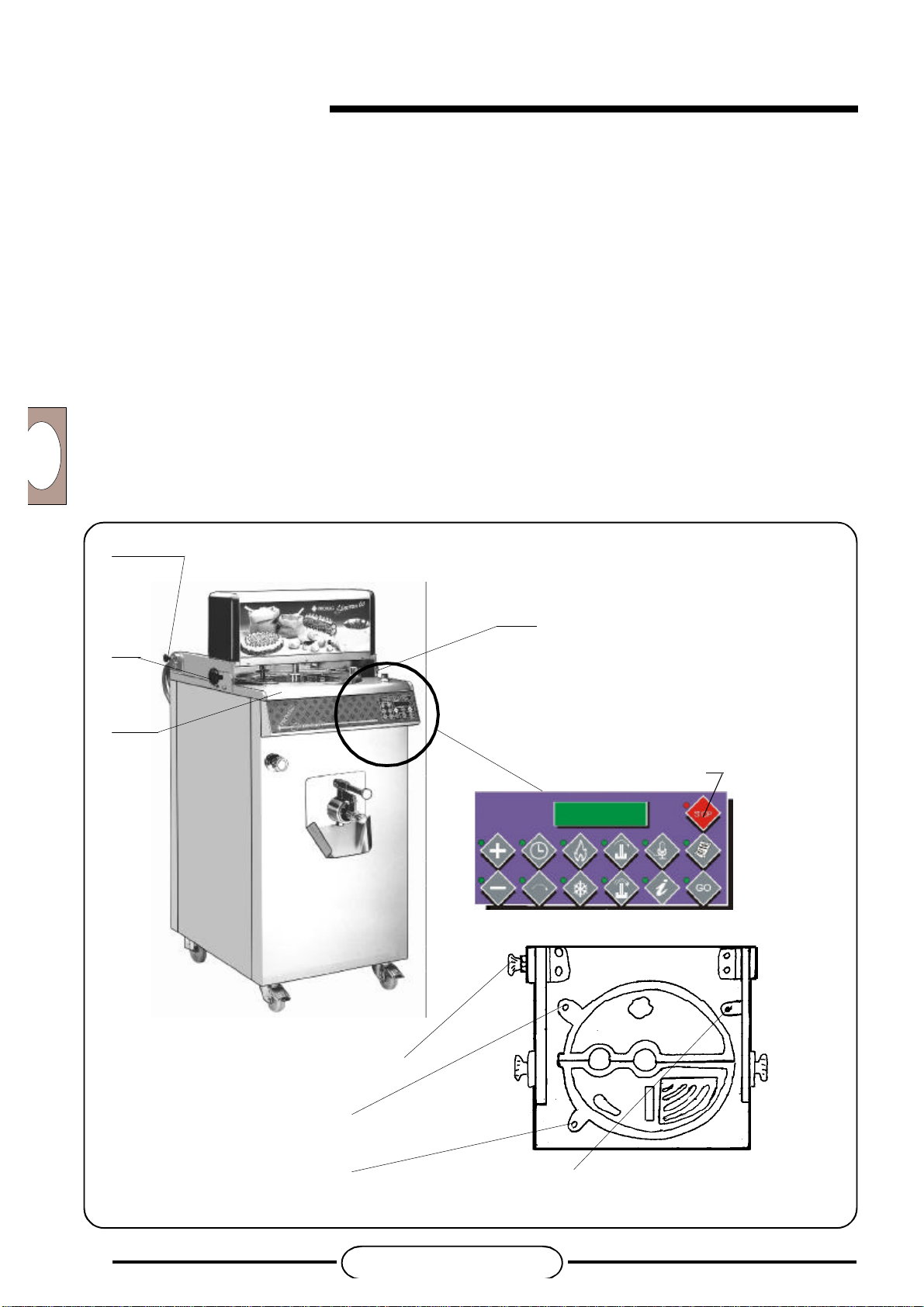

A7 -SAFETYDEVICES
A 7.1
Three magnetic microswitches are mounted onto the
STARCREMmachines(19)(20)(21).
Microswitch (19) is located on the front left-hand side
under the cylinder.
Microswitch (20) is located on the rear right-hand
side under the cylinder.
Microswitch (21) is located on the rear left-hand side
under the cylinder.
Their purpose is to block any machine operation
should the front half-lid [(microswitch (19)], motor
bearings [(microswitch (20)], rear half-lid
[(microswitch (21)], be opened or lifted with the
machine in operation.
19 Frontleft-handmicroswitch
21 Rear left-hand microswitch
22 Blocking device for motor bearings
20 Rearright-hand microswitch
20
22
19
A 7.2
There is a machine stop button (7) located on the
control panel at the front of the machine which, when
pressed, stops any machine operation.
A 7.3
- 12 Volt control panel.
7

PROMAG STARCREM 30 Evolution - STARCREM 60 Evolution
GB
13
USER INSTRUCTIONS
A 7.5
The STARCREM machines also have a safety device
to block the motor bearings (22).
The purpose of this is to prevent motor bearings falling
onto cylinder plane, should the latter be lifted for either
cleaning of mixer shafts or for any other reason.

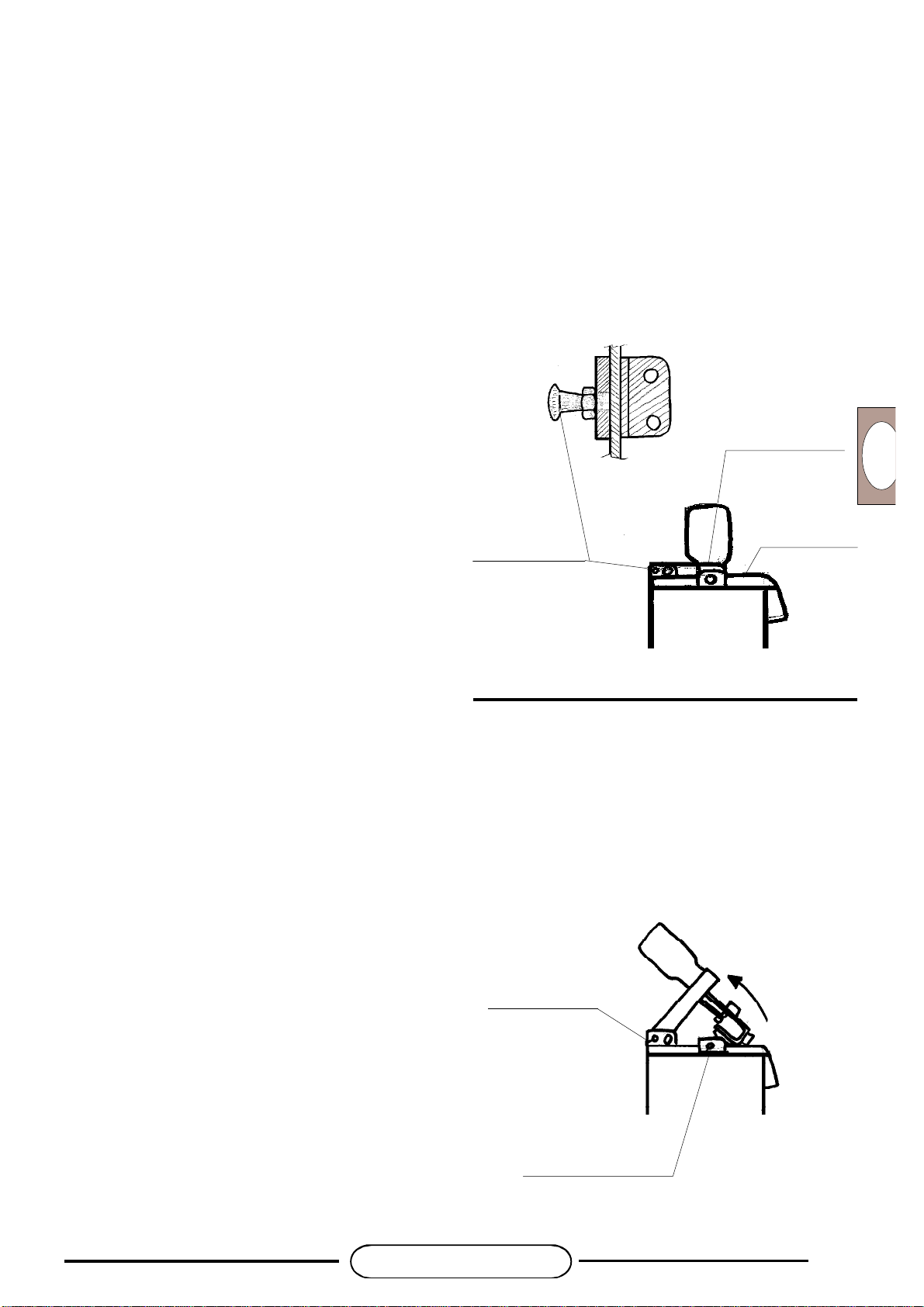

A7.5a
Normal position of motor bearings with machine in
operation. The motor bearing leans on cylinder plane
and disconnected blocking device.
A 7.5b
Turnover phase of motor bearings.
The motor bearing may be lifted subsequent to
unscrewing of closing handwheel screws.
Perform above operation with extreme care, so that
motor bearing does not fall on cylinder plane,
subsequently hitting operator and causing serious
damage.
Until motor bearing is not in a vertical position, the
relative safety blocking device will not be activated;
therefore, as already mentioned, it is the operatorís
responsibility to take precautions, utilizing the
necessary measures to prevent risks of crushing,
entangling, or cutting with regard to persons, animals
or objects.
Blocking
device Cylinder plane
Motor bearing
Hinge pin
Closinghandwheel

PROMAG
STARCREM 30 Evolution - STARCREM 60 Evolution
GB
USER INSTRUCTIONS
14

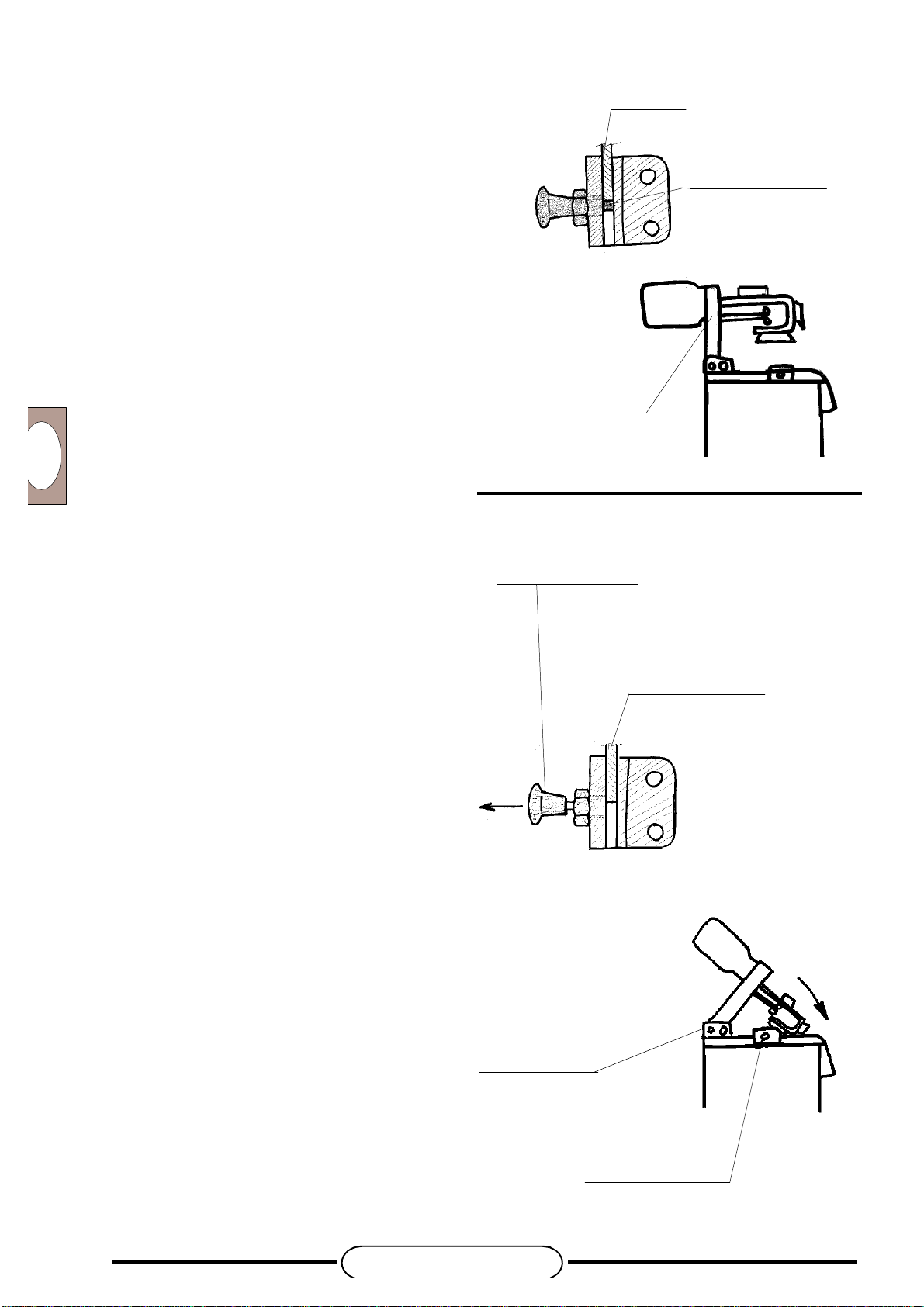

A. 7.5c
Motor bearing entirely upturned: motor bearing has
been completely lifted, therefore now in vertical
position. Only in this position will the blocking
security device be activated, causing the block pip
to protrude.
In this manner, the motor bearing cannot fall onto the
cylinder plane and cleaning and washing operations
may be safely performed.
However, it is always necessary to check that above
device is functioning properly, together with wear of
same.
Should any deterioration be detected, please
contact authorized technical service.
A. 7.5e
Closing of motor bearing on cylinder plane.
In order to carry out this operation, it is necessary to
unblock security device.
With the right hand, firmly maintain motor bearing in
vertical position; contemporarily pull the security
device knob towards the left with the left hand.
Slightly lower motor bearing, until block pip grazes
over left shoulder of motor bearing. In this position,
safety block may no longer be activated.
Firmly grip motor bearing with both hands,
subsequently lowering same onto cylinder plane.
Carry out this operation extremely carefully, avoiding
that motor bearing falls abruptly onto cylinder plane,
subsequently hitting operator and causing serious
damage.
When closing motor bearing, it is operatorís
responsibility to be careful, taking necessary
precautions to prevent risks of crushing, entangling
and cutting with respect to persons, animals or
things.
When the motor bearing is on the cylinder plane,
block it with two closing handwheels.
Motor bearing left
shoulder
Blocking pip
Motor bearing in
vertical position
Hinge pin
Motor bearing left
shoulder
Closing handwheel
Safety device knob

PROMAG STARCREM 30 Evolution - STARCREM 60 Evolution
GB
15
USER INSTRUCTIONS
A8- MACHINEUSE
Use according to norms.
STARCREM machines are expressly designed to
cook cream, being multifunctional and only
destined for pastry products (cream cooking), ice
cream making (preparation and/or pasteurization of
ice cream mixes), maintenance and/or maturing of
ice cream mixes.
Use for any other purpose will not conform to the
norms.
The manufacturer is not responsible for any
damages deriving from improper use.
Any risks will be borne by user.
Manufactureríssafety, operational and maintenance
regulations must be observed.
The norms in force regarding accident prevention
and other acknowledged technical safety
regulations must also be observed.
Only properly trained and qualified personnel may
use, maintain or repair the machine.
The machine is mainly manufactured in stainless
steel AISI 304, together with plastic material as for
the food industry.
Any arbitrary modifications made to the machine will
exonerate manufacturer from any eventual damages
deriving therefrom.
The machine may only be used with original
accessories and spare parts made by the
manufacturer.

PROMAG
STARCREM 30 Evolution - STARCREM 60 Evolution
GB
USER INSTRUCTIONS
16
A9- DESCRIPTION OF EXTERNALCOMPONENTS(frontview)
49) Motor bearing
blocking device
A9- DESCRIPTIONOFEXTERNALCOMPONENTS
(top view without motor casing)
48)Rotatingfrontwheels
34)Fronthalf-lid
38) Motor casing
35)Rearhalf-lid
43) Shower cock
37) Product outlet cock
44) Slide
39) Motor bearing
41) Closing handwheel 36) Control panel
42) Small shower
40)Hinge
45)Outletfor
dense products
46)Outletfor
liquid products
47) Fixed rear wheels

PROMAG STARCREM 30 Evolution - STARCREM 60 Evolution
GB
17
USER INSTRUCTIONS
A 9 - DESCRIPTIONOF EXTERNALCOMPONENTS(Control panel)
11)
programmed
recipes key
Alphameric display
10)User programming key
Function confirmation key
6) Temperature SET incrementing
8) Timer
1) Heating 3) ON/OFF low speed beater motor
9) Machine stop key
alarms reset
12) Recipes recording key
5)Temperature SET decrementing
4) Intermittent low speed beater motor
2) Cooling
7) ON/OFF high speed
beater motor
13) Info (events)

PROMAG
STARCREM 30 Evolution - STARCREM 60 Evolution
GB
USER INSTRUCTIONS
18
A 9 - DESCRIPTION OF INTERNAL COMPONENTS (controls)
A 9.1
Machine stop - alarms reset
In this function, the machine is not working and its
led is on. From stop position, access to any machine
function is made possible. On display: real time
This button is also used to reset every alarm.
A 9.2
ON/OFF low speed beater motor
This button activates beating in the tank. The function
can be deactivated with STOP key. Time as well as
mix temperature in the tank are displayed.
Low speed beating is controlled by an Inverter. That's
why low speed beating is divided into 3 speed
modes: Low, Mid and High.
One pressure of this key will fixed-light relevant led
and activates Low speed.
If the same key is pressed twice, relevant led will
blink and Mid Speed will be activated.
On third pressure, led will blink more quickly and
High Speed will be activated.
When pressing the same key again, beating mode
will be deactivated.
A 9.3
INTERMITTENT low speed beater motor
anyofLOWBEATINGMODEScanbeINTERMITTENT
if you press this button.
One can insert intermittence only after activating a
beating mode.
A 9.4
ON/OFF high speed beater motor
This key activates toggle high speed beating in tank.
High speed beater motor is independent of low speed
beater motor .
The screen displays time and temperature of mix
inside the tank.
Intermittent high speed beating activation is not
allowed.
A 9.5
Functions confirmation
By pressing this key you confirm the execution of
an automatic program selected.

PROMAG STARCREM 30 Evolution - STARCREM 60 Evolution
GB
19
USER INSTRUCTIONS
A 9.6
Heating
By pressing this key, the screen will display the time on
top, the temperature to be reached (set) down leftwards
and the real temperature read in that moment down
rightwards.
The product is heated till pre-set temperature (set) is
reached and held through Low Speed low beating on
continuousrunning.
By pressing low speed beating key, you can change
speedmodeordisableitinordertogetastaticheating.
Itisalsopossibletoactivateanddeactivatehighspeed
beating by pressing relevant key.
With buttons (5) Decrementing or (6) Incrementing
onecanrespectivelydecreaseandincreasethevalueof
pre-settemperature(set).
A 9.7
Cooling
By pressing this key, the screen will display the time on
top, the temperature to be reached (set) down leftwards
and the real temperature read in that moment down
rightwards.
The product is cooled till pre-set temperature (set) is
reached and held through low speed beating.
By pressing low speed beating key, you can change
speed mode or disable it.
Itisalsopossibletoactivateanddeactivatehighspeed
beating by pressing relevant key.
With buttons (5) Decrementing or (6) Incrementing
onecanrespectivelydecreaseandincreasethevalueof
pre-settemperature(set).
A 9.8
Incrementing
This key is used to increment temperature sets,
whenever it is allowed (relevant led on).
In programming mode, it is used to increase the value
of programming steps.
A 9.9
Decrementing
This key is used to decrement temperature sets,
whenever it is allowed (relevant led on).
In programming mode, it is used to decrease the value
of programming steps.

PROMAG
STARCREM 30 Evolution - STARCREM 60 Evolution
GB
USER INSTRUCTIONS
20
A 9.10
Timer
This timer is linked up with acoustic signal, only.
Once it is pressed, the screen display time on top, set
value down leftwards and incrementing time down
leftwards.
An acoustic signal will warn you that time is over.
The value can be changed through (5) decrementing
and (6) incrementing keys 1 to 59 minutes; if you go
on increasing the value, hours (minutes may no longer
be changed) will automatically increase up to a
maximum of 9.
A 9.11
Info (events)
The machine has a wide memory which helps us
storing most events (selected functions, alarms, etc.)
In order to read events it is necessary to set the machine
at STOP and press INFO key. The screen will display
the most recent event and will also indicate date and
time of happening. Events can be scrolled using
incrementing and decrementing keys.
In order to leave events mode, press STOP or just
wait for 15".
A 9.12
Recipes recording
This key has different functions referring to reading,
personalizing and constructing recipes personalized by
the user.
In order to construct a recipe, it is necessary to set the
machine at STOP and press recipes recording key : the
machine will automatically set at the first free program
(1÷9).
It is time to insert the necessary functions of the
program steps, now (heating, cooling, timer, etc.). Press
the Recipes Recording in order to store and enter next
step. Max. number of steps per program is 25. Going
beyond this limit, the screen would display "Steps out",
so returning to STOP and cancelling the porgram.
A 9.13
Programmed recipes
By pressing this key, the first available automatic
program will be displayed. You have 8 automatic
programs and can select them by means of
incrementing and decrementing buttons. Once the
program you may wish to execute is selected, press
selection confirmation key (10).
