1
Chapter 1: Introduction
• About This Manual, below
• Overview, page 6
• Key Features and Benefits, page 7
• Specifications, page 8
Thank you for purchasing Promise Technology’s SATAII150 SX8 PCI-X Serial
ATA Host Bus Adapter card.
About This Manual
This User Manual describes how to setup, use and maintain the SATAII150 SX8
Serial ATA HBA card.
This manual includes a full table of contents, chapter task lists and cross-
references to help you find the specific information you are looking for.
Also included are four levels of notices:
Note
A Note provides helpful information such as hints or alternative
ways of doing a task.
Important
An Important calls attention to an essential step or point required
to complete a task. Important items include things often missed.
Caution
A Caution informs you of possible equipment damage or loss of
data and how to avoid them.
Warning
A Warning notifies you of probable equipment damage or loss of
data, or the possibility of physical injury, and how to avoid them.

SATAII150 SX8 User Manual
2
Overview
The SATAII150 SX8 card is a PCI-X device and supports up to eight Serial ATA
disk drives.

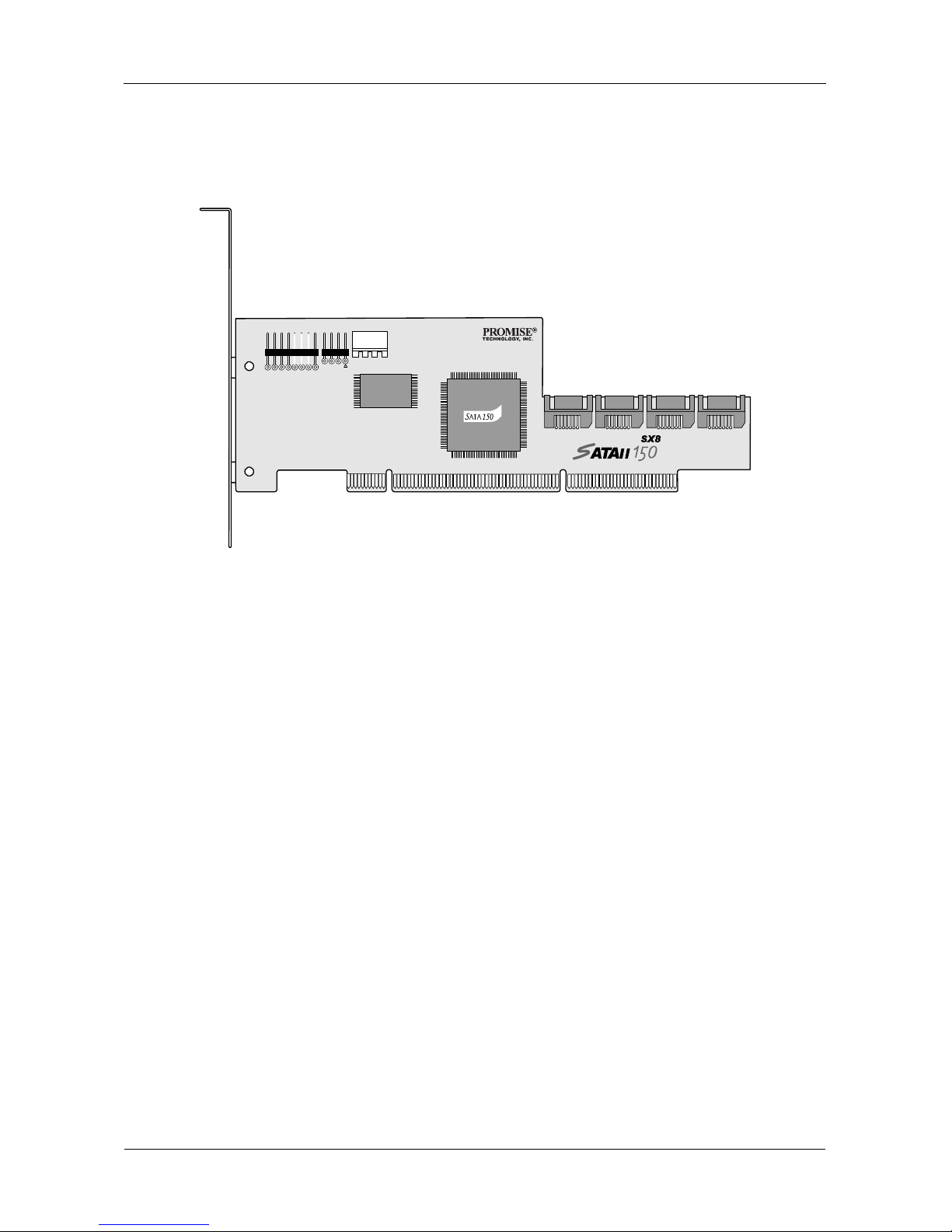

Figure 1. SATAII150-SX8 Controller Card

Chapter 1: Introduction
3
Key Features and Benefits
The following information offers an overview of the major features of your new
Promise SATAII150 SX8 Controller card.
Advanced Hardware Design
Features Benefits
Supports 150 MB/s per drive
transfers with CRC error
checking
Provides maximum data transfer and error
checking performance under Serial ATA
Specification 1.0.
LBA support Supports drives greater than 137 GB capacity.
Independent data channels
for Serial ATA drives
Each drive uses a separate data channel.
One LED header per drive
port
Provides for an LED for each individual disk
drive.
PCI Plug-n-Play, PCI Interrupt
sharing and coexists with
motherboard IDE and SCSI
controllers
Easy to install; supports up to 8 Serial ATA
drives on the SATAII150 SX8 Controller card
while still supporting 4 devices on motherboard
ATA controller.
Supports Serial ATA hot
plugging
Reports disk drives to OS as removeable drives.
Compatibility
Features Benefits
Compatible with Serial ATA
Specification 1.0
Provides full compatibility with first generation
Serial ATA hard drives.
Complies with SATA II
Specification 1.0 – Extensions
to Serial ATA 1.0
Provides staggered drive spinup and HDD
activity indication.
Supports BIOS Boot
Specification
All drives attached to the SATAII150-SX8 card
appear in the BBS-compliant motherboards
BIOS boot list.
Tested compatibility to coexist
with motherboards that have
integrated IDE controllers
Improves system performance and minimizes
system conflicts for new and existing
installations.
Compatible with Promise
SuperSwap enclosures
Provides HDD activity indication for enclosure.

SATAII150 SX8 User Manual
4
Specifications
• Low-profile printed circuit board
• Supports PCI-X 66, 100 and 133 MHz
• Controller card dimensions (excluding bracket):
2.28 x 7.48 x 0.51 inches (58 x 190 x 13 mm)
• Operating Temperature range 32° to 122°F (0°C to 50°C)
• Relative Humidity range 5% to 95% (non-condensing)
• Certifications: CE, FCC Class B, BSMI, C-tick, UL, cUL, MIC, VCCI

5
Chapter 2: Installation
• Unpack your SATAII150 SX8 (below)
• Install the SATAII150 SX8 card (page 6)
• Install the disk drives (page 7)
• Set Parameter Configuration (page 9)
Unpack your SATAII150 SX8
The SATAII150 SX8 box contains the following items:
• SATAII150 SX8 Host Bus Adapter
Card
• Diskette with Drivers for Windows
Server 2003, XP and 2000
• (8) 65-cm [25-inch] Serial ATA
Cables
• CD with all Drivers and User
Manual in PDF format
• (1) Low-profile Bracket • Quick Start Guide
Warning
SATAII150 SX8, like other parts of your system, is subject to
damage by static electricity. Be sure that you are properly
grounded (Promise recommends that you wear an anti-static strap
or touch a grounded object) and that you unplug your system
before installing SATAII150 SX8 or handling its components.
Important
If you wish to include your current bootable Serial ATA drive using
the Windows 2000, XP or Server 2003 operating system on your
SATAII150 SX8 card, do NOT connect the disk drive to the card
yet.
You MUST install the Windows 2000, XP or Server 2003 driver
software first onto this drive while it is still attached to your existing
hard drive controller.

SATAII150 SX8 User Manual
6
Installing the SATAII150 SX8 Card
The SATAII150 SX8 card fits into any available 3.3-volt PCI-X slot.
You cannot plug the SATAII150 SX8 into a 5-volt PCI slot.
1. Remove the cover of your system.
2. Remove the inside slot cover of an available PCI-X slot on the motherboard.
3. Install the SATAII150 SX8 card into the open PCI-X slot (see above). Secure
the bracket to the system’s frame.

Chapter 2: Installation
7
4. Attach your system’s LED cables to the individual or aggregate LED
connectors on the SATAII150 SX8 card as appropriate (above).
5. If your system supports SMBus, attach your SMBus cable to the SMBus
connector on the SATAII150 SX8 card.
Install the Disk Drives
SATAII150 SX8 card supports up to eight Serial ATA disk drives.
1. Install all of the Serial ATA disk drives into the drive bays of your system,
including their power cables.
If you are using SuperSwap Enclosures, the SMBus ID of each HDD must
match the HDD Channel number.
Aggregate LED Connectors
SATA Connectors
Individual LED Connectors
SMBus Connector

SATAII150 SX8 User Manual
8
2. Attach one Serial ATA data cable to each disk drive. Then attach the other
end of the cable to a Serial ATA port on the SATAII150 SX8 card. All of the
connectors are keyed so they will only attach one way.

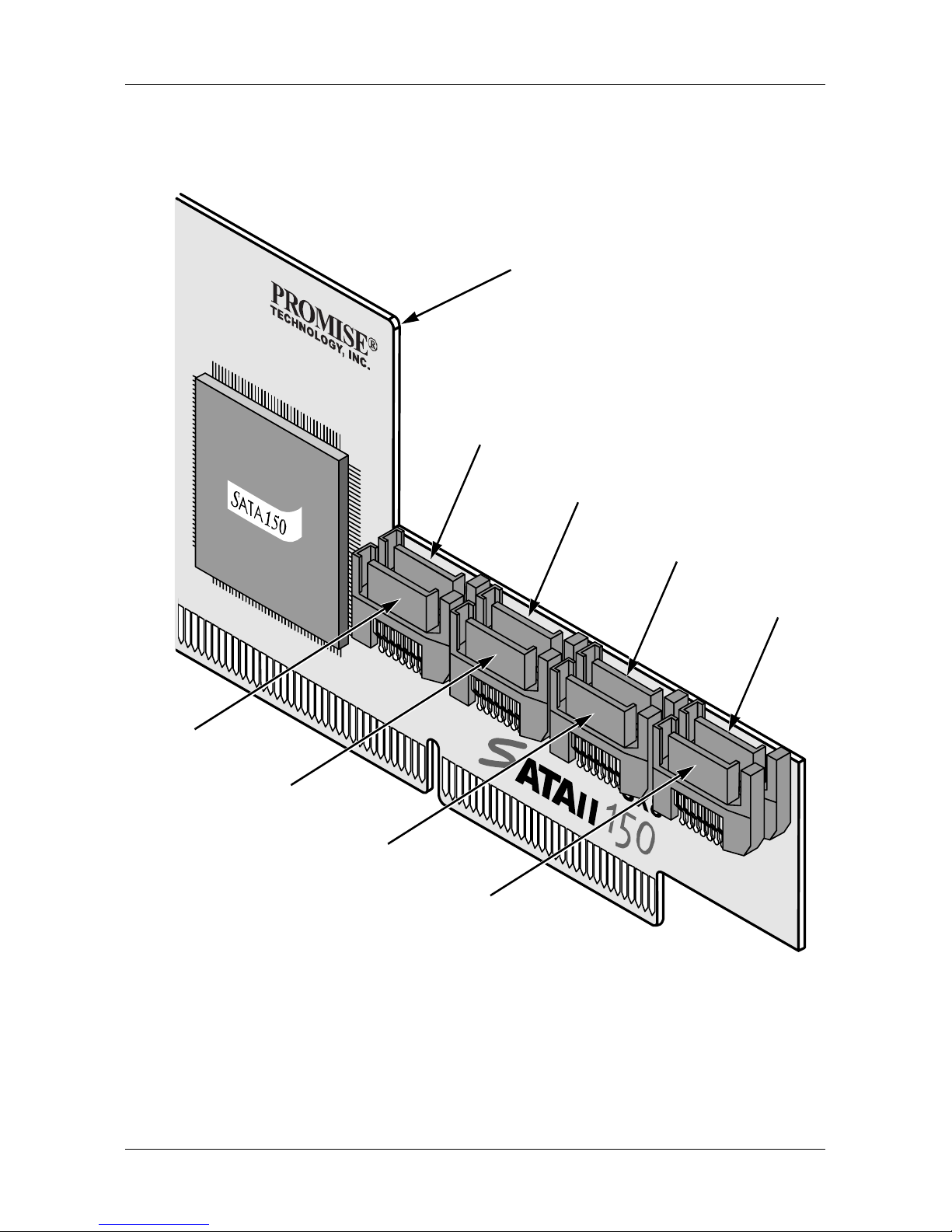

There are eight ports or channel connectors on the SATAII150 SX8 card.
The figure above shows how they are numbered.
3. Close your PC when you are finished.
Port 7
Port 5
Port 3
Port 1
Port 8
Port 6
Port 4
Port 2
SATAII150 SX8 Card

Chapter 2: Installation
9
Set Parameter Configuration
1. Boot your PC.
2. When the SATAII150 SX8 BIOS appears, press Ctrl-F to access the
Parameter Configuration.
Staggered Spinup Interval – Spins up the disk drives at a staggered time
intervals in order to avoid a sudden heavy drain on the power supply.
SATAII150 SX8 SROM parameter configuration
[ Main Menu ]
Staggered Spinup Interval:
[ Keys Available ]
0.5 sec
[ ]Up [ ]Down [Space]Change [Tab]Function Switch [ESC]Exit [Ctrl-Y]Save

SATAII150 SX8 User Manual
10
3. In the first screen, press the Spacebar to move between Staggered Spinup
Intervals. The choices are:
• 0.5 second
• 1.0 second
• 1.5 seconds
• 2.0 seconds
• 2.5 seconds
• 3.0 seconds
• Disable (all drives spin up together)
To exit the Configuration without saving your settings, press the Esc key, then
press Y to confirm your exit.
Go on to Chapter 3: Install Software Drivers.

11
Chapter 3: Install Software Drivers
• Windows Server 2003 (below)
• Windows XP (page 17)
• Windows 2000 (page 19)
• Additional Drivers, Updated Drivers (page 20)
Following are driver installation procedures for the Windows operating systems
that support the Promise SATAII150 SX8 Controller card. The SATAII150 SX8
software drivers for Windows are included on the driver diskette. Additional and
updated drivers are downloadable from the Promise website at
www.promise.com.
Windows Server 2003
New Installation
The following details the installation of the SATAII150 SX8 drivers while installing
Windows Server 2003.
1. Start the installation:
• Floppy Install: Boot the computer with the Windows Server 2003
installation diskettes.
• Floppyless Install: Boot from floppy and type WINNT. After files have
been copied, the system will reboot. On the reboot, press F6 after the
message: “Setup is inspecting your computer’s hardware
configuration...” appears.
• CD-ROM Install: Boot from the CD-ROM. Press F6 when the message
“Press F6 if you need to install third party SCSI or RAID driver” appears.
2. When the Windows Server 2003 Setup window is generated, press S to
specify an Additional Device(s)
Important
If you wish to include your current bootable Serial ATA drive using
the Windows 2000, XP or Server 2003 operating system on your
SATAII150 SX8 card, do NOT connect the disk drive to the card
yet.
You MUST install the Windows 2000, XP or Server 2003 driver
software first onto this drive while it is still attached to your existing
hard drive controller.

SATAII150 SX8 User Manual
12
3. Insert the Promise SATAII150 SX8 Series Driver Diskette into drive A: and
press Enter.
4. Choose Windows Server 2003 Promise SATAII150 SX8 Controller from the
list that appears on screen, and then press Enter.
NOTE: If installing Windows Server 2003 for AMD 64bit system, choose
Windows Server 2003 AMD 64-bits Promise SATAII150 SX8 Controller from
the list.
5. The Windows Server 2003 Setup screen will appear again saying “Setup will
load support for the following mass storage devices:” The list will include
Windows Server 2003 Promise SATAII150 SX8 Controller.
NOTE: If there are any additional devices to be installed, specify them now.
When all devices are specified, continue to the next step.
6. From the Windows Server 2003 Setup screen, press the Enter. Setup will
now load all device files and then continue the Windows Server 2003
installation.
NOTE: If a Windows Logo Testing warning dialog box appears for any of the
following, click the Yes button.
• Windows Server 2003 Promise SATAII150 SX8 Controller
• Windows Server 2003 Promise SAF-TE Processor Device
• Windows Server 2003 Promise API Console SCSI Processor Device
Existing Installation
After installing the SATAII150 SX8 card and rebooting your system, Windows XP
setup will show a “Found New Hardware” dialog box. Under Windows Server
2003, “Mass Storage Controller” will be displayed.
1. Insert the Promise SATAII150 SX8 Driver Diskette into the A:\ drive.
2. Choose Install the software automatically and press the Enter key.
3. Choose Windows Server 2003 Promise SATAII150 SX8 Controller from the
list that appears on screen:
• Use a:\i386\wnet\s150sx8.inf for x86 system
• Use a:\amd64\wnet\s150sx8.inf for AMD 64bit system
Then press the Enter key.
4. If using a driver that has not been digitally signed by Microsoft, you will be
asked if you want to continue the installation. Click Continue Anyway.
5. When the New Hardware Wizard has finished installing the SATAII150 SX
Series software, click Finish and restart the system.

Chapter 3: Install Software Drivers
13
6. After restarting, system will find Windows Server 2003 Promise API Console
SCSI Processor Device and/or Windows Server 2003 Promise SAF-TE
Processor Device. Repeat steps 1 through 5, above.
Confirm Installation
1. Right-click the My Computer icon and select Manage from the popup menu.
2. Click Device Manager in the menu tree.
3. Click the “+” in front of SCSI and RAID controllers, Windows Server 2003
Promise SATAII150 SX8 Controller should appear.
Windows XP
New Installation
The following details the installation of the SATAII150 SX8 drivers while installing
Windows XP.
1. Start the installation:
• Floppy Install: Boot the computer with the Windows XP installation
diskettes.
• Floppyless Install: Boot from floppy and type WINNT. After files have
been copied, the system will reboot. On the reboot, press F6 after the
message: “Setup is inspecting your computer’s hardware
configuration...” appears.
• CD-ROM Install: Boot from the CD-ROM. Press F6 when the message
“Press F6 if you need to install third party SCSI or RAID driver” appears.
2. When the Windows XP Setup window is generated, press S to specify an
Additional Device(s)
3. Insert the Promise SATAII150 SX8 Driver Diskette into drive A: and press
Enter.
4. Choose Windows XP Promise SATAII150 SX8 Controller from the list that
appears on screen, and then press Enter.
NOTE: If installing Windows XP for AMD 64bit system, choose Windows XP
AMD 64-bits Promise SATAII150 SX8 Controller from the list.
5. The Windows XP Setup screen will appear again saying “Setup will load
support for the following mass storage devices:” The list will include WinXP
Promise SATAII150 SX8 Controller.
6. NOTE: If there are any additional devices to be installed, specify them now.
When all devices are specified, continue to the next step.

SATAII150 SX8 User Manual
14
7. From the Windows XP Setup screen, press the Enter. Setup will now load all
device files and then continue the Windows XP installation.
NOTE: If a Windows Logo Testing warning dialog box appears for any of the
following, click the Yes button.
• Windows XP Promise SAF-TE Processor Device
• Windows XP Promise API Console SCSI Processor Device
Existing Installation
After installing the SATAII150 SX8 card and rebooting your system, Windows XP
setup will show a “Found New Hardware” dialog box. Under Windows XP, “Mass
Storage Controller” will be displayed.
1. Insert the Promise SATAII150 SX8 Driver Diskette into the A:\ drive.
2. Choose Install the software automatically and press the Enter key.
3. Choose Windows XP Promise SATAII150 SX8 Controller from the list that
appears on screen:
• Use a:\i386\wnet\s150sx8.inf for x86 system
• Use a:\amd64\wnet\s150sx8.inf for AMD 64bit system
Then press the Enter key.
4. If using a driver that has not been digitally signed by Microsoft, you will be
asked if you want to continue the installation. Click Continue Anyway.
5. When the New Hardware Wizard has finished installing the SATAII150 SX
Series software, click Finish and restart the system.
6. After restarting, system will find Windows XP Promise API Console SCSI
Processor Device and/or Windows XP Promise SAF-TE Processor Device.
Repeat steps 1 through 5, above.
Confirm Installation
1. Right-click the My Computer icon and select Manage from the popup menu.
2. Click Device Manager in the menu tree.
3. Click the “+” in front of SCSI and RAID controllers. Windows XP Promise
SATAII150 SX8 Controller should appear.

Chapter 3: Install Software Drivers
15
Windows 2000
New Installation
The following details the installation of the SATAII150 SX8 drivers while installing
Windows 2000.
1. Start the installation:
• Floppy Install: Boot the computer with the Windows 2000 installation
diskettes.
• Floppyless Install: Boot from floppy and type WINNT. After files have
been copied, the system will reboot. On the reboot, press F6 when the
message “Setup is inspecting your computer’s hardware
configuration...” appears.
• CD-ROM Install: Boot from the CD-ROM. Press F6 when the message
“Press F6 if you need to install third party SCSI or RAID driver” appears.
2. When the Windows 2000 Setup window is generated, press S to specify an
Additional Device(s).
3. Insert the Promise SATAII150 SX8 Driver Diskette into drive A: and press
Enter.
4. Choose Windows 2000 Promise SATAII150 SX8 Controller from the list that
appears on screen then press Enter.
5. The Windows 2000 Setup screen will appear again saying “Setup will load
support for the following mass storage devices:” The list will include
Windows 2000 Promise SATAII150 SX8 Controller.
NOTE: If there are any additional devices to be installed, specify them now.
When all devices are specified, continue to the next step.
6. From the Windows 2000 Setup screen, press Enter. Setup will now load all
device files and then continue the Windows 2000 installation.
Existing Installation
After installing the SATAII150 SX8 card and rebooting your system, Windows
2000 setup will show a “Found New Hardware Found” dialog box. Under
Windows 2000, “Mass Storage Controller” will be displayed.
1. Insert the Promise SATAII150 SX8 Driver Diskette in drive A:\.
2. Select Display a list of the known drivers for this device so that I can choose
a specific driver and click Next.
3. Under Select a Device driver, click Have Disk....
4. Under Install From Disk, type A:\i386\win2000 and click OK.

SATAII150 SX8 User Manual
16
5. Under Select a Device Driver, select Windows 2000 Promise SATAII SX8
Controller and click Next.
6. Under Start Device Driver Installation, click Next.
7. If using a driver that has not been digitally signed by Microsoft, you will be
asked if you want to continue the installation. Click Yes
8. Under Completing the Found New Hardware Wizard, remove the diskette
and click Finish to restart the system. Windows 2000 will then restart for the
driver installation to take effect
NOTE: If a Windows Logo Testing warning dialog box appears for any of the
following, click the Yes button.
• Windows 2000 Promise SAF-TE Processor Device
• Windows 2000 Promise API Console SCSI Processor Device
Confirm Installation
1. Right-click the My Computer icon and select Manage from the popup menu.
2. Click Device Manager in the menu tree.
3. Click the “+” in front of SCSI and RAID controllers. Windows 2000 Promise
SATAII150 SX8 Controller should appear.
Additional Drivers, Updated Drivers
You can download additional drivers and updates to existing drivers, as they
become available, from the Promise website at www.promise.com.
