PRONAR PUV-1400 User manual

PRONAR Sp. z o.o.
17-210 NAREW, UL. MICKIEWICZA 101A, PODLASKIE PROVINCE
phone: [phone] [phone]
[phone] [phone]
fax: [phone] [phone]
www.pronar.pl
OPERATOR'S MANUAL
SNOW PLOUGH
PRONAR PUV-1400
TRANSLATION OF THE ORIGINAL COPY OF THE MANUAL
EDITION 1A-11-2011 PUBLICATION NO 305N-00000000-UM

SNOW PLOUGH
PORNAR PUV-1400
MACHINE IDENTIFICATION
TYPE: ………………………………………………..
SERIAL NUMBER:

INTRODUCTION
Information contained herein is current at date of publication. As a result of improvements,
some numerical values and illustrations contained in this publication may not correspond to the
factual specification of the machine supplied to the user. The manufacturer reserves the right to
introduce design changes in machines produced that facilitate operation and improve the quality
of their work, without making minor amendments to this Operator's Manual.
This Operator's Manual is an integral part of the machine's documentation. Before using the
machine, the user must carefully read this Operator's Manual and observe all
recommendations. This guarantees safe operation and ensures malfunction free work of the
machine. The machine is designed to meet obligatory standards, documents and legal
regulations currently in force.
The manual describes the basic safety rules and operation of the machine. If the information
stated in the Operator's Manual needs clarification then the user should refer for assistance to
the sale point where the machine was purchased or to the Manufacturer.
MANUFACTURER'S ADDRESS:
PRONAR Sp. z o.o.
ul. Mickiewicza 101A
17-210 Narew
CONTACT TELEPHONES
[phone] [phone]
[phone] [phone]

SYMBOLS APPEARING IN THIS OPERATOR'S MANUAL
Information, descriptions of danger and precautions and also recommendations and prohibitions
associated with user safety instructions are marked:
and also preceded by the word "DANGER”. Failure to observe the instructions may endanger
the machine operator's or other person's health or life.
Particularly important information and instructions, the observance of which is essential, are
distinguished in the text by the sign:
and also preceded by the word "ATTENTION". Failure to observe the instructions may lead to
damage to the machine as a result of improper operation, adjustment or use.
In order to focus the user's attention on the need to perform maintenance, the relevant section
of the Operator's Manual is marked with the pictogram:
Additional tips and advice for machine operation are marked:
and also preceded by the word "TIP".
DIRECTIONS USED IN THIS OPERATOR'S MANUAL
Left side – side to the left hand of the operator facing in the direction of machine's forward
travel.
Right side – side to the right hand of the operator facing in the direction of machine's forward
travel.

TABLE OF CONTENTS
1BASIC INFORMATION 1.1
1.1 IDENTIFICATION 1.2
1.2 INTENDED USE 1.3
1.3 EQUIPMENT 1.5
1.4 TERMS OF WARRANTY 1.6
1.5 TRANSPORT 1.7
1.6 ENVIRONMENTAL HAZARDS 1.10
1.7 WITHDRAWAL FROM USE 1.10
2 SAFETY ADVICE 2.1
2.1 BASIC SAFETY RULES 2.2
2.1.1 USE OF MACHINE 2.2
2.1.2 HITCHING AND UNHITCHING THE MACHINE 2.3
2.1.3 HYDRAULIC SYSTEM 2.3
2.1.4 TRANSPORTING THE MACHINE 2.4
2.1.5 MAINTENANCE 2.5
2.1.6 SNOWPLOUGH OPERATION 2.6
2.2 DESCRIPTION OF RESIDUAL RISK 2.7
2.3 INFORMATION AND WARNING DECALS 2.8
3 DESIGN AND OPERATION 3.1
3.1 TECHNICAL SPECIFICATION 3.2
3.2 GENERAL DESIGN 3.4
3.3 HYDRAULIC SYSTEM 3.5
3.4 ELECTRICAL SYSTEM 3.6

4 CORRECT USE 4.1
4.1 PREPARING FOR WORK 4.2
4.2 CHECKING TECHNICAL CONDITION 4.4
4.3 HITCHING TO VEHICLE 4.5
4.3.1 HITCHING TO THE THREE POINT LINKAGE 4.6
4.4 CONNECTING HYDRAULIC SYSTEM AND ELECTRICAL
SYSTEM 4.8
4.5 SNOWPLOUGH OPERATION 4.9
4.5.1 LEVELLING THE SNOWPLOUGH BODY 4.9
4.5.2 ADJUSTING THE SNOWPLOUGH WORKING POSITIONS 4.10
4.5.3 SETTING THE WORKING HEIGHT 4.11
4.5.4 SHOCK ABSORPTION OF STEEL COLLECTING STRIPS 4.13
4.6 DRIVING ON PUBLIC ROADS 4.13
4.7 DISCONNECTING THE SNOWPLOUGH 4.15
5MAINTENANCE 5.1
5.1 CHECKING AND REPLACEMENT OF COLLECTING STRIPS 5.2
5.2 SLIDE REPLACEMENT 5.4
5.3 HYDRAULIC SYSTEM OPERATION 5.5
5.4 ELECTRICAL SYSTEM MAINTENANCE 5.7
5.5 LUBRICATION 5.8
5.6 STORAGE 5.10
5.7 TIGHTENING TORQUE FOR NUT AND BOLT CONNECTIONS 5.11
5.8 TROUBLESHOOTING 5.12

SECTION
1
BASIC
INFORMATION

PUV-1400 SECTION 1
1.2
1.1 IDENTIFICATION
FIGURE 1.1 Location of the data plate
Meaning of each field of the data plate located on the machine (FIGURE 1.1):
A - machine name,
B – machine type,
C – serial number,
D – year of manufacture,
E – machine tare weight [kg],
F – Quality Control stamp,
G – unfilled box or extension of name (box A).

SECTION 1 PUV-1400
1.3
Serial number is stamped on the data plate. Data plate is located on the left mouldboard.
When buying the machine, check that the serial number corresponds with that indicated in
the WARRANTY BOOK, in the sales documents and in the OPERATOR'S MANUAL.
1.2 INTENDED USE
PUV-1400 snowploughs are designed for clearing road surfaces, squares, parking spaces
and all other hard road and footpath surfaces such as asphalt, concrete paving blocks,
paving, concrete. The use of the snowplough for other purposes should be regarded as
improper. Depending on the equipment, the snowploughs can be mounted on agricultural
tractors and other slow-moving vehicles that meet the requirements set out in Table 1.1.
Using it as intended also involves all actions connected with the safe and proper operation
and maintenance of the machine. Due to the above, the user is obliged to:
•carefully read the OPERATOR'S MANUAL and comply with its recommendations,
•understand the machine's operating principle and how to operate it safely and
correctly,
•comply with general safety regulations while working,
•prevent accidents,
•comply with road traffic regulations.
The machine may only be used by persons, who:
•are familiar with the contents of this publication and with the contents of the Operator's
Manual of the agricultural tractor (carrying vehicle),
•have been trained in machine operation and safe working conditions,
•have the required authorisation to drive the vehicle and are familiar with the road traffic
regulations and transport regulations.

PUV-1400 SECTION 1
1.4
ATTENTION
The snowploughs must not be used for purposes other th n those for which it is
intended, in p rticul r for:
•levelling of ro ds, terr in;
•tr nsport of people, nim ls nd other items on the m chine.
TABLE 1.1 AGRICULTURAL TRACTOR (CARRYING VEHICLE) REQUIREMENTS
UNIT REQUIREMENTS
Linkage
Front three point linkage - Category I according to ISO 730-1
Hydraulic system
Hydraulic oil - HL32
Nominal pressure of the system MPa 16
Hydraulic sockets - 2 sockets of one section on the front
of the tractor (vehicle)
Electrical system
Solenoid supply - cigarette lighter socket
Electrical system voltage V 12
Other requirements
Power range hp (kW) to 40 (to 30)
Beacon light - orange light

SECTION 1 PUV-1400
1.5
1.3 EQUIPMENT
Some standard equipment elements, which were listed in table (1.2), may not be present in
the delivered snowplough. This allows the possibility of ordering new machines with a
different set of optional equipment, replacing standard equipment.
TABLE 1.2 THE SNOWPLOUGH EQUIPMENT
EQUIPMENT
STANDARD
ADDITIONAL
OPTIONS
The Operator's Manual •
Warranty Book •
The snowplough electrical system •
Hydraulic system without shock absorbers, with two plugs •
Rubber snowplough blades •
Steel snowplough blades •
Support slides •
Wheels •
Category I/I three-point linkage (narrow) ISO 730-1 •
A-RAMA linkage •
A-RAMA linkage (rigid) •
Connection (for swing linkages) •
Clearance lamps •
Fenders, set •

PUV-1400 SECTION 1
1.6
1.4 TERMS OF WARRANTY
PRONAR Sp. z o.o. Narew guarantees the reliable operation of the machine when it is used
according to its intended purpose as described in the OPERATOR'S MANUAL. Defects
discovered during the warranty period will be removed by the Warranty Service. The repair
period is specified in the WARRANTY BOOK.
The warranty does not apply to those parts and sub-assemblies of the machine, which are
subject to wear in normal usage conditions, regardless of the warranty period. Consumables
include the following parts/sub-assemblies:
•rubber or metal collecting strips,
•slides,
•wheels,
•bulbs.
The warranty service only applies to factory defects and mechanical damage that is not due
to the user's fault.
In the event of damage arising from:
•mechanical damage which is the user's fault, caused by road accidents,
•by inappropriate use, adjustment or maintenance, use of the machine for
purposes other than those for which it is intended,
•use of damaged or malfunctioning machine,
•repairs carried out by unauthorised persons, improperly carried out repairs,
•making unauthorised alterations to machine design,
the user will lose the right to warranty service.
TIP
Dem nd th t the seller c refully nd precisely fills out the WARRANTY BOOK nd
w rr nty rep ir coupons. A missing d te of purch se or s le point st mp, m y m ke the
user ineligible for ny w rr nty rep ir or refund.
The user is obliged to report immediately on noticing any wear in the paint coating or traces
of corrosion, and to have the faults rectified whether they are covered by the warranty or not.

SECTION 1 PUV-1400
1.7
For detailed Terms & Conditions of Warranty, please refer to the WARRANTY BOOK
attached to each machine.
Modification of the machine without the written consent of the Manufacturer is forbidden. In
particular, do NOT weld, drill holes in, cut or heat the main structural elements, which have a
direct impact on the machine operation safety.
1.5 TRANSPORT
The machine is prepared for sale completely assembled and does not require packing.
Packing is only required for the machine operator's manual and electrical system
components.
Delivery is either by transport on a vehicle or independently. Transport of the machine is
permissible connected to a carrying vehicle provided the vehicle's driver familiarises himself
with the machine's Operator's Manual and particularly with information concerning safety and
principles of connection and transport on public roads.
During road transport the machine should be firmly secured on the load platform by means of
certified belts or chains fitted with a tightening mechanism.
When loading and unloading the machine, comply with the general principles of workplace
health and safety for reloading work. Persons operating reloading equipment must have the
qualifications required to operate these machines.

PUV-1400 SECTION 1
1.8

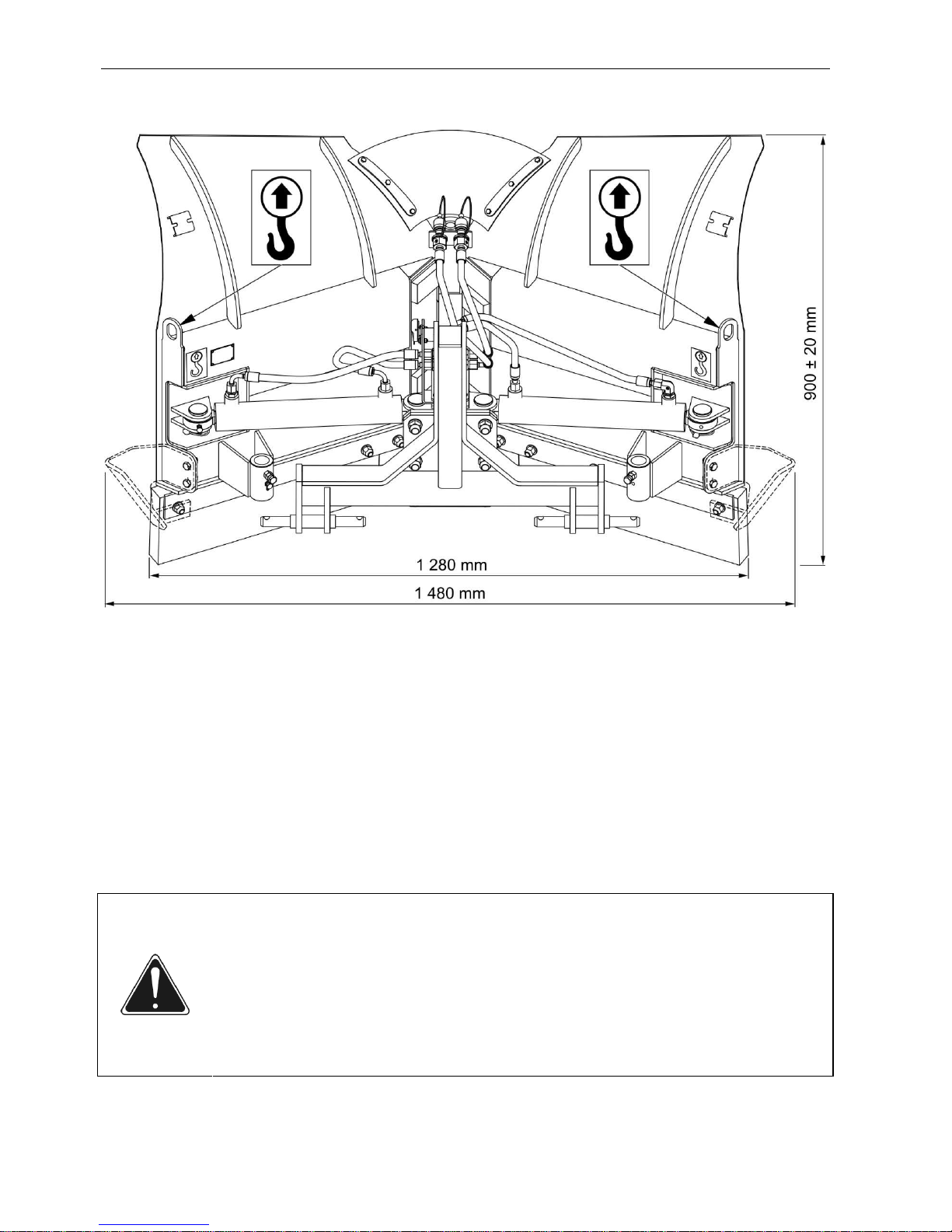

FIGURE 1.2 Transport lugs
The machine should be attached to lifting equipment in places specially designed for this
purpose (FIGURE 1.2), i.e. by the external lugs on internal reinforcement of the right and left
mouldboard. Suspension points are identified with information decals. When lifting the
machine be especially careful due to the possibility of tipping over the machine and the risk of
injuries from protruding parts. To keep lifted machine in the correct direction it is
recommended to apply additional guy cables. During the loading work particular care should
be taken not to damage paint coating.
DANGER
When tr nsporting independently, the user must c refully re d this Oper tor's M nu l
nd observe ll recommend tions. When being tr nsported on motor vehicle the
m chine must be mounted on the vehicle's pl tform in ccord nce with the tr nsport
s fety requirements. The driver of the vehicle should t ke p rticul r c re while
tr nsporting the m chine. This is due to the vehicle's centre of gr vity shifting upw rds
when lo ded with the m chine.

SECTION 1 PUV-1400
1.9

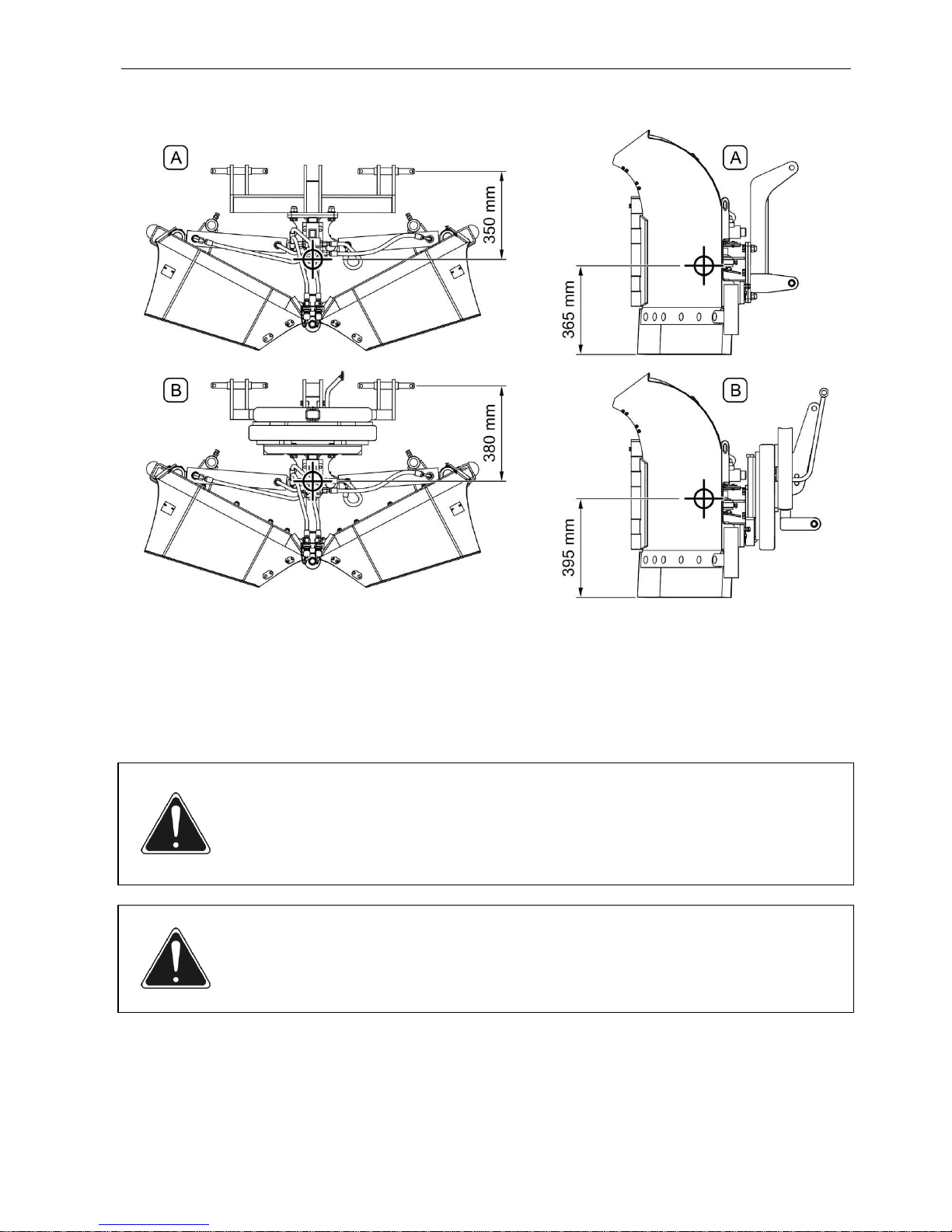

FIGURE 1.3 Centre of gravity
(A)- centre of gravity of the snowploughs with the three-point linkage; (B)- centre of gravity of
the snowploughs with A-RAMA linkage
ATTENTION!
Position of centre of gr vity depending on the snowplough version (slides or wheels,
rubber or met l collecting strips, A-
RAMA link ge (rigid)) v ries within the r nge of
± 50 mm.
ATTENTION!
Do NOT secure lifting slings or ny types of securing elements to hydr ulic cylinders.

PUV-1400 SECTION 1
1.10
1.6 ENVIRONMENTAL HAZARDS
A hydraulic oil leak constitutes a direct threat to the natural environment owing to its limited
biodegradability. While carrying out maintenance and repair work which involves the risk of
an oil leak, this work should take place on an oil resistant floor or surface. In the event of oil
leaking into the environment, first of all contain the source of the leak, and then collect the
leaked oil using available means. Remaining oil should be collected using sorbents, or by
mixing the oil with sand, sawdust or other absorbent materials. The oil pollution, once
gathered up, should be kept in a sealed, marked, hydrocarbon resistant container, and then
passed on to the appropriate oil waste recycling centre. The container should be kept away
from heat sources, flammable materials and food.
Oil which has been used up or is unsuitable for further use owing to a loss of its properties
should be stored in its original packaging in the conditions described above.
1.7 WITHDRAWAL FROM USE
In the event of decision by the user to withdraw the machine from use, comply with the
regulations in force in the given country concerning withdrawal from use and recycling of
machines withdrawn from use.
Before proceeding to dismantle machine, oil shall be completely removed from hydraulic
system.
When spare parts are changed, worn out or damaged parts should be taken to a collection
point for recyclable raw materials. Waste oil and also rubber and plastic elements should be
taken to establishments undertaking the utilisation of such waste.
ATTENTION
During dism ntling person l protection equipment sh ll be used i.e. protective clothing,
boots, gloves nd protective goggles etc.
Avoid cont ct of skin with oil. Do not llow used oil to spill.

SECTION
2
SAFETY ADVICE

PUV-1400 SECTION 2
2.2
2.1 BASIC SAFETY RULES
2.1.1 USE OF MACHINE
•Before using the machine, the user must carefully read this Operator's Manual
and the WARRANTY BOOK. When operating the machine, the operator must
comply with the recommendations.
•The machine may only be used and operated by persons qualified to drive
agricultural tractors and carrying vehicles and trained in the use of the machine.
Machine can be operated by a single person only.
•If the information stated in the Operator's Manual is difficult to understand, contact
a seller, who runs an authorised technical service on behalf of the Manufacturer,
or contact the Manufacturer directly.
•Careless and improper use and operation of the machine, and non-compliance
with the recommendations given in this operator's manual is dangerous to your
health.
•Be aware of the existence of a residual risk, and for this reason the fundamental
basis for using this machine should be the application of safety rules and sensible
behaviour.
•The machine must never be used by persons, who are not authorised to drive
agricultural tractors, including children and people under the influence of alcohol
or other drugs.
•Non-compliance with the safety rules of this Operator’s Manual can be dangerous
to the health and life of the operator and others.
•The machine must not be used for purposes other than those for which it is
intended. Anyone who uses the machine other than the way intended takes full
responsibility for himself for any consequences of this use. Use of the machine for
purposes other than those for which it is intended by the Manufacturer may
invalidate the warranty.
•The machine may only be used when all the safety guards and other protective
elements are technically sound and correctly positioned. In the event of loss or
destruction of the safety guards, they must be replaced with new ones.
