prophecy gofanco PRO-MSTmDP2DP User manual

PRO-MSTmDP2DP
1x2 Mini DisplayPort 1.2 to DisplayPort MST Hub/Splier
with Pigtail Cable
®
Made in Taiwan
User‘s Guide

®
PRO-MSTmDP2DP
Congratulaons for owning a gofanco product. Our products
aim to meet all your connecvity needs wherever you go.
Have fun with our products!
Please read this manual carefully before rst use.
If you need more informaon about our products, please visit
www.gofanco.com.
For technical support, please email us at
[e-mail].
For drivers/manuals download, please go to
hp://www.gofanco.com/download.

®
PRO-MSTmDP2DP
• DisplayPort 1.2 compliant
• Supports up to 4K2K@30
• HDCP 1.3 compliant
• Video bandwidth: 21.6Gbps
• Supports SST or MST (Multi-Stream Transport)
• Supports xvYCC, x.v.Color & Deep Color
• Easy installation
2. Features
1. Introduction
3
The PRO-MSTmDP2DP 1x2 Mini DisplayPort 1.2 to DisplayPort
MST Hub/Splitter with Pigtail Cable provides the most cost ef-
fective and advanced Mini DisplayPort to DisplayPort splitter
solution on the market, by which the high denition video and
high quality audio can be transmitted to 2 dierent locations
without losing quality. PRO-MSTmDP2DP can extend the lap-
top or desktop to additional displays and stream independent
content to each individual display to make multitasking easier
and increase your productivity. Besides, PRO-MSTmDP2DP can
mirror the same image or split an image to multiple displays
for digital signage applications.
• 1x PRO-MSTmDP2DP
• 1x Micro-USB to USB cable
• 1x User Manual
3. Package Contents

®
PRO-MSTmDP2DP
4. Specications
Item Description
Role of usage 1x2 MST Hub/Distribution Amplier (Splitter)
DP compliance DisplayPort 1.2
HDCP compliance HDCP 1.3
Video bandwidth 21.6Gbps
Video support See bandwidth resolution distribution on page 6
Audio support LPCM, AC3, DTS
ESD protection Human body model — ±15kV [air-gap discharge] &
±8kV [contact discharge]
PCB stack-up 4-layer board [impedance control —
dierential 100Ω; single 50Ω]
Input 1x Mini DP
Output 2x DP
DP connector Standard & Mini DisplayPort
Mechanical
Housing Metal enclosure
Dimensions
[L x D x H]
Model 88 x 58 x 23mm [3.5 x 2.3" x 0.9"]
Package 165 x 111 x 42mm [6.4" x 4.4" x 1.7"]
Carton 490 x 426 x 352mm [1'6" x 1'4" x 13.8"]
Weight Model 108g [3.8 oz]
Package 196g [6.9 oz]
Power supply 5V 1A DC
Power consumption 2 Watts [max]
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
4

®
PRO-MSTmDP2DP
5. Connection Diagram
5
PRO-MSTmDP2DP allows user to connect two displays to the Mini
DisplayPort enabled laptop, Ultrabook, or PC. Congure these ad-
ded monitors anyway you want; works as a splitter with the same
content on each monitor, extended mode with independent moni-
tors, or video wall mode joining multiple monitors together as one
display.
PRO-MSTmDP2DP

®
PRO-MSTmDP2DP
1. Total bandwidth is 21.6Gbps*(under MST mode)
2. Supports UHD video resolutions up to 3840x2160@30, and
7.1ch surround audio to deliver high quality video and au-
dio.
3. Driver or software is NOT required.
4. Existing video card can be used to minimize the use of sys-
tem resources.
5. MacOS does NOT support MST technology and will only mir-
ror each display
6
Resolution % of total bandwidth(21.6Gbps)
3840x2160@60 80%
3840x2160@30 40%
1920x1200@60 30%
1920x1080@60 22%
The total combined bandwidth among all connected displays
must NOT exceed 21.6Gbps
Notes
*

®
PRO-MSTmDP2DP

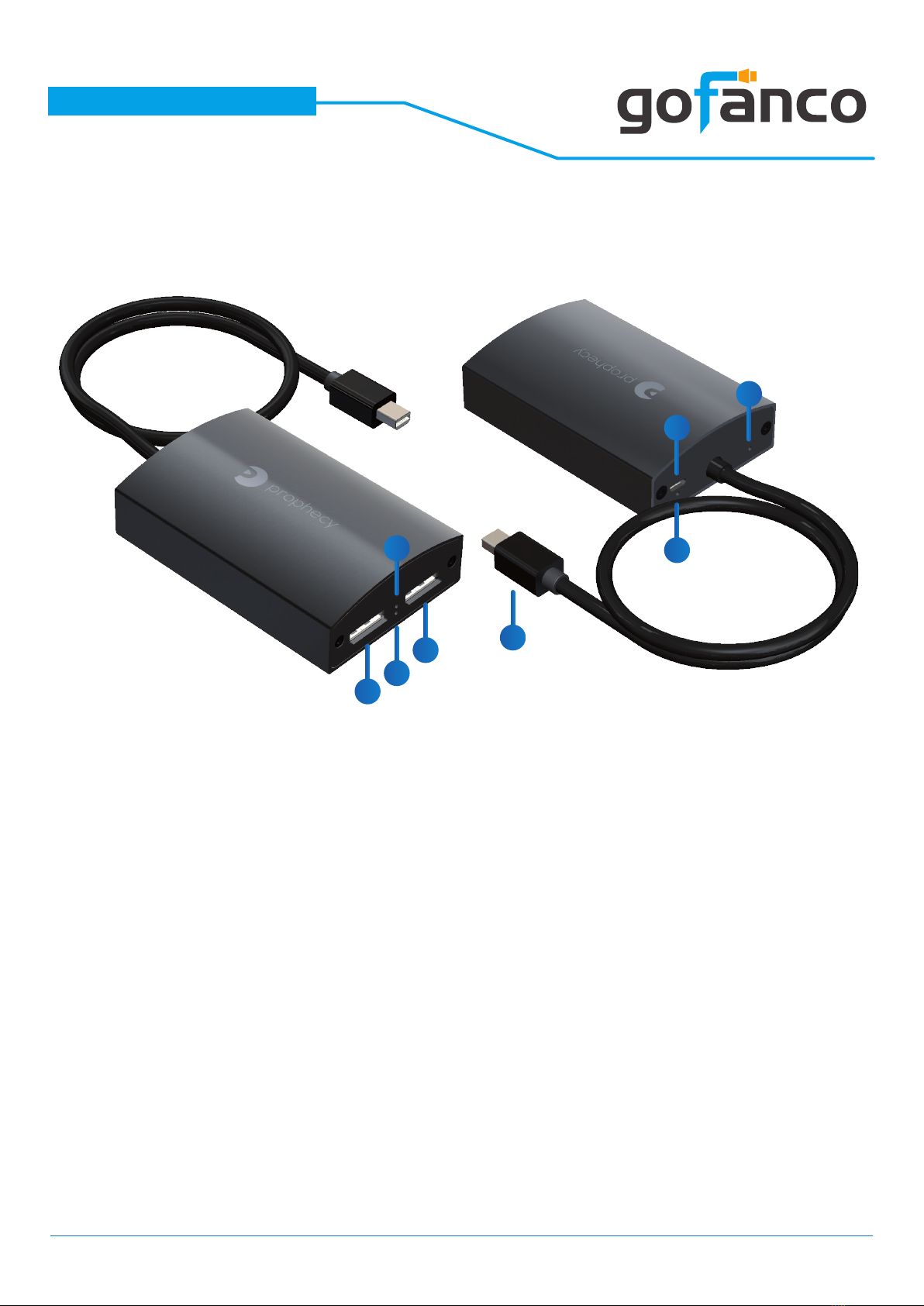

6. Panel Description
1. DisplayPort output 1
2. Output 2 LED Indicator
3. Output 1 LED Indicator
4. DisplayPort output 2
7
12
6
3
7
8
45
5. Mini DisplayPort input
6. Power LED Indicator
7. +5V power (Micro-USB)
8. Link LED Indicator

®
PRO-MSTmDP2DP
7. Notice
1. It is limited to two displays under mirror mode using Windows
Display Utility & NVIDIA Utility.
2. It requires either an AMD Eyenity, Intel, or NVIDIA Surround
technology graphics adapter under Video Wall mode (e.g., Pan-
oramic).
3. Intel CPUs with HD Graphics are limited to three external
monitors altogether.
4. A DisplayPort v1.2 output or later is recommended to enable
full functionality. If the source DisplayPort output doesn’t
support DP 1.2, the MST function is disabled and becomes a
Splitter, mirroring your video source across all displays.
1. Systems with an available DisplayPort (DisplayPort v1.2 or la-
ter recommended)
2. Compatible OS: Windows 10 / 8.1 & 8 / 7
3. MacOS does NOT support MST technology and will only
mirror each display
Notes
About Compatible Device
8

®
PRO-MSTmDP2DP
9
11. Limited Warranty
The SELLER warrants the PRO-MSTmDP2DP 1x2 Mini DisplayPort 1.2 to Dis-
playPort MST Hub/Splitter with Pigtail Cable free from defects in the mate-
rial and workmanship for 1 year from the date of purchase from the SELLER
or an authorized dealer. Should this product fail to be in good working order
within 1 year warranty period, The SELLER, at its option, repair or replace the
unit, provided that the unit has not been subjected to accident, disaster, abuse
or any unauthorized modications including static discharge and power sur-
ge. This warranty is oered by the SELLER for its BUYER with direct transaction
only. This warranty is void if the warranty seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at
the current price of parts and labor in eect at the time of repair. Such repairs
are warranted for 90 days from the day of reshipment to the BUYER. If the unit
is delivered by mail, customers agree to insure the unit or assume the risk of
loss or damage in transit. Under no circumstances will a unit be accepted wi-
thout a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including
without limitations, any other implied warranty or tness or merchantability
for any particular purpose, all of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside
Taiwan are responsible for shipping charges to and from the SELLER. Cables
and power adapters are limited to a 30 day warranty and must be free from
any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be
accurate. However, The SELLER assumes no responsibility for any inaccuracies
that may be contained in this manual. The SELLER will NOT be liable for di-
rect, indirect, incidental, special, or consequential damages resulting from any
defect or omission in this manual, even if advised of the possibility of such
damages. Also, the technical information contained herein regarding the
PRO-MSTmDP2DP features and specications is subject to change without
further notice.

®
PRO-MSTmDP2DP
10
The product name and brand name may be registered trademarks of related manufacturers. TM and ®
may be omied on the user‘s guide. The pictures on the user‘s guide are just for reference, and there
may be some slight dierences with the actual products.
We reserve the rights to make changes without prior noce to a product or system described herein to
improve reliability, funcon, or design.
Disclaimer

®
PRO-MSTmDP2DP
11

Thank you for choosing gofanco
®
www.gofanco.com
Aug, 2019 Ver. A Copyright © by gofanco, LLC. All rights reserved.
