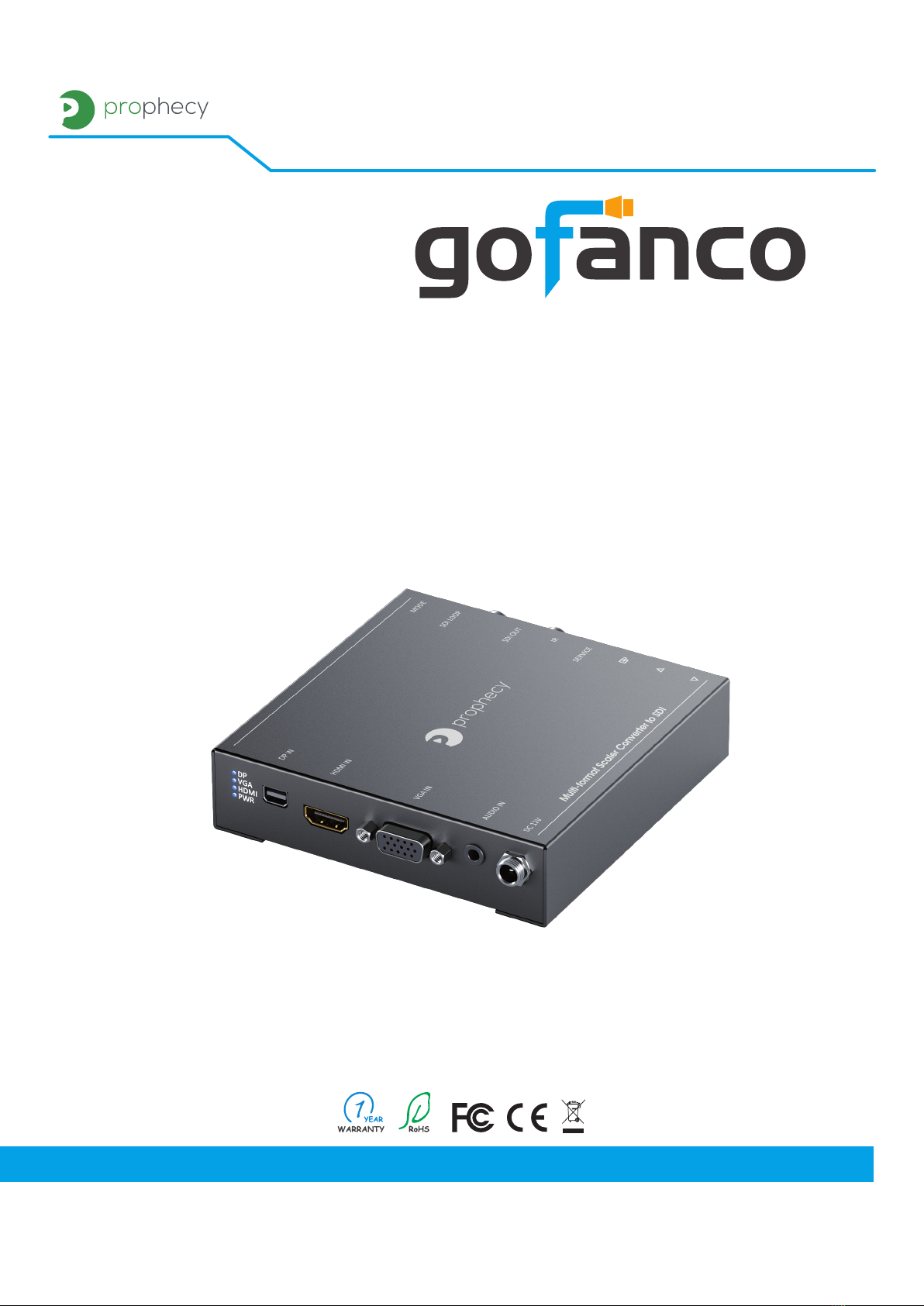

prophecy GoFanco PRO-Scaler2SDI User manual
PRO-Scaler2SDI
HDMI/MiniDP/VGA to 3G/HD/SD-SDI Scaler Converter
®
Made in Taiwan
User‘s Guide
®
PRO-Scaler2SDI
Congratulaons for owning a gofanco product. Our products aim to meet all your
connecvity needs wherever you go.
Have fun with our products!
Please read this manual carefully before rst use.
If you need more informaon about our products, please visit www.gofanco.com.
For technical support, please email us at support@gofanco.com.
For drivers/manuals download, please go to hp://www.gofanco.com/download.
®
PRO-Scaler2SDI
Please read all of these instructions carefully before you use the device. Save
this manual for future reference.
The PRO-Scaler2SDI HDMI/MiniDP/VGA to 3G/HD/SD-SDI Scaler Converter has
been tested for conformance to safety regulations and requirements, and has
been certied for international use. However, like all electronic equipments,
the PRO-Scaler2SDI should be used with care. Please read and follow the safety
instructions to protect yourself from possible injury and to minimize the risk of
damage to the unit.
• Follow all instructions and warnings marked on this unit.
• Do not attempt to service this unit yourself, except where explained in this manual.
• Provide proper ventilation and air circulation and do not use near water.
• Keep objects that might damage the device and assure that the placement of this
unit is on a stable surface.
• Use only the power adapter and power cords and connection cables designed for
this unit.
• Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
1. Safety and Notice
Table of Contents
1. Safety and Notice ..................................................................3
2. Introduction .......................................................................4
3. Features...........................................................................4
4. Package Contents ..................................................................4
5. Specication ......................................................................5
6. Connection Diagram ...............................................................6
7. Panel Description ..................................................................7
8. OSD Menu .........................................................................8
9. Operation Approach................................................................9
10. Limited Warranty .................................................................13
3
®
PRO-Scaler2SDI
The PRO-Scaler2SDI HDMI/MiniDP/VGA to 3G/HD/SD-SDI Scaler Converter pro-
vides a professional way to scale and convert multiple format (HDMI/MiniDP/
VGA) to 3G/HD/SD-SDI format. This device supports video conversion and scaling
from analog & digital to 3G/HD/SD-SDI. The conversion between HDMI/MiniDP
and SDI is pure digital and guarantees no loss transformation for both audio and
video. Besides, VGA based devices such as PC with analog stereo audio can rea-
dily connect to your SDI TV. The PRO-Scaler2SDI provides low jitter SDI output.
2. Introduction
4
• Supported Input: HDMI/MiniDP/ VGA
• Input maximum pixel rate: 165MHz
• Output bandwidth: 2.970Gbps
• Supports multiple VESA resolutions
• Includes an SDI loop-out
• Supports video enhancement features
• IR remote control
• Push button control
• Software control via Micro-USB
• OSD control interface
• Deinterlacing supported
• Video H/V mirror supported
• Over / under scanning adjustable
• Active video area adjustment supported
• Stable and independent output signal quality
• USB rmware upgradable for expanded compatibility
• Wall-mount housing design for easy installation
3. Features
• 1x PRO-Scaler2SDI
• 1x 12V/2A power supply unit
• 1x IR Remote control
• 2x Ear mount
• 1x User Manual
• 1x Installation software CD
4. Package Contents
®
PRO-Scaler2SDI
5.Specications
Item Description
Technical
Role of usage HDMI/MiniDP/VGA to SDI Converter
SDI standards SD-SDI, HD-SDI & 3G-SDI
Input Video Maximum Pixel Rate 165MHz
Output Video bandwidth 2.970Gbps, 2.970/1.001Gbps
Output Video support
[3G] 1080p @50/59.94/60Hz (4:2:2)
[HD] 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz,
1080p @24/30Hz
[SD] NTSC @59.94Hz, PAL @50Hz
Audio support PCM 2 (48KHz Fs sample rate)
ESD protection
[1] Human body model — ±19kV [air-gap discharge] &
±12kV [contact discharge]
[2] Core chipset — ±2kV
PCB stack-up 4-layer board [impedance control — dierential 100Ω; single 50Ω]
Firmware update Feasible via USB Port
CEC Channel N/A
Input 1x HDMI + 1x VGA + 1x MiniDP + 1x stereo(for VGA)
Output 2x BNC [SDI]
BNC connector 3G 75Ω inter-locked socket
HDMI connector Type A [19-pin female]
USB connector Micro B
Mechanical
Housing Metal enclosure
Dimensions
[L x D x H]
Model 114 x 108 x 26mm[4.5" x 4.3" x 1" ]
Package 264 x 170 x 77mm[10.3" x 6.7" x 3"]
Carton 430 x 358 x 291mm[1'4" x 1'2" x 11.5"]
Weight Model 212g[7.5 oz]
Package 506g[1.1 lbs]
Fixedness Wall-mounting case with screws
Power supply 12V 2A DC
Power consumption 6 Watts [max]
Operation temperature
0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
5
®
PRO-Scaler2SDI

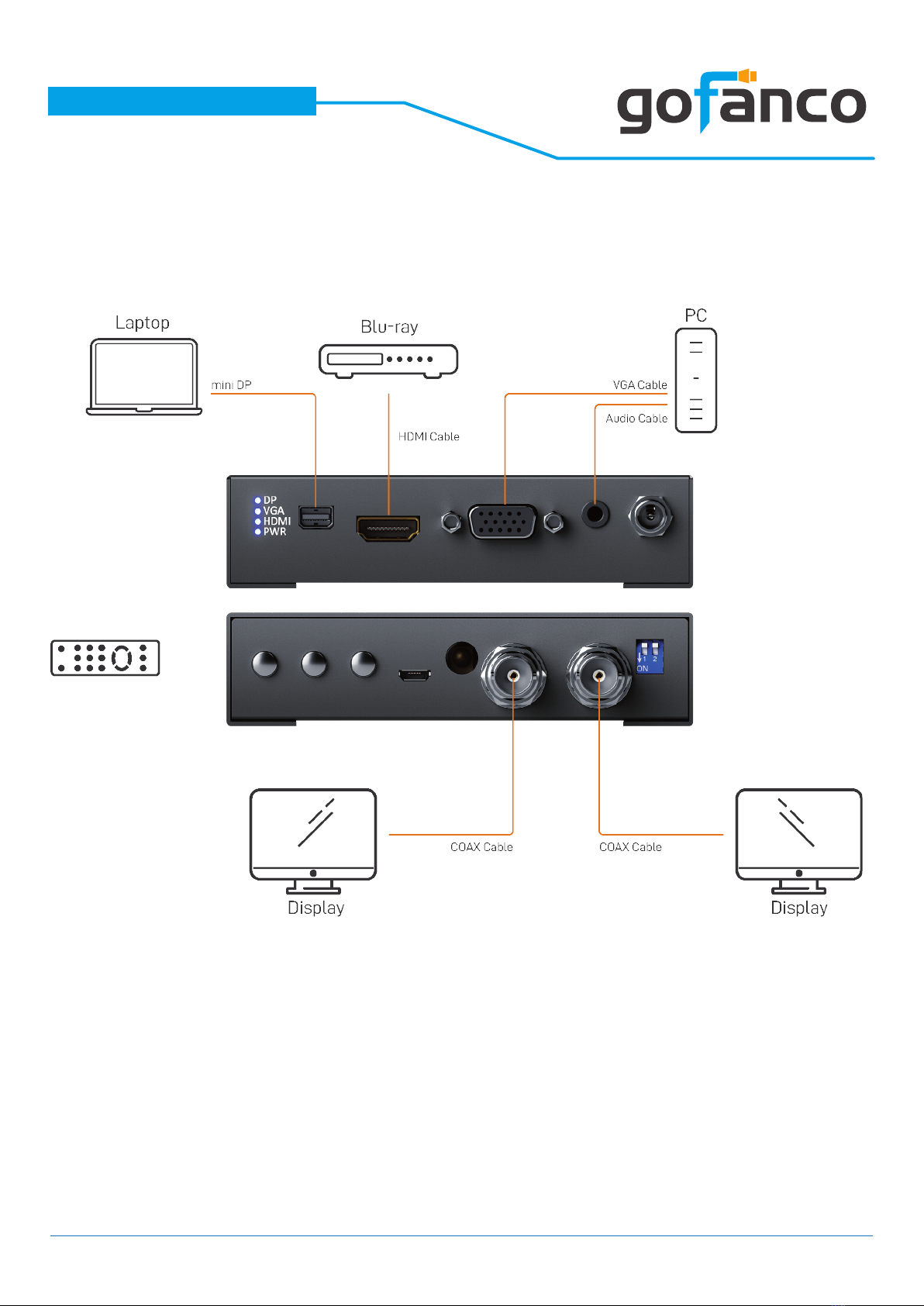

6. Connection Diagram
6
®
PRO-Scaler2SDI
7. LED INDICATOR:
8. MiniDP INPUT
9. HDMI INPUT
10. VGA INPUT
11. STEREO AUDIO INPUT (for VGA): connect to analog stereo audio source
12. DC 12V: Interlocking power jack for DC 12V power supply unit
7. Panel Description
Front Panel
Rear Panel

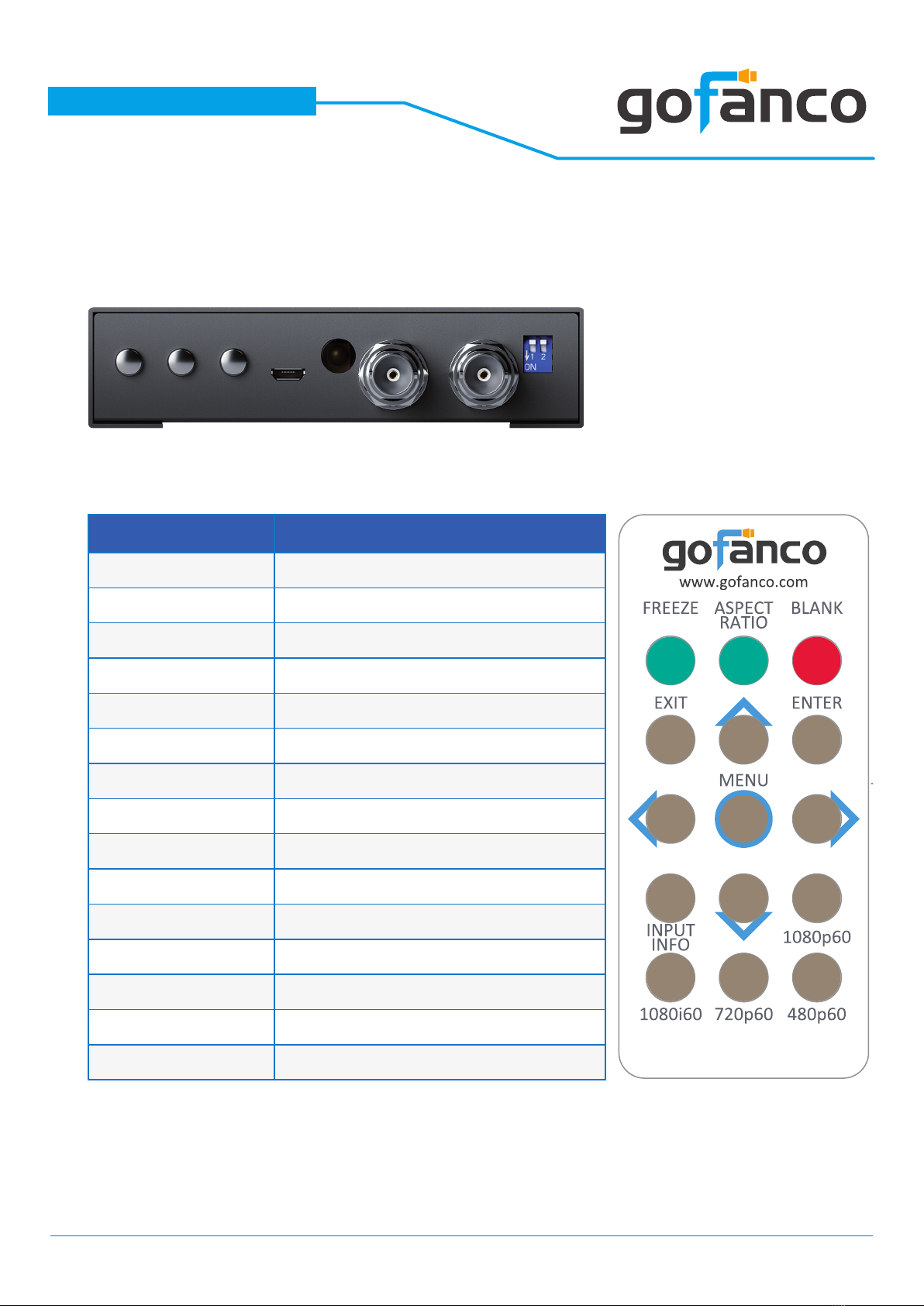

1. PUSH BUTTON
[LEFT]: Down Button
[MID]: Up Button
[RIGHT]: Menu/Enter Button
2. Micro USB: Firmware update and software control port
3. IR SENSOR: IR sensor for receiving the IR commands from IR remote
4. SDI OUT: 3G/HD/SD-SDI output
5. SDI LOOPOUT: 3G/HD/SD-SDI LOOPOUT
6. DIP SWITCH:
PIN 1: F/W update
PIN 2: Reserved
7
7
1 432 5 6
11
9
1210
8
Signal Power
DisplayPort VGA HDMI Power
®
PRO-Scaler2SDI
8
8. OSD Menu
1.Output Setup
Output Format
Test Pattern
Disable, White, Cross, Hatch, Color,
Gray, Windows, H-Ramp, W-HRamp,
W-VRamp, Diagonal
Audio Mute O, On
Input Type HDMI, VGA, MiniDP
Return
2.Image
Contrast 0~255 of Contrast Level
Brightness 0~255 of Brightness Level
Saturation 0~255 of Saturation Level
Hue 0~255 of Hue Level
Gamma Adjust O, 1.1, 1.3, 0.7, 0.9
Color Tone O, Green, Skin
Edge Enhance O, Max, Mid, Min
Sharpness 0~64 of Sharpness Level
Return
3. Adjustment
Under/Over Scan -50%~50% of Scan Level
Aspect Ratio Stretch, 16:9, 4:3
H-Mirror O, On
V-Mirror O, On
H-Shift -100~100 of H-Shift Level
V-Shift -50~50 of V-Shift Level
Return
4. System
Input Format
F/W Version
Factory Reset
Return
5. Exit
®
PRO-Scaler2SDI
9
9. Operation Approach
Method A: Push-in Button
Method B: IR Remote Control
Button Function
FREEZE Freeze video
ASPECT RATIO Aspect ratio change
BLANK Blank video
EXIT Exit OSD
ENTER Enter key
UP Up key
LEFT Left key
RIGHT Right key
DOWN Down key
MENU Menu on
INPUT INFO Source resolution information
1080p60 Select 1080p60 output resolution
1080i60 Select 1080i60 output resolution
720p60 Select 720p60 output resolution
480p60 Not Supported
®
PRO-Scaler2SDI
10

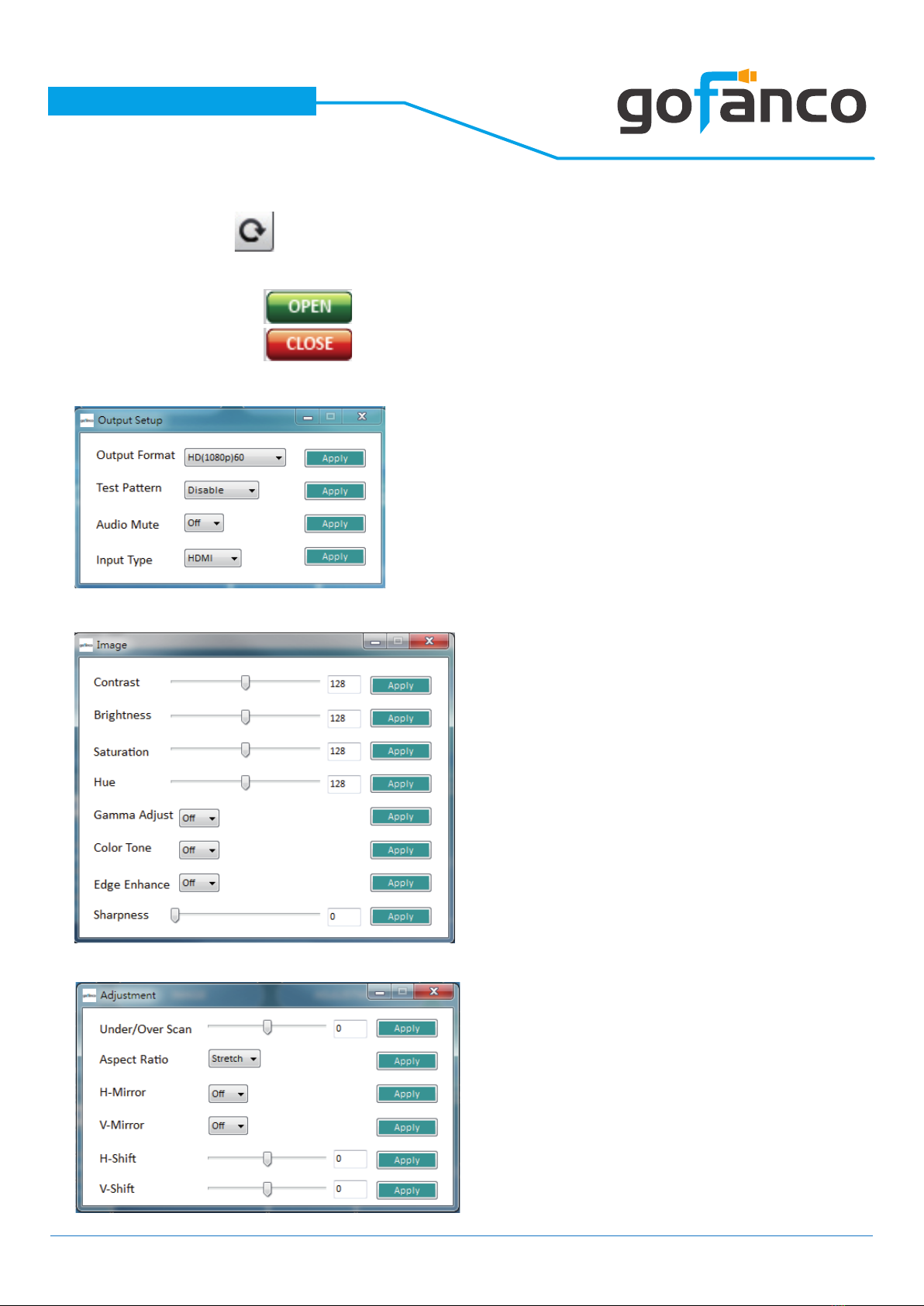

Method C: IR Remote Control through Micro-USB port

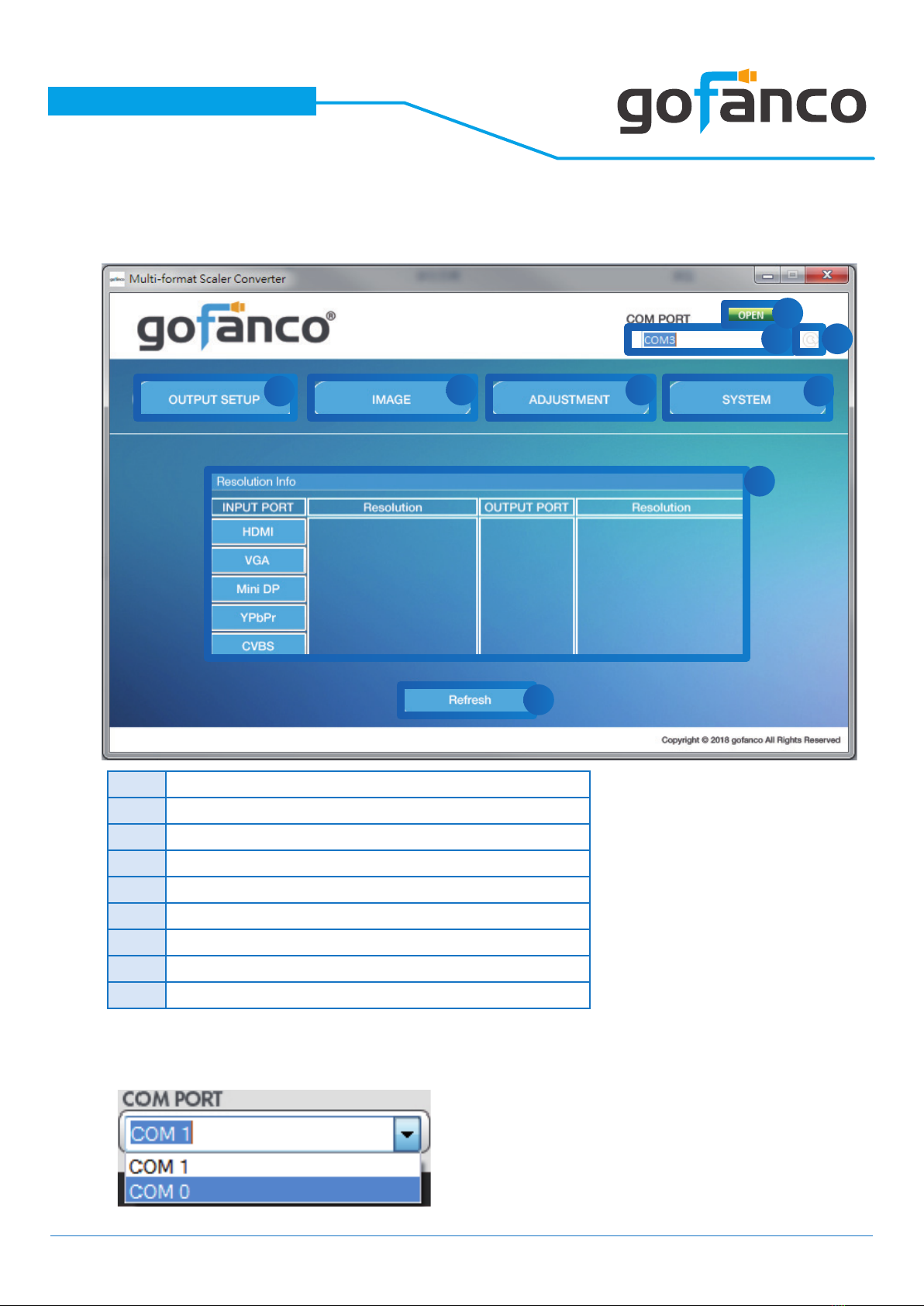

1. COM Port Selection
Please select the application COM PORT
7
1
4
3
2
5 6
9
8
1COM Port Selection
2COM Port Detection Button
3Connect/Disconnect Button
4Output Setup Button
5Image Button
6Adjustment Button
7System Button
8Input / Output Resolution Info
9Refresh Input / Output Resolution Info Button
®
PRO-Scaler2SDI
11
2. COM Port Detection Button
Click this button to detect the COM PORT
3. Connect/Disconnect Button
1) Click this button to connect
2) Click this button to disconnect
4. Output Setup Button
5. Image Button
6. Adjustment Button
®
PRO-Scaler2SDI
12
7. System Button
8. I/O Port and Resolution Info
To display the information about the I/O Port and the applied Resolution
9. Refresh Button
To refresh the status of the converter
1) Input Format: To view the current input resolution
2) F/W Version Information
3) Factory Reset Button
4) Firmware Update
Step1: Remove the PSU
Step2: Flip dip switch PIN1 to down
Step3: Connect the device with micro USB cable to PC
Step4: Open the software and select correct comport
Step5: Click System >> Firmware Upgrade
Step6: Finish the FW upgrade process, ip dip switch PIN1 to up
Step7: Remove USB cable before power cycle the device
®
PRO-Scaler2SDI
13
10. Limited Warranty
The SELLER warrants the PRO-Scaler2SDI HDMI/MiniDP/VGA to 3G/HD/SD-SDI Scaler
Converter to be free from defects in the material and workmanship for 1 year from the
date of purchase from the SELLER or an authorized dealer. Should this product fail to be
in good working order within 1 year warranty period, The SELLER, at its option, repair
or replace the unit, provided that the unit has not been subjected to accident, disaster,
abuse or any unauthorized modications including static discharge and power surges.
Unit that fails under conditions other than those covered will be repaired at the current
price of parts and labor in eect at the time of repair. Such repairs are warranted for 90
days from the day of reshipment to the BUYER. If the unit is delivered by mail, custo-
mers agree to insure the unit or assume the risk of loss or damage in transit. Under no
circumstances will a unit be accepted without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without
limitations, any other implied warranty or tness or merchantability for any particular
purpose, all of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are
responsible for shipping charges to and from the SELLER. Cables are limited to a 30 day
warranty and cable must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate.
However, The SELLER assumes no responsibility for any inaccuracies that may be contai-
ned in this manual. The SELLER will NOT be liable for direct, indirect, incidental, special,
or consequential damages resulting from any defect or omission in this manual, even
if advised of the possibility of such damages. Also, the technical information contained
herein regarding the PRO-Scaler2SDI features and specications is subject to change
without further notice.
®
PRO-Scaler2SDI
14
®
PRO-Scaler2SDI
15
The product name and brand name may be registered trademarks of related manufacturers. TM and ®
may be omied on the user‘s guide. The pictures on the user‘s guide are just for reference, and there
may be some slight dierences with the actual products.
We reserve the rights to make changes without prior noce to a product or system described herein to
improve reliability, funcon, or design.
Disclaimer
www.gofanco.com
Thank you for choosing gofanco
®
Apr, 2020 Ver. C Copyright © by gofanco, LLC. All rights reserved.
