PROPOINT 8678963 User manual

V1.0 8678963
Please read and understand all instructions before use. Retain this
manual for future reference.
USER MANUAL

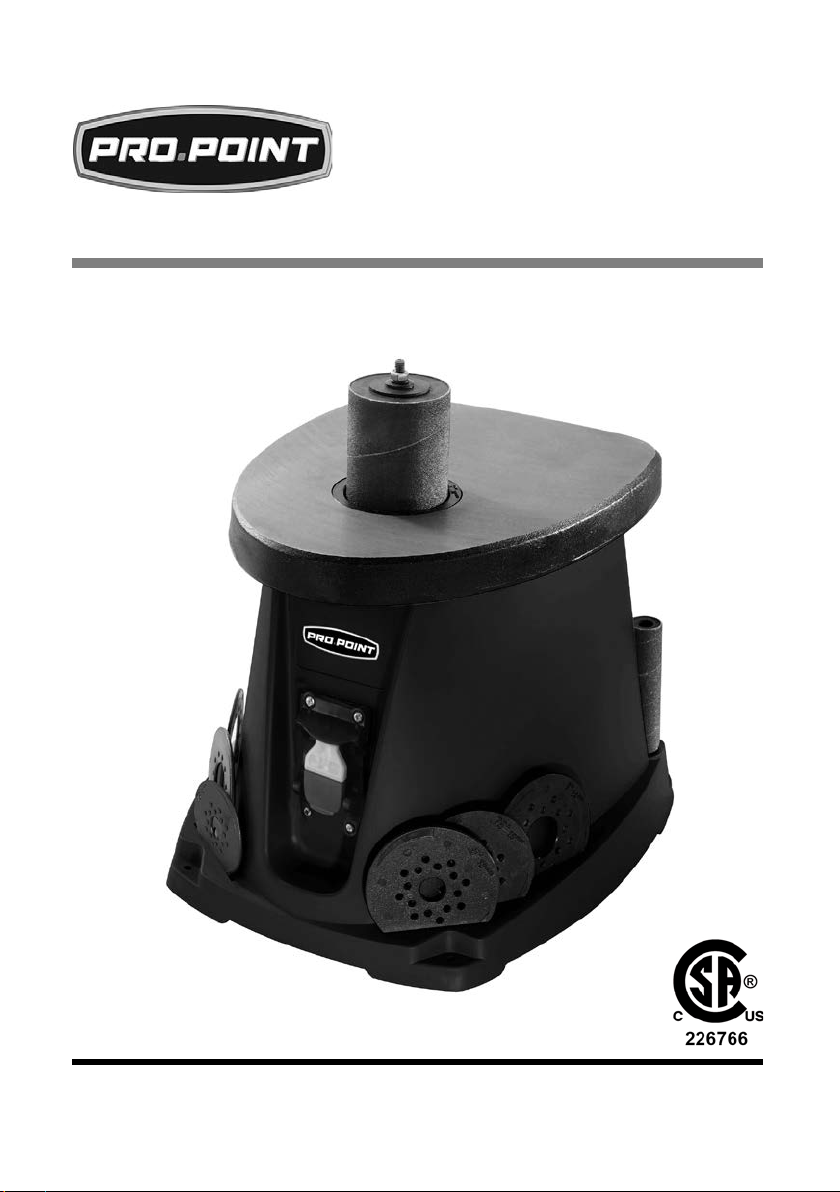

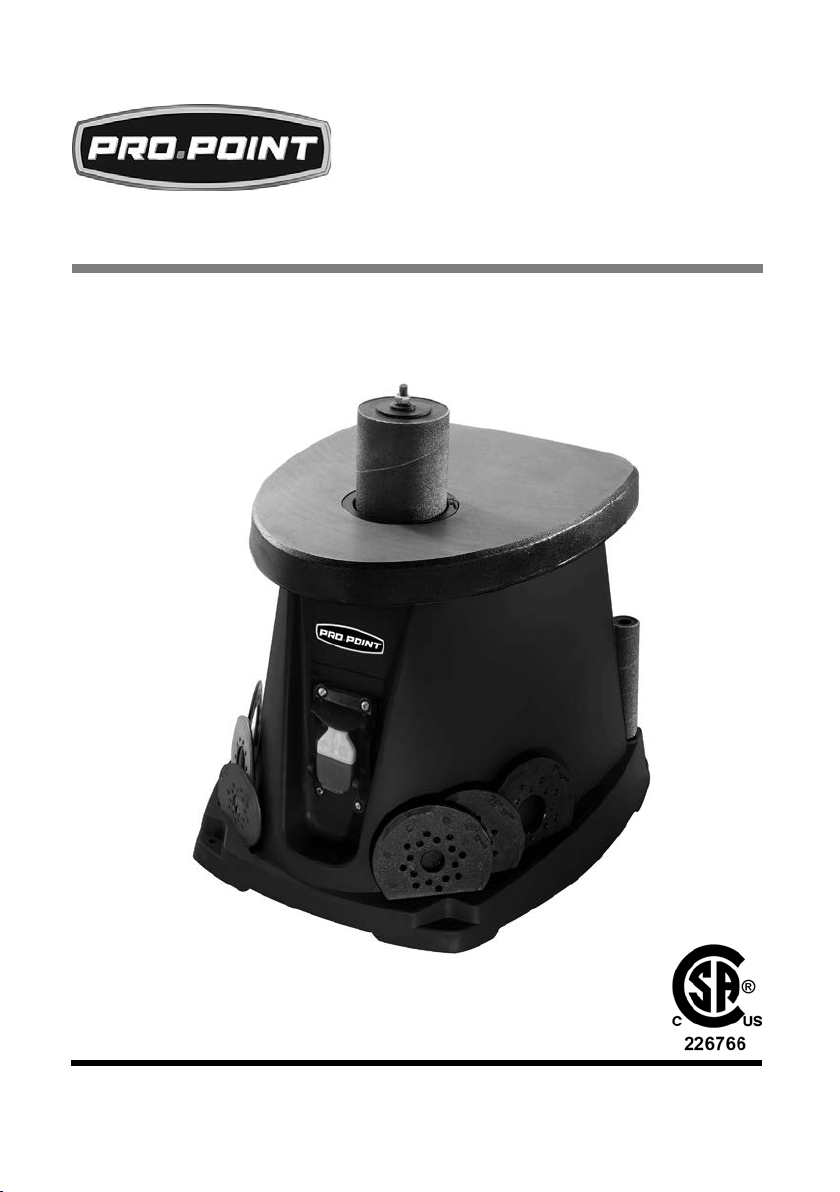

SPINDLE SANDER

8678963 SPINDLE SANDER V1.0
2 For technical questions call 1-800-665-8685
SPECIFICATIONS
Material
Cast Iron Table
Horsepower 1/2 HP
No Load Speed
2,000 RPM
Oscillations 58 Oscillations per minute with 5/8
in. (16 mm) of travel.
Maximum Sanding Height
3-5/8 in. (90 mm)
Spindle Diameter 1/2 in.
Weight
34 lb 5 oz (10.2 kg)
Current Rating 3.5A
Voltage Rating
120VAC
Frequency Rating 60 Hz
INTRODUCTION
The benchtop mount spindle sander quickly shapes and
finishes curved, contoured and irregular shaped projects. It
comes with a variety of table inserts and sanding drums. The
dust collection port can be connected to a dust collection
system to minimize sawdust.
SAFETY
WARNING! Read and understand all instructions before using
this tool. The operator must follow basic precautions to reduce
the risk of personal injury and/or damage to the equipment.
Keep this manual for safety warnings, precautions, operating or
inspection and maintenance instructions.
SPINDLE SANDER

V1.0 SPINDLE SANDER 8678963
Visit www.princessauto.com for more information 3
HAZARD DEFINITIONS
Please familiarize yourself with the hazard notices found in this
manual. A notice is an alert that there is a possibility of property
damage, injury or death if certain instructions are not followed.
DANGER! This notice indicates an immediate and specific
hazard that will result in severe personal injury or death if the
proper precautions are not taken.
WARNING! This notice indicates a specific hazard or unsafe
practice that could result in severe personal injury or death if
the proper precautions are not taken.
CAUTION! This notice indicates a potentially hazardous
situation that may result in minor or moderate injury if proper
practices are not taken.
NOTICE! This notice indicates that a specific hazard or unsafe
practice will result in equipment or property damage, but not
personal injury.
WORK AREA
1. Operate in a safe work environment. Keep your work area
clean, well-lit and free of distractions.
2. Keep anyone not wearing the appropriate safety
equipment away from the work area.
3. Store tools properly in a safe and dry location. Keep tools
out of the reach of children.
4. Do not install or use in the presence of flammable gases,
dust or liquids.
PERSONAL SAFETY
WARNING! Wear personal protective equipment approved by
the Canadian Standards Association (CSA) or American
National Standards Institute (ANSI).

8678963 SPINDLE SANDER V1.0
4 For technical questions call 1-800-665-8685
PERSONAL PROTECTIVE EQUIPMENT
1. Always wear impact safety goggles that provide front and
side protection for the eyes. Eye protection equipment
should comply with CSA Z94.3-07 or ANSI Z87.1 standards
based on the type of work performed.
2. Wear the appropriate type of full-face shield in addition to
safety googles, as the work can create chips, abrasive or
particulate matter.
3. Wear gloves that provide protection based on the work
materials or to reduce the effects of tool vibration.
3.1 Do not wear gloves when operating a tool that can
snag the material and pull the hand into the tool.
4. Wear protective clothing designed for the work
environment and tool.
5. Non-skid footwear is recommended to maintain footing
and balance in the work environment.
6. Wear the appropriate rated dust mask or respirator.
PERSONAL PRECAUTIONS
Control the tool, personal movement and the work
environment to avoid personal injury or damage to the tool.
1. Do not operate any tool when tired or under the influence
of drugs, alcohol or medications.
2. Avoid wearing clothes or jewelry that can become
entangled with the moving parts of a tool. Keep long hair
covered or bound.
3. Do not overreach when operating the tool. Proper footing
and balance enables better control in unexpected situations.
SPECIFIC SAFETY PRECAUTIONS
WARNING! DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence to the
tool safety rules. If you use this tool unsafely or incorrectly,
you can suffer serious personal injury.

V1.0 SPINDLE SANDER 8678963
Visit www.princessauto.com for more information 5
WARNING! Some surfaces contain materials which can be
toxic. When working on materials that may contain lead,
asbestos, copper chromium arsenate or other toxic materials,
extra care should be taken to avoid inhalation and minimize
skin contact.
1. Use the correct tool for the job. This tool was designed for
a specific function. Do not modify or alter this tool or use it
for an unintended purpose.
2. Support the workpiece securely on the table and hold it
with both hands.
3. Feed the workpiece against the direction of rotation of the
sanding sleeve to avoid kickback.
4. Always keep your hands out of the path of the sander and
away from the sanding sleeves. Avoid hand positions where a
sudden slip could cause your hand to move into the spindle.
5. Do not reach underneath the workpiece or around the
sanding sleeve while the spindle is rotating.
6. Disconnect the sander after turning off the power switch.
Wait for the spindle to stop rotating before performing
maintenance. The sander must be disconnected when not
in use or when changing accessories, sanding sleeves,
rubber drums or other accessories.
7. Make sure there are no nails or other foreign objects in the
work area of the workpiece.
8. Never use this sander for wet sanding. Failure to comply may
result in an electrical shock causing serious injury or worse.
9. Use only identical replacement parts when servicing this
spindle sander.
10. Make sure the spindle has come to a complete stop before
touching the workpiece.
11. Use a dust collection system when possible. Seal the work
area with plastic. Do not track contaminated sawdust
outside of the work area.

8678963 SPINDLE SANDER V1.0
6 For technical questions call 1-800-665-8685
ELECTRICAL SAFETY
WARNING! Do not touch or handle a live tool with any part of your
body that is wet or damp. Wet skin reduces resistance to electrical
current, increasing the danger of a serious or fatal shock.
WARNING! To reduce risk of electric shock, be certain that
the plug is connected to a properly grounded receptacle.
1. Disconnect tool from power source before cleaning,
servicing, changing parts/accessories or when not in use.
2. Protect yourself against electric shocks when working on
electrical equipment. Avoid body contact with grounded
surfaces. There is an increased chance of electrical shock if
your body is grounded.
3. Do not expose the tool to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
4. Do not disconnect the power cord in place of using the
ON/OFF switch on the tool. This will prevent an
accidental startup when the power cord is plugged into
the power supply.
4.1 In the event of a power failure, turn off the machine as
soon as the power is interrupted. The possibility of
accidental injury could occur if the power returns and
the unit is not switched off.
5. Do not alter any parts of the tool or accessories. All parts
and accessories are designed with built-in safety features
that may be compromised if altered.
6. Make certain the power source conforms to requirements
of your equipment (see Specifications).
7. When wiring an electrically driven device, follow all
electrical and safety codes, as well as the most recent
Canadian Electrical Code (CE) and Canadian Centre for
Occupational Health and Safety (CCOHS).
WARNING! All wiring should be performed by a
qualified electrician.

V1.0 SPINDLE SANDER 8678963
Visit www.princessauto.com for more information 7
POLARIZED PLUG
Double insulated tools eliminate the need for a 3-wire
grounded power cord and grounded power supply system. The
tool is equipped instead with a polarized plug that requires a
polarized outlet/power supply.
1. A polarized plug has two blades of different widths,
allowing only one way to insert the plug into the outlet.
2. If the outlet does not accept a polarized plug, contact
a qualified electrician to install a polarized outlet. Do
not alter the plug as this may compromise the built-in
safety feature.
POWER CORD
1. Insert the power cord plug directly to the power supply
whenever possible. Use extension cords or surge protectors
only when the tool's power cord cannot reach a power
supply from the work area.
1.1 Use in conjunction with a Ground Fault Circuit
Interrupter (GFCI). If operating a power tool in a damp
location is unavoidable, the use of a GFCI reduces the
risk of electric shock. It is recommended that the GFCI
should have a rated residual current of 30 mA or less.
2. Do not operate this tool if the power cord is frayed or
damaged as an electric shock or surge may occur, resulting
in personal injury or property damage.
2.1 Inspect the tool's power cord for cracks, fraying or
other faults in the insulation or plug before each use.
2.2 Discontinue use if a power cord feels more than
comfortably warm while operating the tool.
2.3 Have the power cord replaced by a qualified
service technician.
3. Keep all connections dry and off the ground to reduce the
risk of electric shock. Do not touch plug with wet hands.

8678963 SPINDLE SANDER V1.0
8 For technical questions call 1-800-665-8685
4. Prevent damage to the power cord by observing
the following:
4.1 Do not pull on the cord to disconnect the plug from
an outlet.
4.2 Keep cord away from heat, oil, sharp edges or
moving parts.
4.3 Never use the cord to carry the tool.
5. Do not allow people, mobile equipment or vehicles to pass
over unprotected power cords.
5.1 Position power cords away from traffic areas.
5.2 Place cords in reinforced conduits.
5.3 Place planks on either side of the power cord to create
a protective trench.
6. Do not wrap cord around the tool as sharp edges may cut
insulation or cause cracks if wound too tight. Gently coil
cord and either hang on a hook or fasten with a device to
keep cord together during storage.
UNPACKING
WARNING! Do not operate the tool if any part is missing.
Replace the missing part before operating. Failure to do so
could result in a malfunction and personal injury.
Remove the parts and accessories from the packaging and inspect
for damage. Make sure that all items in the parts list are included.
Contents:
• Spindle Sander
• Sanding Sleeves (1/2, 3/4, 1, 1-1/2, 2 and 3 in.)
• Rubber Sanding Drums (3/4, 1, 1-1/2, 2 and 3 in.)
• Table Inserts (1/2, 3/4, 1, 1-1/2, 2 and 3 in.)
• Bottom Spindle Washer (2-3/4 in.)
• Upper Spindle Washers (5/8, 7/8 and 1-3/4 in.)
• Spindle Lock Nut
• Wrench

V1.0 SPINDLE SANDER 8678963
Visit www.princessauto.com for more information 9
IDENTIFICATION KEY
A Rubber Sanding Drum
B Sanding Sleeve
C Dust Collection Port, 2-1/2 in.
(Not Visible)
D ON/OFF Switch
E Spindle, Upper Washer and
Lock Nut
F Working Table
G Sanding Drum Storage Pegs
H Table Insert
I Rubber Drum Storage (at Rear of Base)
ASSEMBLY & INSTALLATION
Numbered references in parenthesis (#1) refer to the included
Parts List. Letter references in parenthesis (A) refer to the
included Identification Key.
MOUNT TOOL ON A PEDESTAL
The hardware to mount tool is not included. The pedestal must be
secured to the floor to prevent it from tipping over.
1. Align the tool’s mounting holes with the corresponding
pedestal holes.
2. Slide a flat washer over a 1/4-20 x 1 in. hex head bolt and
insert through the grinder base and pedestal holes.
3. Slide a 1/4 in. flat washer over the end of the bolt and screw
a 1/4-20 in. hex nut onto the bolt end. Tighten until the
space between the tool’s base and pedestal is 1/8 in.
4. Screw a second nut onto the bolt and secure against
the first. This will prevent them from loosening due to
the tool’s vibration.
5. Repeat steps 1 to 4 for the other three bolt holes.
Fig. 1

8678963 SPINDLE SANDER V1.0
10 For technical questions call 1-800-665-8685
MOUNT TOOL ON A WOOD WORKBENCH
The hardware to mount the tool is not included.
1. Clean the work area where the tool will be mounted.
2. Position the tool, check that it will be level and there are no
obstructions around it that will interfere with a long workpiece.
3. Slide a flat washer over a 1/4 x 1 in. wood screw and secure
the grinder in place.
4. Repeat with three more screws. Tighten all screws until the
gap between the grinder base and the bench top is 1/8 in.
CHOOSING A SANDING SLEEVE
The sanding sleeve size is determined by the work area of the
workpiece. Smaller diameters are better for tight areas, while the
larger sleeves are appropriate for flat areas or gentle curves.
TABLE INSERT SELECTION
CAUTION! A mismatched table insert and sanding sleeve
can leave a gap beween them that can catch a finger or the
workpiece. Ensure the table insert matches the sanding sleeve
size to avoid an injury or damage to the workpiece.
The table insert chosen should have the minimum space
between the inner wall and the side of the sanding drum/sleeve
for better control of the workpiece. Match the table insert to
the sanding drum and upper spindle washer in Table 1.
SANDING DRUM/SLEEVE MATCHING
TABLE INSERT
MATCHING UPPER
SPINDLE WASHER
1/2 in. (13 mm)
1/2 in. (13 mm)
Small
3/4 in. (20 mm) 3/4 in. (20 mm) Medium
1 in. (28 mm) 1 in. (28 mm) Medium
1-1/2 in. (38 mm) 1-1/2 in. (38 mm) Large
2 in. (51 mm) 2 in. (51 mm) Large
3 in. (76 mm) 3 in. (76 mm) Large
Table 1

V1.0 SPINDLE SANDER 8678963
Visit www.princessauto.com for more information 11
INSTALL A SANDING SLEEVE
The sanding sleeves will fit on the sanding drum of the same
diameter. The exception is the 1/2 in. sanding sleeve that fits
directly on the spindle (#55).
Refer to Table 1 during installation for the correct table insert
and upper spindle washer combination.
1. Place the 2-3/4 in. dust washer (#6) at the bottom of the
spindle (#55). The ridged side faces upward.
2. Insert a sanding drum (#4) onto the spindle and slide down
until it contacts the dust washer.
3. Slide the matching sanding sleeve (#3) over the sanding
drum until it sits directly on the dust washer.
3.1 Do not use a drum with the 1/2 in. sanding sleeve. Slide
the sanding sleeve directly on the spindle.
4. Slide the matching table insert (#5) over the sanding drum/
sleeve and set it into the recessed rim on the working table (#7).
5. Place the matching upper spindle washer (#2) onto the spindle.
6. Screw the hex nut (#1) onto the spindle and tighten enough
to slightly expand the sanding drum. The drum will press
against the sanding sleeve to provide grip during use.
6.1 Loosen the nut (#1) when before replacing the sanding
sleeve and retighten after the replacement is in place.
6.2 Do not overtighten the nut when using a 1/2 in. sanding
sleeve. Only tighten enough to prevent the sleeve from
sliding upward when being applied against the workpiece.
DUST COLLECTION PORT
A 2-1/2 in. dust collection port (C) is located at the rear of the
spindle sander’s base for a hose. The dust will be sucked down
through the hole containing the spindle.
This will remove most, but not all, of dust generated during
the sanding operation. Additional cleaning will be required
as needed.

8678963 SPINDLE SANDER V1.0
12 For technical questions call 1-800-665-8685
OPERATION
WARNING! Only sand untreated materials with the spindle
sander. Materials treated with toxic materials can pose a
health hazard if the dust particles are inhaled. Wear a dusk
mask when sanding.
WARNING! Do not attempt to sand metal with the spindle
sander. The spindle sander creates fine dust particles that
could be ignited by a spark from sanding a metal object.
The spindle rotates left to right (counterclockwise).
1. Check that the installation of the sanding drum/sleeve and
table insert is correct. Also check that the nut is tight.
2. Press the power button ON and wait until the spindle
reaches full speed before beginning to sand a workpiece.
3. Bring the workpeice into contact with the sanding sleeve at
the leftmost point of the work area. Gradually move the
workpiece to the left, against the direction of rotation, to
prevent it from kicking back.
3.1 If the sanding sleeve stops rotating when it contacts
the workpiece, turn the machine OFF and tighten the
hex nut (#1) on the spindle (#55).
4. Move the workpiece away from spindle and reset it at the
leftmost point for each additional pass that is needed.
5. Remove the workpiece from the worktable when finished
and turn the power OFF. Wait until the spindle has stopped
rotating before proceeding.
CARE & MAINTENANCE
1. Maintain the tool with care. A tool in good condition is
efficient, easier to control and will have fewer problems.
2. Inspect the tool components periodically. Repair or replace
damaged or worn components. Only use identical
replacement parts when servicing.

V1.0 SPINDLE SANDER 8678963
Visit www.princessauto.com for more information 13
3. Follow instructions for lubricating and changing accessories.
4. Only use accessories intended for use with this tool.
5. Maintain the tool’s labels and name plates. These carry
important information. If unreadable or missing, contact
Princess Auto Ltd. for replacements.
WARNING! Only qualified service personnel should repair the
tool. An improperly repaired tool may present a hazard to the
user and/or others.
CLEANING
The spindle sander will generate dust particles. Even if a dust
collection system is connected to the tool, some dust will remain.
Remove the table insert and dust washer from the spindle
and clean the internal mechanism and motor housing with
compressed air or a vacuum.
Clean the work table and table insert with a moist rag to
remove any deposits.
LUBRICATION
Inspect and lubricate the tool when required. Only use light oil
to lubricate the tool. Other lubricants may not be suitable and
could damage the tool or cause a malfunction during use.
The spindle’s bearings (#63) are grease packed and do not
need lubrication.
TROUBLESHOOTING
Visit a Princess Auto Ltd. location for a solution if the tool does
not function properly or parts are missing. If unable to do so,
have a qualified technician service the tool.

8678963 SPINDLE SANDER V1.0
14 For technical questions call 1-800-665-8685
PARTS BREAKDOWN

V1.0 SPINDLE SANDER 8678963
Visit www.princessauto.com for more information 15
PARTS LIST
# DESCRIPTION QTY
1
Hex nut 10
1
2 Upper spindle washer 1
3 Sander sleeve 1
4 Rubber spindle 1
5 Table insert 1
6 Lower spindle washer 1
7
Cast iron table
1
8 Dust washer 1
9 Dust cover 1
10 Washer 5 5
11 Spring washer 5 5
12 Screw 5x12 5
13
Belt
1
14 Belt Ⅱ1
15
Belt wheel
1
16 Spring washer 2
17 Tension roller
assembly
1
18 Screw 4.2x13 4
19 Orientation plate
assembly
1
20 Screw 4.2x22 4
21
Washer 6
4
22 Spring washer 6 4
23 Screw 6x16 4
24 Cord clamp 1
25 Screw 4.2x15 2
26 Bearing 6001zz 1
27
Spring washer
1
28 Armature assembly 1
29 Bearing 608zz 1
30 Connection plate 1
31
Field assembly
1
32 Rear cover 1
33
Brush holder
2
34 Carbon brush 2
35
Brush spring
2
36 Cord clamp 2
37
Washer 4
4
38 Screw 4.2x13 4
39
Washer 4
2
40 Screw 4.2x110 2
41
Screw 4.2x22
4
42 Bearing Cover 1
43
Felt
1
44 Rubber washer 1
45
Bearing 6203zz
1
46 Bearing support 1
47
Screw 4.2x15
4
48 Bearing sleeve 1
49
Spring
1
50 Spring washer 2
51
Spindle washer
2
52 Screw 4.2x13 4
53
Wheel plate
1
54 Wheel(Ⅰ) 1
55
Spindle
1
56 Pin 1
57
Wheel(Ⅱ)
1
58 Bearing sleeve 1
59
Wheel plate
1

8678963 SPINDLE SANDER V1.0
16 For technical questions call 1-800-665-8685
#
DESCRIPTION
QTY
60 Screw 4.2x13 4
61
Screw 4.2x13
4
62 Bearing support 1
63
Bearing 6203zz
1
64 Rubber washer 1
65
Felt
1
66 Wheel support 1
67
Wire assembly(I)
1
68 Wire assembly(II) 1
69
Rectifier
1
70 Screw 4.2x19 1
71
Wire assembly(III
1
72 Wire assembly (IV) 1
73
Power cord
1
74 Cord clamp 1
75
Switch orientation
plate
1
76 Housing base 1
78
Logo label
1
79 Switch orientation(I) 1
80
Switch
1
81 Switch orientation(II) 1
82
Switch assistant
orientation
1
83 Screw 4x16 4
84
Warning label(I)
1
85 Cord clamp 1
86
Screw 4.2x15
2
87 Thread 2
88
Screw 4.2x10
2
89 Rubber foot 4
90
Washer 6
6
91
Spring washer 6
6
92 Screw 6x16 6
93
Bottom plate
1
94 Screw 4.2x13 6
95
Warning label (II)
1
96 1/2 in. Table insert 1
97
3/4 in. Table insert
1
98 1 in. Table insert 1
99
1-1/2 in. Table insert
1
100 2 in. Table insert 1
101
3 in. Table insert
1
102 1/2 in. Sanding
sleeve(80 grit)
1
103
3/4 in. Sanding
sleeve(80 grit)
1
104 1 in.
Sanding sleeve(80
grit)
1
105
1-1/2 in. Sanding
sleeve(80 grit)
1
106 2 in. Sanding
sleeve(80 grit)
1
107
3 in. Sanding
sleeve(80 grit)
1
108 3/4 in. Rubber spindle 1
109
1 in. Rubber spindle
1
110 1-1/2 in. Rubber
spindle
1
111
2 in. Rubber spindle
1
112 3 in. Rubber spindle 1
113
5/8 in. OD Rubber
spindle
1
114 7/ 8 in. OD Rubber
spindle
1
115
1-3/4 in. OD Rubber
spindle
1

V 1,0 8678963
Vous devez lire et comprendre toutes les instructions avant d'utiliser
l'appareil. Conservez ce manuel afin de pouvoir le consulter plus tard.
MANUEL D'UTILISATEUR
PONCEUSE À CYLINDRE

8678963 PONCEUSE À CYLINDRE V 1,0
2 En cas de questions techniques, appelez le 1-800-665-8685
SPÉCIFICATIONS
INTRODUCTION
La ponceuse à cylindre d’établi forme et finit rapidement les
objets de forme recourbée, profilée ou irrégulière. Elle est
accompagnée de plaques amovibles variées et de tambours de
ponçage. L’orifice de collecte de poussière peut se brancher à
un système de collecte de poussière afin de minimiser la
présence de sciure de bois.
SÉCURITÉ
AVERTISSEMENT ! Veuillez lire et comprendre toutes les
instructions avant d'utiliser cet outil. L'utilisateur doit respecter
les précautions de base lorsqu'il utilise cet outil afin de réduire
le risque de blessure ou de dommage à l'équipement.
Matériau Table en fonte
Puissance
1/2 CV
Vitesse à vide 2 000 tr/min
Oscillations 58 oscillations par minute avec
une course de 5/8 po
Hauteur maximale de ponçage 90 mm (3 5/8 po)
Diamètre du cylindre 1/2 po
Poids 10,2 kg (34 lb 5 onces)
Courant nominal
3,5 A
Tension nominale 120 V c.a.
Fréquence nominale 60 Hz
PONCEUSE À CYLINDRE

V 1,0 PONCEUSE À CYLINDRE 8678963
Visitez www.princessauto.com pour plus d'informations 3
Conservez ce manuel qui contient les avertissements de
sécurité, les précautions, les instructions de fonctionnement ou
d'inspection et d'entretien.
DÉFINITIONS DE DANGER
Veuillez-vous familiariser avec les avis de danger qui sont
présentés dans ce manuel. Un avis est une alerte indiquant qu'il
existe un risque de dommage à la propriété, de blessure ou de
décès si on ne respecte pas certaines instructions.
DANGER ! Cet avis indique un risque immédiat et particulier
qui
entraînera
des blessures corporelles graves ou même la
mort
si on omet de prendre les précautions nécessaires.
AVERTISSEMENT ! Cet avis indique un risque particulier ou
une pratique non sécuritaire qui
pourrait
entraîner des
blessures corporelles graves ou même la mort
si on omet de
prendre les précautions nécessaires.
ATTENTION ! Cet avis indique une situation possiblement
dangereuse qui peut entraîner des blessures mineures ou
modérées si on ne procède pas de la façon recommandée.
AVIS ! Cet avis indique un risque particulier ou une pratique
non sécuritaire qui entraînera des dommages au niveau de
l'équipement ou des biens, mais non des blessures corporelles.
AIRE DE TRAVAIL
1. Travaillez dans un environnement de travail sécuritaire.
Gardez votre aire de travail propre, bien éclairée et
exempte de toute distraction.
2. Assurez-vous que les personnes qui ne portent pas
l'équipement de sécurité approprié ne se trouvent pas à
proximité de l'aire de travail.
3. Rangez les outils correctement dans un lieu sécurisé et sec.
Gardez les outils hors de la portée des enfants.

8678963 PONCEUSE À CYLINDRE V 1,0
4 En cas de questions techniques, appelez le 1-800-665-8685
4. N'installez pas et n'utilisez pas d'outils électriques en
présence de gaz, de poussière ou de liquides inflammables.
SÉCURITÉ PERSONNELLE
AVERTISSEMENT ! Portez de l'équipement de protection
personnelle homologué par l'Association canadienne de
normalisation (CSA) ou l'American National Standards
Institute (ANSI).
ÉQUIPEMENT DE PROTECTION PERSONNELLE
1. Portez toujours des lunettes antiprojections qui offrent une
protection frontale et latérale pour les yeux. L'équipement de
protection des yeux devrait être conforme à la norme CSA
Z94.3-07 ou ANSI Z87.1 fonction du type de travail effectué.
2. Portez un écran facial panoramique de type approprié avec
les lunettes de sécurité puisque cette tâche peut créer des
copeaux, des matières abrasives ou des particules.
3. Portez des gants qui protègent en fonction des matériaux
de travail et pour réduire les effets des vibrations de l'outil.
3.1 Ne portez pas de gants lorsque vous utilisez un outil
dans lequel le tissu pourrait demeurer coincé,
entraînant ainsi la main.
4. Portez des vêtements de protection conçus pour
l'environnement de travail et pour l'outil.
5. Les chaussures antidérapantes sont recommandées pour
maintenir la stabilité et l'équilibre au sein de
l'environnement de travail.
6. Portez un masque antipoussières ou un appareil
respiratoire nominal approprié.
PRÉCAUTIONS PERSONNELLES
Gardez le contrôle de l'outil, de vos mouvements et de
l'environnement de travail pour éviter les blessures ou le bris
de l'outil.
