PROPOINT 9096553 User manual

V1.0 9096553
Please read and understand all instructions before use. Retain this manual for future reference.


9096553 14 in. 74cc Gas Cut-Off Saw V1.0
2 For technical questions call 1-800-665-8685
Engine Type
1E74F/2-stroke
Engine Displacement
74cc
Theoretical Horsepower
4.7 HP
Fuel Tank Capacity
37.2 oz
Blade Size
14 in.
Arbor Size
1 in.
Cutting Depth
5 in.
Speed Rating
9,500 RPM
Max. Spindle Speed
with Cutting Blade
4,700 RPM
Includes
Belt, air filter, tool set, alloy blade, oil pot,
air filter sponge
Dimensions
28-1/4L x 11-3/4W x 17-3/4H in.
Certification
EPA-NZTTS.0745OC-005
Please familiarize yourself with the hazard notices found in this manual. A
notice is an alert that there is a possibility of property damage, injury or
death if certain instructions are not followed.
DANGER! This notice indicates an immediate and specific hazard that
will result in severe personal injury or death if the proper
precautions are not taken.
WARNING! This notice indicates a specific hazard or unsafe practice that
could result in severe personal injury or death if the proper
precautions are not taken.
CAUTION! This notice indicates a potentially hazardous situation that may
result in minor or moderate injury if proper practices are not
taken.
NOTICE! This notice indicates that a specific hazard or unsafe practice
will result in equipment or property damage, but not
personal injury.

V1.0 14 in. 74cc Gas Cut-Off Saw 9096553
Visit www.princessauto.com for more information 3
This versatile and powerful 2-stroke saw is ideal for cutting stone, brick,
tiles, concrete and a range of other materials. It features a vibration
damping system, spring-assisted starter, multi-level air filter system, and
well-balanced construction for maximum control during operation.
WARNING! Read and understand all instructions
before using this tool. The operator must follow
basic precautions to reduce the risk of personal
injury and/or damage to the equipment.
Keep this manual for safety warnings, precautions, operating or inspection
and maintenance instructions.
1. Operate in a safe work environment. Keep your work area clean, well-
lit and free of distractions. Place lights so you are not working in a
shadow.
2. Keep anyone not wearing the appropriate safety equipment a
minimum of 50 ft away from the work area.
3. Store tools properly in a safe and dry location. Keep tools out of the
reach of children.
4. Do not install or use in the presence of flammable gases, dust or
liquids.
5. Do not expose the tool to damp or wet conditions, and do not
operate in inclement weather such as heavy rain, strong winds, or
extreme cold.
6. Make sure that no pipes or electrical cables are routed through the
working area.
7. Operate on flat, stable surfaces and avoid sloping ground.
WARNING! Wear personal protective equipment
approved by the Canadian Standards Association
(CSA) or American National Standards Institute
(ANSI).

9096553 14 in. 74cc Gas Cut-Off Saw V1.0
4 For technical questions call 1-800-665-8685
1. Always wear impact safety goggles that provide front and side
protection for the eyes. Eye protection equipment should comply
with CSA Z94.3-07 or ANSI Z87.1 standards based on the type of work
performed.
2. Wear the appropriate type of full-face shield in addition to safety
googles, as the work can create chips, abrasive or particulate matter.
3. Wear gloves that provide protection based on the work materials or
to reduce the effects of tool vibration.
3.1 Do not wear gloves when operating a tool that can snag the
material and pull the hand into the tool.
4. Wear protective clothing designed for the work environment and
tool.
4.1 Flame retardant clothing is recommended for use with this tool.
5. Non-skid footwear is recommended to maintain footing and balance
in the work environment.
6. Wear steel toe footwear or steel toe caps to prevent a foot injury
from falling objects.
7. Wear a NIOSH approved respirator when working on materials that
produce hazardous fumes, dust or particulate matter.
8. Wear an approved hard hat or safety helmet.
WARNING! This tool produces an electromagnetic
field during operation that may interfere with
some active or passive medical implants.
Control the tool, personal movement and the work environment to avoid
personal injury or damage to the tool.
1. Do not operate any tool when tired or under the influence of drugs,
alcohol or medications.
2. Avoid wearing clothes or jewelry that can become entangled with the
moving parts of a tool. Keep long hair covered or bound.
3. Do not overreach when operating the tool. Proper footing and balance
enables better control in unexpected situations.

V1.0 14 in. 74cc Gas Cut-Off Saw 9096553
Visit www.princessauto.com for more information 5
4. Support the workpiece or clamp it to a stable platform. Holding the
workpiece by hand or against your body may lead to personal injury.
5. Securely hold this tool using both hands. Using a tool with only one
hand can result in loss of control.
WARNING! DO NOT let comfort or familiarity with
product (gained from repeated use) replace strict
adherence to the tool safety rules. If you use
this tool unsafely or incorrectly, you can suffer
serious personal injury.
WARNING! Some surfaces contain materials which can
be toxic. When working on materials that may
contain lead, asbestos, copper chromium arsenate
or other toxic materials, extra care should be
taken to avoid inhalation and minimize skin
contact.
DANGER! When the tool is in operation, keep hands
away from the saw blade and the area it is being
applied to. Failure to follow this warning will
result in amputation, serious personal injury or
death.
1. Use the correct tool for the job. This tool was designed for a specific
function. Do not modify or alter this tool or use it for an unintended
purpose.
2. Do not use the tool if any parts are damaged, broken or misplaced.
Repair or replace the parts.
3. Only use accessories that are specifically designed for use with the
tool. Ensure the accessory is tightly installed.
4. Do not use a dull or damaged cutting accessory. A dull cutting
accessory requires more force to use the tool, possibly causing the
accessory to break. This may cause an injury and will damage the
workpiece.
4.1 Dull or improperly set cutting accessories produce a narrow kerf
that can cause excessive friction on the cutting accessory,
resulting in binding or a kickback. Keep the cutting accessory’s
edge sharp and clean.

9096553 14 in. 74cc Gas Cut-Off Saw V1.0
6 For technical questions call 1-800-665-8685
5. Only use a cutting accessory that exceeds the No Load Speed rating
(see Specifications).
6. Always wait until the motor has reached full speed before starting a
cut.
7. Never install more than one cutting accessory at a time unless the
tool and cutting accessories are designed for that purpose.
8. Avoid standing directly behind the tool
during operation to avoid potential
kickback or debris (Fig. 1).
9. Use the correct mounting hardware. The
mounting hardware is designed to hold the
cutting accessory on the tool to allow
optimum performance and safety of
operation. Mismatched mounting
hardware may result in a tool malfunction
and cause an injury.
9.1 Only use a cutting wheel with the correct arbor size and shape
that matches the tool’s spindle.
10. Check that the tool’s safety guard opens and closes freely and does
not touch the cutting accessory. Check each time the safety guard
angle is adjusted, if the tool has that option. Do not operate the tool
if the guard’s movement is impaired.
11. Inspect material for foreign objects such as staples, nails or debris.
Remove from material before cutting.
12. Affix the workpiece to a stable platform to prevent movement,
minimize body exposure to injury, cutting accessory binding or loss of
control.
13. Position the tool on the larger section
of a supported workpiece to complete
a cut. Cut the small portion away from
the larger portion. Support the
smaller portion if possible to prevent
it from binding when the cut is almost
complete (Fig. 2).
Fig. 1
Fig. 2

V1.0 14 in. 74cc Gas Cut-Off Saw 9096553
Visit www.princessauto.com for more information 7
14. Never confine the part of the workpiece being cut away by holding,
clamping or using length stops against it. That part of the workpiece
could become wedged against the blade and be thrown violently. The
cut away part of the workpiece must be free to move sideways.
15. Always handle the blade with care when mounting or removing it.
16. Never reach behind or beneath the blade.
17. Never remove the material guide.
18. Never attempt to use tool on a ladder.
19. Do not attempt any operation that requires reaching over shoulder
height.
20. Never use the sides of the cutting blade for grinding purposes.
21. Do not exert lateral pressure with the cutting blade.
22. This tool is fitted with a low flushing water kit. Do not connect to a
water source with pressure outside the range of 7–150 PSI.
Kickback is a sudden reaction to a pinched or snagged cutting accessory.
The tool kicks out and away from the workpiece while the cutting
accessory is still active. This can inflict a serious injury on the user or a
bystander. Kickback can also damage the tool or workpiece.
Kickback can be avoided by taking proper precautions:
1. Maintain a firm grip on the tool and position your body and arms to
allow you to resist a kickback. Kickback will propel the tool in the
direction opposite to the cutting accessory’s teeth or direction of
rotation. A snagged rotary cutting bit may pull the tool out of the
grasp of the user.
2. If kickback occurs:
2.1 the cutting accessory may pass over a body part, causing a
seriously injury.
2.2 a rotary bit may wrench the user’s arm causing muscle or joint
injuries.
2.3 the tool may strike bystanders.
3. Use clamps or a vice to hold down smaller workpieces.

9096553 14 in. 74cc Gas Cut-Off Saw V1.0
8 For technical questions call 1-800-665-8685
4. Use special care when working on corners, sharp
edges or flexible material. These workpieces have
a tendency to snag the cutting accessory.
5. Support large panels to minimize the risk of
pinching the cutting accessory (Fig. 3). Large
panels may sag under their own weight. Place
supports under the panel on both sides of the
cutline. Place other supports under the rest of the
panels to prevent them from falling after the cut.
6. Maintain the cutting edge of the tool. A dull edge is more likely
to slip from the workpiece.
7. Beware of the cutting blade becoming pinched within a workpiece.
This will create strong reactive forces and lead to unexpected
movement. If blade does become pinched, extract and check for any
damage and ensure sharpness before continuing.
7.1 Operate the tool at top speed to avoid pinching or jamming.
8. To avoid kickback:
8.1 Take special care when inserting the blade into an existing cut.
8.2 Position the workpiece so that the cut
remains open throughout operation.
8.3 Never use the kickback zone of the
blade for cutting (Fig. 4). Use the lower
quadrant of the blade.
This tool is equipped with a muffler designed to keep noise levels to a
minimum and to direct exhaust fumes away from the operator.
1. Always ensure the muffler is complete and is secured correctly.
2. The muffler gets hot during use. Do not touch during or shortly after
operation and keep away from flammable sources.
3. Wear hearing protection gear with an appropriate Noise Reduction
Rating to withstand the decibel levels.
This tool is equipped with a vibration damping system designed to reduce
vibration between the engine and the handle.
Fig. 3
Fig. 4

V1.0 14 in. 74cc Gas Cut-Off Saw 9096553
Visit www.princessauto.com for more information 9
1. Check the vibration damping system is securely attached between the
engine unit and the handle unit. Replace if cracked or deformed.
2. Repeated or long-term exposure to vibration may cause temporary or
permanent physical injury, particularly to the hands, arms and
shoulders.
3. Anyone using vibrating tools regularly or for an extended period
should first be examined by a doctor and then have regular medical
check-ups to ensure medical problems are not being caused by or
worsened from tool use.
4. If you feel any medical symptoms related to vibrations (such as
tingling, numbness, and white or blue fingers), seek medical attention
as soon as possible.
5. DO NOT use this tool if one of the following applies:
5.1 Pregnant
5.2 Impaired blood circulation to the hands
5.3 Past hand injuries
5.4 Nervous system disorders
5.5 Diabetes
5.6 Raynaud's Disease
6. Do not use for extended periods. Take frequent breaks when using
this tool.
7. Let the tool do the work. Grip the tool as lightly as possible (while still
keeping safe control of it).
8. To reduce vibrations, maintain the tool as explained in this manual. If
abnormal vibrations occur, stop using this tool immediately.
DANGER! Fuel is very flammable. Use extreme care
when handling or storing fuel. An ignition source
contacting the fumes or fuel may result in a fire
or explosion and cause fatal or serious injuries
to you or a bystander.
DANGER! Do not smoke or place any hot objects in
the vicinity of fuel.

9096553 14 in. 74cc Gas Cut-Off Saw V1.0
10 For technical questions call 1-800-665-8685
1. Use only an approved fuel container for refueling the engine.
2. Store fuel out of direct sunlight in a cool and dry location and away
from any sources of heat, such as flames, sparks, boilers, motors, etc.
3 Inspect container for fuel leaks. Replace any container that leaks.
4. Refuel outdoors or in a well-ventilated area and immediately wipe up
spills. Fuel can damage paint and plastic.
5. Always refuel on level surfaces.
6. Let engine cool for at least two minutes before refueling.
7. Clean the fuel area of dirt and debris. Do not allow dirt or water to
enter the fuel tank.
8. Remove the fuel cap slowly to allow the pressure to equalize safely.
9. Move the tool at least 10 ft from its fuel source before refueling.
10. Always ensure the fuel cap is tightened upon completion and before
any operation.
11. Never start the tool if any of the following occur:
11.1 Fuel has been spilled on the tool
11.2 Fuel has been spilled on your body or clothing
11.3 If the tool is leaking fuel
12. If the tool is not to be used for extended periods of time, fully empty
the tank and store fuel appropriately and safely.
NOTICE! Always ensure accurate measurement of 2-
stroke fuel. Even when mixing small amounts,
innaccuracies can drastically affect the mixture.
1. Gasoline –Use 89 Octane or higher gasoline.
1.1 Avoid gasoline containing alcohol such as gasohol when possible.
Gasohol containing up to 10% Ethyl alcohol is acceptable if
necessary.
2. Two-stroke oil –two-stroke engine oil must meet ISO-L-EGD
(ISO/CD 13738) and JASO FC standards.

V1.0 14 in. 74cc Gas Cut-Off Saw 9096553
Visit www.princessauto.com for more information 11
3. Do not use pre-mixed gasoline/lubricant from fuel service stations.
This includes the pre-mixed gasoline/lubricant intended for use in
mopeds, motorcycles, etc.
MIXTURE RATIO 40:1
2-STROKE OIL
Per Gallon
3.2 oz
Per Quart
0.8 oz
Per Pint
0.4 oz
Per Litre
25 mL
1. Fill an approved container with half of the gasoline.
2. Add the proper amount of two-stroke oil to the gasoline.
3. Close the container and shake to mix the oil with the gasoline.
4. Add remaining gasoline to the container, close and remix.
5. Mix in small quantities. Do not mix more fuel than can be used in a 30
day period, 90 days if fuel stabilizer is added.
5.1 Fuel without an alcohol additive are less likely to form gum and
deposits and should not require a stabilizer.
WARNING! Do not operate the tool if any part is
missing. Replace the missing part before
operating. Failure to do so could result in a
malfunction and personal injury.
Remove the parts and accessories from the packaging and inspect for damage.
Make sure that all items in the parts list are included.
Numbered references in parenthesis (#1) refer to the included Parts List.
Dashed numbers in parenthesis (Fig. 1-1) refer to a specific point in an
illustration or image.
NOTICE! Do not use warped, notched, indented or
dirty flange washers.

9096553 14 in. 74cc Gas Cut-Off Saw V1.0
12 For technical questions call 1-800-665-8685
NOTICE! Do not use different
dimensions of flange washers.

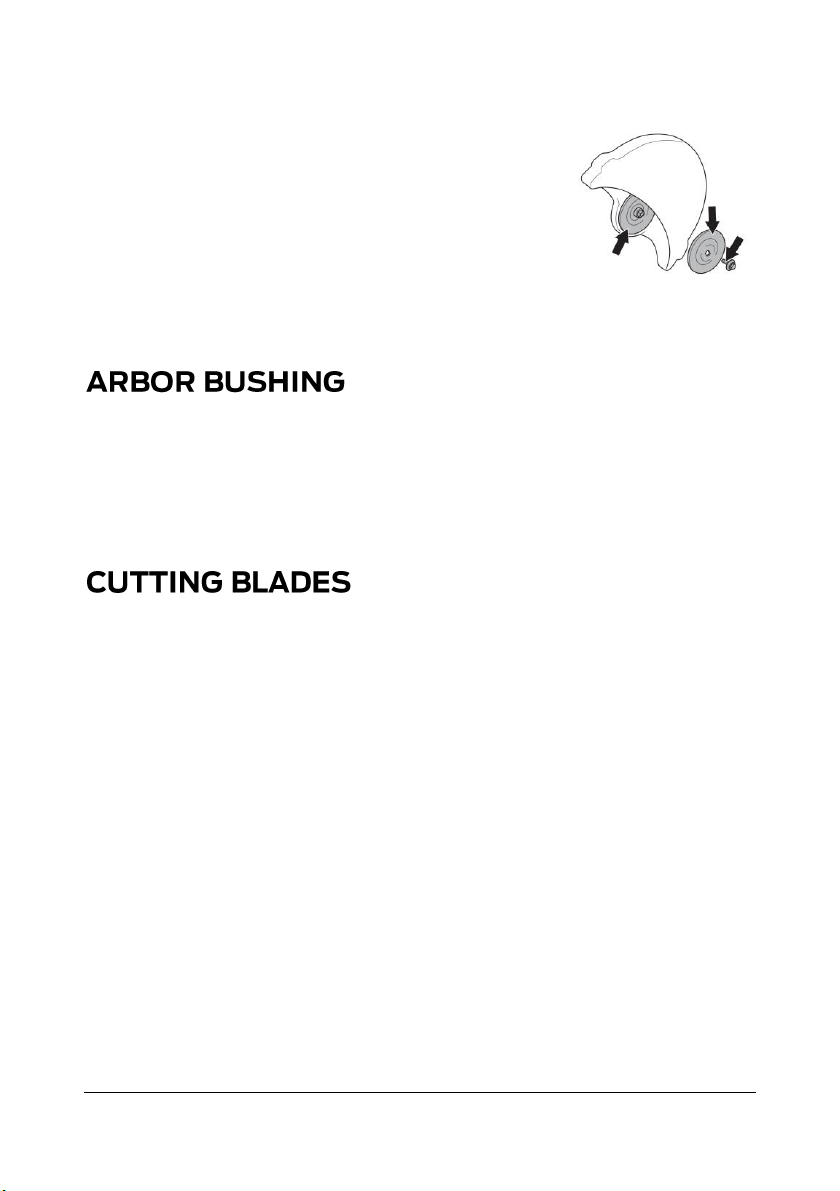

1. Check that the threads on the spindle shaft are
undamaged.
2. Check that the contact surfaces on the blade
and on the flange washers are undamaged, of
the correct dimension and clean
3. Ensure that the flange washers run properly on the spindle
shaft (Fig. 5).
This tool is supplied with either a bushing that can be flipped over to fit
blades with either a 20 mm centre holes or with a fixed 20 mm bushing. A
decal on the blade guard indicates which bushing has been factory fitted.
1. Check that the bushing on the machine’s spindle shaft corresponds
with the centre hole of the cutting blade. The blades are marked with
the diameter of the centre hole.
WARNING! Never use a cutting blade for any other
material than it was intended.
WARNING! Never use a cutting blade with a lower
speed rating than the tool (see Specifications).
WARNING! This tool is not for use with carbide-
tipped, toothed blades.
High-quality cutting blades are recommended for use with this tool.
Always ensure that the right bushing is used for the cutting blade being
fitted to the tool.
Different blades have different requirements surrounding cooling and
whether or not they are to be used for wet or dry cutting. Always refer to
a blade’s specifications before using.
Always choose the correct blade for the operation and/or workpiece.
Fig. 5

V1.0 14 in. 74cc Gas Cut-Off Saw 9096553
Visit www.princessauto.com for more information 13
BLADE TYPE
MATERIAL
Abrasive (Concrete)
Concrete, asphalt, stone masonry, cast iron,
aluminum, copper, brass, cables, rubber,
plastic
Abrasive (Metal)
Steel, steel alloys, other hard metals
Diamond
Reinforced concrete, masonry, other
composite materials

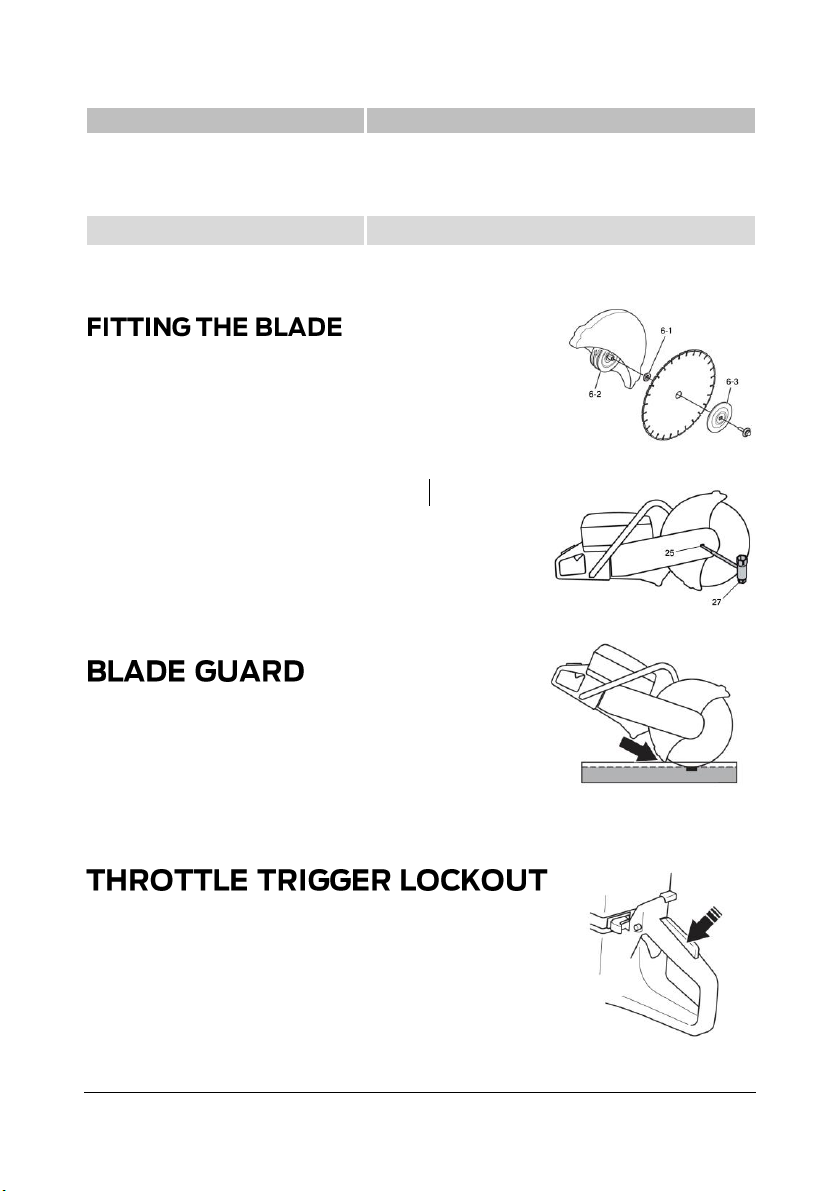

1. Place the blade (not included) on the bushing
(Fig. 6-1) between the inner flange washer
(Fig. 6-2) and the flange washer (Fig. 6-3).
1.1 Make sure the blade is positioned to
rotate in the correct direction for that blade.
2. Make sure the flange washer is turned so
that it fits the axle.
3. Lock the shaft.
4. Insert the combination spanner (#27) into
the hole in the cutting head (#25) and
rotate the blade until it is locked (Fig. 7).
1. Check that the blade guard is not cracked or
damaged and fits smoothly over the blade.
2. Press the ends of the guard against your
workpiece.
3. Using the adjustment handle, adjust the guard so that rear
section is flush with the workpiece (Fig. 8).
The throttle trigger lockout is designed to prevent
accidental operation of the tool. It must be
depressed before the trigger can be engaged.
1. Depress the throttle trigger lockout (Fig. 9).
Fig. 6
Fig. 7
Fig. 8
Fig. 9

9096553 14 in. 74cc Gas Cut-Off Saw V1.0
14 For technical questions call 1-800-665-8685
2. Press the trigger and apply full throttle (Fig. 10).
3. Release the throttle trigger lockout and ensure that
the blade comes to a complete stop.
3.1 The blade may rotate for up to a minute once
the engine has stopped.
1. Press the trigger and apply full throttle.
2. Move the stop switch (#9) to the stop
position (Fig. 11-1) ensure that the blade
comes to a complete stop (Fig. 11).
2.1 The blade may rotate for up to a
minute once the engine has
stopped.
This tool is fitted with a reversible cutting for
cutting operations close to a wall or at ground
level.
1. Loosen the three nuts (Fig. 12-1) holding the
upper belt guard (#21) (Fig. 12).
2. Turn the belt tensioner (#22) to the
“0” position to release the tension
(Fig. 12).
3. Remove the upper belt guard.
4. Disconnect the water hose nipples
and handle from the blade guard
(#16) (Fig. 13).
5. Remove the stop (Fig. 13-1).
6. The cutting head should now be loose and can be
removed from the tool.
7. Remove the belt from the belt pulley.
8. Rotate the bearing housing to the opposite
direction (Fig. 14).
9. Reassemble the stop.
Fig. 10
Fig. 11
Fig. 12
Fig. 13
Fig. 14

V1.0 14 in. 74cc Gas Cut-Off Saw 9096553
Visit www.princessauto.com for more information 15
WARNING! Do not start the tool without first
ensuring all the safety features are intact and
operational, including the blade guard, throttle
trigger lockout, and stop switch.
WARNING! Do not start the tool without the belt
and the belt guard fitted. Otherwise the cultch
could come loose and cause injury.
WARNING! The cutting blade rotates when the engine
is started. Make sure it can rotate freely.
1. Make sure that the stop switch is in the correct position.
2. Pull out the choke control (#6) completely.
3. Depress the decompression valve (#17).
4. Press the air purge diaphragm about 6 times or
repeatedly (#18) until fuel begins to fill the
diaphragm.
5. Grip the front handle (#1) with your left hand
(Fig. 15).
6. Put your right foot on the lower section of the
rear handle (Fig. 15-1).
7. Pull the starter handle (#10) with your right hand
until the engine starts (Fig. 15).
7.1 Do not twist the starter cord around your hand.
7.2 Do not pull starter cord all the way out.
7.3 Do not let go of starter cord when fully extended, allowing it to
snap back aggressively. This can damage the tool.
8. As soon as the engine starts, push in the choke control.
9. Press the throttle trigger to disengage the start throttle and let the
tool idle.
Fig. 15

9096553 14 in. 74cc Gas Cut-Off Saw V1.0
16 For technical questions call 1-800-665-8685
1. Make sure that the stop switch is in the correct position.
2. Set the choke control in the choke position, which is also the
automatic start position.
3. Depress the decompression valve.
4. Push the choke control to disable the choke.
5. Grip the front handle with your left hand.
6. Put your right foot on the lower section of the rear handle.
7. Pull the starter handle with your right hand until the engine starts.
7.1 Do not twist the starter cord around your hand.
7.2 Do not pull starter cord all the way out.
7.3 Do not let go of starter cord when fully extended, allowing it to
snap back aggressively. This can damage the tool.
8. Press the throttle trigger to disengage the
start throttle and let the tool idle.
1. Holding the saw firmly with both hands,
position yourself responsibly at your
workpiece.
2. Press the trigger and allow the tool to reach
full throttle.
3. Apply the cutting blade to the workpiece
using gentle downward force.
4. Carefully move the blade forwards and backwards until the desired
results are achieved.
4.1 Do not skew or twist the blade
within the cut (Fig. 16).
5. Release the trigger and allow the tool
to come to a complete stop before
assessing workpiece or moving tool.
1. Ensure the pipe is properly supported and secure (Fig. 17).
Fig. 16
Fig. 17

V1.0 14 in. 74cc Gas Cut-Off Saw 9096553
Visit www.princessauto.com for more information 17

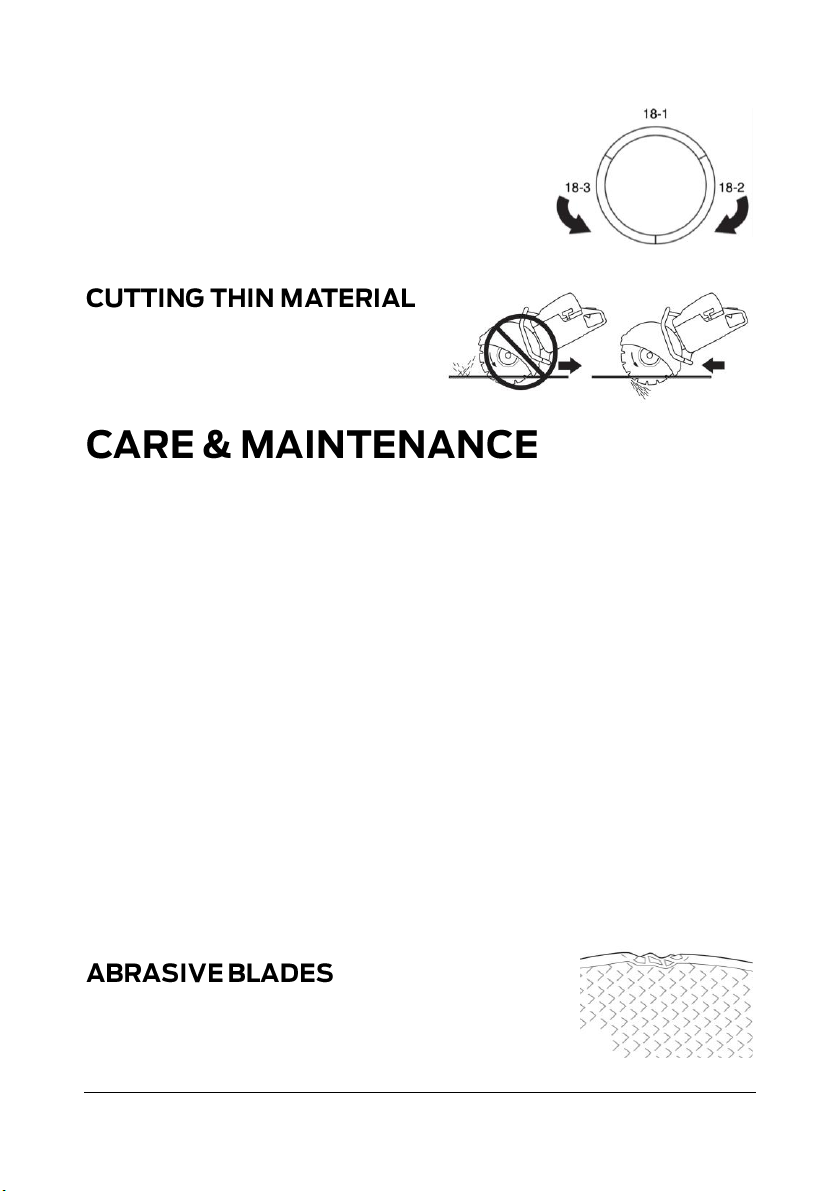

2. Always begin by cutting the top of the pipe
(Fig. 18-1).
3. From there, move to the side and cut
downwards (Fig. 18-2).
4. Move to the final side and cut the remaining
section of pipe (Fig. 18-3).
Thinner workpieces, such as sheet
metal, should be cut using solely a
forward motion for greater control
(Fig. 19).
WARNING! Always ensure the tool is switched off
before performing any inspections or maintenance.
1. Maintain the tool with care. A tool in good condition is efficient,
easier to control and will have fewer problems.
2. Inspect the tool components periodically. Repair or replace damaged
or worn components. Only use identical replacement parts when
servicing.
3. Follow instructions for lubricating and changing accessories.
4. Only use accessories intended for use with this tool.
5. Keep the tool clean, dry and free from oil/grease at all times.
6. Check the tightness of all fasteners.
7. Maintain the tool’s labels and name plates. These carry important
information. If unreadable or missing, contact Princess Auto Ltd. for
replacements.
WARNING! Only qualified service personnel should
repair the tool. An improperly repaired tool may
present a hazard to the user and/or others.
If using an abrasive blade with this tool, be sure to
perform checks before every operation for cracks
(Fig. 20). If damage is found, replace.
Fig. 18
Fig. 19
Fig. 20

9096553 14 in. 74cc Gas Cut-Off Saw V1.0
18 For technical questions call 1-800-665-8685
Test the abrasive blade’s integrity by hanging it on
your finger and tapping lightly with a screw driver
(Fig. 21). If it does not produce a resonant, ringing
sound, it is damaged and needs to be replaced.
Diamond blades can become dull when cutting
certain materials regularly or when too much
pressure is applied during operation. Sharpen
regularly by cutting into a soft material, such as
sandstone or brick.
Regularly check to ensure diamond blades are
wearing correctly. The diamond segment (Fig. 22-
1) should always be wider than the blade core
(Fig. 22-2).
NOTICE! A dirty or blocked air
intake can result in overheating,
which causes damages to the
piston and cylinder.
Clean the cooling air intake daily (Fig. 23).
NOTICE! Always use the recommended spark plug
type. The wrong type can cause damage to the
piston and cylinder.
If the tool is low on power, difficult to start or runs
poorly at idle speed, always check the spark plug first.
•Ensure that the spark plug cap and ignition lead are
undamaged.
•If the spark plug is dirty, clean it.
•Ensure that the electrode gap is 0.5 mm (Fig. 24-1).
•Clean the air filter.
•Ensure the fuel mixture is correct.
Fig. 21
Fig. 22
Fig. 23
Fig. 24

V1.0 14 in. 74cc Gas Cut-Off Saw 9096553
Visit www.princessauto.com for more information 19
1. Loosen the 3 bolts holding the upper
belt guard (Fig. 25-1).
2. Turn the belt tensioner (#22) to the
“0” position to release the tension
(Fig. 25).
3. Remove the upper belt guard and
the rear belt guard (Fig. 26).
4. Replace the drive belt.
5. Turn the belt tensioner to the “1”
position to tighten.
6. Replace the belt guards.
7. Replace and tighten the screws
slightly.
8. Wiggle the blade guard up and down 3–5 times.
9. Tighten the screws securely.
The carburetor is equipped with fixed needles to ensure the tool always
receives the correct mixture of fuel and air.
When the engine lacks power or accelerates poorly, check and replace the
air filter.
To check the carburetor is set correctly, start the engine and place at the
idle setting. If the cutting blade does not remain still, the carburetor is not
set correctly. Accomplish the following
to adjust:
1. Turn the T screw (Fig. 27-1)
clockwise until the cutting blade
begins to rotate.
2. Turn the T screw counterclockwise
until the blade stops rotating.
WARNING! When the recoil spring is woud up in the
starter housing, it is under tension and can pop
out, causing injury.
Fig. 25
Fig. 26
Fig. 27

9096553 14 in. 74cc Gas Cut-Off Saw V1.0
20 For technical questions call 1-800-665-8685
To change the starter cord, accomplish the following:
1. Loosen the screws that hold the starter against the crankcase and
remove the starter.
2. Replace with a new cord.
3. Reassemble and reattach the starter.
The following should be performed regularly:
•Check the tightness of the fuel cap seal.
•Check the fuel hose for cracks or damage.
•Check the fuel filter for damage or clogs.
Clean or replace as necessary.
CAUTION! Unhealthy dust or
debris can be spread while
changing a filter. Wear
approved personal protective
equipment and dispose of filter
correctly.
If the engine drops in power, check the air
filter by accomplishing the following:
1. Loosen the screws and remove the air
filter cover (#3) (Fig 28).
2. Loosen the screws and remove the cover (Fig. 29).
3. Remove the old filter and replace with new filter.
Check the clutch centre, drive gear and cutch
spring regularly for wear.
Check the nozzles on the bladeguard and the
filter in the water connection for clogging.
Clean as necessary (Fig. 30).
Fig. 28
Fig. 29
Fig. 30
