PROPOINT 8857971 User manual

V1.0 8857971
Please read and understand all instructions before use. Retain this manual for future
reference.
BAND SAW

PORTABLE METAL-CUTTING

8857971 Portable Metal-Cutting Band Saw V1.0
2 For technical questions call 1-800-665-8685
SPECIFICATIONS
Voltage Rating 120V AC
Amperage Rating 10 A
Phase Single
Frequency Rating 60 Hz
Cutting Capacity 5 in.
Speed Rating 0 to 435 RPM
Blade Size 44-7/8 x 1/2 x 0.025 in.
Cutting Angle 0° to 45°
Dimensions (L x W x H) 21-1/2 x 12 x 7-3/4 in.
HAZARD DEFINITIONS
Please familiarize yourself with the hazard notices found in this manual.
A notice is an alert that there is a possibility of property damage, injury
or death if certain instructions are not followed.
DANGER! This notice indicates an immediate and specific hazard that
will result in severe personal injury or death if the proper
precautions are not taken.
WARNING! This notice indicates a specific hazard or unsafe practice
that could result in severe personal injury or death if the
proper precautions are not taken.
CAUTION! This notice indicates a potentially hazardous situation that
may result in minor or moderate injury if proper practices are
not taken.
NOTICE! This notice indicates that a specific hazard or unsafe
practice will result in equipment or property damage, but
not personal injury.

V1.0 Portable Metal-Cutting Band Saw 8857971
Visit www.princessauto.com for more information 3
INTRODUCTION
The Portable Metal-Cutting Band Saw is ideal for cutting aluminum,
brass, copper and steel bars or pipes.
SAFETY
WARNING! Read and understand all instructions before using this
tool. The operator must follow basic precautions to reduce the
risk of personal injury and/or damage to the equipment.
Keep this manual for safety warnings, precautions, operating or
inspection and maintenance instructions.
WORK AREA
1. Operate in a safe work environment. Keep your work area clean,
well-lit and free of distractions. Place lights so you are not working
in a shadow.
2. Keep anyone not wearing the appropriate safety equipment away
from the work area.
3. Store tools properly in a safe and dry location. Keep tools out of
the reach of children.
4. Do not install or use in the presence of flammable gases, dust or
liquids.
PERSONAL SAFETY
WARNING! Wear personal protective equipment approved by the
Canadian Standards Association (CSA) or American National
Standards Institute (ANSI).
PERSONAL PROTECTIVE EQUIPMENT
1. Always wear impact safety goggles that provide front and side
protection for the eyes. Eye protection equipment should comply
with CSA Z94.3-07 or ANSI Z87.1 standards based on the type of
work performed.
2. Wear the appropriate type of full-face shield in addition to safety
googles, as the work can create chips, abrasive or particulate
matter.
3. Wear gloves that provide protection based on the work materials or
to reduce the effects of tool vibration.

8857971 Portable Metal-Cutting Band Saw V1.0
4 For technical questions call 1-800-665-8685
3.1 Do not wear gloves when operating a tool that can snag the
material and pull the hand into the tool.
4. Wear protective clothing designed for the work environment and tool.
5. Non-skid footwear is recommended to maintain footing and
balance in the work environment.
6. Wear steel toe footwear or steel toe caps to prevent a foot injury
from falling objects.
7. Wear the appropriate rated dust mask or respirator.
8. This tool can cause hearing damage. Wear hearing protection gear
with an appropriate Noise Reduction Rating to withstand the
decibel levels.
PERSONAL PRECAUTIONS
Control the tool, personal movement and the work environment to avoid
personal injury or damage to the tool.
1. Do not operate any tool when tired or under the influence of drugs,
alcohol or medications.
2. Avoid wearing clothes or jewelry that can become entangled with
the moving parts of a tool. Keep long hair covered or bound.
3. Do not overreach when operating the tool. Proper footing and
balance enables better control in unexpected situations.
4. Support the workpiece or clamp it to a stable platform. Holding the
workpiece by hand or against your body may lead to personal injury.
5. Securely hold this tool using both hands. Using a tool with only one
hand can result in loss of control.
6. Be alert at all times, especially during repetitive, monotonous
operations.
SPECIFIC SAFETY PRECAUTIONS
DANGER! When the tool is in operation, keep hands away from the
saw blade and the area it is being applied to. Failure to follow this
warning will result in amputation, serious personal injury or death.
WARNING! Some surfaces contain materials which can be toxic.
When working on materials that may contain lead, asbestos,
copper chromium arsenate or other toxic materials, extra care
should be taken to avoid inhalation and minimize skin contact.

V1.0 Portable Metal-Cutting Band Saw 8857971
Visit www.princessauto.com for more information 5
WARNING! DO NOT let comfort or familiarity with product (gained
from repeated use) replace strict adherence to the tool safety rules.
If you use this tool unsafely or incorrectly, you can suffer serious
personal injury.
1. Use the correct tool for the job. This tool was designed for a
specific function. Do not modify or alter this tool or use it for an
unintended purpose.
2. Do not use the tool if any parts are damaged, broken or misplaced.
Repair or replace the parts.
3. Only use saw blades that are specifically designed for use with the
tool. Ensure the saw blade is tightly installed.
4. Do not use a dull or damaged cutting saw blade. A dull saw blade
requires more force to use the tool, possibly causing the saw blade
to break. This may cause an injury and will damage the workpiece.
4.1 Dull or improperly set saw blade produce a narrow kerf that can
cause excessive friction on the saw blade, resulting in binding or
a kickback. Keep the saw blade’s edge sharp and clean.
5. Only use a saw blade that exceeds the Speed Rating (see
Specifications).
6. Use the correct mounting hardware. The mounting hardware is
designed to hold the saw blade on the tool to allow optimum
performance and safety of operation. Mismatched mounting
hardware may result in a tool malfunction and cause an injury.
6.1 Always use blades that are correctly sized and shaped for the
tool. Blades that do not match the tool’s mounting hardware
will run erratically, causing loss of control.
7. Check the saw blade for damage before each use. A damaged
accessory can break during use and cause serious injury.
8. Affix the workpiece to a stable platform to prevent movement, minimize
body exposure to injury and saw blade binding or loss of control.
9. Position the tool on the larger section of a supported workpiece to
complete a cut. Cut the small portion away from the larger portion.
Support the smaller portion if possible to prevent it from binding
when the cut is almost complete.
10. Always handle the band saw blade with care when mounting or
removing it.

8857971 Portable Metal-Cutting Band Saw V1.0
6 For technical questions call 1-800-665-8685
11. Never confine the part of the workpiece being cut away by holding,
clamping or using length stops against it. That part of the workpiece
could become wedged against the blade and be thrown violently. The
cut away part of the workpiece must be free to move sideways.
12. Ensure the tension handle is tightened (making the saw blade taut)
before each use.
13. Remove adjusting keys and wrenches before using the tool. The
tool may eject an attached wrench or a key and cause an injury to
you or a bystander.
POWER TOOL PRECAUTIONS
1. DO NOT use any power tool with a malfunctioning power switch or
control. A power tool that fails to respond to the controls is
dangerous and could cause an injury. A qualified technician must
repair and verify the power tool is operating correctly before it can
be used.
2. Do not allow the tool to run without load for an extended period of
time, as this will shorten its life.
3. Do not cover the air vents. Proper cooling of the motor is necessary
to ensure normal life of the tool.
4. Avoid unintentional starting. Ensure the switch is off when connecting
to the power source.
5. Disconnect the power source before installing or servicing the tool.
6. After making adjustments, make sure that any adjustment devices
are securely tightened.
7. Never force the tool. Forcing the tool will slow it down and could
cause the saw blade to bind or kickback. Excessive pressure could
break the tool, resulting in damage to your workpiece or cause serious
personal injury. If your tool runs smoothly under no load, but does not
run smoothly under load, then excessive pressure is being used.
Apply gentle pressure and allow the tool to do the work.
8. Do not touch an operating motor. Motors can operate at high
temperatures and can cause a burn injury.
9. Cutting material and the motor housing can get very hot during
operation. Stop work until tool and blade both cool down to safe
temperature.

V1.0 Portable Metal-Cutting Band Saw 8857971
Visit www.princessauto.com for more information 7
10. Never point the tool towards yourself. It could inflict an injury.
11. Never touch the saw blade or workpiece during or immediately after
use. They may be hot and could inflict a burn injury.
12. Keep hands away from the cutting area and the saw blade. Always
be aware of the position of your hands relative to the blade. Avoid
awkward hand positions where a sudden slip could cause a hand
to move into the blade. Never reach behind or beneath the blade
13. This tool will not stop moving immediately. Do not lay the tool down
or leave it unattended until it has come to a complete stop. A part
that is moving could make the tool jump or grab a surface and pull
the tool out of your control.
14. Hold the tool by the insulated gripping surfaces when performing an
operation where the tool may contact hidden electrical wiring. The
tool’s exposed metal surfaces may convey a shock to the operator
from a ‘live’ wire.
KICKBACK PRECAUTIONS
Kickback is a sudden reaction to a pinched or snagged saw blade. The
tool kicks out and away from the workpiece while the saw blade is still
active. This can inflict a serious injury on the user or a bystander.
Kickback can also damage the tool or workpiece.
Kickback can be avoided by taking proper precautions:
1. Maintain a firm grip on the tool and position your body and arms to
allow you to resist a kickback. Kickback will propel the tool in the
direction opposite to the saw blade’s teeth or direction of rotation. A
snagged rotary cutting bit may pull the tool out of the grasp of the user.
2. If kickback occurs:
2.1 The saw blade may pass over a body part, causing a
seriously injury;
2.2 The tool may strike bystanders.
3. Use clamps or a vice to hold down smaller workpieces.
4. Use special care when working on corners, sharp edges or flexible
material. These workpieces have a tendency to snag the saw blade.
5. Only use a saw blade designed for the tool.

8857971 Portable Metal-Cutting Band Saw V1.0
8 For technical questions call 1-800-665-8685
ELECTRICAL SAFETY
WARNING! Do not touch or handle a live tool with any part of your
body that is wet or damp. Wet skin reduces resistance to electrical
current, increasing the danger of a serious or fatal shock.
WARNING! To reduce risk of electric shock, be certain that the
plug is connected to a properly grounded receptacle.
WARNING! All wiring should be performed by a qualified
electrician.
1. Disconnect tool from power source before cleaning, servicing,
changing parts/accessories or when not in use.
2. Protect yourself against electric shocks when working on electrical
equipment. Avoid body contact with grounded surfaces. There is
an increased chance of electrical shock if your body is grounded.
3. Do not expose the tool to rain or wet conditions. Water entering a
tool will increase the risk of electric shock.
4. Do not disconnect the power cord in place of using the ON/OFF
switch on the tool. This will prevent an accidental start-up when the
power cord is plugged into the power supply.
4.1 In the event of a power failure, turn off the machine as soon as
the power is interrupted. The possibility of accidental injury could
occur if the power returns and the unit is not switched off.
5. Do not alter any parts of the tool or accessories. All parts and
accessories are designed with built-in safety features that may be
compromised if altered.
6. Make certain the power source conforms to requirements of your
equipment (see Specifications).
7. When wiring an electrically driven device, follow all electrical and
safety codes, as well as the most recent Canadian Electrical Code
(CE) and Canadian Centre for Occupational Health and Safety
(CCOHS).
POWER CORD
1. Insert the power cord plug directly to the power supply whenever
possible. Use extension cords or surge protectors only when the
tool's power cord cannot reach a power supply from the work area.

V1.0 Portable Metal-Cutting Band Saw 8857971
Visit www.princessauto.com for more information 9
1.1 When operating a tool outside, use an outdoor extension cord
marked W-A or W. These cords are rated for outdoor use and
reduce the risk of electric shock.
2. Do not operate this tool if the power cord is frayed or damaged as an
electric shock or surge may occur, resulting in personal injury or
property damage.
2.1 Inspect the tool's power cord for cracks, fraying or other faults
in the insulation or plug before each use.
2.2 Discontinue use if a power cord feels more than comfortably
warm while operating the tool.
2.3 Have the power cord replaced by a qualified service
technician.
3. Keep all connections dry and off the ground to reduce the risk of
electric shock. Do not touch plug with wet hands.
4. Prevent damage to the power cord by observing the following:
4.1 Do not pull on the cord to disconnect the plug from an outlet.
4.2 Keep cord away from heat, oil, sharp edges or moving parts.
4.3 Never use the cord to carry the tool.
4.4 Place the electrical cord in a position that prevents it from
coming into contact with the tool and from getting caught by
the workpiece. The cord should always stay behind the tool.
5. Do not allow people, mobile equipment or vehicles to pass over
unprotected power cords.
5.1 Position power cords away from traffic areas.
5.2 Place cords in reinforced conduits.
5.3 Place planks on either side of the power cord to create a
protective trench.
6. Do not wrap cord around the tool as sharp edges may cut insulation or
cause cracks if wound too tight. Gently coil cord and either hang on a
hook or fasten with a device to keep cord together during storage.
LOW VOLTAGE
Low voltage may cause overheating due to higher power current being
drawn to the tool that will shorten the motor life.
An extension cord may cause a drop in power to the tool if it is too long
or the amperage rating is not correct. This may result in the following:

8857971 Portable Metal-Cutting Band Saw V1.0
10 For technical questions call 1-800-665-8685
1. The tool will not activate when switched on.
2. The tool may switch on, but fails to maintain power when operated.
3. The tool may overheat, possibly starting a fire.
Test the tool by plugging it directly to the power supply. If it powers on,
change the extension cord with the correct rating and as short as needed.
The workpiece may also need to be relocated closer to the power supply.
ELECTROMAGNETIC FIELDS
WARNING! Shut off the electrical tool or device and move away if
you feel faint, dizzy, nausea or shocks. Seek medical attention.
Electromagnetic Fields (EMF) can interfere with electronic devices such
as pacemakers. Anyone with a pacemaker should consult with their
doctor before working with or near a tool that generates an EMF. The
following steps can minimize the effects of electromagnetic fields.
1. Keep the power source and any power cables as far away from the
user as practical. A minimum of 24 in. is recommended.
2. Avoid long and regular bursts of energy while operating the tool. Use
the tool for short or intermittent periods of time. This will prevent a
pacemaker from interpreting the signal as a rapid heartbeat.
3. Alert other people in the work area, so they can take precautions or
can watch out for those with a pacemaker.
VIBRATION PRECAUTIONS
1. This tool vibrates during use. Repeated or long-term exposure to
vibration may cause temporary or permanent physical injury. Take
frequent breaks when using the tool.
2. If you feel any medical symptoms related to vibrations (such as
tingling, numbness, and white or blue fingers), seek medical
attention as soon as possible.
3. Wear suitable gloves to reduce the effects of vibration.
4. DO NOT use this tool before consulting a physician if one of the
following applies:
•Pregnant
•Impaired blood circulation to
the hands
•Past hand injuries
•Nervous system disorders
•Diabetes
•Raynaud's Disease

V1.0 Portable Metal-Cutting Band Saw 8857971
Visit www.princessauto.com for more information 11
UNPACKING
WARNING! Do not operate the tool if any part is missing. Replace
the missing part before operating. Failure to do so could result in
a malfunction and personal injury.
Remove the parts and accessories from the packaging and inspect for
damage. Make sure that all items in the contents are included.
Contents: • Portable Band Saw • Band Saw Blade • Guide Bar

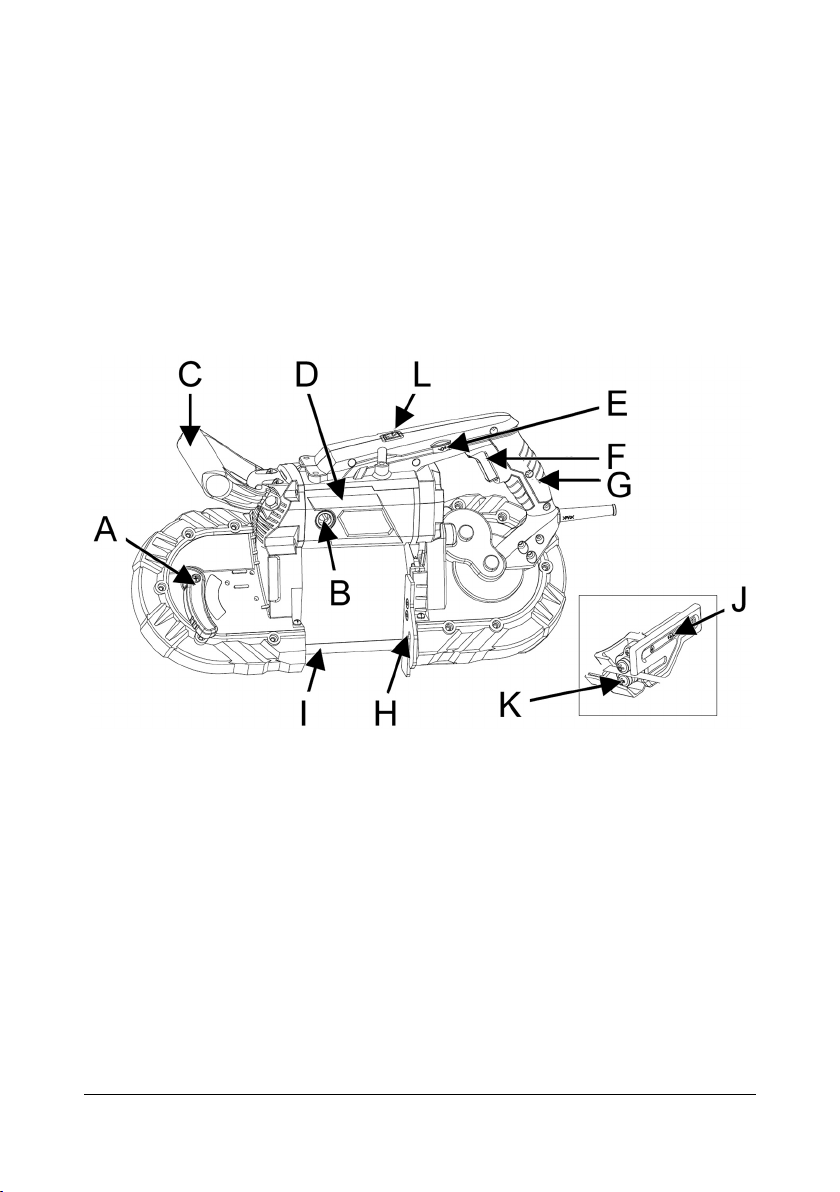

IDENTIFICATION KEY
A Tension handle
B External carbon
brush
C Auxiliary Handle
D Motor housing
E Speed dial
F On/Off Trigger
G Trigger Handle
H Guide bar
I Blade
J Screw
K Guide Bearing
L LED ON/OFF
ASSEMBLY & INSTALLATION
Letter references in parenthesis (A) refer to the included Identification Key.
BLADE INSTALLATION
WARNING! Do not use a stationary band saw blade for the
portable band saw. The stationary band saw blade is a different
thickness and will not fit the precision blade guides on the
portable band saw.

8857971 Portable Metal-Cutting Band Saw V1.0
12 For technical questions call 1-800-665-8685
CAUTION! Wear gloves when handling the saw blade during
installation or removal to avoid cuts from the blade’s teeth.
1. Use band saw blades of the correction dimension (see
Specifications).
2. Select a blade that will allow at least two teeth to engage the
material.
2.1 Harder materials require finer blade teeth, while thicker or
coarse materials require coarser blade teeth.
2.2 Hi-speed steel blades stay sharp longer than alloy steel
blades.
3. Turn the tension handle (A) clockwise to release the blade tension.
4. Turn the band saw over so the rear side is facing up.
5. Remove the old blade if replacing it. Remove the blade from the
pulley before removing it from the guides.
6. Note the direction arrows on the wheels. Install the saw blade so the
teeth point to the left side (clockwise) when passing through the guide
bearings (K).
7. Set the blade between both guide bearings, ensuring the blade is
centered on each. Hold the blade on the guides and push in to
seat it.
8. Wrap the blade around the wheels. Ensure it is a proper fit and the
blade does not twist.
9. Tighten the tension handle (A) to secure the blade in place.

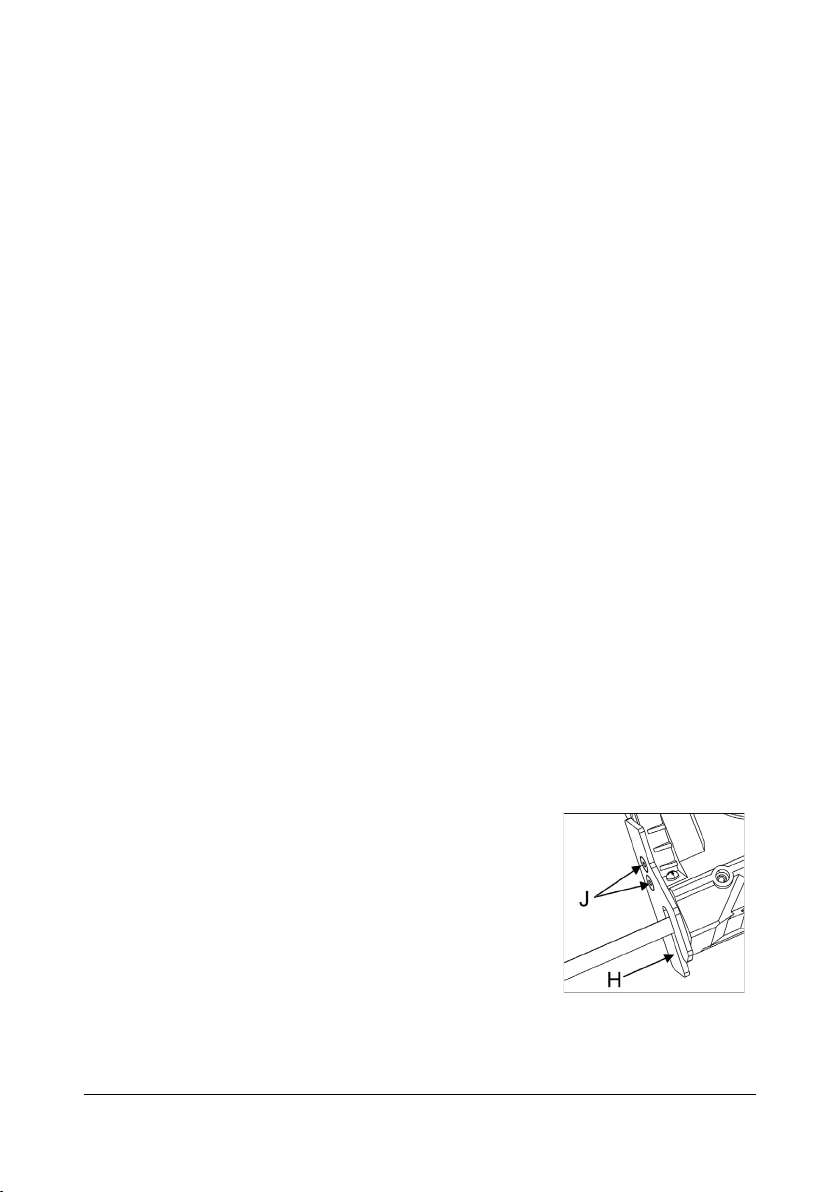

GUIDE BAR ASSEMBLY
1. Attach the guide bar (H) to the band saw
before operation.
2. Release the screws (J) on the frame.
3. Install the guide bar with the opening around
the blade. Adjust the guide bar distance as
desired.
4. Tighten the screws (J) to lock the guide in
place.
Fig. 2

V1.0 Portable Metal-Cutting Band Saw 8857971
Visit www.princessauto.com for more information 13
OPERATION
LUBRICATING THE BLADE
DANGER! Ensure the tool is stable and take precautions when
applying wax to the moving blade to avoid amputation or
serious injury.
1. Lubrication is recommended when cutting aluminum, brass and
thick materials. Cast iron should be cut dry. Choose a cutting or
lubricating wax that is designed for a band saw and comes in a
stick applicator. Apply the wax to both sides of the blade while the
saw is running. Reapply wax intermittently as needed.
2. After prolonged cutting, the wax will cling to the pulleys of your
portable band saw. This does not affect the operation of the
machine. All that is necessary is to disconnect the machine from
the power source and wipe the wax from the pulleys.
START AND STOP SAW
WARNING! Never use liquid coolant with your band saw. Liquid
coolants increase the risk of electric shock. It may also damage
the blade guide bearing or the rubber on the pulleys.
NOTICE! Do not change the saw speed during a cut. Remove the
saw from the material before adjusting the speed to avoid
damaging the tool.
NOTICE! If the band saw becomes locked or jammed in the
workpiece material during cutting, release the trigger switch
immediately to avoid damage to the band saw blade and motor.
1. Clamp the material to be cut in a vise or other clamping device.
Never attempt to use this tool by resting it on a work surface and
bringing the material to the tool. Always securely clamp the
workpiece and bring the tool to the workpiece, securely holding the
tool with two hands
1.1 Support end pieces that are heavy enough to cause injury
when they drop after cutting.
2. Adjust the guide bar (H) to the workpiece by loosening the screws
(I) and sliding the guide bar forwards or backwards. Do not allow
the guide bar to touch the blade (I). Tighten the screws to secure
the guide bar.

8857971 Portable Metal-Cutting Band Saw V1.0
14 For technical questions call 1-800-665-8685
3. Grip the band saw by the auxiliary handle (C) and handle (G) before
starting the tool.
4. Ensure that a minimum of two sawblade teeth will remain in the
material during the cut to keep the blade straight and prevent
kickback.
5. Adjust the blade speed by turning the speed dial (E).
6. Squeeze the trigger (F).
7. Allow the band saw to reach full speed before starting the cut.
Maintain a firm grip on the tool with both hands to resist starting
torque.
8. Tilt the unit so that the blade is vertical. To start a cut, use minimal
force to start a groove. Once the groove is started, allow the rest of
the blade to cut into the workpiece. Doing this will prevent the
blade from moving from side-to-side during cutting. The tool’s own
weight provides the most efficient downward cutting pressure.
9. Carefully avoid bringing the band saw blade suddenly and heavily into
contact with the upper surface of the workpiece. This will cause
serious damage to the band saw blade. To obtain maximum service
life of the band saw blade, ensure there is no sudden impact at the
beginning of the cutting operation.
10. Hold the saw firmly in both hands so that the saw does not fall against
the clamped or supported material when the cut is completed.
11. Release the trigger to stop the saw.
CARE & MAINTENANCE
1. Maintain the tool with care. A tool in good condition is efficient,
easier to control and will have fewer problems.
2. Inspect the tool components periodically. Repair or replace
damaged or worn components. Only use identical replacement
parts when servicing.
3. Follow instructions for lubricating and changing accessories.
4. Only use accessories intended for use with this tool.
5. Keep the tool clean, dry and free from oil/grease at all times.

V1.0 Portable Metal-Cutting Band Saw 8857971
Visit www.princessauto.com for more information 15
6. Maintain the tool’s labels and name plates. These carry important
information. If unreadable or missing, contact Princess Auto Ltd. for
replacements.
7. Periodically remove chips from the dust cover and the surface of the
power tool with a damp cloth.
WARNING! Only qualified service personnel should repair the
tool. An improperly repaired tool may present a hazard to the
user and/or others.
CARBON BRUSH MAINTENANCE
The carbon brushes may require maintenance when the motor
performance of the tool decreases or stops working completely.
1. Remove the brush cap from the brush holder on each side of the
motor housing.
1.1 Some motor housings will only contain one carbon brush.
2. Remove the carbon brushes from the housing. Keep track of how
the carbon brushes are orientated during removal. The concave
surface must be oriented in the same way if the brushes are
reused. This will prevent unnecessary wear after reinstalling them.
3. Clean old carbon brushes before reinstalling them. Rub the contact
areas with a pencil eraser.
4. Reinsert the old carbon brushes in the same orientation to reduce wear.
5. Replace both carbon brushes if either is worn down more than 50
percent.
6. When installing the carbon brushes make sure the carbon portions
of the carbon brushes contact the motor armature and that the
springs face away from the motor. Also, make sure the springs
operate freely.
7. Replace the brush caps. Do not overtighten.
IMPORTANT! New carbon brushes tend to spark when first used
until they wear and conform to the motor's armature.
CLEANING
1. Clean dust and debris from the tool’s vents.
2. Only clean the tool with mild soap and a damp cloth.
3. Dry steel components and lubricate to prevent corrosion.

8857971 Portable Metal-Cutting Band Saw V1.0
16 For technical questions call 1-800-665-8685
LUBRICATION
Inspect and lubricate the tool when required. Only use light oil to
lubricate the tool. Other lubricants may not be suitable and could
damage the tool or cause a malfunction during use.
When not in use for an extended period, apply a thin coat of lubricant to the
steel parts to avoid rust. Remove the lubricant before using the tool again.
DISPOSAL
Recycle a tool damaged beyond repair at the appropriate facility.
Contact your local municipality for a list of disposal facilities or by-laws for
electronic devices, batteries, oil or other toxic liquids.
TROUBLESHOOTING
Visit a Princess Auto Ltd. location for a solution if the tool does not
function properly or parts are missing. If unable to do so, have a
qualified technician service the tool.
PROBLEM(S) POSSIBLE CAUSE(S) SUGGESTED SOLUTION(S)
Portable band
saw will not
start.
1. No supply of power.
2. Brushes worn or
sticking.
3. Switch is faulty.
4. Motor components ope
n.
5. Motor components short
circuited.
6. Power cord damaged.
1. Check that power is
available at source.
2. Disconnect power, open
brush caps and ensure
brushes move freely in the
holders. Check whether the
brushes require replacing.
3. Replace faulty switch.
4. Close motor components.
5. Contact Princess Auto for
solution.
6. Replace damaged power
cord.
Portable band
saw makes
unsatisfactory
cuts.
1. Dull or damaged blade
or incorrect blade for
work being done.
2. Motor is overloaded.
1. Replace blade with
new/correct blade.
2. Reduce pushing force on
portable band saw. See
Operations for proper use.

V1.0 Portable Metal-Cutting Band Saw 8857971
Visit www.princessauto.com for more information 17
PROBLEM(S) POSSIBLE CAUSE(S) SUGGESTED SOLUTION(S)
Makes unusual
sound.
1.
Mechanical obstruction.
2. Armature has shorted
sections.
3. Saw blade out of
balance.
1. Contact Princess Auto for
solution.
2. Contact Princess Auto for
solution.
3. Discard saw blade and
replace with a new blade.
Heavy
sparking
occurs inside
motor housing.
1.
Brush not moving freely.
2.
Armature circuit shorted
or open.
3. Commutator dirty.
1. Disconnect power, remove
brushes, clean or replace.
2. Contact Princess Auto for
solution.
3. Clean Commutator.

8857971 Portable Metal-Cutting Band Saw V1.0
18 For technical questions call 1-800-665-8685
PARTS BREAKDOWN
PARTS LIST
# DESCRIPTION QTY
1
Auxiliary Handle
1
2 Screw M8x14 1
3
Anti-Loose Screw M6
4
4 Handle Base 1
5
Screw M8×70
1
6 Light Back Cover 1
7
LED Light
1
8 LED Cover 1
9
Light Base
1
10 Screw M4×8 6
11
Left Handle
1

V1.0 Portable Metal-Cutting Band Saw 8857971
Visit www.princessauto.com for more information 19
# DESCRIPTION QTY
12
Speed Controller
1
13 Switch 1
14 Capacitor 0.33,
Wire Length 12 cm
1
15
Right Handle
1
16
Sleeve
1
17
Power Cord
1
18
Cable Plate
1
19 Screw 4×16 8
20
Screw M4×12
10
21
Tension Handle
1
22
Adjusting Shaft 45
1
23
Screw M6×20
4
24
Spring Washer 6
4
25 Screw M6×14 16
26
Pin 4×10
3
27
Support Sleeve
1
28
Support
1
29
Brush Cap
2
30
Carbon Brush 230V
2
31 Brush Holder H62 2
32
Housing
1
33
Stator Sleeve
1
34
Tension Spring
2
35
Stator
1
36
Screw 4.8×55
2
37 Anti-Wind Ring 1
38
Bearing Sleeve 608
1
39
Bearing 608Z SYBS
3
40
Rotor
1
41
Screw M5×10
3
42
O-Ring 25×22×1.5
1
43
Middle Cover
1
44
Needle Bearing HK0608
1
45 Gear 1
46
Gear Shaft
1
47
Bearing 626
1
48
Class I Gear
1
49 Bearing Press Sleeve 1.5
Thickness
1
50
Bearing 6000z2RS
1
51 Class II Gear Shaft 1
52
Gear Box
1
53
Screw M6×40
4
54
Gear Box Sleeve
1
55
Screw M6*16, 10.9
2
56
Guide bar (Q235 T4.0)
1
57 Screw Nut M6x11 2
58
Adjusting Support Q235
1
59
Screw M6×20
1
60
Wheel
1
61
Extension Spring 65MN
2
62
Movable Support Q235
1
63 Driving Shaft 40Cr 1
64
Locating Sleeve
4
65
Drive Plate ZL102
1
66
Non-Slip Band
2
67
Copper Bush
2
68
Dust-Proof Washer
2
69 Circlip
Φ
16 1
70 Drive Plate Cover
PA6-GF30
2
71
Needle Bearing HK0808
3
72
Class II Gear
1
73
Class III Gear Shaft
1

8857971 Portable Metal-Cutting Band Saw V1.0
20 For technical questions call 1-800-665-8685
# DESCRIPTION QTY
74
Class III Gear
1
75 Collar
Φ
35 1
76
Baring 6003z22RS
1
77
Gear Box Cover
1
78
Output Shaft
1
79
Screw M5×14
6
80
Drive Plate
1
81 Coupling Piece T2.0 1
82
Press Plate
1
83
Screw M8×14
4
84
Screw M5×25
4
85
locating block II
1
86
Locating Block I
1
87 Bearing 624 3
88
Pin 4×16
4
89
Bearing 696
8
90
Special Screw
4
91
Blade Holder
1
92
Brush
1
93 Blade 1140×13×0.65 1
94
Screw M5×12
10
95
Wrench S6
1
96
Wrench S4
1
