PROPOINT 8708083 User manual

V1.1 8708083
Please read and understand all instructions before use. Retain this
manual for future reference.
USER MANUAL

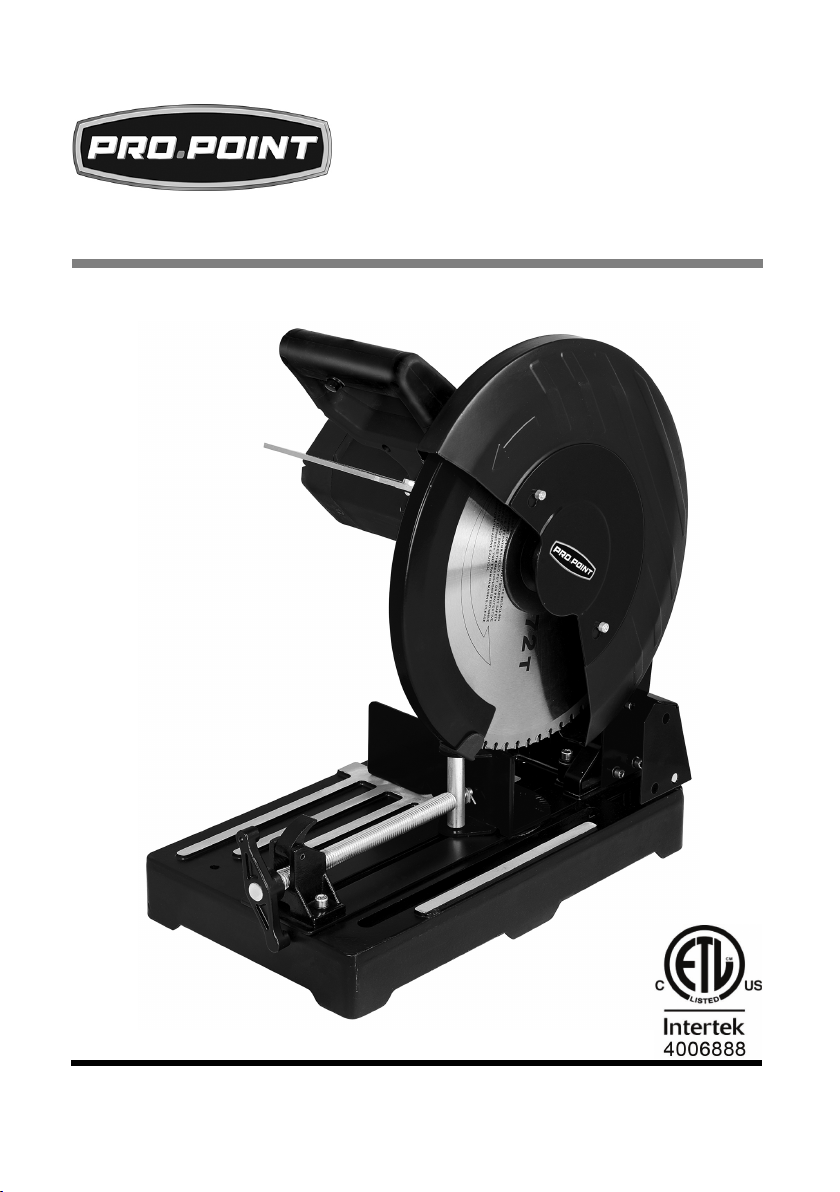

14 in. METAL DRY CUT SAW

8708083 14 IN. METAL DRY CUT SAW V1.1
2 For technical questions call 1-800-665-8685
SPECIFICATIONS
Material
Aluminum Base
Carbide Metal Saw Blade
Saw blade
Diameter
14 in.
Arbor Size 1 in.
Cutting Capacity
Round Stock
90°
Ø 4-3/4 in.
45° Ø 3-3/4 in.
Square Stock
90°
4-1/8 x 4-1/8 in.
45° 3-1/8 x 3-1/8 in.
Angle
90°
Ø 4-1/8 x 4-1/8 in.
45° Ø 2-5/8 x 2-5/ 8 in.
Rectangle
90°
Ø 3-1/2 x 5-3/4 i n.
45° Ø 3-1/2 x 3-1/8 in.
No Load Speed
1,450 RPM
Rating (Voltage, Current, Frequency) 120V, 15A, 60Hz
Wattage Rating
2,480 W
INTRODUCTION
The 14 in. Metal Dry Cut Saw can cut non-hardened metal such
as mild steel or steel studs. Hardened metal or soft materials
such as wood can be cut, but doing so will reduce the blade’s
performance and lifespan.
SAFETY
WARNING! Read and understand all instructions before using
this tool. The operator must follow basic precautions to reduce
the risk of personal injury and/or damage to the equipment.
14 in. METAL DRY CUT SAW

V1.1 14 IN. METAL DRY CUT SAW 8708083
Visit www.princessauto.com for more information 3
Keep this manual for safety warnings, precautions, operating or
inspection and maintenance instructions.
HAZARD DEFINITIONS
Please familiarize yourself with the hazard notices found in this
manual. A notice is an alert that there is a possibility of property
damage, injury or death if certain instructions are not followed.
DANGER! This notice indicates an immediate and specific
hazard that will result in severe personal injury or death if the
proper precautions are not taken.
WARNING! This notice indicates a specific hazard or unsafe
practice that could result in severe personal injury or death if
the proper precautions are not taken.
CAUTION! This notice indicates a potentially hazardous
situation that may result in minor or moderate injury if proper
practices are not taken.
NOTICE! This notice indicates that a specific hazard or unsafe
practice will result in equipment or property damage, but not
personal injury.
WORK AREA
1. Operate in a safe work environment. Keep your work area
clean, well-lit and free of distractions.
2. Keep anyone not wearing the appropriate safety
equipment away from the work area.
3. Store tools properly in a safe and dry location. Keep tools
out of the reach of children.
4. Do not install or use in the presence of flammable gases,
dust or liquids.
PERSONAL SAFETY
WARNING! Wear personal protective equipment approved by
the Canadian Standards Association (CSA) or American
National Standards Institute (ANSI).

8708083 14 IN. METAL DRY CUT SAW V1.1
4 For technical questions call 1-800-665-8685
PERSONAL PROTECTIVE EQUIPMENT
1. Always wear impact safety goggles that provide front and
side protection for the eyes. Eye protection equipment
should comply with CSA Z94.3-07 or ANSI Z87.1 standards
based on the type of work performed.
2. Wear the appropriate type of full-face shield in addition to
safety googles, as the work can create chips, abrasive or
particulate matter.
3. Wear gloves that provide protection based on the work
materials or to reduce the effects of tool vibration.
3.1 Do not wear gloves when operating a tool that can
snag the material and pull the hand into the tool.
4. Wear protective clothing designed for the work
environment and tool.
5. Non-skid footwear is recommended to maintain footing
and balance in the work environment.
6. Wear steel toe footwear or steel toe caps to prevent a foot
injury from falling objects.
7. Wear the appropriate rated dust mask or respirator.
8. This tool can cause hearing damage. Wear hearing
protection gear with an appropriate Noise Reduction
Rating to withstand the decibel levels.
PERSONAL PRECAUTIONS
Control the tool, personal movement and the work
environment to avoid personal injury or damage to the tool.
1. Do not operate any tool when tired or under the influence
of drugs, alcohol or medications.
2. Avoid wearing clothes or jewelry that can become
entangled with the moving parts of a tool. Keep long hair
covered or bound.
3. Do not overreach when operating the tool. Proper footing
and balance enables better control in unexpected situations.

V1.1 14 IN. METAL DRY CUT SAW 8708083
Visit www.princessauto.com for more information 5
SPECIFIC SAFETY PRECAUTIONS
WARNING! DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence to the
tool safety rules. If you use this tool unsafely or incorrectly,
you can suffer serious personal injury.
1. Use the correct tool for the job. This tool was designed for
a specific function. Do not modify or alter this tool or use it
for an unintended purpose.
2. Do not allow the blade to twist or bind.
3. Make sure that the blade flanges or other mounting hardware
are in good condition and are always used properly. Defective
or missing parts may cause damage to the blade. Always use
the mounting flanges supplied with the tool.
4. Never try to remove or clamp the workpiece to the tool
while the blade is rotating.
5. Do not use abrasive wheels.
6. Never use the tool if the safety guard does not move freely
or close instantly.
6.1 Retract safety guard to determine if it catches. Release
to check that it closes immediately. If there is any
difficulty opening or closing the safety guard, have the
tool repaired before use.
7. Confirm all components are mounted properly and securely
before using the tool.
8. Do not cut stacked materials. Cut one piece at a time.
9. Allow the motor to achieve full speed before cutting.
10. Do not use cutting fluids, coolants or lubricants on the
blade.
11. Never reach behind or over the cutting tool with either
hand for any reason.

8708083 14 IN. METAL DRY CUT SAW V1.1
6 For technical questions call 1-800-665-8685
12. Never leave the tool running unattended. Turn the power
off and wait until the tool comes to a complete stop before
leaving.
13. Secure the workpiece properly in the vise assembly before
operating the tool. The workpiece could be thrown from
the vise and cause bodily harm.
14. Confirm that blade does not contact the base when fully
lowered before operating the saw.
15. Hold the handle firmly. The saw moves up or down slightly
during start-up and stopping.
16. Never touch, hold or clamp the piece being cut off. Never
use length stops against it while the blade is turning. It
must be allowed to move freely sideways, if confined, it
could wedge against the blade and be thrown violently.
17. Always provide adequate support to the sides of the saw
table for long workpieces.
ELECTRICAL SAFETY
WARNING! Do not touch or handle a live tool with any
part of your body that is wet or damp. Wet skin reduces
resistance to electrical current, increasing the danger of a
serious or fatal shock.
WARNING! To reduce risk of electric shock, be certain that the
plug is connected to a properly grounded receptacle.
1. Disconnect tool from power source before cleaning,
servicing, changing parts/accessories or when not in use.
2. Protect yourself against electric shocks when working on
electrical equipment. Avoid body contact with grounded
surfaces. There is an increased chance of electrical shock if
your body is grounded.
3. Do not expose the tool to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.

V1.1 14 IN. METAL DRY CUT SAW 8708083
Visit www.princessauto.com for more information 7
4. Do not disconnect the power cord in place of using the
ON/OFF switch on the tool. This will prevent an accidental
startup when the power cord is plugged into the power supply.
4.1 In the event of a power failure, turn off the machine as
soon as the power is interrupted. The possibility of
accidental injury could occur if the power returns and
the unit is not switched off.
5. Do not alter any parts of the tool or accessories. All parts
and accessories are designed with built-in safety features
that may be compromised if altered.
6. Make certain the power source conforms to requirements
of your equipment (see Specifications).
7. When wiring an electrically driven device, follow all
electrical and safety codes, as well as the most recent
Canadian Electrical Code (CE) and Canadian Centre for
Occupational Health and Safety (CCOHS).
8. Grounded tools must be plugged into an outlet that is
properly installed and grounded in accordance with all
codes and ordinances. Check with a qualified electrician if
you are in doubt as to whether the outlet is properly
grounded. If the tool should electronically malfunction or
break down, grounding provides a low resistance path to
carry electricity away from the user.
8.1 Never remove the grounding prong or modify the plug
in any way, as this will render the tool unsafe.
8.2 Do not use any adapter plugs.
9. This device is only for use on 120 V (single phase) and is
equipped with a 3-prong grounded power supply cord
and plug.
10. DO NOT use this device with a 2-prong wall receptacle.
10.1 Choose an available 3-prong power outlet.

8708083 14 IN. METAL DRY CUT SAW V1.1
8 For technical questions call 1-800-665-8685
10.2 Replace 2 prong outlet with a grounded 3-prong
receptacle, installed in accordance with the CE Code
and local codes and ordinances.
WARNING! All wiring should be performed by a qualified
electrician.
POWER CORD
1. Insert the power cord plug directly to the power supply
whenever possible. Use extension cords or surge protectors
only when the tool's power cord cannot reach a power
supply from the work area.
1.1 When operating a power tool outside, use an outdoor
extension cord marked W-A or W. These cords are rated
for outdoor use and reduce the risk of electric shock.
1.2 Use in conjunction with a Ground Fault Circuit
Interrupter (GFCI). If operating a power tool in a damp
location is unavoidable, the use of a GFCI reduces the
risk of electric shock. It is recommended that the GFCI
should have a rated residual current of 30 mA or less.
2. Do not operate this tool if the power cord is frayed or
damaged as an electric shock or surge may occur, resulting
in personal injury or property damage.
2.1 Inspect the tool's power cord for cracks, fraying or
other faults in the insulation or plug before each use.
2.2 Discontinue use if a power cord feels more than
comfortably warm while operating the tool.
2.3 Have the power cord replaced by a qualified
service technician.
3. Keep all connections dry and off the ground to reduce the
risk of electric shock. Do not touch plug with wet hands.
4. Prevent damage to the power cord by observing
the following:

V1.1 14 IN. METAL DRY CUT SAW 8708083
Visit www.princessauto.com for more information 9
4.1 Do not pull on the cord to disconnect the plug from
an outlet.
4.2 Keep cord away from heat, oil, sharp edges or
moving parts.
4.3 Never use the cord to carry the tool.
4.4 Place the electrical cord in a position that prevents it
from coming into contact with the tool and from
getting caught by the workpiece. The cord should
always stay behind the tool.
5. Do not allow people, mobile equipment or vehicles to pass
over unprotected power cords.
5.1 Position power cords away from traffic areas.
5.2 Place cords in reinforced conduits.
5.3 Place planks on either side of the power cord to create
a protective trench.
6. Do not wrap cord around the tool as sharp edges may cut
insulation or cause cracks if wound too tight. Gently coil
cord and either hang on a hook or fasten with a device to
keep cord together during storage.
POWER TOOL PRECAUTIONS
1. Do not use a power tool with a broken or inoperative
trigger/power switch.
2. Do not allow the tool to run without load for an extended
period of time, as this will shorten its life.
3. Do not cover the air vents. Proper cooling of the motor is
necessary to ensure normal life of the tool.
4. Avoid unintentional starting. Ensure the switch is off when
connecting to the power source.
5. After making adjustments, make sure that any adjustment
devices are securely tightened.

8708083 14 IN. METAL DRY CUT SAW V1.1
10 For technical questions call 1-800-665-8685
6. Remove adjusting keys and wrenches before turning the
tool on. A wrench or a key that is left attached to a rotating
part of the tool increases the risk of personal injury.
7. Never force the tool. Excessive pressure could break the
tool, resulting in damage to your workpiece or serious
personal injury. If your tool runs smoothly under no load,
but does not run smoothly under load, then excessive
pressure is being used.
8. Do not touch an operating motor. Motors can operate at
high temperatures and can cause a burn injury.
9. Only use accessories that are specifically designed for use
with the tool. Ensure the accessory is tightly installed.
10. Only use an accessory that exceeds the No Load Speed
rating (see Specifications).
CUTTING TOOL PRECAUTIONS
WARNING! Some surfaces contain materials which can be toxic.
When working on materials that may contain lead, asbestos,
copper chromium arsenate or other toxic materials, extra care
should be taken to avoid inhalation and minimize skin contact.
The term cutting accessory is used to represent a cutting
blade, cutting wheel or a cutting bit.
1. Keep hands away from the cutting area and the cutting
accessory.
2. Only use a cutting accessory of the recommended size (see
Specifications).
3. Use the correct mounting hardware. The mounting
hardware is designed to hold the cutting accessory on the
tool to allow optimum performance and safety of
operation. Mismatched mounting hardware may result in a
tool malfunction and cause an injury.
3.1 Only use a cutting wheel with the correct arbor size
and shape that matches the tool’s spindle.

V1.1 14 IN. METAL DRY CUT SAW 8708083
Visit www.princessauto.com for more information 11
4. Check the cutting accessory for damage before each use.
A damaged accessory can break during use and cause
serious injury.
5. Never use a dull cutting accessory. A dull cutting accessory
requires more force to use the tool, possibly causing the
accessory to break. This may cause an injury. Sharp bits
must be handled with care.
6. Never operate the tool with the safety guard removed.
7. Check that the tool’s safety guard opens and closes freely
and does not touch the cutting accessory. Do not operate
the tool if the guard’s movement is impaired.
8. Never clamp or tie the guard into the open position.
9. Do not touch the cutting accessory or the workpiece
surface cut with this tool. They may be hot and could inflict
a burn injury.
CUTTING PRECAUTIONS
Cutting accessory refers to any saw blade, cutting or grinding
wheel used to slice through material with a back-and-forth or
circular motion.
1. Forcing the tool will slow down the speed of the cutting
accessory, causing it to bind or kickback. Apply gentle
pressure and allow the cutting accessory to do the cutting.
2. Do not use dull or damaged cutting accessories. Dull or
improperly set cutting accessories produce a narrow kerf
that can cause excessive friction on the cutting accessory,
resulting in binding or a kickback. Keep the cutting
accessory’s edge sharp and clean.
KICKBACK PRECAUTIONS
Kickback is a sudden reaction to a pinched or snagged cutting
accessory caught on the material. The material can be ejected
and inflict a serious injury on the user or a bystander. Kickback
can also damage the tool or workpiece.

8708083 14 IN. METAL DRY CUT SAW V1.1
12 For technical questions call 1-800-665-8685
Kickback can be avoided by taking proper precautions:
1. Maintain a firm grip on the material and position your body
and arms to allow you to resist a kickback. Kickback can
propel the material in the direction of the cutting
accessory’s rotation.
1.1 Use a clamp to hold the material if the tool includes a
clamping system.
2. Use special care when working on corners, sharp edges or
flexible material. These workpieces have a tendency to
snag the cutting accessory.
3. Only use cutting accessories designed for the tool.
UNPACKING
WARNING! Do not operate the tool if any part is missing.
Replace the missing part before operating. Failure to do so
could result in a malfunction and personal injury.
Remove the parts and accessories from the packaging and inspect
for damage. Make sure that all items in the parts list are included.
OPERATION
Numbered references in parenthesis (#1) refer to the included
Parts List. Dashed numbers in parenthesis (Fig. 1-1) refer to a
specific point in an illustration or image.

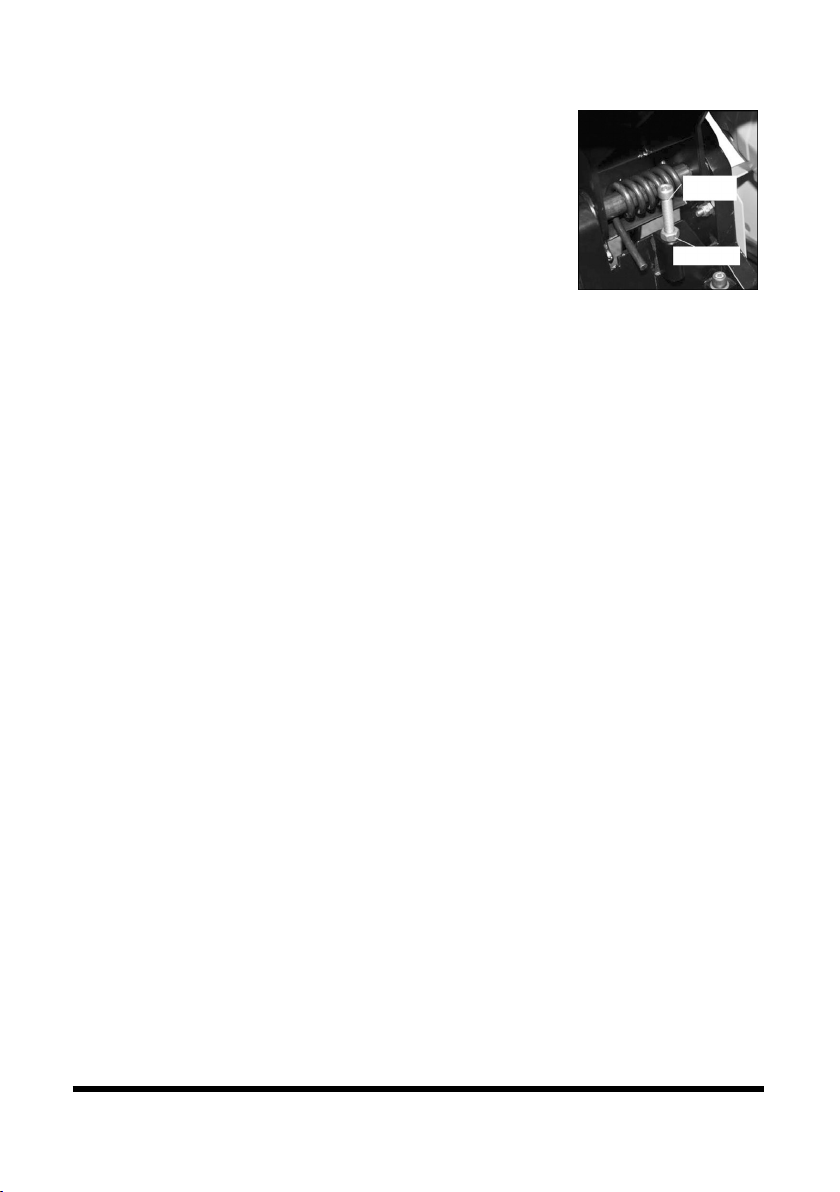

ADJUSTING THE CUT DEPTH
The cut-off wheel will wear down with use and the blade’s cut
depth will require an adjustment to accommodate. Adjust the
cut depth with the hexagonal bolt (#76) (Fig. 1-1) in front of the
trestle spring (#87). The bolt physically limits the distance the
saw arm can move.
Unplug the tool during this process to prevent turning it
on accidentally.

V1.1 14 IN. METAL DRY CUT SAW 8708083
Visit www.princessauto.com for more information 13
1. Loosen the nut several turns (Fig. 1-2).
2. Turn the bolt clockwise to lower the cut
depth. Raise the depth by turning the
bolt counterclockwise.
3. Pull the arm down and check the blade’s
depth. It should not come into contact
with the base (#1).
4. When the blade is at the desired depth, hold the bolt in
place and tighten the nut. This will prevent it from shaking
loose during use.
ADJUSTING THE WORK VISE
1. Release the tension on the screw clamp by turning the
handle (Fig. 2-1) counterclockwise for 1/2 to 1 full turn.
2. Lift the quick lock lever (Fig. 2-2) up and pull back the
screw clamp handle sliding the vise open.
3. Pull up the handle to disengage the screw, then adjust the
handle to the desired position. Release the handle
reengages the screw for loosening (counterclockwise).
4. Loosen the fence lock lever (#98). Adjust the quick adjust
fence (#72) to the desired angle (from 90° to 45°) and
tighten the fence lock lever (Fig. 3).
4.1 An angle finder is recommended for cuts between
these angles.

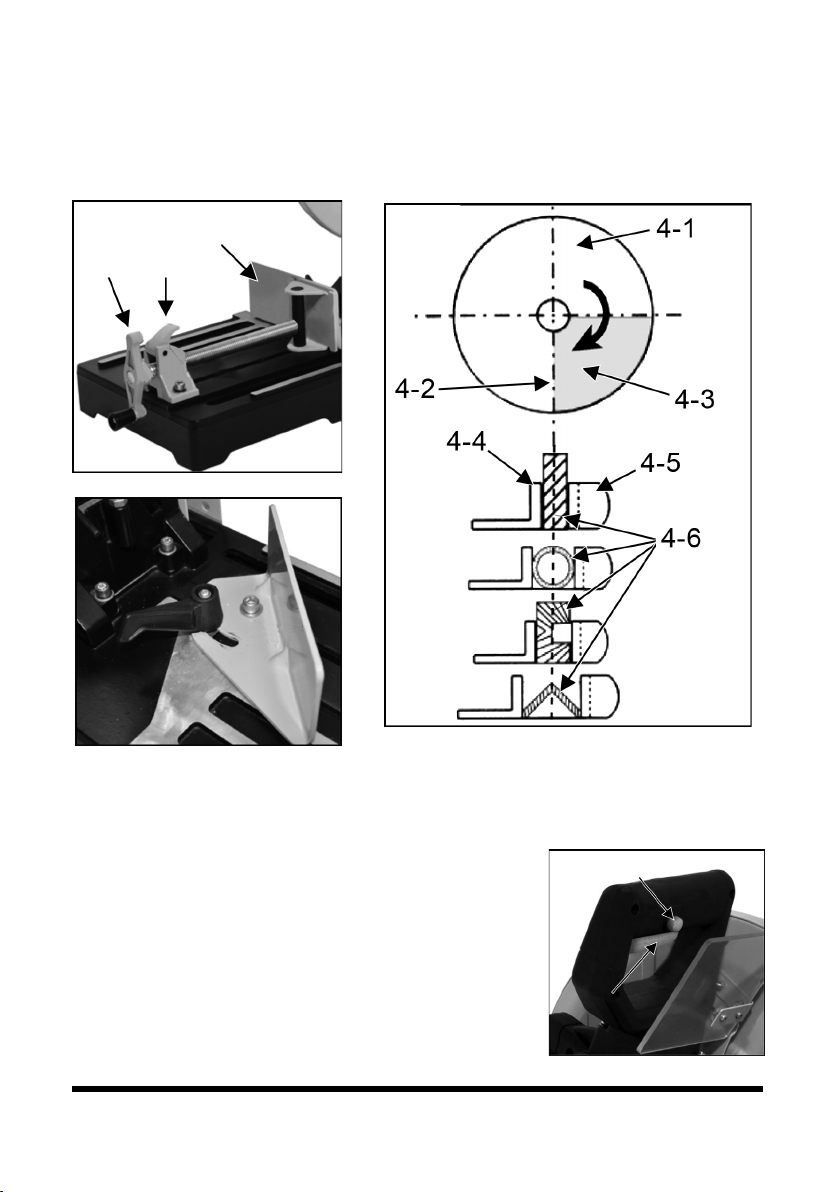

5. Adjust the movable clamp (Fig. 2-3) by moving the
pivoting handle in or out as needed to fit the workpiece.
The workpiece should be resting flush with the base.
6. Align the moveable clamp (Fig. 4-5) and quick adjust fence
(Fig. 4-4) so the workpiece’s center line (Fig. 4-6) is in line
or in front of the cut off blade’s center line (Fig. 4-2).
6.1 Cut into the workpeice with the shaded area (Fig. 4-3)
of the cut off blade (Fig. 4-1). It will reduce the chances
of kickback and allow you to control the cut.
1-1
1-2
Fig. 1

8708083 14 IN. METAL DRY CUT SAW V1.1
14 For technical questions call 1-800-665-8685
7. Push the quick lock lever (Fig. 2-2) down to clamp the
screw. Turn the screw clamp clockwise to securely tighten
the workpiece in the vise.
CUTTING A WORKPIECE
1. Select a cutting angle and position the fence and clamp
system as needed.
2. Place the workpiece flat against base.
Position the thinnest section of the
workpiece facing up. Clamp the
workpiece into place.

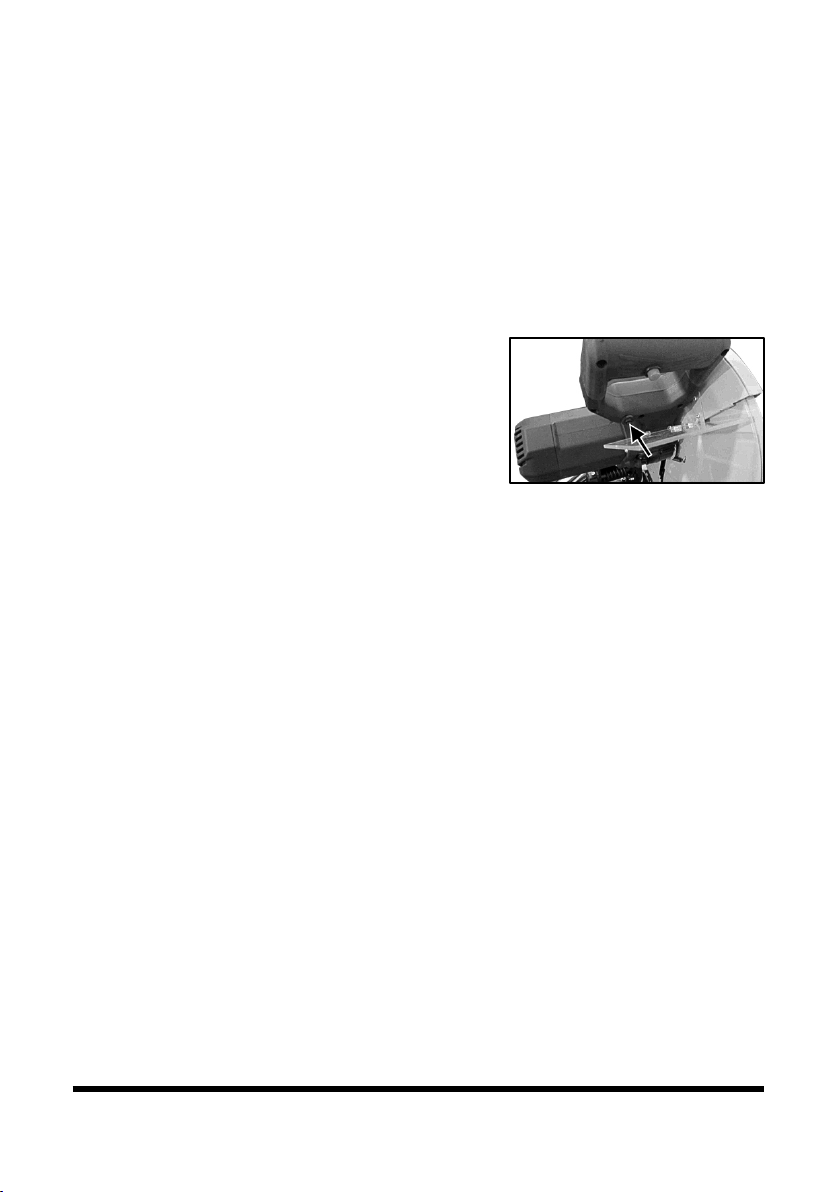

3. Plug in the tool and stand out of the line
of the blade. Press the safety button
(Fig. 5-1) and the trigger (Fig. 5-2).
Fig. 4
Fig. 3
Fig. 2
2-1
2-2
2-3
Fig. 5
5-1
5-2

V1.1 14 IN. METAL DRY CUT SAW 8708083
Visit www.princessauto.com for more information 15
4. Allow the motor to reach full speed.
5. Slowly lower the saw blade and. ease the blade into the
workpiece and increase pressure until the sparks subside.
5.1 Avoid banging or bumping the blade while cutting. This
can shatter the blade and cause an injury.
6. When the cut is complete, raise the saw blade completely
from the workpiece before releasing the trigger and
allowing the motor to stop.
6.1 Should the machine stop in mid-cut, release the trigger
switch and allow the saw blade to come to a complete
stop. Lift it out of the workpiece. The cause may be a
dull blade or excessive pressure when cutting. Restart
the saw and allow the cutting wheel to reach full speed
before continuing the cut.
CARE & MAINTENANCE
1. Maintain the tool with care. A tool in good condition is
efficient, easier to control and will have fewer problems.
2. Inspect the tool components periodically. Repair or replace
damaged or worn components. Only use identical
replacement parts when servicing.
3. Follow instructions for lubricating and changing accessories.
4. Only use accessories intended for use with this tool.
5. Keep the tool handles clean, dry and free from oil/grease at
all times.
6. Maintain the tool’s labels and name plates. These carry
important information. If unreadable or missing, contact
Princess Auto Ltd. for replacements.
WARNING! Only qualified service personnel should repair the
tool. An improperly repaired tool may present a hazard to the
user and/or others.

8708083 14 IN. METAL DRY CUT SAW V1.1
16 For technical questions call 1-800-665-8685
REPLACING BLADE
WARNING! Always ensure that the saw is
switch off and unplugged from the
power supply before installing or
removing a disc.

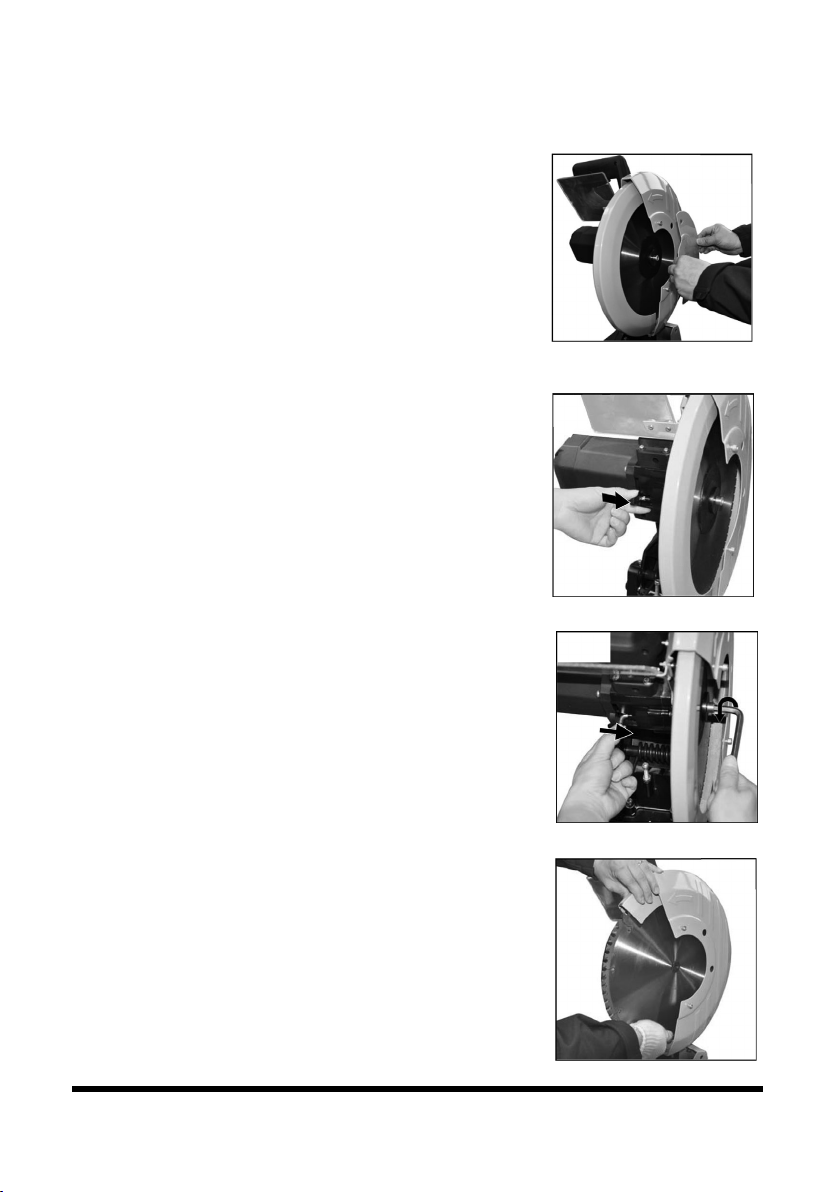

1. Loosen and remove both the screws,
then the removable cover (Fig. 6). Set
both aside.
2. Push in the spindle lock lever (Fig. 7)
and at the same time use a hex key to
rotate the blade until the spindle lock
lever engages locking the blade in
place (Fig. 8). Once locked, the blade
will not rotate.
3. Hold the spindle lock lever in place
and use a second hex key to remove
the hexagonal bolt (#55). Remove
the cable clam (#57) and upper
flange. Set aside.
4. Raise the blade guard (#46) to its
highest position, then replace the
blade (#50).
5. Check the blade flanges to be sure
they are in good condition. Remove
nicks or burrs that could cause
uneven cutting pressure and damage
the blade
6. Rotate the blade by hand to ensure
that it rotates fully and does not
wobble unduly (Fig. 9).
7. Place the upper flange, cable clam,
hexagonal bolt through the threaded
arbor hole and finger tighten.
Fig. 6
Fig. 7
Fig. 8
Fig. 9

V1.1 14 IN. METAL DRY CUT SAW 8708083
Visit www.princessauto.com for more information 17
8. Push in the spindle lock lever while tightening the
Hexagonal bolt in a clockwise direction. Do not over-
tighten the bolt. This can damage the blade, flanges and
cable clam.
OVERLOAD PROTECTION FUNCTION
The internal overload protection mechanism will shut off the
tool’s motor when the current draw exceeds 15 amps.
Push the button at the underside of
the lower handle to reset the overload
protection mechanism (Fig. 10). The
tool is now ready for use.
CLEANING
WARNING! Always ensure that the
tool is switched off and the plug is removed from the power
point before performing adjustments or maintenance
procedures.
1. Keep the tool's air vents unclogged and clean at all times.
2. Remove dust and dirt regularly. Cleaning is best done with
a soft brush or a rag.
3. Never use caustic agents to clean plastic parts. A mild
detergent on a damp cloth is recommended.
4. Remove the metal that may have built up around the guard
and spark deflector.
5. Regularly check that all screws are tight. They may vibrate
loose over time. Add a dab of locking fluid if desired.
LUBRICATION
Inspect and lubricate the tool when required. Only use light oil
to lubricate the tool. Other lubricants may not be suitable and
could damage the tool or cause a malfunction during use.
Fig. 10

8708083 14 IN. METAL DRY CUT SAW V1.1
18 For technical questions call 1-800-665-8685
STORAGE
When not in use for an extended period,
apply a thin coat of lubricant to the steel
parts to avoid rust. Remove the lubricant
before using the tool again.
Fold the down arm (#17) to the base and
push in the locking knob (Fig. 11-1) to lock
the arm in place.
REMOVAL FROM STORAGE
Unlock the tool and raise arm by pressing
down on the arm slightly and pull out the
locking knob (#93). The motor arm will then
pivot upward.
DISPOSAL
Recycle a tool damaged beyond repair at the appropriate facility.
Contact your local municipality for a list of disposal facilities or
by-laws for electronic devices, batteries, oil or other toxic liquids.
IMPORTANT! DO NOT pollute the environment by allowing
uncontrolled discharge of waste oil.
TROUBLESHOOTING
Visit a Princess Auto Ltd. location for a solution if the tool does
not function properly or parts are missing. If unable to do so,
have a qualified technician service the tool.
Fig. 11

V1.1 14 IN. METAL DRY CUT SAW 8708083
Visit www.princessauto.com for more information 19

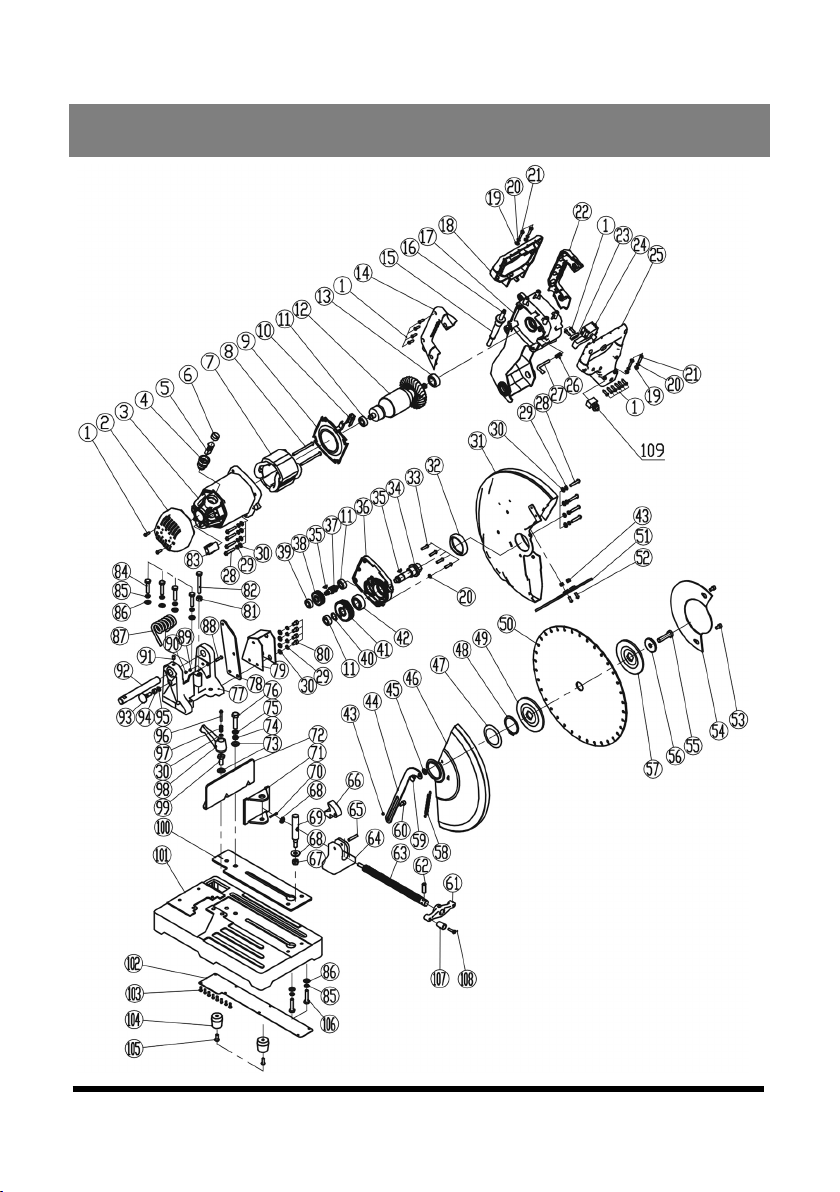

PARTS BREAKDOWN

8708083 14 IN. METAL DRY CUT SAW V1.1
20 For technical questions call 1-800-665-8685
PARTS LIST
#
DESCRIPTION
QTY
1
Cross Screw,
ST4.2*16
14
2 Back Cover 1
3
Housing
1
4 Brush Holder 2
5
Carbon Brush
2
6 Carbon Brush
Holder Cover
2
7
Stator
1
8 Cross Screw,
ST4.8*75
2
9
Mounting Plate
1
10 Little Cover 1
11
Bearing 6000
2
12 Rotor 1
13
Bearing 6002
1
14 Left Hand-Holder 1
15
Cable Guard
1
16 Plug 1
17
Aluminum Arm
1
18 Upper Handle 1
19
Flat Washer 5
4
20 O-ring 5 4
21
Cross Screw, M5*15
4
22 Right Hand-Holder 1
23
Cable Fixer
1
24 Switch 1
25
Lower Handle
1
26 Anti-Lock Spring 1
27
Anti-Lock Switch
1
28 Cross Screw, M6*30 4
29 O-ring 6 4
30
Flat Washer, 6
4
31 Blade Cover 1
32
Plastic Ring
1
33 Cross Screw, M5*18 4
34
Spindle
1
35 Woodruff Key, 4*13 1
36
Front Cover
1
37 Gear Axe 1
38
Middle Gear
1
39 Bearing 609 1
40
Spindle Deflector, 17
1
41 Big Gear 1
42
Bearing 6203
1
43 Locking Bolt M5 2
44
Rod
1
45 Washer 8 1
46
Blade Guard
1
47 Moving Cover
Washer
1
48
Spindle Deflector 48
1
49 Lower Flange 1
50
Saw Blade
1
51 Hand Guard 1
52
Cross Screw, M5*10
1
53 Hexagon Screw,
M6*8
2
54
Removable Cover
1
55 Hexagonal Bolt,
M10*20
1
56
Cable Clam
1
57 Upper Flange 1
