Prorack K824W User manual

K824W
Fitting Kit
EN Fitting Instructions for Basic Carrier

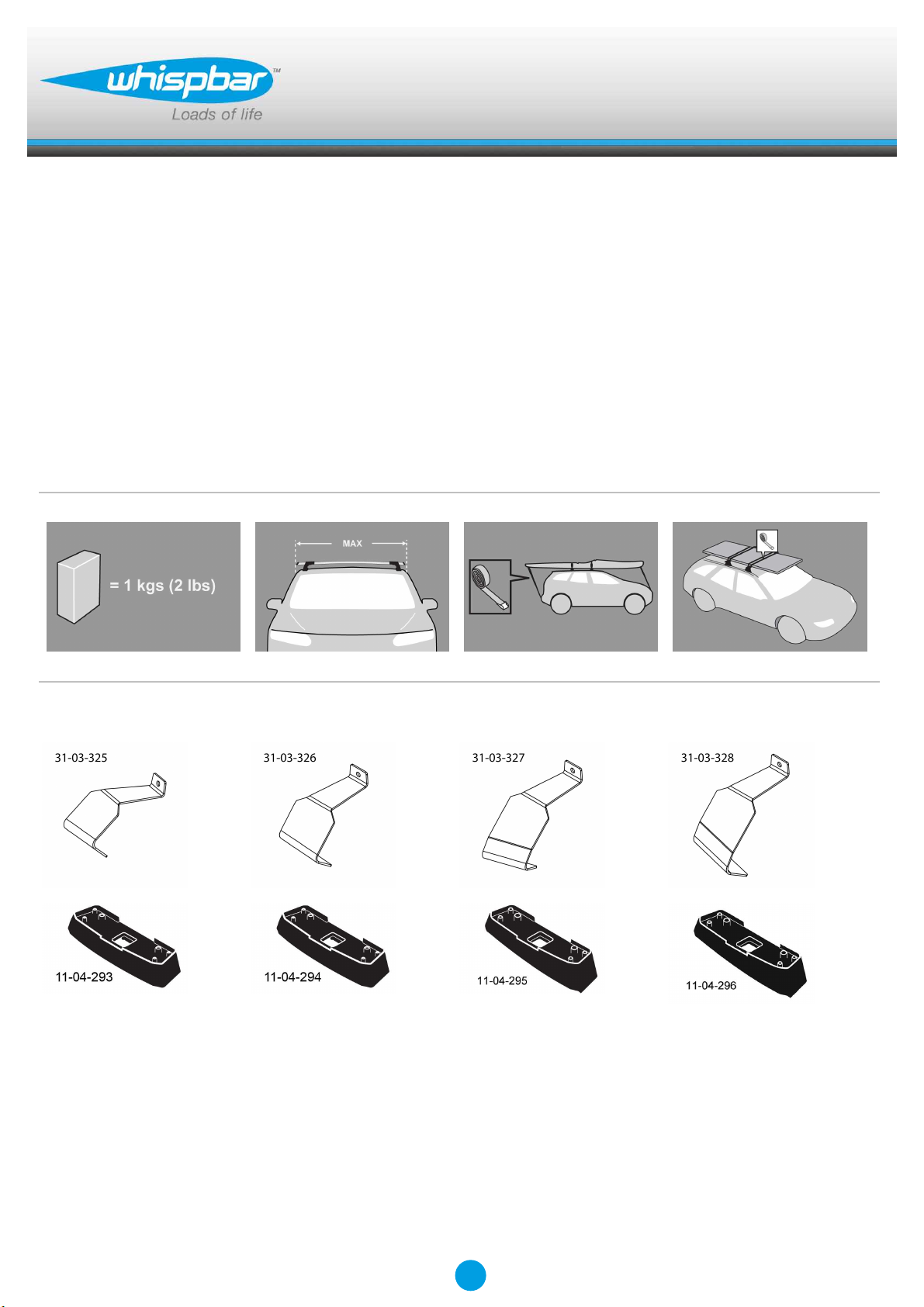

x 1 x 1 x 1 x 1
x 1 x 1 x 1 x 1
Revision No: 1A 1

Fitting Kit K824W
x 1 x 1 x 1 x 1
x 1 x 1 x 1 x 1
2

Fitting Kit K824W
MAX kgs (lbs)
W/P WHD
Chevrolet
Cruze , 4dr Sedan 09-+ ZA 45 kgs (99 lbs) 45 kgs (99 lbs)
Cruze , 4dr Sedan 11-+ US 45 kgs (99 lbs) 45 kgs (99 lbs)
Cruze , 4dr Sedan Feb 09-+ EU 45 kgs (99 lbs) 45 kgs (99 lbs)
Holden
Cruze , 4dr Sedan Jun 09-+ NZ 45 kgs (99 lbs) 45 kgs (99 lbs)
Cruze , 4dr Sedan Jun 09-+ AU 45 kgs (99 lbs) 45 kgs (99 lbs)
3

Fitting Kit EN
K824W
Whispbar and Prorack Crossbars

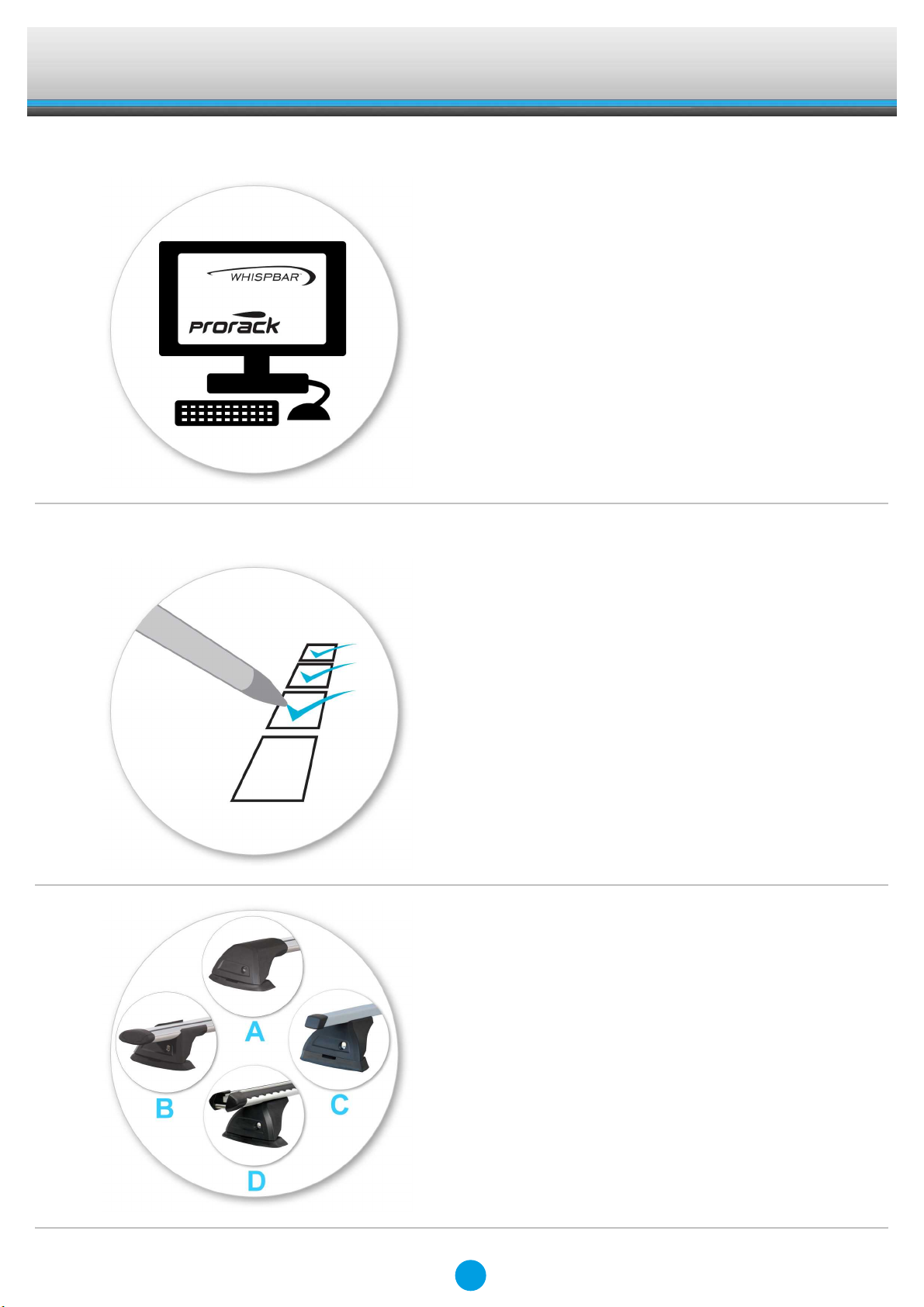

●ATTENTION: Find latest revision
instructions on the Whispbar or Prorack
website, or see your local dealer.
For Whispbar visit:
www.whispbar.com.au/.co.nz/.co.uk/.com
For Prorack visit:
www.prorack.com.au/.co.nz
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
4

Fitting Kit EN
K824W
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit

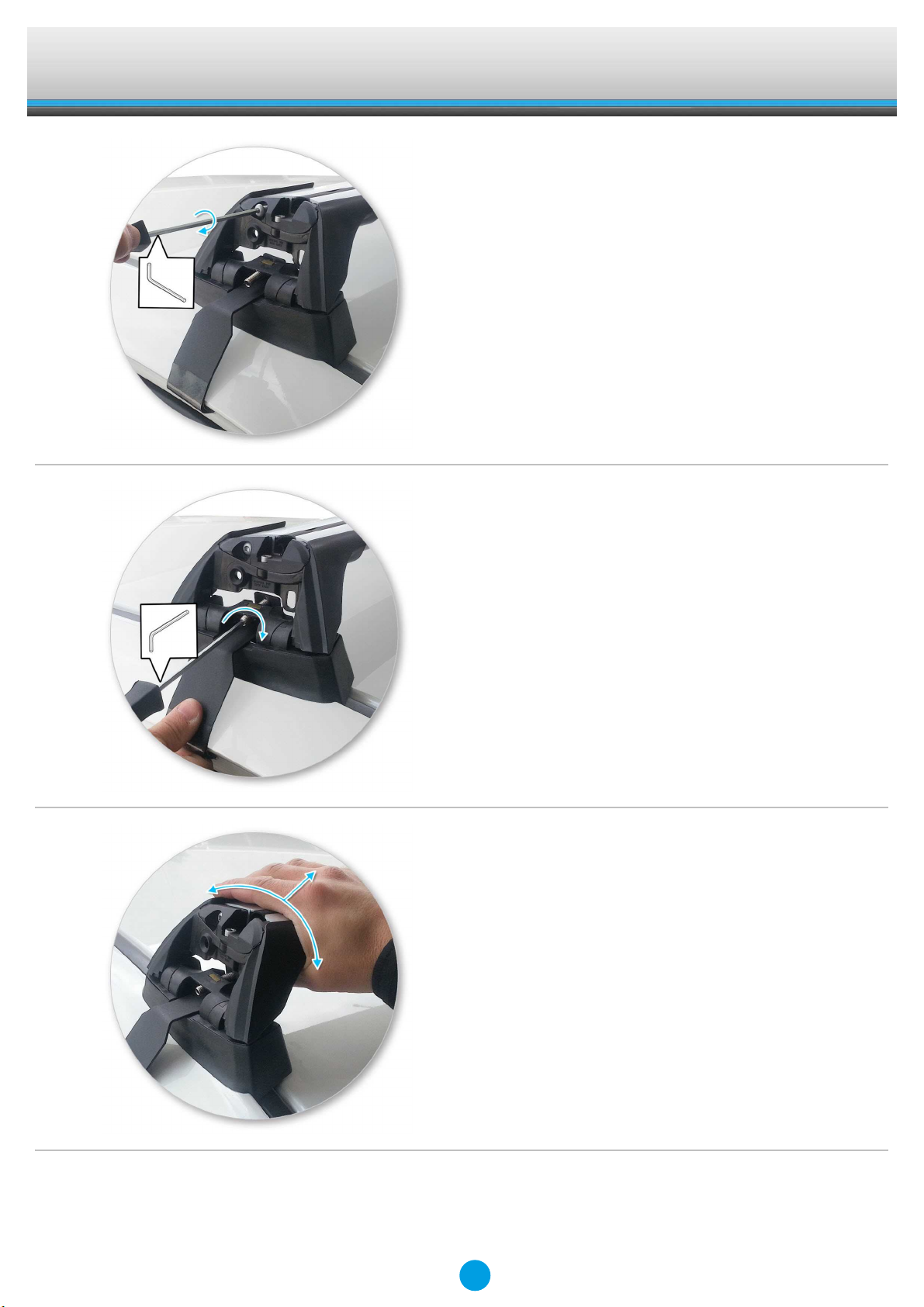

●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
5

Fitting Kit EN
K824W
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Remove locking screw.
●Apply protective strip as shown.
Trim if required.
●A, C = Clear
B, D = Black
●A = 00-17-017, 00-17-018
B = 00-17-011, 00-17-012
C = 00-17-015, 00-17-016
D = 00-17-013, 00-17-014
6

Fitting Kit EN
K824W
●It is important to put the clamps in the
correct position on the vehicle.
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = A325
B = A326
C = A327
D = A328
●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
7

Fitting Kit EN
K824W
●Refer to the underside of the pad for the
part number.
●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 293
B = 294
C = 255
D = 296
●Place rubber pads (supplied with fitting kit)
on the vehicle roof. Pad may vary in shape
to that shown.
8

Fitting Kit EN
K824W

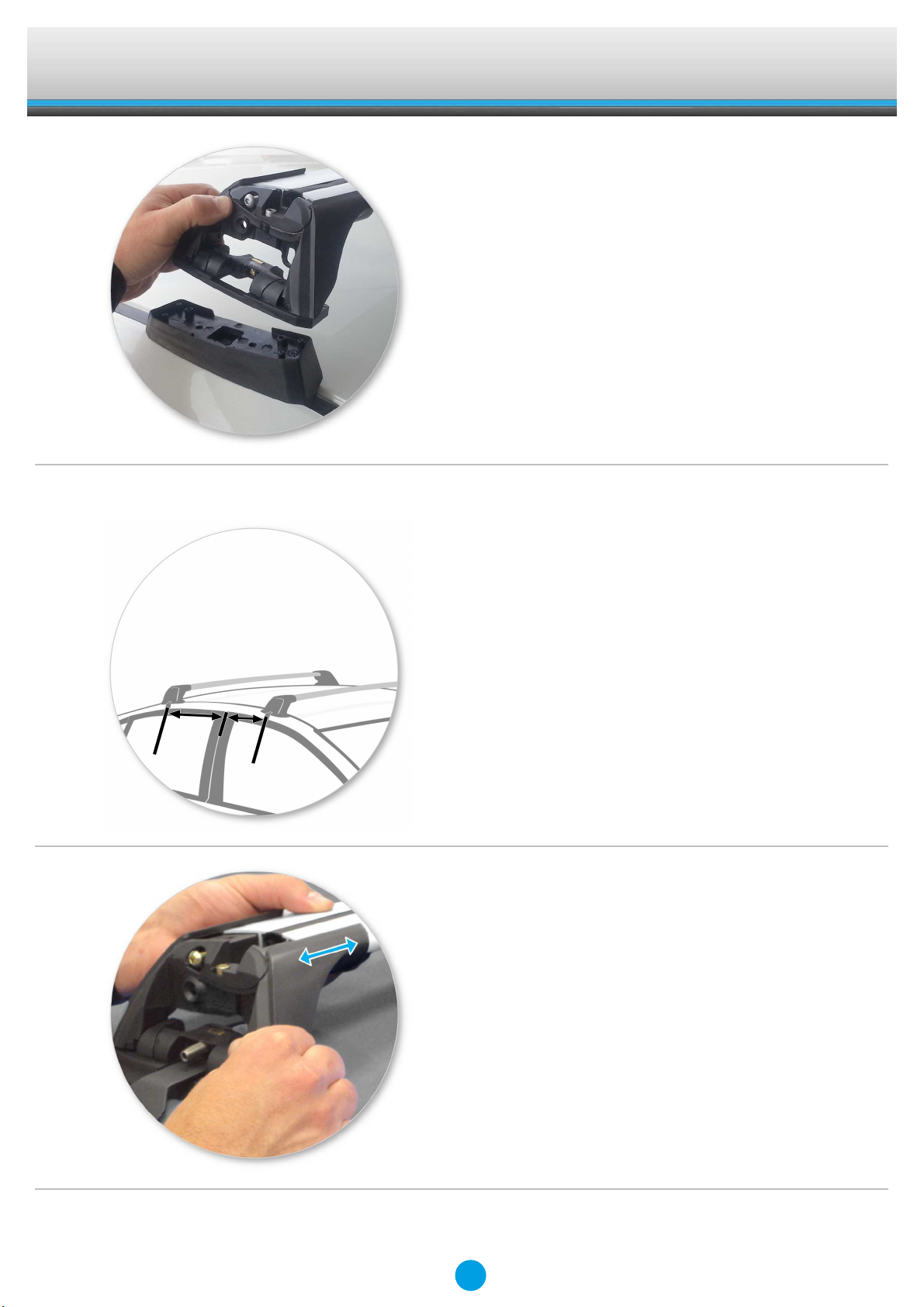

●Make sure the pad fits into the holes
underneath the foot.
Fitment
●Clamps directly to edge of roof under the
doors

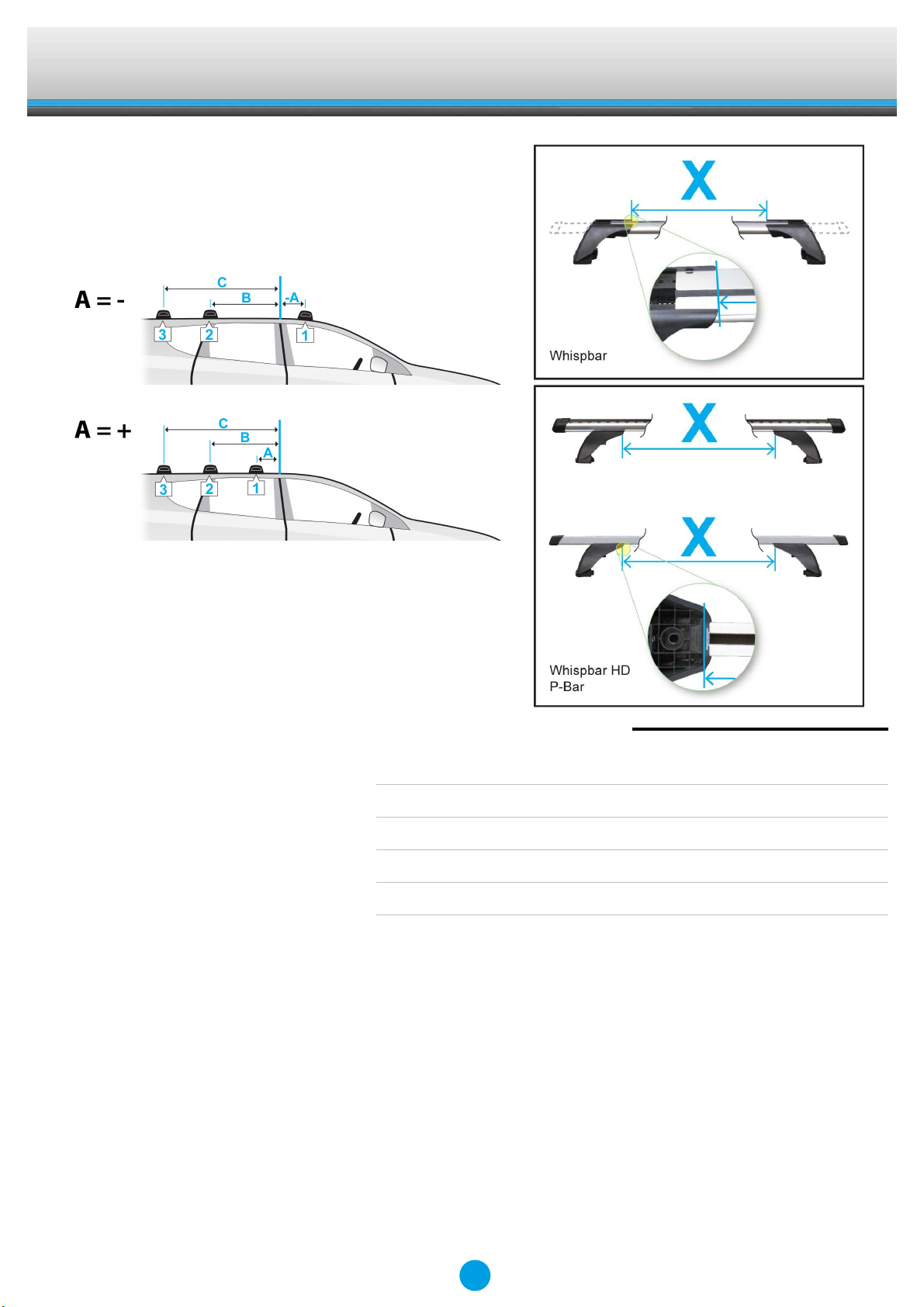

●Please check the rear of this manual for
information relating specifically to your
vehicle.
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
9

Fitting Kit EN
K824W
●Tighten adjusting screw to 3 Nm (2.2 ft lb)
hand tight.
●Tighten locking screw on both legs evenly,
3 Nm (2.2 ft lb).
●Check crossbar is securely attached to the
vehicle.
10
