ProVu 040-07-0080U User manual
5
2
1. ProVu 8” Display
2. Power Button
3. Micro USB Port
4. DC Power Port
5. DC - USB Charging Cable
6. Wall Plug
7.
FRONT SIDE
1
3
4
6
7
040-07-0080U
The ProVu 8” Display is a digital display intended to show live images from the ProVu Video
Laryngoscope (VL) via a micro-USB connection, as an aid to intubation for hospital use.
The ProVu 8” Display is a non-sterile, reusable digital display intended to show live images from the
ProVu Video Laryngoscope.
When connected to the ProVu device, a live video is shown on the display, which can be used to
further aid intubation of the patient.
The display can be recharged with the ProVu charging cable or micro USB cable and, when fully
charged, will provide up to 3.5 hours of continuous use.
the failure of the display and voids warranty.
-Ensure there is adequate room for easy operation.
-Inspect the ProVu 8” Display and all accessories for damage prior to each use. Do not use if it
appears damaged.
-Charge the Display fully before use. For shipping requirements, ProVu 8” Displays are shipped
with zero charge.
-Before charging, ensure that all components are completely dry, including the micro USB port.
-If using the Display Pole Stand, slide the Display securely onto the connector of the articulating
arm, ensuring it is fully seated.
-If using the ProVu Display Table Stand, slide the Display securely onto the connector, ensuring
it is fully seated.
-
RESOLUTION (PIXELS) x
ORIENTATION Landscape
DISPLAY TYPE
START UP TIME (FROM STANDBY) 2 seconds
START UP TIME (FROM BOOT MODE) 20 seconds
SOFTWARE VERSION Refer to device screen while charging
USB CONNECTION Micro USB
POWER CONNECTION DC Power
TEMPERATURE
RELATIVE HUMIDITY ≤85%, non-condensing
ATMOSPHERIC PRESSURE 700 to 1060 hPa
TEMPERATURE
RELATIVE HUMIDITY ≤85%, non-condensing
ATMOSPHERIC PRESSURE 700 to 1060 hPa
POWER INPUT Input: 5.0V 1.5A
BATTERY TYPE 3.7V, 5000 mAh, Lithium-ion
TYPICAL BATTERY RUN TIME ≈ hours (of continuous use)
TYPICAL BATTERY CHARGE TIME ≈3 hours (from 0 to 90% charge)
INPUT 100-240V AC - 0.5A 50-60Hz
OUTPUT Max 5.2V DC 3.0A
WIDTH X HEIGHT X THICKNESS 205mm x 130mm x 25mm
WEIGHT 396g
PLUG TYPE 110-120V with NEMA 5-15P 3 Pin Plug
-ProVu 8” Display and Accessories should only be used by trained personnel.
-
interference sources.
-Do not sterilize the device.
-The use of devices and other accessories which are not approved by Flexicare may result in sub-
optimal performance and place the patient at risk.
-
-The ProVu 8” Display should only be used with the ProVu VL and ProVu accessories.
-Always disconnect the ProVu 8” Display from the charging cable before cleaning.
-Ensure the voltage recommendations of the Display are compatible with power supplies.
-Do not clean the Display or Display accessories using any abrasive agents or mineral acids.
-Do not use sterilants with caustic ingredients, such as surgical scrub solutions, peroxide
solutions, bleaches, or povidone-iodine solutions.
-Do not disassemble device.
-
level before use.
-Do not modify the device.
-Device is not servicable.
-The battery is not removable. Do not open or remove battery. Warranty void if opened.
-Do not attempt maintenance of the device during use.
-Do not submerge.
-If the display screen does not illuminate from “sleep mode”, it is likely the battery needs to be
charged or the device needs to be reset. Follow Troubleshooting steps below for proper steps.
Any serious incident that occurs in relation to the device should be reported to the manufacturer
Refer to instructions supplied with the ProVu Pole Stand (IP0000-030) or ProVu Display Table Stand
(IP0000-021).

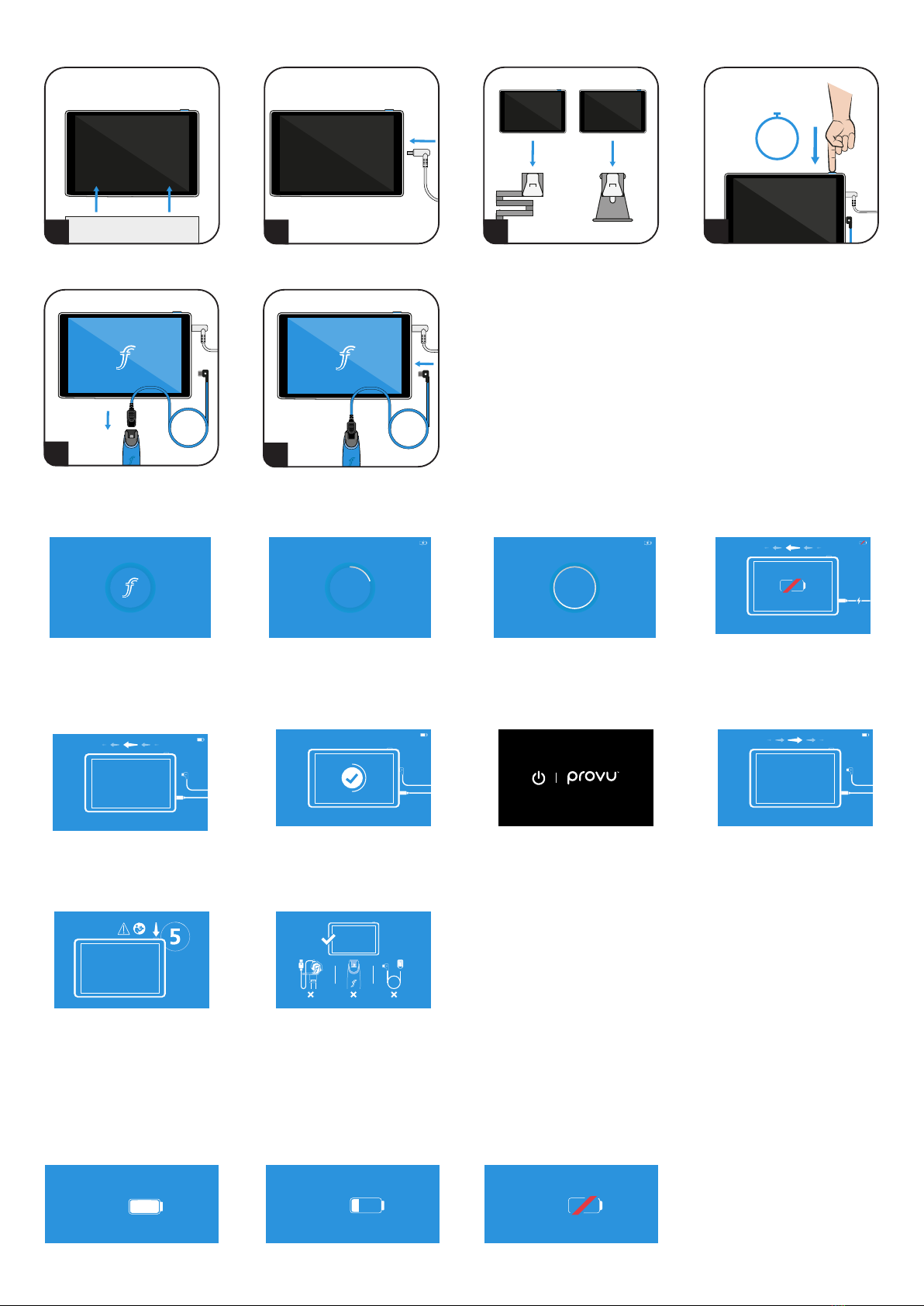

1. Connect the ProVu 8” Display to the DC charging cable, connected either to the plug socket
on the Display Pole Stand or directly to an outlet.
2. When connected and turned on, an indication of charge is shown on the screen. If this screen
does not display, check the security of the connections.
3. When fully charged, the Display will provide up to 3.5 hours of continuous use.
4. For optimal performance, keep the Display connected to the charger while in use. If this is
not suitable, re-charge between uses or when prompted on screen.
1. For more detailed instructions on the use of ProVu VL, refer to ProVu VL instructions (IP0000-
018) supplied with the ProVu VL.
2. Secure the ProVu 8” Display either on the ProVu Pole Stand or the Display Table Stand,
according to user preference.
3. Press and hold the Power Button for 3 seconds. If charge capacity is more than 5%, a blue
screen with a connection prompt image should appear.
4. If charge capacity is 5% or less, a blue screen with the battery icon with strike out will appear.
Please connect to charger; the Display can be charged while simultaneously in use with a
ProVu VL.
5. Use currently accepted medical techniques to choose the correct size of ProVu VL blade.
6. Securely connect the ProVu 8” Display to the ProVu VL, by connecting the elbow of the
on the ProVu VL.
7. Observe the Display screen to verify that a live image is being received from the ProVu VL.
8.
seconds.
9. Once a live image is seen, the device is ready to be used.
10. To put the ProVu 8” Display into standby mode, press the Power Button once quickly and the
screen will turn black.
11. To wake up from standby mode, press the Power Button once quickly and the screen image
will resume.
12.
the screen will turn black.
3 secs
C
B
B
ProVu 8” Display is fully charged.
ProVu 8” Display is connected and camera
image is loading.
ProVu 8” Display battery is charging.
Percentage charge is indicated in the circle.
Connect ProVu 8” Display to view
camera image.
Error 2
Camera error or crash.
Replace ProVu device.
Software version is displayed in the
bottom of the display when connected
to power.
Please charge via the DC Charger
or micro USB cable.
If Power Button is held for 3 seconds or
more, this screen will show while the
display shuts down.
If camera image fails to load, disconnect
the ProVu 8” Display.
Error 1
Software error or crash.
Reset ProVu 8” Display unit by holding
Power Button for 5 seconds or more.
100% 20% 19%
The ProVu 8” Display has several on-screen prompts to assist use.
When the battery charge is 5% or less, the
Charge Display screen will be shown. Please charge ProVu 8” Display.
v0.0.1.1
20
%
v0.0.1.1
100
%
v0.0.1.1
v0.0.1.1
5%
75%
75% 75%
Catalog Number Serial Number
Product Conforms
with Directive
93/42/EEC
Refer to Instruction
Manual/Booklet
Caution: US Federal Law Restricts this device
to sale by, or on the order of, a physician. Manufacturer Manufacturer Date Caution Do Not Use
Blade to Open
Type BF Applied
Part
Class II
Equipment
Keep Away
From Sunlight
700 hPa
1060 hPa
Keep Dry Recycle Separate
Collection
Temperature
Limit
Humidity
Limit
Atmospheric Pressure
Limitation Alternating Current Direct Current DC Jack Polarity
Center-Positive USB/Micro USB DC Power Port USB/Amplier
Cable Box
Country of origin
Patent Pending
Flexicare Medical Limited
Cynon Valley Business Park, Mountain Ash, CF45 4ER, UK.
Distributed by Flexicare, Inc.
15281 Barranca Pkwy, Unit D, Irvine, CA 92618
949-450-9999
949-450-9902
PROBLEM
No live image is seen
POSSIBLE EXPLANATION ACTION NEEDED
ProVu 8” Display needs to be charged
Charge display via the DC Charger or micro
USB cable. Note that the display can be charged
while in use.
ProVu 8” Display may be in sleep mode Press the Power Button once to wake.
ProVu 8” Display is damaged Replace the ProVu 8” Display with a new device.
Press and hold the Power Button for 3 seconds.
Remove and reconnect the ProVu 8” Display to
the device via the micro USB port as shown in
the instructions for use section.
ProVu device may be damaged Replace with a new ProVu device.
PROBLEM
Low image quality
POSSIBLE EXPLANATION ACTION NEEDED
Remove and reconnect the ProVu 8” Display to
the device via the micro USB port as shown in
the instructions for use section.
Dirty screen Wipe with an IPA cloth.
Damp screen Wipe with a dry cloth.
Camera lens may have secretions on it
or replace ProVu device.
Illumination failure Replace with a new ProVu device.
Incorrectly inserted cable Ensure all connections are secure.
PROBLEM
Error screen is shown or Display Screen Frozen
POSSIBLE EXPLANATION ACTION NEEDED
Software has malfunctioned Hold down the Power Button for 5 seconds.
Then wait for 10 seconds for software to reboot.
1. Disconnect the ProVu 8” Display from the power supply.
2.
3.
advised by your local healthcare provider.
4.
ProVu 8” Display is suitable for cleaning or disinfection. Cleaning or disinfection should be carried
1. Wear gloves throughout the cleaning procedure.
2. After each use, clean the exterior of the ProVu 8” Display using a standard germicidal wipe
with at least 55% IPA (e.g. Super Sani-Cloth®Germicidal Disposable Wipe or equivalent).
3. Inspect the ProVu 8” Display and reusable accessories for contamination. If any is present
repeat steps 1 & 2.
4. Once the ProVu 8” Display and reusable accessories are free from contaminates, dry with a
clean, dry cloth.
5. Check display for damage. If display does not function, refer to troubleshooting steps.
Cleaning or disinfection may be done for the ProVu Display and reusable accessories. Cleaning
1. ProVu 8” Display and reusable accessories disinfection should be carried out according to
the following solutions:
-Chlorine or Bleach Wipes (Containing ≥5400ppm Sodium Hyperchlorite; e.g. Sani-Cloth®
®Bleach or equivalent).
-Clinell Universal Wipes (2 quaternary ammonium compounds and 1 polymeric biguanide).
2. Ensure that the device to be disinfected is free from any visible contaminants before
disinfection.
3. Dry with a clean, dry cloth.
4. Once dry, it is recommended that the display be placed on charge until next use..
the product and will be free from defects in materials and workmanship that occur within one (1)
year from the date of purchase.
This warranty does not cover damage caused by:
-Handling during shipping.
-Use or maintenance contrary to labelling and instructions, including but not limited to incorrect
disassembly, reprocessing and reassembly.
-Alteration or repair by anyone not authorized by Flexicare Medical Limited.
If a product covered by this warranty is determined to be defective materials, components, or
workmanship, and the warrant claim is made within the warranty period described above, Flexicare
Medical Limited will, at its discretion, repair or replace the defective product free of charge.
Written authorization must be obtained from Flexicare Medical Limited to return the product prior
This warranty is in lieu of all other warranties, expressed or implied, including but not limited to,
a defect.
Flexicare Medical Limited is not responsible for any indirect or consequential damages resulting
from a product defect covered by the warranty.
This warranty
Terms and Conditions.
-Cables & Mounting Accessories
-Charging Cable
-
-ProVu Pole Stand
-ProVu Display Table Stand
