Prowise iPro Toddler Lift User manual
Luchthavenweg 1B, 6021 PX Budel, The Netherlands | +31 (0) 495 49 71 10 | [email protected] | www.prowise.com
KvK: 52893766 | BTW: NL850652443B01 | IBAN : NL73 INGB 0006113198 | BIC : INGBNL2A
Contents
Contents 2
Introduction 3
Becoming familiar with your product 4
Scope of delivery 5
Guidelines for the installation of the Prowise iPro Toddler and Tilt Lift 6
Safety requirements 7
Guidelines for use 7
Product specifications 8
Get started 10
Initialising the lift 10
Lift usage 12
Moving the lift 14
Cleaning the lift 14
Defects 15
User manual
iPro Toddler/Tilt lift
2
Introduction
The Prowise iPro Toddler/Tilt Lift adds value to your classes and makes your touchscreen even more
innovative and accessible for all. Operating the system with your foot and Prowise Central ensures that
you can direct your undivided attention to the screen. This lift system is the safest in existence. And in this
combination, it is a pioneer on global scale.
This manual has been created based on the current technical specifications of the lift. We are continuously
developing our lift systems, which means that we reserve the right to implement potential technical
modifications.
User manual
iPro Toddler/Tilt lift
3
Becoming familiar with your product
Easily adjust the height and tilt angle of your touchscreen by using the Prowise iPro Tilt and Toddler Lift.
Adjustments up/down Adjustments horizontal/vertical
The wheels are always locked, unless the lift is in its lowest position. This means that the lift can be moved
only when it is in its lowest position.
User manual
iPro Toddler/Tilt lift
4
Scope of delivery
Check the delivery for completeness. Should component parts be missing, please contact our service desk
within five (5) days. The contact information for our service desk can be found on our website,
www.prowise.com. Please keep your serial number and a copy of the invoice readily available.
1. Prowise iPro Toddler or Tilt Lift
2. AC connection cable
3. VESA clamps (2 units)
4. Assembly bag:
a. M8x20 hex bolts (4 units)
b. M5x25 hex bolts (2 units)
c. Assembly Guide
d. Safety Guide
5. AC extension cord for touchscreen
User manual
iPro Toddler/Tilt lift
5
Guidelines for the installation of the Prowise iPro Toddler and Tilt
Lift
Only Prowise or a partner certified by Prowise is authorised to install and mount the touchscreen on the
Prowise iPro Toddler and Tilt Lift. Prowise is not liable for damages and/or trauma caused by assembly
carried out by a third party. The warranty will lapse if the lift or the touchscreen are installed or assembled
by third parties.
- The maximum load of the Prowise iPro Tilt and Toddler Lift is 75 kg.
- The power supply must be provided with voltage overload protection and an available current of
6A.
- Connect the power cord to a earthed socket with AC 100-240V~50/60Hz only. Consult your energy
company if you are unsure about the power supply at the installation site.
- Use only the connection cord and plug supplied.
- Read the safety instructions before assembling the Prowise iPro Toddler or Tilt Lift
User manual
iPro Toddler/Tilt lift
6
Safety requirements
Please read the supplied Safety Guide before installing and using the Prowise iPro Tilt/Toddler Lift. Please
follow warnings and instructions closely and always keep the Safety Guide and Assembly Guide at hand.
Guidelines for use
The Prowise iPro Tilt or Toddler Lift has been designed such that it can be used and maintained safely.
Activities that are not described in the user manual, may only be conducted by professionals. The
iProToddler/Tilt Lift is not suitable for use in the open air or an environment that has a high explosion
hazard.
Warning!
- It is crucial that anyone connecting, installing or using this lift, has access to the necessary
information and this user manual.
- Follow the assembly instructions to avoid potential injury.
- Only connect the iPro Toddler/Tilt Lift to a grounded outlet with AC 100 - 240V, 50 - 60Hz.
- Do not place liquids on or around the lift.
- Never open the electrical component box. By doing so, the user can be exposed to lethal electrical
shocks. The electrical components must not be serviced by the user.
- Always unplug the power cord during thunderstorms. In relation to extra safety measures we
recommend to use a surge protector to protect the connected touchscreen from damage caused
by voltage peaks or lightning strikes to the electricity network.
- The maximum load of this lift amounts to 75 kgs.
- The lift is not suitable to be used by young children or minors without supervision. Do not use the
lift for playful purposes.
- Caution! The risk of becoming stuck is always present, and unavoidable due to the functioning of
the lift.
User manual
iPro Toddler/Tilt lift
7

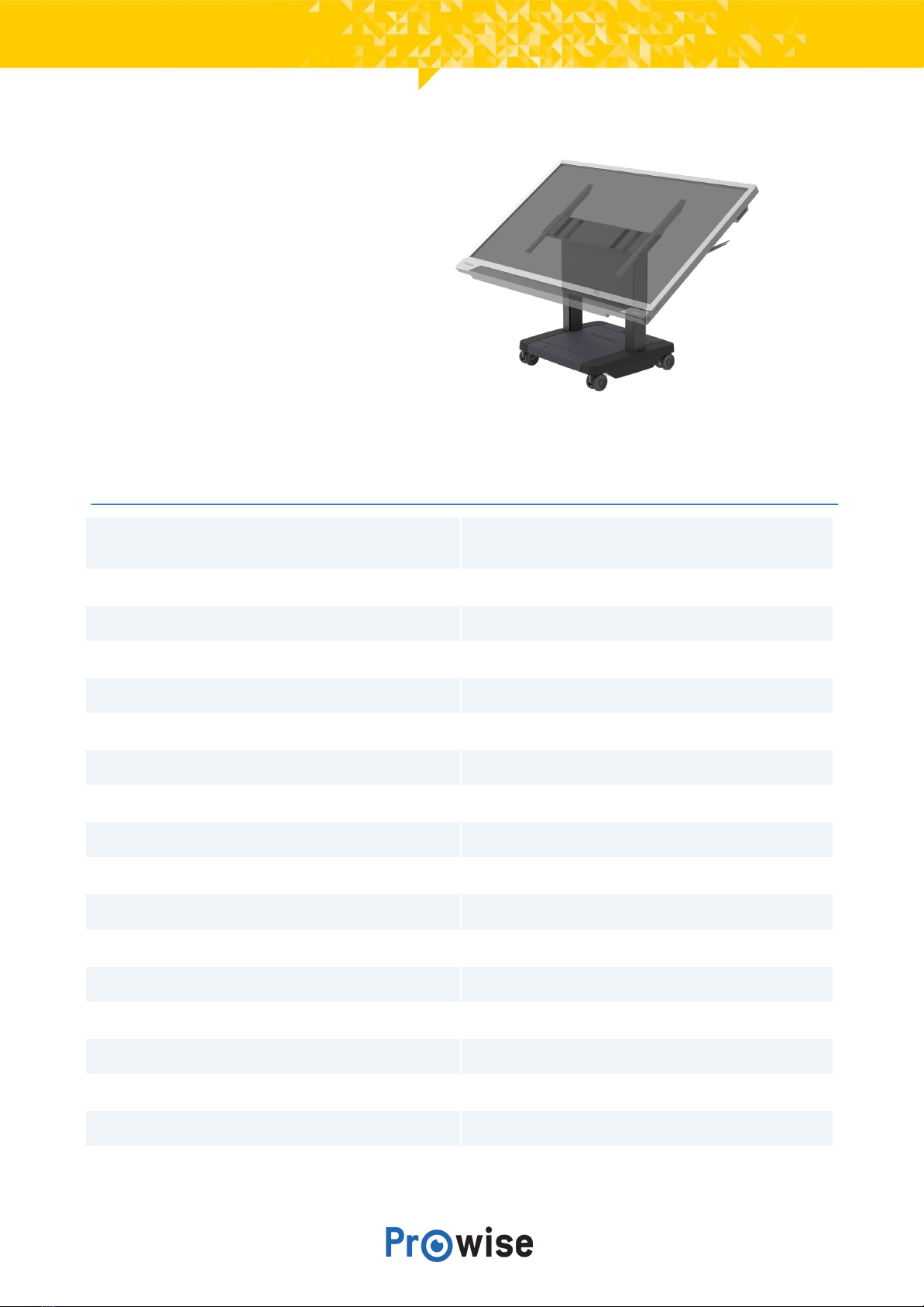

Product specifications
Adjust height and angle of the touchscreen and
move it to any location. Due to the tilt option the
touchscreen can also be used as a touch table. The
Tilt/Toddler Lift is able to descend such that even
the shortest students can participate.
iPro Toddler Lift PW.1.21007.0002
iPro Tilt Lift PW.1.21005.0003
Suitable for
Prowise touchscreens up to 65 inch,
Maximum dimensions VESA mount 800 x 600 mm
Dimensions ground surface (WxDxH)
690 mm x 690 mm x 160 mm
Maximum load
75 kg
Speed of the lift
38 mm /s
Power
100-240V AC 50-60Hz (universal)
Stand-by power consumption
0,1 Watt
Duty cycle columns
5%
Soft-start and soft-stop
Yes
Noise level
Low, standard < 55 dB (A)
Protection against overload (EOP)
Yes
Columns with integrated anti-collision sensors
Yes, PIEZO™ sensoren
Material
Steel/ABS
Colour
Steel = RAL 9005 / ABS = anthracite/black
Touchscreen control via Prowise Central
Yes, USB connection
Foot controller
Yes
Remote control
Yes
Wheels
Double safety wheels, 100 mm, made of polyamide
User manual
iPro Toddler/Tilt lift
8
Certifications
CE
Warranty
5 year
Gross weight
64 kg (iPro Toddler Lift)
70 kg (iPro Tilt Lift)
Net weight
55 kg (iPro Toddler Lift)
62 kg (iPro Tilt Lift)
Dimensions of the total packaging (WxDxH)
887 mm x 712 mm x 780 mm
User manual
iPro Toddler/Tilt lift
9
Get started
When the iPro Toddler/Tilt Lift has not been used for an extended period of time, it needs to be initialised.
The pillars are provided with a PIEZO™ sensor. This ensures that the upward and downward
movement of the lift comes to an automatic halt once an obstructing object is detected.
The lift will automatically move in the opposite direction. The system also increases the
personal safety to some extent, but does comply not with legislation regarding personal
safety.
Initialising the lift
Initialisation of the height movement of the lift
- Place the lift in the lowest position by pressing the down button of the handheld or foot control
panel.
- Once in the lowest position, again press the down button and continue to hold the button until
the lift has moved automatically a further 3 mm and then withdrawn. This takes no longer than 5
seconds.
- Release the down button only when the lift has come to a complete standstill.
- If the down button is released before the lift has stopped, initialisation will be interrupted and the
process must be restarted.
- The columns are now initialised and ready for use.
Initialisation of the tilt function
- Place the screen in a horizontal position by pressing and holding down the tilt down button of the
manual control panel.
- Once in the lowest position, again press the tilt down button and continue to hold the button until
the screen has moved automatically a further 3 mm and then withdrawn. This takes no longer than
5 seconds.
- Release the tilt down button only when the lift has come to a complete standstill.
- If the tilt down button is released before the screen has stopped, initialisation will be interrupted
and the process must be restarted.
- The tilt function of the lift is now initialised and ready for use.
User manual
iPro Toddler/Tilt lift
10
If the down button is released before the lift has stopped, initialisation will be interrupted
and the process must be restarted.
Initialising regularly improves the durability of the lift system.
User manual
iPro Toddler/Tilt lift
11

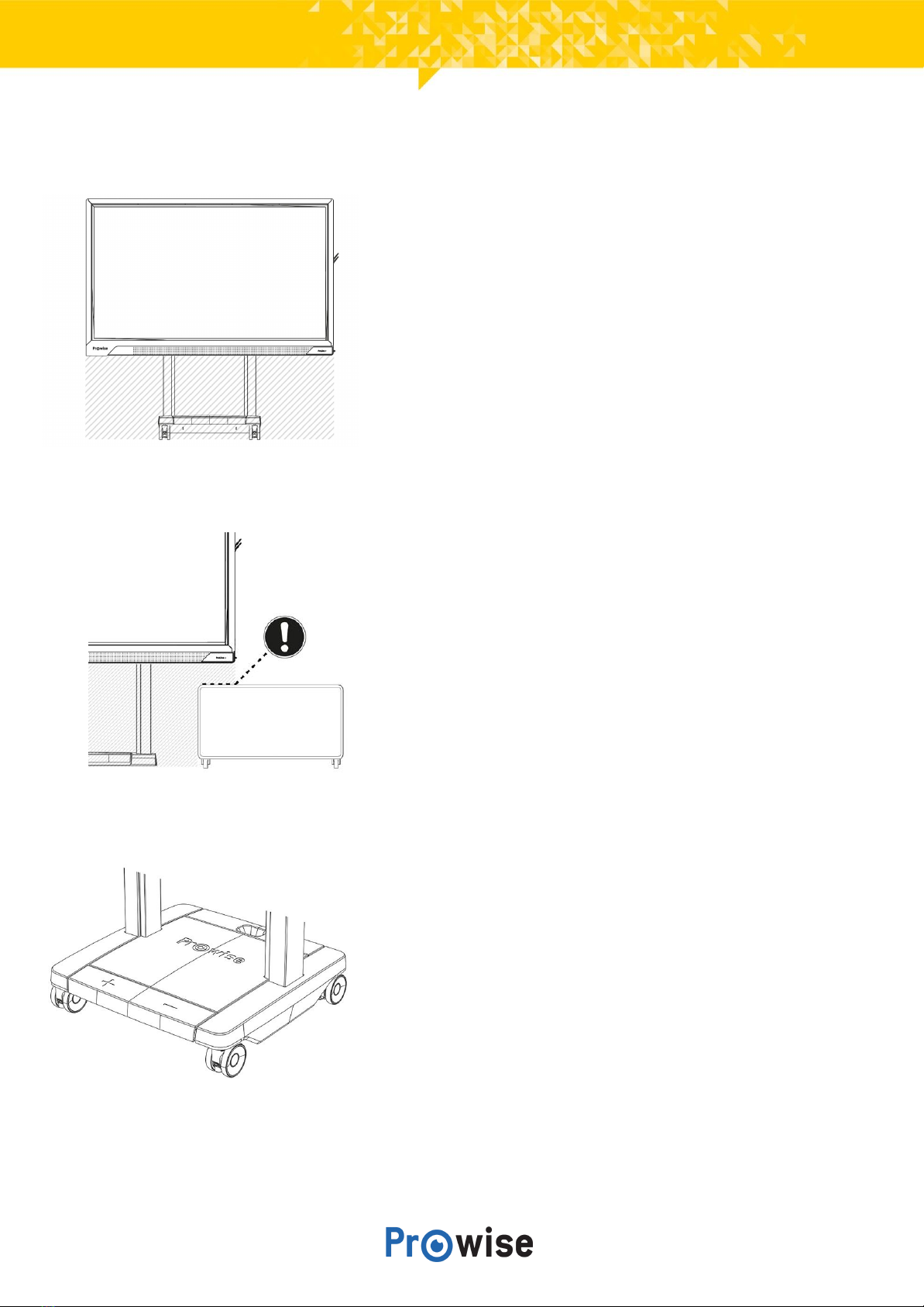

Lift usage
The motion area must be free of obstacles. Ensure that objects or
body part cannot get trapped between another object and the lift
or the touchscreen.
The lift is equipped with anti-collision sensors that automatically
stop it from moving once it is in collision with an obstruction. This
prevents damage to the lift and the touchscreen mounted upon it.
CAUTION! This is not a person protection feature.
Set the touchscreen to the desired height by pressing the up or
down buttons on the foot control panel.
User manual
iPro Toddler/Tilt lift
12
Set the touchscreen to the desired height by pressing the up or
down button on the manual control panel. Set the screen in a
vertical or horizontal position with the tilt button.
Or set the touchscreen to the desired height or
inclination by using the lift control panel in Prowise
Central.
CAUTION! This application is only supported in
Prowise touchscreens in which Prowise Central has
been integrated.
User manual
iPro Toddler/Tilt lift
13
Moving the lift
Take the following guidelines into account when moving the Prowise iPro Toddler and Tilt Lift:
- Set the lift in the lowest position and ensure that the screen is in a vertical position so that it can
be moved.
- Roll up the power cord to ensure it is not dragged across the floor or is left in the lift’s walkway.
This mitigates the danger of stumbling as well as damage to the connecting cable.
- Make sure that no objects are left or persons are within the lift’s walkway.
- At least two people should be on hand to move the lift.
- Only move the lift over a stable, flat surface.
- Ensure that the lift does not come into collision with anything while being moved. This prevents
damage to the lift, the touch screen attached to it and the surrounding area.
- The lift must be initialised after being moved. This prevents damage and extends the lifespan of
the lift.
User manual
iPro Toddler/Tilt lift
14
Cleaning the lift
Ensure that the cleaning of the lift is conducted by an adult. Children are only allowed to clean the lift
under supervision. The cleaning and disinfecting agents must never be too alkaline or acidic (pH 6 to 8).
Never apply the cleaning agent directly to the lift; always use a cloth. Preferably clean the lift with a dry
cloth.
Defects
It is important to always consider safety during a malfunction of the lift. Servicing a dually-isolated
product requires extreme care and expertise of the system and can only be conducted by a Prowise
professional or Prowise-certified partner. Replaced components must be identical to the original parts.
A defect can have various causes. In case of a defect, try the following:
- Check if all the cables are connected
- Initialise the lift (see page 9, "Initialising the lift")
- Unplug the cord from the outlet for 2 minutes and reconnect.
If the defect remains, please get in contact with the Prowise service desk via [email protected] or
0800-5021. Write down the following details:
- Name lift (see type bar)
- Serial number (see type bar)
- Type of defect/malfunction (potentially attach a picture)

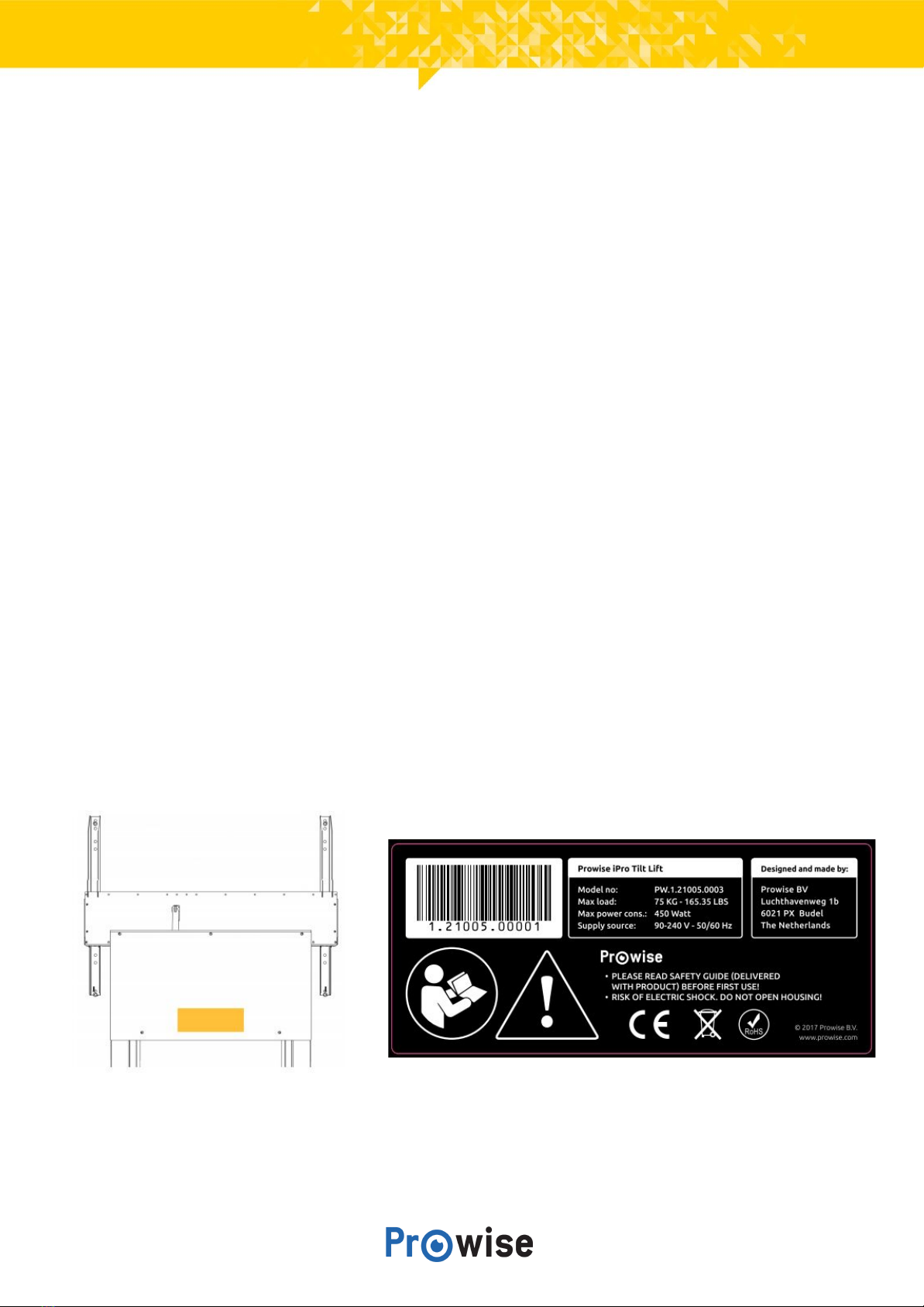

Position type bar Type bar
User manual
iPro Toddler/Tilt lift
15
