PRYMEBLU®BTH-700-IC/800-IC/900-IC
Wireless Dual Muff Headsets

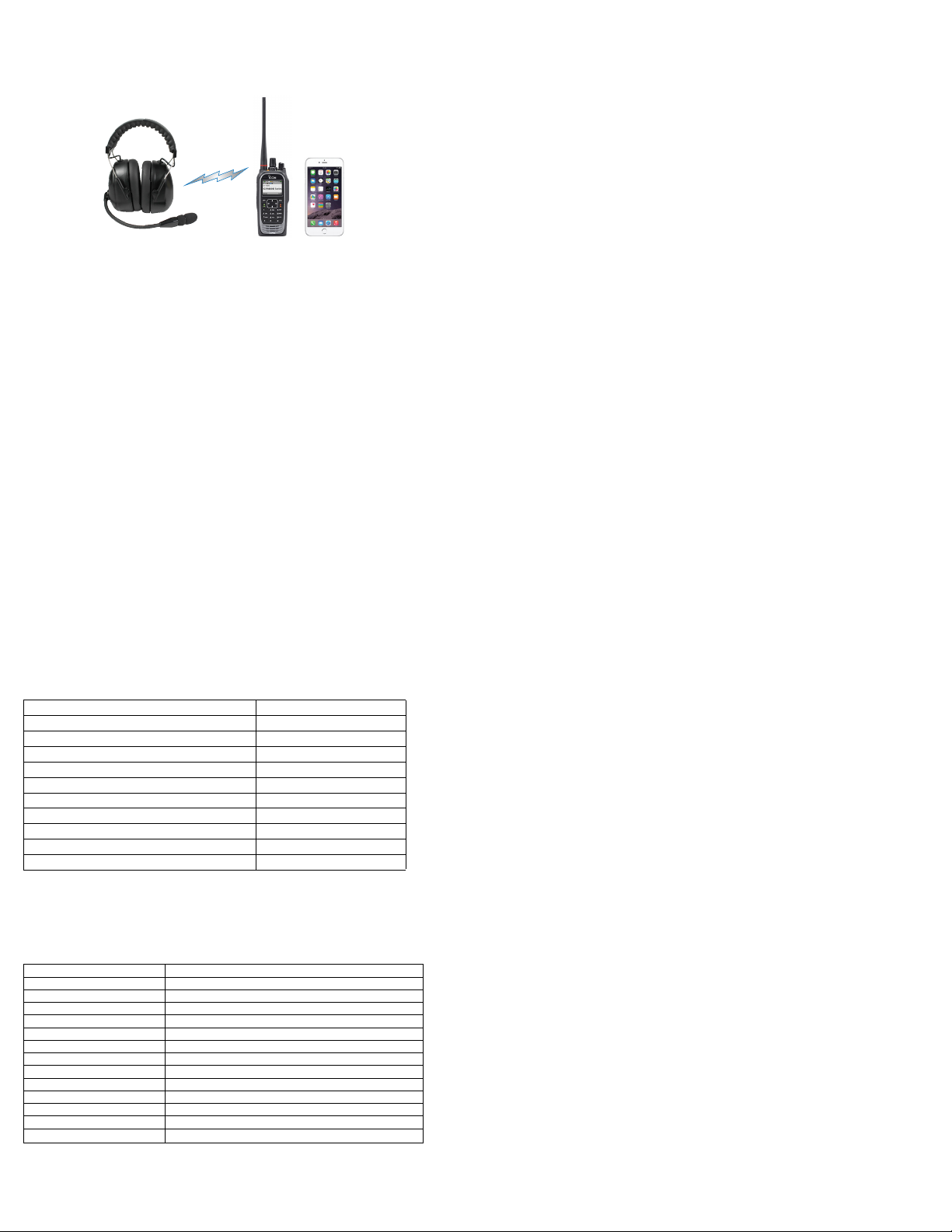

The BTH-700-IC/800-IC/900-IC are BT Muff Headsets designed for
use with ICOM BT enabled IC-F3400D and IC-F5400D two-way radios.
CAUTION: This product does not have dual/multi pairing capability, and is not designed to work with a cellular
phone/handset. The PRYMEBLU Headset is designed to work only with ICOM BT-enabled 2-way radios.
PRYMEBLU BTH-700-IC
PRYMEBLU BTH-800-IC
PRYMEBLU BTH-900-IC
Made in Taiwan
PRYME® and PRYMEBLU® are trademarks owned by PRYME Radio Products, Brea CA.
All other product or service names are the property of their respective owners.
© 2021 PRYME Radio Products, Brea CA. All Rights Reserved
CHARGING THE HEADSET
The PRYMEBLU Muff Headset has an internal Lithium Ion rechargeable battery pack which must
be charged prior to operation. A fully charged battery will provide approximately 10 hours (or
more) of operation before needing to be recharged. However, operating time can vary
depending on usage and the condition of the battery pack. Recharge the battery regularly.
To charge the PRYMEBLU Headset:
1. Ensure the PRYMEBLU Headset is turned off using the Power Button.
2. Plug the supplied wall charger into a standard 120 volt AC outlet.
3. Plug the charge cable into the AC wall charger and then into the charge jack on the Headset.
You will need to remove the protective rubber cover that is inserted into the charge jack. (To
prevent dust and moisture from damaging your Headset, always ensure this cover is in place
when you are not charging the Headset.)
4. Once the charging process has begun, the LED indicator on the Headset will show a
continuous red light. When the battery is done charging, the LED light will turn off.
5. Typical charge time is approximately 4 hours. Actual charge time will vary depending on
several factors including the battery’s charge state, condition, and age.
6. Disconnect the charger from the lapel mic when charging is completed.
Charging Cautions:
- Use only the wall charger supplied by the
manufacturer. Do not use any other charger.
- Do not use a wall charger that appears
to be damaged. (Example: frayed wires,
melted plastic, etc.) Contact PRYME to
get a new manufacturer-approved
replacement charger.
- Do not tamper with or modify the
Headset or charger.
- Always turn the power switch to the off position
when charging the Headset.
P-CBL-USB-MICRO charger cable and P-CHA-BT-USB
wall charger included with the Headset.
Controls and Connections
PUSH-TO-TALK BUTTON
This button is used to
activate the push-to-talk
feature of the ICOM radio
The PTT button on the
BTH-900-IC is different
than the BTH-700-IC
and BTH-800-IC
AUX PTT BUTTON
This button can also be used as a
Push-to-Talk button to activate the
PTT feature of the ICOM 2-way radio.
USB CHARGE JACK
This micro-USB jack is used to connect
the supplied charge cable to the Headset
in order to recharge the device’s internal
lithium-ion battery pack.
MUFF EARPHONES
Received calls are heard
through these Headset
speakers.
HEADBAND / HELMET MOUNTING CLIPS
Depending on the model, the headset
may be furnished with mounting clips
for attaching to a hard hat (SPM-700-IC),
an over-the-head band (SPM-800-IC)
or a behind-the-head band (SPM-900-IC).
VOLUME UP/DOWN BUTTONS
These button are used to adjust
the volume level of received calls
heard through the Headset.
POWER BUTTON / STATUS LED
Pressing this button for one second
turns the PRYMEBLU Muff Headset
on or off. This button is also used to
place the Headset in pairing mode
so that it can be connected
wirelessly to an ICOM two-way radio.
The status LED behind the button
flashes messages that let the user
know the current status of the
device. For a complete list of LED
messages, see pg 6.
ADJUSTABLE BOOM MICROPHONE
The Muff Headset boom microphone
picks up the user's voice audio to send
over-the-air.
BTH-700-IC BTH-800-IC BTH-900-IC

8
65
7
Reconnecting a Previously Paired Headset and Radio
Once the PRYMEBLU Muff Headset and BT-enabled ICOM two-way radio have been successfully
paired together, both devices will remICer that connection. The Headset and radio will attempt to
reestablish their link whenever they are both powered on and in within range of each other.
Re-establishing this connection can take 10-60 seconds.
CAUTION: This product does not have dual/multi pairing capability and is not designed
to work with a cellular telephone/handset. The PRYMEBLU Headset is designed to work only with
ICOM BT-enabled two-way radios.
TESTING AND USING THE PRYMEBLU MUFF HEADSET
Once your Headset and ICOM two-way radio have been paired together:
Received signals will be heard through the speakers in the PRYMEBLU Muff Headset. The volume
of received calls can be adjusted using the Volume Up and Volume Down buttons on the
Headset or the volume control on the two-way radio.
The operator’s voice is picked-up by the boom microphone in the PRYMEBLU Muff Headset..
Push-to-Talk can be activated by pressing and holding one of the two PTT buttons on the
PRYMEBLU headset.
SUPPORT AND WARRANTY
PRYME Radio Products warrants this product against defects in materials or workmanship
for a period of one year from the date of retail purchase. PRYME will repair or replace a
defective unit, at our option, without charge for parts or labor. The limited warranty is
extended only to the original purchaser and is valid only to consumers in the United States
and Canada. It does not cover damage or failure caused by or attributable to Acts of God,
abuse, misuse, improper or abnormal usage, faulty installation, improper maintenance,
lightning, or other incidences of excessive voltage, or any tampering or repairs by other
than a PRYME authorized repair facility. It does not cover replacement of consumable parts,
transportation costs, or damage in transit.
Repair or replacement under the terms of this warranty does not extend the terms of this
warranty. This warranty can only be modified by an officer of PRYME Radio Products, and
then only in writing. Should this product prove defective in workmanship or material, the
consumer’s sole remedies shall be such repair or replacement as provided by the terms of
this warranty. Under no circumstances shall PRYME Radio Products be liable for any loss or
damage, direct, consequential, or incidental, arising out of the use of or inability to use this
product. Some states do not allow limitations on how long an implied warranty lasts or the
exclusions or limitations of incidental or consequential damages, so the above limitations or
exclusions may not apply to you. This warranty gives you specific legal rights. You may also
have other rights, which may vary, from state to state.
For support or warranty service on your PRYME product, contact us at 1-800-666-2654 or
visit us on the web at www.PRYME.com.
COPYRIGHT and TRADEMARK INFO
© 2021 PRYME Radio Products, Brea CA. All rights reserved.
PRYME® and PRYMEBLU® are trademarks owned by PRYME Radio Products, Brea CA.
ICOM is a trademark of ICOM AMERICA INC.
All other product or service names are the property of their respective owners.
DISCLAIMER: The BT wireless link used by PRYMEBLU products is an open standard,
unsecured technology. As such, it is not recommended for first-responder or other mission
critical users.
STATUS LED MESSAGES
The meanings of the various status LED messages shown by the PRYMEBLU Muff Headset
are shown on the following table:
MESSAGE MEANING
Device is off
Pairing mode
Device turned on
Device turned off
Not paired or link lost
Normal (paired) operation
PTT operation
Low battery
Charging
Charging is finished
LED INDICATION
No indication
Blue-Red-Blue-Red continuous
Two short blue flashes
Three red flashes, then off
One blue flash every 2 seconds
One blue flash every 6 seconds
Continuous red when PTT pressed
One red flash every 6 seconds
Continuous red (when connected to charger)
No indication (when connected to charger)
PAIRING THE HEADSET WITH AN ICOM TWO-WAY RADIO
Before you can use the PRYMEBLU Muff Headset, it must be paired with a BT-enabled ICOM
two-way radio.
To pair the Headset with an ICOM two-way radio:
1. Begin by first making sure that the PRYMEBLU Headset is turned off. You should also power
off any nearby BT devices to prevent them from potentially interfering with the pairing process.
2. Press and hold down the Power Button on the PRYMEBLU Headset for five seconds, until
the LED on the device flashes RED-BLUE-RED-BLUE continuously in sequence. The PRYMEBLU
Headset is now in pairing mode.
3. Follow the procedure described in the ICOM radio user's guide enable the BT function.
4. Follow the procedure described in the ICOM radio user's guide to have the radio scan for
nearby Earphone devices.
5. On the radio, select the PRYMEBLU Headset as the device to pair with. If the password is
required, enter "0000".
6. After a few seconds, the two devices should synch to one another. Once the PRYMEBLU
headset and ICOM two-radio are paired with each other the status LED on headset will then
show one blue flash every few seconds.
7. Once successfully paired, you will be able to operate your two-way radio using the
PRYMEBLU Headset.
Dimensions:
Weight:
BT Version:
BT Profiles:
BT Power Class:
Sensitivity:
Range (Typical):
Built-in Battery:
Standby Current Draw:
Standby Time:
Operating Time:
Operating Temperature Range:
SPECIFICATIONS
220mm X 130mm X 90mm (SPM-700-IC, SPM-800-IC)
240mm X 230mm X 160mm (SPM-900-IC)
350 grams (SPM-700-IC, SPM-800-IC)
410 grams (SPM-900-IC)
3.0
HSP, HFP, A2DP, AVRCP
Class 2
-90 dB
10 meters (30 feet)
3.7V, 330mAH Lithium-Ion
6 mA
50 hours (max)
10 hours (max)
-15° C to + 50° C
