PRYME PRYMEBLU BT-PTT2-HY User manual

3 4
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. To maintain compliance with FCC RF exposure compliance requirements, please
avoid direct contact to the transmitting antenna during transmitting.
RF Exposure Warning!
Please keep product 20cm away from your
body or bystander during the radio operation.
The typical handheld two-way radios were
certied under mobile usage condition
(i.e. keep 20cm away from the user body)
and use of such radio closer than 20cm may
exceed the US RF exposure limit
and shall be avoided.
version 1.0-HY August 2016
911 Mariner St., Brea, CA 92821
PH: 714.257.0300 FAX: [phone]
TOLL FREE: 800.666.2654
WWW.PRYME.COM
PRYMEBLU®BT-PTT2-HY PUSH-TO-TALK USER’S GUIDE
For use with Bluetooth enabled HYTERA two-way radios
The PRYMEBLU BT-PTT2-HY allows you to Push-to-Talk wirelessly over your HYTERA
Bluetooth enabled two-way radio when using a wireless Bluetooth headset.
PRYME® and PRYME BLU® are trademarks owned by PRYME Radio Products,
Brea CA. All other product or service names are the property of their respective owners.
© 2016 PRYME Radio Products, Brea CA. All Rights Reserved
This manual applies to the PRYMEBLU BT-PTT2-HY
Wireless Push-to-Talk transmitter.
The PRYMEBLU BT-PTT2-HY works with HYTERA
two-way radios with internal Bluetooth capability
PRYMEBLU BT-PTT2-HY
Model No.: BT-PTT2-HY
Made in Taiwan
FCC ID N2E-BT-PTT2
1. Charge the PRYMEBLU BT-PTT2-HY
2. Pair a wireless Bluetooth headset with the HYTERA two-way radio
3. Pair the PRYMEBLU BT-PTT2-HY with the HYTERA two-way radio
4. Test and Use.
Quick Start
STEP ONE: Charging the PRYMEBLU BT-PTT2-HY
The PRYMEBLU BT-PTT2-HY has an internal Lithium Ion rechargeable battery pack which must be
charged prior to operation, and must be recharged regularly. A fully charged battery should provide
more than 12 hours of operation before needing to be recharged.
To charge the PRYMEBLU BT-PTT2-HY:
* Ensure the PRYMEBLU BT-PTT2-HY is turned off, using the button located on the side of the
device.
* Plug the USB charge port on the bottom of the BT-PTT2-HY into any powered USB connector.
You will rst need to remove the protective rubber dust cover. (To prevent dust and moisture from
damaging your BT-PTT2-HY, always ensure this cover is in place when you are not charging the
device.)
* When charging, the LED on the BT-PTT2-HY will show a solid blue light. When the device is
done charging, the LED light will turn off.
* The PRYMEBLU BT-PTT2-HY takes approximately 4.5 hours to charge. Actual charge time
will vary depending on several factors including the battery’s charge state, condition, and age.
Charging Cautions:
- Use only a POWERED USB port for charging. Non-powered ports (such as on a USB hub)
will NOT work.
- Do not use a wall charger that appears to be damaged. (Example: frayed wires,
melted plastic, etc.)
- Do not tamper with or modify the PRYMEBLU BT-PTT2-HY or charger.
- Always turn the power switch to the Off position when charging the PRYMEBLU BT-PTT2-HY.
OPTIONAL CHARGER
Universal Wall Charger with USB Port
P-CHA-BT-USB $12
Controls and Connection
Clothing Clip
This 360° rotating clip can be
used to secure the BT-PTT2-HY
to the user’s clothing or any
other convenient location.
Power Button
Turns the PRYMEBLU
BT-PTT2-HY on and off.
Dust Cover
Used to cover the USB
port when the BT-PTT2-HY
is not being recharged.
USB Charge Port
This port is used to connect the
PRYMEBLU BT-PTT2-HY to any
powered USB connector for
recharging.
LED Indicator
The LED ashes messages that let the
user know the current status of the
PRYMEBLU BT-PTT2-HY.
PTT Button
When paired with a PRYMEBLU
Adapter and wireless headset, this
button functions as a Push-to-Talk,
causing the two-way radio to transmit
when the switch is pressed.

Pairing With an Audio Accessory
STEP TWO: Pairing the Bluetooth headset with the HYTERA two-way radio
To pair the wireless Bluetooth headset and two-way radio:
* Place the Bluetooth headset into pairing mode by following the instructions in the user's manual
for the Bluetooth headset.
* Follow the procedure described in the HYTERA radio user's guide enable the Bluetooth function.
* Follow the procedure described in the HYTERA radio user's guide to scan for nearby Bluetooth
headsets and connect the radio and headset.
* For further assistance, contact your HYTERA support or your two-way radio dealer.
STEP THREE: Pairing the BT-PTT2-HY and HYTERA two-way radio
* Place the PRYMEBLU BT-PTT2-HY in pairing mode by holding down the Push-To-Talk button
while turning the power on using the Power Button on the side of the device. Continue to hold
down the Push-To-Talk button until the LED indicator on the PRYMEBLU BT-PTT2 shows two blue
ashes every second. You can then release the Push-to-Talk button. The PRYMEBLU BT-PTT2 is
now in pairing mode.
* Follow the procedure described in the HYTERA radio user's guide enable the Bluetooth function.
* Follow the procedure described in the HYTERA radio user's guide to have the radio scan for
nearby Bluetooth PTT devices.
* On the radio, select the BT-PTT2-HY as the device to pair with. If the password is required,
enter"0000".
* Once the radio and PRYMEBLU BT-PTT2 are paired with each other, the status LED on the
PRYMEBLU Adapter will show a constant blue light for three seconds and the LED on the PTT
will show one blue ash every six seconds.
* If the PRYMEBLU BT-PTT2 does not detect a compatible wireless accessory within 60 seconds
of being put into pairing mode, the devices will exit the pairing mode and resume normal operation.
6
8
5
7

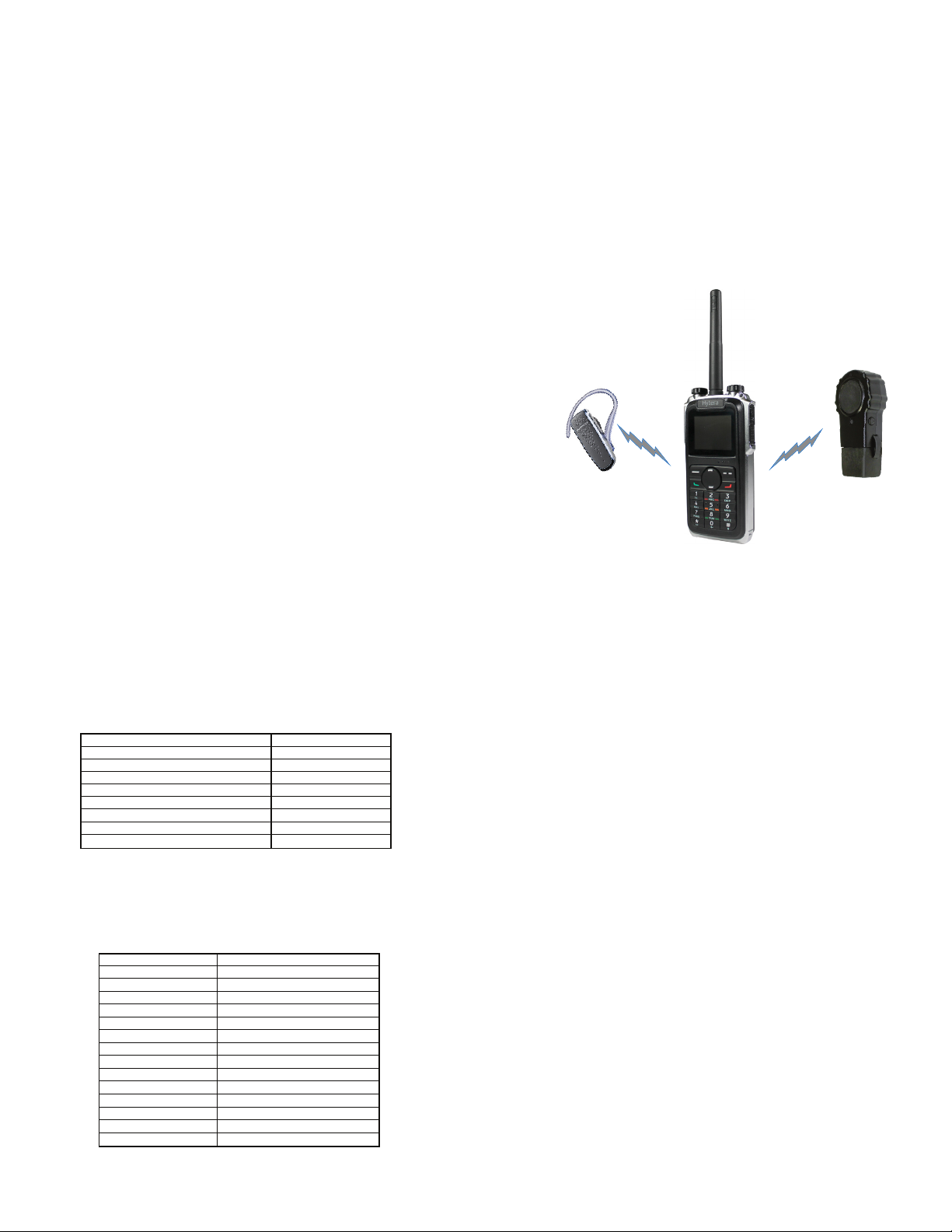

Status LED Messages
The meanings of the various status LED messages shown by the
PRYMEBLU BT-PTT2-HY are shown on the following table:
Specifications
Support and Warranty
PRYME Radio Products warrants this product against defects in materials or workmanship for
a period of one year from the date of retail purchase. PRYME will repair or replace a defective
unit, at our option, without charge for parts or labor. The limited warranty is extended only to
the original purchaser and is valid only to consumers in the United States and Canada. It does
not cover damage or failure caused by or attributable to Acts of God, abuse, misuse, improper
or abnormal usage, faulty installation, improper maintenance, lightning, or other incidences of
excessive voltage, or any tampering or repairs by other than a PRYME authorized repair
facility. It does not cover replacement of consumable parts, transportation costs, or damage in
transit.
Repair or replacement under the terms of this warranty does not extend the terms of this
warranty. This warranty can only be modied by an ofcer of PRYME Radio Products, and
then only in writing. Should this product prove defective in workmanship or material, the
consumer’s sole remedies shall be such repair or replacement as provided by the terms of this
warranty. Under no circumstances shall PRYME Radio Products be liable for any loss or
damage, direct, consequential, or incidental, arising out of the use of or inability to use this
product. Some states do not allow limitations on how long an implied warranty lasts or the
exclusions or limitations of incidental or consequential damages, so the above limitations or
exclusions may not apply to you. This warranty gives you specic legal rights.
You may also have other rights, which may vary, from state to state.
For support or warranty service on your PRYME product, contact us at 1-800-666-2654 or visit
us on the web at www.PRYME.com.
COPYRIGHT AND TRADEMARK INFO
© 2016 PRYME Radio Products, Brea CA. All rights reserved.
PRYME® and PRYMEBLU™ are trademarks owned by PRYME Radio Products. All other
product or service names are the property of their respective owners.
HYTERA is a trademark of HYTERA COMMUNICATIONS CO., LTD
DISCLAIMER: The Bluetooth wireless link used by PRYMEBLU products is an open standard,
unsecured technology. As such, it is not recommended for rst-responder or other mission
critical users.
Testing and Using the PRYMEBLU BT-PTT2-HY
Step 1:
Charge
Step 4:
Test and Use
STEP FOUR: Testing and Using the PRYMEBLU BT-PTT2-HY
After the Bluetooth headset and BT-PTT2-HY have been paired to the Hytera two-way radio,
* Turn on the HYTERA two-way radio and make sure that the Bluetooth feature is enabled.
* Turn on the Bluetooth headset. Within a few seconds the HYTERA two-way radio and
Bluetooth headset should connect to each other.
* Turn on the PRYMEBLU BT-PTT2-HY. The LED indicator on the PRYMEBLU BT-PTT2-HY
will ash rapidly. Within a few seconds the LED indicator will show one blue ash per
second, indicating that it is connected wirelessly to the HYTERA two-way radio.
*You will now be able to operate using the wireless accessories. Pressing the Push-to-Talk
button on the PRYMEBLU BT-PTT2-HY will cause the two-way radio to transmit. Transmit
audio will be picked up by the Bluetooth headset. Received signals will also be heard
through the Bluetooth headset’s earphone.
Step 3:
Pair Devices
Step 2:
Pair Headset
LED INDICATION
No indication
Two blue ashes every second
One blue ash ever six seconds
Continuous solid red
Repeated rapid blue ash
One blue ash every second
Continuous solid blue (when connected to charger)
No indication (when connected to charger)
MEANING
Device is powered off
Pairing mode
Bluetooth connected
PTT button pressed
Bluetooth link lost
Battery low
Device charging
Device nished charging
Operating temperature:
Storage temperature:
Size:
Weight:
Bluetooth Version:
Chip set:
Receiver Sensitivity:
Bluetooth Power Class:
Maximum Range:
Display:
Bluetooth Prole Support:
DC Input:
Current Draw:
Battery:
Charging Type:
-20 ° C to 50 ° C
-40 ° C to 80 ° C
65mm (H) x 30mm (W) x 17mm (D)
25 grams
Fully Qualied Bluetooth v2.1
CSR BC5 + 16MB external Flash
-82 dBm (typical)
Class 2
10 meters
Two color LED
SPP (Serial Port) Prole
5 VDC
16 mA (average), 20 mA (maximum)
240mAh Lithium-Ion
USB
