PT M598DB User manual

OWNER'S MANUAL
WARNING: READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND
WARNINGS BEFORE OPERATING THIS TOOL. FAILURE TO DO SO MAY
RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND WILL
VOID WARRANTY.
3-IN-1 AIR CONTROL UNIT
Item Number M598DB

2
TOOL FEATURES
Operating Pressure (P.S.I.)...................................145 Max
Pressure Gauge (P.S.I.) ...................................... 0 - 140
Maximum Airflow (C.F.M.).........................................76
Air inlet and Outlet (N.P.T.) ....................................... 1/4
Overall Dimensions (IN.) ................... 8-1/4 L x 6-1/2 W x 3-13/16 D
Weight (LBS) ................................................. 2.5
SPECIFICATIONS:
Specifications are subject to change without notice.

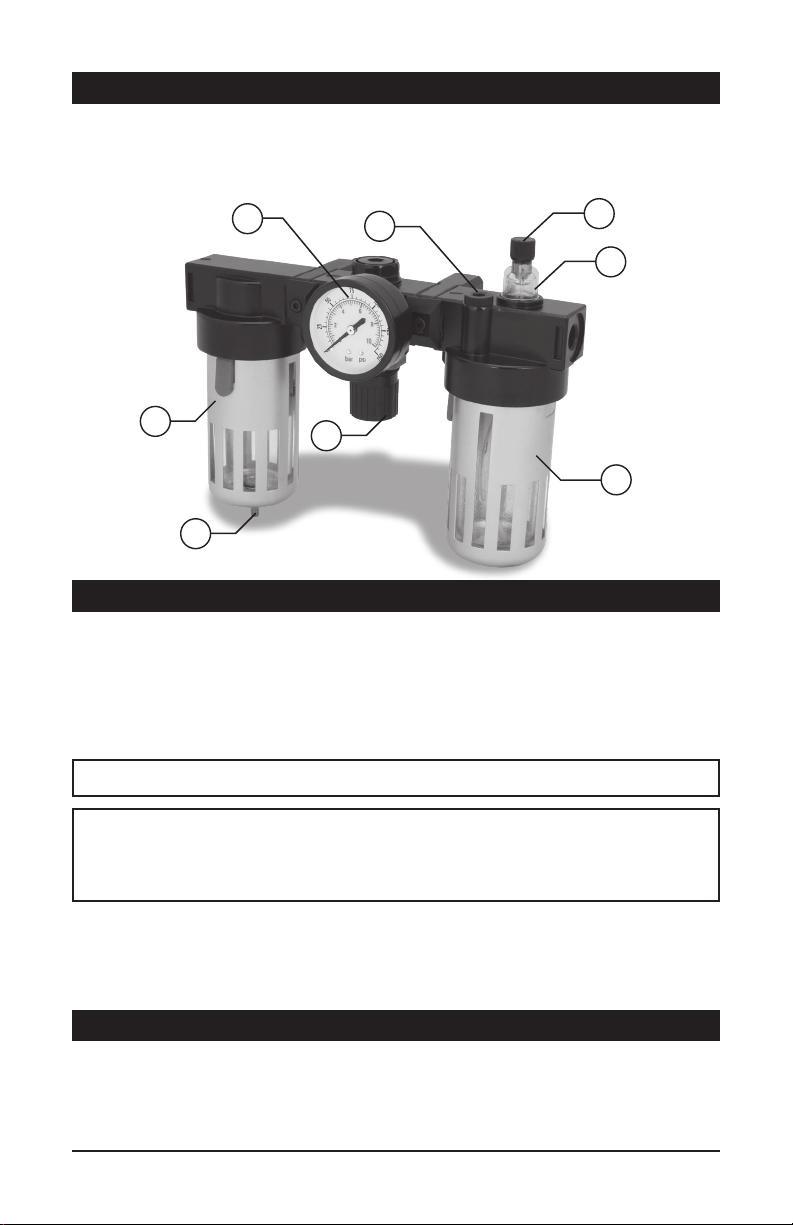

5. Oiler Body
6. Oil Fill Screw
7. Adjustable Screw
8. Outer Cup
1. Pressure Gauge
2. Regulator Knob
3. Filter Body
4. Drain Valve
IMPORTANT SAFETY INFORMATION
1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Do not use machines or power tools in damp or wet
locations. Don’t expose to rain. Keep work area well lighted. Do not use electrically
powered tools in the presence of flammable gases or liquids. Do not bring combustible
materials near the tools.
WARNING!
READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND WARNINGS
BEFORE OPERATING THIS TOOL. FAILURE TO DO SO MAY RESULT IN
PERSONAL INJURY AND/OR PROPERTY DAMAGE AND WILL VOID WARRANTY.
1
5
7
2
3
4
6
8

WARNING: The warnings, cautions, and instructions discussed in this instruction manual
cannot cover all possible conditions and situations that may occur. It must be understood by the
operator that common sense and caution are factors which cannot be built into this product, but
must be supplied by the operator. Read and understand all of the instructions provided in the
instruction manual of this product, as well as, any other tool (s) used with this product.

3
ASSEMBLY / INSTALLATION
This filter, regulator, and lubricator unit comes assembled except for attaching the Pressure
Gauge. You will also need to add oil to the oiler. The instructions below will guide you
through this process.
1. Wrap pipe thread seal tape (not included) around the fitting of the Pressure Gauge.
2. Carefully screw in (clockwise) the Pressure Gauge fitting into the Regulator Body.
Tighten by using a wrench on the square shank by threads. Do not over tighten; stop
turning the Pressure Gauge when it is facing up as shown on front page photo.
3. Secure the Mounting Bracket to a flat surface using the appropriate hardware (not supplied).
CAUTION: Make sure there are no pipes, cables or wires behind the wall you intend to drill into.
4. Remove the Oil Fill Screw on top of the Oiler Body, and add air tool oil to the
maximum level. Replace Oil Fill Screw.
5. Wrap incoming air line from compressor with thread seal tape and connect to intake
opening on left side of unit. Repeat for outgoing air line to tool on right side of unit.
WARNING: Be sure flow of air from compressor through Control Unit into tool matches
the arrows indicated on top of the unit.
OPERATION
1. Turn on the compressor and check for air leaks. If any are found, turn the compressor
off, drain air from tank, and fix the leak before use.
2. Fill Oil Bowl with oil as needed.
3. With the Compressor ON, gently pull up and turn the Regulator Knob to adjust the air
pressure as read on the Gauge. Gently press the Regulator Knob down to lock it.
3. Keep children away. Children must never be allowed in the work area. Do not let them
handle machines, tools, hoses or extension cords.
4. Store idle equipment. When not in use, tools must be stored in a dry location to inhibit
rust. Always lock up tools and keep out of reach of children and other untrained
persons. Switch off all unused electrical tools when stored. Tools are dangerous in the
hands of untrained users.
5. Always wear approved eye protection when using tools. If raising dust, wear a suitable mask.
6. Do not operate any tool if under the influence of alcohol or drugs. Read warning labels
on prescriptions to determine if your judgment or reflexes are impaired while taking
drugs. If there is any doubt, do not operate any tool.
7. Be sure air is in OFF position when connecting tool to air supply.
8. Be sure to disconnect tool from air supply before changing accessories, performing
service on tool and when not in use.
9. Follow air source manufacturers' directions for connection of regulators, filters, and
other accessories to air source. Do not install quick couplers directly on tool as they
put unnecessary strain on the air inlet threads possibly causing them to wear out
prematurely. Instead, install them on a short length of air hose attached to the tool.
10. Check for damaged parts. Before using any tool, any part that appears damaged
should be carefully checked to determine that it will operate properly and perform its
intended function. Check for alignment and binding of moving parts; any broken parts
or mounting fixtures; and any other condition that may affect proper operation. Any
part that is damaged should be properly repaired or replaced by a qualified technician.
11. Maintenance. For your safety, maintenance should be performed regularly by a
qualified technician using original PERFORMANCE TOOLS® replacement parts.
Failure to do so can lead to accidents for the operator. Use of any other parts will void
the warranty. Only use accessories intended for use with this tool. Approved
accessories are available from Performance Tool®. Use only accessories that are
recommended by the manufacturer for your model. Accessories that may be suitable
for one tool may become hazardous when used on another tool.
IMPORTANT SAFETY INFORMATION CONT.

INSUFFICIENT POWER:
Probable Cause Solution
Dirty or clogged air passages......... Flush and lubricate tool, drain air tank and supply line.
Insufficient air supply...................... Increase line pressure, Make sure compressor
matches tool's air pressure and consumption needs.
Air leakage...................................... Use PTFE tape at all fittings and joints. Check tool for
worn or damaged O-rings & seals.
Worn/damaged wear & tear parts... Replace as necessary.
TROUBLESHOOTING
LIMITED WARRANTY
PERFORMANCE TOOL® extends only the following warranties, and only to original retail purchasers. These
warranties give specific legal rights. Except where prohibited by local law, the law of the State of Washington
governs all warranties and all exclusions and limitations of warranties and remedies. There may be other rights
which vary from state to state.
PERFORMANCE TOOL® warrants the product to be free from defects in materials and workmanship under normal
use and service. A defective product may be returned for a free replacement within 90 days from the date of
purchase, provided that product is returned to place of purchase immediately after discovery of defect. After 90
days and up to one year from date of purchase, PERFORMANCE TOOL® will replace at no charge any parts which
our examination shall disclose to be defective and under warranty. These warranties shall be valid only when a sales
receipt showing the date of purchase accompanies the defective product or defective part (s) being returned. For
part (s) after 90 days, please remit your request, postage prepaid to:
PERFORMANCE TOOL, P.O. Box 88259 Tukwila, WA 98138
These warranties exclude blades, bits, punches, dies, bulbs, fuses, hoses, and other consumables which must be
replaced under normal use and service. These warranties shall not apply to any product or part which is used for a
purpose for which it is not designed, or which has been repaired or altered in any way so as to affect adversely its
performance or reliability, nor shall these warranties apply to any product or part which has been subject to misuse,
neglect, accident or wear and tear incident to normal use and service.
PERFORMANCE TOOL® does not authorize any other person to make any warranty or to assume any liability in
connection with its products.
Except for warranties of title and the limited express warranties set forth above, PERFORMANCE TOOL® makes no
express or implied warranties of any kind with respect to its products. In particular, PERFORMANCE TOOL® makes
no implied warranty of merchantability and no implied warranty of fitness for any particular purpose, except that for
goods purchased primarily for personal, family or household use and not for commercial or business use,
PERFORMANCE TOOL® makes an implied warranty of merchantability (and, if otherwise applicable, an implied
warranty of fitness for a particular purpose), but only for the particular qualities or characteristics, and for the
duration, expressly warranted above.
The laws on limitation of implied warranties may differ from state to state, so the above limitations may not apply in
all cases.
PERFORMANCE TOOL® shall not be liable for consequential, incidental or special damages resulting from or in any
manner related to any product, or to the design, use, or any inability to use the product. The sole and exclusive
remedy for a defective product or part shall be the repair, or replacement thereof as provided above. The laws on
limitation of remedies or on consequential, incidental or special damages may vary from state to state, so the above
limitations may not apply in all cases.
© Copyright 2020 WILMAR CORPORATION, P.O. Box 88259 Tukwila, WA 98138
4. Adjust the oil flow by viewing the Outer Cup and adjusting the Adjusting Screw next to
it. Adjust from 0 to 9 for desired lubrication rate.
OPERATION CONT.
LUBRICATION & MAINTENANCE
1. Check oil level in Oil Body daily.
2. Periodically disassemble the Air Filter and Lubricator assemblies and remove all dirt
and debris. Remove air pressure before cleaning. To remove canisters press down on
red tab and rotate 1/8th turn.
3. Water should automatically drain water from the Filter Body when the system is no
longer under pressure. Attach 1/4 in. I.D. flexible tubing to the Drain Valve on the
bottom of the filter to properly drain accumulated condensation.
