PT PT200M User manual

InnovativeMeasurementElectronics
...bettervaluebydesign!
R
PT200M
DigitalIndicator
OperatorManual

Copyright
Disclaimer
SPECIALNOTE
TradeUseofthePT200Series
AllRightsReserved.Nopartofthisdocumentmaybecopied,
reproduced,republished,uploaded,posted,transmitted,
distributed,storedinorintroducedintoaretrievalsysteminany
form,orbyanymeans(electronic,mechanical,photocopying,
recordingorotherwise)whatsoeverwithoutpriorwritten
permissionofPTLtd.
PTLtdreservestherighttomakechangestotheproducts
containedinthismanualinordertoimprovedesign,performance
orreliability.
Theinformationinthismanualisbelievedtobeaccurateinall
respectsatthetimeofpublication,butissubjecttochangewithout
notice.PTLtdassumesnoresponsibilityforanyerrorsor
omissionsanddisclaimsresponsibilityforanyconsequences
resultingfromtheuseoftheinformationprovidedherein.
ThismanualmayoccasionallymakereferencetoTradeUse
settingsofthePT200Series.
Someindividualsettingsmaynotbelegalfortradeuse.
PleasecheckregulationswiththeappropriateWeightsand
MeasuresAuthority.
http://www.pt-global.com

Operator Manual Rev 2.0
003R-619-200 Page 1
Table of Contents
1. INTRODUCTION ........................................................... 2
1.1. Approvals (for trade versions only)....................... 2
1.2. Features............................................................... 2
1.3. Manuals................................................................ 2
2. SAFETY......................................................................... 3
2.1. Operating Environment ........................................ 3
2.2. Electrical Safety ................................................... 3
2.3. Cleaning............................................................... 3
3. BASIC OPERATION...................................................... 4
3.1. User Interface Display and Controls..................... 4
3.2. Operation Keys .................................................... 5
3.3. Stability Considerations........................................ 7
3.4. Annunciators ........................................................ 8

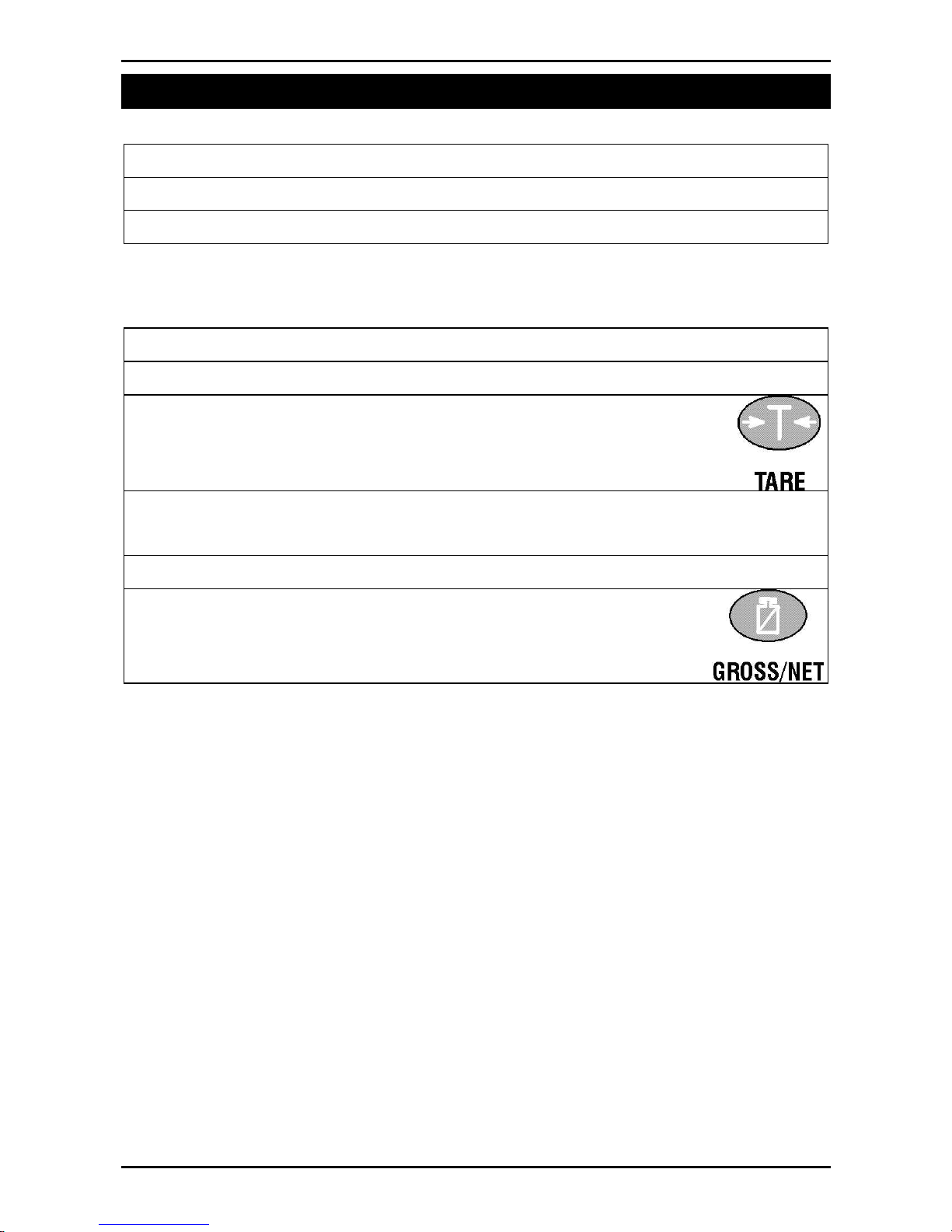

4. BASIC WEIGHING ........................................................ 9
4.1. Normal Weighing.................................................. 9
4.2. Using Tare............................................................ 9
5. SPECIAL FUNCTIONS................................................ 10

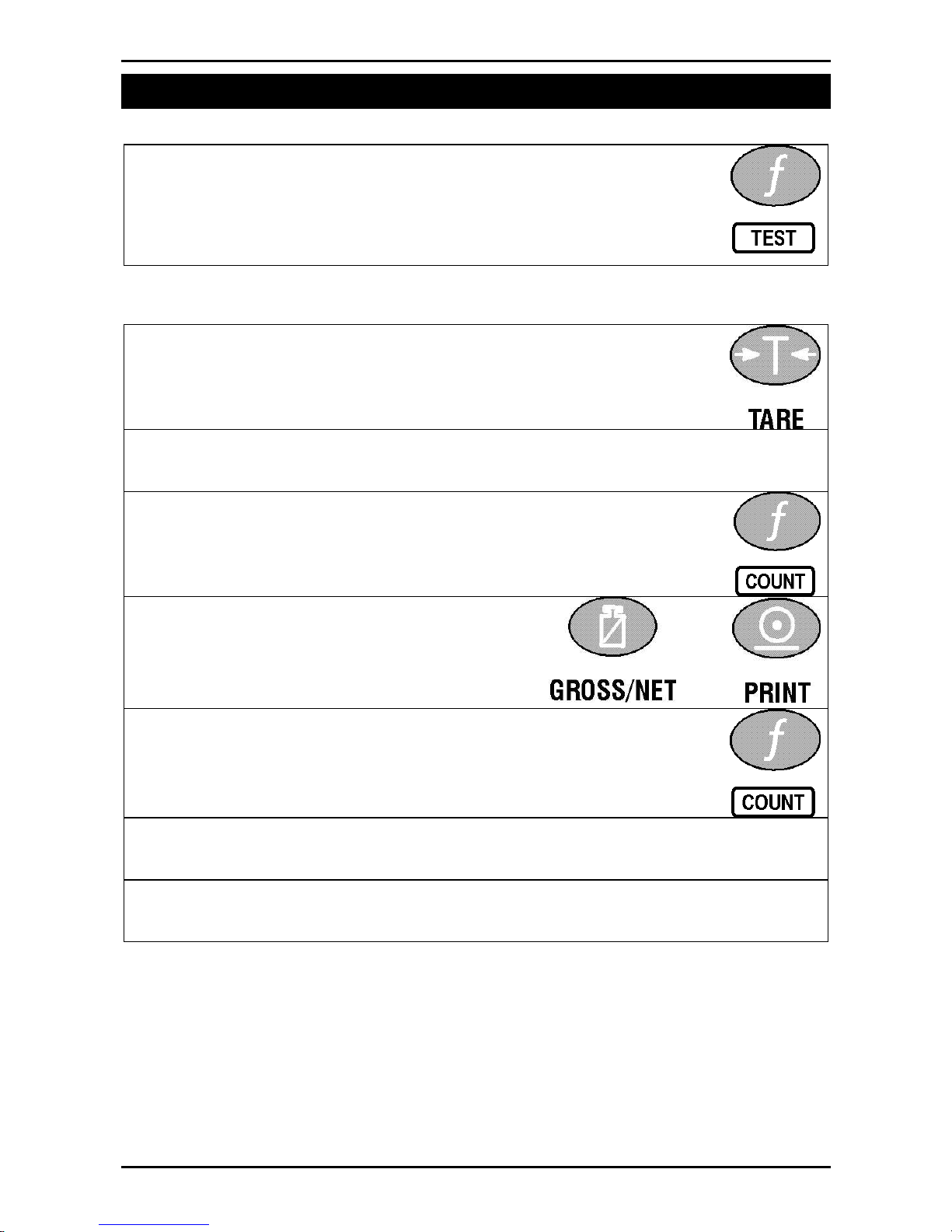

5.1. Testing the Display............................................. 10
5.2. Counting............................................................. 10
5.3. Units Switching (kg / lb)...................................... 11
5.4. Hold.................................................................... 11
5.5. Peak Hold........................................................... 11

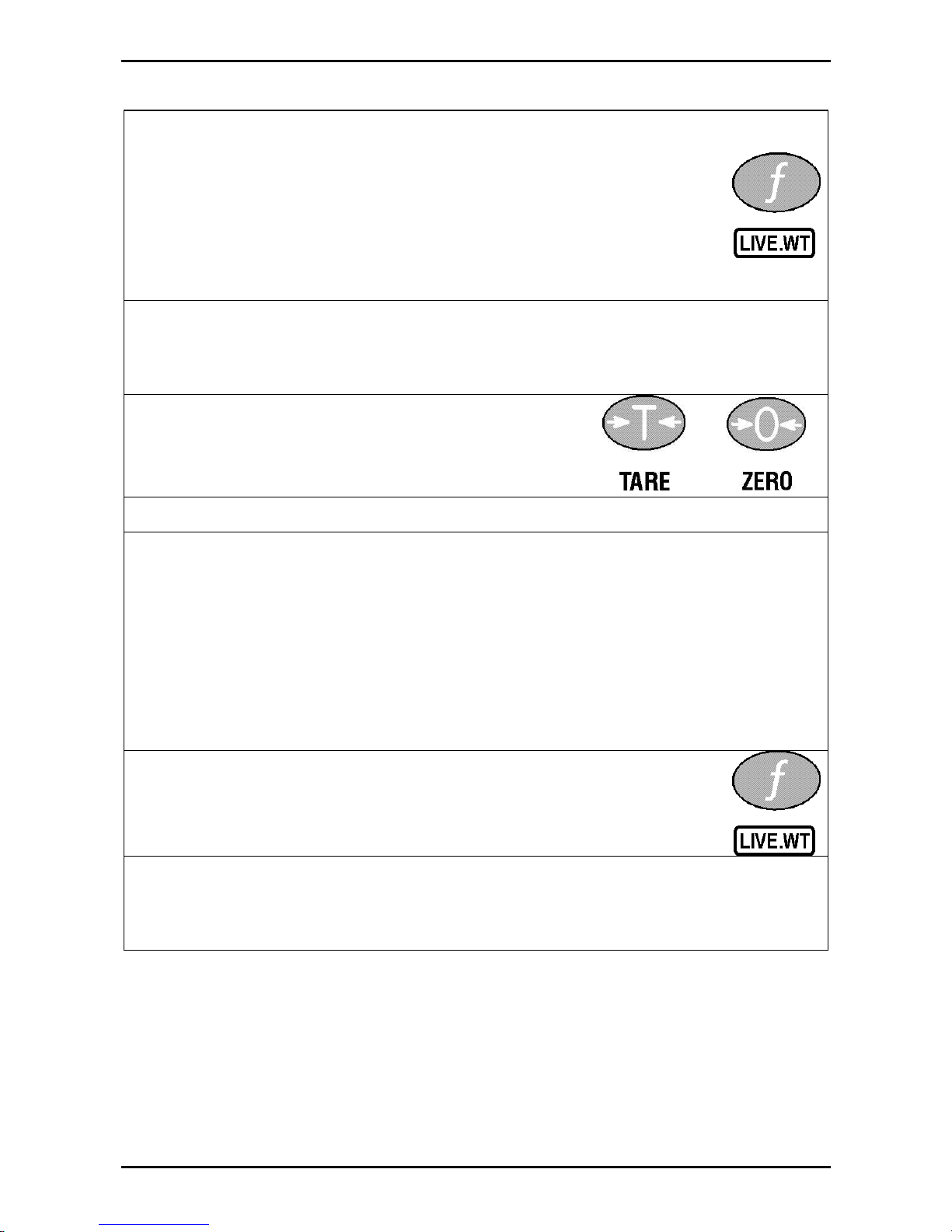

5.6. Live Weighing..................................................... 12
5.7. Showing Totals................................................... 13
6. ERROR MESSAGES................................................... 16
6.1. Weighing Errors ................................................. 16
6.2. Setup and Calibration Errors .............................. 17
6.3. Diagnostic Errors................................................ 18

Operator Manual Rev 2.0
Page 2 003R-619-200
1.Introduction
This instrument is a precision digital indicator using the
latest Sigma-Delta A/D technology to ensure fast and
accurate weight readings.
1.1. Approvals (for trade versions only)
•NSC approval (4000 divisions at 0.8µV/division).
•NMI approval (4000 divisions at 0.8µV/division).
•C-tick approved and CE approved.
1.2. Features
•Zero and Tare functionality as well as battery backed
clock/calendar, special function key (for counting, live
weight averaging, peak-hold, etc.).
1.3. Manuals
For more information on this instrument refer to the
Reference Manual, Quick Start Manual or
Communications Manual.

Operator Manual Rev 2.0
003R-619-200 Page 3
2.Safety
2.1. Operating Environment
•Operating Temperature: –10 to 50°C
•Humidity: <90% non-condensing
•Operating Voltage: Shown on Rear Label
2.2. Electrical Safety
•For your protection all mains electrical hardware must be
rated to the environmental conditions of use.
•Pluggable equipment must be installed near an easily
accessible power socket outlet.
•To avoid the possibility of electric shock or damage to the
instrument, always switch off or isolate the instrument
from the power supply before maintenance is carried out.
2.3. Cleaning
•To maintain the instrument, never use harsh abrasive
cleaners or solvents. Wipe the instrument with a soft
cloth slightly dampened with warm soapy water.

Operator Manual Rev 2.0
Page 4 003R-619-200
3.Basic Operation

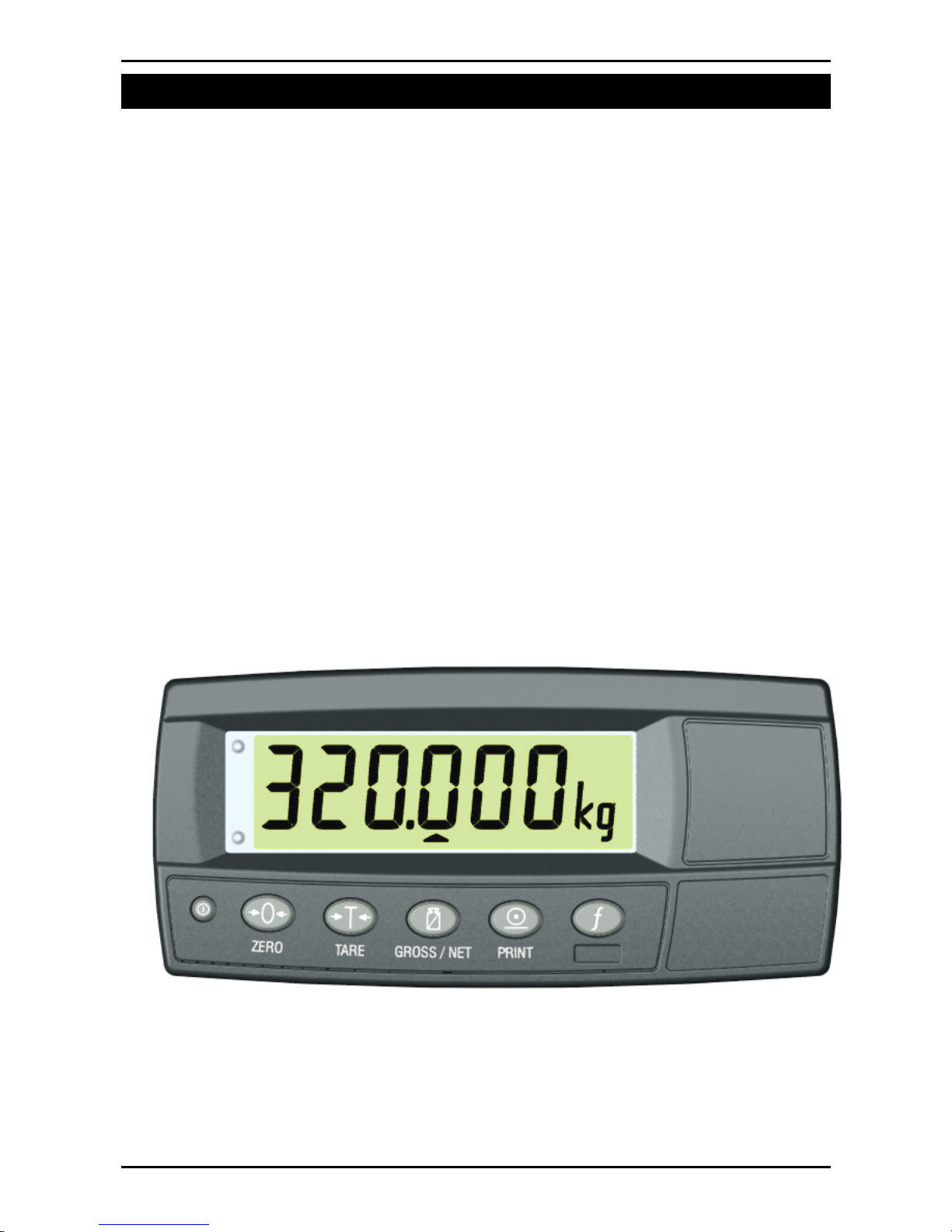

3.1. User Interface Display and Controls

Operator Manual Rev 2.0
003R-619-200 Page 5
3.2. Operation Keys
Key Description
POWER: The <POWER> key is used to turn the
instrument on and off.
•To initially turn the instrument ON: Press
and hold the <POWER> key until the display
starts up.
•To turn the instrument OFF: Press and hold
the <POWER> key for three seconds. The
instrument will display OFF followed by the
three-second countdown.
Note: If the <POWER> key has been locked,
the instrument cannot be turned off from the
front keypad.
•Battery Operation: When using batteries the
backlight will automatically turn off to conserve
power after a short period of inactivity. A short
press of the <POWER> key will turn the
backlight on again.
•Automatic Operation: The <POWER> key
has a memory function associated with it. This
means that the state of the power setting is
remembered even if external power is
interrupted. It is therefore possible to turn the
instrument on in the safe knowledge that it will
operate whenever external power is available
and will not need to be manually turned on
again if the power is interrupted.

Operator Manual Rev 2.0
Page 6 003R-619-200
Key Description
ZERO: The <ZERO> key is used to perform a
Zero adjustment on the scale display when an
empty scale has drifted away from a true zero
reading.
•The Zero adjustment is stored when power is
removed and is re-used when next powered
up.
•Long Press: When the indicator is set to
Industrial mode a long press of the <ZERO>
key will remove any stored zero adjustment.
TARE: The <TARE> key is used to temporarily
set the scale to zero (such as cancelling the
weight of a carton before performing a filling
operation). The display will show the Net weight
and the Net annunciator will be lit.
•The <TARE> key can operate in all modes
(ie. Industrial, OMIL and NTEP).
•The weight tared is deducted from the
allowable range of the scale, reducing the
maximum weight that can be displayed.
•The Tare adjustment is stored when power is
removed and is re-used when next powered
up.
GROSS/NET: The <GROSS/NET> key toggles
the weight display between the Gross weight and
the Net weight (provided that a Tare has
previously been acquired using the <TARE> key).

Operator Manual Rev 2.0
003R-619-200 Page 7
Key Description
PRINT: The <PRINT> key will trigger an output of
the current weight reading if a printer or computer
has been attached to the instrument and the
manual print function has been selected.
•The PRINT prompt is displayed while waiting
for the printer to accept data.
•If the printer is offline the PRINT prompt will
remain for a maximum of 10 seconds before
the operation is cancelled.
•Each weight printed is automatically added to
an internal total weight.
•Long Press: A long press of the <PRINT> key
will print the total. The total weight is then
cleared automatically.
FUNCTION: The <FUNCTION> key is program–
mable to suit customer requirements. A label
identifying the special function will be attached.
Refer to Special Function page 10 for details of
the available functions.
•Long Press: A long press of the <FUNCTION>
key may be used for certain functions
depending on the primary function of the key.
3.3. Stability Considerations
Once a <ZERO>, <TARE> or <PRINT> key is pressed the
unit waits for a stable valid reading before performing the
associated operation. If the weight readings remain
unstable or invalid due to some diagnostic error for longer
than 10 seconds, the operation is cancelled and the
STABLE ERROR message is displayed.

Operator Manual Rev 2.0
Page 8 003R-619-200

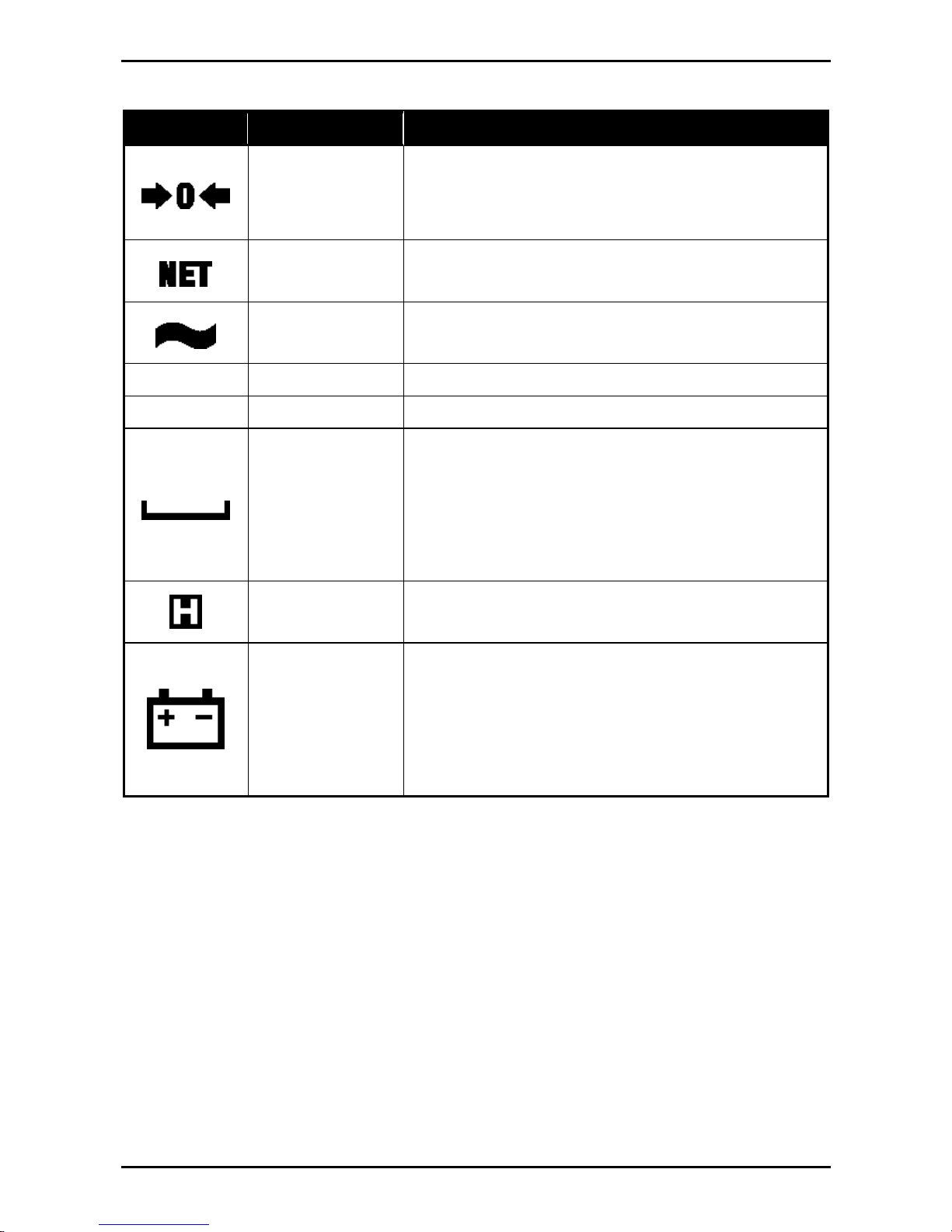

3.4. Annunciators
Symbol Name Description
ZERO
Visible when the gross reading is
within ±¼ of a division of true
zero.
NET Visible when the displayed reading
represents Net weight.
MOTION Visible when the displayed reading
is not stable.
1 Output 1 Visible when the output 1 is active.
2 Output 2 Visible when the output 2 is active.
ZERO
BAND
Visible when the displayed weight
is within the zero 'dead' band
setting. (The zero band symbol
shows near the top right corner of
the display.)
HOLD Visible when the displayed reading
is held.
LOW
BATTERY
Visible when battery voltage is too
low and batteries need replacing or
recharging. (The low battery
symbol shows in the top right
corner of the display.)
