PullRite 20K OE Series User manual

2010-2015 Ford F250-F450
20K OE Series Industry Standard Adapter
#4442
Installation Instructions
SPECIFICATIONS
• Fits 2010 –2015 Ford F250 - F450 with 5th wheel /gooseneck prep kit
•Adapter is located center of the rear axle
Industry Standard Super 5th
#1900
Gross Trailer Weight (Maximum) 16,000 lbs.
Vertical Load Weight (Max. Pin Weight) 4,000 lbs.
#2100
Gross Trailer Weight (Maximum) 20,000 lbs.
Vertical Load Weight (Max. Pin Weight) 5,000 lbs.
#2200
Gross Trailer Weight (Maximum) 24,000 lbs.
Vertical Load Weight (Max. Pin Weight) 6,000 lbs
Industry Standard SuperGlide
#2700
Gross Trailer Weight (Maximum) 16,000 lbs.
Vertical Load Weight (Max. Pin Weight) 4,000 lbs.
#2900
Gross Trailer Weight (Maximum) 18,000 lbs.
Vertical Load Weight (Max. Pin Weight) 4,500 lbs.
#2300
Gross Trailer Weight (Maximum) 24,000 lbs.
Vertical Load Weight (Max. Pin Weight) 6,000 lbs

PLATE ASSEMBLY.................................................................................................................
MOUNTING KIT PARTS LIST….............................................................................................
MOUNTING KIT EXPLODED VIEW.......................................................................................
INSTALLATION....................................................................................................................
5 YEAR LIMITED WARRANTY……………………………………………...............................................
PRODUCT WARRANTY REGISTRATION.............................................................................
TABLE OF CONTENTS

PLATE ASSEMBLY
1. Remove the Fifth Wheel Plate from the Rocker arm and place it upside down on a smooth, clean surface.
2. Insert the Release Handle into the obround hole of the plate as seen above.
3. The Lock Bar Spring must be placed inside the handle prior to placing the handle down over the pin of the Lock Bar
assembly, “catching” the hook inside the handle around the pin.
4. Push the handle and spring assembly down past the groove in the pin of the Lock Bar assembly, and place one of the
Pin Clips in the groove of the pin to fasten.
5. Grip the body of the spring and stretch it far enough over the opposite pin (welded to the plate) and push it down
past the groove.
6. Install the Push nut to secure the Lock Bar Spring onto the welded pin.
Also, it is imperative that you study and adhere to the Maintenance procedures provided in the Owners Manual.
NOTE: The 1901 plate for the #1900 Super 5th does not use a push nut to attach
the end of the spring, but rather a slot in the side of the fifth wheel plate located
above the obround hole. See illustration to the right.
As a PullRite fifth wheel hitch owner, it is important for you to study and manually
operate the Fifth Wheel Plate and Release Handle to better understand the locking
action. A better working knowledge of the plate will help prevent accidental
dropping of your trailer due to incorrect hitching.

MOUNTING KIT PARTS LIST
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 444203 MOUNTING RAIL –Ford 1
2 444201 LH SIDE SUPPORT 1
3 444202 RH SIDE SUPPORT 1
4 444204 MOUNTING POST ASSEMBLY 4
5 010019 STANDARD SHACK PIN 8
6 08060001 BASE RAIL RELEASE PIN 4
7 13070001 MOUNTING WASHER 4
8 98410143 HITCH PIN CLIP 8
9 98410127 HITCH PIN CLIP 4
1
2
5
6
4
7
8
9
3

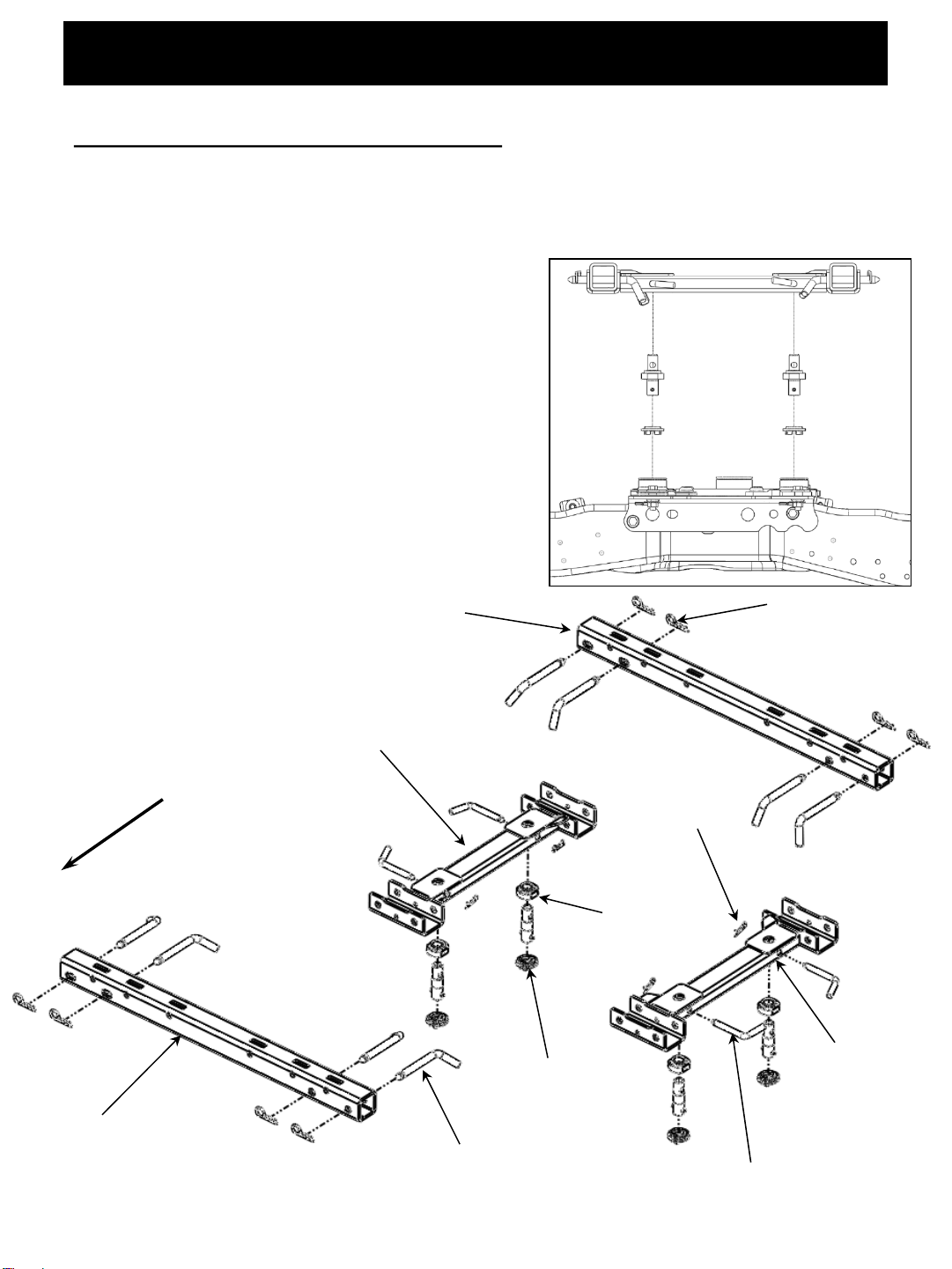

MOUNTING KIT EXPLODED VIEW
FRONT
FRONT

INSTALLATION
BRACKET PLACEMENT LOCATION
Since most truck beds are not square to the frame or are the same distance from the back of the cab,
the installer will need explain this to the vehicle owner. The factory installed 5th wheel/gooseneck
prep kit can not be easily adjusted. The Pullrite adapter has been created with more than generous
tolerance to ease installation but may not be perfectly centered in vehicle.
The basic steps in this section are as follows:
•Place bronze washers in slots
•Install mounting posts and nuts
•Mount side supports onto posts and pin
•Pin mounting rail to side supports
•Install your Pullrite 5th wheel hitch
FRONT
Standard Shack
Pin (5/8”)
Passenger’s Side (RH) Bracket
Location
Driver’s Side (LH)
Bracket Location
Mounting Rail
Mounting Rail
Base Rail
Release Pin
(1/2”)
Mounting
Washer
Mounting Post
Assembly
(Post & Nut)
Hitch Pin Clip
Hitch Pin Clip

INSTALLATION
Check parts in box against parts
list to insure all components are
present.
1. Position the mounting washer (7) on
the mounting post location, four
places. (Due to manufacturing
tolerances of the mounting post
location(slot), one may need to
remove excessive paint or casting
burr.) Make sure bronze washer is
fully seated on Mounting Post
Location. (Tap bronze washer into
slot if needed, after slot has been
cleaned. )
2. Insert mounting posts (4) through
the mounting washers (7) and into
mounting post locations. Rotate
mounting post 90° or ¼ of a turn
and tighten the post nut by hand,
securing the post in position.
3. Place the passenger side supporting
rail weldment (3) onto the mounting
posts(4). Place the 1/2“ pin (6)
through weldments and lock into
place with pin clip (9). Repeat step
for driver side. Note: Adjust the
post nut so that the supporting rail
weldments rest on the nut and not
the hitch pin.
Face the gusset inboard.
Mounting post location(slot)

INSTALLATION
4. Place the Mounting Rails (ISR) (1) into the
support rail weldments. Lock the base rails
into place with the hitch pin (5) and secure
with the pin clip (8).
5. Once hitch pins and clips are secured, set
your fifth wheel in the corresponding
mounting locations and secure with 1/2"
hitch pins (not included).
