Pulsar Blue Power PSBS 5012E User manual

PSBS 5012E
v.1.1
PSBS 13,8V/5A/65Ah/OC
Buffer switch mode power supply unit
with technical outputs.
EN**
Edition: 7 from 03.11.2016
Supercedes edition: 6 from 01.06.2016

www.pulsar.pl PSBS5012E BLUE POWER
2
PSU features:
uninterruptible power supply DC 13,8V/5A
battery housing: 65Ah/12V
supply voltage AC 230V
high efficiency 76%
low voltage ripple
battery charging and maintenance control
deep discharge battery protection (UVP)
battery charging current 0,5A/1A/2A/3A, jumper
selectable
START button to start the battery
battery output protection against short-circuit and
reverse connection
LED indication
EPS technical output of 230V power failure
–OC type
PSU technical output indicating PSU failure
–OC type
LoB technical output indicating low battery voltage
–OC type
Optional installation of the MPSBS relay module
changing technical outputs of the OC type to relay
type
adjustable times of 230V AC failure indication
Protection type:
SCP short-circuit protection
Overheat protection OHP
surge protection
Tamper protection: enclosure opening and
detachment from the wall
overload protection OLP
warranty - 5 years from the production date
TABLE OF CONTENTS:
1. Technical description.
1.1 General description
1.2 Block diagram
1.3 Description of components and connectors
1.4 Technical parameters
2. Installation.
2.1 Requirements
2.2 Installation procedure
3. Power supply operation indication.
3.1 Optical indication of operation
3.2 Technical outputs

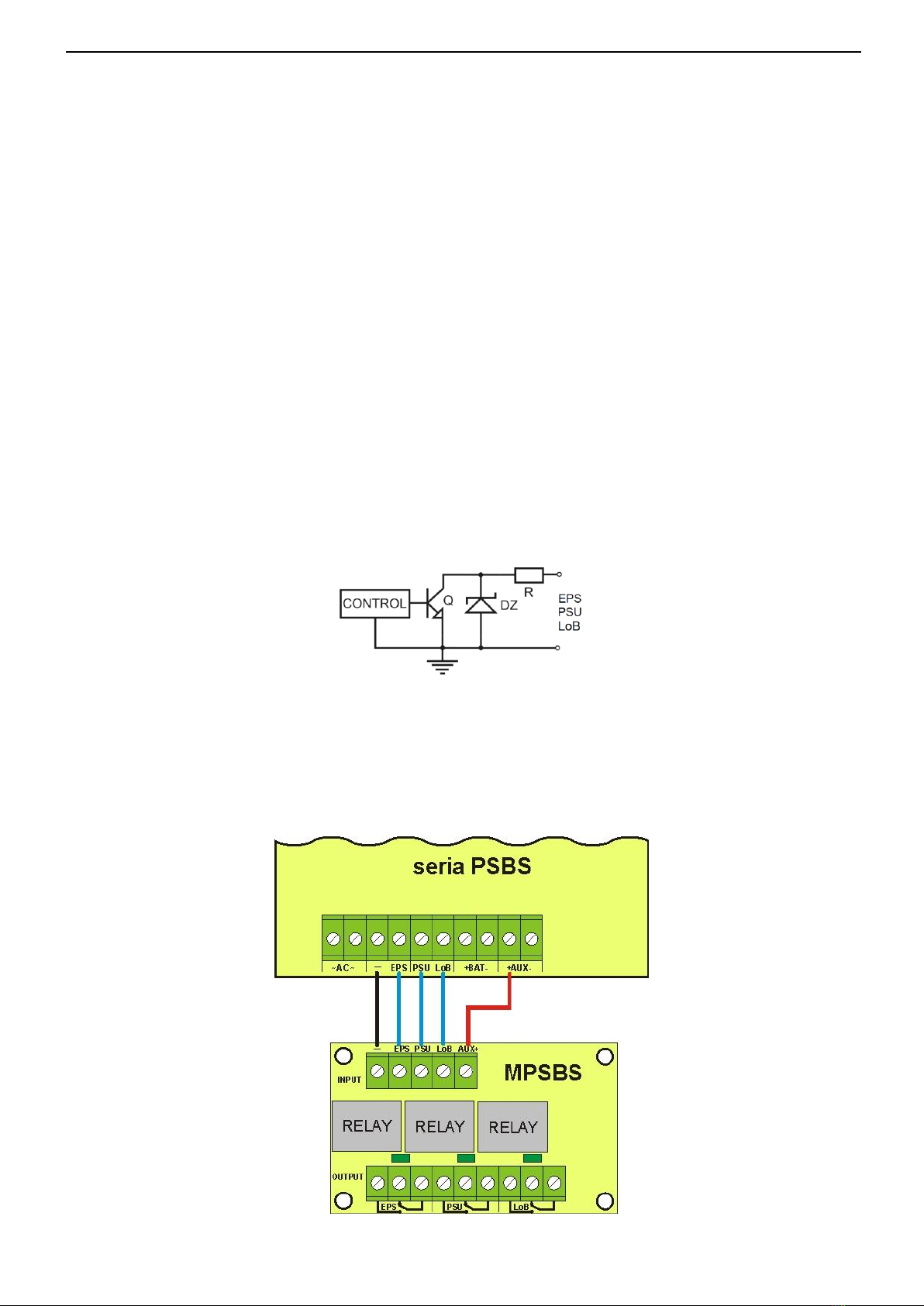

3.3 Relay technical outputs
4. Service and operation
4.1 Overload or short-circuit the power supply output (SCP activation)
4.2 Running the PSU from the battery.
4.3 Deep discharge battery protection UVP.
4.4 Maintenance
1. Technical description.
1.1 General description.
A buffer PSU is designed for uninterrupted supply of devices requiring stabilized voltage of 12V DC (+/-
15%). The PSU supplies voltage of U=13,8V DC and total current capacity of:
1. Output current 5A + 0,5A battery charging
2. Output current 4,5A + 1A battery charging
3. Output current 3,5A + 2A battery charging
4. Output current 2,5A + 3A battery charging
Total current + battery is max. 5,5A
In case of mains power loss, the unit will instantly switch to battery operation. The PSU is enclosed in a
metal casing (color RAL 9003) with battery housing for 65Ah/12V batteries. The enclosure is fitted with a micro
switch indicating door opening (front cover) and the detachment from the wall.

www.pulsar.pl PSBS5012E BLUE POWER
3
OPTIONAL POWER SUPPLY CONFIGURATIONS:
(visualization available at www.pulsar.pl)
PSBS 5012E Battery 65Ah.
1. Buffer power supply PSBS 13,8V/relay module MPSBS/65Ah
- PSBS 5012E + MPSBS + 65Ah
2. Buffer power supply PSBS 13,8V/4x1A/65Ah
- PSBS 5012E + LB4 4x1A (AWZ575 or AWZ576) + 65Ah
3. Buffer power supply PSBS 13,8V/8x0,5A/65Ah
- PSBS 5012E + LB8 8x0,5A (AWZ578 or AWZ580) + 65Ah
4. Buffer power supply PSBS 13,8V/12V/5A/65Ah
- PSBS 5012E + RN500 (13,8V/12V) + 65Ah
5. Buffer power supply PSBS 13,8V/2x12V/2x2,5A/65Ah
- PSBS 5012E + 2xRN250 (13,8V/12V) + 65Ah
PSBS 5012E Battery 40Ah.
1. Buffer power supply PSBS 13,8V/relay module MPSBS/40Ah
- PSBS 5012E + MPSBS + 40Ah
2. Buffer power supply PSBS 13,8V/4x1A/40Ah
- PSBS 5012E + LB4 4x1A (AWZ575 or AWZ576) + 40Ah
3. Buffer power supply PSBS 13,8V/8x0,5A/40Ah
- PSBS 5012E + LB8 8x0,5A (AWZ578 or AWZ580) + 40Ah
4. Buffer power supply PSBS 13,8V/16x0,3A/40Ah
- PSBS 5012E + 2xLB8 16x0,3A (AWZ577 or AWZ580) + 40Ah
5. Buffer power supply PSBS 13,8V/12V/5A/40Ah
- PSBS 5012E + RN500 (13,8V/12V) + 40Ah
6. Buffer power supply PSBS 13,8V/2x12V/2x2,5A/40Ah
- PSBS 5012E + 2xRN250 (13,8V/12V) + 40Ah
7. Buffer power supply PSBS 13,8V/12V/16x0,3A/40Ah
- PSBS 5012E + RN500 (13,8V/12V) + 2xLB8 2x8x0,3A (AWZ577 or AWZ580) + 40Ah
8. Buffer power supply PSBS 13,8V/12V/8x0,5A/40Ah
- PSBS 5012E + RN500 (13,8V/12V) + LB8 8x0,5A (AWZ578 or AWZ580) + 40Ah
9. Buffer power supply PSBS 13,8V/12V/4x1A/40Ah
- PSBS 5012E + RN500 (13,8V/12V) + LB4 4x1A (AWZ575 or AWZ576) + 40Ah
10. Buffer power supply PSBS 13,8V/2x5V÷7,4V/2x2A/40Ah
- PSBS 5012E + 2xDCDC20(2x5V÷7,4V/2x2A) + 40Ah

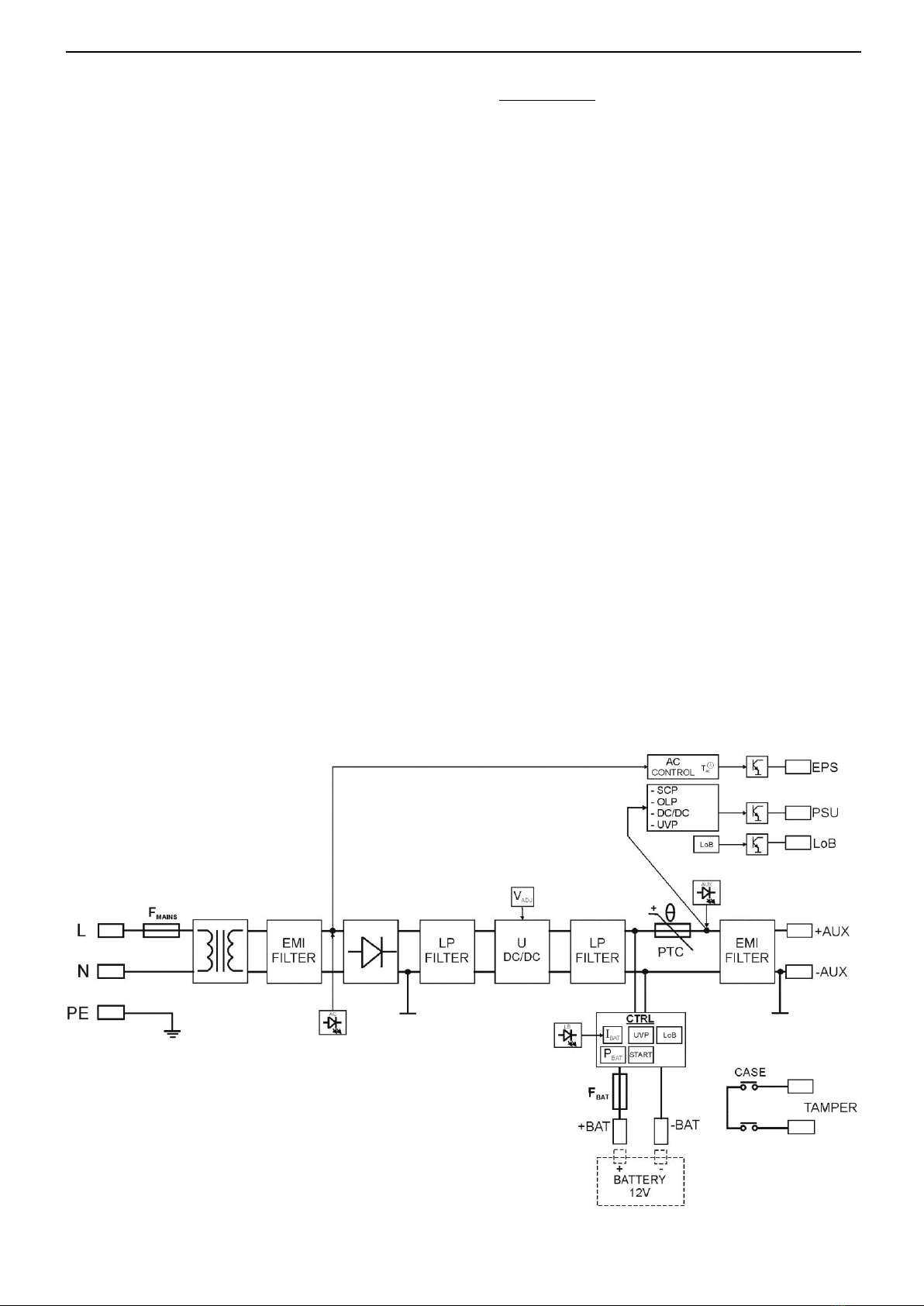

1.2 Block diagram (Fig.1).
Fig.1. Block diagram of the PSU.

www.pulsar.pl PSBS5012E BLUE POWER
4

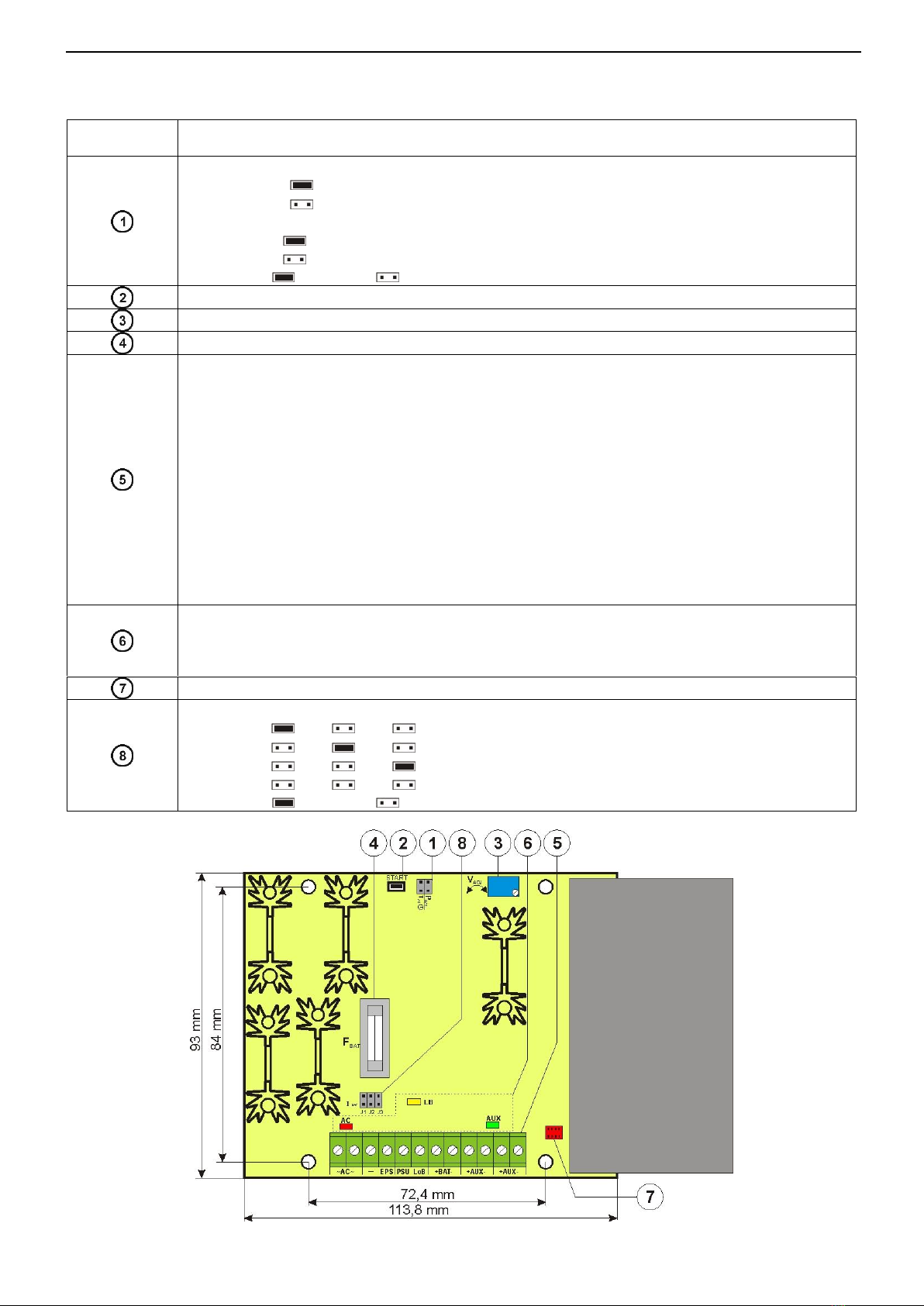

1.3 Description of components and power supply terminals (Table 1, Fig.2).
Table 1. Components of the Power supply PCB (Printed Circuit Board) (see Fig. 2).
Component
no.
Description
PBAT Jumper –configuration of discharged battery disconnection system (UVP)
PBAT = discharged battery disconnection system OFF
PBAT = discharged battery disconnection system ON
TAC Jumper- setting the delay time for AC power failure indication
TAC = delay time T= 60s
TAC = delay time T= 10s
Description: jumper on, jumper off
START button (running the PSU from the battery)
VADJ potentiometer, DC 12 ÷ 14,5V voltage adjustment
FBAT fuse in the battery circuit, F6,3A / 250V
Terminals:
~AC~ –AC power input
EPS –technical output of AC power failure indication
hi-Z state = AC power failure
0V state = AC power - O.K.
PSU –technical output of PSU failure indication
hi-Z state = failure
0V state = PSU status O.K.
LoB –technical output of low battery voltage indication
hi-Z state = battery voltage UBAT <11,5V
0V state = battery O.K.
+BAT- –terminals for battery connection
+AUX- –DC power output, (+AUX= +U, -AUX=GND)
Description: hi-Z –high impedance, 0V –connection to the ground GND
LEDs –optical indication:
AC –AC power
LB –battery charging
AUX –output voltage DC
Optional, external optical indication output terminal
IBAT Jumper; - battery charging current configuration
J1= J2= J3= Ibat =0,5A
J1= J2= J3= Ibat =1A
J1= J2= J3= Ibat =2A
J1= J2= J3= Ibat =3A
Description: jumper on, jumper off
Fig. 2. The view of the Power supply PCB.

www.pulsar.pl PSBS5012E BLUE POWER
5
Table 2. Components of the PSU (See Fig. 3).
Component no.
Description
Isolation transformer
Printed Circuit Board (see Table 1, Fig. 2)
TAMPER; micro switch of tamper protection (NC)
FMAINS fuse in the power supply circuit 230V, T3,15A / 250V
L-N power supply connector, 230V AC, PE protective connector
Battery connectors: positive: +BAT = red, negative: - BAT = black

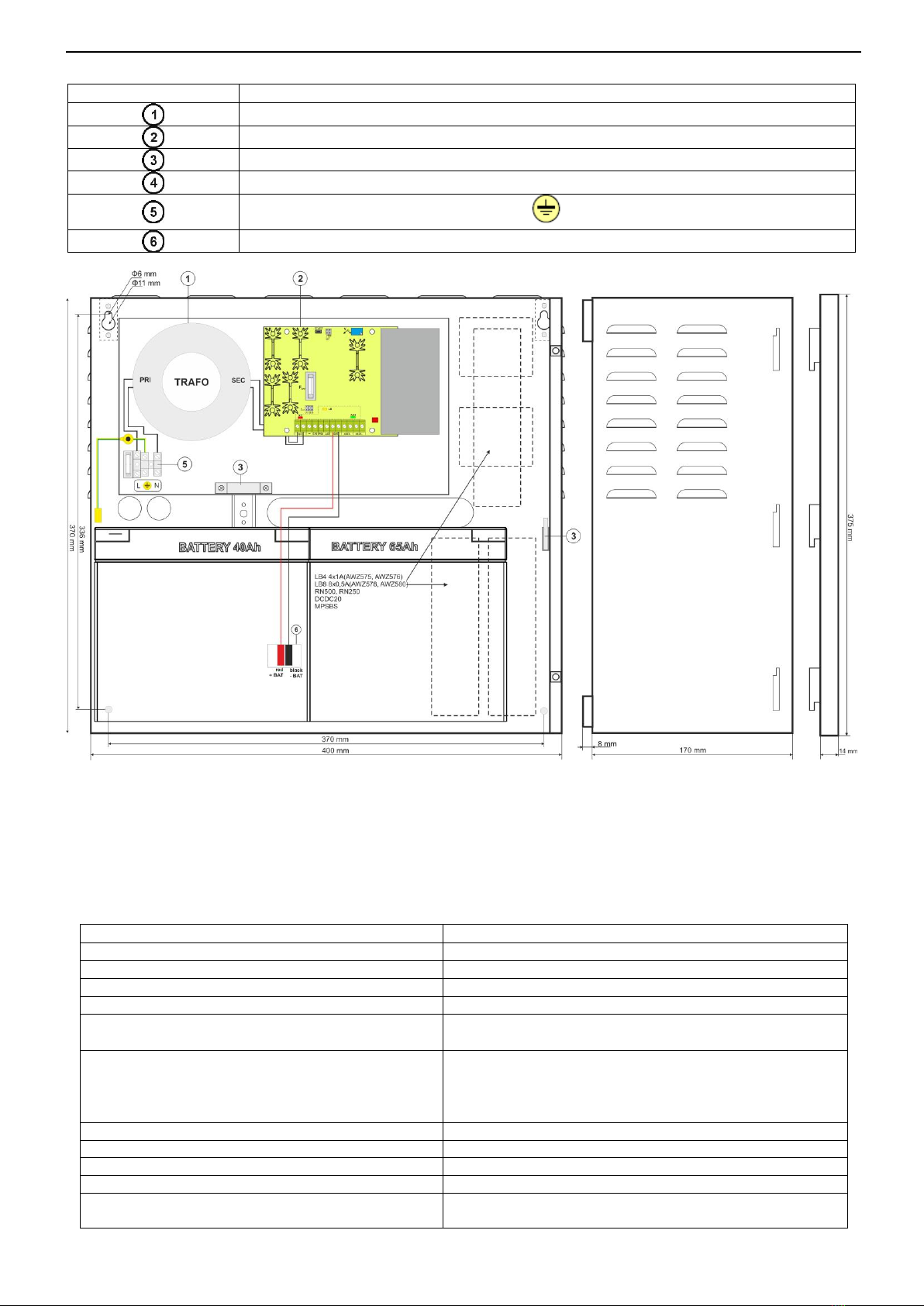

Fig.3. The view of the PSU.
1.4 Technical parameters:
- Electrical parameters (Table 3)
- Mechanical parameters (Table 4)
- Safety of use (Table 5)
- Operation parameters (Table 6)
Table 3. Electrical parameters
PSU type:
A (EPS - External Power Source)
Mains supply
230V AC / 50Hz (-15%/+10%)
Current consumption
0,57A @230V AC
PSU’s power
76W
Efficiency
76%
Output voltage
11V÷13,8V DC –buffer operation
10V÷13,8V DC –battery operation
Output current
5A + 0,5A battery charging
4,5A + 1A battery charging
3,5A + 2A battery charging
2,5A + 3A battery charging
Output voltage adjustment range
12÷14,5V DC
Ripple voltage
60mV p-p max.
PSU current consumption
15 mA
Battery charging current
0,5A / 1A / 2A / 3A –jumper selectable
Short-circuit protection SCP
Electronic - current limitation and/or activation of the FBAT
melting fuse in the battery circuit (failure requires fuse

www.pulsar.pl PSBS5012E BLUE POWER
6
W
H
D
replacement)
Automatic return
Overload protection OLP
110-150% of the PSU power, manual restart (failure
requires the disconnection of the DC output)
Battery circuit protection SCP and reverse
polarity connection
T6,3A- current limitation, the FBAT melting fuse (failure
requires fuse replacement)
Surge protection
varistors
Deep discharge battery protection UVP
U<10V (± 0,5V) – disconnection of battery terminal
Tamper protection:
- TAMPER output indicating enclosure opening or
detachment from the wall
- micro switch x 2, NC contacts (enclosure closed and
mounted to the mounting base), 0,5A@50V DC (max.)
Optical indication: front panel of the PSU
- AC OK.; LED indicating the AC power status
- DC OK.; LED indicating the DC supply at the PSU
output
- BAT OK.; LED indicating the battery voltage
- red, normal operation: permanently illuminated,
failure: off
- green, permanently illuminated, failure: off
- green, permanently illuminated,
failure: off
Technical outputs:
- EPS; output indicating AC power failure
- PSU; output indicating no DC power/PSU failure
- LoB output indicating low battery voltage
- OC type: 50mA max.
Normal operation: L state (0V),
failure: hi-Z state,
- delay time 10s/60s (+/-20%) –jumper selectable TAC
- OC type: 50mA max.
Normal operation: L state (0V),
failure: hi-Z state,
- OC type, 50mA max.
Normal operation (UBAT >11,5V): L state (0V),
failure (UBAT <11,5V): hi-Z state
The power supply unit does not feature a battery detection
function.
Fuses:
- FMAINS
- FBAT
T 3,15A / 250V
T 6,3A / 250V
Table 4. Mechanical parameters.
Enclosure dimensions
400 x 370 x 170+8 (WxHxD) [mm] (+/- 2)
Mounting
See Fig., 3
Battery housing
65Ah/12V (SLA) max.
350x175x165mm (WxHxD) max
Net/gross weight
8,60kg / 9,90kg
Enclosure
Steel plate, DC01 0,7mm color RAL 9003
Closing
Cylindrical screw (at the front), (lock assembly possible)
Terminals
Mains supply 230V AC: Ф0,51÷2 (AWG 24-12)
Outputs: Ф0,41÷1,63 (AWG 26-14)
BAT battery outputs: 6,3F-2,5, 30cm
TAMPER output: cables, 25cm
Notes
The enclosure does not adjoin the mounting surface so that cables can be led.
Convection cooling.
Table 5. Safety of use.
Protection class PN-EN 60950-1:2007
I (first)
Protection grade PN-EN 60529: 2002 (U)
IP20
Insulation electrical strength:
- between input (network) circuit and the output circuits of the PSU (I/P-O/P)
- between input circuit and PE protection circuit (I/P-FG)
- between output circuit and PE protection circuit (O/P-FG)
3000 V/AC min.
1500 V/AC min.
500 V/AC min.
Insulation resistance:
- between input circuit and output or protection circuit
100 MΩ, 500V/DC

www.pulsar.pl PSBS5012E BLUE POWER
7
Table 6. Operation parameters.
Environmental class
II
Operating temperature
-10ºC...+40ºC
Storing temperature
-20ºC...+60ºC
Relative humidity
20%...90%, no condensation
Vibrations during operation
unacceptable
Surges during operation
unacceptable
Direct insolation
unacceptable
Vibrations and surges during transport
According to the PN-83/T-42106 standard
2. Installation.
2.1 Requirements.
The buffer PSU should be mounted by a qualified installer, holding relevant permits and licenses
(applicable and required for a given country) for 230V/AC and low-voltage installations. The unit should be
mounted in confined spaces, in accordance with the 2nd environmental class, with normal relative humidity
(RH=90% maximum, no condensation) and temperature range from -10°C up to +40°C. The power supply should
operate in a vertical position in order to provide free and convectional air flow through ventilating holes of the
enclosure.
The power supply load balance should be done before installation:
1. Output current 5A + 0,5A battery charging
2. Output current 4,5A + 1A battery charging
3. Output current 3,5A + 2A battery charging
4. Output current 2,5A + 3A battery charging
Total current + battery is max. 5,5A
The power supply is designed for a continuous operation and is not equipped with a power-
switch. Therefore, an appropriate overload protection in the power supply circuit should be provided. Moreover, the
user should be informed how to disconnect the power supply unit from the mains supply (usually by assigning an
appropriate fuse in the fuse box). The electrical system shall be made in accordance with applicable standards and
regulations.
2.2 Installation procedure.
1. Before installation, make sure that the voltage in the 230V power-supply circuit is cut off.
2. Mount the PSU in a selected location. The tamper bracket, located in the central part of the housing (see
Fig. 3 [3]), signaling the attempts to detach the PSU from the mounting surface, should be screwed to the
mounting surface.

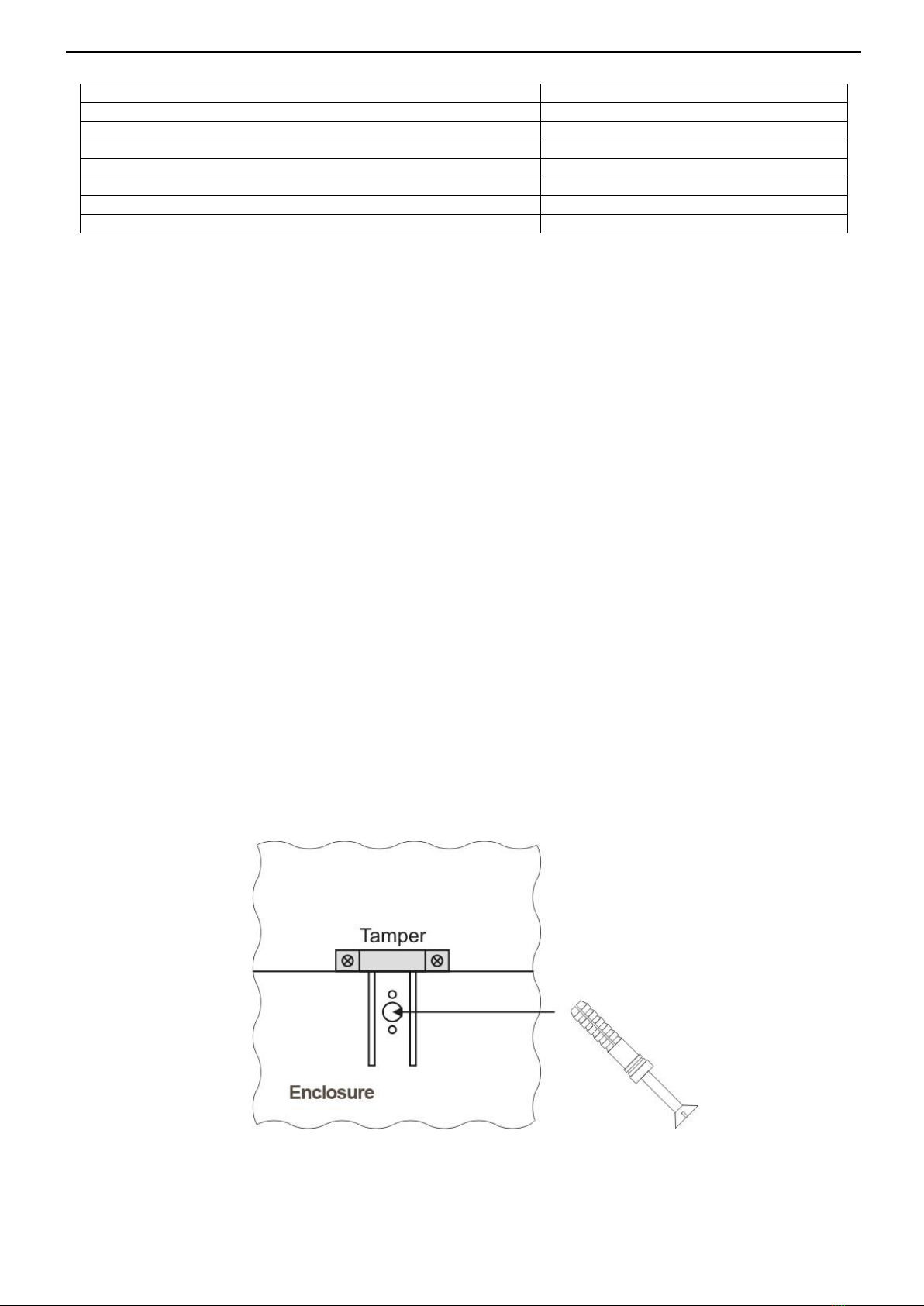

Fig. 4. Mounting the tamper bracket.
3. Connect the power cables (230V AC) to the L-N terminals of the PSU. Connect the ground wire to the
terminal marked with the PE symbol (power supply module connector). Use a three-core cable (with a
yellow and green PE protection wire) to make the connection. The power cables should be connected to
the appropriate terminals on the connection board through the bushing.

www.pulsar.pl PSBS5012E BLUE POWER
8
AC OK:
on –The PSU supplied with 230V AC voltage
off –no 230V AC mains supply
DC OK:
on –DC voltage at the AUX output
off - no DC voltage at the AUX output
BAT OK:
on –battery voltage UBAT > 11,5V
off –battery voltage UBAT < 11,5V
The shock protection circuit shall be done with a particular care: the yellow and green
wire coat of the power cable should be connected to the terminal marked with
the PE symbol. Operation of the PSU without the properly made and fully operational
shock protection circuit is UNACCEPTABLE! It can cause damage to the equipment or
an electric shock
4. Connect the receiver cables to the AUX terminals at the power supply board.
5. If needed, connect the device cables to the technical outputs:
- EPS; technical output indicating AC power failure
- PSU; technical output indicating PSU failure.
- LoB; technical output indicating low battery voltage
- Optional installation of the MPSBS relay module changing technical outputs of the OC type to relay type
(page 9, section. 3.3)
6. Use the IBAT jumper to set the maximum battery charging current, taking into account the battery
parameters.
7. Use the PBAT jumper to set to turn on/off deep discharge battery protection U<10V (+/-5%). Deep
discharge battery protection is ON when the PBAT jumper is OFF.
8. Mount the battery in the battery compartment of the enclosure (Fig. 3). Connect the batteries with the PSU
paying special attention to the correct polarity.
9. Switch on the 230V AC supply. The corresponding LEDs on the power supply PCB should be ON: red AC
and green AUX. The yellow LB LED should light up while charging.
10. Check the output voltage (the power supply voltage without load should be 13,6V ÷ 13,9V, 11V ÷ 13,8V
while battery charging). If the voltage requires adjustment, use the VADJ, potentiometer while monitoring the
voltage at the AUX output of the power supply.
11. Check the current consumption of the receivers, taking into account the battery charging current, so as not
to exceed the total current efficiency of the PSU (section 1.1).
12. Close the cover after installing and checking the operation of the power supply.
3. Power supply operation indication.
3.1 Optical indication.
The PSU is fitted with 3 LED lights at the front panel:
Additionally, the PSU is fitted with 3LED lights indicating the operating status: AC, LB and AUX at the PCB
of the PSU:
AC- red LED: is permanently illuminated during normal operation (AC power ON). No AC power is
indicated by turning off the LED.
LB- yellow LED: indicates battery charging. The light intensity depends on the charging current.
AUX- green LED: indicates DC power status at the PSU output. During normal operation, it is permanently
illuminated. In case of short-circuit or output overload the LED is off.

www.pulsar.pl PSBS5012E BLUE POWER
9
3.2 Technical outputs.
The PSU has three indication outputs:
EPS - technical output indicating 230V AC power failure.
The output indicates 230V AC power failure. Under normal status –with the 230V AC supply on, the output
is shorted to ground GND. In case of power failure, the PSU will switch the output into hi-Z high impedance
state after a time set by the TAC jumper.
PSU –output indicating PSU failure.
The output indicates PSU failure. Under normal status (correct operation) the output is shorted to ground
GND. If there is no DC voltage at the output (eg short circuit), the output is switched into hi-Z high
impedance state.
PSU failure can be caused by the following events:
- Short circuit at the output
- Output overload
- DC/DC voltage converter failure
- Under voltage protection activation
LoB –output indicating low battery voltage.
The output indicates low battery voltage. Under normal status (UBAT > 11,5V) the output is shorted to
ground GND, when the battery voltage drops too low (UBAT < 11,5V) the output is switched into hi-Z high
impedance state.
The power supply unit does not feature a battery detection function. In the case of no battery or non battery
connected, the output is in the normal mode.
The power supply technical outputs are open collector (OC) type, as shown schematically below.
Fig. 5. Electrical diagram of the OC technical outputs.
3.3 Relay technical outputs.
If the OC type outputs are not sufficient to control the unit, it is possible to use the MPSBS relay module
changing technical outputs of the OC type to relay type.
Fig. 6. The diagram of connecting the MPSBS module.

www.pulsar.pl PSBS5012E BLUE POWER
10
4. Service and operation.
4.1 Overload or short-circuit of the power supply output (SCP activation).
The AUX output of the PSU is protected against short-circuit by PTC polymer fuse. If the power supply load
current exceeds Imax. (110% ÷ 150% @ 25°C of the PSU power), automatic disconnection of the output voltage,
indicated by switching off the green LED, takes place. To restore the voltage at the output, disconnect the load
from the power supply output for approximately 1 minute.
In case of a short-circuit at the AUX, BAT output or reverse battery connection, the FBAT fuse in the battery
circuit becomes permanently damaged. The voltage restoration at the BAT output requires fuse replacement.
4.2 Running the PSU from the battery.
The power supply is equipped with the button on the PCB allowing to run the PSU from the battery, when
needed. To do that, press and hold the START button on the unit board for 1 second.
4.3 Deep discharge battery protection UVP.
The power supply is equipped with deep discharge battery protection (UVP). If the voltage at the battery
terminals drops below 10V±0.5V during battery-assisted operation, the batteries will be disconnected. The battery
protection is on when the PBAT jumper is off.
Caution.
It is not recommended to disable UVP since deep discharge of the batteries reduces their ability to
store energy, their capacity and lifetime.
4.4 Maintenance.
All maintenance procedures can be performed after disconnecting the power supply from the power
network. The PSU does not require any specific maintenance; however, its interior should be cleaned with
compressed air if used in dusty conditions. In case of fuse replacement, use only compatible replacement parts.

www.pulsar.pl PSBS5012E BLUE POWER
11
WEEE LABEL
Waste electrical and electronic equipment must not be disposed of with normal household
waste. According to the European Union WEEE Directive, waste electrical and electronic
equipment should be disposed of separately from normal household waste.
CAUTION! The power supply unit is adapted for cooperation with the sealed lead-acid batteries (SLA). After the operation period they must
not be thrown but recycled according to the applicable law.
Pulsar
Siedlec 150, 32-744 Łapczyca, Poland
Tel. [phone], Fax. [phone]
E-mail: [e-mail], [e-mail]
http:// www.pulsar.pl, www.zasilacze.pl
