Pulsar PSBBH 2012 User manual

PSU-B-13,8V/S-2,0A/1/EL-TR-7Ah/HC
PSBBH 2012
v.1.0
Buffer, sw tch ng power supply un t
n the ABS IP65 cas ng.
Edition: 2 from the 17
th
March 2011
Supercedes edition: 1 from the 20
th
October 2008

2
CONTENTS:
1. Technical description.
1.1. General description
1.2. Block diagram
1.3. Description o elements and power supply connectors
1.4. Technical parameters
2. Installation.
2.1. Requirements
2.2. Installation procedure
3. Monitoring o the power supply operation.
3.1. Optical signaling
3.2. Technical output
4. Service and operation.
4.1. Overloads or short circuits to the PSU
4.2. Battery assisted operation
4.3 Maintenance
1. Technical description.
1.1. General description.
The buffer power-supply is used for uninterrupted supply of devices requiring stabilized voltage of
12V/DC (+/-15%). The power-supply provides voltage within the following range: U= 11,0V÷13,8 V DC of
total current efficiency equal to I=2,0A. In case of power voltage decay, prompt switching to battery supply
occurs. The power-supply has the following protections: short-circuit ( CP), overload (OLP), overheat (OHP) and
overvoltage (OVP). It is adapted for cooperation with the sealed lead-acid battery ( LA). The power supply controls
automatically the charging and maintenance process of the battery, what is more it is equipped with the BAT
output protections: short-circuit and reverse polarity protection. The power-supply is equipped with excessive
discharge protection (UVP, dip switch A: ON/OFF). It is equipped with the optical signaling indicating the operation
mode (AC power-supply, charging LB, DC output). In addition, the P U offers the technical output (COM, NC, NO)
used for controlling the AC supply status. Two dip switches B, C are dedicated for configuring the time lag of AC
absence indication.
The power-supply has got the AB casing (bright gray) with a space for 12V/7Ah battery (horizontal or vertical
position depending on configuration). The casing features a microswitch indicating door (front) opening.
In ormation about additional equipment or PSBBH2012 power-supply (options o maximal
con iguration):
- 2 x converter DC/DC 2.5A/5V (ADC 255) + 2x heater 230Vac + battery 7Ah/12V (heater 230Vac = used in the
circuits of CCTV video cameras i.g. GL 606, thermostat fastening dimensions:2x Ф3 x 40mm, heater fastening
dimensions: 2x Ф3)
- 2 x converter DC/DC 2.5A/5V (ADC 255) + 2x heater 230Vac + 1 LB5 fuse block (AWZ 534)
(without battery, operation as a stabilized power supply unit)
In ormation about types:
Model Description
PSBB 2512
PSU-B-13,8V/S-2,5A/1/EL-TR-7Ah/MC
12V DC buffer (switching) power-supply unit, with the total current
capacity 2,5A and output voltage 11,0V-13,8V. Equipped with the
AC supply absence indication system (battery assisted operation)
and TAMPER. Metal casing IP20 with a space for 7Ah battery.
PSBBH 2012
PSU-B-13,8V/S-2,0A/1/EL-TR-7Ah/HC
12V DC buffer (switching) power-supply unit, with the total current
capacity 2,0A and output voltage 11,0V-13,8V. Equipped with the
AC supply absence indication system (battery assisted operation)
and TAMPER. ABS IP65 casing with a space or 7Ah battery.
PSBBD 2512
PSU-B-13,8V/S-2,5A/1/EL-TR-7Ah/DIN
12V DC buffer (switching) power-supply unit, with the total current capacity
2,5A and output voltage 11,0V-13,8V. Equipped with the AC supply absence
indication system (battery assisted operation) and TAMPER. Metal casing
IP20 without a space or battery (dedicated AWO 417, 7Ah/DIN)
or installation on the DIN rail 35mm.

3
1.2. Block diagram ( ig.1).
Fig.1. Block diagram of the P U .
1.3. Description o elements and connection links o the PSU (tab.1, tab.2, ig.2).
Table 1.
Element no.
[ ig.2] Description
[1]
A, jumper - configuration of UVP battery protection function
• A= protection function (disconnection) of the battery off
• A= protection function (disconnection) of the battery on
(disconnection U<10V)
B, C jumpers - configuration of AC absence indication time lag
• B= , C= time lag T= 5s
• B= , C= time lag T= 140s
• B= , C= time lag T= 1040s (17m 20s)
• B= , C= time lag T= 2h 20m 30s
Legend:
jumper installed
jumper removed
[2] START pushbutton (power activation without AC supply)
[3] P1 potentiometer, voltage adjustment
[4] F1 fuse in the battery circuit
[5] AC, LB, AUX optical indication of the power-supply unit operation
[6] AC, AUX Connection link of the output of the additional optical indication
[7] OUTPUTS connector (Tab.2)
[8] TAMPER, contact of antisabotage protection (NC)
[9] F2 witch in the power supply circuit (230V/AC)
[10] L-N
power-supply connector 230V/AC, PE protection connector
[11] BAT+/BAT-: outputs, battery connectors +BAT=red, - BAT=black
Tab.1. The elements of the power-supply unit.

4
[7] Description o power-supply unit outputs
~AC~
AC supply input (16V-22V AC)
+BAT
-BAT
DC supply output of the battery
(+BAT= red, -BAT=black)
+AUX
-AUX
DC supply output
(+AUX= +U, -AUX=GND)
COM
NC
NO
Technical output of AC absence – relay assisted
COM= common contact
NC= normally closed contact (without AC supply)
NO= normally opened contact (without AC supply)
Tab.2. Output terminals of the power-supply.

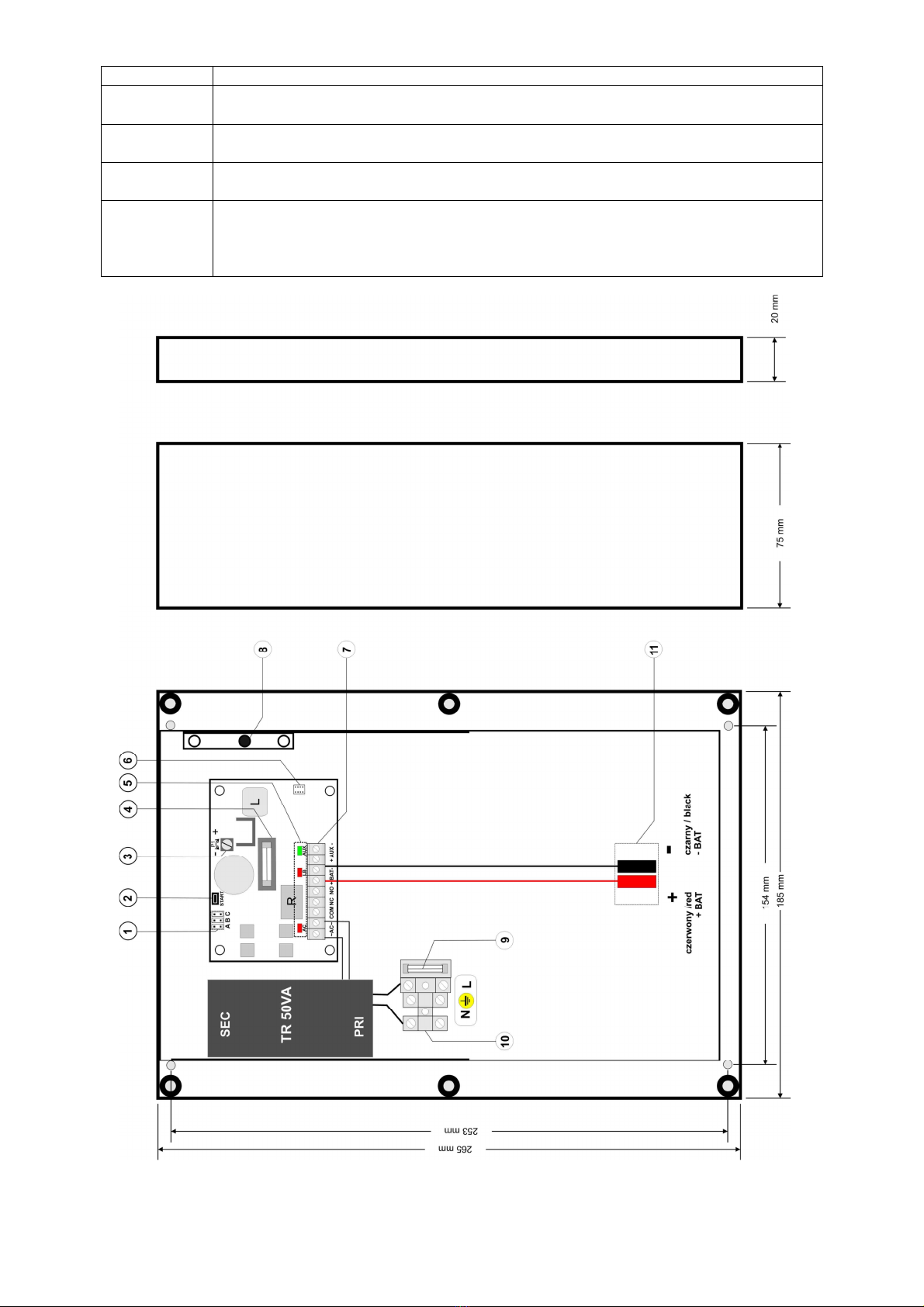

Fig.2. The view of the power-supply

5
1.4. Technical parameters:
- electrical parameters (tab.3)
- mechanical parameters (tab.4)
- operation sa ety (tab.5)
- operation parameters (tab.6)
E lectrical parameters (tab. 3).
upply voltage 230V/AC (-15%/+10%)
upply frequency 50Hz (47÷53Hz)
P U power P 28W max.
Current consumption 0,21 A max. (3,5 A „cold boot”)
Output voltage 11,0V÷13,8Vdc – buffer operation
10,0V÷13,8Vdc – battery assisted operation
Output voltage setting, escalation and keeping
time
20ms/40ms/12ms @ Inom., Uac=min
Voltage setting range 11,5 V÷14,0 V
Voltage adjustment range ± 1%
Ripple voltage 30mV p-p max.
Output current 2,0 A max.
Current consumption by P U systems 25 mA max.
Battery charging current 500mA max. (@7Ah, U bat.=10,0V) (± 5%)
CP short-circuit protection 200% ÷ 250% of supply power – limitation of current and/or fuse
failure in the battery circuit (fuse-element replacement required)
OLP overload protection
110% ÷ 150% (@25ºC÷55ºC) of power supply – current limitation
with the PTC automatic fuse, manual restart (the fault requires
the disconnection of the DC output circuit)
CP short-circuit protection in the battery circuit
and reverse polarity protection
3A- current limitation, F2 fuse (failure requires replacement of the
fuse-element)
Overvoltage protection OVP U>22V varistor, automatically recovered
Excessive discharge protection UVP U<10,0 V (± 5%) – disconnection of (-BAT) battery
Technical outputs:
- COM, NC, NO output indicating the fault to the
AC supply
- TAMPER output indicating opening of the
power-supply casing
- R-relay type, 1A@ 30Vdc/50Vac max.
Time lag about 5s/140s/1040s/2h20m30s (+/-1%)
Normal status: activated COM-NO,
Failure status: activated COM-NC
- microswitch, NC contacts (close casing),
0,5A@50V DC (max.)
Optical indication
- AC diode indicating the AC supply status
- LB diode indicating the battery charging
process
- AUX diode indicating DC supply status at the
power-supply output
- red, normal status, permanently illuminated,
failure: no illumination
- red, illuminated with light with intensity depending on battery
charging current
- green, normal status, permanently illuminated,
failure: no illumination
F1 fuse
F2 fuse
F 3A/250V
T 315 mA/ 250V
Mechanical parameters (tab.4).
Casing dimensions 185 x 265 x 95 (WxHxD) [mm] (+/- 1)
Fixation 154 x 253 x Φ 4 x4pcs (WxH)
Battery space 7Ah/12V ( LA) max.
Net/gross weight 2,00 kg/2,20 kg
Casing color RAL 7005, shiny
Closing Cheese screw x 6 (at the front)
Connectors Power-supply: Φ0,63-2,50 (AWG 22-10)
Outputs: Ф0,41÷1,63 (AWG 26-14)
BAT battery outputs: 6,3F-2,5, 30cm
TAMPER output: wires, 30cm
Notes The casing is distant from the assembly surface so that cables can be installed

6
Operation sa ety (tab.5).
Protection class PN-EN 60950-1:2004 I (first)
Protection grade PN-EN 60529: 2002 (U) IP65
(glands installation required):
P9 (Ф 4-8mm) x 2pcs
P13,5 (Ф 6-12mm) x 1pcs
Electrical strength of insulation:
- between input (network) circuit and output circuits of power-supply
(I/P-O/P)
- between input circuit and PE protection circuit (I/P-FG)
- between output circuit and PE protection circuit (O/P-FG)
3000 V/AC min.
1500 V/AC min.
500 V/AC min.
Insulation resistance:
- between input circuit and output or protection circuit 100 MΩ, 500V/DC
Operation parameters (tab. 6).
Operation temperature -10ºC...+40ºC
torage temperature +5ºC...+40ºC
Relative humidity 10%...90%
Vibrations during operation
Unacceptable
Impulse waves during operation
Unacceptable
Direct insulation
Unacceptable
Vibrations and impulse waves during transport According to PN-83/T-42106
2. Installation.
2.1 Requirements.
The buffer power-supply shall be mounted by the qualified installer having appropriate (required and
necessary for a given country) permissions and qualifications for connecting (operating) 230V/AC installations and
low-voltage installations. The device shall be mounted in closed rooms, according to the environment class II, of
the normal air humidity RH=90% max. and the temperature within the range from -10°C to +40°C (table 6). The
power-supply shall operate in a vertical or horizontal position.
Before installation is started, the balance of the power-supply load shall be performed. During the normal
operation, the sum of currents collected by receivers shall not exceed I=2,0A (P=28W max.) considering that
the maximum battery charging current Ibat=500mA.
As the power-supply is designed for a continuous operation and is not equipped with a power-switch,
therefore an appropriate overload protection in the power supply circuit shall be guaranteed. Moreover, the user
shall be informed about the method of isolation of the power supply from the power voltage (usually through
assignment and marking of an appropriate fuse in the fuse-box). The electrical system shall be made in accordance
with valid standards and regulations.
2.2 Installation procedure.
1. Be ore installation is started, the voltage in the 230V power-supply circuit shall be isolated.
2. Glands should be mounted (in a set, P9:Ф 4-8mmx2pcs, P13,5: Ф 6-12mmx1pcs) in the power supply casing,
considering the diameter of power supply and receivers wires. The location of the battery and additional equipment
elements shall be additionally considered.
3. The power-supply shall be mounted in a selected location and connection cords shall be lead.
4. The power cables (~230Vac) shall be connected to L-N terminals of the power supply. The earth conductor
shall be connected to the terminal marked by the earth symbol . The connection shall be made by means of a
three-core cable (with a yellow and green PE protection wire). The power cables shall be lead to appropriate
terminals of the connection board through bushing.

7
The circuit o the shock protection shall be per ormed with a particular care, i.e. the yellow
and green protection wire o the power cable shall be connected rom one side to the
terminal marked by the symbol o in the casing o the power-supply. Operation o the
power-supply without the properly made and ully operational circuit o the shock
protection is
UNACCEPTABLE!
It can result in ailure o devices and electric shock.
5. Connect the conductors of consumers to the +AU, -AUX terminals of the terminal box on the power-supply unit.
6. If necessary, connect the conductors from the equipment to the technical outputs:
- COM-NC-NO AC supply status signaling (alarm panel, controller, signaling unit, LED diode, etc.). Use the ‘B, C’
dip switches to determine the indication time lag.
- TAMPER signalization of power-supply unit opening.
7. Using the dip switch ‘A’ determine whether the function of disconnecting the discharged battery U<10V (+/-5%)
is to be on or off. The battery protection is on i the dip switch ‘A’ is removed.
8. Activate the ~230V/AC supply (the AC red diode should be permanently illuminated, and AUX diode should be
permanently illuminated).
9. Check the output voltage (the P U voltage without load should be anywhere between 13,6V-13,9V, and during
battery charging 11V-13,8V). If the value of the voltage requires adjustment, the setting should be made by means
of the potentiometer P1, monitoring the voltage at the AUX output of the P U .
10. Connect the battery in accordance with the indications: +BAT red to ‘plus’ , -BAT black to ‘minus’, (the LB
diode should go on and the lighting intensity should reduce with the charging time elapsed increasing).
11. Once the tests and control operation have been completed, lock the enclosure, cabinet, etc.
3. The power supply operation indication.
3.1 Optical indication.
The P U is equipped with three diodes indicating operation status: AC, LB, AUX placed on the PCB of the
power supply unit :
• AC- red diode: under normal status (AC supply) the diode is permanently illuminated. The absence of AC
supply is indicated by the AC diode going off.
• LB- red diode: indicates the battery charging process; the intensity of illumination is dependent on the
charging current: 0,5A=100%.......0A=0%.
• AUX- green diode: indicates the DC supply status at the output of the P U . Under normal status, the
diode is permanently illuminated and in the case of short-circuit or overload, the diode goes off.
3.2 Technical outputs:
The P U is equipped with indication outputs allowing transmitting the information of the absence of AC
supply.
• COM-NC-NO: AC supply absence output: -relay output indicates the absence of AC supply.
Under normal status, with the AC supply on, the COM-NO contacts are closed and in the case of AC supply
loss, the P U will switch over the COM-NC contacts closed after the expiry of time set by the dip switches
‘B’ and ‘C’.
• TAMPER: output indicates opening the power-supply unit, output as volt-free contacts which
indicate power-supply unit door status, unit closed: NC, unit opened: NO
4. Handling and operation.
4.1 Overload or short-circuits to the PSU output.
The AUX output of the P U is equipped with the PTC polymer fuse assisted protection. If the load of the
P U exceeds 2,0A (load 110% ÷ 150% @25ºC of the P U power), the output voltage is automatically
disconnected and this is indicated by the green diode going off. The voltage at the output may be restored by
disconnecting the output load for the period of about one minute.
In the case of the short-circuit to the AUX, BAT output, (load 200% ÷ 250% of the P U power) or
incorrect connection of the battery, the fuse F1 in the battery circuit becomes permanently damaged and the
restoration of the voltage at the BAT output requires the replacement of the fuse.

8
4.2 Battery assisted operation.
In the case of power failure, in the unit will instantly switch to the battery assisted operation.
In order to activate the operation of the P U from the battery itself, connect the BAT connectors in accordance
with the indications: +BAT red to ‘plus’ and, -BAT black to 'minus’ of the battery and press and keep depressed for
five seconds the TART pushbutton on the equipment board.
The PSU is equipped with the discharged battery disconnection system UVP; the con iguration o
unctions through the dip switch ‘A’. The battery protection is on i the dip switch ‘A’ is removed.
4.3 Maintenance.
Any and all maintenance operations may be performed following the disconnection of the P U from the
power supply network. The P U does not require performing any specific maintenance measures, however, in the
case of significant dust rate, its interior is recommended to be cleaned with compressed air. In the case of fuse
replacement, only the substitutes in conformity to the original ones are allowed.
WEEE MARK
The waste electric and electronic products, do not mix with general household waste.
There are separate collection system or used electric and electronic products in
accordance with legislation under the WEEE Directive and is e ective only with EU.
Pulsar K.Bogusz Sp.j.
iedlec 150,
32-744 Łapczyca, Polska
Tel. [phone], Fax. [phone]
e-mail: [e-mail], sale[email protected]
http:// www.pulsar.pl
WARRANTY :
24 months since the sale date, 36 months since the production date.
THE WARRANTY I VALID ONLY after presenting the invoice of the sale to which the claim refers.
