Pulsar PSBOC352413 User manual

PSBOC352413
v.1.0
PSBOC 27,6V/1,3A/OC
Caged, switched mode, buffer power supply unit
EN
Edition: 1st (10th Mar 2012)

www.pulsar.pl PSBOC352413
2
Features:
•27,6VDC/1,3A uninterrupted supply
•wide range of supply voltage 176÷264VAC
•high efficiency 74%
•battery charge and maintenance control
•deep discharge battery protection (UVP)
•battery charging current 0,3A
•battery output protection against short circuit
and reverse polarity connection
•LED indication
•FAC technical output indicating AC power loss
•FPS technical output indicating PSU failure
•FLB technical output indicating battery low
voltage
•protections:
•SCP short-circuit protection
•OVP over voltage protection
•surge protection (AC output)
•OLP overload protection
CONTENTS:
1. Technical description.
1.1 General description
1.2 Block diagram
1.3 Description of PSU components and connectors
1.4 Specifications
2. Installation.
2.1 Requirements
2.2 Installation procedure
3. Operating status indication.
3.1 LED indication of operating status
3.2 Technical outputs
4. Operation and use.
4.1 Overload or short circuit of the PSU output
4.2. Battery-assisted operation
4.3. Maintenance
1. Technical description.
1.1 General description
A buffer PSU is intended for an uninterrupted supply to devices requiring stabilized voltage of 24 V DC
(+/-15%). The PSU provides voltage of U=27,6 DC with current capacity I=1A + 0,3A battery charge. In case of
power decay, a battery back-up is activated immediately.
During normal operation, the total current drawn by the receivers may not exceed I=1A.
Maximum battery charging current: 0.3 A. Total device current + battery: 1,3 A max.

www.pulsar.pl PSBOC352413
3
1.2 Block diagram. (fig.1).

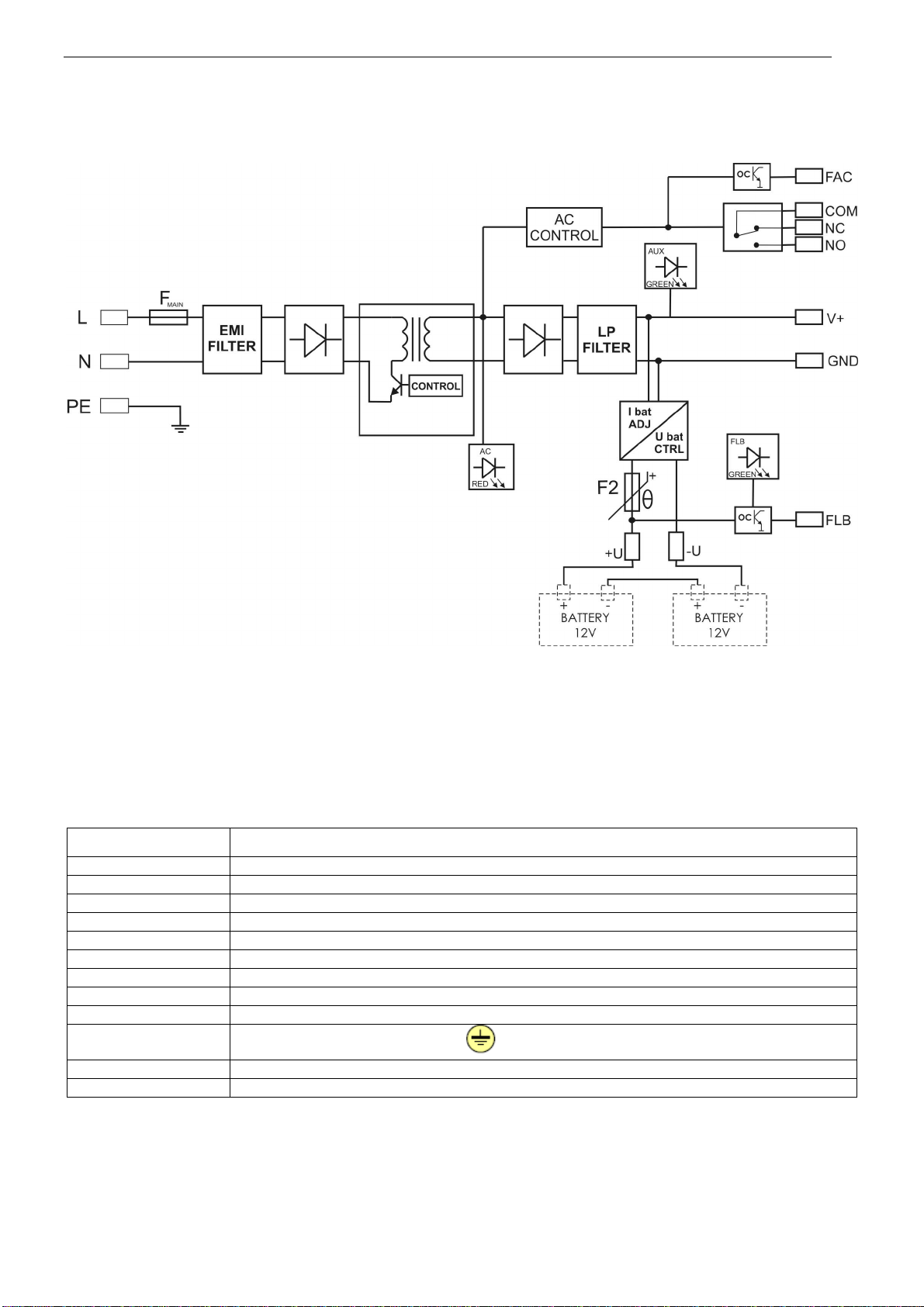

Fig.1. Block diagram of the PSU.
1.3 Description of PSU components and connectors.
Table 1. Elements of the PSU (see fig. 2).
Element no. Description
[1] LED indicating presence of AC power
[2] LED indicating presence of DC power
[3] LED indicating correct battery voltage
[4] FAC- AC absence technical output – relay type
[5] FAC- AC absence technical output – OC type
[6] FPS- output indicating DC absence/PSU failure - OC type
[7] FLB- output indicating battery low voltage - OC type
[8] V
ADJ
- potentiometer, DC voltage adjustment
[9] +V ,-V- DC supply output
[10] L-N 230V/AC power connector, PE protection connector
[11] Connector of extra LED indication
[12] Battery connectors: +BAT =red, - BAT = black

www.pulsar.pl PSBOC352413
4
Fig. 2. The view of the PSU.
1.4 Specifications:
- electrical specifications (tab.2)
- mechanical specifications (tab.3)
- operation safety (tab.4)
- operating specifications (tab.5)
Electrical specifications (tab. 2).
Mains supply 176 ÷ 264V AC
Current consumption 0,45A@230VAC max.
PSU power 35W max.
Efficiency 74%
Output voltage 22V÷ 27,6V DC – buffer operation
19V÷27,6V DC – battery-assisted operation
Output current 1,5A + 0,3A battery charge
Output current t
AMB
<30°C 1,5A + 0,3A battery charge – see chart 1
Output current t
AMB
=40°C 0,7A + 0,3A battery charge - see chart 1
Voltage adjustment range 24÷28V DC
Ripple voltage 150 mV p-p max.
Current consumption by PSU systems 30 mA
Battery charging current 0,3A
Short-circuit protection SCP
electronic
Battery circuit protection SCP and reverse
polarity connection polymer fuse
Deep discharge protection UVP
U<19V (± 5%) – disconnection of the battery terminal
Technical outputs:
- FAC; output indicating AC power
failure
- FPS; output indicating DC absence/PSU
failure
-FLB output indicating battery low voltage
- relay type: 1A@ 30VDC/50VAC, time lag: approx. 10s.
CAUTION! In Fig.2. the contact set in the potential-free status
corresponds to a state with no AC power (AC power failure).
- OC type, 50mA max., normal status: L (0V) level, failure: hi-Z
level, time lag: 10s.
- OC type, 50mA max., normal status: L (0V) level, failure: hi-Z
- OC type, 50mA max., normal status: (U
BAT
>22,5V): L (0V),
failure: (U
BAT
<22,5V): hi-Z level

www.pulsar.pl PSBOC352413
5

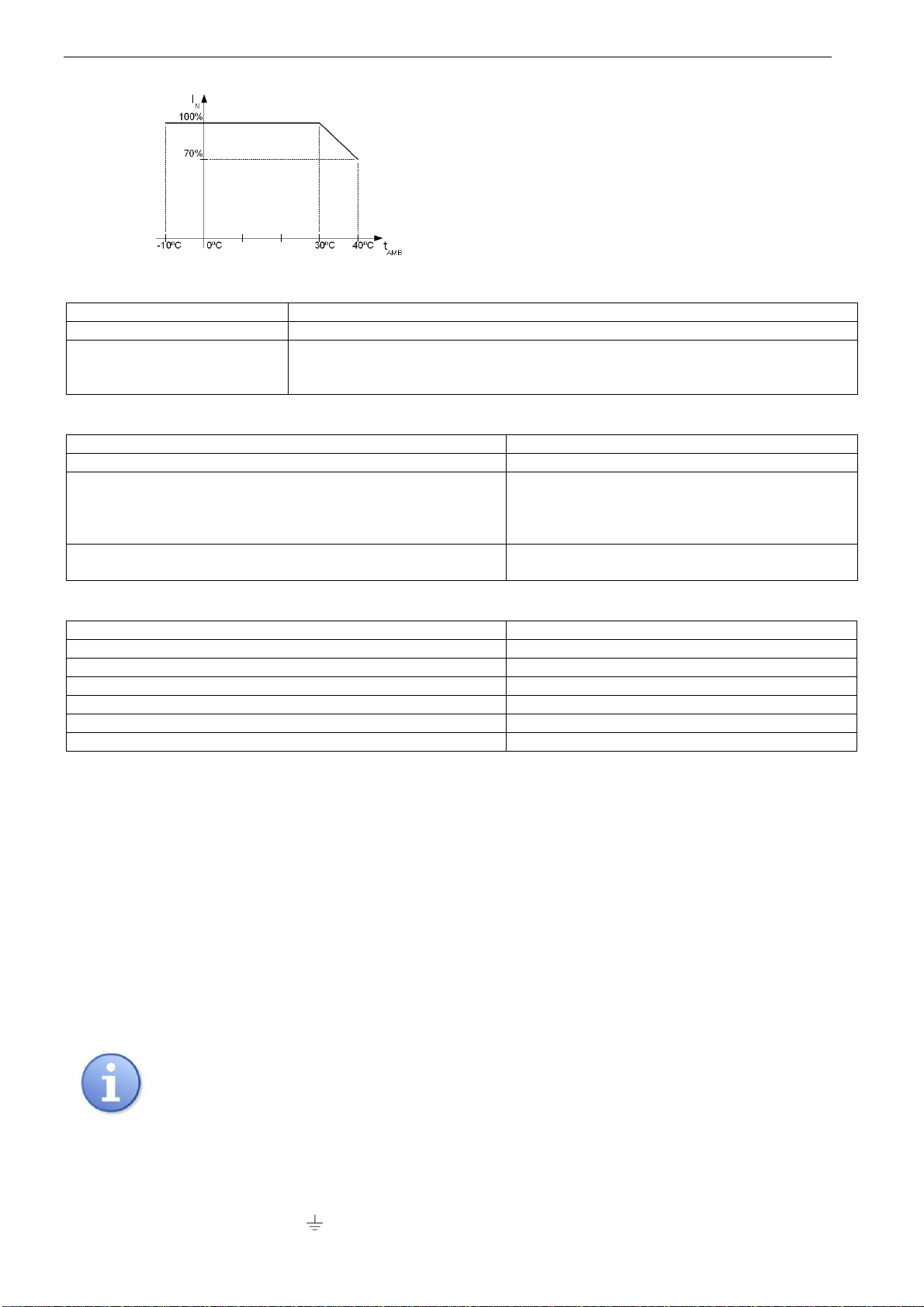

Temperature characteristics.
Chart 1.
Acceptable output current from the PSU
depending on ambient temperature.
Mechanical specifications (tab. 3).
Enclosure dimensions 129 x 98 x 40,5 +23 [mm] (LxWxH) [mm] (+/- 2)
Net/gross weight 0,39kg / 0,42kg
Connectors power supply, technical outputs: Φ0,63÷2,5 I/O PCB : Φ0,41÷1,63
BAT battery outputs: 6,3F-2,5/40cm,
Led indication output: 3-pin 5 mm connector
Operation safety (tab.4).
Protection class PN-EN 60950-1:2007 I (first)
Degree of Protection PN-EN 60529: 2002 (U) IP20
Electrical strength of insulation:
- between PSU input circuit and output circuits (I/P-O/P)
- between input circuit and PE protection circuit (I/P-FG)
- between output circuit and PE protection circuit (O/P-FG)
3000 V/AC min.
1500 V/AC min.
500 V/AC min.
Insulation resistance:
- between input circuit and output or protection circuit 100 MΩ, 500V/DC
Operating specifications (tab.5).
Operating temperature -10ºC...+40ºC
Storage temperature -20ºC...+60ºC
Relative humidity 20%...90%, without condensation
Vibrations during operation unacceptable
Impulse waves during operation unacceptable
Direct insolation unacceptable
Vibrations and impulse waves during transport PN-83/T-42106
2. Installation.
2.1 Requirements
The buffer PSU is to be mounted by a qualified installer, holding relevant permits and licenses (applicable
and required for a given country) for 230V/AC interference and low-voltage installations. The unit should be
mounted in confined spaces, in accordance with the 2nd environmental class, with normal relative humidity
(RH=90% maximum, without condensation) and temperature from -10°C to +40°C.
The device shall be mounted in a metallic enclosure (a cabinet, an intended case). In order to fulfil LVD
and EMC requirements, the rules for: power-supply, encasing and screening shall be followed, according to
application.
During normal operation, the total current drawn by the device may not exceed I=1A.
Maximum battery charging current: 0,3A. Total current of the receivers + battery: 1,3A max.
2.2. Installation procedure.
1. Before installation of the power supply unit, make sure that 230VAC power if cut off.
2. Mount the unit in the intended location.
3. Connect the 230VAC power cables. Connect the PE cable (yellow-green) to an appropriate PSU
terminal (marked with - earth symbol).

www.pulsar.pl PSBOC352413
6
The shock protection circuit shall be performed with a particular care, i.e. the yellow and
green wire coat of the power cable shall stick to one side of the ‘PE’ terminal. Using the PSU
without a properly made and fully operational shock protection circuit is UNACCEPTABLE!
It can cause a device failure or an electric shock.
4. Connect load/loads to proper output connectors of the power supply (positive pole is marked as +V,
negative pole as -V)
5. Connect the technical outputs to the central or other device.
6. Connect the battery in accordance with the signs (colours).
7. Once the tests and operation control have been completed, the enclosure/cabinet can be locked.

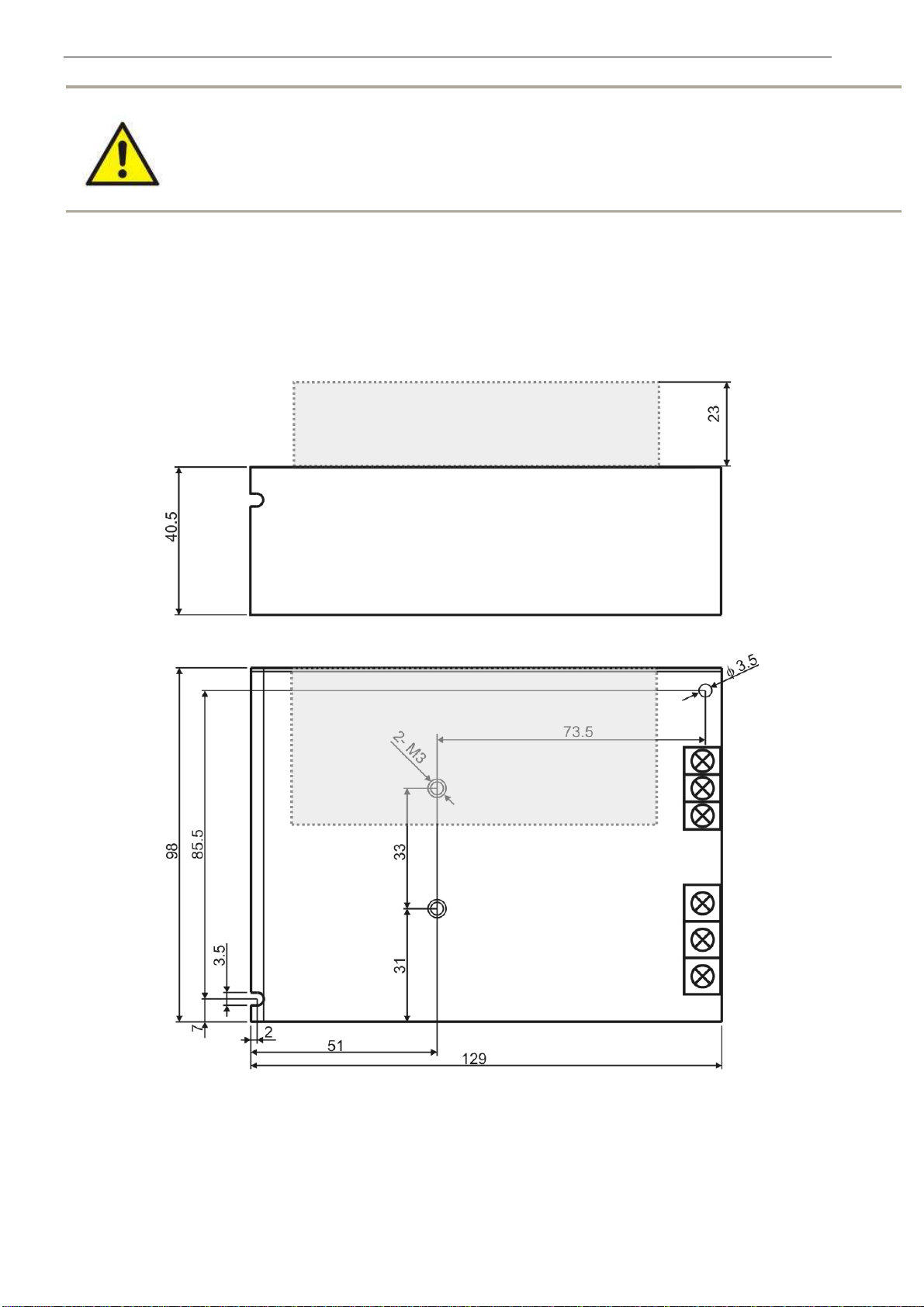

Fig 3. Mechanical view of the PSU.

www.pulsar.pl PSBOC352413
7
3. Operating status indication.
3.1 LED indication
The PSU is equipped with 3 LEDs on the PCB board:
- red LED (Fig.2, element 1) normal status (AC power): permanently illuminated. AC power absence is
indicated by the AC diode going out.
Caution! LED indicates power absence if the outage lasts >10s.
- green LED (Fig.2, element 2) indicates DC power at the PSU output. Under normal status the diode is
permanently illuminated. In case of a short circuit or an overload, the diode is off.
- green LED (Fig.2, element 3) indicates battery voltage level. Under normal status (U
BAT
> 22,5V) the diode is
permanently illuminated. In case of decrease of battery voltage (U
BAT
< 22,5V) the diode is off.
3.2 Technical outputs
The PSU has indication outputs:
•FAC - absence of AC supply output: - OC type output that indicates AC power loss. Under normal status,
with 230V AC supply, the output is connected to ground (L level – 0V). In case of power loss, the PSU will
switch the output into high impedance state hi-Z after approx. 10s.
•FAC - absence of AC supply output: - relay output indicating the absence of AC supply. In case of power
loss, the PSU module will switch the relay contacts after approx. 10 seconds.
CAUTION! In Fig.2. the contact set in the potential-free status corresponds to a state with no AC
power (AC power failure).
•FPS – technical output indicating absence of DC voltage at the PSU: OC type output indicating the
PSU failure. In normal state (during correct operation) the output is connected to ground (L level – 0V). In
case of absence of DC voltage at the output (e.g. short circuit), the output is switched into high impedance
state – hi-Z.
•FLB – technical output indicating battery voltage: OC type output. Under normal status (U
BAT
> 22,5V)
the output is connected to ground (L level – 0V). In case of decrease of battery voltage (U
BAT
< 22,5V) the
output is switched into high impedance state – hi-Z.

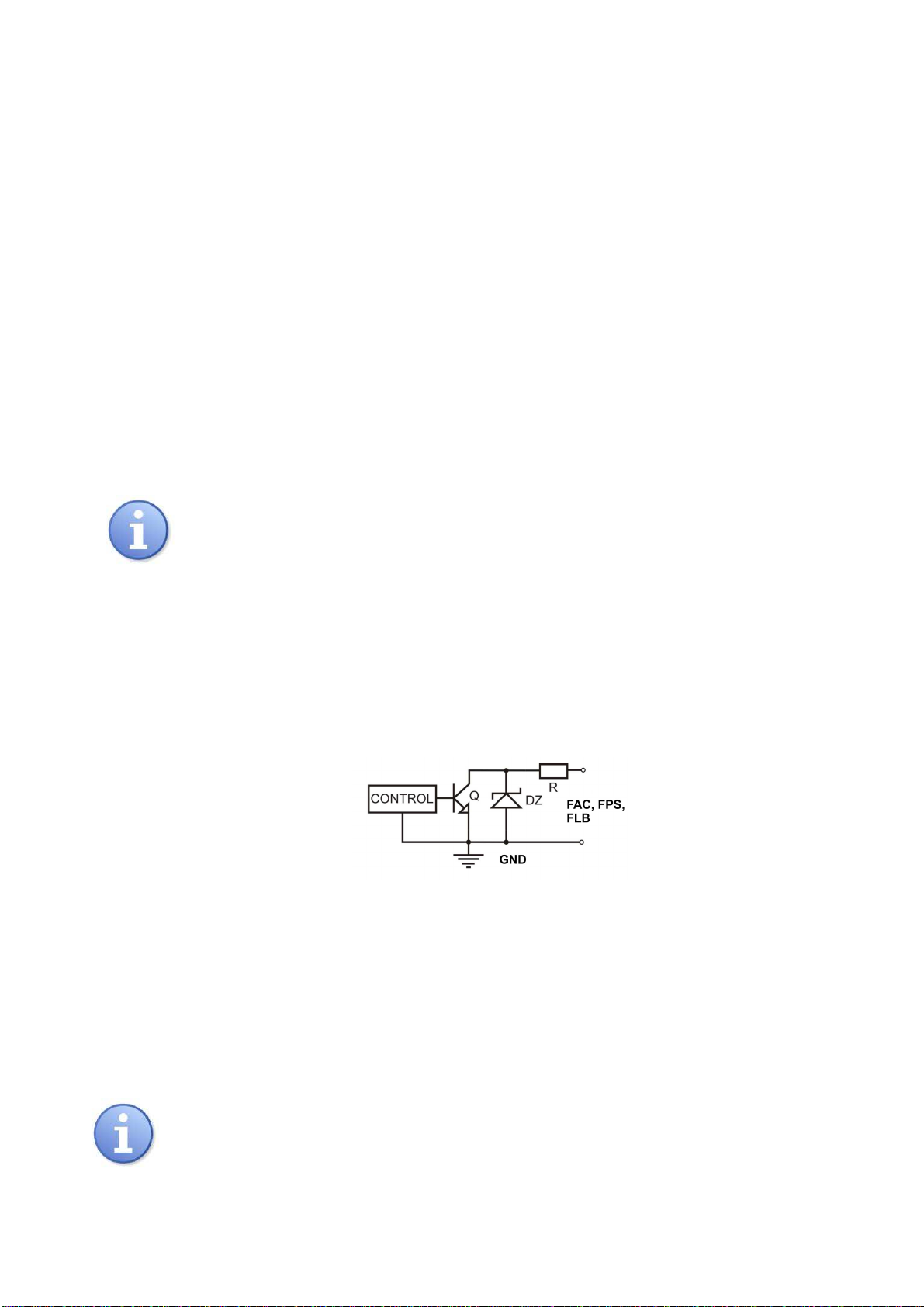

Fig. 4. Electrical diagram of OC outputs.
4. Operation and use.
4.1 Overload or short circuit of the PSU module output
In case of an overload or a short circuit at the PSU output, the output voltage is automatically cut off. The
voltage is restored automatically after removing the failure (overload).
4.2 Battery-assisted operation.
In case of a main power outage, the device is immediately switched into a battery-assisted operation.
The PSU is equipped with the discharged battery disconnection system. During the
battery-assisted operation, reducing voltage below 19V at the battery terminals will cause
battery disconnection.

www.pulsar.pl PSBOC352413
8
4.3 Maintenance
Any and all maintenance operations may be performed following the disconnection of the PSU from the
power supply network. The PSU does not require performing any specific maintenance measures. However, in
case of significant dust ingress, it is recommended to clean the PSU with compressed air.
WEEE MARK
According to the EU WEE Directive – It is required not to dispose of electric or
electronic waste as unsorted municipal waste and to collect such WEEE separately.
Pulsar K.Bogusz Sp.j.
Siedlec 150, 32-744 Łapczyca, Poland
Tel. [phone], Fax. [phone]
e-mail: [email protected], sa[email protected]l
http:// www.pulsar.pl, www.zasilacze.pl
GE ERAL WARRA TY CO DITIO S
1. Pulsar K. Bogusz Sp.j. (the manufacturer) grants a two-year warranty for the equipment starting from the initial product date
of purchase placed on the receipt.
2. If a purchase proof is missing a three-year warranty period is counted from the device’s production date.
3. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (the selection is at the
manufacturer’s discretion) if the malfunction is due to the manufacturer includes manufacturing or material defects unless such
defects have been reported within the warranty period (item 1 and 2).
4. The equipment subject to warranty is to be brought to the place where it was purchased or directly to the main office of the
manufacturer.
5. The warranty applies to complete equipment accompanied by a properly filled warranty claim with a description of the defect.
6. Should the claim be accepted the manufacturer is obliged to provide warranty repairs at the earliest convenience however not
later that within 14 days from the delivery to the service centre of the manufacturer.
7. The repair period mentioned in item 6 may be prolonged if there are no technical possibilities to carry out the repairs or if the
equipment has been conditionally accepted due to the breaking warranty terms by the claimant.
8. All the services rendered by force of the warranty are carried out at the service centre of the manufacturer exclusively.
9. The warranty does not cover the defects of the equipment resulting from:
- reasons beyond the manufacturer's control
- mechanical damage
- improper storage and transport
- use that violates the operation manual or equipment’s intended use
- fortuitous events including lightning discharges power failures fire flood high temperatures and chemical agents
- improper installation and configuration (in defiance with the manual)
10. The warranty is void in any of the following circumstances:
- construction changes
- repairs carried out by any unauthorized service center
- damage or removal of warranty labels
- modifications of the serial number
11. The liability of the manufacturer towards the buyer is limited to the value of the equipment determined according to the
wholesale prices suggested by the manufacturer on the day of purchase.
12. The manufacturer takes no responsibility for the defects that result from:
- the damaging malfunctioning or inability to operate the equipment
- defects that result from using the equipment outside its stated specifications and operating specifications failing to abide by the
recommendations and requirements contained in the manual or the use of the equipment.
