Pulsar GREEN POWER plus HPSBOC 20A12E User manual

HPSBOC 20A12E
v.1.0
HPSBOC 13,8V/20A/65Ah/OC
Buffer switch mode power supply unit
with technical outputs.
EN**
Edition: 1 from 04.03.2015
Supercedes edition: ---------------
GREENPOWERplus

www.pulsar.pl HPSBOC20A12E GREEN POWER plus
2
Features:
DC 13,8V/20A uninterruptible power supply*
fitting battery: 65Ah/12V
wide range of mains supply: 176÷264V
built-in power factor correction system (PFC)
high efficiency 85%
battery charging and maintenance control
excessive discharging (UVP) protection
jumper selectable battery charge current
2A/4A/8A
battery output full protection against short-circuit
and reverse polarity connection
LED indication
EPS technical output indicating AC power loss
–OC and relay type
PSU technical output indicating PSU failure
–OC and relay type
LoB technical output indicating battery low voltage
–OC and relay type
protections:
SCP short-circuit protection
OVP overvoltage protection
overvoltage protection (AC input)
against sabotage
overload protection OLP
overheat protection OHP
forced cooling - built-in fan
warranty –2 year from the production date
CONTENTS:
1. Technical description.
1.1 General description
1.2 Block diagram
1.3 Description of PSU components and connectors.
1.4 Specifications
2. Installation.
2.1 Requirements
2.2 Installation procedure
3. Operating status indication.
3.1 LED indication of operating status
3.2 Technical outputs
4. Operation and use.
4.1 Overload or short circuit of the PSU output (SCP on)
4.2 Disconnection of discharged battery
4.3 Maintenance
1. Technical description.
1.1 General description.
A buffer PSU is intended for an uninterrupted supply to devices requiring stabilised voltage of 12V DC
(+/-15%). The PSU provides voltage of U=13,8V DC. Current efficiency:
1. Output current 18A + 2A battery charge*
2. Output current 16A + 4A battery charge*
3. Output current 12A + 8A battery charge*
Total device current + battery: 20A max*.
In case of power decay 230V, a battery back-up is activated immediately. The PSU is constructed based
on the switch mode PSU, with high energy efficiency. The PSU is housed in a metal enclosure (colour RAL 9003)
which can accommodate a 65Ah/12V battery.
The power supply is equipped with relay and the OC type technical outputs indicating power failure, the
failure of the power supply and low battery voltage.
A micro switch indicates door opening (front cover).
The power supply housing has space for additional modules (fuse blocks, voltage regulators and DC-DC
converters). Optional power supply configurations are available at the website: www.pulsar.pl
*See chart 1

www.pulsar.pl HPSBOC20A12E GREEN POWER plus
3
1.2 Block diagram (fig.1).
Fig.1. The block diagram of the PSU.
1.3 Description of the module’s components and connectors (tab.1, fig.2).
Table 1. Elements of the module’s (see fig. 2).
Element no.
Description
[1]
LED indicating presence of AC power
[2]
LED indicating presence of DC power
[3]
LED indicating correct battery voltage
[4]
EPS -AC absence technical output –relay type
[5]
PSU -output indicating DC absence/PSU failure –relay type
[6]
LoB- output indicating battery low voltage –relay type
[7]
EPS - AC absence technical output –OC type
[8]
PSU - output indicating DC absence/PSU failure - OC type
[9]
LoB - output indicating battery low voltage - OC type
[10]
Connectors PSU:
V+, V- DC power output
B+, B- terminals for battery connection
L-N power supply connector 230V AC, Protection connector PE
[11]
VADJ - potentiometer, DC voltage adjustment
[12]
Selection jumper for charging current:
Ibat =2 A, Ibat=4A Ibat=8A
Description: jumper installed, jumper removed
[13]
Battery connectors: red: +, black: -
[14]
LED indication on the front panel

www.pulsar.pl HPSBOC20A12E GREEN POWER plus
4
Fig. 2. The view of the PSU module.
Table 2. Description of PSU components and connectors (fig.3).
Element no.
[Fig. 3]
Description
[1]
PSU module
[2]
TAMPER, contact, sabotage protection (NC)
Fig.3. The view of the PSU.
1.4 Specifications:
- electrical parameters (tab.3)
- mechanical parameters (tab.4)
- operation safety (tab.5)
- operating parameters (tab.6)

www.pulsar.pl HPSBOC20A12E GREEN POWER plus
5
W
H
D
Table 3. Electrical parameters
PSU type
A (EPS - External Power Source)
Mains supply
176÷264V AC 50Hz
Current up to
1,5A@230VAC max.
Supply power
300W max.
Efficiency
85%
Power factor PF
>0,95 @230V AC
Output voltage
11V÷ 13,8V DC – buffer operation
9,5V÷13,8V DC – battery-assisted operation
Output current tAMB<30°C
18A + 2A battery charge - see chart 1
16A + 4A battery charge - see chart 1
12A + 8A battery charge - see chart 1
Output current tAMB=40°C
12A + 2A battery charge - see chart 1
10A + 4A battery charge - see chart 1
6A + 8A battery charge - see chart 1
Voltage adjustment range
12÷14VDC
Ripple
120mV p-p max.
Current consumption by PSU systems
230 mA
Battery charge current
2A, 4A or 8A –jumper selectable
Short-circuit protection SCP
electronic, automatic recovery
Overload protection OLP
105-150% of power supply, automatic recovery
Battery circuit protection SCP and reverse
polarity connection
melting fuse 30A
Surge protection
varistors
Overvoltage protection OVP
>16V (activation requires disconnecting the load or supply
for about 20 s.)
Excessive discharge protection UVP
U<9,5 V (± 5%) –disconnect of connection battery
Tampering protection system:
- TAMPER –indicating unwanted opening of the
PSU’s enclosure
- a microswitch, NC contacts (enclosure closed) 0,5A@50V
DC (max.)
LED indication:
- AC diode indicating AC power status
- DC diode indicating DC power status at
the PSU output
- BAT diode indicating battery voltage level
- red, normal status –on, failure: off
- green, normal status –on, failure: off
- green, normal status –on, failure: off
Technical outputs:
- EPS; output indicating AC power failure
- PSU; output indicating DC absence/PSU failure
- LoB output indicating battery low voltage
- relay type: 1A@ 30VDC/50VAC, time lag: approx. 10s.
- OC type, 50mA max., normal status: L (0V) level, failure:
hi-Z level,
- relay type: 1A@ 30VDC/50VAC
- OC type, 50mA max., normal status: L (0V) level, failure:
hi-Z level
- relay type: 1A@ 30VDC/50VAC
- OC type, 50mA max., normal status: (UBAT >11,5V): L (0V)
level,
failure: (UBAT <11,5V): hi-Z level
Table 4. Mechanical parameters
Enclosure dimensions
400 x 350 x 170+8 (WxHxD) [mm]
Fixation
See figure 3
Fitting battery
65Ah/12V (SLA) max.
360x175x165mm (WxHxD) max
Net/gross weight
6,8kg / 7,2kg
Enclosure
Steel plate, DC01 1,0mm colour: RAL 9003
Closing
Cheese head screw x 2 (at the front), (lock assembly possible)
Connectors
Power supply: Φ0,63-2,50 (AWG 22-10)
Outputs: Φ0,63-2,50 (AWG 22-10),
Technical output: Φ0,41-1,63 (AWG 26-14)
Battery output BAT: Ф6/2,5mm2
TAMPER output: wires
Notes
The enclosure does not adjoin the assembly surface so that cables can be led.
Forced cooling - built-in fan.

www.pulsar.pl HPSBOC20A12E GREEN POWER plus
6
Table 5. Operation safety
Protection class PN-EN 60950-1:2007
I (first)
Protection grade PN-EN 60529: 2002 (U)
IP20
Electrical strength of insulation:
- between input and output circuits of the PSU (I/P-O/P)
- between input circuit and PE protection circuit (I/P-FG)
- between output circuit and PE protection circuit (O/P-FG)
3000 V/AC min.
1500 V/AC min.
500 V/AC min.
Insulation resistance:
- between input circuit and output or protection circuit
100 MΩ, 500V/DC
Table 6. Operating parameters
Operating temperature
-10ºC...+40ºC (see: chart 1)
Storage temperature
-20ºC...+60ºC
Environmental class
ii
Relative humidity
20%...90%, without condensation
Vibrations during operation
unacceptable
Impulse waves during operation
unacceptable
Direct insulation
unacceptable
Vibrations and impulse waves during transport
According to PN-83/T-42106
Chart 1. Acceptable output current from the PSU depending on ambient temperature.
2. Installation.
2.1 Requirements.
The buffer PSU shall be mounted by a qualified installer with appropriate permissions and qualifications for
230V/AC installations and low-voltage installations (required and necessary for a given country). The device shall
be mounted in confined spaces, according to the environment class II, with normal air humidity (RH=90% max.
without condensation) and the temperature from -10°C to +40°C. The PSU shall work in a vertical position that
guarantees sufficient convectional air-flow through ventilating holes of the enclosure.
Before installation, prepare a PSU load balance.
1. Output current 18A + 2A battery charge*
2. Output current 16A + 4A battery charge*
3. Output current 12A + 8A battery charge*
Total device current + battery: 20A max*.
As the PSU is designed for a continuous operation and is not equipped with a power-switch, therefore an
appropriate overload protection shall be guaranteed in the power supply circuit. Moreover, the user shall be
informed about the method of unplugging (usually through assigning an appropriate fuse in the fuse-box). The
electrical system shall follow valid standards and regulations.
*See chart 1

www.pulsar.pl HPSBOC20A12E GREEN POWER plus
7
RED LED:
on –the PSU is supplied with 230V AC
off –no 230V AC supply
GREEN LED:
on –DC voltage in the AUX output of the PSU
off –no DC voltage in the AUX output of the PSU
on –PSU’s voltage UBAT > 11,5V
off –PSU’s voltage UBAT < 11,5V
2.2 Installation procedure.
1. Before installation, cut off the voltage in the 230V power-supply circuit.
2. Mount the PSU in a selected location and connect the wires.
3. Connect the power cables (~230Vac) to L-N clips of the PSU. Connect the ground wire to the clip marked by the
earth symbol PE (PSU module connector). Use a three-core cable (with a yellow and green PE protection wire) to
make the connection. Lead the cables to the appropriate clips through the insulating bushing of the connection
board.
The shock protection circuit shall be performed with a particular care, i.e. the yellow and
green wire coat of the power cable shall stick to one side of the terminal - marked with
‘‘symbol on the PSU enclosure. Operation of the PSU without the properly made and
fully operational shock protection circuit is UNACCEPTABLE! It can cause a device
failure or an electric shock.
4. Connect the receivers’ cables to the terminals V+ (+), V-(-) of the PSU module.
5. Connect the power (~230V)
6. Check the PSU output voltage:
- the PSU voltage without load should amount to U=13,8V DC.
7. Connect the battery:
- battery output (+V): BAT+ cable / red,
- battery output (0V): BAT –cable / GND / black.
8. Check the PSU operation indicator: green LED on the power supply module.
9. After installing and checking proper working, the enclosure can be closed.
3. Operating status indication.
3.1 LED indication of operating status.

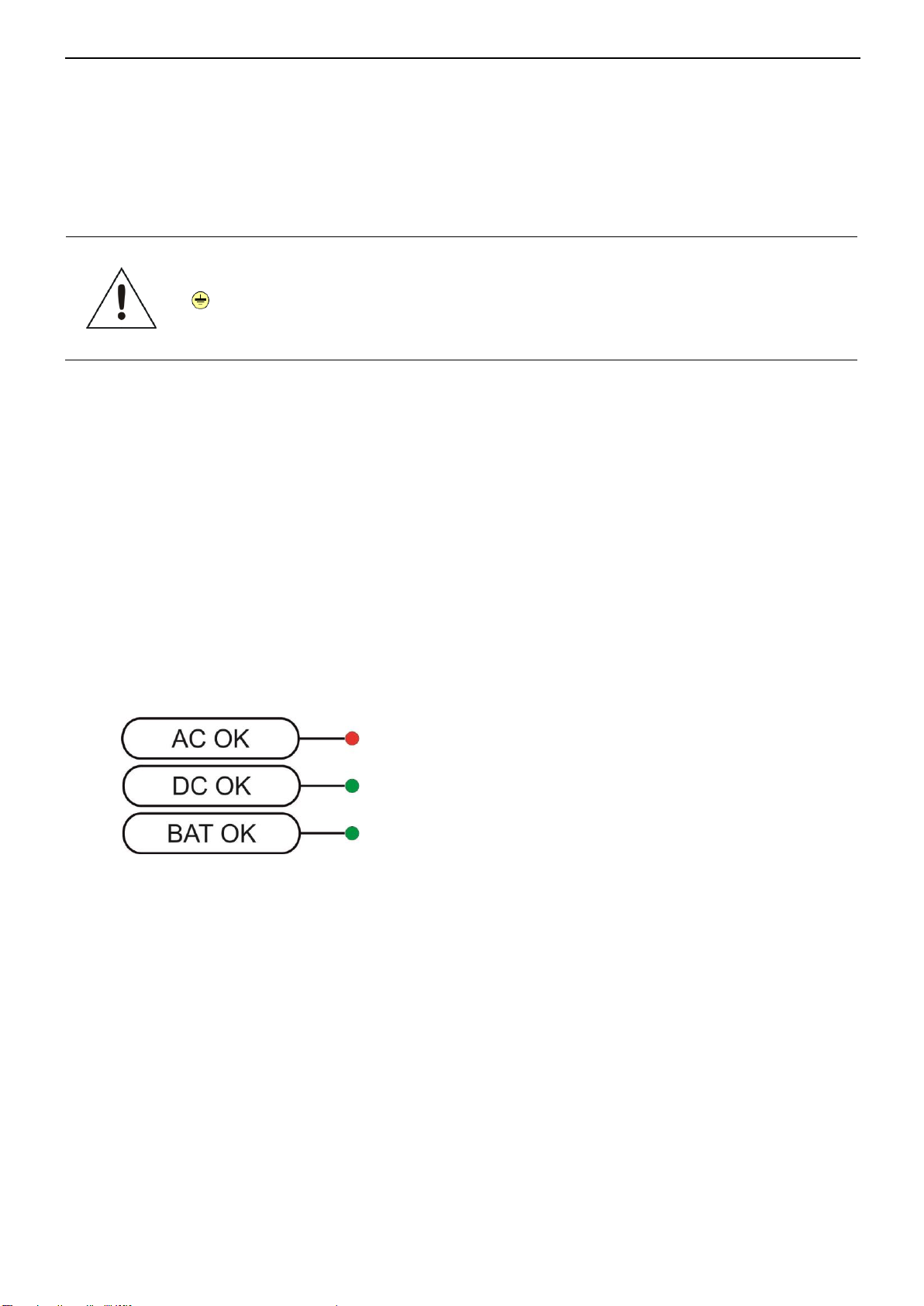

The PSU is equipped with 3 diodes on the front panel:
Moreover, the PSU is equipped with 3LEDs on the PCB board:
- red LED (Fig.2, element 1) normal status (AC power): permanently illuminated. AC power absence is
indicated by the AC diode going out.
- green LED (Fig.2, element 2) indicates DC power at the PSU output. Under normal status the diode is
permanently illuminated. In case of a short circuit or an overload, the diode is off.
- green LED (Fig.2, element 3) indicates battery voltage level. Under normal status (UBAT > 11,5V) the diode is
permanently illuminated. In case of decrease of battery voltage (UBAT < 11,5V) the diode is off.

www.pulsar.pl HPSBOC20A12E GREEN POWER plus
8
3.2 Technical outputs
The PSU has indication outputs:
EPS - absence of AC supply output:
- OC type output that indicates AC power loss. Under normal status, with 230V AC supply, the output is
connected to ground (L level –0V). In case of power loss, the PSU will switch the output into high
impedance state hi-Z.
- relay output indicating the absence of AC supply. In case of power loss, the PSU module will switch the relay
contacts.
CAUTION! In Fig.5. the contact set in the potential-free status corresponds to a state with no AC
power (AC power failure).
PSU –technical output indicating absence of DC voltage at the PSU:
- OC type output indicating the PSU failure. In normal state (during correct operation) the output is connected
to ground (L level –0V). In case of absence of DC voltage at the output (e.g. short circuit), the output is
switched into high impedance state –hi-Z.
- relay output. In case of a failure, the contacts of the relay change over.
CAUTION! In the Fig.5. the set of contacts shows a potential-free status of the relay which
corresponds to a state with no DC power (PSU failure).
LoB –technical output indicating battery voltage:
- OC type output. Under normal status (UBAT > 11,5V) the output is connected to ground (L level –0V). In case
of decrease of battery voltage (UBAT < 11,5V) the output is switched into high impedance state –hi-Z.
-relay output. In case of a battery voltage drop UBAT < 11,5V, the contacts of the relay change over.
CAUTION! In the Fig.5. the set of contacts shows a potential-free status of the relay which
corresponds to a state with low battery level (UBAT <11,5V).
Fig. 4. Electrical diagram of OC outputs.
Fig. 5. Electrical diagram of relay outputs.

www.pulsar.pl HPSBOC20A12E GREEN POWER plus
9
4. Operation and use.
4.1 Overload or short circuit of the PSU output (SCP on).
In case of overload, the output voltage is automatically shut off, and so is the LED indicator. The restoration
of the voltage takes place immediately after the failure (overload) is over.
4.2 Disconnection of discharged battery.
The PSU is equipped with the discharged battery disconnection system. During the battery-assisted
operation, reducing voltage below 9,5 V at the battery terminals will cause battery disconnection.
4.3 Maintenance.
Any and all maintenance operations may be performed following the disconnection of the PSU from the
power supply network. The PSU does not require performing any specific maintenance measures, however, in
case of significant dust rate, its interior is recommended to be cleaned with compressed air. In case of fuse
replacement, use a replacement of the same parameters.

www.pulsar.pl HPSBOC20A12E GREEN POWER plus
10
WEEE MARK
According to the EU WEE Directive –It is required not to dispose of electric or
electronic waste as unsorted municipal waste and to collect such WEEE separately.
The power supply unit is adapted for a sealed lead-acid battery (SLA). After the operation period it must not be disposed of but recycled
according to the applicable law.
Pulsar
Siedlec 150, 32-744 Łapczyca, Poland
Tel. [phone], Fax. [phone]
e-mail: [email protected], [email protected]
http:// www.pulsar.pl, www.zasilacze.pl
GENERAL WARRANTY CONDITIONS
1. Pulsar (the manufacturer) grants a two-year warranty for the equipment,, counted from the device’s production
date.
2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (the selection is at the
manufacturer’s discretion) if the malfunction is due to the manufacturer, includes manufacturing or material defects,
unless such defects have been reported within the warranty period (item 1).
3. The equipment subject to warranty is to be brought to the place where it was purchased, or directly to the main
office of the manufacturer.
4. The warranty applies to complete equipment, accompanied by a properly filled warranty claim with a description
of the defect.
5. Should the claim be accepted, the manufacturer is obliged to provide warranty repairs, at the earliest
convenienve, however not later that within 14 days from the delivery to the service centre of the manufacturer.
6. The repair period mentioned in item 5 may be prolonged, if there are no technical possibilities to carry out the
repairs, or if the equipment has been conditionally accepted, due to the breaking warranty terms by the claimant.
7. All the services rendered by force of the warranty are carried out at the service centre of the manufacturer,
exclusively.
8. The warranty does not cover the defects of the equipment, resulting from:
- reasons beyond the manufacturer's control,
- mechanical damage,
- improper storage and transport,
- use that violates the operation manual or equipment’s intended use
- fortuitous events, including lightning discharges, power failures, fire, flood, high temperatures and chemical
agents,
- improper installation and configuration (in defiance with the manual),
9. The warranty is void in any of the following circumstances:
- construction changes
- repairs carried out by any unauthorized service center
- damage or removal of warranty labels
- modifications of the serial number
10. The liability of the manufacturer towards the buyer is limited to the value of the equipment, determined
according to the wholesale prices suggested by the manufacturer on the day of purchase.
11. The manufacturer takes no reponsibility for the defects that result from:
- the damaging, malfunctioning or inability to operate the equipment
- defects that result from using the equipment outside its stated specifications and operating parameters failing to
abide by the recommendations and requirements contained in the manual, or the use of the equipment.
