Pulsar RUPS1612RP User manual

RUPS1612RP
v.1.0
RUPS 13,8V/12V/20A/PTC
RACK mounted buffer power supply for up to 16 cameras and
recorder.
EN
Edition: 2 from 30.03.2017
Supercedes the edition: 1 from 15.03.201

www.pulsar.pl RUPS1612RP RACK POWER CCTV
2
Features:
DC 13,8V/16x0,75A uninterruptible power supply
for powering HD cameras (12A max.)
DC 12V/4A uninterruptible power supply of the
recorder
16 outputs to cameras independently protected
with 1A polymer fuses
the output for the recorder is protected with the
4A polymer fuse
wide range of mains supply AC: 176÷264V AC
high efficiency 82%
battery charging and maintenance control
excessive discharging (UVP) protection
battery output protection against short circuit and
reverse connection
battery charge current: 2A
(batteries 1x17Ah / 1x28Ah / 1x40A / 1x65Ah)
control of voltage presence at the AUX1
÷ AUX16 outputs DVR
acoustic indication of failure
LED optical indication: AC, DC, TEMP, LoB, ALARM,
AUX1 ÷ AUX16, DVR
the ALARM technical output of collective failure –relay
type, activated by:
230V AC power loss
low voltage of the PSU (<11,5V)
activation of the output fuse in the camera power
supply circuit
activation of the output fuse in the recorder
power supply circuit
too high temperature of the PSU (>70°C)
the PSU failure
protections:
SCP short-circuit protection
OVP overvoltage protection
overvoltage protection
overload protection OLP
forced cooling (fan)
warranty –2 year from the production date

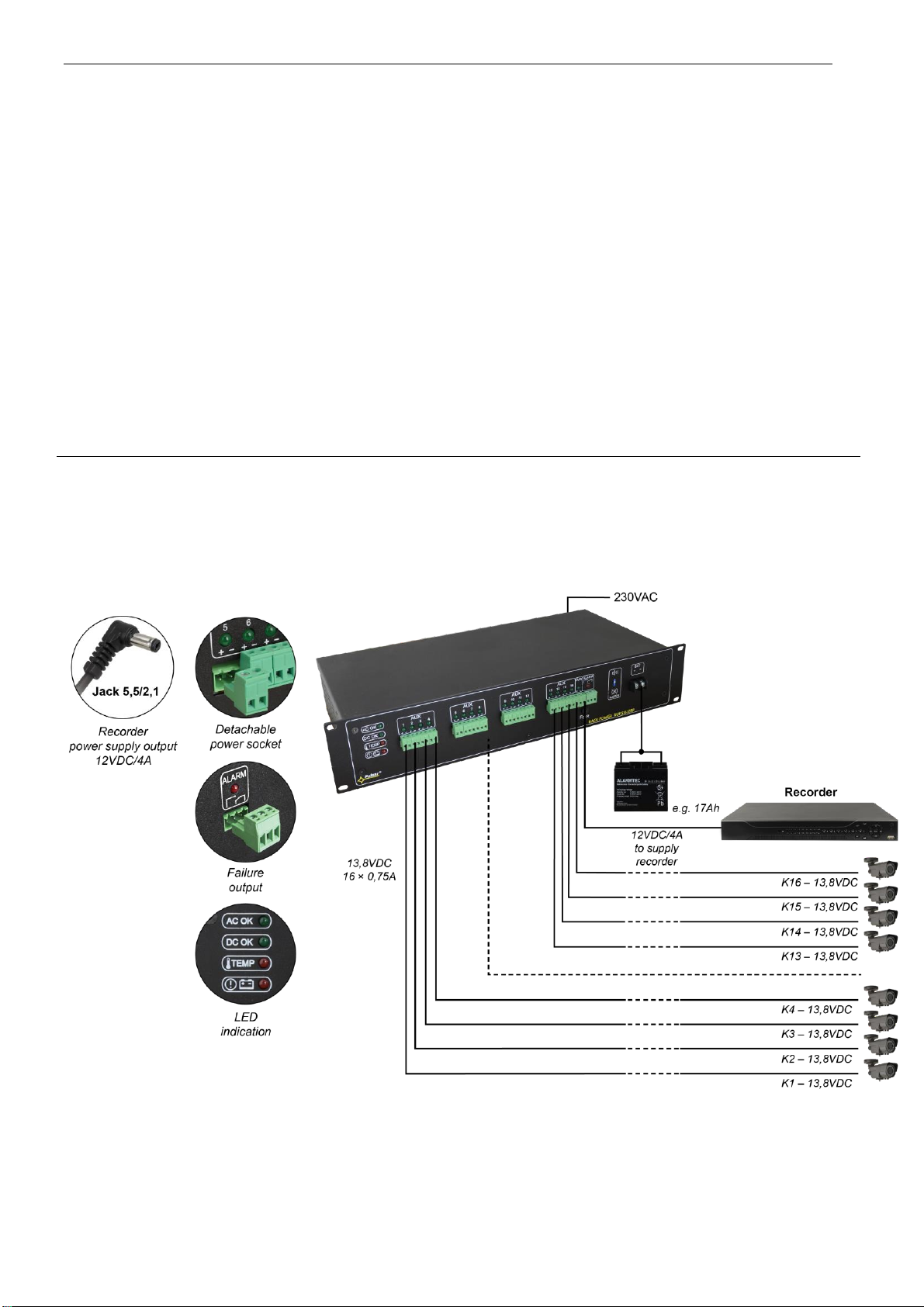

Sample application of the RACK power supply unit.

www.pulsar.pl RUPS1612RP RACK POWER CCTV
3
CONTENTS:
1. Technical description.
1.1. General description
1.2. Block diagram
1.3. Description of PSU components and connectors
1.4. Specifications
2. Installation.
2.1. Requirements
2.2. Installation procedure
3. Operating status indication.
3.1. LED indication
3.2. Technical output
3.3. Acoustic indication
4. Operation and use.
4.1. Overload or short circuit of the PSU output
4.2. Battery-assisted operation
4.3. Maintenance
1. Technical description.
1.1. General description.
The RUPS1612RP buffer power supply unit is designed for uninterrupted power supply of up to 16 HD
cameras requiring stabilized voltage of 12V DC (+/- 15%). The PSU has two circuits: 1x4A/12V DC for supplying
the recorder and 16x0,75A/13,8V DC for both cameras. Current efficiency of the PSU amounts to:
Output current 16x0,75A + 4A recorder + 2A battery charge
Total device current + battery: 18A max.
In case of power decay, a battery back-up is activated immediately. The PSU is fitted with 16 outputs
protected independently with polymer fuse PTC 1A and the output for the recorder is protected with the 4A polymer
fuse. The power supply is fitted with the ALARM output of collective failure. In case of failure, relay contacts are
switched automatically, which is accompanied by acoustic and optical indication (the corresponding led goes on).
The power supply construction is based on the switch mode PSU with high energy efficiency and is located in an
enclosure adapted for mounting in standard RACK 19” cabinets.
1.2. Block diagram.

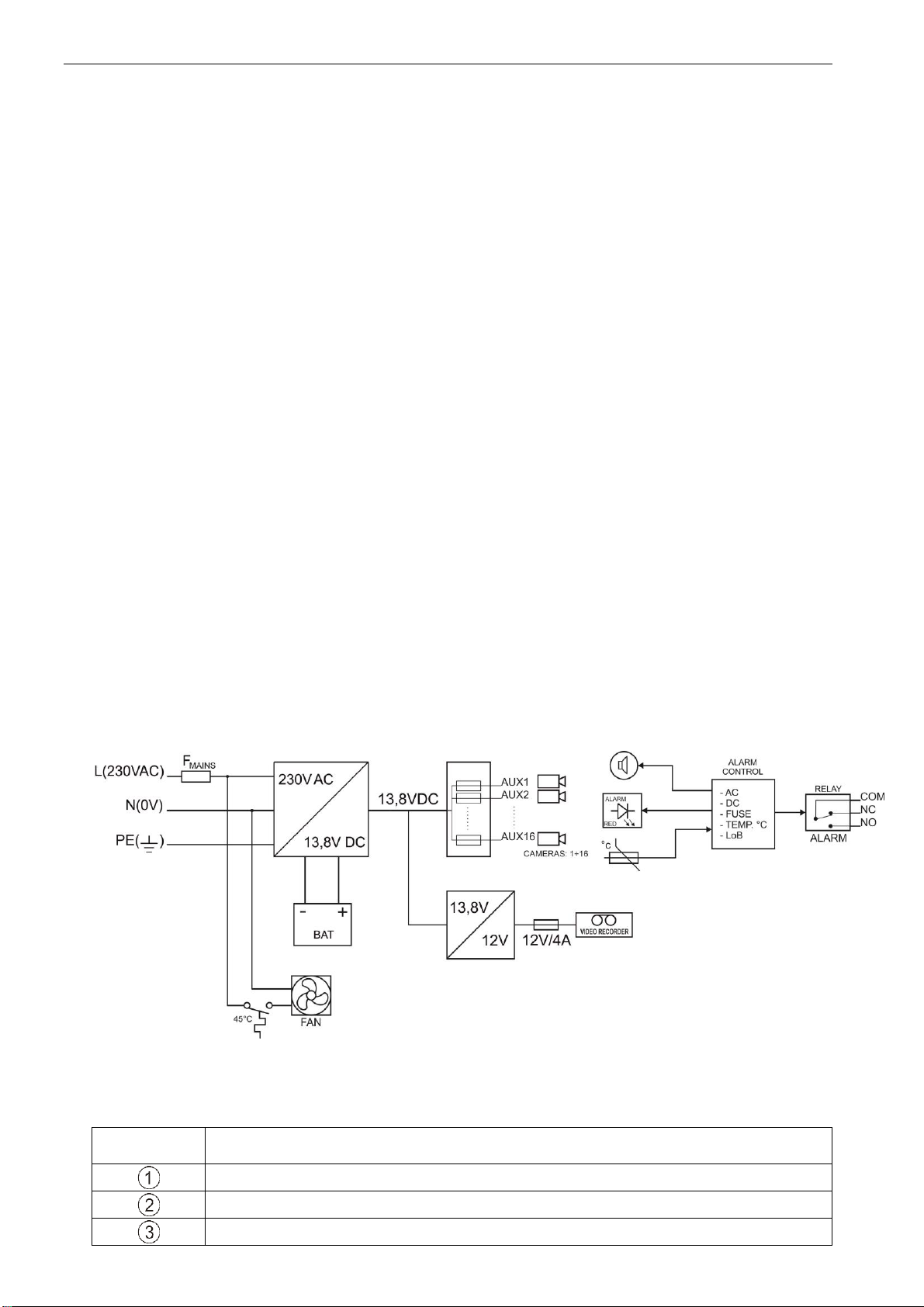

Fig.1. The block diagram of the PSU.
1.3. Description of PSU components and connectors.
Table 1. Elements of the PSU.
Element no.
[Fig. 2, 3]
Description
AC OK –green LED, indicating the presence of 230V voltage
DC OK –green LED, indicating the presence of DC voltage
TEMP –red LED, indicating too high temperature of the power supply (>70°C)

www.pulsar.pl RUPS1612RP RACK POWER CCTV
4
LoB –red LED, indicating too low battery voltage (<11,5V)
LED ALARM –red LED failure indication
Green LED AUX1 ÷ AUX16 –voltage indication at the AUX outputs
LED DVR –Green LED voltage indication at the DVR outputs
AUX1 ÷ AUX16 –independently protected outputs to cameras
DVR –independently protected outputs of the recorder
BAT –battery output
ALARM –technical output of collective failure –relay
BUZZER, micro switch, turning ON / OFF of acoustic indication
switch in the top position, indication ON
switch in the down position, indication OFF
FDVR, glass fuses in the recorder DVR (+) power supply circuits, F4A
230V AC INPUT, power socket 230V AC, power cable 1,5m included
FMAINS,fuse in the supply circuit 230V AC, T 6,3A/250V
Fig. 2. The front power of the power supply unit.
Fig.3. The view of the PSU.

www.pulsar.pl RUPS1612RP RACK POWER CCTV
5
1.4. Specifications.
- electrical parameters (tab.2)
- mechanical parameters (tab.3)
- operation safety (tab.4)
- operating parameters (tab.5)
Electrical parameters (tab. 2).
Mains supply
176÷264V AC
Current up to
1,3A@230V AC max.
Supply power
241W max.
Efficiency
82%
Output voltage AUX1÷AUX16 - cameras
Output voltage DVR - recorder
11V ÷ 13,8V DC – buffer operation
9,5V ÷ 13,8V DC – battery-assisted operation
12V DC –maintained regardless of the state of battery charge
Output current
16 x 0,75A + 4A recorder + 2A battery charge
Ripple
120 mV p-p max.
Battery charge current
(batteries 1x17Ah/ 1x28Ah/ 1x40Ah/ 1x65Ah)
2A max. (+/-5%)
Short-circuit protection SCP
cameras: 16 x PTC 1A, polymer fuse
recorder: 1 x F 4A, glass fuse
Overload protection OLP
Current consumption by PSU systems
105% ÷ 150% of the PSU power, automatic return
0,33A
Overvoltage protection OVP
>16V (activation requires disconnecting the load or supply for
about 20s.)
Battery circuit protection SCP and reverse
polarity connection
glass fuse 30A
Surge protection
varistors
Excessive discharge protection UVP
U<9,5V (+/-5%) –disconnect of connection battery
Optical indication of operation:
LED: AC, DC, TEMP, LoB, ALARM, AUX1÷AUX16
Acoustic operation indication:
Piezoelectric indicator ~75dB/0,3m
The ALARM technical output of collective failure
Relay type: 1A@ 30VDC/50VAC
The FMAINS fuse in the 230V power supply circuit
T 6,3A
FDVR fuse in the recorder power supply circuits
F 4A
Mechanical parameters (tab. 3).
Enclosure dimensions
W=19”, H=2U; 482 x 88 x 223 mm (WxHxD)
Fixation
four-point butt mounting to RACK profiles –the set include 4 M6 screws + cage nuts
Net weight
6,20kg / 6,60kg
Enclosure
Steel plate RAL 9005, black
Connectors
230V AC input: the IEC C14 socket with a fuse, power cable 2m
(included)
Outputs: ALARM, AUX1÷AUX16: Φ0,5-2,1 (AWG 24-12) 0,5-1,5mm2
Output DVR: Φ0,5-2,1 (AWG 24-12) 0,5-1,5mm2, power cable 2m (included)
Battery output BAT: 6,3F-2,5
Notes
Forced cooling (fan).
Operation safety (tab.4).
Protection class PN-EN 60950-1:2007
I (first)
Protection grade PN-EN 60529: 2002 (U)
IP20
Electrical strength of insulation:
- between input and output circuits of the PSU (I/P-O/P)
- between input circuit and PE protection circuit (I/P-FG)
- between output circuit and PE protection circuit (O/P-FG)
3000 V/AC min.
1500 V/AC min.
500 V/AC min.
Insulation resistance:
- between input circuit and output or protection circuit
100 MΩ, 500V/DC
Operating parameters (tab.5).
Environmental class
II
Operating temperature
-10ºC...+45ºC
Storage temperature
-20ºC...+60ºC
Relative humidity
20%...90%, without condensation
Vibrations during operation
unacceptable
Impulse waves during operation
unacceptable
Direct insulation
unacceptable
Vibrations and impulse waves during transport
According to PN-83/T-42106

www.pulsar.pl RUPS1612RP RACK POWER CCTV
6
2. Installation.
2.1. Requirements.
The PSU RACK shall be mounted by a qualified installer with appropriate permissions and qualifications for
230V/AC installations and low-voltage installations (required and necessary for a given country). The device shall
be mounted in confined spaces, according to the environment class II, with normal air humidity (RH=90% max.
without condensation) and the temperature from -10°C do +45°C.
During normal operation the total current consumption of the cameras cannot exceed
I=12A. Maximum current consumption of the recorder: 4A. Maximum battery charging
current is: 2A.
Total device current + battery: 18A max.
As the PSU is designed for a continuous operation and is not equipped with a power-switch, therefore an
appropriate overload protection shall be guaranteed in the power supply circuit. Moreover, the user shall be
informed about the method of unplugging (usually through assigning an appropriate fuse in the fuse-box). The
electrical system shall follow valid standards and regulations.
2.2. Installation procedure.
1. Before installation, cut off the voltage in the 230V power-supply circuit.
2. Mount the power supply in a RACK 19" cabinet as shown below:
- Mount M6 cage nuts
- Secure the enclosure with 4xM6 screws
3. Connect the receivers’ cables to the terminals AUX1...AUX16, DVR.
4. If needed, the following technical connections can be made:
- ALARM –technical output of collective failure
5. Connect the battery to the +BAT- terminals:
- battery output (+): terminal BAT+
- battery output (-): terminal BAT-
6. Connect the ~230V AC power cord with the IEC C13 plug (included) to the 230V AC power supply and turn on
the power (~230V).
7. Check the PSU operation indicator.

www.pulsar.pl RUPS1612RP RACK POWER CCTV
7
3. Operating status indication.
3.1. LED indication.
The PSU has 22 LED lights at the front panel:
GREEN LED:
on –the PSU is supplied with 230V AC
off –no 230V AC supply
GREEN LED:
on –DC voltage at the output of the switch mode PSU
off –no DC voltage at the output of the switch mode PSU
RED LED:
on –failure
off –no failure
RED LED:
ON –too high temperature of the switch mode power supply
(>70°C)
OFF –standard temperature of the switch mode power supply
RED LED:
on –battery voltage <11,5V
off –battery voltage >11,5V
GREEN LED:
on –DC voltage in the AUX1…AUX16 output
off –no DC voltage in the AUX1…AUX16 output
GREEN LED:
on –DC voltage in the DVR output
off –no DC voltage in the DVR output
3.2. Technical output.
The power supply is fitted with the ALARM output of collective failure (relay type). A collective failure can
be triggered by the following events:
- 230V AC mains power failure
- Activation of the PTC polymer fuse in the camera power supply circuit
- Activation of the FDVR glass fuse in the recorder power supply circuit
- Failure of the switch mode power supply
- Too high temperature of the switch mode power supply (>70°C)
- Low battery voltage (<11,5V)
Fig. 4. Electrical diagram of the ALARM collective output of failure.
CAUTION! In Fig.4 the set of contacts shows a potential-free status of the relay, which corresponds
to power supply failure.

www.pulsar.pl RUPS1612RP RACK POWER CCTV
8
3.3. Acoustic indication.
A collective failure is indicated by the piezoelectric indicator, 1 beep every second. The acoustic indication
can be turned off by changing the ON / OFF position of the switch .
switch in the up position, indication ON
switch in the down position, indication OFF
4. Operation and use.
4.1. Overload or short circuit of the PSU output.
The AUX1 ÷ AUX16 power supply outputs are protected against by polymer fuses PTC. In the case of
fuse activation, disconnect the load from the power supply output for approximately 1 minute. The DVR output of
the recorder is protected with a glass fuse; in the case of a fuse failure, it should be replaced with a fuse of the
same type).
4.2 Battery-assisted operation
In case of a main power outage, the device is immediately switched into a battery-assisted operation.
The PSU is equipped with the discharged battery disconnection system. During
the battery-assisted operation, reducing voltage below 9,5V at the battery terminals will
cause battery disconnection.
4.3 Maintenance.
Any and all maintenance operations may be performed following the disconnection of the PSU from the
power supply network. The PSU does not require performing any specific maintenance measures. In case of fuse
replacement, use a replacement of the same parameters.
WEEE LABEL
Waste electrical and electronic equipment must not be disposed of with normal household
waste. According to the European Union WEEE Directive, waste electrical and electronic
equipment should be disposed of separately from normal household waste.
CAUTION! The power supply unit is adapted for a sealed lead-acid battery (SLA). After the operation period it must not be disposed of but
recycled according to the applicable law .
Pulsar
Siedlec 150, 32-744 Łapczyca, Polska
Tel. [phone], Fax. [phone]
e-mail: [email protected], [e-mail]
http:// www.pulsar.pl, www.zasilacze.pl
