Pulse M DANA-7 User manual

Health Frequency Therapy Device
Instruction Manual

Precautions before use
•Make sure to follow the product instruction manual before opening or using
•Confirm whether the voltage is consistent
•Use the power plug that meet the specifications
•Do not connect the main power supply when the external equipment is installed on the body

Function
•1.It is detachable and compact
•2.It is high grade article and light
•3.It provides maximum benefits as an excellent programs can be
chosen
•in each mode
•4.It is possbile to upgrate programs and to install many other
programs
•5.Special feeling and special waveform
•6.It is possible for 4 people to use the product at the same time
•7.It has enhanced functions for the foot and each body part
•8.large numbers of programs are available in each system with
patented Doza

How to use:

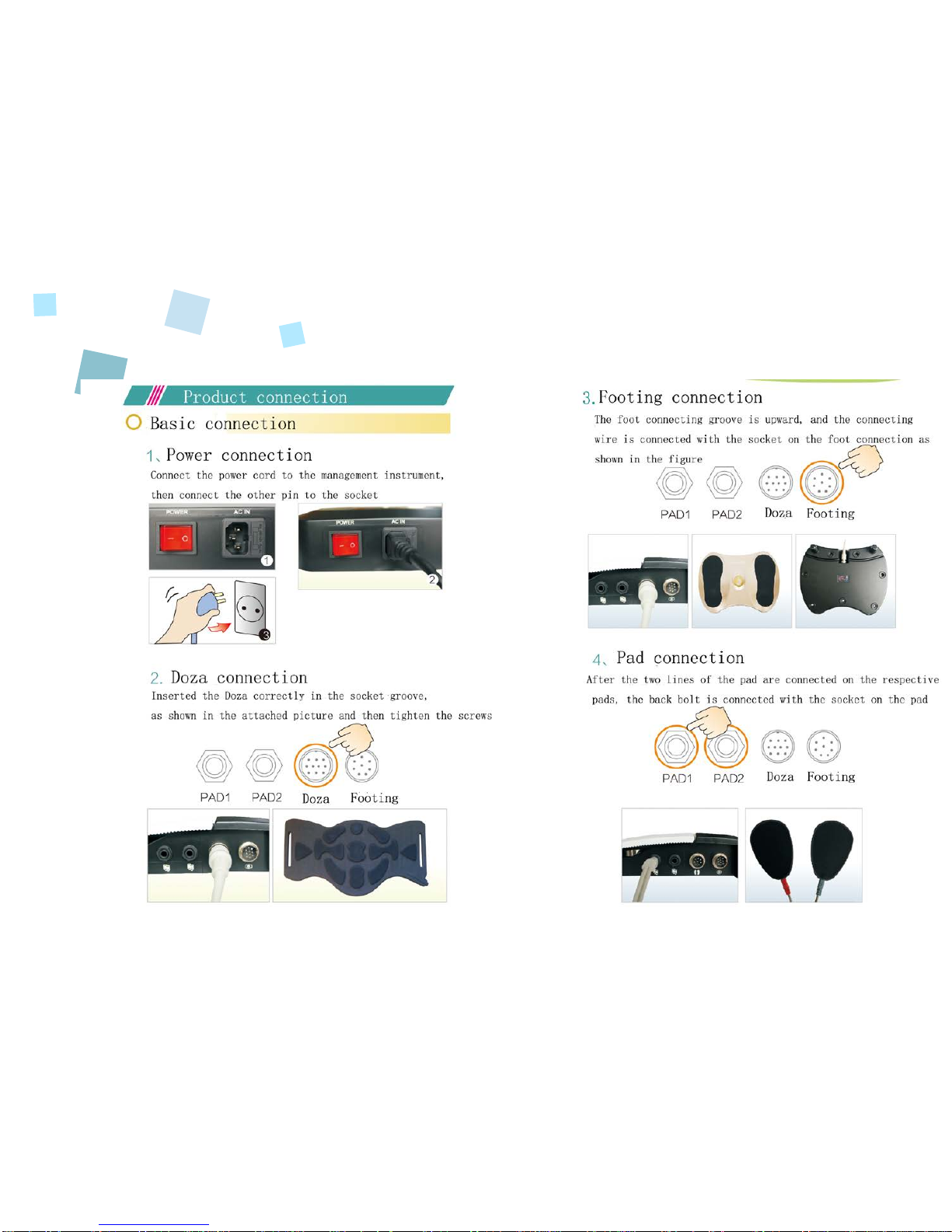

•1. Firstly, connect main body of stimulator with ceramic dosser and/or each pad.
•2. Attach ceramic dosser and/or each pad to each need area of your body after
•applying enough gel on the carbon surface of ceramic dosser and/or each pad
•3.Connect the power and turn the rear power switch on.
•4. Press [ON / OFF] button, and adjust the output of ceramic dosser and/or each pad.

Design and Concept
•It is designed as a high grade product and is easliy detached due to its smart structure.
•It is ergonomically degisned for the convenience of users
•It is designed to image a soft human body of “s”line shape when viewed from the behind or the sides of the
product
•It is designed to provide diversity of choice

Abdominal Doza
•It is ergonomically degisned to increase usage effects
•It increases treatment efficiency by computerizing the effect of therapy by each body part
•It contains new materials to increase therapeutic efficacy and enhance deodorant function
•It has patented system circuits inside to install many programs

Footing
•It is detachable for increased usability
•It has an external structure for lessA/S
•It increases wave transmission force and acupressure with the standing type therapy
•It maximizes treatment effects by using heat
•It increases the foot correction effect by excellent adhesion regardless of different foot sizes
•It increases usage effects with various output patterns

Operation master
Product composition

Name of product Health Frequency Therapy
Device
Name of model DANA-7
Voltage AC100-240V/50-60Hz/60W
Output wave Biowave
Maximum current 10mA(Auto-Control)
Size of the main body 330(L)×250(W)×60mm(H)
Size of the footing 350(L)×310(W)×35m(H)
Main Weight 2.1 Kg
Whole set weight 9Kg

Abdominal Doza Footing acupuncture patch
Patch for thigh patch for arm Cushion for urinary
system
Stick for reproductive
system Patch for cervical
vertebra
Patch for knee
pacth for
face
cupping
handles

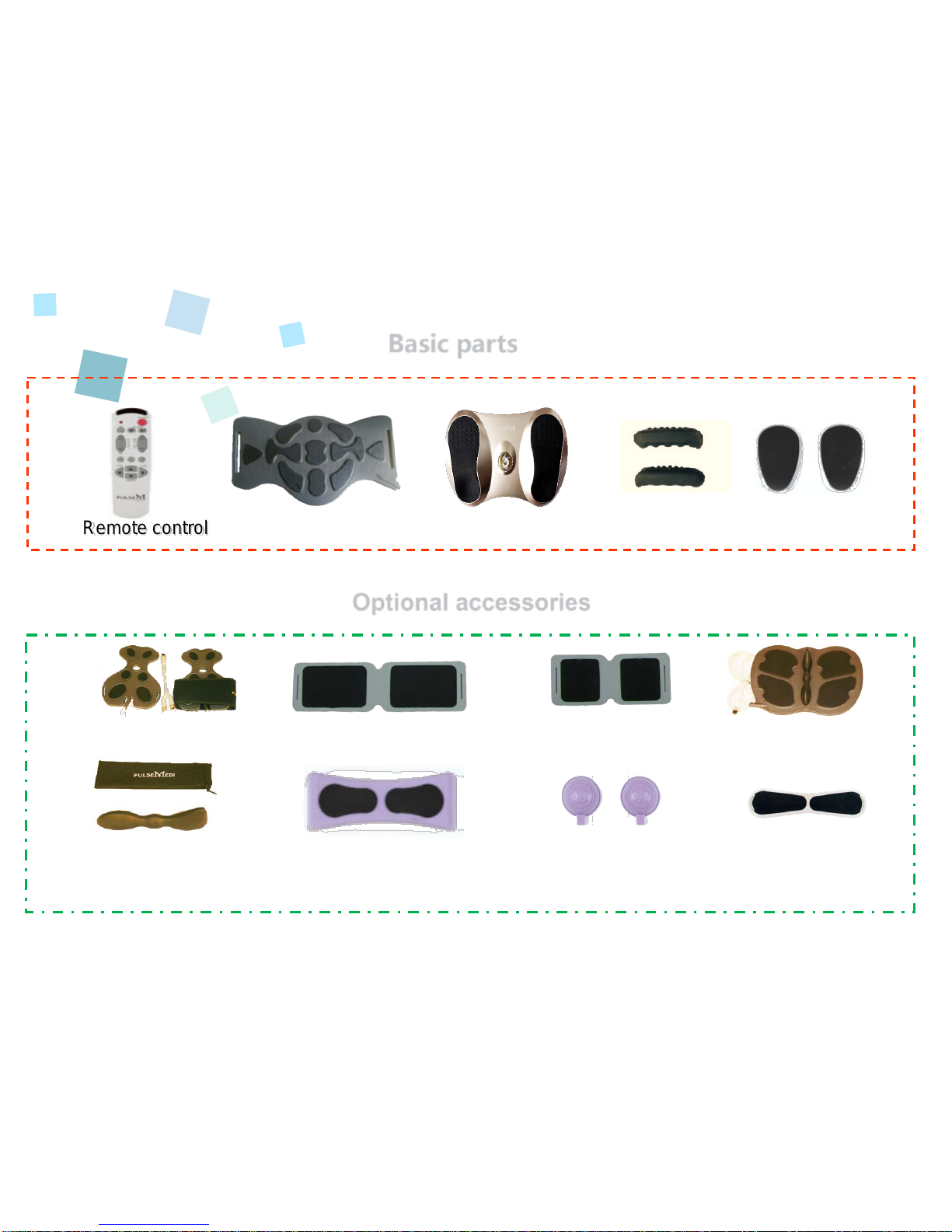

Optional accessories
Basic parts
Remote control

Operation interface instruction and usage
knob
ON/OFF Mode Doza
key Footing
key Time
setting key
Manual / Auto Key Thigh patch key
Arm patch key
Temperature key
display screen
Manual / Auto
sensor display
Program No Current mode
Doza pulse strength
Set time pulse strength Temperture
Thigh patch
pulse strength
Arm patch pulse strength

ON/OFF
Temperature adjustment
Doza intensity adjustment Footing intensity adjustment
Time adjustment
Intensity adjustment
for patch 1 Intensity adjustment for patch 2
Auto / manual
Program selection
Main power switch
Power socket
Footing gang
socket
Doza gang socket
Patch socket
Remote controller and socket instruction

Product usage
• 1.The main power from 0FF state changes into 0N state
•2.Touch the operating 0N/0FF button⑦to become 0N state
•3.Make sure that all output window(A-D) levels are 00 state
•4.Touch the button with a belt pattern on it, adjust the intensity to 1-20 by knob button. Then the window (A)
display output intensity
•5.Touch the button with foots pattern on it, adjust the intensity to 1-20 by knob button. Then the window (B) display
output intensity
•6.Touch the button with a pad1 pattern on it, adjust the intensity to 1-20 by knob button. Then the window (C)
display output intensity
•7.Touch the button with a pad2 pattern on it, adjust the intensity to 1-20 by knob button. Then the window (D)
display output intensity
• 8.Touch the button with a clock pattern on it, adjust the intensity to 1-20 by knob button. Then the window (D)
display remaining time
•9.Touch the button with a thermometer pattern on it, chose H, M, L grade. Then the window (E) display
corresponding temperature strength

•Time and temperature adjustment
•The temperature should be adjusted to an appropriate temperature before use
•The temperature can be adjusted to H, M and L three grade
•Time can be adjusted to 1-90 minutes, and can be extended or
•shorten according to the using time
•It will give an alarm once the set time come, and automatically cut off the output.All of the output intensity change
to 0.
•Knob usage
•If you press each function button, output light flashes, then you can rotate the knob to set the output intensity.
•Stop rotating the knob after about 5 seconds, the output light stop flashing.

Mode adjustment
•Different mode can be set by selecting program
•Program1:1-10 mode
•Program2:11-20 mode
•Program3:21-25 mode
Auto / manual setting
•Auto / manual buttons can be used to set automatic or manual
•Manual：can use the setting program continuously
•Auto:Automatic convert program according to the mode
•For example:When selecting program 1, 1-10 mode cycles automatically
After using
•After using,must press the ON/OFF key and turn off the main power switch. Wipe the gel of the Doza and footing
by wet towel.
•This is the best way to maintain the state of the product, please operate as required

After-Sales Service
After-sales service must go to the shop where to buy the product or service center to consult
Disassembly can not be arbitrarily disassembled products, if the non professional disassembly of any
decomposition of the product,
the company will not be responsible for the product after-sales service
Please go to the service center to consult or repair
Caution:
This product can be automatically converted to 90V-260V
However, when the voltage is changed, the fuse installed on the power socket must be replaced with the
standard voltage

•Fuse replacement method
•①Remove power plug
•②The power supply socket and fuse are integrated. The fuse is installed in the lower end of the power supply
socket.
•③Open the fuse box by a straight screwdriver
•④Replace the fuse as the picture below, let the power socket highlight the part up and push it in
•Remote controller battery replacement method
①Push the cover on the lower end of the Remote controller according to the direction of the arrow, and detach it.
②Install the battery according to the positive and negative electrode
※This product uses 2AA batteries
