Pulsed Harmonix True Pulse A2000 User manual

Restoring Wellness
One Pulse at a Time®
www.PulsedHarmonix.com
User’s Guide
TruePulse A2000
Relieve Pain
& Improve
Overall Health

2
Thank You ...
for your purchase of the
TruePulse A2000
TruePulse A2000
Device & Accessories
~
Mat
Mitt
Pouch
MCAC
Accessories fabric may vary.

3
TruePulse A2000,may be viewed on our website at:
http://pulsedharmonix.com/videos.
It is our sincere hope and expectation that you and/or your pet will
May the Pulse be with You!®
Thank you
for your purchase of the
TruePulse A2000
We take your well-being seriously. Before using the TruePulse A2000
(A2000), please read this User Guide carefully to ensure the correct use
of the A2000, and adherence to the important safety precautions listed
on Page 6.
After reading this Guide, be sure to store it in a safe place for future
reference.
~
A complete instructional video, on the set-up and uses for the
We encourage all device owners to visit the Pulsed Harmonix website:
http://pulsedharmonix.com, where you will find valuable PEMF
information: FAQ, testimonials, science, history, and links to clinical studies
at NIH’s (National Institutes of Health) PubMed website.
benefit from the powerful PEMF therapy that our product offers. We
welcome your comments, testimonials, and other communications.

4
“PEMF does not
treat a special condition.
Instead, it optimizes
the body’s natural
self-healing,
self-regulating
functions.”
Dr. Magda Havas
~

5
Table of ConTenTs
Page Number
6
7
8
9
10
11
12
13
13
14
14
Important Notice - Safety Precautions
PEMF Technology
Device Set-Up
Operating Instructions
TruePulse A2000 Protocols - Timer Controls
TruePulse A2000 Protocols - Intensity Controls
Frequently Asked Questions
Troubleshooting
Cleaning and Care
Liability and Warranty
Technical Information
Return Merchandise Policies 15
~

6
»Credit cards
»Cell phones
»Identification cards, or tags with magnetic strips
The A2000's powerful magnetic pulses
prohibit its use under the following conditions:
»Pregnancy
»Those with organ transplants
»Those with pacemakers, hearing aids,or other electrical implants/devices
NOTE: Non-magnetic metal rods, screws and plates, and MRI safe implants are safe
for PEMF use.
Remove metal chains, collars,and items that may contain magnetic
strips,or that may be electronically operated.
If the user is in frail condition, limit early exposure to 15 minutes per
therapy session for the first few days. Therapy times may be increased
according to user's preference.
Pulsed electromagnetic fields (PEMF) supports the natural elimination of
toxins. While beneficial, it is very important that you, and/or your animal,
drink a sufficient amount of water to assist this process.
Safety Precautions
»Car keys with electronics
»Computers & other electrical devices
NOTE: If you have a concern regarding your pet's microchip, we encourage you to
contact your vetinerarian and microchip supplier to address concerns.
NOTE: Some users may be more sensitive to PEMF. It is advised to begin with low
intensity for 15 minutes, and build up to levels and durations that comfortably
provide the desired outcome.
~
The TruePulse A2000 creates a powerful electromagnetic field that
extends approximately 3 feet, in all directions, from the A2000 applicators.
These powerful, therapeutic, magnetic pulses may erase some magnetic
strips on credit cards, as well as damage or disrupt electronics. It is
important to keep the following items at least 3 feet from A2000 applicators,
when in use:

7
The TruePulse A2000’s magnetic field is
View instructional videos on
the best uses of the PHx® Mat, Pouch,Mitt, and
Multi-Configuration Applicator Coil (MCAC) at:
http://PulsedHarmonix.com/videos
Unhealthy cells have low electrical
Unhealthy Cell
Nutrients can be
easily assimilated,
and eliminated.
Nutrient assimilation
and elimination are
greatly inhibited.
t
t
t
t
t
t
t
t
t
t
t
t
Healthy Cell
Stacked
Stagnant
Cells
Free
Flowing
Cells
PEMF Technology
Figure 1
Figure 3
Open channels also allow nutrients to be easily assimilated, and waste
Figure 2
~
produced by the current-carrying coil. The
MCAC loop configuration creates
powerful magnetic fields. These flow in a
circular motion in the same direction inside
and outside of the loop. Stacking multiple
loops, and placing them inside the PHx®
Mitt, as shown in our online videos, further
intensifies the field. (Figure 1)
charges, which cause them to become
sluggish and sticky. As the PHx®
electromagnetic fields pulse through the
body, sticky cells detach from one another,
and their ion channels open and close. This
increases the delivery of oxygen throughout
the body. (Figure 2)
eliminated, optimizing cellular health and performance. (Figure 3)

8
1. Each time the AC power cord is connected into an electrical outlet, it will be
necessary to press the Reset Button on the GFI (Ground Fault Interrupter) as
shown above. There is an audible snap when the GFI is engaged.
2. Connect the Multi-Configuration Applicator Coil (MCAC)
into the connector receptical on the back of the A2000.
(a) Line up the silver metal tab on the connector at the
end of the Applicator wire, with the screw located next to
the receptacle. Gently push each connector into the
A2000, and turn clockwise, until it snaps into place.
3.Turn on the A2000,and proceed to set session duration and intensity. To remove
the Connector from the back of the device, press and slide the silver metal tab
back and away from the A2000, turn counterclockwise, and gently pull apart.
TruePulse A2000
Reset Button
on the GFI
Connection at
the end of the
Power Cord
u
uu
Device Set-Up
3
2
Note 1: One of the Applicator
Connectors is marked with a red
dot that corresponds with a red
dot on the device. Line up these
dots to maintain consistency of
the therapeutic effects.
Note 2: For Mitt MCAC - Prior to
connecting the coil to the device,
configure the coil to create the
desired shape and size as shown in
the PHx® website video, "How to use
the TruePulse A2000".
Device Connector
Instructions
Power Switch
(On/Off)
Applicator
Connectors
u
1
~

9

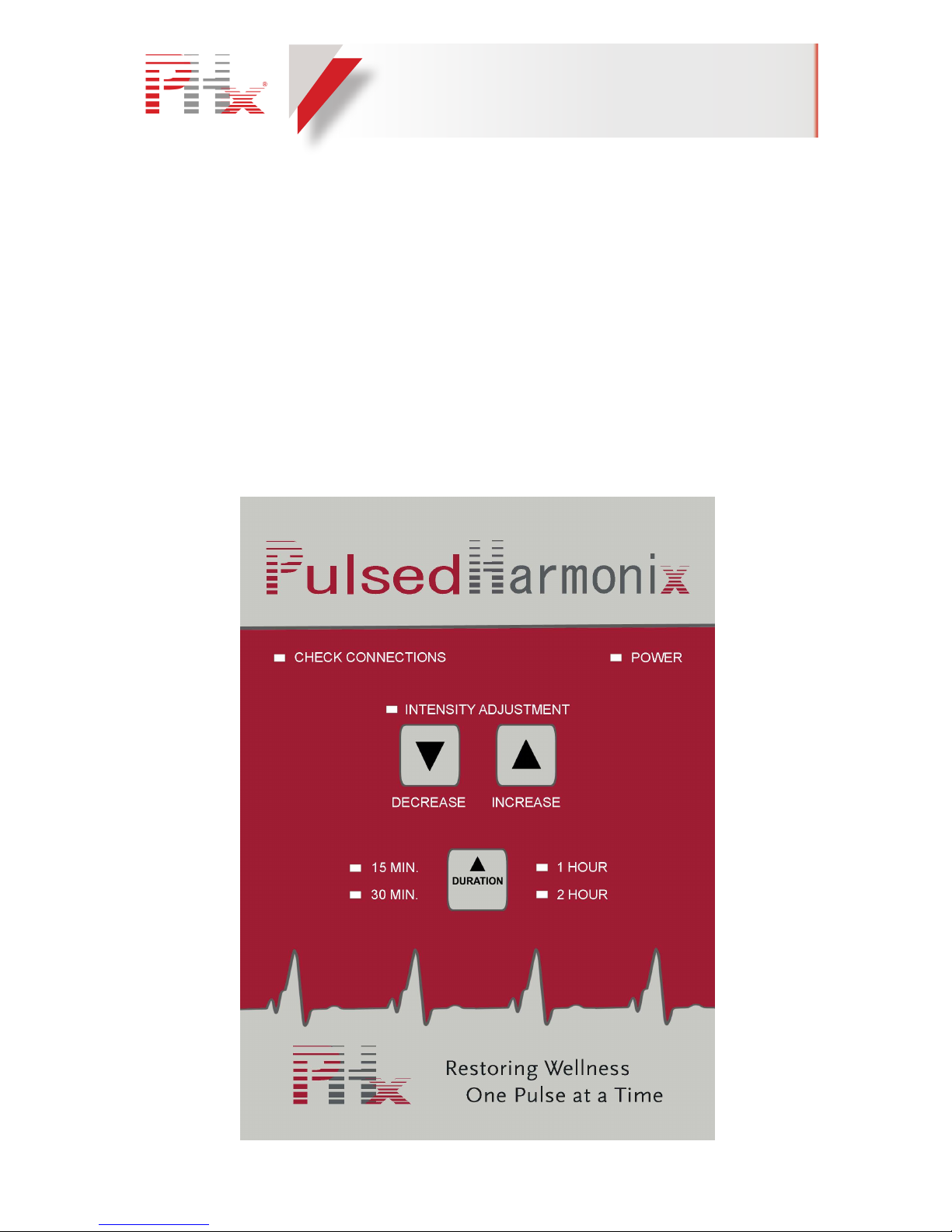

Check
Connections Light
Intensity
Indicator Light
Decrease Intensity
(Increases PPS)
Therapy Duration
Indicator Lights
(See Page 10 for
Timer Durations)
Power
Indicator Light
Increase Intensity
(Decreases PPS)
Increase Duration
of Therapy
(15 minute increments)
p
p
p
p
p
t
t
t
t
p
Session Set-Up
Procedure
The TruePulse A2000’s design allows users to explore a variety
of therapy durations,and intensity settings,to accommodate
various conditions, or heath maintenance regimens.
Important: The duration (length of session) must be
selected before choosing the desired intensity setting.
1.
2. Press the Duration button to set one of the 15 therapy Duration lengths.
Each time the Duration button is pushed, 15 minutes is added to the
session time, up to 3 hours and 45 minutes. The next press of the Duration
button returns the A2000 to its default standby setting, with all 4 lights off.
2
1
(See Page 11 for instructions.)
Stop and restart the session, or start a new session, at any time,
by toggling the On/Off button on the back of the A2000.
Operating Instructions
Press the Up/Down Intensity Adjustment bottons to adjust the intensity/
pulses per second (PPS).
~

10
Device Protocols
1st Setting - Session Duration Options
Figure 4
~
The TruePulse A2000 allows you to tailor therapy session duration and
intensity to suit your needs. If you would like to extend or shorten therapy
duration, you are in control of the settings. Discover what is best for you!
The A2000 has 15 therapy duration selections, from 15 minutes to 3 hours and 45
minutes, in 15 minute increments. (Figure 4). For the first few sessions, the
recommended therapy duration is 15 to 30 minutes, twice a day. Then the user
may choose their desired intensity, and session duration.
Press the Duration button to set one of the 15 therapy time lengths. Each time the
Duration button is pushed, 15 minutes is added to the session time, up to 3 hours
and 45 minutes. The next click returns the device to its default standby setting.

11
Device Protocols
What the A2000 pulse delivers...
The A2000 makes a clicking sound with each pulse.
(Figure 6)
To increase intensity, press the Increase Arrow Button up to 13 times. The fewer the
Intensity
Indicator Light
Decrease Intensity
(Increases PPS)
Increase Intensity
(Decreases PPS)
t
t
t
2nd Setting - Intensity Controls
Each pulse contains a spectrum of frequencies. This spectral
Figure 5
Figure 6
~
The TruePulse A2000 has 14 intensity pulse settings, which are controlled by
the Up/Down Buttons. (Figure 5). By default, each time the A2000 is turned on,
and session time is selected, it will begin operating at the A2000's lowest intensity
setting of approximately 28 pps (pulses per second).
PPS, the higher the intensity will be. To decrease intensity, press the Decrease
Arrow Button. The blue Pulse Activity Light flashes in synchrony with the pulse.
Each pulse sends a brief, very intense, current in the
Applicator coil, resulting in a rapid transitioning,
electromagnetic wave. The PEMF energy delivered by
the A2000 is constant, and is divided over the pulses per
second. The highest intensity pulse is about 50 times
more intense than the lowest intensity pulse, since the
pulse rate of 28 pps is about 50 times the 0.54 pps rate.
band, plus the pulse intensity, create the coupling and penetrating mechanism of
PHx®’s technology into cells and tissue. Research shows that PEMF therapy
stimulates a critical process called myosin phosphorylation, which produces ATP
(Adenosine Triphosphate), an energy-bearing molecule found in all living cells. ATP
fuels the body’s immune system, cell reproduction, circulation, respiration, organ
function, locomotion, and oxygen/nutrient assimilation. It is recommended that a
range of intensities be explored during individual sessions. This may enhance the
PEMF’s efficacy for various conditions.

12
What research supports claims that PEMF (Pulsed Electromagnetic Field)therapy
devices have a positive impact on human, and animal, health and well-being?
Thousands of studies on PEMF have been conducted by NASA, NIH (National
Institutes of Health), and other institutions around the world. A comphrensive
collection of these studies can be found at PubMed, a website of the NIH. These
studies set the stage for the development of increasingly advanced PEMF
devices. www.ncbi.nlm.nih.gov/pubmed/?term=pulsed+fields
Is PEMF safe for human and animal use?
Yes. In general, many studies support the safety and efficacy of PEMF therapy.
When will results from thrapy sessions be noticeable?
Individual responses will vary. Many users report noticeable results shortly after one
15-minute session, while others require more. Approximately 50% of the volunteers
who used the TruePulse A2000 therapy device, reported at least 60% pain
reduction in their 15-30 minute session. For persistent conditions, frequent, and
regular use, is recommended for longer lasting results.
How long will the results last?
The duration of results depends on the user in question, and the reason PEMF
therapy is being used. For some, the results last a day or two. For others, results
can last weeks, or indefinitely. We advise that you keep a symptom journal, and
note how long the results last, so that you can develop a personalized therapy
schedule.
Who should use a PEMF device?
Humans and/or their pets who are:
» Experiencing or showing indications
of painful conditions
» In need of improved circulation
» Recovering from an injury
» In need of improved wellness
» Desiring improvement and
maintenance of overall health
Who should NOT use a PEMF device?
Frequently Asked
Questions
Those with the following conditions:
» Those with pacemakers, hearing
» Pregnancy
» Organ transplant recipients aids, or other electrical impants/
devices
~

13
• Recovering from an injury
• In need of improved wellness
• Desirous of maintaining health
and extend life
Power On/Off
Button is in "On"
position,but the
Power indicator
does not light up.
PROBLEM POSSIBLE CAUSE FAULT REMOVAL
Power cord is not rmly
connected, or there is no
power in the wall outlet.
Reset button has not
been pressed,or power
supply cord is damaged.
Check that plug
connection is secure,
and there is power in
the wall outlet.
Press Reset button
on power cord GFI.
There is no power
in the wall outlet.
The Applicator
connectors are not secure
in the recepticales.
Duration and intensity
settings have not been
activated.
Session may be nished.
»Wipe the coil with a soft, clean, cloth, moistened with 70% isopropyl alchohol
or hydrogen peroxide,before and after each use.
»Use only a soft,dry cloth to clean the body of the A2000.
»Do not expose the TruePulse A2000 to extreme temperatures, humidity,
or direct sunlight. Never use the device in, near, or around any liquid.
Care & Cleaning
The Check Con-
nections light is
red, versus blue.
One, or both ends,of the
Applicator connectors
are not correctly
attached to the A2000.
Turn off the A2000,
and reconnect the
Connectors to the
back of the A2000.
Turn the A2000 off,
press the Reset
button on the GFI,
and reconnect the
Connectors to the
back of the A2000.
Press Duration button
to begin session, then
select desired
intensity setting.
TroubleShooting
Applicator is not
emitting a pulse.
Do not use any abrasive cleanser,and never submerge the TruePulse A2000
~
device, MCAC coil, Pouch, or Mat, into water, or any other liquid. The Mat
cover and Mitt/Pouch should be washed and dried on gentle/low cycles.

14
Liability & Warranty
phx®shall not be liable in any manner for bodily injury and/or property damage
arising from the use of the TruePulse A2000, including all phx® accessories.
________________________________________________________________________________
Technical Information
Operating environment: - 17oC to 40oC (0oF to 104oF)
Storage Environment:
Dimensions:
-20oC to 50oC (-4oF to 122oF)
W - 6.2" D - 7.83" H - 4.72"
Weight:
W -157.5 D - 199 H -120 mm
4.6 lbs (2.086 kg)
Important: Please enter equipment and purchase details below:
Serial Number: ______________________________________________________________
Date of Purchase: __________________________________________________________
p ulsed harmonix, LLC, ( phx® ) TruePulse A2000, and its Applicators are
guaranteed to operate for a period of 24-months from the date of purchase, when
used in accordance with the instructions provided herein. Damage due to misuse
or abuse, are not covered by this warranty. Warranty is null and void if the device
has been opened, or the device has been tampered with in any way.
~

15
Return Merchandise
Policies
All returned merchandise must be accompanied by a Return Merchandise
Authorization (RMA) number. Please call us to request an RMA at: 1.855.749.7363.
RMA numbers must be requested prior to the expiration of warranty.
Defective Merchandise:
• May be returned for exchange or refund, within 24-months of the delivery
date, after obtaining an RMA number.
•If you received incorrect or damaged merchandise, we will provide you
with a pre-paid label,for return shipping.
• All paperwork, including warranties and instructions, must be returned along
with the original packaging. Place the manufacturer’s box into a shipping
box (plastic bags are not sufficient packaging). DO NOT put any stickers,
labels, tape, or marks on the original manufacturer’s packaging.
Non-Defective Merchandise:
•May be returned, if not satisfied, within 30 days of the delivery date, after
obtaining an RMA number.
•Returns are subject to a restocking fee.
• Must be returned in new,and resalable condition,in the original
packaging. Items damaged, or showing signs of wear, are not returnable.
Missing items will be subject to additional charges.
•All paperwork, including User Guide, must be included,along with the original
packaging. Place the manufacturer’s box into a shipping box. DO NOT put
any stickers, labels, tape,or marks on the original manufacturer’s packaging.
•Freight charges incurred, due to returned merchandise, are the responsibility of
the customer. We recommend that you use FedEx or UPS, with insurance, for
returns. PHx®cannot be responsible for lost or damaged packages.
Return Procedure:
•Call us at 1.855.749.7363 and request a Return Merchandise Authorization
(RMA) number. We will need the following information:
»Purchaser or business name, account number,and invoice number.
»Product serial number.
»Reason for return. If defective, describe specifically what is wrong.
~

16
Pulse A2000
»Inflammation
»Back pain
»Joint pain
»General injuries
Or, if you just want to
improve and maintain
health, performance,
and wellness, then...
Discover the
Healing Power
of our
If you or your pet
suffer from:
O: 855.749.7363 F: 303.720.7222
E: [email protected] | www.PulsedHarmonix.com
Restoring Wellness
One Pulse at a Time®
True
An FDA Class 1 Medical Device
PHM-0000011 Rev E
