PUPPYOO WP511 User manual

WP511
Instruction Manual

CONTENTS
1.Safety Notice 01
2.Components List And Picture 03
3.Brief Introduction 04
4.Product Assembly 05
5.Product Clear Up 07
6.Trouble Shooting 09
7.Parameter 10

Safety Notice
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the
following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE), Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
WARNING
To reduce the risk of fire, electric shock, or injury:
1. Do not use outdoors or on wet surfaces;
2. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets
or plants;
3. Use only as described in this manual. Use only manufacturer’s recommended attachments;
4. Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped,
damaged, left outdoors, or dropped into water, return it to a service center;
5. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp
edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces;
6. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord;
7. Do not handle charger, including charger plug, and charger terminals with wet hands;
8. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint,
hair, and anything that may reduce air flow;
9. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts;
10. Use extra care when cleaning on stairs;
11. Do not use to pick up wash detergent, Kerosene, broken glass, needle, wet dust, sewage, etc.
Flammable or combustible liquids, such as gasoline, or use in areas where they may be present;
12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes;
13. Do not operate the vacuum cleaner too close to heaters, radiators and other hot surface;
14. Do not use without dust cup and filters and brush roller in place;
15. Never operate with blocked air inlet or blocked floor brush roller when using, or it may cause
burned motor;
16. Do not immerse the body of vacuum cleaner into water as this would increase short circuit and
burned model;
17. New appliance first or long time stocked running, appliance must be fully charged. Long time no
using, please keep charge/release electric per 3 months;
18. Use dry cloth to clean the appliance and do not use petrol, lacquer thinner etc. Or surface of
model is easy to be cracked and color fading;
01

19. Prevent unintentional starting. Ensure the switch is in the off-position before picking up or
carrying the appliance. Carrying the appliance with your finger on the switch or energizing
appliance that have the switch on invites accidents;
20. Recharge only with the charger specified by the manufacturer. A charger that is suitable for
one type of appliance may create a risk of fire when used with another appliance;
Charger model: YLJXA-T230050 from Dongguan Yinli Electronics Co., Ltd.
21. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help;
Liquid ejected from the battery may cause irritation or burns;
22. Do not use an appliance that is damaged or modified. Damaged or modified appliance and
batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury;
23. Do not expose an appliance to fire or excessive temperature. Exposure to fire or temperature
above 130°C may cause explosion;
24. Follow all charging instructions and do not charge the appliance outside of the temperature
range specified in the instructions. Charging improperly or at temperatures outside of the
specified range may damage the appliance and increase the risk of fire;
25. Have servicing performed by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the product is maintained;
24. Do not modify or attempt to repair the appliance except as indicated in the instructions for
use and care;
27. This vacuum cleaner can not be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and knowledge
unless they have been given supervision or instruction concerning use of the vacuum cleaner in
a safe way and understand the hazards involved. Children should not play with the vacuum
cleaner. Cleaning and user maintenance should not be made by children without supervision;
28. Environment Requirements:The appliance should be stored and used and charged only in
the temperature range of 10-40°C;
29. Risk of injury. Brush may start unexpectedly. Remove the main body before cleaning or
servicing.
30. Always turn off this appliance before connecting or disconnecting motorized nozzle.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
02

Small Cleaning Brush
2 in 1 Flat Nozzle
Components List And Picture

Handheld part
Bolt Suit
Machine Body
Power Charger

ON/OFF Button
Suction Control Button
Push Rod Accessory Holder
Release Button of
Handheld Vacuum Cleaner
Machine Charging Port
Handheld
Vacuum Cleaner
Powerful
Cleaning Brush Dirt Searchlight
Dust Container
Release Button
LED Charging
Indicator Light Handheld Vac.
ON/OFF Button
Machine Charging Port
Air Outlet
Machine Charging Port
Dust Container
Machine Body
Handheld Vacuum Cleaner
Brief Introduction

Product Assembly

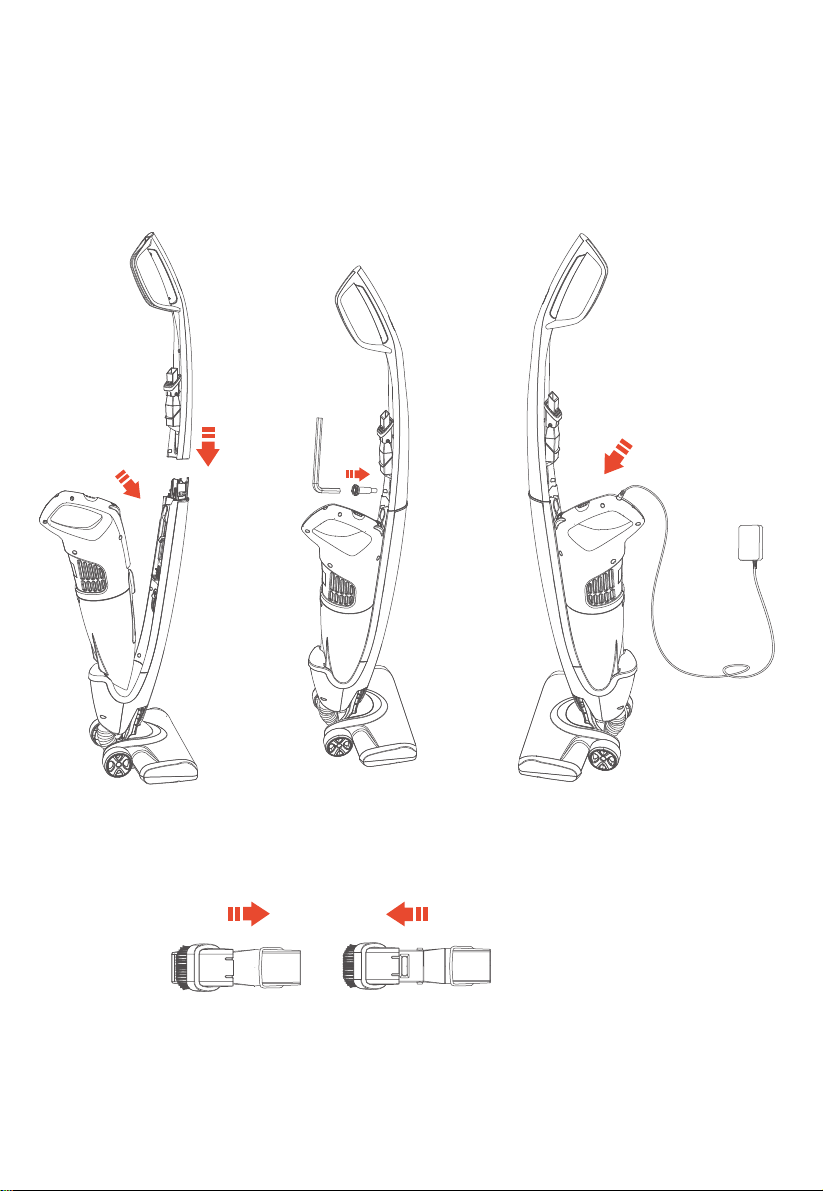

1. Insert the upper side of the push rod into the joint position of the lower side.
2. Put the bolt into fixing hole, make it tightening with a wrench. (as shown in figure).
Note: Please keep the wrench well

1). Before using the machine, please check the power of
the machine is enough or not. Initial charge is 5 hours,
charging will be required before first use. Please choose
suitable accessory according to your needs. (For details
see “Two-in-one Flat Nozzle Operation”)
2). Operation as an Upright Vacuum Cleaner:
The ON/OFF button is on the handle, press the button
can control the suction power.
The state of the LED charging indicator light respectively
corresponds with the power high, middle, low. (As shown
in figure )
3). Operation as a Handheld Vacuum Cleaner:
Hold the handle of the machine with one hand, press the
handheld release button with the other hand, lift to
remove the handheld from the main body. (As shown in
figure )
Remove the flat nozzle, insert it into the handheld (As
shown in figure )
Push the ON/OFF switch forward to switch the
handheld on. (As shown in figure )
Product Clear Up

Trouble Shooting
09
Trouble The vacuum cleaner doesn’t work
Reasons Solutions
1.The switch button of the machine is not
turned on;
2.Use too long, or continue to use after the
blockage caused high temperature rise,
temperature control automatically cut off the
power to protect motor.
1. Turn on the vacuum cleaner;
2. Turn off the switch, unplug the power plug,
wait 30 minutes after cleaning the blockage,
re-use.
Trouble Suction Weakened
Reasons Solutions
1.Brush is blocked;
2. The dust in the dust container is full;
3. The filter or cotton filter is blocked.
1. Remove obstructions;
2. Clean up dust with the dust container in time;
3. Remove the blockage.
Trouble The motor has abnormal noise while working
Reasons Solutions
Brushes may have objects stuck or blocked. Immediately stop using, clean up the blockage.

“ ” DIRECT CURRENT SYMBOL
10
Tips
PUPPYOO will make upgrade and adjust to the product and prints from time to time(Including
but not limited to product details, product configuration, product color, product box and
manuals that are conducive to optimizing the consumer experience), And reserves the right to
make changes without notice, the final interpretation of the right to the scope of the law belong
to PUPPY ELECTRONIC APPLIANCES INTERNET TECHNOLOGY (BEIJING) CO., LTD.
Dust Capactiy: 0.4L Input Voltage: 23V N.W.: 2.8kg
Rate Voltage: 18V Rate Power: 110W G.W.: 4.0kg
Input Current: 500mA Product Size: 1100*270*250mm
Note: This cleaner is powered by battery pack, with 18V direct current.
Parameter

Address: 6F, Aoya Building,169# Beiyuan Road,Chaoyang District, Beijing,China.
TEL.: [phone]
Email: [e-mail]
Zip Code: 100101
Puppy Electronic Appliances Internet Technology Beijing Co., Ltd.
Made in China
