Puralytics Shield 1500 User manual

Shield 1500
Photochemical Water Purification System
Installation, Operation and Maintenance
Manufactured in the USA by:
2827 SE 75th Avenue, Hillsboro, OR 97123 USA
t. +1.503.616.2652 |e. [e-mail]
www.puralytics.com
Copyright © Puralytics – 2017
All rights reserved.

Shield 1500 Owner’s Manual
DOCXXX Rev 1 ©Puralytics 2017 Page 2
CONGRATULATIONS,
You have purchased a Puralytics Shield 1500
Photochemical Water Purification System. By
purchasing this system, you have taken the first step
in ensuring the safety of your water supply. Your
Shield 1500 system uses advanced nanotechnology
and is designed to provide you with years of trouble-
free operation with minimal maintenance required.

Shield 1500 Owner’s Manual
DOCXXX Rev 1 ©Puralytics 2017 Page 3
Table of Contents
Symbols .............................................................................................................................................. 4
Parts of the System......................................................................................................................... 5
Parts of the System......................................................................................................................... 6
Parts of the System......................................................................................................................... 6
System Components..................................................................................................................................8
Accessory and Replacement Parts List ..............................................................................................8
Safety Instructions ......................................................................................................................... 9
Facility Requirements.................................................................................................................11
Chapter 1: System Overview ....................................................................................................12
Chapter 2: Installing Your Shield 1500 ................................................................................14
Unpacking and System Inspection.................................................................................................... 14
System Setup ............................................................................................................................................ 16
Water Connections .............................................................................................................................................16
Electrical Connections.......................................................................................................................................17
Pre-Startup Testing................................................................................................................................ 17
Chapter 3: System Start-Up ......................................................................................................17
Chapter 4: System Operation...................................................................................................18
Operating Procedures........................................................................................................................... 18
Maintenance Items................................................................................................................................. 18
Chapter 5: Cooling Fan Maintenance ....................................................................................19
Chapter 6: UVC Lamp Use and Maintenance.......................................................................20
Chapter 7: 20-inch NanoMesh Cartridge Maintenance...................................................24
Chapter 8: Other Maintenance .................................................................................................26

Shield 1500 Owner’s Manual
DOCXXX Rev 1 ©Puralytics 2017 Page 4
Symbols
Caution:This symbol indicates that you need to pay attention to a
potential hazard to your personal safety or to the safe operation of the
system.
Electrical Warning:This symbol indicates that a potential hazard
to your personal safety exists from a voltage source within the system.
Fragile: This symbol indicates that there is glass in this assembly
and special care needs to be taken to prevent breakage.
WEEE (Waste Electrical or Electronic Equipment): This symbol
indicates that you should not discard wasted electrical or electronic
equipment (WEEE) in the trash. For proper disposal, contact your
local recycling/reuse or hazardous waste center.
All occurrences of “Shield 1500” within this document refer to the “Shield
1500” system.

Shield 1500 Owner’s Manual
DOCXXX Rev 1 ©Puralytics 2017 Page 5
Parts of the System
Sump with 20-
inch NanoMesh
Cartridge
Access Door
Figure 1. System with access door open

Shield 1500 Owner’s Manual
DOCXXX Rev 1 ©Puralytics 2017 Page 6
Parts of the System
Wall Mount Bracket
Pressure Release
Button
UVC Lamp
Water Outlet
Connection
Water Input
Connection
UVC Lamp
Status Light
Figure 2. Top views of Shield 1500

Shield 1500 Owner’s Manual
DOCXXX Rev 1 ©Puralytics 2017 Page 7
Parts of the System
Power Switch
AC Fuse
Power Receptacle
Figure 3. Side view of Shield 1500 base

Shield 1500 Owner’s Manual
DOCXXX Rev 1 ©Puralytics 2017 Page 8
System Components
These components should arrive with the Shield system:
•Shield 1500
•Power Cord

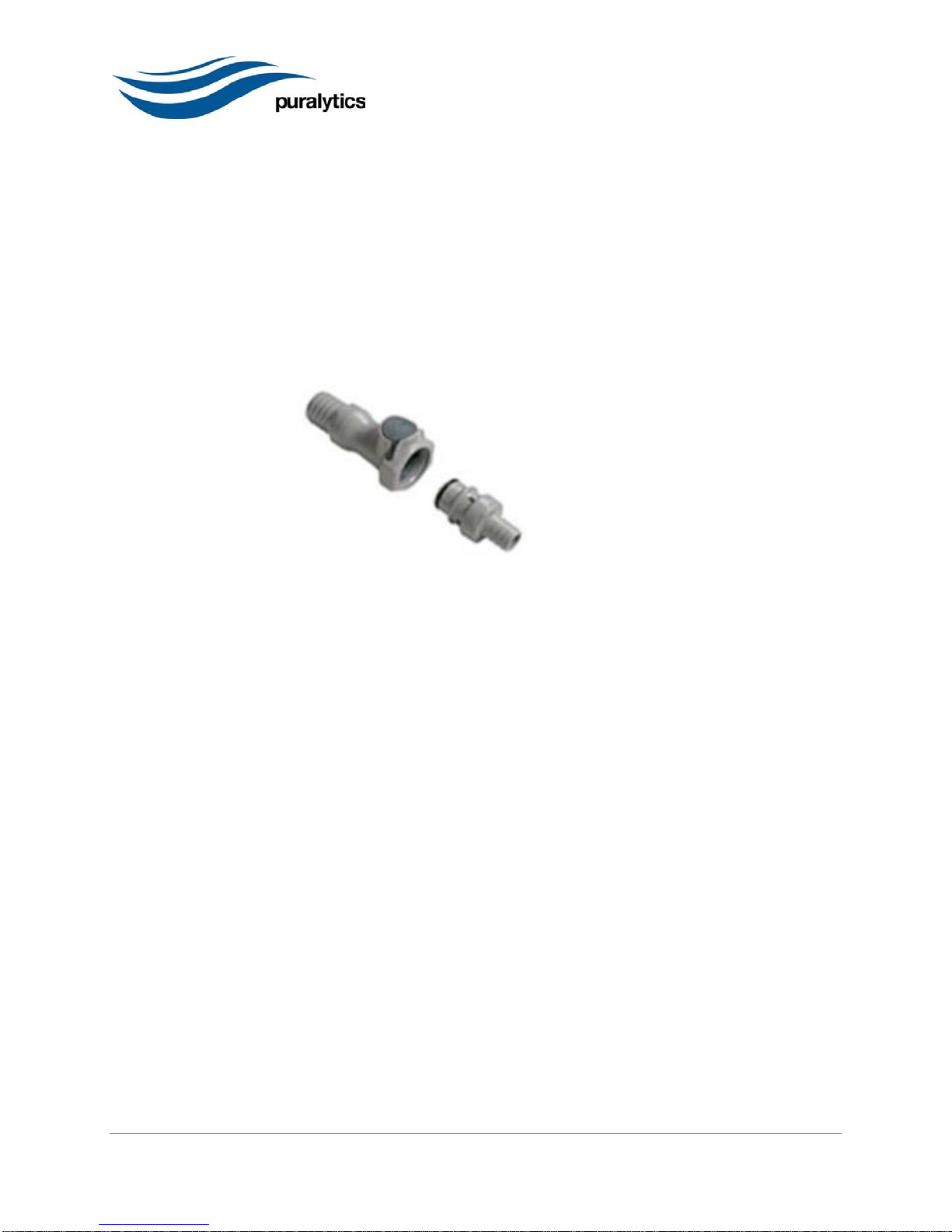

•Water Input and Output hose fittings for 3/8” hose
Accessory and Replacement Parts List
Additionally, parts are available for purchase as accessories or replacements:
•Replacement 20-inch NanoMesh Cartridge
•Sump spanner wrench
•Replacement UVC Lamp
•Replacement Quartz Sleeve (includes two O-rings)
•AC Fuse (beyond the spare already included in the fuse holder; see Chapter
8)
•Adpating/additional hose/pipe fittings; hose/pipe
A Puralytics pretreatment system is required in most situations to provide filtration
and ion exchange/softening. The pretreatment system is not addressed in this guide.

Shield 1500 Owner’s Manual
DOCXXX Rev 1 ©Puralytics 2017 Page 9
Safety Instructions
WARNING – to guard against injury, basic safety precautions should be observed,
including the following:
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
2. CAUTION – Always disconnect power before servicing.
3. CAUTION – To avoid possible electrical shock, employ a three-wire
electrical cable and plug to connect the equipment to EARTH GROUND. Ensure the
wall outlet receptacle is properly wired and connected to EARTH GROUND. DO
NOT use a three-to-two wire plug adapter. DO NOT use a two-wire extension cord
or a two wire multiple-outlet power strip. DO NOT remove any panels – panels
should be removed only by qualified service personnel. Never yank the cord to
remove from an outlet; grasp the wall plug and pull to disconnect.
4. Always unplug the Shield 1500 system before performing any cleaning
or maintenance activities, including opening the top access door on the unit for any
purpose. Always assure the system has been completely reassembled, including
closing the top access door, before re-connecting power cord to outlet.
5. Do not operate the Shield 1500 without a 5mmx20mm Slo-Blo or T-Lag
fuse installed in the fuse folder. Fuse current ratings must be selected for
compatibility with the operational input voltage and be within the range of 100-250
VAC RMS:
•For supply voltages in a 100-127 VAC range, a fuse rating of 10A is required
(Littelfuse P/N 0477010.MXP or equiv.)
•For supply voltages in a 200-250 VAC range, a fuse rating of 5A is required
(Littelfuse P/N 0477005.MXP or equiv.)
•For other supply voltages, contact Puralytics for acceptable fuse ratings.
6. DANGER – To avoid possible electric shock, special care should be
taken since water is present near electrical equipment. Unless a situation is
encountered that is explicitly addressed by the provided maintenance and
troubleshooting sections, do not attempt repairs yourself – refer to an authorized
service facility.
7. Do not operate the Shield 1500 system if it has a damaged power cord
or plug, if it is malfunctioning, or if it has been dropped or damaged in any manner.

Shield 1500 Owner’s Manual
DOCXXX Rev 1 ©Puralytics 2017 Page 10
8. Do not use this water purification system for other than intended use
(potable water applications). Use of attachments not recommended or sold by the
manufacturer / distributor may cause an unsafe condition.
9. Intended for indoor use only. Do not install this water purification
system where it will be exposed to the weather or to temperatures below freezing.
Do not store this system where it will be exposed to the weather. Do not store this
system where it will be exposed to freezing temperatures after it has been in service.
10. Read and observe all the important notices and warnings on the UVC
disinfection system.
11. If an extension cord is necessary, a cord with a proper rating should be
used. An extension cord, if used, must be rated for equal or higher power than the
systems rating or it may overheat. Care should be taken to arrange the cord so that
it will not be tripped over or pulled. Circuit breaker must not exceed the power cord
current rating (e.g., 15A for North American NEMA 5-15P).
12. Some blue light will be visible outside the Shield 1500 during normal
operation. THIS BLUE LIGHT IS NORMAL (when water is flowing) AND DOES
NOT POSE AN EYE HAZARD TO THE USER.
SAVE THESE INSTRUCTIONS.

Shield 1500 Owner’s Manual
DOCXXX Rev 1 ©Puralytics 2017 Page 11
Facility Requirements
The Shield 1500 water treatment system is designed to kill pathogens and remove a
wide range of organic contaminants present in the water as well as decrease the
concentration of heavy metal contaminants. Shield 1500 Product details are as
follows:
•Water Recovery: 100%
•Water Production: 1.3-3.9 L/min | 500–1500 gallons per day (gpd) Note that
unit can be operated as low as 0.5 L/min (200 gpd) if there is no pre-
treatment system.
•Pressure Drop: 2–7 psi @ 200-1500 gpd
•Power Consumption: 570 Watts
•Power Input: 100-240V 50Hz-60Hz
•Ambient Operating Temp: 5°C–40°C | 41°F–104°F
•Dim: 91 x 32 x 45 cm | 36H x 13W x 18D in
•Wet Weight: 30.5 kg | 67 lb
•Dry Weight: 24.5 kg | 54 lb
The Shield 1500 performance can vary over time based on the input water quality.
Puralytics is actively assessing Shield 1500’s sensitivity to a wide range of
contaminants.Preliminary results of this study indicate that water to be treated by
the Shield 1500 should be within the following levels to meet the performance
targets and maintenance schedule when operating at 3.9 L/min (1500 gpd):
•pH: 6 - 10
•Temperature: 5°C - 35°C (41°F - 95°F)
•Iron1: <0.6 mg/L
•Hardness: <0.05 mg/L equivalent of calcium carbonate
•Manganese1: <0.05 mg/L
•Sulfate: <10ppm
•Phosphate: <10ppm
•Turbidity: <5 NTU
•Surfactants: <0.05 mg/L
•Total Chlorine: <2.0 mg/L
•BOD/TOC: <4 mg/L
•Dissolved Oxygen: >4 mg/L
If your water chemistry contains levels outside those mentioned above,
proper pre-treatment is recommended to adjust the levels to within these
limits.Contact the factory at +1.503.616.2652.
1Required for internal UVC disinfection system.

Shield 1500 Owner’s Manual
DOCXXX Rev 1 ©Puralytics 2017 Page 12
Chapter 1: System Overview
The Puralytics Shield 1500, shown in Figure 4 represents the
state of the art in photochemical water purification.
Five independent photochemical processes act synergistically to
remove organic chemicals, heavy metals, and microbiological
contaminants from process water at flow rates up to 3.9 liters per
minute (up to 1500 gallons per day).
Electrical power is supplied to the unit through a grounded, 3-conductor
male Power Input Module at the electrical end of the unit, as shown in Figure 5. The
power cable supplied with the unit is rated for currents up to 15 A at 120 VAC (8 A at
220 VAC).
Figure 5. Power input module
Figure 4. Shield 1500

Shield 1500 Owner’s Manual
DOCXXX Rev 1 ©Puralytics 2017 Page 13
Water enters the system through a water input port
and exits through a water outlet port, both located
on one end of the unit as shown in Figure 6. For
proper operation, water must flow into the input port
(bottom) and out of the output port (top).
Reverse water flow through the system will
result in reduced performance and reduced life of
the system.
The Shield 1500 contains an Access Door, as
shown in Figure 7, to allow the user to access the
sump and its 20-inch NanoMesh Cartridge located
within the compartment for maintenance – see
Chapter 7 for details.
Figure 6. Water Ports
Output
Input
Figure 7. Access Door and Interior

Shield 1500 Owner’s Manual
DOCXXX Rev 1 ©Puralytics 2017 Page 14
Chapter 2: Installing Your Shield 1500
Unpacking and System Inspection

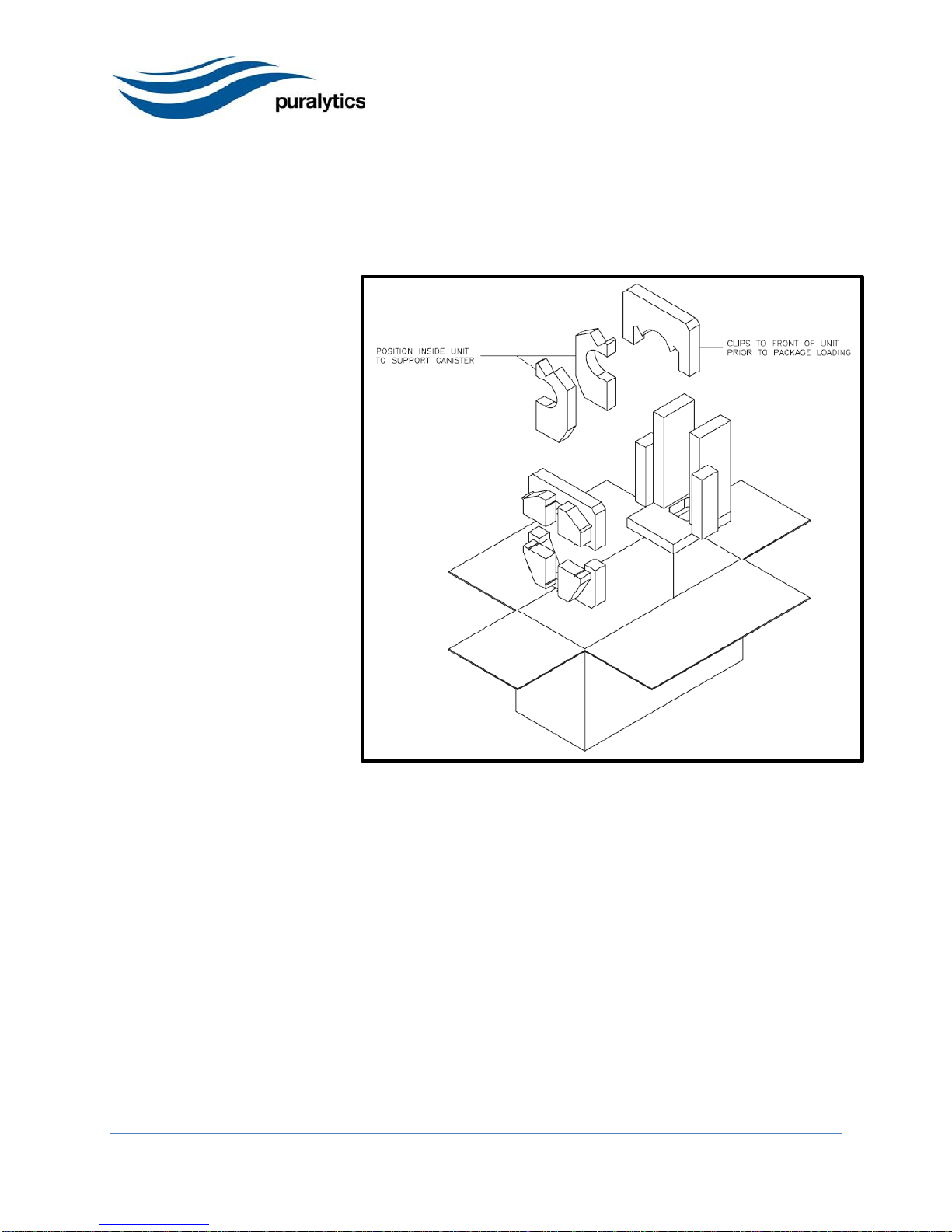

The Shield 1500 water treatment system is shipped in a protective box.
On receipt, inspect the box
for damage indicating
mishandling during
shipment. If such damage
is observed, photograph the
box to document the
damage before opening the
box and contact the
shipping carrier as soon as
possible. Contact
Puralytics to inform them of
the damage during
shipment.
To unpack the Shield 1500
from the box first remove all
the protective foam
packaging material. Then
remove the Shield 1500
from the box and place it
upright on a stable surface.
Figure 8. Shipping material

Shield 1500 Owner’s Manual
DOCXXX Rev 1 ©Puralytics 2017 Page 15
Inspect the Shield 1500 for signs of mechanical damage. If damage is observed,
photograph the damage and contact Puralytics.
Before turning on the Shield
1500, open the access door and
remove the foam supporting the sump.
Inspect the contents of the
accessories box. Compare the
contents to the parts list located at the
front of this document. If breakage of
the contents is observed or parts are
missing, photograph the damage or
contents and contact Puralytics.
.
SAVE THE BOX AND PROTECTIVE FOAM PACKAGING MATERIAL for possible
future shipping, as necessary.
Figure 9. Remove foam inside Shield

Shield 1500 Owner’s Manual
DOCXXX Rev 1 ©Puralytics 2017 Page 16
System Setup
Place the Shield 1500 on a stable surface or wall mount the system where it is to be
installed. Hardware for wall mounting the Shield 1500 is not provided, but the holes
at the top of the mounting bracket allow many hardware choices.
Water Connections
The water input and output connections are supplied with the Shield 1500. These
connectors will accommodate a 3/8-inch hose. Adaption from a 3/8” hose to another
hose or pipe type may be required.
Figure 10 – Colder Product Corporation (CPC)
barbed fittings HFS 12 Series shown.

Shield 1500 Owner’s Manual
DOCXXX Rev 1 ©Puralytics 2017 Page 17
Electrical Connections
The electrical power connector on the Shield 1500 is a standard 3-pin
(IEC320-C14) male connector. A 3-conductor power cable with a mating female
connector (IEC320-C13) is supplied with the system. The Shield 1500 is compatible
with supplied electrical AC power at voltages within the range of 100-240VAC RMS
and frequencies within the range of 50-60 Hz.
The fuse shipped in the fuse holder of the Shield 1500 is suitable for operation with
supplied electrical AC power at voltages in the customer’s anticipated range.
Protective grounding of the Shield 1500 is required for safe operation. Ensure
that the wall outlet receptacle is properly wired and earth grounded. DO NOT use a
three-to-two wire plug adapter. DO NOT use a two-wire extension cord or a two-wire
multiple-outlet power strip. Do not modify the supplied power cable in any manner that
defeats this requirement for protective grounding of the Shield 1500.
Pre-Startup Testing
Disconnect power from Shield 1500 and supply water to the input of the
system at a pressure not to exceed 65 psi (4.48 bar, 448 kPa). Flush a minimum of
20 L of clean water through the system. Verify that no water leaks are observed at
the input or output connectors, and that no water leaks from the body of the system.
Chapter 3: System Start-Up
Before connecting power to the system, ensure that the power switch is in
the OFF state (“O” side of rocker switch depressed). Connect a properly grounded
3-conductor cable from a properly grounded power outlet to the system power input.
Switch the system to the ON state by depressing the green indicator side of the
power rocker switch.

Shield 1500 Owner’s Manual
DOCXXX Rev 1 ©Puralytics 2017 Page 18
Chapter 4: System Operation
The Shield 1500 is designed to operate with a minimal amount of operating supervision
or maintenance, providing the water quality meets input requirements are met (see
Facility Requirements section).
Operating Procedures
1. Make sure the water fittings are connected to Shield 1500 as detailed
under the “Water Connections” section above.
2. Connect electrical power to Shield 1500 as detailed under “Electrical
Connections.”
3. Follow the instructions under “System Setup” to start Shield 1500
operation.
4. Start water flow at a rate of at least 1.3 L/min and not more than 3.9
L/min. Simultaneously depress the red air release button at the top of
the unit until air stops coming out at the button.
5. Allow at least 15 minutes of discharging to waste to allow the UVC lamp
to warm up. This should also be sufficient time to remove the worst air
bubbles from the 20-inch NaonMesh Cartridge. If significant air bubbles
are still present discharge to waste until most large air bubbles have
been flushed from the system to ensure peak performance. Turning up
the flow rate will facilitate air flushing.
6. Adjust water flow rate to the desired rate. Lower rates will facilitate
slightly higher levels of treatment.
Maintenance Items
The following ordinary maintenance schedule when operating the Shield 1500
continuously would consist of:
• Cooling Fan check; UVC quartz sleeve cleaning
Recommended quarterly. See Chapters 5 and 6 for details.
• 20-inch NanoMesh replacement:
About annually.* See Chapter 7 for details.
• UVC lamp replacement:
About annually.See Chapter 6 for details.
• LED replacement:
About every 4 years.* Contact Puralytics for replacement after this
time has passed.
*If not operated continuously these can all be maintained at a proportionately
lower frequency.

Shield 1500 Owner’s Manual
DOCXXX Rev 1 ©Puralytics 2017 Page 19
Chapter 5: Cooling Fan Maintenance
Introduction
A cooling fan is provided on the underside of the unit to maintain optimal power supply
to the LEDs by the LED power supplies. The fan operates whenever the unit power is
on providing an auditory reminder that the unit (and UVC lamp) is powered. Air is pulled
from the back/below, is blown over the power supplies and exits through a grid of holes
on the bottom-center as well as slots on either side of the bottom.
Inspection
Always listen for the fan. Any changes of pitch could indicate obstruction of the fan inlet
grille. Quarterly, access the bottom of the unit (if situated on a counter, just tip the unit
backward slightly) and look for any lint or other obstruction of the fan inlet grille.
Maintenance
Anytime that there is material on the fan grille, remove it with a brush and/or
compressed air.

Shield 1500 Owner’s Manual
DOCXXX Rev 1 ©Puralytics 2017 Page 20
Chapter 6: UVC Lamp Use and Maintenance
Introduction
The UVC Lamp is designed to operate with a minimal amount of maintenance, providing
the water quality meets input requirements (see Facility Requirements section). The
UVC Lamp provides a boost in microbial disinfection on top of that already provided by
the 20-inch NanoMesh Cartridge.
Ordinary maintenance consists of;
• Cleaning or replacing the quartz sleeve.
• Lamp replacement – recommended every 10,000 hours of operation
(approximately 60 weeks of continuous service independent of operational flow).
More frequent replacement is recommended if the unit is turned on and off
frequently.
Always disconnect the water supply and completely drain the system if it will be
subjected to temperatures below the freezing point of water.
Inspection
1. Regularly inspect the UVC Lamp:
• An LED indicator light, located on the end opposite of the easy off end cap
(depicted in Figure 14), provides visual indication of germicidal lamp operation
and should be illuminated during the Shield 1500 operation.This indicator light
does not, however, indicate the level of ultraviolet intensity or transmission
through the water.
• Quarterly cleaning of the quartz sleeve is recommended for optimal light delivery.
2. To ensure proper operation of the UVC Lamp, regular biological testing of the
treated water should be performed on a schedule recommended by local public
health authorities. At minimum test:
Figure 14. Schematic of the UVC lamp assembly
