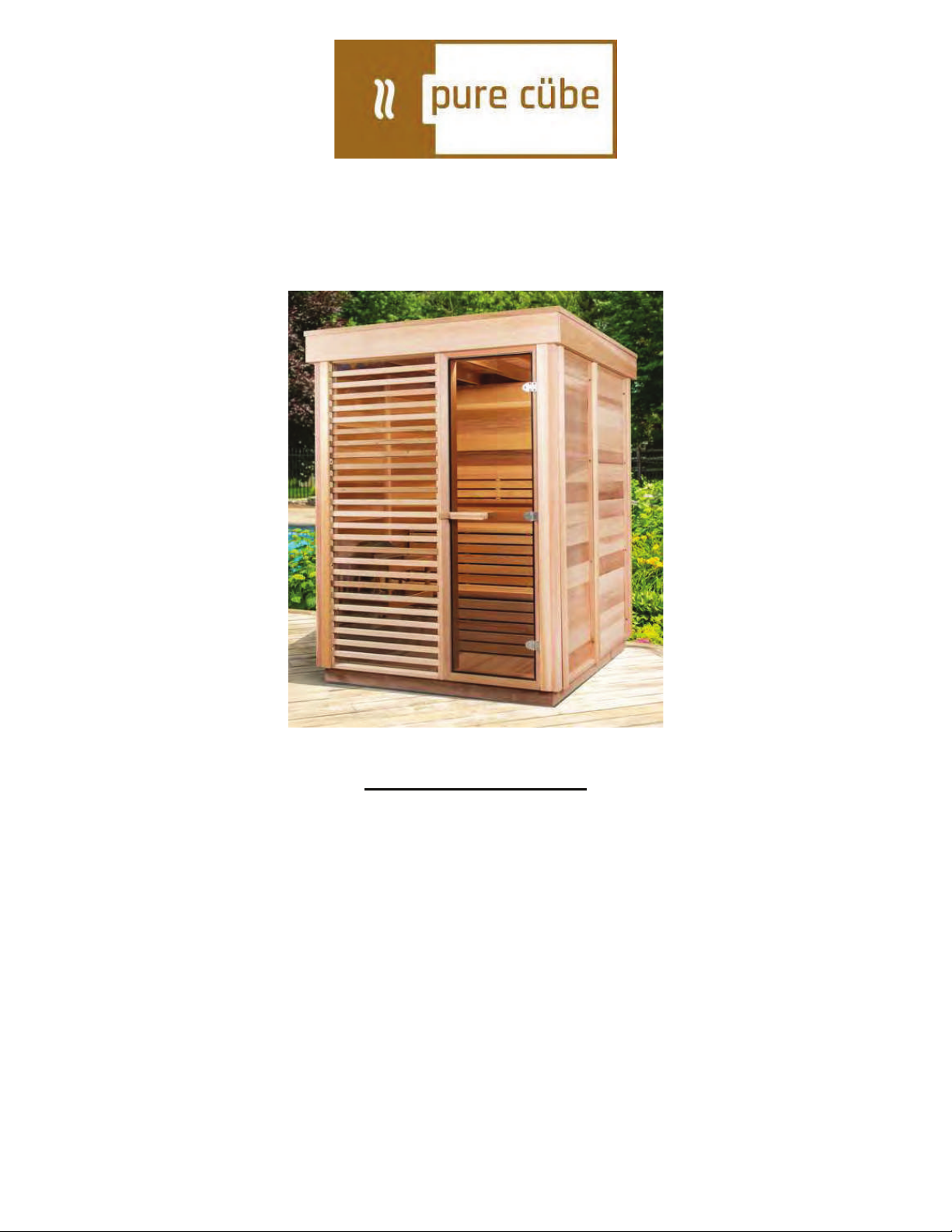

pure cube CU550 User manual

CU550
Pure Cube Outdoor Sauna Assembly Instructions
Tools Required
Carpenters Hammer
Cordless Drill
7/16” Drill Bit
11/16” Drill Bit
Hex Keys (Included)
Tape Measure
Step Ladder
Rubber Mallet
Level
Utility Knife
Hand Stapler (Optional)
Rev.1

ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Before you begin the installation of your Pure Cube Sauna, Please read these instructions completely.
Make sure the placement for your sauna is level and on a solid base.
Fig 2a
Fig 2b
*Always ensure that you have the correct screw length so that there will be enough thread to hold, and especially, so
that the screw does not go all the way through the material and come out the other side.

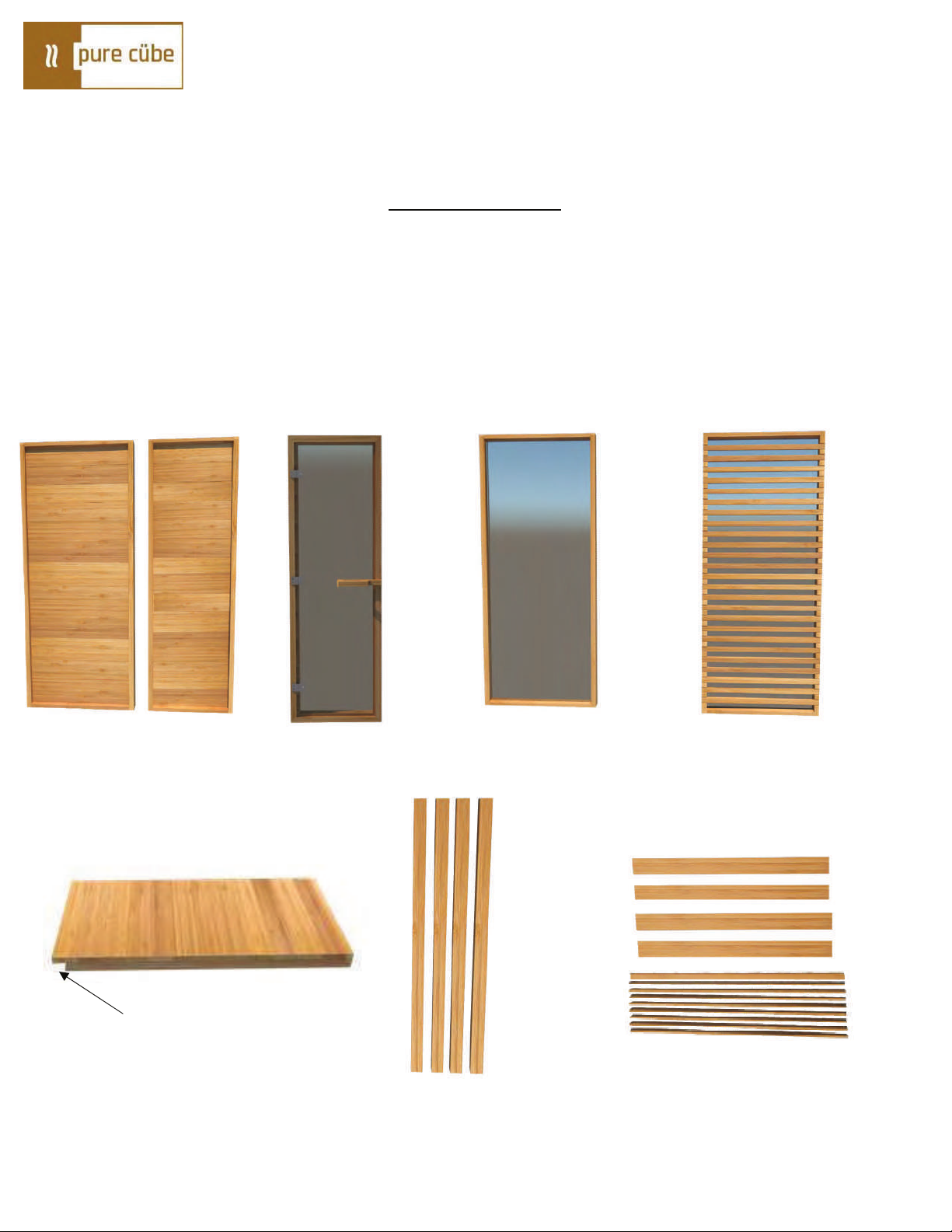

Parts Identification
The CU550 Pure Cube Sauna consists of 2 different sizes of wall panels that are available in either;
•solid cedar (privacy)
•Glass
•wood/glass (semi-privacy)
Privacy panels
3-large
3-small
1- Glass panels Semi-privacy panel
(optional to replace glass panel)
(2) Roof Panels
(overhang on back)
b
4-Corner Posts
1
CU550 Pure Cube
Outdoor Sauna Assembly Instructions
Fi 2
Glass Door
Door & Wall Trim

ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b

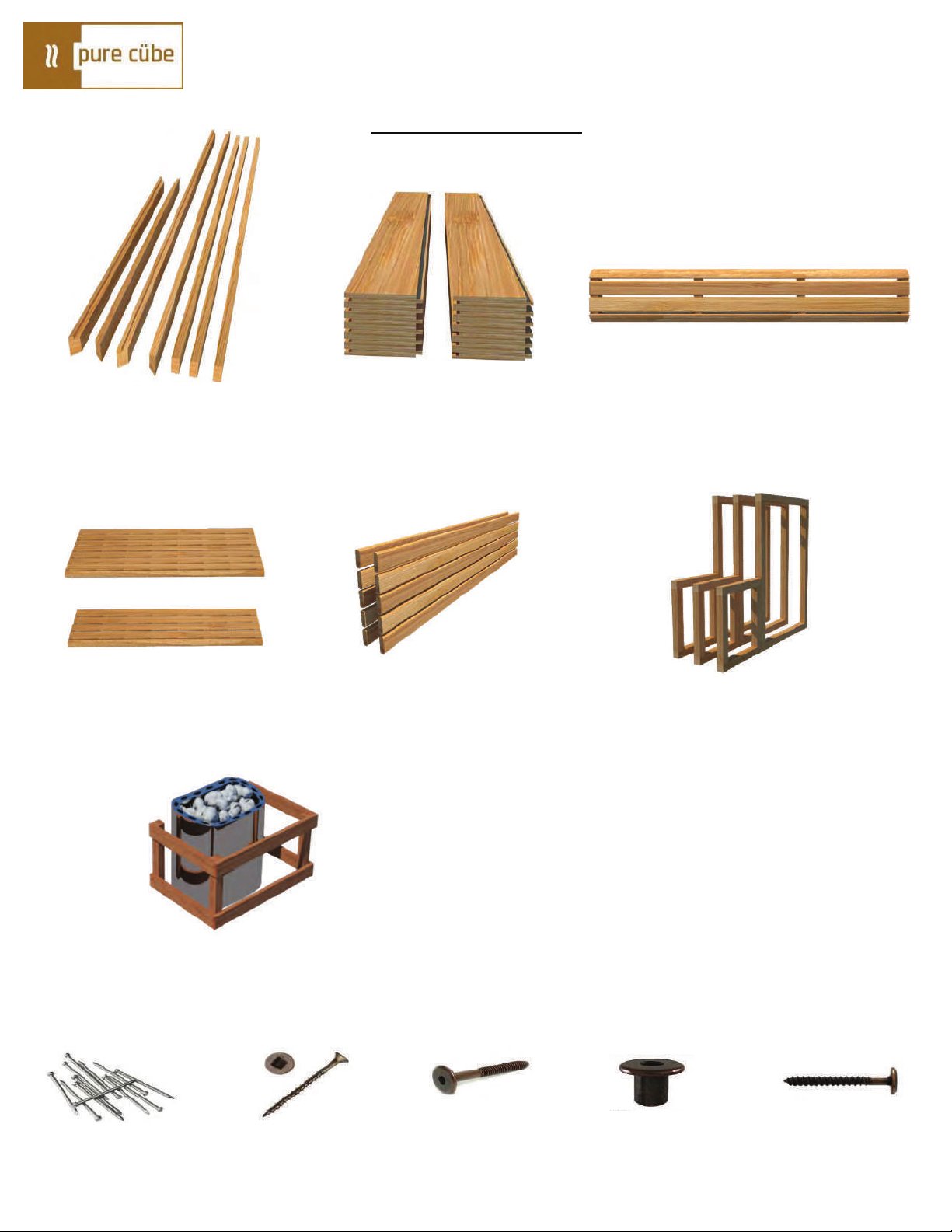

Parts Identification (Cont..)
Floor Joists
4- Ends & sides
3- Middle Joists
12 Full Floor Boards
1 Thinner Floor Board
Backrest
2
Bench Seats Bench Front Enclosures
Top
Bench
Bottom
Bench
(4) -Bench Brackets
Electric Heater & Guard
2½” (63mm)
Finishing Nails
Hardware
2 ½” (63mm)
Wood Screws
2 ¾” (70mm)
Connector Bolts
2 ¾” (70mm)
Connector Lag Bolts
Threaded Cap
Nuts
CU550 Pure Cube
Outdoor Sauna Assembly Instructions

ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
Organize the pieces of your Pure Cube outdoor sauna.
Start the assembly by laying out the floor supports.
3
Secure the corners of the floor supports together using
2 ½” (64mm) screws.
Repeat for all 4 corners.
Using a tape measure, space out the floor joists evenly.
Once the floor joists are spaced out evenly, secure them
through the pre drilled pocket holes using
2 ½” (64mm)screws.
CU550 Pure Cube
Outdoor Sauna Assembly Instructions

ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b

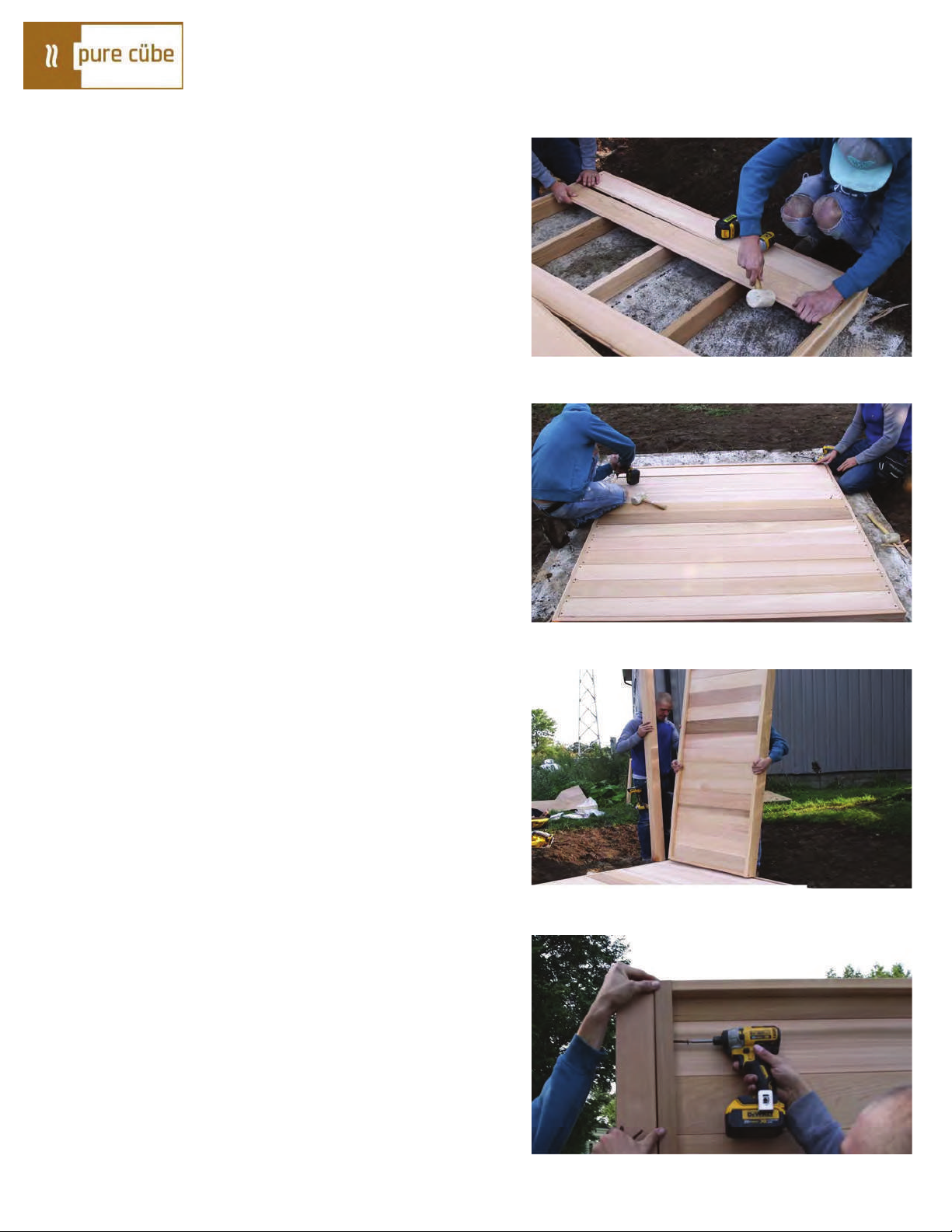

Gather your tongue and groove floor boards.
Insert the floor boards into the frame ensuring that they
are tight by tapping them together with a rubber mallet.
4
Fasten the floor boards into the outer floor joists with
1 ½” (38mm) screws.
For aesthetic purposes, don’t secure the floor boards to
the first inner joist from the front of the sauna.
The benches will later cover the first 2 rows of screws.
To start the assembly of the walls, bring in a wide panel
and 1 corner post and place them flush together.
Once the wall panel and post are flush, Secure the wall
panel to the post using the 2 ¾” (70mm) Connector lag
screws through the pre drilled holes.
CU550 Pure Cube
Outdoor Sauna Assembly Instructions

ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
Secure a wide panel to the corner post to start the back
wall in the same method as the previous step.
5
Connect a narrow panel to the back wide panel using
2 ¾” (70mm)connector bolts and a connector cap nut.
Using the provided hex keys, snug up all the bolts.
* Note that the walls should be assembled so the bolts
should be on the outside of the sauna.
Connect a corner post to the narrow panel using the
2 ¾” (70mm) Connector lag screws through the pre
drilled holes.
CU550 Pure Cube
Outdoor Sauna Assembly Instructions

ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
Secure another wide panel to the corner post on the
opposite side of the sauna using the 2 ¾” (70mm)
Connector lag screws through the pre drilled holes.
.
6
Attach a narrow wall panel to the wide wall panel using
the 2 ¾” (70mm) Connector lag screws in the same
manner as the above step.
Repeat on opposite side.
Attach a corner post to the narrow panel on the side wall
in the same manner as the previous corner post.
Repeat for opposite side.
Attach your glass panel to the corner post using the
2 ¾” (70mm) Connector lag screws through the pre
drilled holes.
Panel can go on either the left or right side depending on
preference.
* This panel may be a semi privacy panel if ordered.
CU550 Pure Cube
Outdoor Sauna Assembly Instructions

ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
Bring in the wall panel for the opposite side and secure it
to the corner post using the 2 ¾” (70mm) Connector lag
screws through the pre drilled holes.
7
Place the glass door between the front glass panel and
the corner post.
Fasten the glass panel to the door with the 2 ¾” (70mm)
Connector lag screws through the pre drilled holes.
Before attaching the door to the corner post , pre drill
pilot holes in the frame of the door to prevent splitting.
Using the 2 ¾” (70mm) Connector lag screws, attach the
door to the corner post.
For aesthetics, try to space out the pre drilled holes
evenly to match the location of the fasteners on this
corner post.
CU550 Pure Cube
Outdoor Sauna Assembly Instructions

Using an 11/16” (18mm) bit, drill approximately ¾”
(19mm) into your pre drilled holes to create a cavity for
the plugs to sit in later.
Align the sauna so that it hangs 1 ½” over the base on
all 4 sides.
Place the 2 roof panels on top of the sauna..
ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
8
Ensure the roof panels are flush with the wall panels.
CU550 Pure Cube
Outdoor Sauna Assembly Instructions

ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b

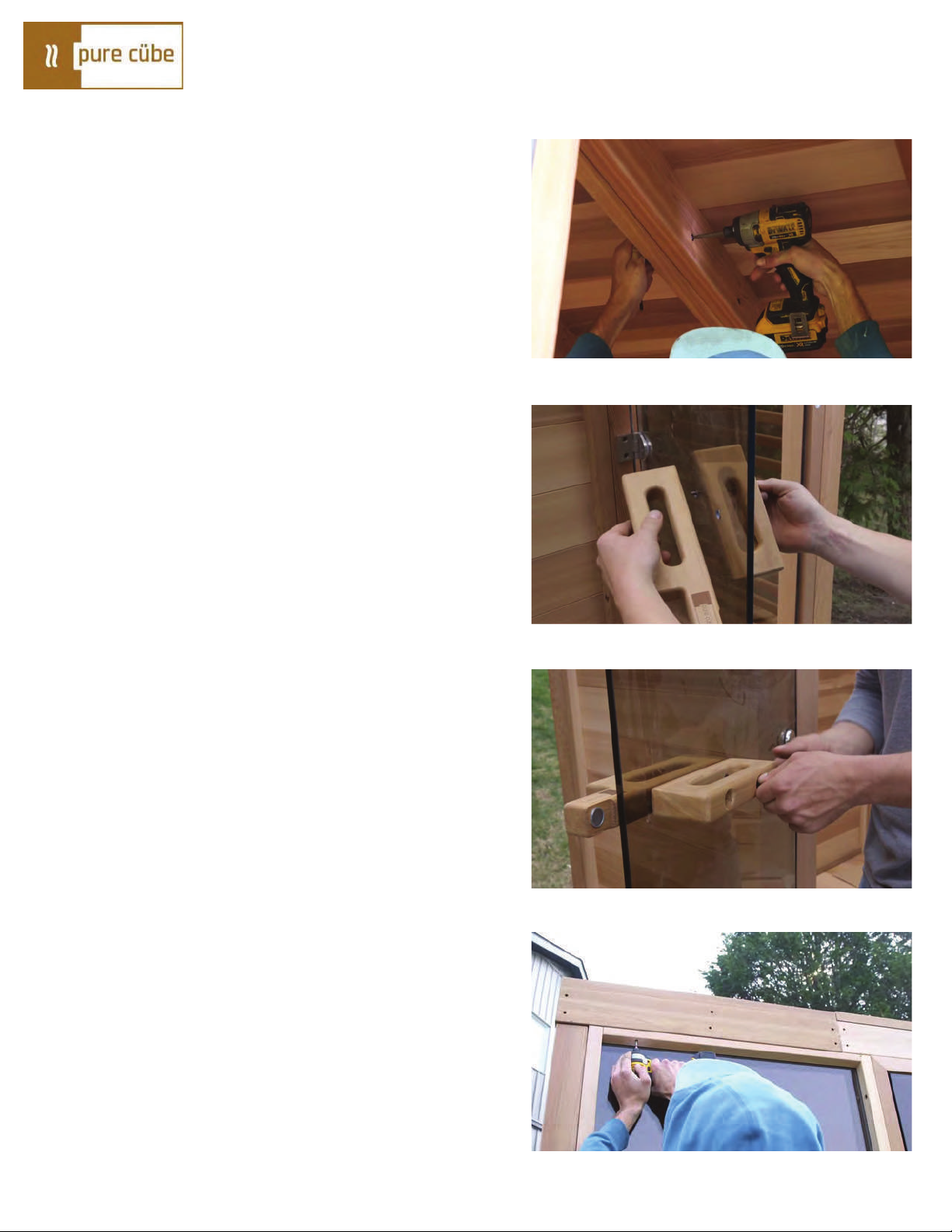

Inside , line up the holes and fasten the roof panels
together with 2 ¾” (70mm) connector bolts and
connector cap nuts.
9
Install the door handle by placing the provided
2” (50mm) lag screws through the inner handle
(short)into the outer handle (longer)
Use the hex key to snug up, do not tighten all the way.
Ensure the outer handle lines up with the magnetic catch
on the door frame and then tighten the lag screws
completely.
Line up the roof panels to the edge of the walls and
secure using 2 ¾” (70mm) Connector lag screws
Continue to do this to all the panels around the sauna.
CU550 Pure Cube
Outdoor Sauna Assembly Instructions

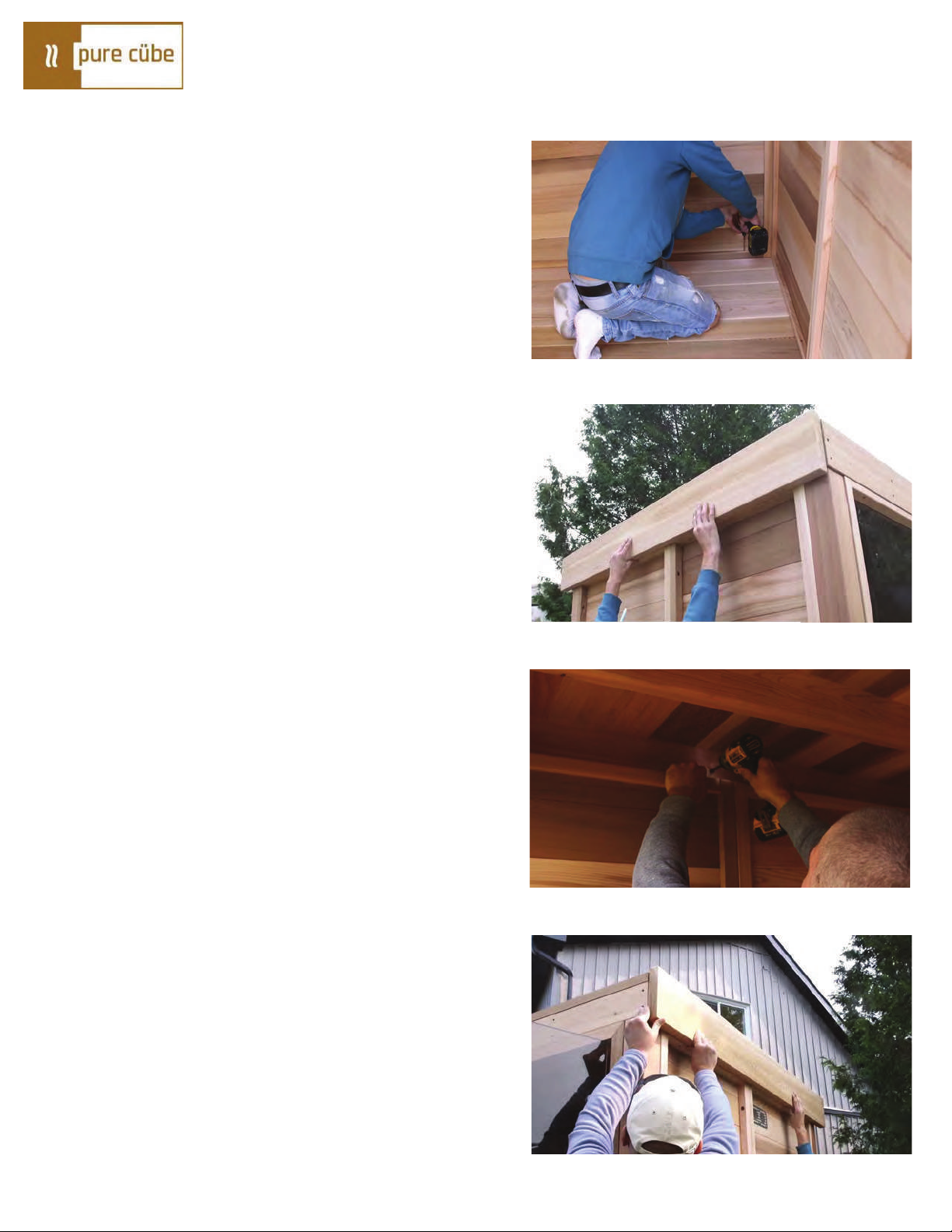

On the inside of the sauna, secure the walls to the base
using 2 ¾” (70mm) Connector lag screws .
Continue this on each panel of the sauna.
Use 2 screws in each of the panels.
ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
10

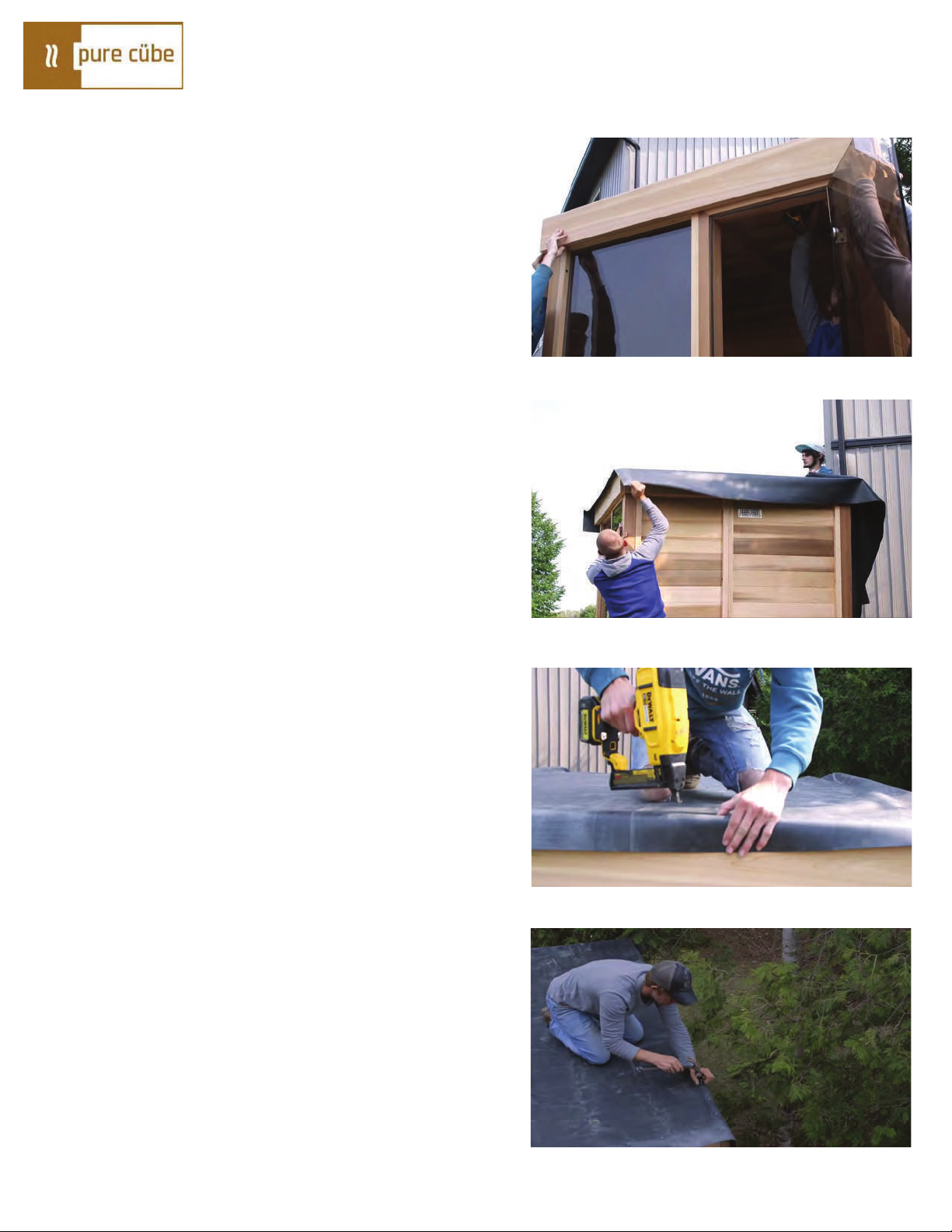

Have a helper line up one of the side roof trim pieces
flush with the front wall.
Fasten the trim piece from the inside of the sauna with
the 2 ¾” (70mm) Connector lag screws through the
pre drilled holes.
Repeat the same process for the opposite side.
CU550 Pure Cube
Outdoor Sauna Assembly Instructions

Continue around the sides and front of the sauna nailing
it down every 6-8” (15-20cm)
ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
Repeat the same process for front trim piece as well.
11

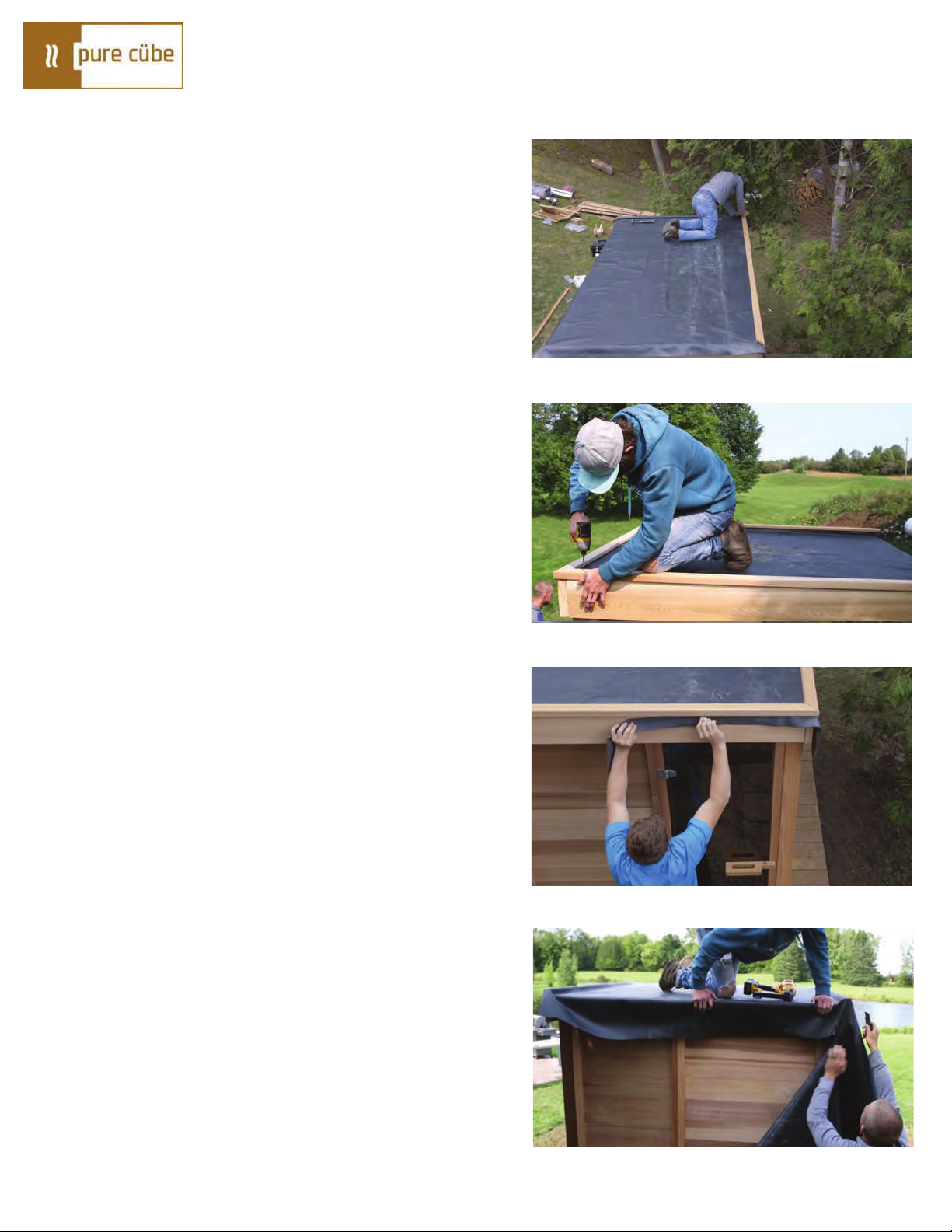

Place your EPDM membrane on top of the sauna.
Spread it out evenly over the entire roof.
Once the membrane is laid out evenly over the top of the
sauna, use staples or nails to secure it to the trim pieces.
Secure it every 6-8” (15-20cm)
Ensure membrane is flat and tight on the roof.
CU550 Pure Cube
Outdoor Sauna Assembly Instructions

Cut off the excess from the back leaving enough of the
membrane to tuck under the back trim when installed.
ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
Next snugly fit the roof cap pieces over the trim.
12
Line up the roof cap pieces so the corners are tight
together and tap them down tightly over the trim pieces
with a rubber mallet.
Using 1 ½” (38mm) screws, secure the roof caps into
place.
Using a utility knife, cut off the excess membrane from
the front and sides of the sauna.
CU550 Pure Cube
Outdoor Sauna Assembly Instructions

Secure the 2 door trim pieces (narrow trim) over the
seams beside the door using staples or finishing nails.
Repeat the process with the wall trim pieces (wide trim)
over the rest of the seams around the sauna.
Tuck the membrane under the lip of the roof and secure
with a finishing nail.
Repeat at the other end.
Place the back trim tight under the edge of the roof.
Secure it with lag screws from the inside of the sauna in
the same method as the front and side trim pieces.
ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
13
CU550 Pure Cube
Outdoor Sauna Assembly Instructions

ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
14

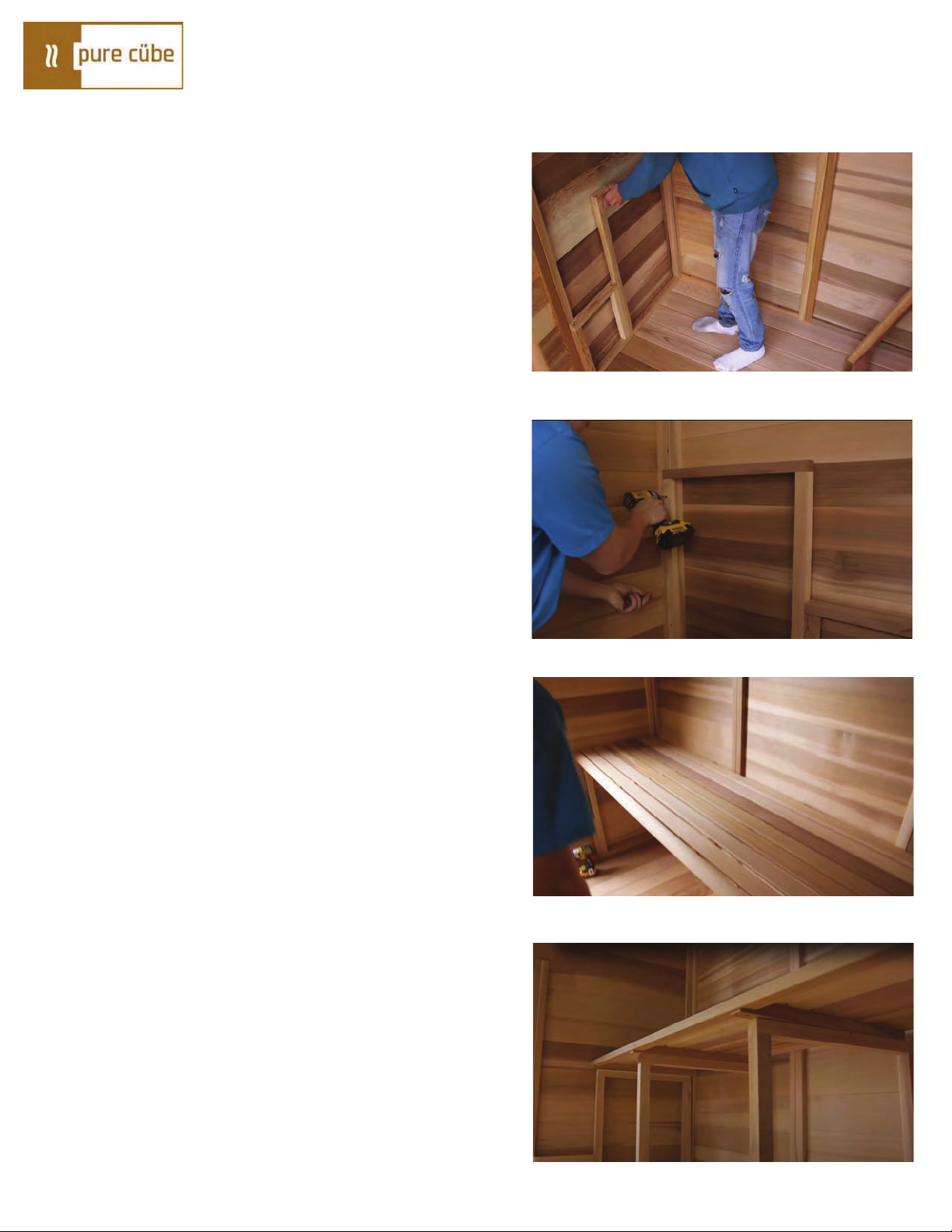

Bring in your bench supports and place 1 support at
either end of the back wall.
Ensure the bench supports are tight to the side and back
walls, then secure the supports to the walls and floor
using 2 ½” (64mm) screws.
Repeat on other end.
CU550 Pure Cube
Outdoor Sauna Assembly Instructions
Bring in the top bench and place it on top of the bench
supports.
Line up the remaining bench supports with the braces on
the bottom of the top bench.

Make sure the supports are square then secure them to
the floor with 2 ½” (64mm) screws.
Secure the bench supports to the top bench from
underneath using 2 ½” (64mm) screws.
ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
15
CU550 Pure Cube
Outdoor Sauna Assembly Instructions
Position the bottom bench on top of the lower section of
the bench supports.
The braces on the bottom of the bench should be aligned
with the bench supports.
Secure the bench supports to the bottom bench from
underneath using 2 ½” (64mm) screws.

Make sure the supports are square then secure them to
the floor with 2 ½” (64mm) screws.
Secure the bench supports to the top bench from
underneath using 2 ½” (64mm) screws.
ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
16
CU550 Pure Cube
Outdoor Sauna Assembly Instructions
Line up the bench front enclosure with the bench
supports.
Secure the Front bench enclosure to the bench supports
between the slats using 2 ½” (64mm) screws.

ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
17
Before putting on the lower bench enclosure, slide the
backrest supports behind the top bench.
Ensure they align flush behind the bench supports and
secure with 2 ½” (64mm) screws.
CU550 Pure Cube
Outdoor Sauna Assembly Instructions
Ensure the backrest is level on the backrest supports and
secure the backrest by screwing it in between the slats
using 2 ¾” (64mm) screws.
You can now secure the lower front bench enclosure to
the bench supports by screwing between the slats using
2 ½” (64mm) screws.

ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
To install the electric heater, measure out where the
supports will go. These are usually 14 ¾” (37cm) high
and 14 ¾” (37cm) centered between the bench and
the front wall.
Install the supplied support screws into your marks as
shown. Screw them in until they are about ¼” (6mm)
out of the wall.
Hang the electric heater on the screws.
Screw 2 more screws in the bottom holes of the heater
and once the heater is level, you can tighten up all 4
screws.
18
CU550 Pure Cube
Outdoor Sauna Assembly Instructions

ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
Locate the pieces for your heater guard.
They consist of the following:
(A) 2 - Assembled side pieces
(B) 2 - heater guard support
4 – 2 ½” (64mm) screws
8 – 1 ½” (38mm) screws
AA
B
B
Stand the 2 Assembled side pieces (A) of the heater
guard on edge with pre-drilled holes on the bottom.
Screw heater guard support (B) to either side using
(2) – 1 ½” (38mm) screws per side.
Assemble remaining heater guard support (B) to the 2
ends in the same manner as previous step.
Place assembled heater guard around electric heater
and screw to wall using (4) 2 ½” (64mm) screws.
*Make sure heater guard is level before securing.
19
CU550 Pure Cube
Outdoor Sauna Assembly Instructions
