Pure Cube Outdoor Sauna Assembly Instructions
Tools Required
Carpenters Hammer
Cordless Drill
7/16” Drill Bit
11/16” Drill Bit
Hex Keys (Included)
Tape Measure
Step Ladder
Rubber Mallet
Level
Utility Knife
Hand Stapler (Optional)
Rev.1

ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Before you begin the installation of your Pure Cube Sauna, Please read these instructions completely.
Make sure the placement for your sauna is level and on a solid base.
Fig 2a
Fig 2b
*Always ensure that you have the correct screw length so that there will be enough thread to hold, and especially, so
that the screw does not go all the way through the material and come out the other side.
Parts Identification
The CU570 Pure Cube Sauna consists of 2 different sizes of wall panels that are available in either;
•solid cedar (privacy)
•Glass
•wood/glass (semi-privacy)
Privacy panels
2-large
5-small
2- Glass panels Semi-privacy panel
(optional to replace 1 or both glass panels)
Roof Panel
(overhang on back)
CU570 – 2 Roof Panels
b
4-Corner Posts
1
CU570 Pure Cube
Outdoor Sauna Assembly Instructions
Glass Door
Corner & Wall Trim

ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
Parts Identification (Cont..)
Floor Joists
2- Ends
2- Sides
3- Middle Joists
15 Full Floor Boards
1 Thinner Floor Board
Backrest
2
Bench Seats Bench Front Enclosures
Top
Bench
Bottom
Bench
5-Bench Brackets
Electric Heater & Guard
2½” (63mm)
Finishing Nails
Hardware
2 ½” (63mm)
Wood Screws
2 ¾” (70mm)
Connector Bolts
2 ¾” (70mm)
Connector Lag Bolts
Threaded Cap
Nuts
CU570 Pure Cube
Outdoor Sauna Assembly Instructions

ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
Organize the pieces of your Pure Cube outdoor sauna.

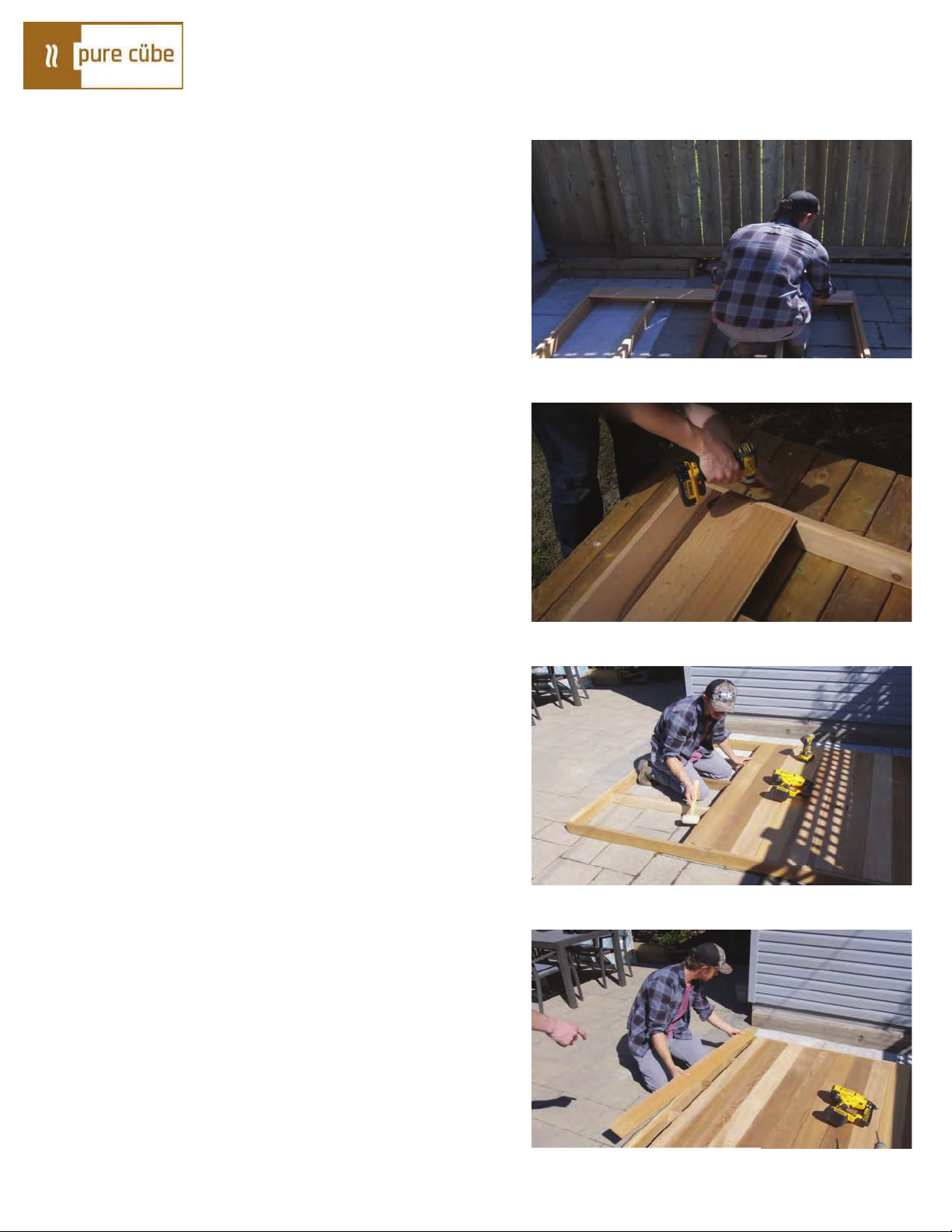

Start the assembly by laying out the floor supports.
3
Secure the corners of the floor supports together using
2 ½” (64mm) screws in the pre drilled holes.
Repeat for all 4 corners.
Space out the floor joists evenly.
Once the floor joists are spaced out evenly, secure them
through the pre drilled pocket holes using 2 ½”
(64mm)screws.
CU570 Pure Cube
Outdoor Sauna Assembly Instructions

ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
Gather your tongue and groove floor boards.
Insert the floor boards into the frame ensuring that they
are tight by tapping them together with a rubber mallet.
4
Fasten the floor boards into the floor joists and the inner
floor joists with 1 ½” (38mm) screws.
For aesthetic purposes, don’t secure the floor boards to
the 3rd floor support.
The benches will later cover the first 2 rows of screws.
Continue adding the floor boards in the same manner.
When you are down to the last 4 or 5 floor boards, do
not secure them at this point.
Place your last floor board into place.
You may use the rubber mallet to gently finesse the last
board into place.
Fasten the remaining floor boards.
CU570 Pure Cube
Outdoor Sauna Assembly Instructions

ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b

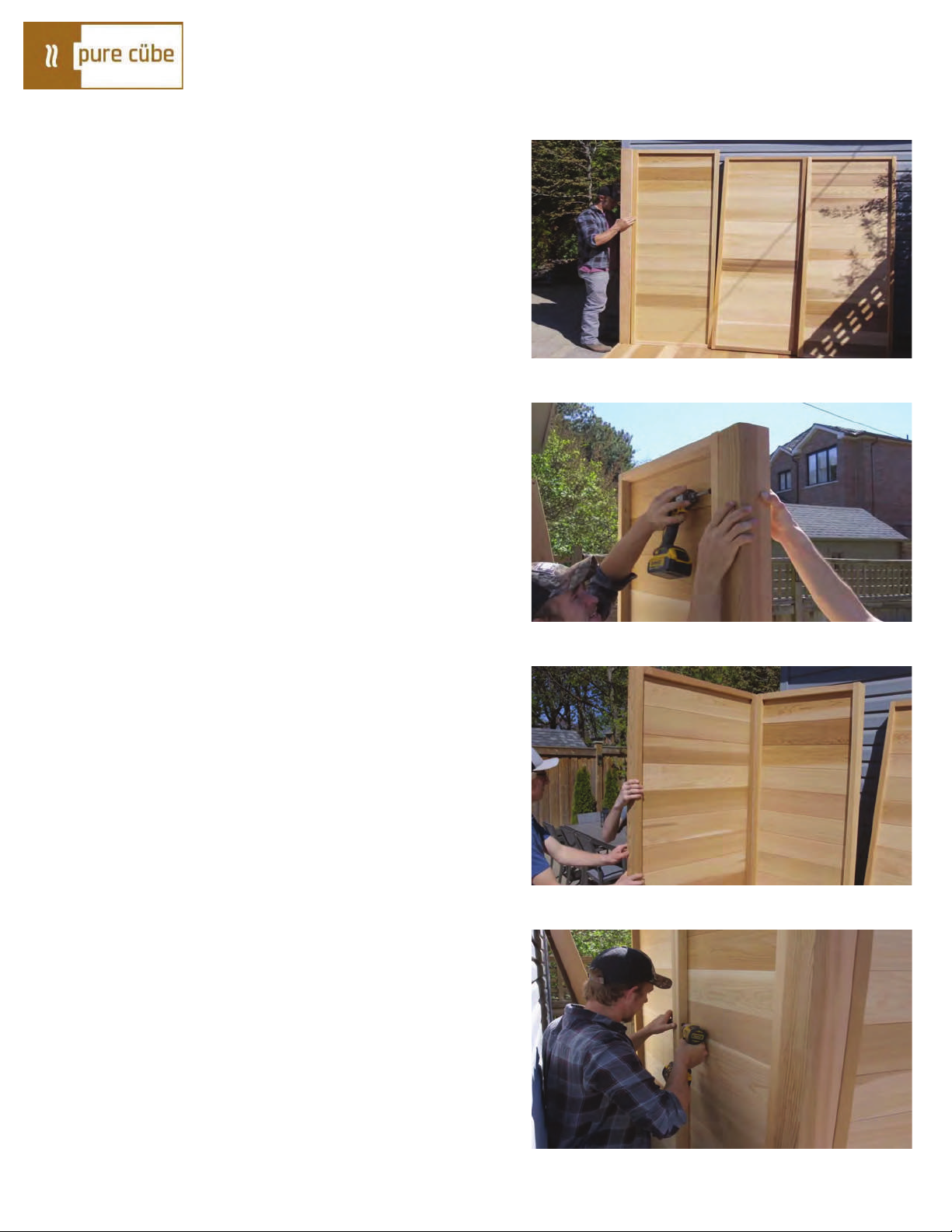

To start the assembly of the walls, bring in 3 narrow
panels and 1 corner post.
5
CU570 Pure Cube
Outdoor Sauna Assembly Instructions
Secure the corner post to the panel using the provided
2 ¾” (70mm) Connector Lag Bolts.
* Note that the walls should be assembled so the screws and
bolts should be on the outside of the sauna.
Bring a wide panel secure it to the corner post in the
same manner to make the sauna corner.
Connect the 3 narrow wall panels together using the
2 ¾” (70mm)connector bolts and a connector cap nut.

ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
Using the provided hex keys, snug up all the bolts.
6

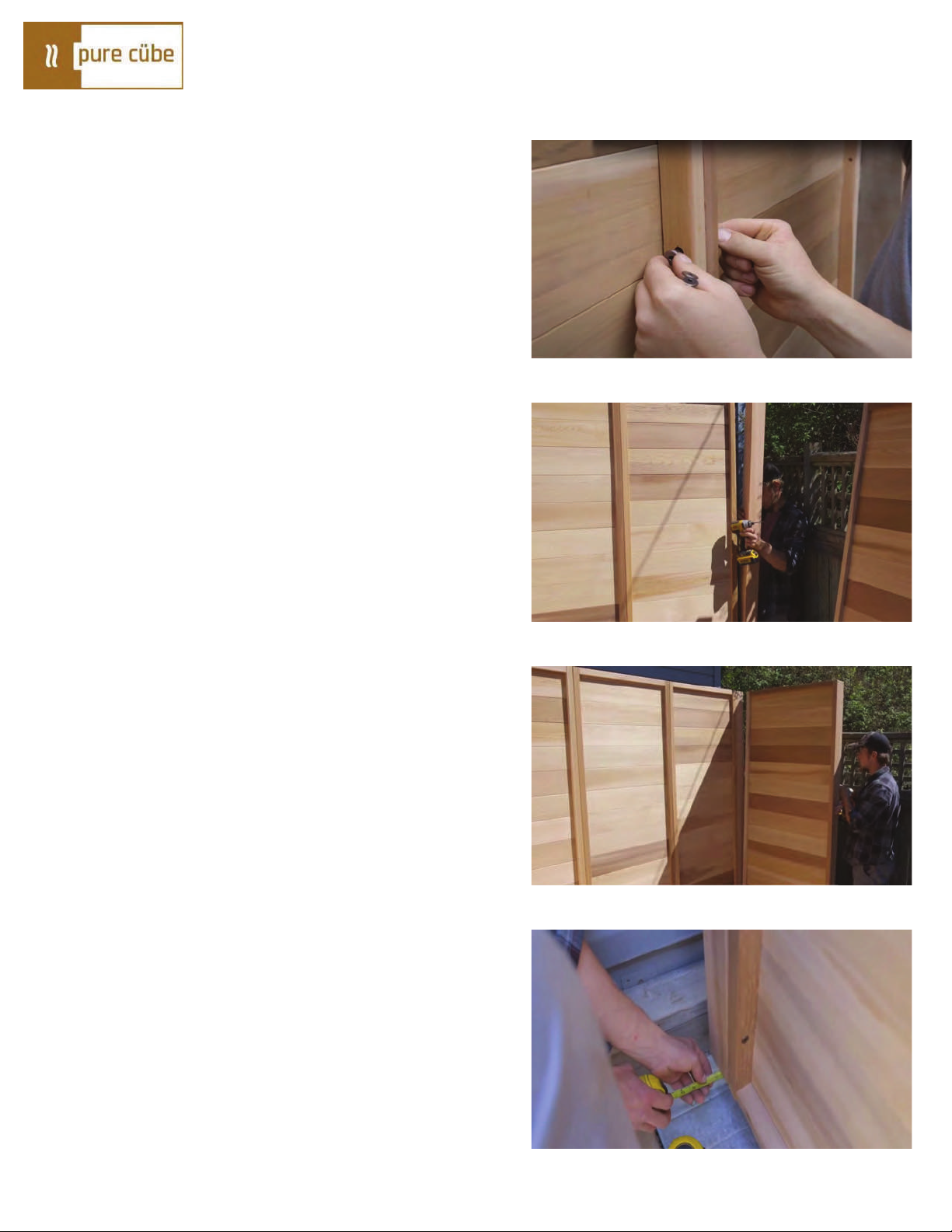

Secure another corner post to the other end of the
assembled narrow panels using the provided
2 ¾” (70mm) Connector Lag Bolts.
, Using a tape measure, ensure that the walls stick out 1
½” past the base of the sauna on the back and both
sides.
You can use a rubber mallet to tap into the correct place.
CU570 Pure Cube
Outdoor Sauna Assembly Instructions
Secure a wide panel to the corner post using the
provided 2 ¾” (70mm) Connector Lag Bolts.

ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
Assemble the narrow panel and wide panel together
using the 2 ¾” (70mm) connector bolts and connector
cap nuts. Repeat on opposite side.
7
Secure a corner post to the narrow panel using the
provided 2 ¾” (70mm) Connector Lag Bolts.
Repeat on opposite side.
With the panel flush to the post, secure the panel to the
post using the 2 ¾” (70mm) Connector Lag Bolts in the
pre drilled holes.
Repeat for the second glass panel on the opposite side.
CU570 Pure Cube
Outdoor Sauna Assembly Instructions
Bring in one of the glass panels to start the assembly of
your front wall.
*This will be either a full glass panel or semi privacy panel.

ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b

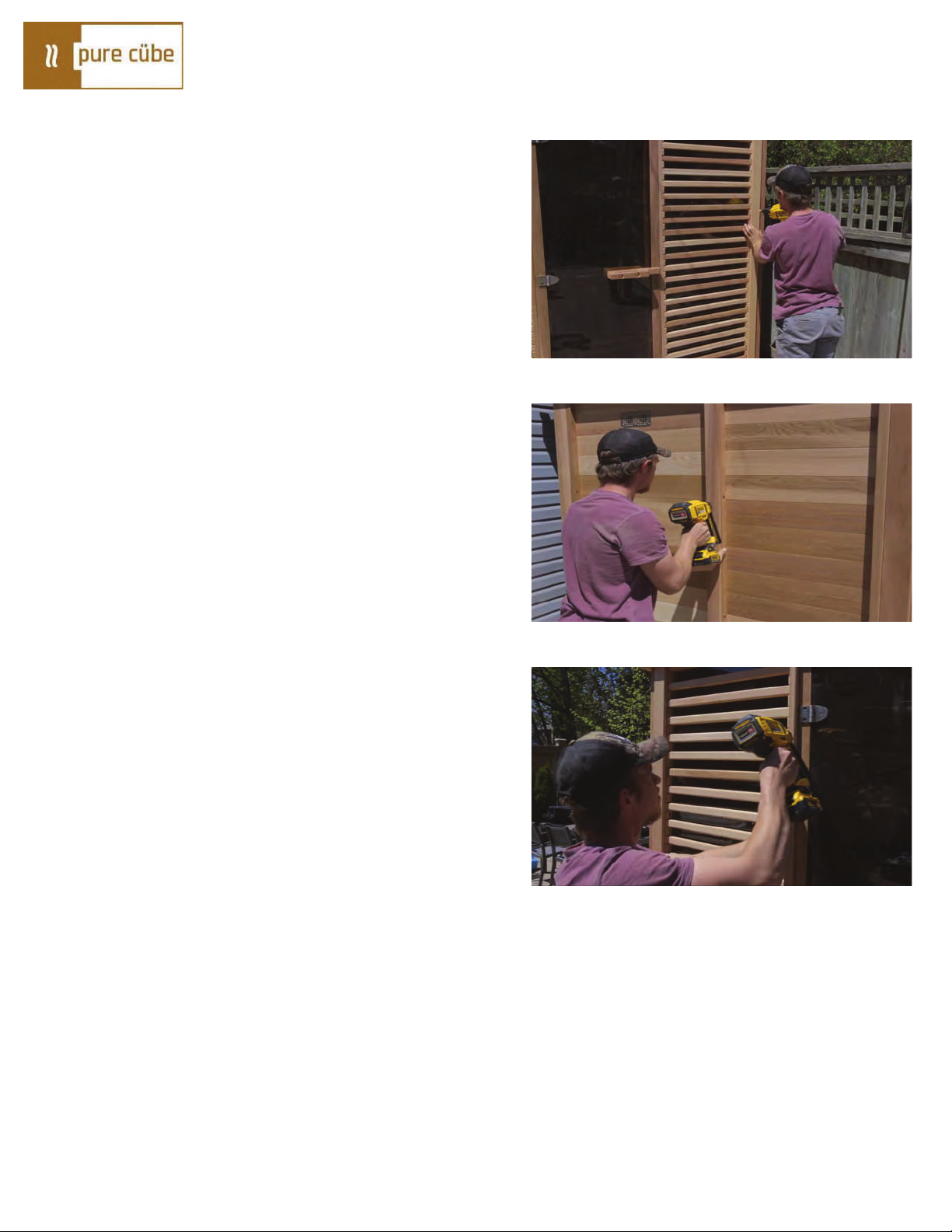

Place the glass door between the glass panels.
8
Secure the panels together post using the 2 ¾” (70mm)
Connector Lag Bolts in the pre drilled holes.
Repeat on opposite side of door.
Ensure the panels are flush on the front and sides.
To make the next steps easier, line the panels up as close
as possible to each other.
CU570 Pure Cube
Outdoor Sauna Assembly Instructions
Lay the 2 roof panels on top of the sauna.
The overhang on the panel goes to the back of the sauna.

ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
Inside , line up the holes and fasten the roof panels
together with 2 ¾” (70mm) connector bolts and nuts.
When you have the roof panels connected, tighten up
the bolts with a drill and hex key.
9
Place the front trim pieces so that it sits ¾” below the
joint of the roof and the wall panels.
The trim should overhang evenly on both sides 1 ½”
(38mm)
.
Repeat the process with the side trim on both sides in
the same manner.
CU570 Pure Cube
Outdoor Sauna Assembly Instructions
Secure the front trim piece from the inside of the sauna
using the 2 ¾” (70mm) Connector Lag Bolts through the
pre drilled holes.

ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
On the outside, with the sides and front of roof panels
flush to the wall panels, secure the wall panels to the
roof panels using two 2 ½” screws in each wall panel.
10

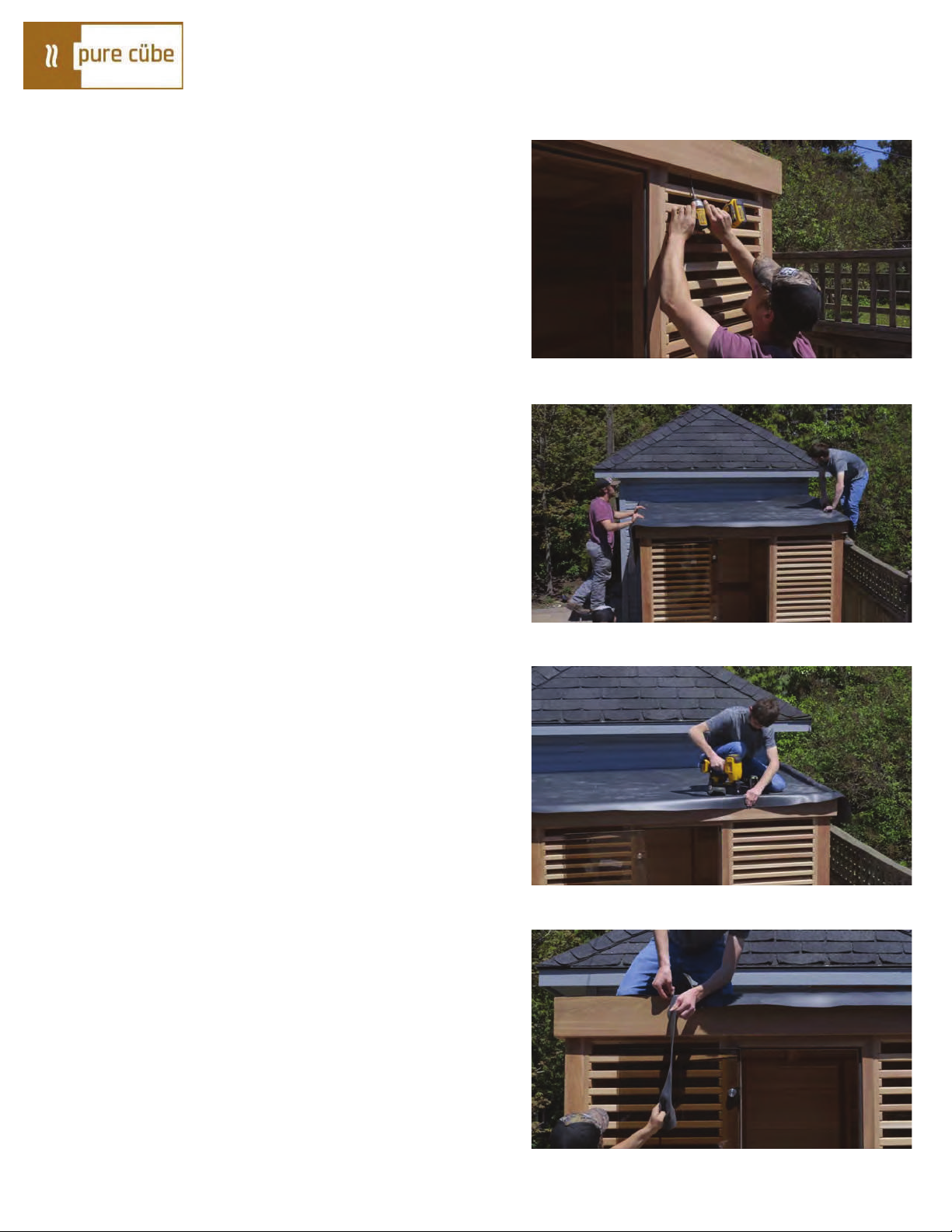

Lay out the EPMD Membrane over the roof panels.
.
Use a utility knife to cut the excess rubber close to the
edge of the front trim piece.
Repeat for both sides.
CU570 Pure Cube
Outdoor Sauna Assembly Instructions
Once the membrane is laid out evenly, tuck it along the
trim and staple it to the top of the fascia trim.
Continue to staple the membrane down on the 3 sides
that have the trim installed.

ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b

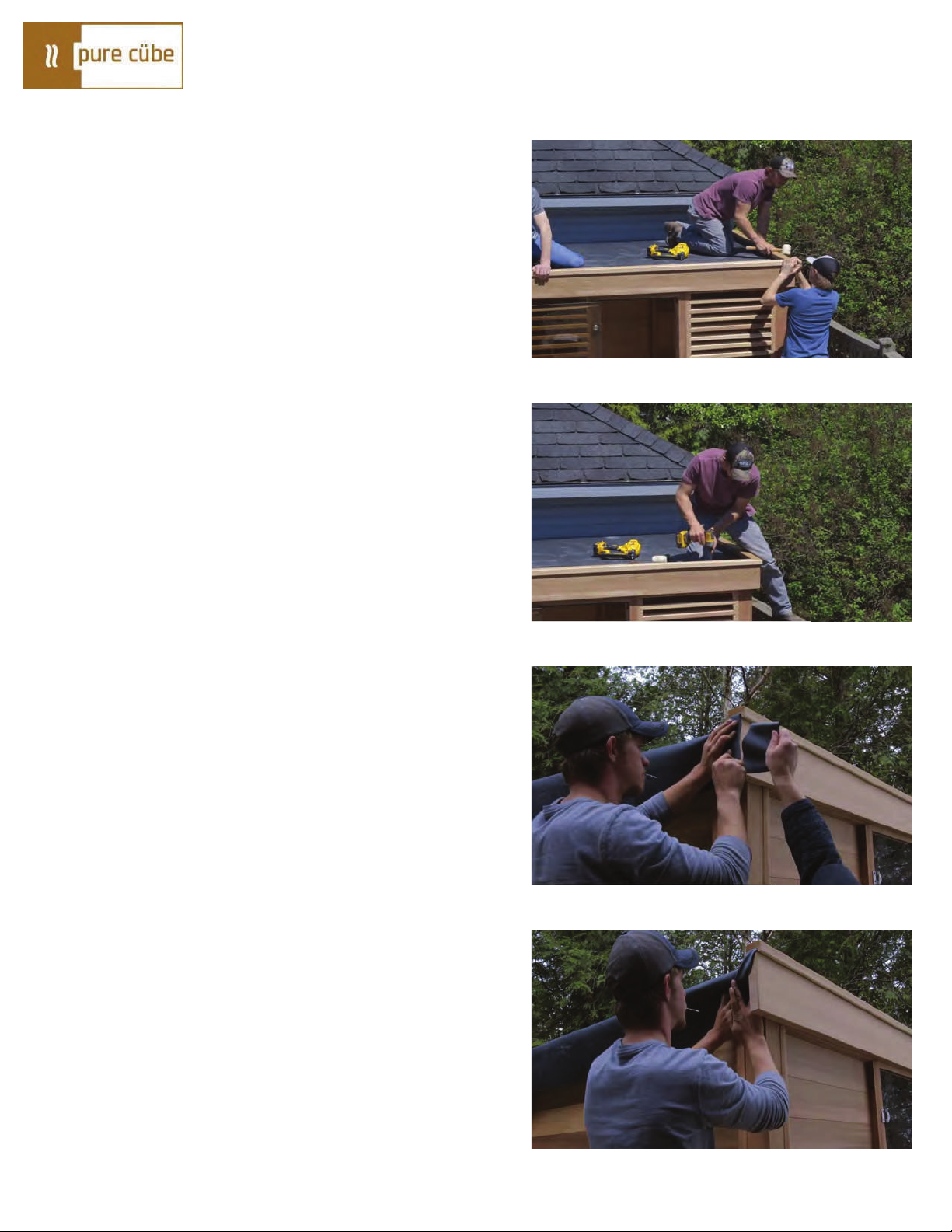

Place the roof caps snugly over the trim pieces.
11
Secure the roof caps using 1 ½” (38mm) screws.
.
Cut off just enough to tuck the membrane underneath
the roof panel.
If needed you can tack the membrane in place with a
finishing nail or screw.
CU570 Pure Cube
Outdoor Sauna Assembly Instructions
Use a utility knife to cut the excess rubber in the corners
of the back of the sauna.

ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
Place the back trim snug under the lip of the roof and
secure with a 2 ½” screw on each end.
12
Secure the back trim piece from the inside of the sauna
using the 2 ¾” (70mm) Connector Lag Bolts through the
pre drilled holes.
Ensure the outer handle lines up with the magnetic catch
on the door frame and then tighten the lag screws
completely.
CU570 Pure Cube
Outdoor Sauna Assembly Instructions
Install the door handle by placing the provided
2” (50mm) lag screws through the inner handle
(short)into the outer handle (longer)
Use the hex key to snug up, do not tighten all the way.

ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b

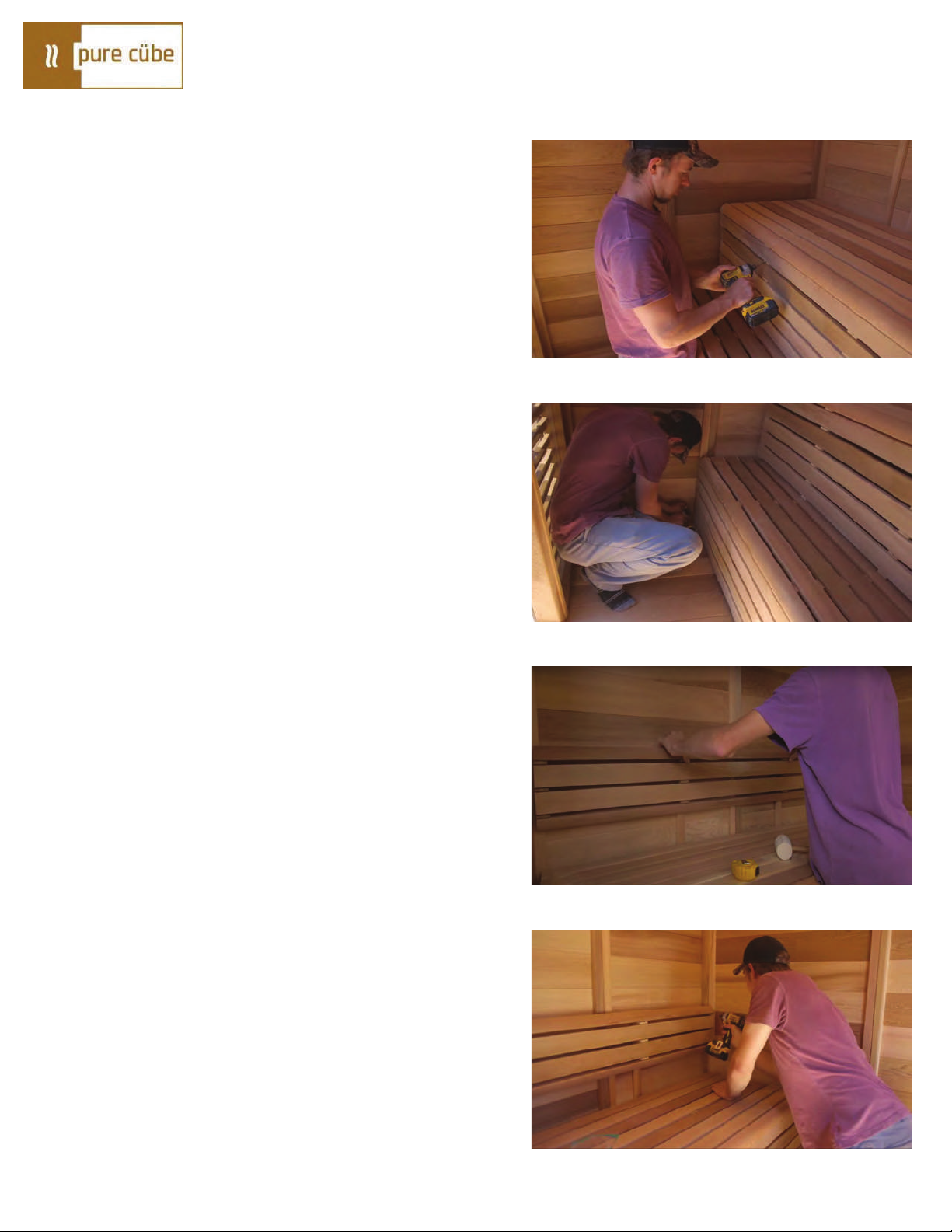

On the inside of the sauna, secure the wall panels to the
floor using two 2 ½” screws in each wall panel.
13
Continue securing all the wall panels to the floor.
Ensure the bench supports are tight to the side and back
walls, then secure the supports to the walls and floor
using 2 ½” (64mm) screws.
Repeat on other end.
Bring in 2 more bench brackets and place them centered
in between the outer brackets.
CU570 Pure Cube
Outdoor Sauna Assembly Instructions

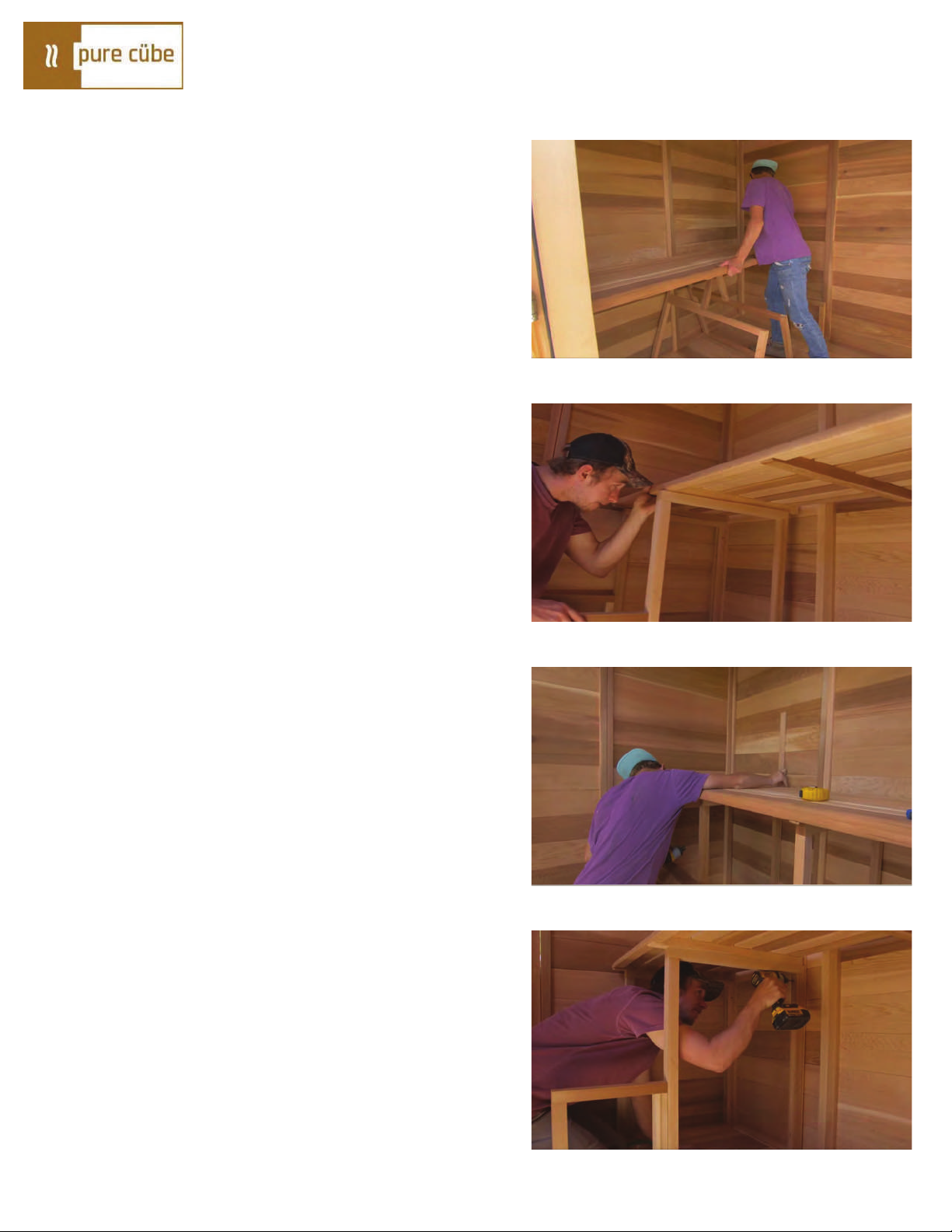

To start the assembly of the benches, bring in 2 of the
bench supports and place at both ends of the sauna.

ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
Place the top bench on top of the bench supports.
* This is the wider bench
14
Continue securing all the wall panels to the floor.
Ensure the backrest support is flush to the bench support
then secure the supports to the walls and floor using
2 ½” (64mm) screws.
Repeat for other bench support.
CU570 Pure Cube
Outdoor Sauna Assembly Instructions
Before securing bench support, line up the backrest
support flush to the bench support.

ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b

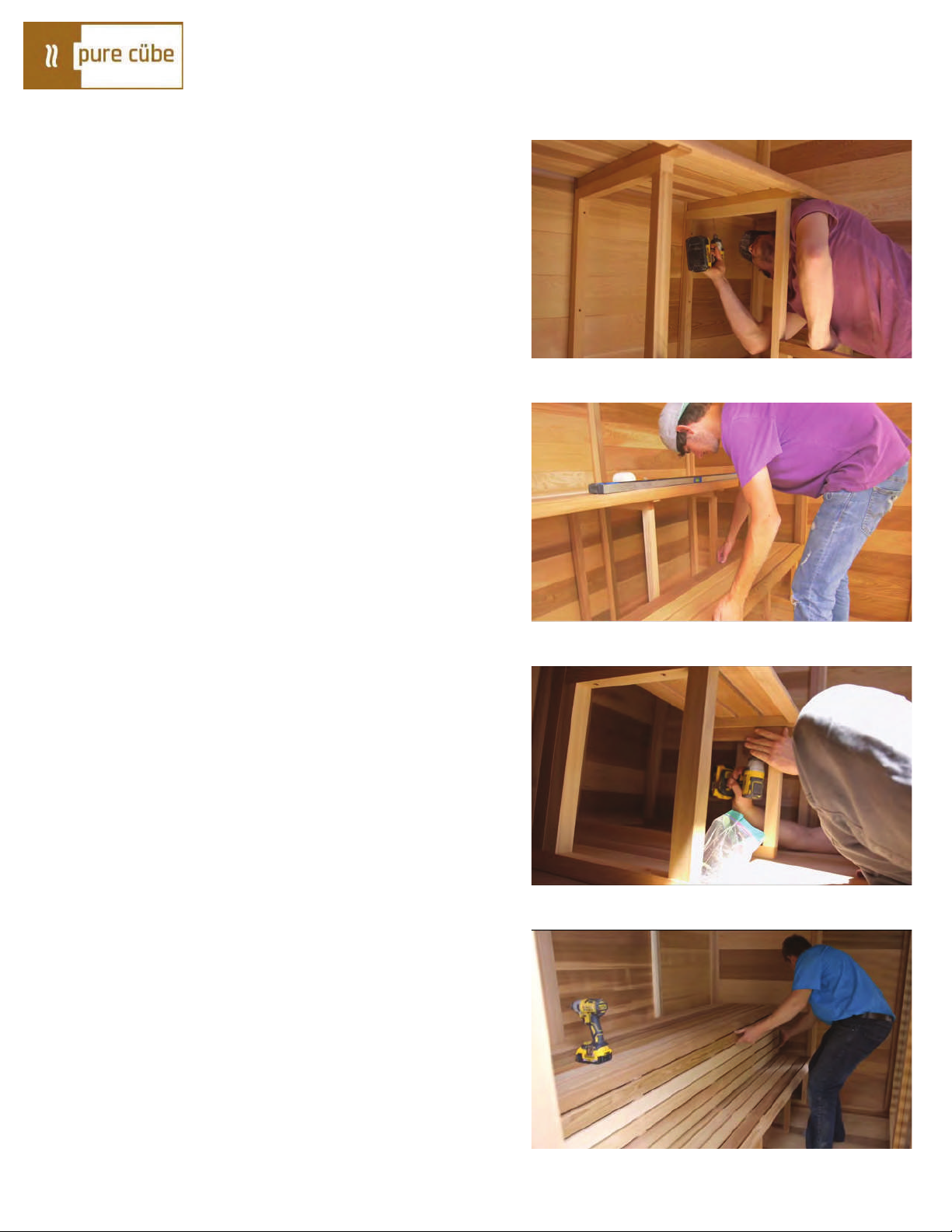

Secure the top bench to the bench supports from
underneath using 2 ½” screws.
15
Place the bottom bench on the lower bench support.
Place 1 of the bench enclosures in between the benches.
* You can use a rubber mallet to gently tap into place.
CU570 Pure Cube
Outdoor Sauna Assembly Instructions
Line up the bench to the supports and secure the bench
from underneath in the same manner.

ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
Secure the Front bench enclosure to the bench supports
between the slats using 2 ½” (64mm) screws.
16
Repeat for the lower front enclosure.
Ensure the backrest is level on the backrest supports and
secure the backrest by screwing it in between the slats
using 2 ¾” (64mm) screws.
CU570 Pure Cube
Outdoor Sauna Assembly Instructions
Bring in the backrest.

ph: 519-923-9813 | [email protected]om| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
Secure the wall trim pieces over the seams of the sauna
using staples or finishing nails.
17
Continue around sauna adding trim to all seams.
CU570 Pure Cube
Outdoor Sauna Assembly Instructions
Secure the 2 door trim pieces (narrow trim) over the
seams beside the door using staples or finishing nails.

Electric Heater Installation (Option)
ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com
Fig 2a
Fig 2b
18
Ensure the backrest is level on the backrest
supports and secure the backrest by screwing it in
between the slats using 2 ¾” (64mm) screws.
CU570 Pure Cube
Outdoor Sauna Assembly Instructions

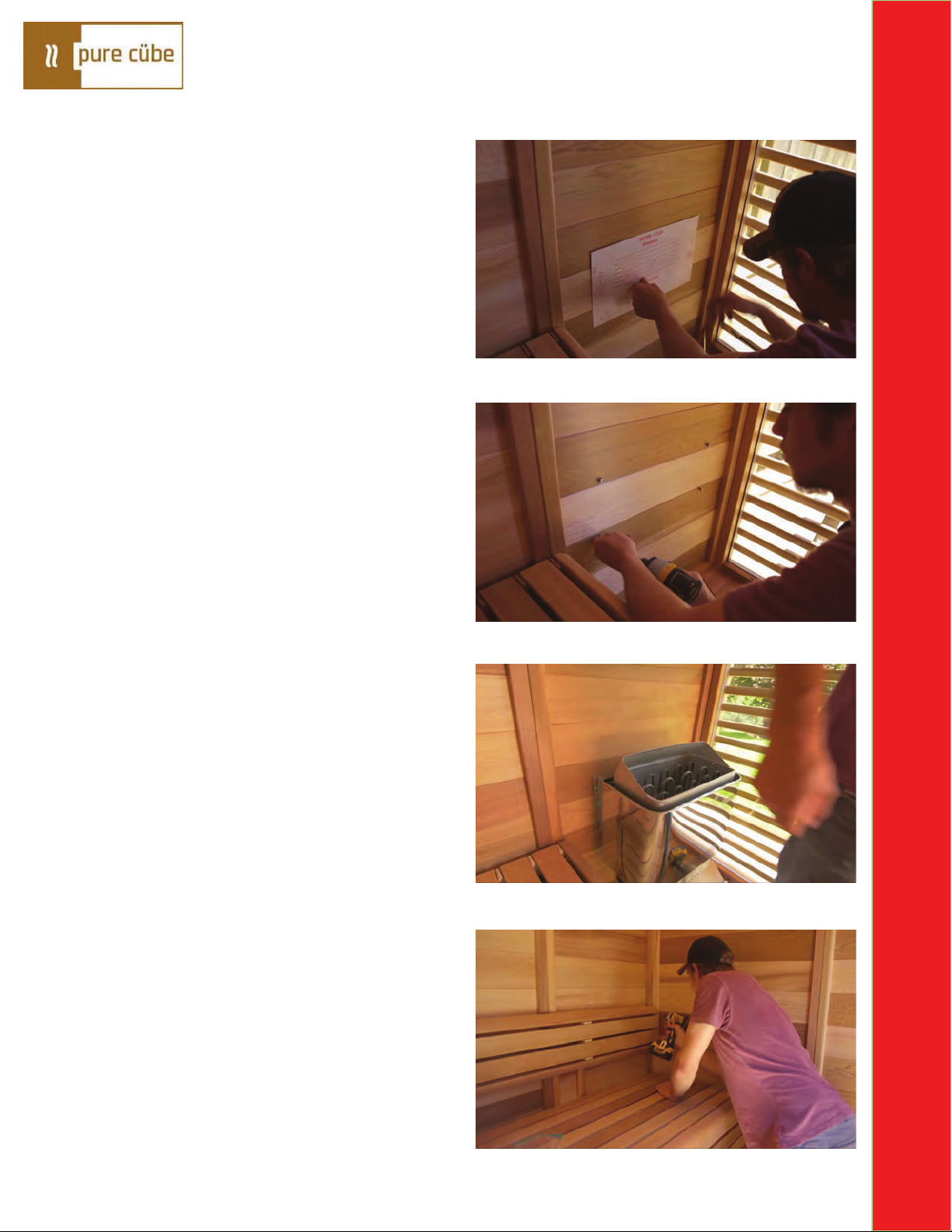

To install the electric heater, measure out where
the supports will go.
These are usually 14 ¾” (37cm) high and 14 ¾”
(37cm) centered between the bench and the front
wall.
Install the supplied support screws into your
marks as shown. Screw them in until they are
about
¼” (6mm) out of the wall.
Hang the electric heater on the screws, ensure the
heater is level, tighten up all 4 screws.
Place Rocks in heater as per heater instructions.

Electric Heater Installation (Option)
ph: 519-923-9813 | [e-mail]| web: www.dundalkleisurecraft.com

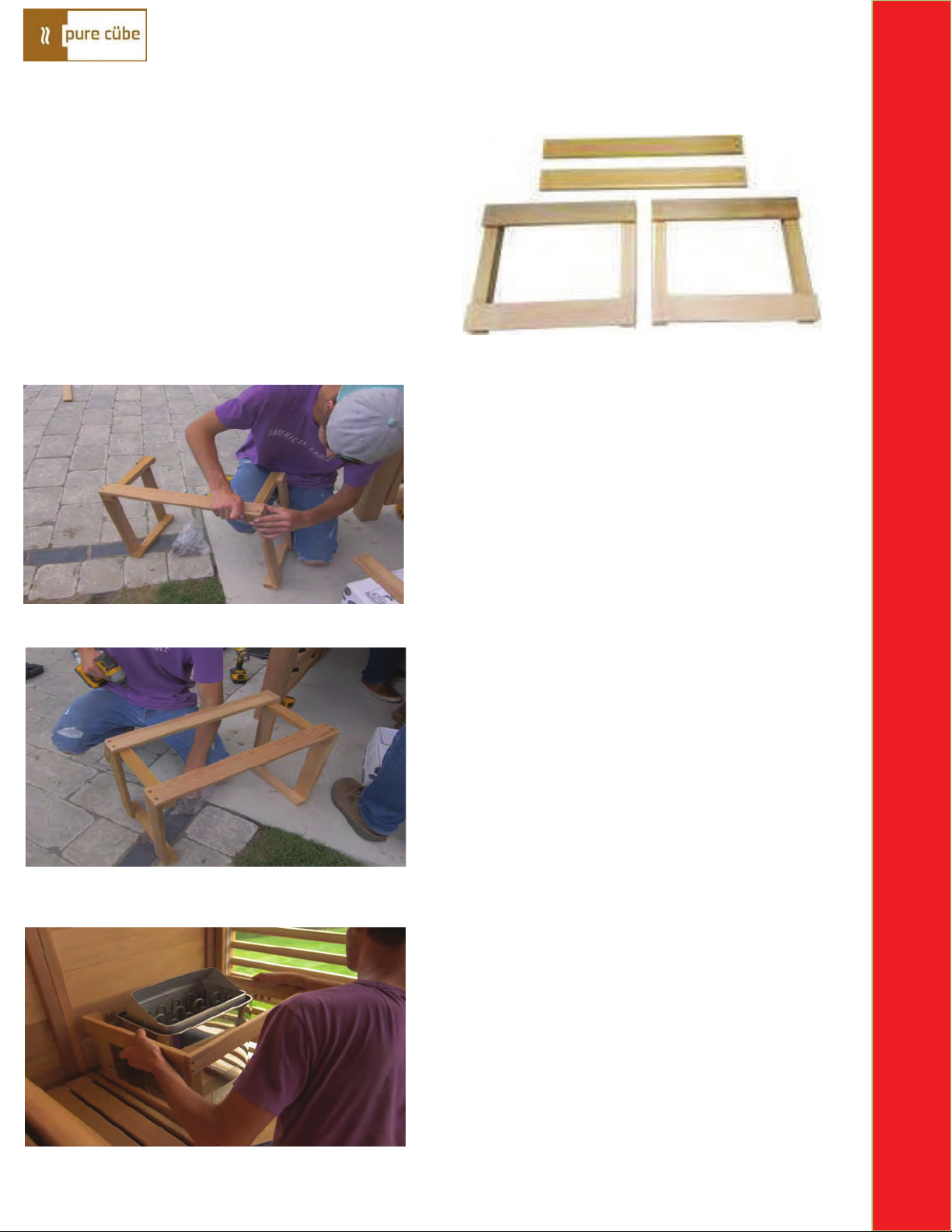

Locate the pieces for your heater guard.
They consist of the following:
(A) 2 - Assembled side pieces
(B) 2 - heater guard support
4 – 2 ½” (64mm) screws
8 – 1 ½” (38mm) screws
AA
B
B
Stand the 2 Assembled side pieces (A) of the
heater guard on edge with pre-drilled holes on
the bottom.
Screw heater guard support (B) to either side
using (2) – 1 ½” (38mm) screws per side.
Assemble remaining heater guard support (B) to
the 2 ends in the same manner as previous step.
Place assembled heater guard around electric
heater and screw to wall using (4) 2 ½” (64mm)
screws.
*Make sure heater guard is level before securing.
19
CU570 Pure Cube
Outdoor Sauna Assembly Instructions
